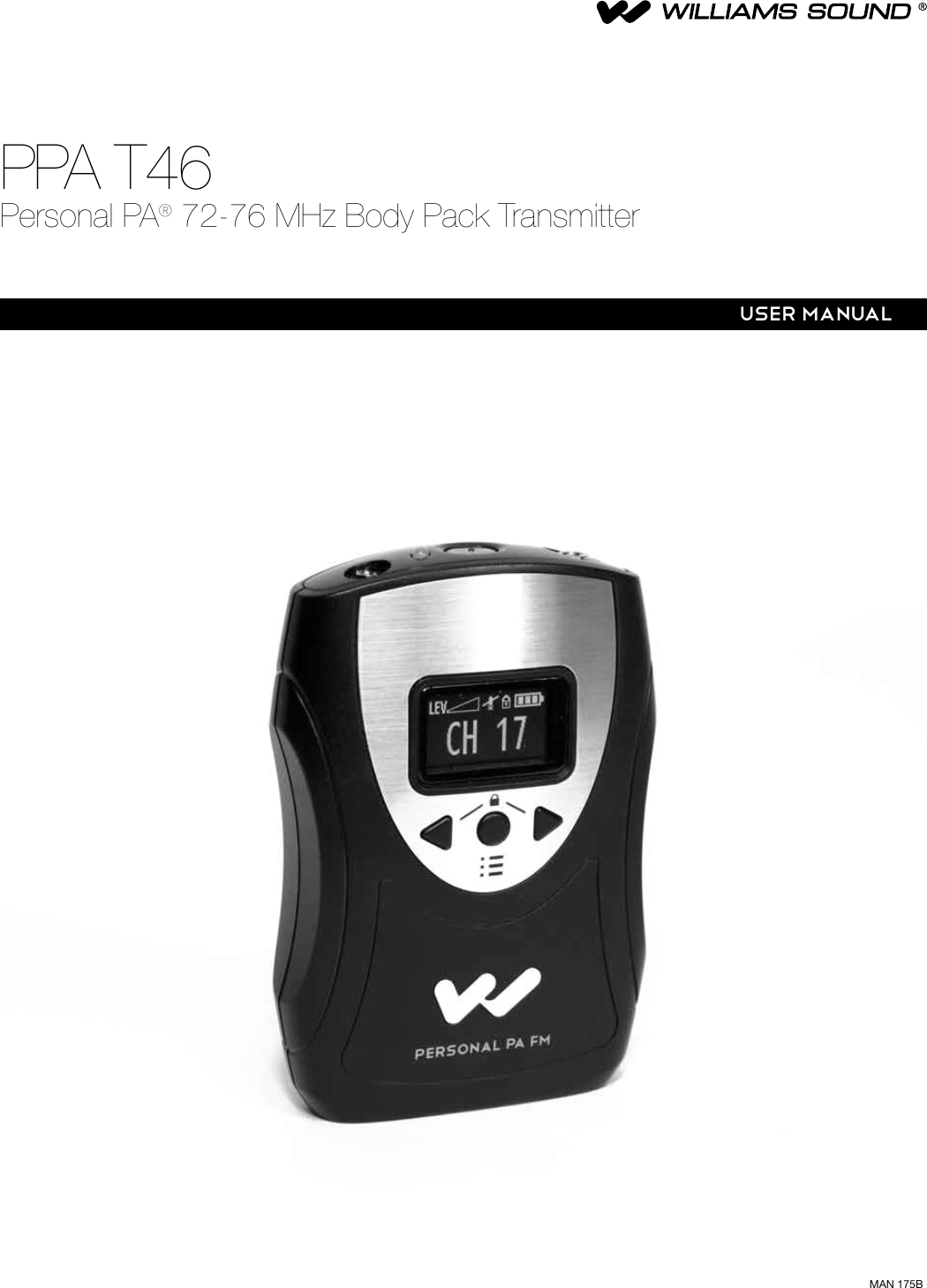

PPA T46 Personal PA® 72-76 MHz Body Pack TransmitterUSER ManualMAN 175B
2PPA T46 72-76 MHz TransmitterSafety WarningsRecycling Instructions PPA T46 Included Parts Transmitter Applications Important Note about OLED CareSystem OverviewFeaturesQuick Setup Basic Setup Advanced SetupDual-Preset Mode Specications TroubleshootingLimited Warranty

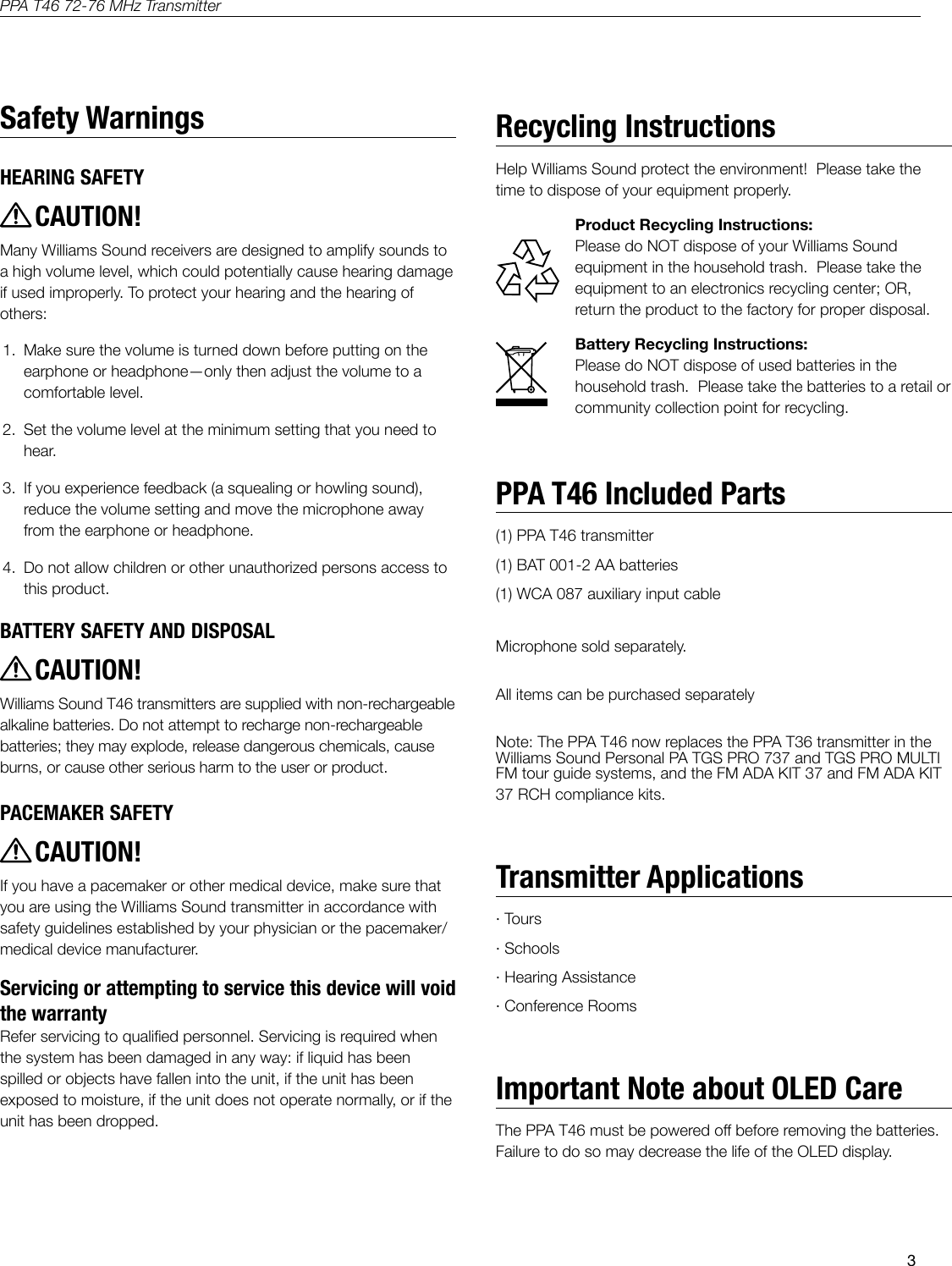

3PPA T46 72-76 MHz Transmitter    Product Recycling Instructions:Battery Recycling Instructions:

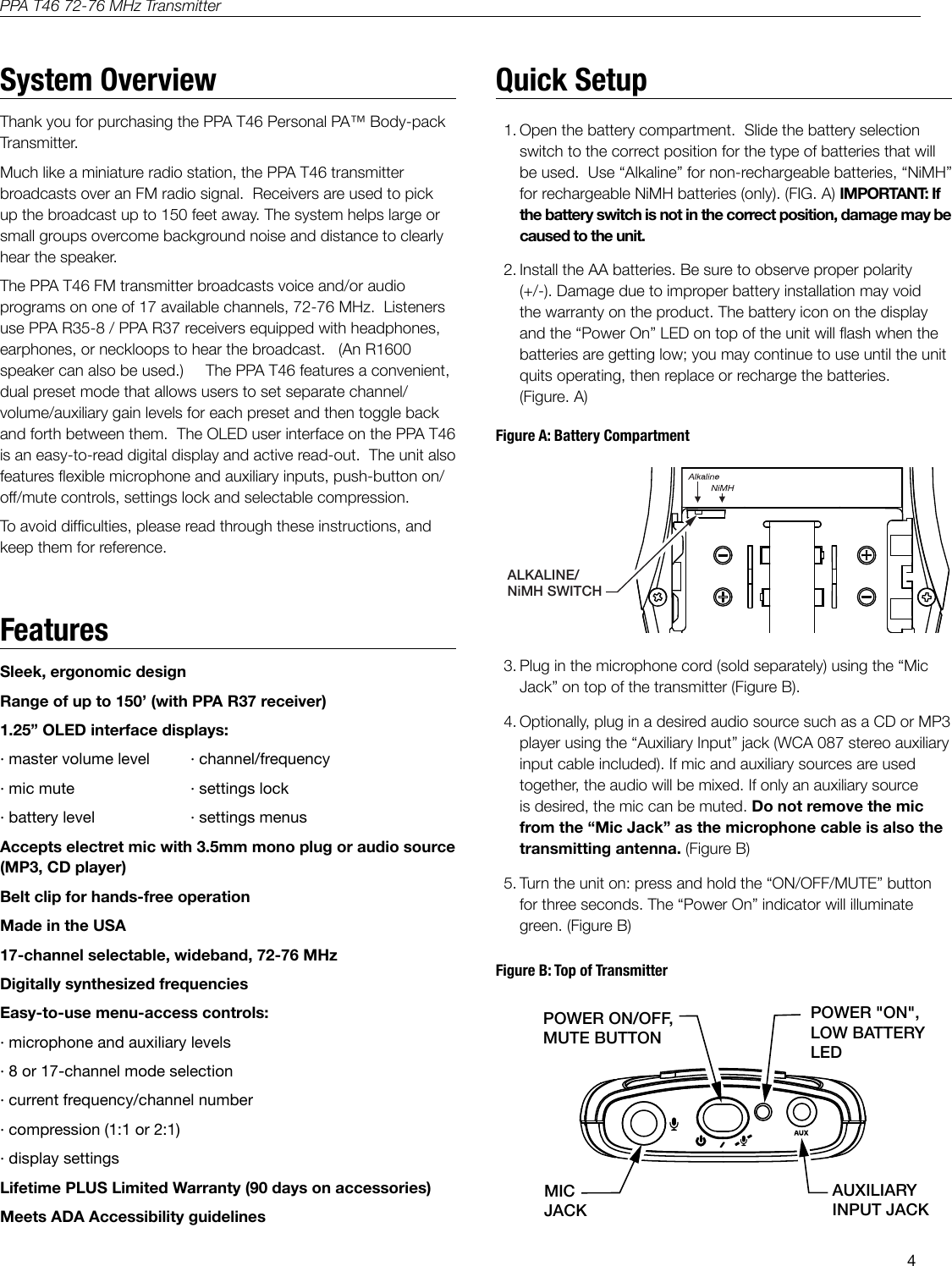

4PPA T46 72-76 MHz TransmitterSleek, ergonomic designRange of up to 150’ (with PPA R37 receiver)1.25” OLED interface displays:· master volume level  · channel/frequency· mic mute     · settings lock· battery level    · settings menusAccepts electret mic with 3.5mm mono plug or audio source (MP3, CD player) Belt clip for hands-free operationMade in the USA17-channel selectable, wideband, 72-76 MHzDigitally synthesized frequenciesEasy-to-use menu-access controls:· microphone and auxiliary levels· 8 or 17-channel mode selection· current frequency/channel number· compression (1:1 or 2:1)· display settingsLifetime PLUS Limited Warranty (90 days on accessories)Meets ADA Accessibility guidelines   A311ALKALINE/NiMH SWITCHIMPORTANT: If the battery switch is not in the correct position, damage may be caused to the unit.Do not remove the mic from the “Mic Jack” as the microphone cable is also the transmitting antenna.T46 TOPPOWER ON/OFF,MUTE BUTTONAUXILIARY INPUT JACKMIC JACKPOWER "ON",LOW BATTERY LEDA310

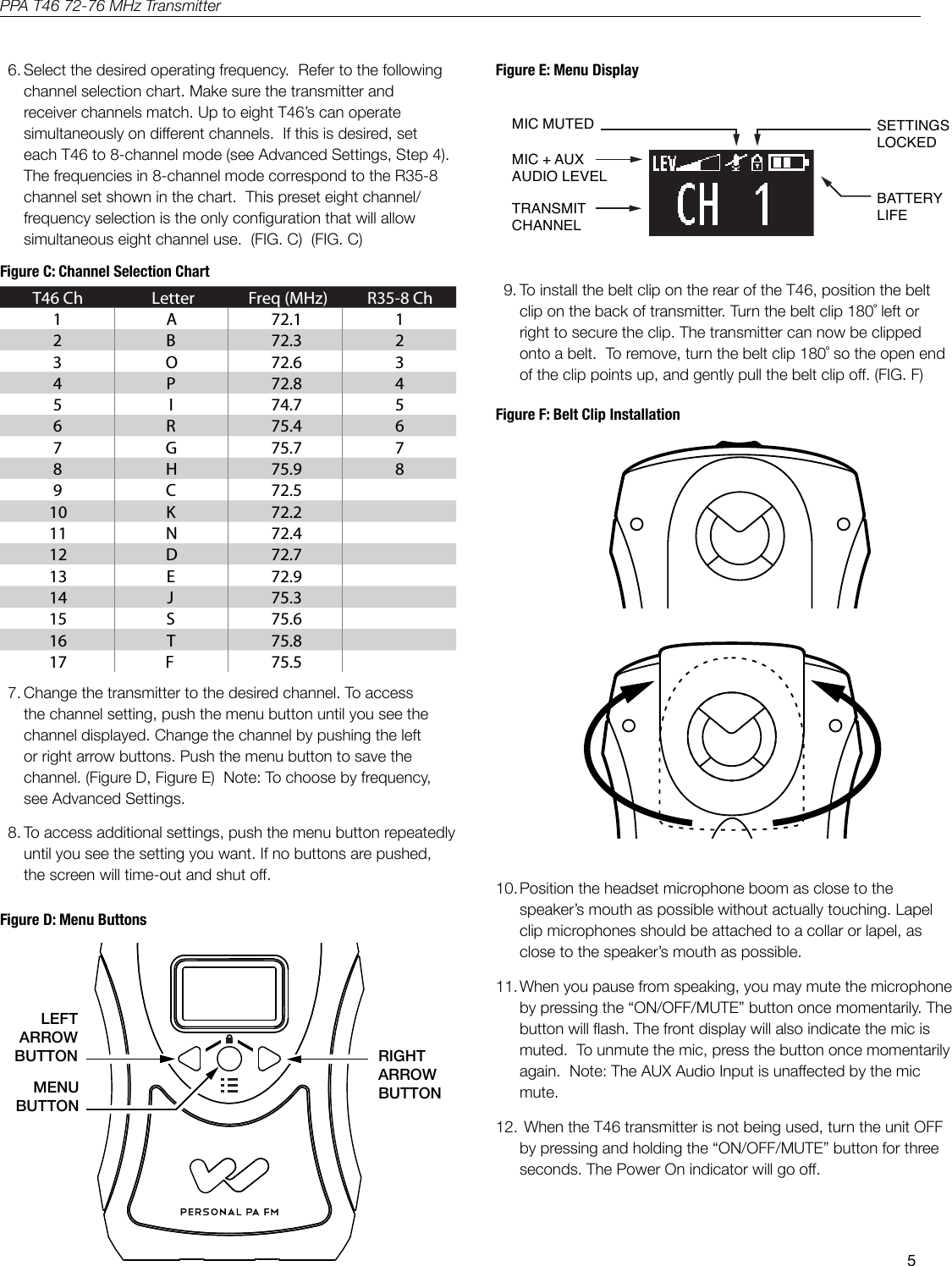

5PPA T46 72-76 MHz TransmitterT46 FRONTLEFTARROWBUTTON RIGHTARROW BUTTONMENUBUTTONA309A312MIC + AUX AUDIO LEVELMIC MUTED SETTINGS LOCKEDTRANSMIT CHANNELBATTERY LIFEA119A119T46 Ch Letter Freq (MHz) R35-8 Ch1 A 72.1 12 B 72.3 23 O 72.6 34 P 72.8 45 I 74.7 56 R 75.4 67 G 75.7 78 H 75.9 89 C 72.510 K 72.211 N 72.412 D 72.713 E 72.914 J 75.315 S 75.616 T 75.817 F 75.5A376

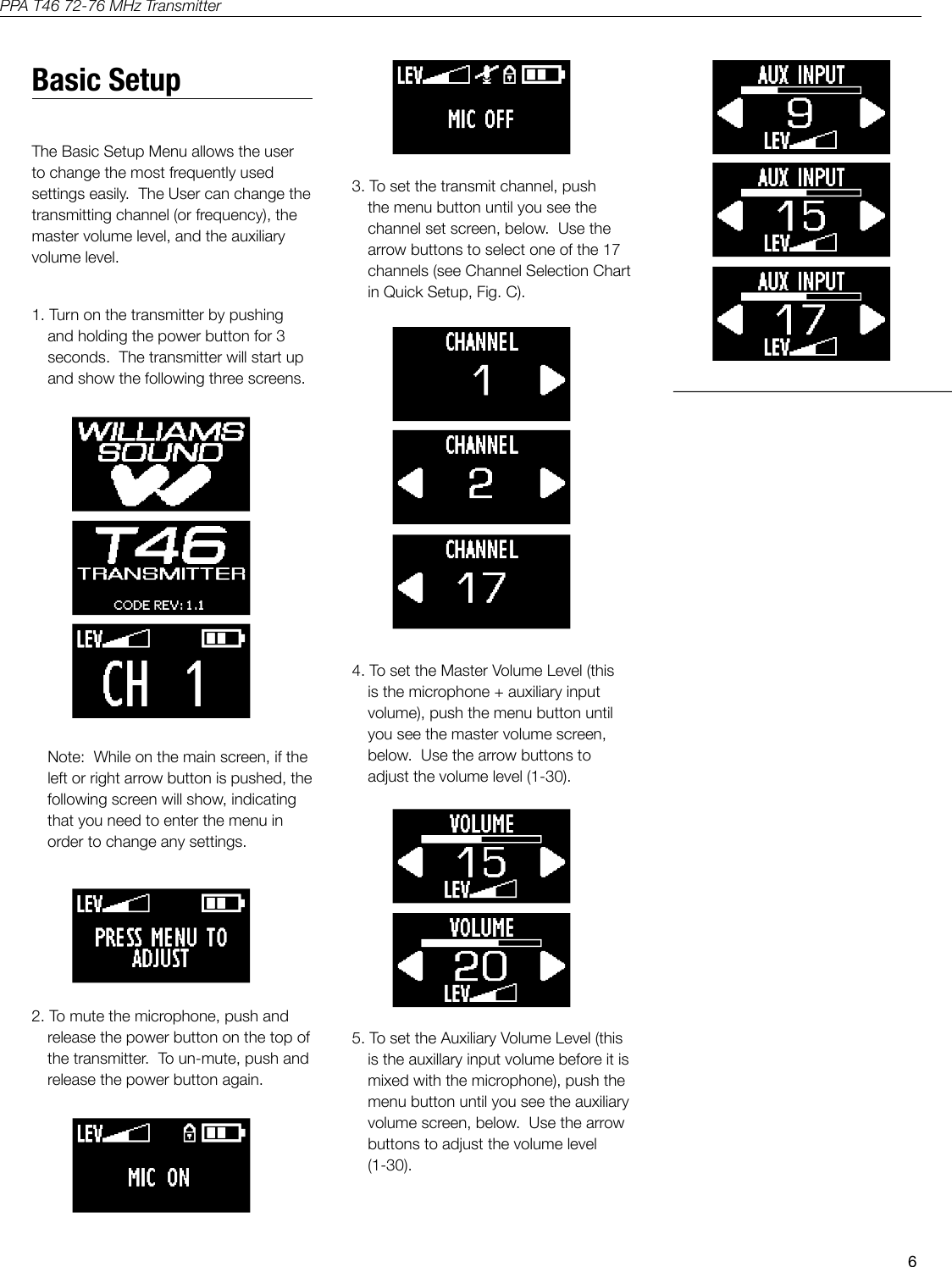

6PPA T46 72-76 MHz Transmitter

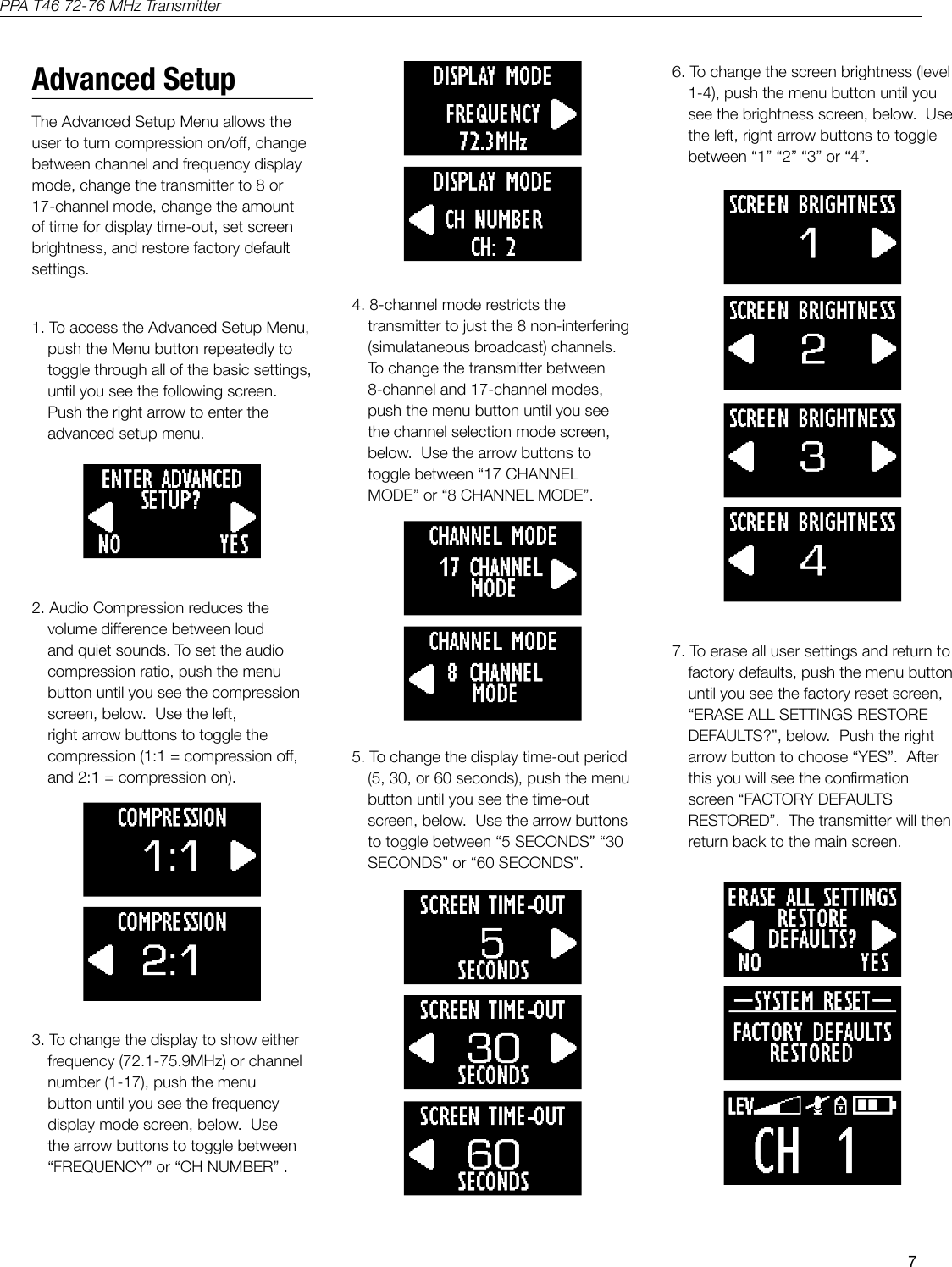

7PPA T46 72-76 MHz Transmitter

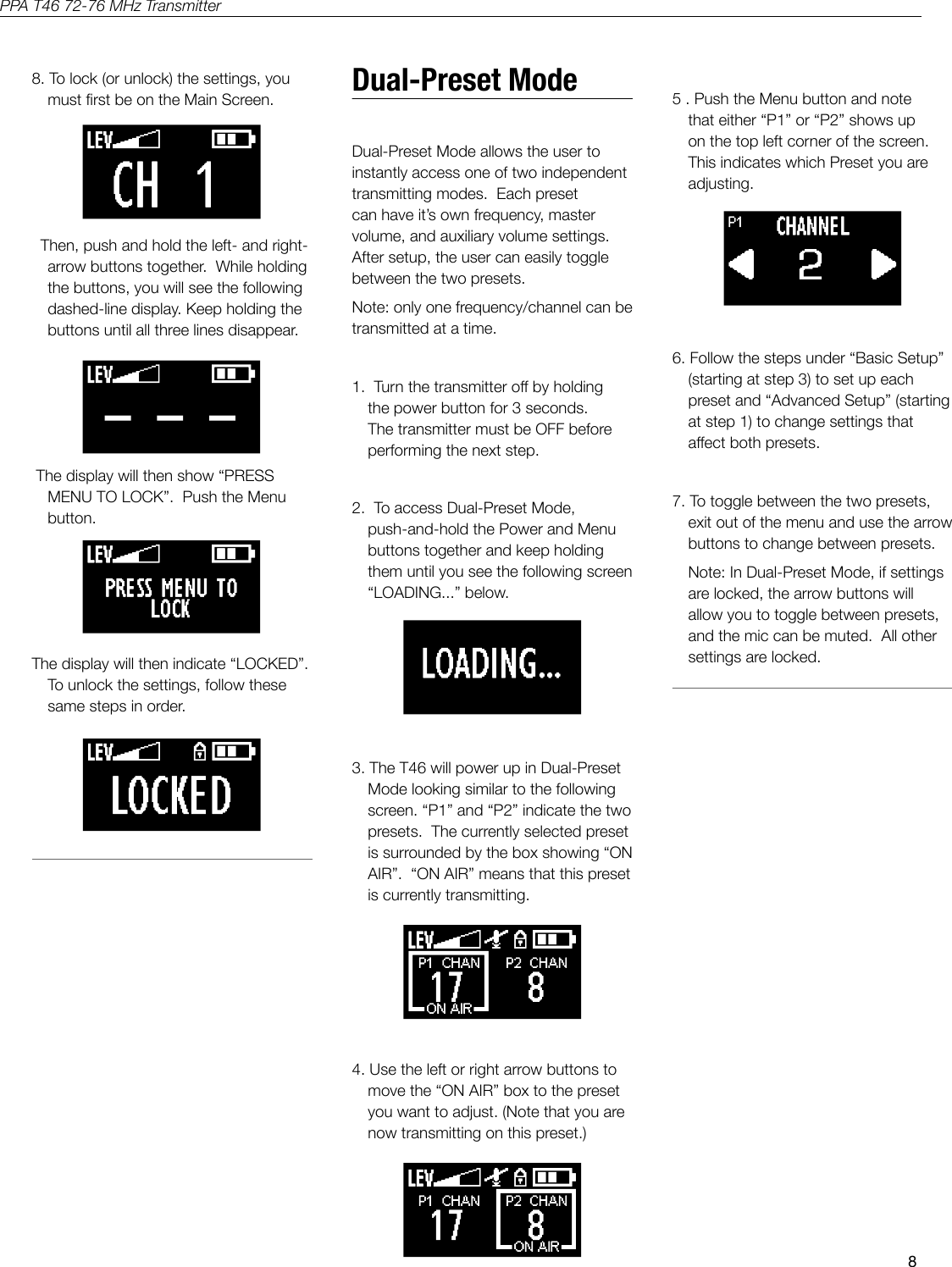

8PPA T46 72-76 MHz Transmitter 

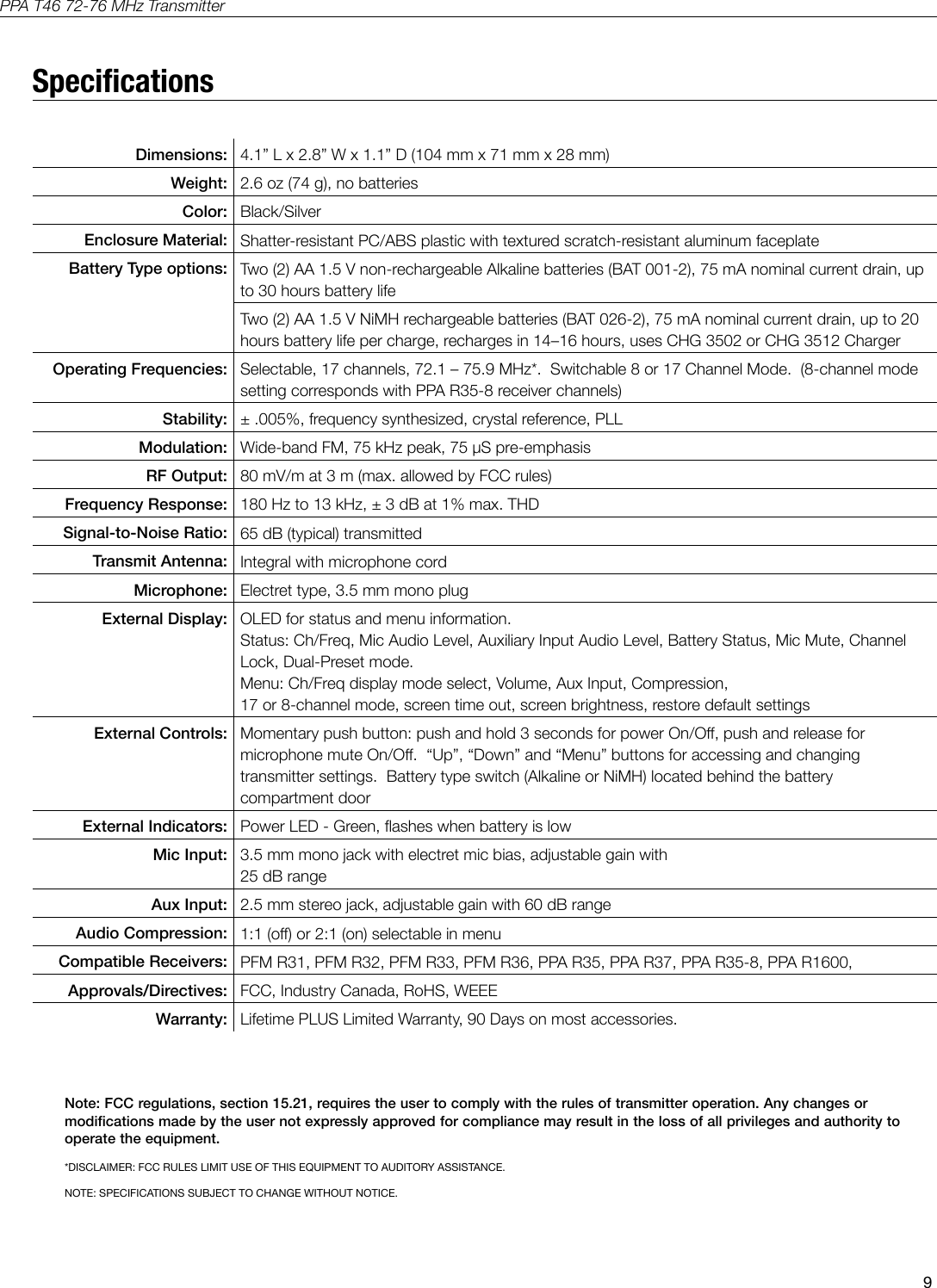

9PPA T46 72-76 MHz TransmitterDimensions: Weight: Color: Enclosure Material: Battery Type options: Operating Frequencies: Stability: Modulation: RF Output: Frequency Response: Signal-to-Noise Ratio:  Transmit Antenna: Microphone: External Display: External Controls: External Indicators: Mic Input: Aux Input: Audio Compression: Compatible Receivers: Approvals/Directives: Warranty: Note: FCC regulations, section 15.21, requires the user to comply with the rules of transmitter operation. Any changes or modications made by the user not expressly approved for compliance may result in the loss of all privileges and authority to operate the equipment.*DISCLAIMER: FCC RULES LIMIT USE OF THIS EQUIPMENT TO AUDITORY ASSISTANCE.NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

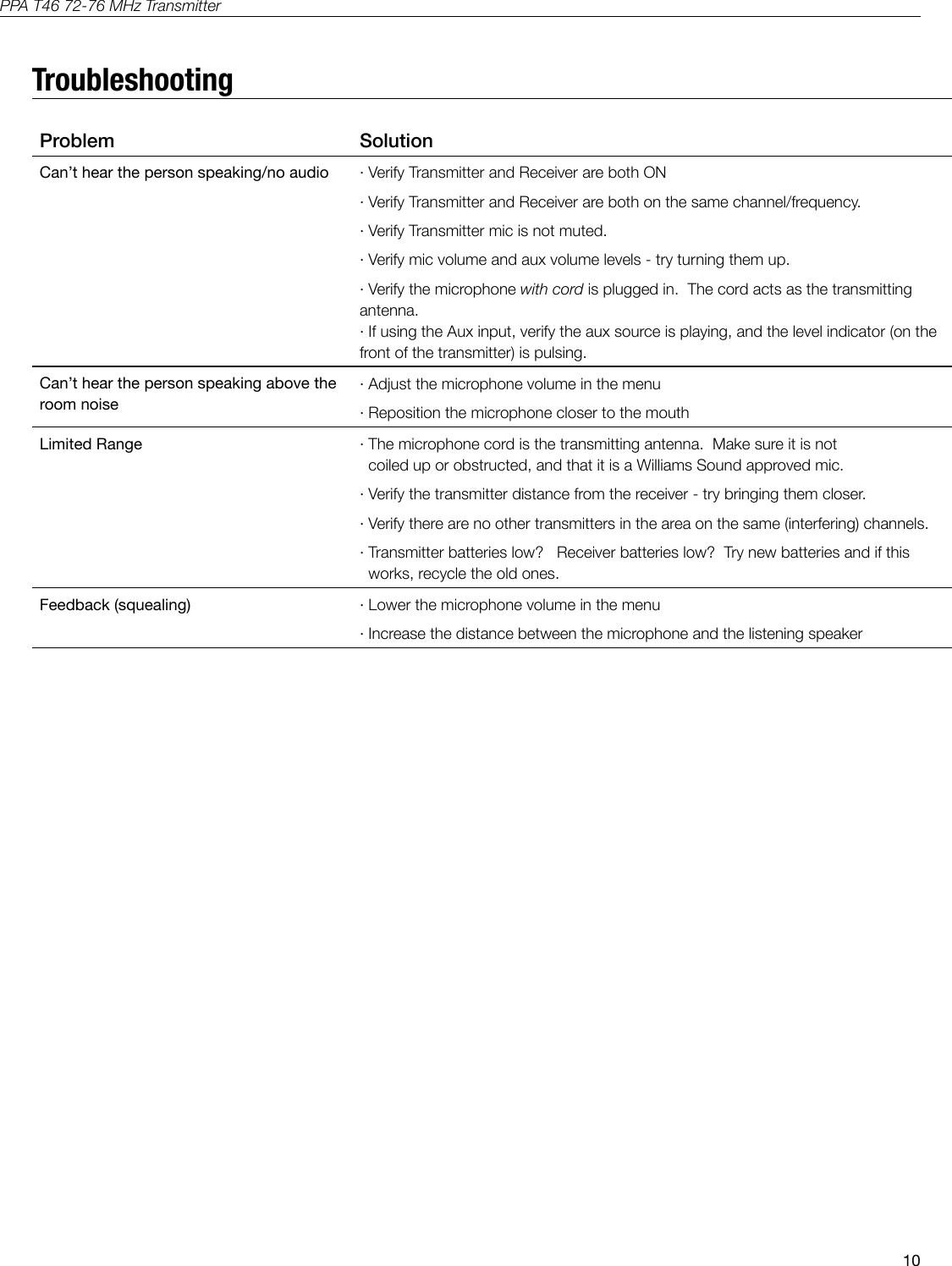

10PPA T46 72-76 MHz TransmitterProblem SolutionCan’t hear the person speaking/no audio with cordCan’t hear the person speaking above the room noiseLimited Range Feedback (squealing) 
11PPA T46 72-76 MHz Transmitter
 
