Williams Sound T46A Battery operated auditory assistance transmitter User Manual

Williams Sound, LLC Battery operated auditory assistance transmitter

User Manual

PPA T46
Personal PA® 72-76 MHz Body Pack Transmitter
USER Manual
MAN 175B
2
PPA T46 72-76 MHz Transmitter

Safety Warnings



Recycling Instructions
PPA T46 Included Parts
Transmitter Applications
Important Note about OLED Care
System Overview
Features
Quick Setup






Basic Setup
Advanced Setup
Dual-Preset Mode
Specications
Troubleshooting
Limited Warranty

3
PPA T46 72-76 MHz Transmitter







 


 

 


 























Product Recycling Instructions:




Battery Recycling Instructions:





















4
PPA T46 72-76 MHz Transmitter






















Sleek, ergonomic design
Range of up to 150’ (with PPA R37 receiver)
1.25” OLED interface displays:
· master volume level · channel/frequency
· mic mute · settings lock
· battery level · settings menus
Accepts electret mic with 3.5mm mono plug or audio source
(MP3, CD player)
Belt clip for hands-free operation
Made in the USA
17-channel selectable, wideband, 72-76 MHz
Digitally synthesized frequencies
Easy-to-use menu-access controls:
· microphone and auxiliary levels
· 8 or 17-channel mode selection
· current frequency/channel number
· compression (1:1 or 2:1)
· display settings
Lifetime PLUS Limited Warranty (90 days on accessories)
Meets ADA Accessibility guidelines
A311
ALKALINE/
NiMH SWITCH





IMPORTANT: If
the battery switch is not in the correct position, damage may be
caused to the unit.













Do not remove the mic
from the “Mic Jack” as the microphone cable is also the
transmitting antenna.



T46 TOP
POWER ON/OFF,
MUTE BUTTON
AUXILIARY
INPUT JACK
MIC
JACK
POWER "ON",
LOW BATTERY
LED
A310

5

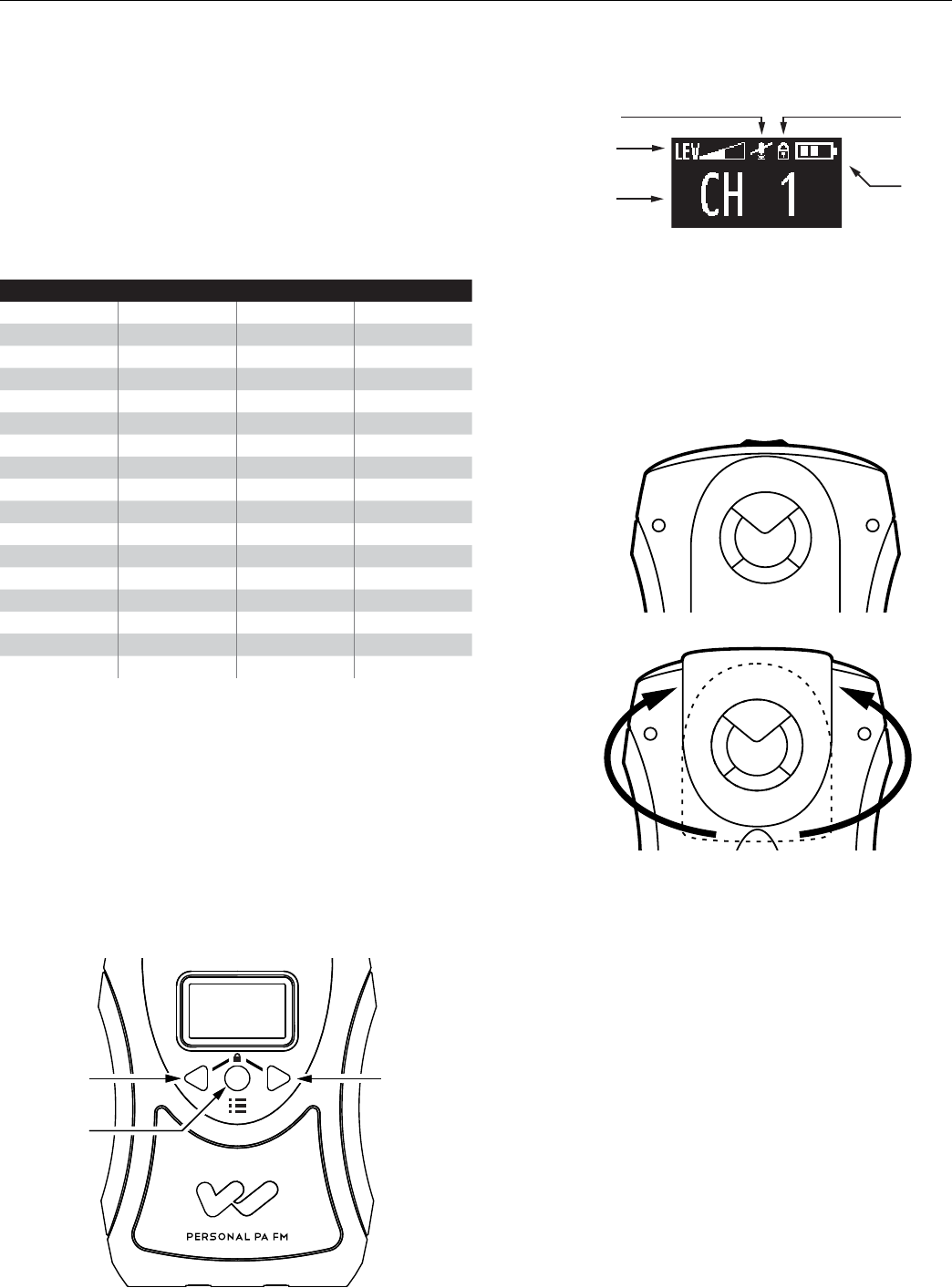

PPA T46 72-76 MHz Transmitter










T46 FRONT
LEFT
ARROW
BUTTON RIGHT
ARROW
BUTTON
MENU
BUTTON
A309










A312
MIC + AUX
AUDIO LEVEL
MIC MUTED SETTINGS
LOCKED
TRANSMIT
CHANNEL
BATTERY
LIFE






A119
A119














T46 Ch Letter Freq (MHz) R35-8 Ch
1 A 72.1 1
2 B 72.3 2
3 O 72.6 3
4 P 72.8 4
5 I 74.7 5
6 R 75.4 6
7 G 75.7 7
8 H 75.9 8
9 C 72.5
10 K 72.2
11 N 72.4
12 D 72.7
13 E 72.9
14 J 75.3
15 S 75.6
16 T 75.8
17 F 75.5

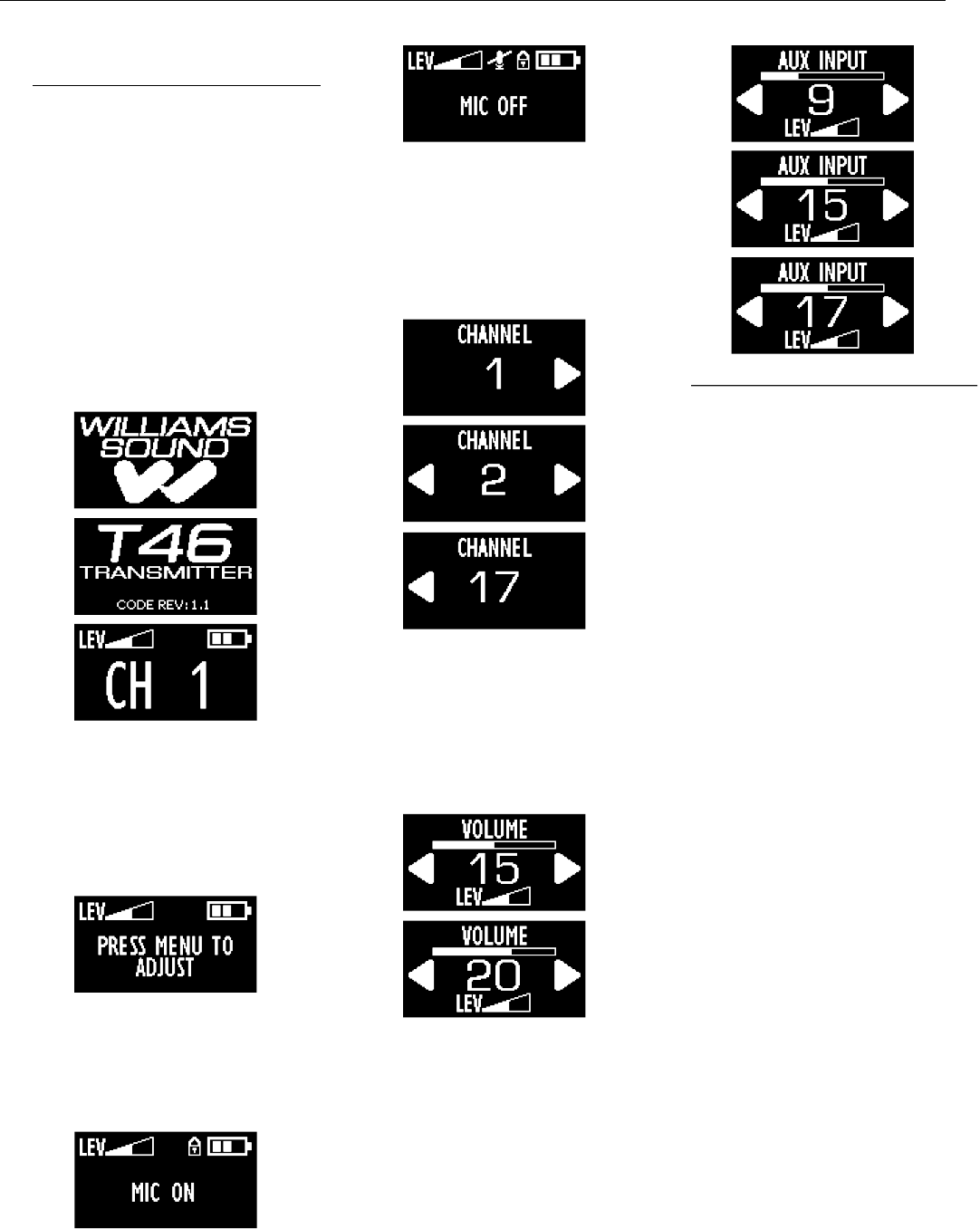

6
PPA T46 72-76 MHz Transmitter









































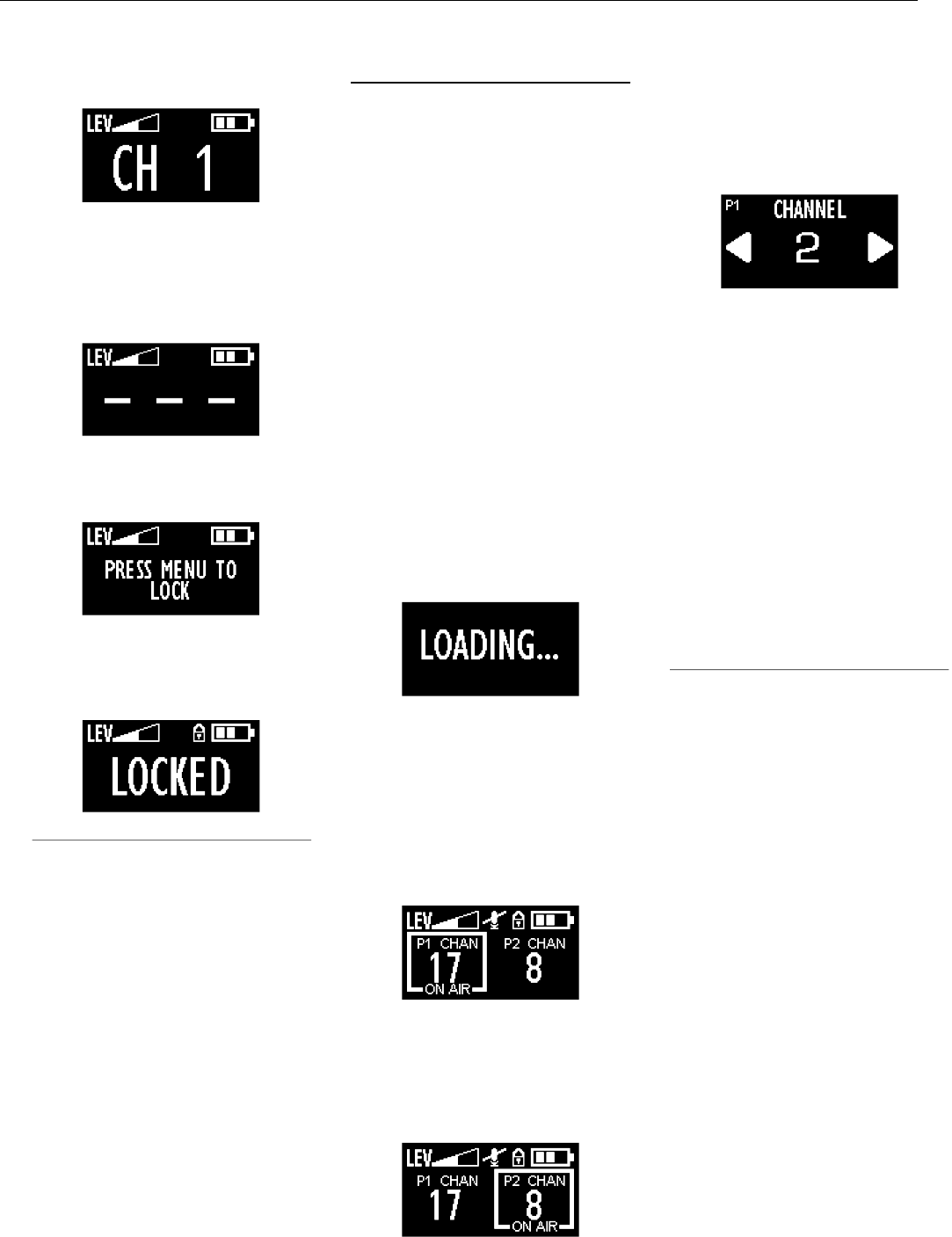

7
PPA T46 72-76 MHz Transmitter































































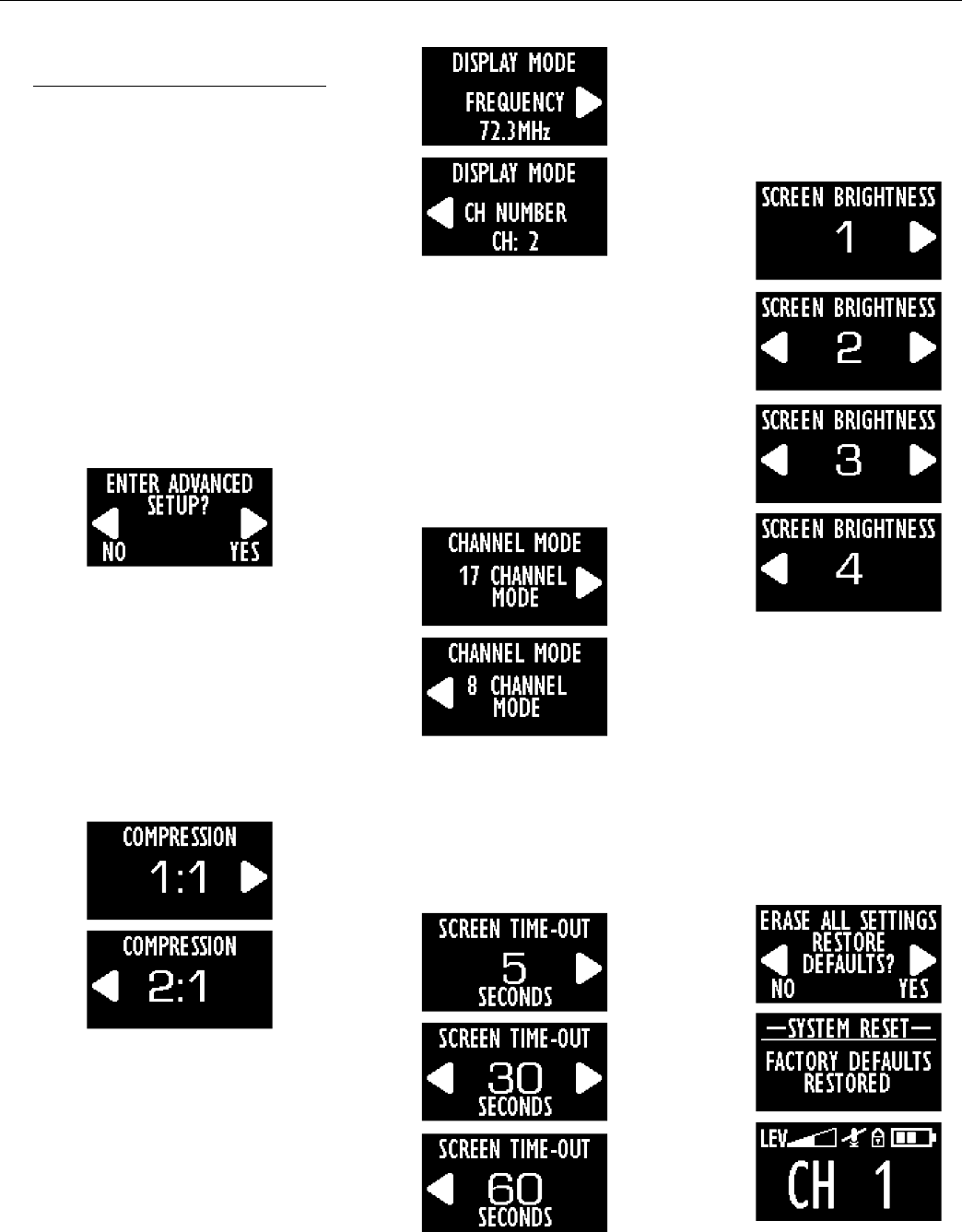

8
PPA T46 72-76 MHz Transmitter











































 

















9
PPA T46 72-76 MHz Transmitter
Dimensions: 
Weight: 
Color: 
Enclosure Material: 
Battery Type options: 



Operating Frequencies: 

Stability: 
Modulation: 
RF Output: 
Frequency Response: 
Signal-to-Noise Ratio: 
Transmit Antenna: 
Microphone: 
External Display: 




External Controls: 



External Indicators: 
Mic Input: 

Aux Input: 
Audio Compression: 
Compatible Receivers: 
Approvals/Directives: 
Warranty: 

Note: FCC regulations, section 15.21, requires the user to comply with the rules of transmitter operation. Any changes or
modications made by the user not expressly approved for compliance may result in the loss of all privileges and authority to
operate the equipment.
*DISCLAIMER: FCC RULES LIMIT USE OF THIS EQUIPMENT TO AUDITORY ASSISTANCE.
NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
10
PPA T46 72-76 MHz Transmitter

Problem Solution
Can’t hear the person speaking/no audio 



with cord



Can’t hear the person speaking above the
room noise


Limited Range 





Feedback (squealing) 

