Contents

SOHO INSTALLATION GUIDE

Amplifier
Amplifier
Installation
G
u
ide
stallatio
stallat
SOHO Wireless
Dual-Band
Cellular / PCS
Amplifi er
Contents:
Guarantee and Warranty · · · · · · · · · · · · · · · · · · · · · · · · 1
Antenna Options · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2
How It Works · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 3
Before Getting Started · · · · · · · · · · · · · · · · · · · · · · · · · · 3
Installation Overview · · · · · · · · · · · · · · · · · · · · · · · · · · · 3
Installing the Outside Antenna · · · · · · · · · · · · · · · · · · · 4
Installing the Inside Antenna · · · · · · · · · · · · · · · · · 5
Installing the Amplifi er · · · · · · · · · · · · · · · · · · · · · · · · · · 6
Powering up a Wilson Amplifi er · · · · · · · · · · · · · · · · · · · 7
Understanding the Amplifi er Lights · · · · · · · · · · · · · · · · · 8
Warnings and Recommendations · · · · · · · · · · · · · · · · · · 9
About Wilson Electronics · · · · · · · · · · · · · · · · · · · · · · · · 10
Amplifi er Specifi cations · · · · · · · · · · · · · · · · · · Back Cover
Wilson
®
Electronics, Inc.
Warning: This manual contains
important safety and operating information.
Please read and follow the instructions
in this manual. Failure to do so could be
hazardous and result in damage to your
amplifi er.
!
1
30-Day Money-Back Guarantee
All Wilson Electronics products are protected by Wilson’s 30-day money-back
guarantee. If for any reason the performance of any product is not acceptable,
simply return the product directly to the reseller with a dated proof of purchase.
1-Year Warranty
Wilson Electronics amplifi ers are warranted for one (1) year against defects in
workmanship and / or materials. Warranty cases may be resolved by returning the
product directly to the reseller with a dated proof of purchase.
Amplifi ers may also be returned directly to the manufacturer at the consumer’s
expense, with a dated proof of purchase and a Returned Material Authorization
(RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either
repair or replace the product. Wilson Electronics will pay for delivery of the repaired
or replaced product back to the original consumer.
This warranty does not apply to any amplifi ers determined by Wilson Electronics
to have been subjected to misuse, abuse, neglect, or mishandling that alters or
damages physical or electronic properties.
RMA numbers may be obtained by phoning Technical Support at 866-294-1660.
Operation is subject to the following two conditions: (1) This device may not cause
interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of this device.
Disclaimer: The information provided by Wilson Electronics, Inc. is believed to
be complete and accurate. However, no responsibility is assumed by Wilson
Electronics, Inc. for any business or personal losses arising from its use, or for
any infringements of patents or other rights of third parties that may result from
its use.
Copyright © 2007 Wilson Electronics, Inc. All rights reserved.
2
Installation Instructions for the Following Wilson Amplifi ers:
SOHO Wireless Dual-Band Cellular/PCS Amplifi er
Model # 271201, Part # 803245
FCC ID: PWO271201SA IC: 4726A-271201SA
The term “IC” before the radio certifi cation number only signifi es that Industry Canada
technical specifi cations were met.
Model # 271201, Part # 803245
Inside this Package
• SOHO wireless amplifi er
• AC 120 volt power supply
Additional Required Equipment (sold separately)
• Outside antenna
• Inside antenna
• Antenna coax cable
A 13 dB 800 MHz Yagi Cellular Antenna (301111)
B 1900 MHz Yagi PCS Antenna (301124)
C 800 MHz Yagi Cellular Antenna (301129)
D Dual-Band Panel Antenna (301135)
E Dual-Polarity Dome Antenna (301123)
F Dual-Band Dome Antenna (301121)
G Low Profi le Cellular Antenna (301106)
H Mini Magnet-Mount Antenna (301103)
I Magnet-Mount Antenna (301113)
J Dual-Band Trucker Antenna (301101)
Antenna Options
A
B
C
DE
FG
HJ
120 V AC plug-in
power supply
SOHO wireless
amplifi er
I
(outside)
(outside)
(outside)
(inside or outside)
(inside) (inside)
(inside) (inside)
This Amplifi er is Authorized for use with any of the illustrated antennas.
3
How it Works
Your new Wilson SOHO Wireless Dual-Band Amplifi er has been carefully engineered to
enhance the performance of your cell phone or cellular data card in small offi ce/home
offi ce applications. Its advanced technology is designed to signifi cantly improve voice and
data signal quality and reduce disconnects and drop-outs. The amplifi er works with two
antennas (sold separately): one communicates with the cell site (the outside antenna) and
the other communicates with your cell phone or laptop data card (the inside antenna).
The outside antenna will collect the outside signal and send it through a cable to the
amplifi er. The signal is then boosted and sent through a cable to the inside antenna,
which communicates with your cell phone or data card. When the cell phone or data card
transmits, the inside antenna picks up the signal and sends it to the amplifi er where it is
boosted and sent through the outside antenna to the cell site.
Wilson Electronics manufactures a wide variety of antennas and accessories to help you
customize your SOHO Wireless Dual-Band Amplifi er for your specifi c application (see
page 2). Contact your dealer or visit www.wilsonelectronics.com.
Before Getting Started
This guide will help you properly install Wilson’s SOHO Wireless Dual-Band Amplifi er. It is
important to read through all of the installation steps for your particular application
prior to installing any equipment. Read through the instructions, visualize where
all the equipment will need to be installed and do a soft installation before mounting
any equipment. If you do not understand the instructions in full, please contact Wilson
Technical Support at 866-294-1660.
Installation Overview
The following steps provide a summary of the amplifi er/installation process using a Yagi
antenna as the outside antenna and a panel antenna as the inside antenna. However,
they are not a substitute for the complete installation instructions on the following pages,
which you should read thoroughly. Be sure to read and follow the instructions that come
with your specifi c antennas.
STEP 1 Install the Outside Antenna
Mount the Yagi antenna to a fi xed location (such as a pole) on the roof of your building. Be
sure it is pointing toward the nearest cell tower and away from where you plan to install the
inside antenna. IMPORTANT: The outside antenna must have a separation of at least
48 inches (122 centimeters) from all persons during normal operation.
STEP 2 Install the Inside Antenna
Attach the panel antenna as close as possible to the center of the area where the signal
needs to be amplifi ed. Ensure there is a minimum separation of 20 feet between the
outside and inside antennas. IMPORTANT: The inside antenna must have a separation
of at least 8 inches (20 centimeters) from all persons during normal operation.
STEP 3 Install the Amplifi er
Position the amplifi er in a well-ventilated location near a power outlet. Attach the antennas
to the amplifi er using 50-ohm or equivalent coax cable (available in different lengths from
Wilson Electronics).
STEP 4 Power up the Amplifi er
IMPORTANT! Before connecting the power supply, ensure that both the inside and outside
antenna cables are connected. Also ensure that all cell phones and cellular data cards
within 20 feet (6 meters) of the inside antenna are turned off. Plug the supplied 6-volt
power supply into the amplifi er and then into a wall outlet.
4
Installing the Outside Antenna
The antenna that communicates with the cell site should be mounted on the outside of the
building—this is the preferred location and will give the best performance. Alternatively,
locating this antenna inside the building near a window will also work under certain
conditions. IMPORTANT: The outside antenna must have a separation of at least 48
inches (122 centimeters) from all persons during normal operation.
Outdoor Installation
For best results, use a Wilson Yagi antenna that is compatible with the frequency of your
cellular service provider. A dual-band trucker antenna will also work. Mount the antenna as
high as possible on your building for optimum signal reception and transmission.
Follow the specifi c installation instructions included with the outside antenna. Lightning
protection is recommended for all outdoor antenna installations. Take extreme care to
ensure neither you nor the antenna come in contact with any electrical power lines. Ensure
there are three feet of clearance in all directions surrounding the antenna.
Alternate Installation

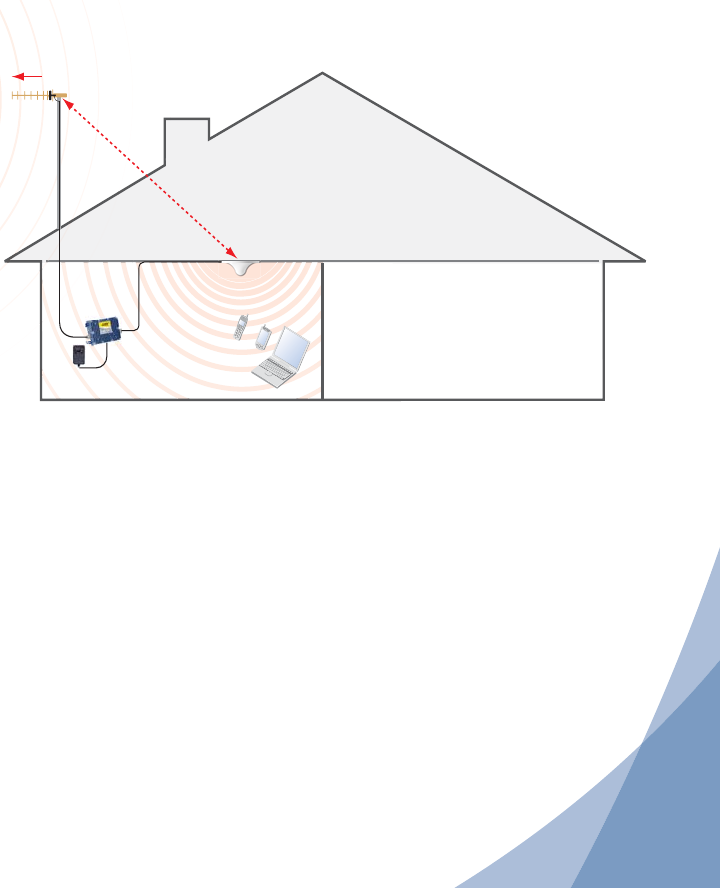

If you choose to install the outside antenna
indoors, select a location near a window or
glass door where you have the strongest
existing cell signal. (See the illustration on
page 5.) Follow the specifi c installation
instructions included with the antenna.
Cell Tower RF Signal
Yagi Outside Antenna

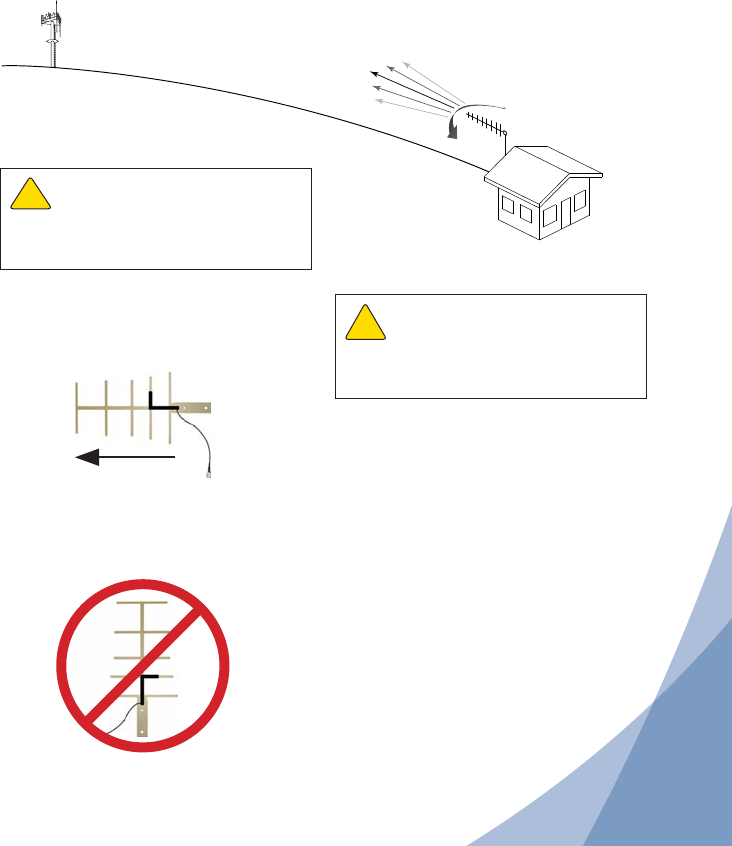

Warning: The outside antenna must be
installed with a separation of at least 48 inches
(122 centimeters) from all persons during
normal operation.
!
NOT
CORRECT
Warning: Never point the front of
the Yagi antenna toward the inside antenna
- oscillation will result, causing an amber light
on the amplifi er and gain reduction.
!
Pointing toward
cell tower
CORRECT
5
Installing the Inside Antenna
The antenna that communicates with your cell phone or cellular data card should
be installed in the center of where the signal needs to be amplifi ed. Wilson’s
magnet-mount, mini magnet-mount, dome and panel antennas will work well with
the SOHO Wireless Amplifi er.

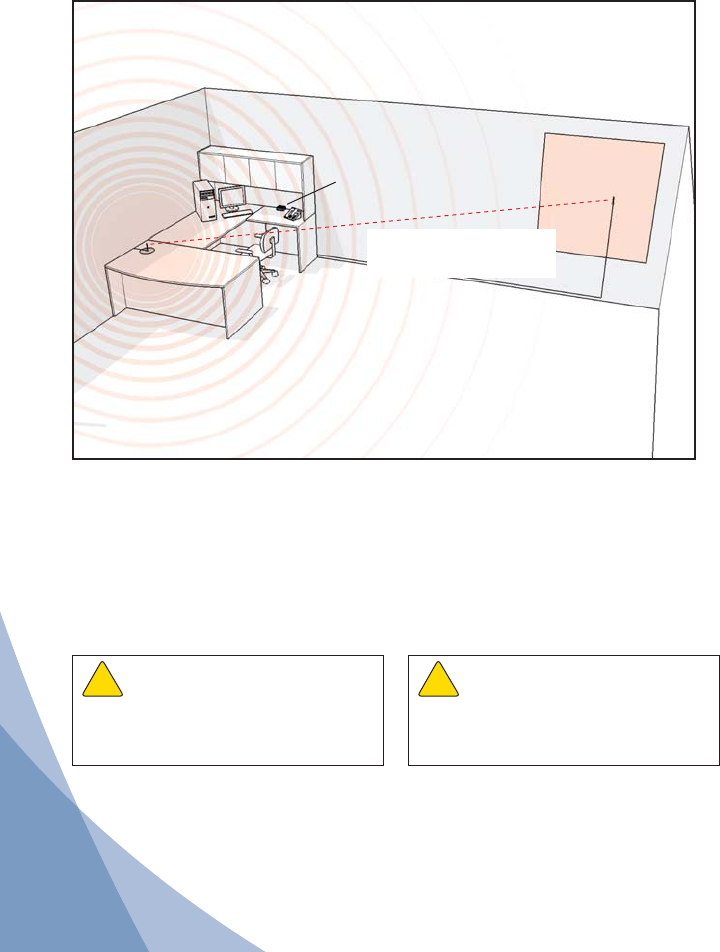

20 feet (6.10 meters) minimum
separation between inside
antenna and outside antenna
Amplifi er Outside
Antenna
Inside
Antenna
In the above illustration, Wilson mini magnet-mount antennas are being used
for both the outside antenna (on the window) and the inside antenna (on the
desk). Follow the specifi c instructions included with the antennas for your specifi c
application.
Warning: The inside antenna
must have a separation distance from
all persons that is at least 8 inches (20
centimeters).
!Warning: Connecting the amplifi er
directly to the cell phone with use of an
adapter will damage the cell phone.
!
6
Installing the Amplifi er
Select a location to install the amplifi er that is away from excessive heat, direct
sunlight, moisture and that has proper ventilation. Do not place the amplifi er in
an air-tight enclosure.
Recommended installation locations are:
• On a desk or table top
• In a bookshelf
• On the fl oor
In the illustration below, a Wilson Yagi antenna is being used as the outside
antenna, and a Wilson dome antenna is being used as the inside antenna.
Run the outside antenna cable to the amplifi er and attach it to the FME-male
connector labeled “outside antenna” on the amplifi er. Run the inside antenna
cable to the amplifi er and attach it to the FME-male connector labeled “inside
antenna” on the amplifi er.
Note: Be careful when plugging the connectors in so as not to damage the
center pin.
Connect the outside antenna to the amplifi er with 50-ohm or equivalent coax
cable (available in different lengths from Wilson Electronics). Place the inside
antenna in the center of the area needing the amplifi ed signal. It is important to
have at least 20 feet (6.1 meters) of separation between the inside and outside
antennas. Closer spacing may result in oscillation, which will cause the amplifi er
to automatically reduce its gain.
AC/DC
Power Supply
Amplifier
Supports
Multiple
Users
Inside Antenna
Optional Dome
Antenna Shown
Point Yagi antenna
away from cell phone
antenna
Outside
Antenna
Optional
1900 MHz
Yagi
Antenna
Shown
20 feet (6.1 meters) minimum
separation between inside
and outside antenna
Antenna Separation
7
Powering up a Wilson Amplifi er
1. IMPORTANT! Ensure that all cell phones and cellular data cards within 20 feet
(6.1 meters) of the inside antenna are turned off.
2. To verify proper installation of the amplifi er and antennas, make sure that the
distance between the inside and outside antennas is a minimum of 20 feet (6.1
meters).
3. If you are using an Yagi antenna as a outside antenna, never point the front of
the Yagi toward the inside antenna.
4. Ensure that both the outside antenna coax cable and the inside antenna coax
cable are connected to the amplifi er before powering up the amplifi er.
5. Plug the power supply into the amplifi er input marked “power” (carefully, to
avoid damaging the center pin) and then into a wall outlet.
Warning: Verify that both the
outside antenna and the inside
antenna are connected to the amplifi er
before powering up the amplifi er.
!
Warning: Use only the power
supply provided in this package.
Use of a non-Wilson product may
damage your equipment.
!
NOTE: The aluminum casing of a Wilson amplifi er will adjust very quickly to the
ambient temperature of its environment. For example, in the summer, when
the attic of a house can easily exceed 100 degrees Fahrenheit (38 degrees
Celsius), the amplifi er temperature may be higher. The casing will be hot to
the touch. Such high temperatures will not damage the amplifi er, nor do they
pose a fi re risk. As recommended in these instructions, install the amplifi er in a
location with adequate ventilation. Keep the area free of items that could block
air fl ow to the amplifi er.
8
Understanding the Amplifi er Lights
The power light PWR will turn green
when the amplifi er is successfully
powered up. When the 800 MHz or
1900 MHz lights are lit green, the
amplifi er is amplifying the outside
signal.
If one or both frequency lights turn
red, oscillation is occurring and the
amplifi er has powered down. The
outside antenna needs to be moved
farther from the inside antenna. Move
the outside antenna on the roof of
the car to the rear of the car, but at
least 8-12 inches from the rear or side
windows. Remove power from the
amplifi er and reinstall power. This
resets the amplifi er.
If the lights are now green, the
oscillation has stopped and the
amplifi er is working. If the red light is
still on, move the antenna farther away
and repeat the process.
Always use a magnet-mount or roof-
mount antenna. Do not use a glass-
mount antenna, as oscillation may
cause continuous shut-down of the
amplifi er.
An amber light in either the 800
MHz or 1900 MHz position indicates
overload from the cell site. The
amplifi er has temporarily shut down
and will automatically reset.
9
Warnings and Recommendations
Warning: A Yagi antenna must always be located so the back or side points
to the inside antenna. Never point the front of the Yagi antenna
toward the inside antenna – oscillation will result, causing amber
light and gain reduction.
Warning: Connecting the amplifi er directly to the cell phone with use of an
adapter will damage the cell phone.
Warning: Connect both the outside and inside antenna cables to the
amplifi er before powering up the amplifi er.
Warning: Use only the power supply provided in this package. Use of a
non-Wilson product may damage your equipment.
Warning: The outside antenna must have a separation distance from all
persons that is at least 48 inches (122 centimeters). The inside
antenna must have a separation distance from all persons that is
at least 8 inches (20 centimeters).
Lightning protection is recommended for all in-building installations using an
outside antenna.
10
About Wilson Electronics
Wilson Electronics, Inc. has been a leader in the wireless communications
industry for nearly 40 years. The company designs and manufactures amplifi ers,
antennas and related components that signifi cantly improve cellular telephone
signal reception and transmission in a wide variety of applications, both mobile
and in-building.
With extensive experience in antenna and amplifi er research and design, the
company’s engineering team uses a state-of-the-art testing laboratory, including
an anechoic chamber and network analyzers, to fi ne-tune antenna designs and
performance. For its amplifi ers, Wilson uses a double electrically insulated RF
enclosure and outside simulators for compliance testing.
Wilson amplifi ers feature Smart Technology™ that enables them to automatically
adjust their power based on cell site requirements. By preventing oscillation,
signal overload and interference with other users, these Smart Technology™
amplifi ers improve network cell phone areas without compromising the carrier’s
system.
All products are engineered and assembled in the company’s 50,000-square-foot
headquarters in St. George, Utah. Wilson has product dealers in all 50 states as
well as Canada and Mexico, Central and South America.
Wilson® Electronics, Inc.
Phone: 866-294-1660 www.wilsonelectronics.com Fax: 435-656-2432
Part # AIG 110726 - SOHO / 11.26.08
Amplifi er Specifi cations
Dual Band
800/1900 MHz Specifi cations
Model Number / Part Number 271201 / 803245
Connectors N-Type Female
Impedance (input/output) 50 ohms
Dimensions 5.6 x 3.6 x 1.7 inch or 14.2 x 9.1 x 4.4 cm
Weight 1.2 lbs or 0.54 kg
Frequency 824-894 MHz / 1850-1990 MHz
1Passband Gain (nominal)
55 dB
220 dB Bandwidth (nominal)
800 MHz 31 MHz
1900 MHz 72 MHz
Power output for single inside (uplink) 800 MHz 1900 MHz
CDMA 34.5 dBm 33.6 dBm
GSM 30.1 dBm 27.7 dBm
EDGE 29.7 dBm 28.8 dBm
3Power output (uplink) for multiple
cell phones: Number of
cell phones
Maximum Power
800 MHz 1900 MHz
2 23.2 dBm 24.9 dBm
3 19.7 dBm 21.4 dBm
4 17.2 dBm 18.9 dBm
5 15.2 dBm 17.0 dBm
6 13.7 dBm 15.4 dBm
Power output for single received channel
(downlink) 800 MHz 1900 MHz
CDMA 11.3 dBm 12.0 dBm
GSM 9.3 dBm 10.4 dBm
EDGE 8.8 dBm 9.2 dBm
4Power output for multiple received
channels (downlink). The maximum
power is reduced by the number of
channels: Number of
channels
Maximum Power
800 MHz 1900 MHz
2 9.6 dBm 9.6 dBm
3 6.1 dBm 6.0 dBm
4 3.6 dBm 3.5 dBm
5 1.6 dBm 1.6 dBm
6 0.1 dBm 0.0 dBm
Noise Figure (typical) 3.5 dB nominal
Isolation (uplink/downlink) > 90 dB
Power Requirements 120 V AC, 0.1 A
Notes:
1. Nominal gain is the maximum gain at any frequency in the passband.
2. Nominal bandwidth is the difference between two frequencies that are adjacent to the passband where the amplifi cation is 20 dB
lower than the passband amplifi cation. One of the frequencies is lower than the passband and the other is higher.
3. The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier
signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can
cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by
an attenuator at the output of the device.
4. The maximum power for 2 or more simultaneous signals will be reduced by 6 dB for each doubling of the number of signals.

Navigation menu
