User Manual rev3

Cellular Signal Booster

460001/460101

Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

2Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

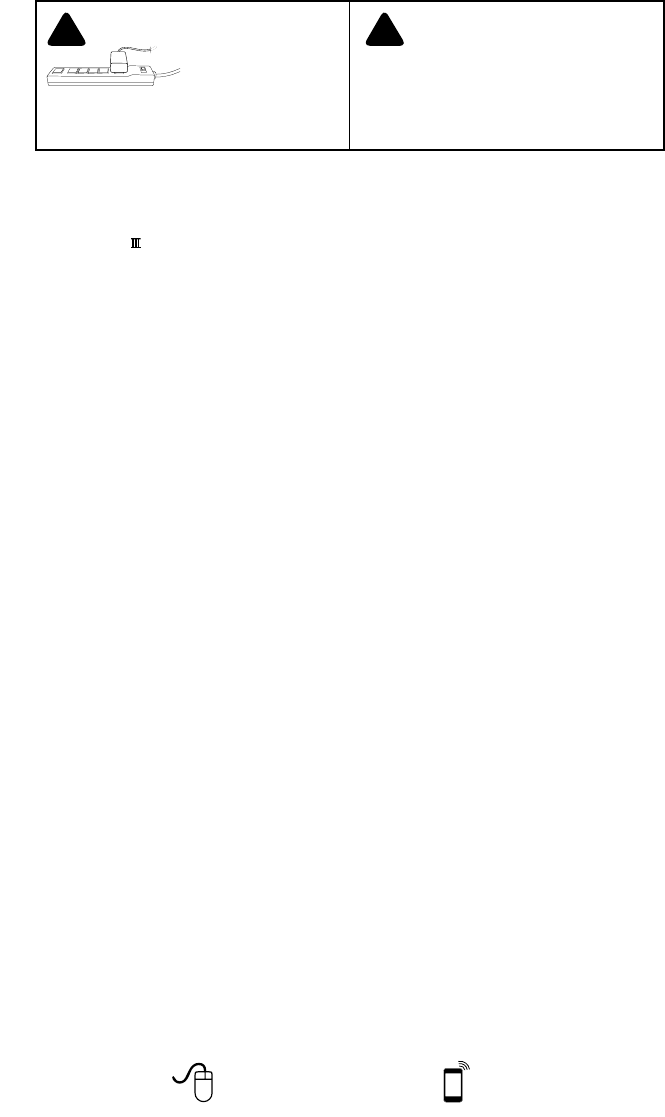

IT IS VERY IMPORTANT

TO POWER YOUR SIGNAL

BOOSTER USING A SURGE

PROTECTED AC POWER

STRIP WITH AT LEAST A 1000

JOULE RATING.

FAILURE TO DO THIS WILL VOID YOUR WARRANTY

IN THE EVENT OF A POWER SURGE OR LIGHTNING

STRIKE.

! ! THE SIGNAL BOOSTER UNIT IS DESIGNED

FOR USE IN AN INDOOR, TEMPERATURE-

CONTROLLED ENVIRONMENT (LESS

THAN 150 DEGREES FAHRENHEIT). IT IS

NOT INTENDED FOR USE IN ATTICS OR SIMILAR

LOCATIONS SUBJECT TO TEMPERATURES IN

EXCESS OF 150°F.

Contents

Package Contents ......................................................3

Optional Accessories ...................................................3

Before Getting Started ..................................................3

Find the Strongest Signal ................................................4

Quick Install - Inside Window Mount Option ................................5

Installation Options .....................................................6

Outside Pole Mount (Best Option) ......................................6

Outside Wall Mount Option ............................................7

Rafter Mount Option .................................................8

Additional Considerations ...............................................8

DT4G™ and Desktop Antenna Placement ..................................9

Troubleshooting & Understanding Lights ..................................10

Additional FAQ ........................................................12

Safety Guidelines & Recommendations ...................................13

Signal Booster Specifications ...........................................15

Guarantee and Warranty ........................................ Back Cover

Installation Instructions for the Following Wilson Electronics Signal Booster:

DT4G 700 MHz Band 13 & 17, 800 / 1900 (Ext. PCS) AWS (1700 / 2100)

SmartTech ™ Signal Booster

Model # 460001 FCC ID: PWO460001

Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

AC Power Supply

5V / 2.5A

(Not included with some models)

(859948)

30’ RG6

Coax Cable

(950630)

Cable

Connector

(971129)

Desktop Antenna

(5’ RG-174 comes attached)

(301213)

Appearance of device and accessories may vary.

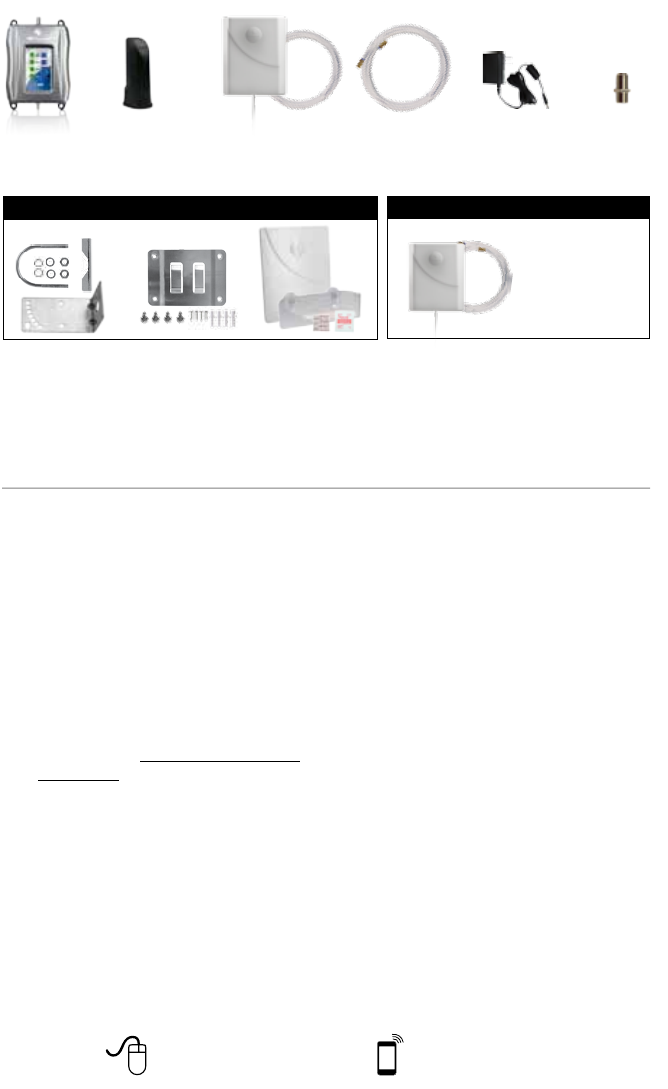

Package Contents

Mounting Option Accessories (Included)

Outside Panel Antenna Kit

Outside Panel Antenna

30’ RG6 coax cables

(314473-0630)

DT4G

A B C

Before Getting Started

Before you install your DT4G™ and start

enjoying improved cellular reception

in your home or ofce, please do the

following:

1. Read through all the installation

steps. This will help you know what to

expect from start to nish.

2. Watch the YouTube video

demonstrating the DT4G Signal Boost

installation at: wilsonelectronics.com/

DT4Gvideo

3. Determine the best installation option

for your needs.

– Outside Pole Mount Option - pg.6

(Best Option)

– Outside Wall Mount Option - pg.7

– Rafter Mount Option - pg.8

– Inside Window Mount Option - pg.5

4. Familiarize yourself with all materials

in your product package. This will

allow you to know which pieces are

referenced in the instructions.

5. Identify the location of your best

available cellular signal. See page 4.

6. Plan where to mount your antenna.

Panel Antenna

w/F-Female Connectors

RG6 30’ Coax Cable

w/F-Male Connectors

Required F-Female to SMA

Male adapter

DT4G Inside Panel Antenna Upgrade

(311155-0630)

Tools Required for Installation:

(depending on your particular installation, you will need the following tools)

1. Pole mount - 10 mm open-end wrench or adjustable wrench

2. Wall mount or Rafter mount - Drill and 3/16 inch bit, Phillips-head screwdriver

4Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

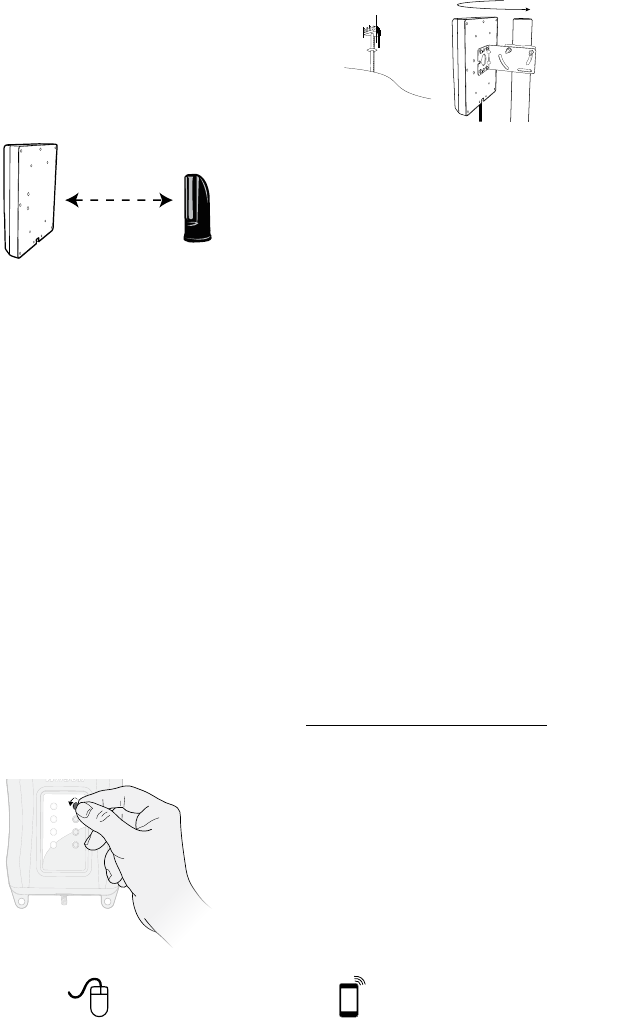

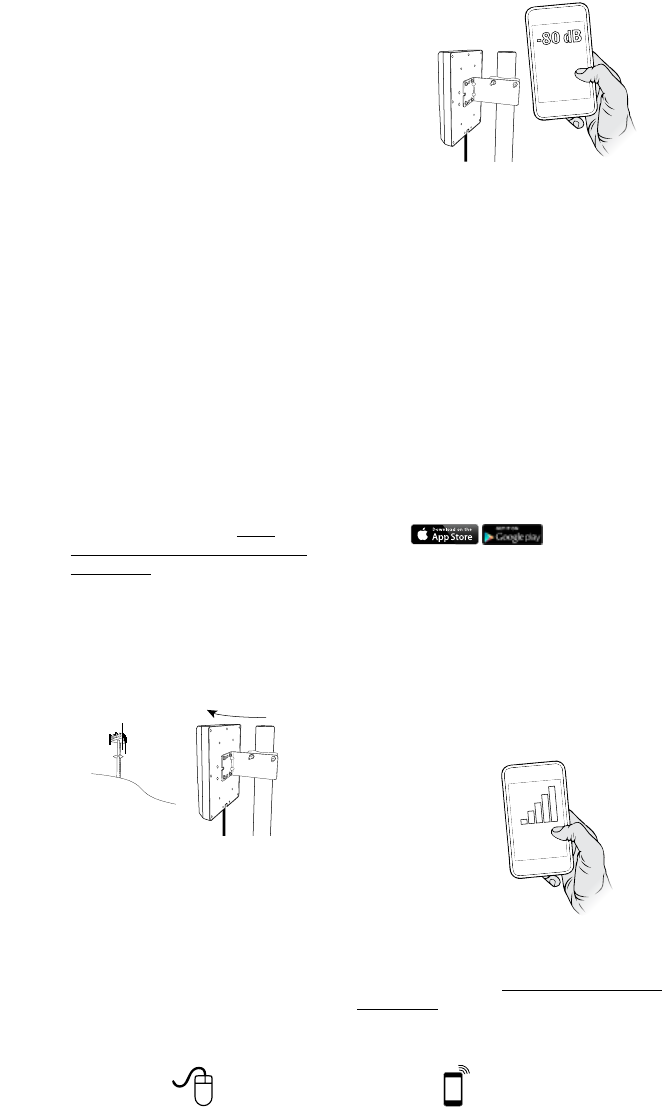

Find the Strongest Cellular Signal

Before you install your DT4G signal booster,

you must determine the location of the best

available cellular signal. This will affect the

location of your Outside Antenna and will

help you get the best performance from

your DT4G. You can nd the strongest

signal outside your building, typically at the

highest point available, using any of the

following methods:

1. Best method:

Connect the Outside Antenna to the

DT4G signal booster, and the DT4G

to the Desktop Antenna. Have one

person outside (on the roof for best

results) rotate the Outside Antenna with

a second person inside the building

near the Desktop Antenna watching the

signal strength on a phone. This allows

you to read the signal strength from

nearby cell towers.

a. The person inside should have

the phone in test mode so the

numerical signal strength can be

read. This is more accurate than

the bar indicator. Go to www.

wilsonelectronics.com/test-mode-

instructions for help in nding the

test mode for your phone.

b. The person on the roof should turn

the Outside Antenna 45 degrees

at a time. Allow 30 seconds for the

phone to register with each turn.

Rotate in 45°

increments

c. The person inside should note the

readings on the phone with each

turn. Signal readings usually appear

as a negative number. The closer the

number gets to zero, the stronger the

signal (for example, -86 dB would be

a moderately good reading while -55

dB would be an excellent reading,

and -110 dB would be a weak, or

unusable signal).

Rotate in 45°

increments

d. Once you have determined which

direction provides the strongest

outside signal, you can install the

Outside Antenna in that general

direction.

2. Good methods:

a. Place calls from several locations

outside your building. As you move

to different locations, note where

you get the best reception.

b. If you have a smart phone, you

can download apps that help you

identify locations of cell phone

towers or the strongest signal. Go

to the App Store and search for

“cell signal” to nd available apps

for your device.

3. Acceptable method: Check the bar

indicator on your cell phone display

and note where the signal appears

the strongest. (Note: cell phone bars

are only an approximation of signal

strength and vary from phone to

phone.) Phones can take up to 30

seconds to reset to a new reading. Be

patient and repeat your signal check

several times.

For additional instructions on nding

the strongest cellular signal, watch the

installation video at: wilsonelectronics.com/

DT4Gvideo

WAIT 30

SECONDS

Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

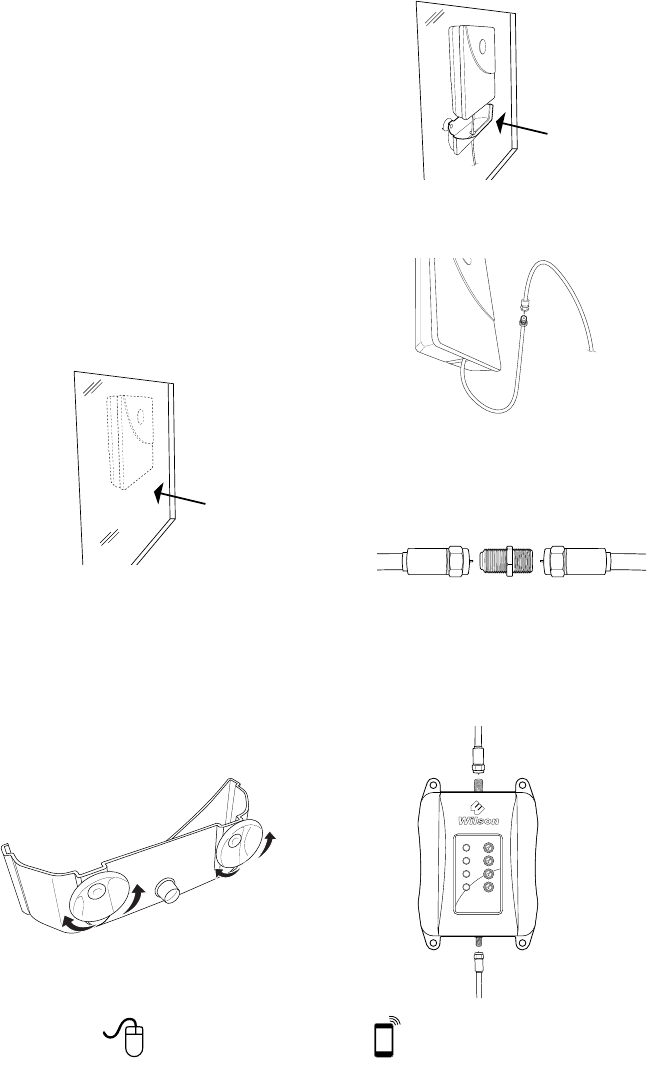

4. Insert the Outside Antenna into the

cradle.

Window faces general

direction of cell tower

5. Connect the supplied coax cable to

the antenna lead cable on the Outside

Antenna.

6. Route the cable as desired to the

location of the DT4G. If you need to

connect both coax cables, use the

Cable Connector provided.

7. Connect the coax cable to the DT4G.

Connect the Desktop Antenna to the

DT4G. For instructions on install and

Desktop Antenna placement refer to

page 9.

Quick Install - Inside Window

Mount Option

Additional installation options on pg. 6-8

Find the Strongest Cellular Signal

(See page 4 for suggested methods.)

Ready to Install

Inside Window Mount

1. Select a location on the inside of

a window as high as possible and

at least 20 feet from where the

DT4G will be located. Note that this

distance typically requires the window

mount to be in a different room from

where you will locate the DT4G and

Desktop Antenna. The window should

face roughly in the direction of the

strongest cellular signal (see section

headed “Find the Strongest Cellular

Signal” on page 4).

Window faces general

direction of cell tower

2. Clean the area on the glass with the

alcohol prep pad included in Packet C.

3. Insert the suction cups included in

Packet C into the holes on the Outside

Antenna cradle using a twisting

motion. Press the suction cups onto

the window in the desired location.

twist through

6Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

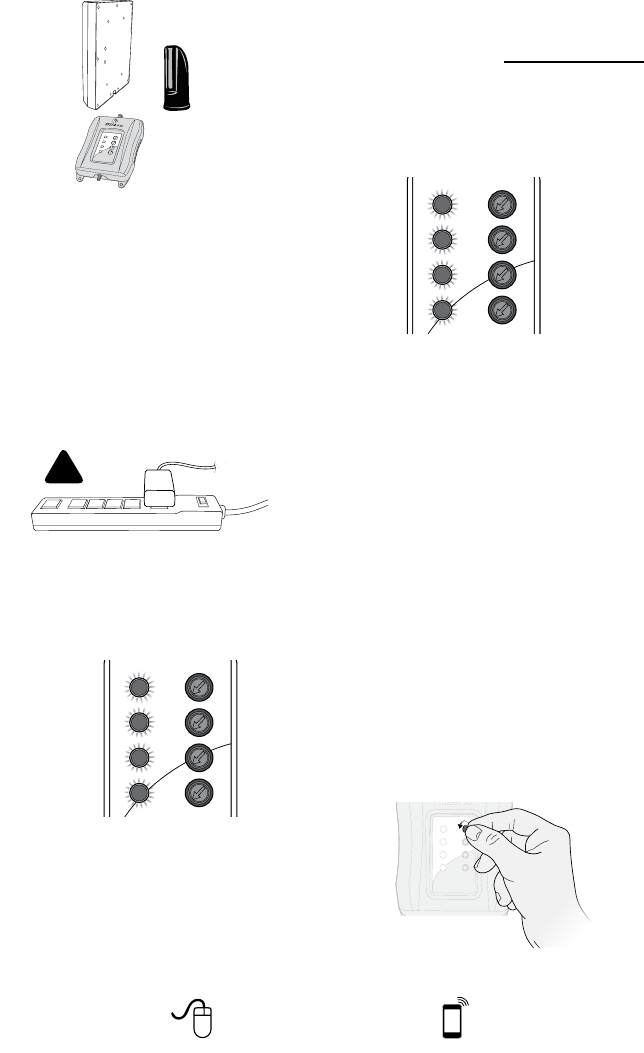

8. Connect the DT4G to a surge protected

AC power strip with at least a 1000

Joule rating. If your DT4G is working

correctly, the lights will be green.

If the lights are orange or red, see

the “Troubleshooting” section on

page 10.

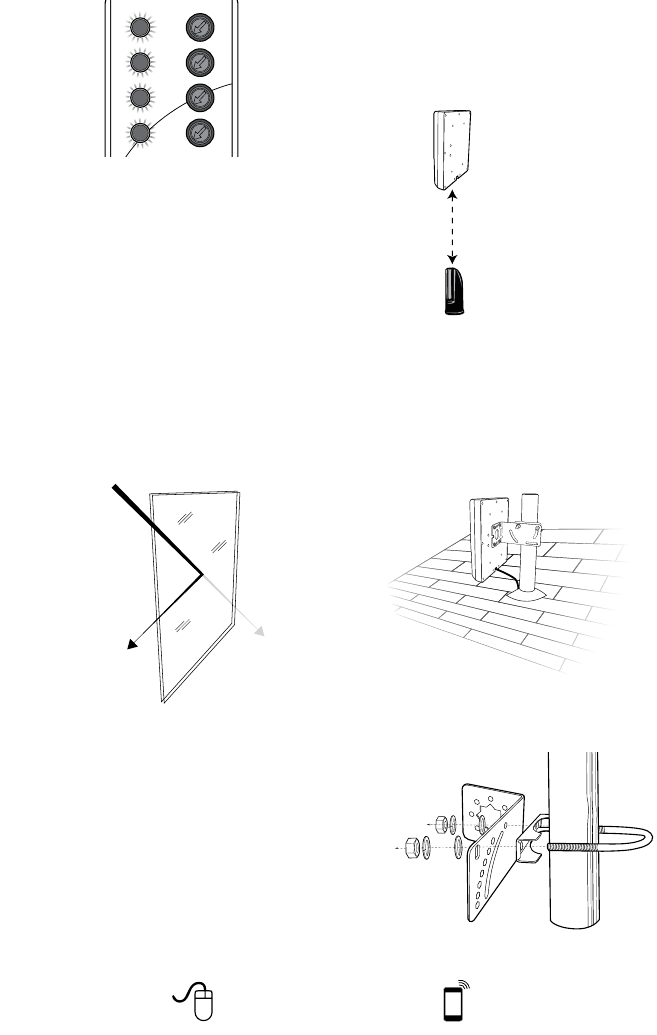

NOTE:

Modern energy efcient dual-

pane windows with coatings will

weaken the cellular signals as

they pass through because of a

metal oxide lm applied during

manufacturing. If you have dual-

pane windows with energy efcient

coatings, we recommend one

of the other mounting options if

your performance is not to your

satisfaction.

Installation Options

Outside Pole Mount Option

(Best Option)

1. Select a location on the roof where the

Outside Antenna can be mounted on

a pole maintaining at least 20 feet of

vertical or horizontal separation from the

inside Desktop Antenna.

2. Find an existing pole or obtain a

pole of 1 to 2 inches in diameter.

Mounting hardware to attach the pole

to the roof can be purchased from a

hardware store or you can purchase

a Wilson’s pole mount accessory kit,

part #901117. Install the pole in the

desired location.

3. Using the hardware in Packet A, slide

both brackets onto U-bolt. Tighten nut

& washers set onto U-bolt.

Place the desktop signal

antenna directly beneath the

placement of the Outside

Antenna location

At least 20 feet of vertical

or horizontal separation

from the desktop antenna

is needed

Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

4. Fit the assembly onto the pole in your

desired location by sliding the second

half of the bracket onto the U-bolt and

securing it with the lock washers and

nuts provided. Be sure the cradle is at

the desired height and rotated toward

the strongest cellular signal before

tightening the nuts. Do not over tighten.

Rotate in 45°

increments

5. Connect the supplied coax cable to

the antenna lead cable on the Outside

Antenna.

6. Route the cable as desired to the

location of the DT4G. If you need to

connect both coax cables, use the Cable

Connector provided. Secure the cable

with ties as needed (ties not provided).

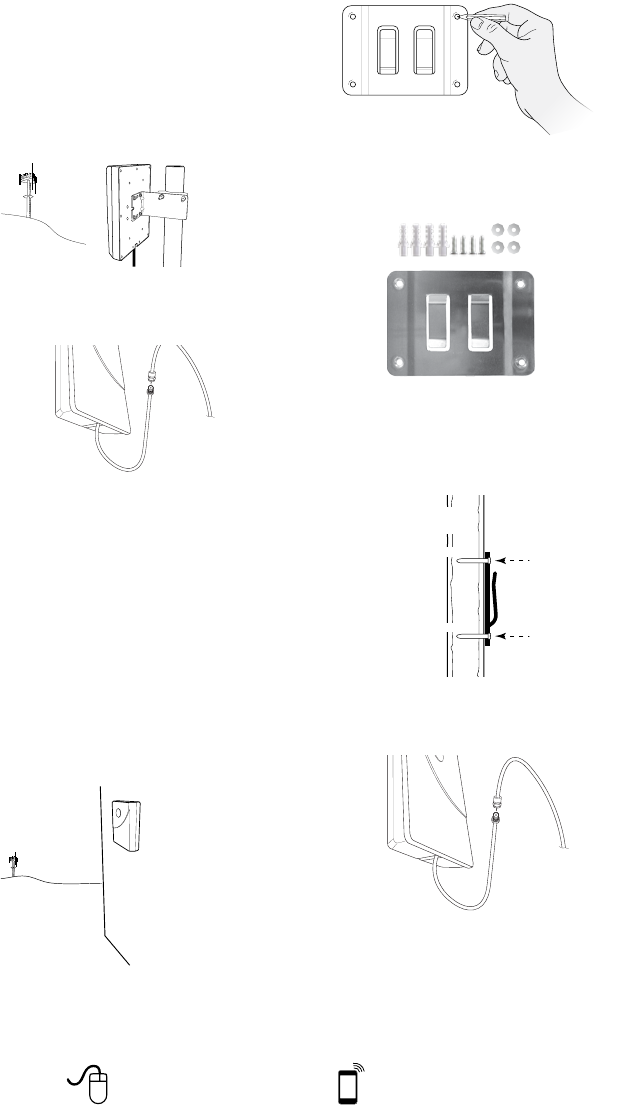

Outside Wall Mount Option

1. Select a location on an outside wall

as high as possible and at least

20 feet from where the DT4G will

be located. The wall should face in

roughly the same direction as the

strongest cellular signal.

2. Position the Outside Antenna bracket,

from Packet B, on the wall as a

template and mark the screw holes

with a pencil.

Face in roughly the same

direction as the strongest

cellular signal

3. Drill four holes where you marked,

using a 3/16-inch bit. Insert the plastic

screw anchors provided in Packet B.

Outside

Antenna

bracket

4. Line up the Outside Antenna bracket

with the screw anchors. Mount

the cradle antenna bracket to the

wall using the four screws and four

washers provided in Packet B.

wall

side view

anchors

antenna bracket

5. Connect the supplied coax cable to

the antenna lead cable on the Outside

Antenna.

6. Route the cable as desired to the

location of the DT4G. If you need to

connect both coax cables, use the

Cable Connector provided.

8Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

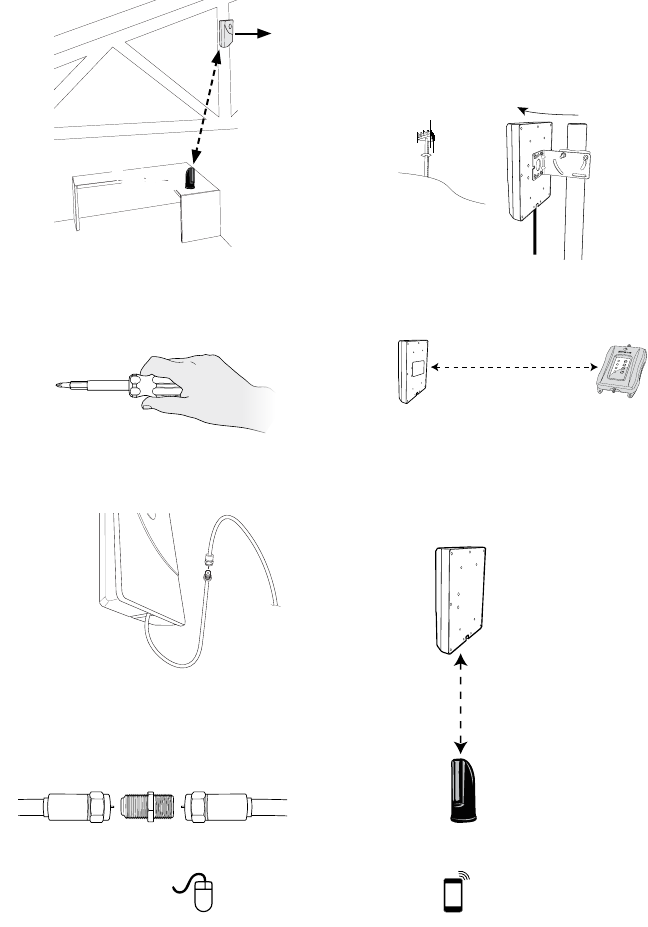

Rafter Mount Option

1. Select a location in the building’s rafters

where the Outside Antenna can be

mounted directly above the Desktop

Antenna with at least 20 feet vertical

or horizontal separation. The location

should allow you to mount the Outside

Antenna roughly in the direction of the

strongest cellular signal.

2. Mount the Outside Antenna bracket

to the rafter using the four screws and

four washers provided in Packet B

(pre-drill if necessary.)

3. Connect the supplied coax cable to

the antenna lead cable on the Outside

Antenna.

4. Route the cable as desired to the

location of the DT4G. If you need to

connect both coax cables, use the

Cable Connector provided.

Additional Considerations

Whichever installation you choose,

keep the following guidelines in mind to

maximize your signal strength:

1. Always turn the Outside Antenna so

the Wilson logo is toward the strongest

cellular signal. The strength of the

signal at the Desktop Antenna (and

therefore, how far it will transmit a signal)

is dependent upon the signal strength

at the Outside Antenna. Be sure to

maximize the strength at the Outside

Antenna.

Rotate in small

increments

2. Maintain a distance of at least 20 feet

from the Outside Antenna to the DT4G

unit.

If possible, place the Desktop

Signal Antenna directly beneath the

placement of the Outside Antenna

location. This creates a maximized

signal zone within the room where the

Desktop Antenna remains.

Mount in the general

direction of the strongest

cellular signal

Mount at least

20 feet apart

Minimum separation

of 20 feet

Place the desktop signal

antenna directly beneath the

placement of the Outside

Antenna location

At least 20 feet of vertical

or horizontal separation

from the desktop antenna

is needed

Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

3. Keep the DT4G and the Desktop

Antenna at least 18 inches away

from each other with the Wilson logo

on the Desktop Antenna facing away

from the DT4G.

4. Do not face the Outside Antenna and

the Desktop Antenna toward each

other. This can cause the DT4G

to show red lights and shut down,

preventing oscillation or feedback

(see troubleshooting on pg. 13).

In other words, the Wilson logos

on the Outside Antenna and the

Desktop Antenna should always be

facing away from each other.

5. If you do not know how to mount

hardware or run coax cable through

walls, ceilings and oors, get help from

one of Wilson’s certied installers at

www.wilsonelectronics.com/installers

or from a qualied contractor or

electrician. You can also try the Inside

Window Mount option (pg.5), which

may be sufcient for your needs.

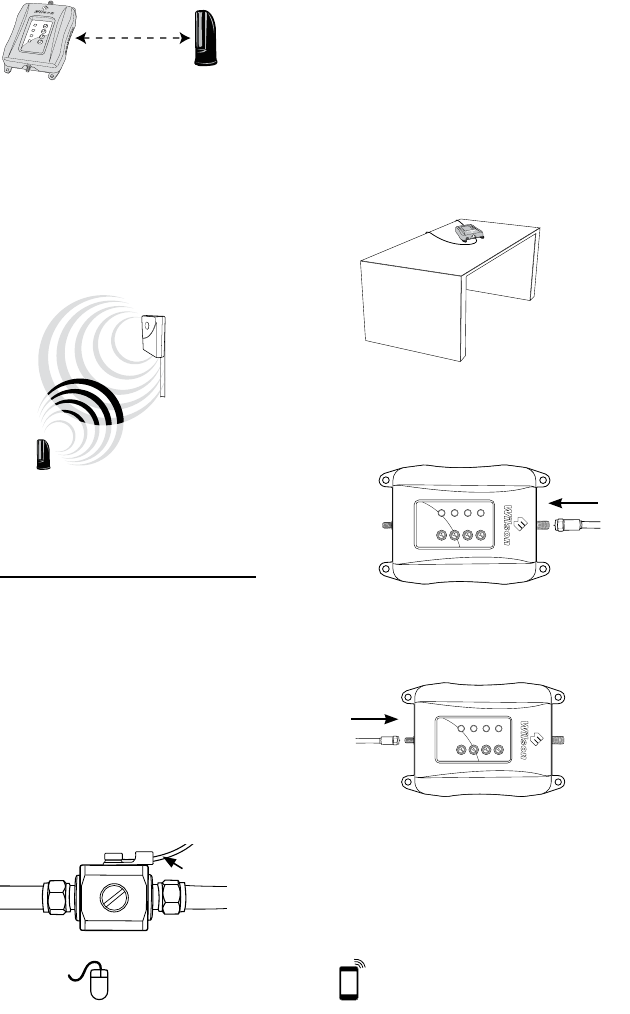

Recommended: Lightning Surge

Protector (Sold Separately, part #859992)

We recommend you install the Lightning

Surge Protector (LSP) close to the

DT4G. Attach the cable from the Outside

Antenna to the surge protector and

ground the surge protector. The LSP is

sold separately.

Ground

Wire

DO NOT

face the Outside Antenna and

the Desktop Antenna toward

each other

Minimum separation

of 18 inches

DT4G and Desktop Antenna

Placement

1. Select a location for the DT4G that

is away from excessive heat, direct

sunlight, and moisture and has proper

ventilation. Recommended locations

include on a shelf, in a closet, on a

desk or behind it. Be sure the location

is near a power outlet. To ensure

proper ventilation, keep other objects

at least six (6) inches away.

2. Place the DT4G on a desk, table or

other solid surface where you have

routed the cable from the Outside

Antenna.

3. Attach the coax cable from the

Outside Antenna to the DT4G at the

connector labeled “Outside Antenna.”

4. Attach the Inside Antenna to the

connector labeled “Inside Antenna.”

10 Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

5. Ensure the Inside Antenna is facing

away from both the DT4G and the

Outside Antenna.

6. Plug in the power supply to the DT4G

at the input marked “Power” (next to

the “Outside Antenna” connector).

Plug the power supply into a surge

protected AC power strip with at least

a 1000 Joule rating.

Important notice: Connect your DT4G

AC Power Supply to a surge protected

AC power strip with at least a 1000 Joule

rating. Failure to do this will void your

warranty in the event of a power surge or

lightning strike.

7. Check the lights on top of the DT4G.

4 green lights mean you have good

signal. If you do not have green lights,

see the following Troubleshooting Tips.

Note

Face Inside Antenna

away from DT and

Outside Antenna

Troubleshooting &

Understanding Lights

The DT4G includes four indicator lights, one

for each band (for more information about

the frequency bands used by your cell

service provider visit wirelessadvisor.com.)

All indicator lights will be green, orange

or red.

Green indicates the unit is powered

and working properly. You always

want the lights to be green.

Red indicates the DT4G has shut

down to prevent oscillation (feedback).

Orange indicates the DT4G is

overloaded because it is too close to

a cell tower.

Note: All red light issues must be resolved

before orange light issues.

Fixing Red Light Issues

If any lights on the DT4G are red or

blinking red try 1 or more of the following:

a) Make sure all connections are tight.

b) Reduce the gain of the DT4G

by rotating the gain control knob

corresponding with the red light. This

is done by turning the knob counter-

clockwise in small increments, waiting

5 seconds between each adjustment

for the DT4G to reset. Continue this

adjustment until the light turns green.

Wait 5 seconds

between each

adjustment

Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

IMPORTANT NOTE: Reducing the

gain decreases the inside coverage

area. If the amount of coverage area is

sufcient when the green light comes

on, your installation is complete.

c) You need to increase the distance

between the Outside Antenna and

the Desktop Antenna by moving them

horizontally and/or vertically farther

apart making sure they are not facing

towards each other.

Increase horizontal

and/or vertical

distance

If the light is green after separating

the antennas, increase the gain

until the red light comes on. Then

slightly decrease the gain until the

green light appears. This ensures

maximum coverage.

d) If you get too close to the Inside

Antenna you may experience reduced

signal performance. Increase the

distance between the handset and

the Inside Antenna until the light is no

longer ashing red.

e) If your coverage area is still too small

after separating the antennas, contact

the Wilson Electronics Technical

Support Team for assistance:

866-294-1660.

Fixing Orange Light Issues

If any lights on the DT4G are orange or

blinking orange:

a) Turn down the gain control until you

get a green light.

Wait 5 seconds

between each

adjustment

b) If the gain is not adequate for good

coverage, turn the Outside Antenna

away from the strongest cellular

signal in small increments until the

light turns green.

If the lights will not respond, turn the

gain down in 5 dB increments and move

the Outside Antenna. Continue to adjust

the gain and antenna positions until the

light turns green.

c) If the light remains orange or

blinking orange, contact the Wilson

Electronics Technical Support Team for

assistance: 866-294-1660.

Lights Off

If one or more of the lights on Signal

Booster are off verify power to your surge

protected power strip. If power and lights

are still off this means that the gain has

been turned all the way down and the

band is in Power Save Mode. Increase

the gain until the light turns on. If there are

bands that are not being used in the local

coverage area, we recommend turning

these frequencies off. This will reduce

enegy consumption.

NOTE: The DT4G can be reset by

disconnecting and reconnecting the power

supply.

For additional descriptions on

troubleshooting, see the install video at:

wilsonelectronics.com/DT4Gvideo

12 Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

Additional FAQ:

What hours can I contact tech support?

Technical Support can be reached from 7:00am

to 6:00pm MST, by calling (866-294-1660), or by

email, at tech@wilsonelectronics.com

How does weather affect the performance of

my Outside Antenna?

Water vapor (e.g. rain, fog, snow or other

precipitation) creates an effective lter to cellular

signal. In times of heavy precipitation, you may

see less performance.

What’s the difference between the 800 MHz

and the 1900 MHz bands? How do I know

which MHz band my cell phone uses?

The DT4G works with all major North American

cellular providers on the 800 & 1900 MHz

frequencies. Traditionally, 800/1900MHz are

associated with voice and 3G data; while 700MHz

and 1700/2100MHz are associated with 4G data.

For more detail, refer to wirelessadvisor.com

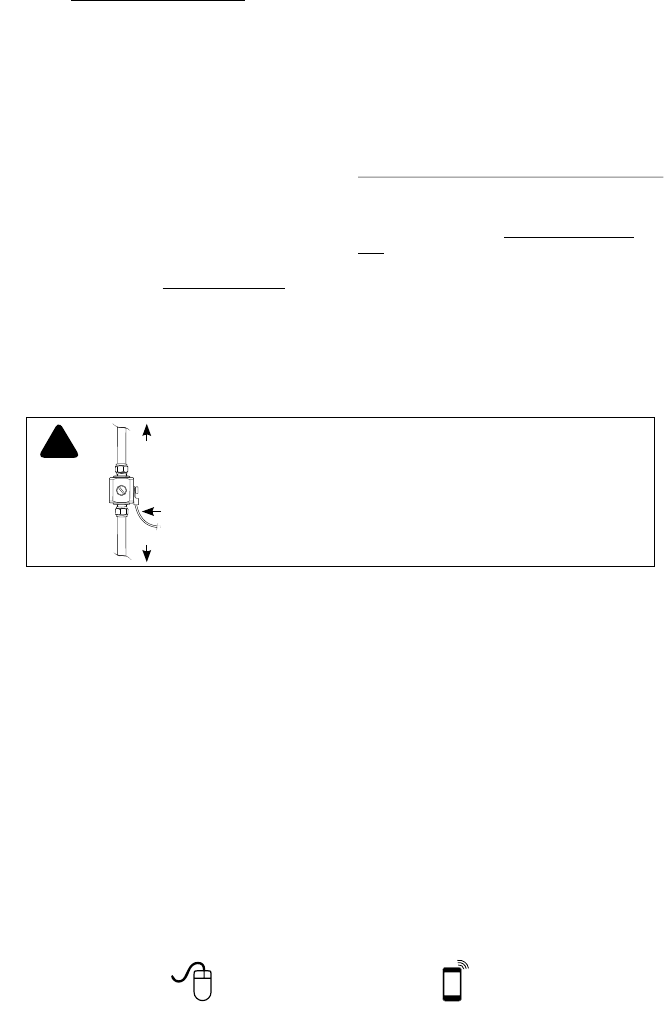

Lightning

Surge Protector

(sold separately)

To Outside

Antenna

To Signal Booster

Ground Wire

(not included)

!RECOMMENDED: INSTALLING THE LIGHTNING SURGE PROTECTOR

(SOLD SEPARATELY)

INSTALL THE LIGHTNING SURGE PROTECTOR (LSP) CLOSE TO THE SIGNAL

BOOSTER. ATTACH THE CABLE FROM THE OUTSIDE ANTENNA TO THE

SURGE PROTECTOR. ENSURE THE LSP IS PROPERLY GROUNDED.

#859992-75 OHM MAY BE PURCHASED AT WWW.WILSONELECTRONICS.COM

OR BY CALLING 800-204-4104.

Why do I need to maintain at least 20 feet of

separation, but no more than 50 feet? OR

Why do I need to create so much distance

between the antennas?

Antennas connected to a booster create a sphere

of signal. When these sphere’s overlap, a

condition called oscillation occurs. This oscillation

can be thought of as noise, which causes the

booster to shut down to prevent damage from

occurring. The best way to keep these spheres

of signal from creating noise is to maintain

separation between your inside and Outside

Antennas. However – as any cable has loss,

we recommend that you try to minimize the total

separation to keep within the range of 20-50 feet.

United States Carrier Frequency Use

We recommend visiting www.wirelessadvisor.

com for information regarding the frequency band

used by your cell service provider in a specic

geographical location.

Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

Safety Guidelines

WARNING: To uphold compliance with network protection standards, all active cellular devices must maintain

at least 6 feet of separation distance from Panel and Dome antennas and 4 feet of separation

distance from Desktop antennas.

WARNING: Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the

cell phone.

WARNING: Use only the power supply provided in this package. Use of a non-Wilson Electronics product

may damage your equipment.

WARNING: The Signal Booster unit is designed for use in an indoor, temperature-controlled environment

(less than 150 degrees Fahrenheit). It is not intended for use in attics or similar locations subject

to temperatures in excess of that range.

WARNING: Take care to ensure that neither you nor the pole comes near any power lines during installation.

RF SAFETY WARNING: Any antenna used with this device must be located at least 8 inches from all persons.

BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider

and have your provider’s consent. Most wireless providers consent to the use of

signal boosters. Some providers may not consent to the use of this device on their

network. If you are unsure, contact your provider.

You MUST operate this device with approved antennas and cables as specified by

the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any

person.

You MUST cease operating this device immediately if requested by the FCC or a

licensed wireless service provider.

WARNING. E911 location information may not be provided or may be inaccurate

for calls served by using this device.

This is a CONSUMER device.

This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation. Changes or modifications not expressly approved by Wilson Electronics could void the authority

to operate this equipment.

14 Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

Notes:

_____________________________________________________________

Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

Signal Booster Specifications

DT4G Specifications

Model Number 460001

Antenna connectors SMA-male on the Inside Antenna / F-male on the Outside Antenna

Antenna impedance 50 Ohms

Dimensions 4.5 x 6.44 x 1.19 in. or 11.43 x 16.35 x 3.02 cm

Weight 0.4 lbs or 0.18 kg

Frequency Frequency 704-746 MHz, 746-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz

Power output for a single phone (uplink) dBm Maximum Power

700 MHz

Band 17

700 MHz

Band 13 800 MHz 1900 MHz 1700 MHz

23.7 23.6 24.6 23.3 24.9

Power output for a single received channel (downlink) dBm Maximum Power

700 MHz

Band 17

700 MHz

Band 13 800 MHz 1900 MHz 2100 MHz

0.9 -1.0 2.1 6.1 5.8

Noise Figure (typical downlink/uplink) 7 dB nominal

Power Requirements 110-240 V AC, 50-60 Hz, 8 W

Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal Booster cannot be adjusted

without factory reprogramming or disabling the hardware. The Signal Booster will amplify, but not alter incoming and outgoing

signals in order to increase coverage of authorized frequency bands only. If the Signal Booster is not in use for five minutes, it

will reduce gain until a signal is detected. If a detected signal is too high in a frequency band, or if the Signal Booster detects

an oscillation, the Signal Booster will automatically turn the power off on that band. For a detected oscillation the Signal

Booster will automatically resume normal operation after a minimum of 1 minute. After 5 (five) such automatic restarts, any

problematic bands are permanently shut off until the Signal Booster has been manually restarted by momentarily removing

power from the Signal Booster. Noise power, gain, and linearity are maintained by the Signal Booster’s microprocessor.

16 Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

3301 East Deseret Drive, St. George, UT 84790

web: www.WilsonElectronics.com email: tech@wilsonelectronics.com

phone: 866-294-1660 local: 435-673-5021 fax: 435-656-2432

30-Day Money-Back Guarantee

All Wilson Electronics products are protected by Wilson Electronics 30-day money-back guarantee. If for any

reason the performance of any product is not acceptable, simply return the product directly to the reseller with a

dated proof of purchase.

2-Year Warranty

Wilson Electronics Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials.

Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase.

Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of

purchase and a Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson Electronics

shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the repaired or

replaced product back to the original consumer if located within the continental U.S.

This warranty does not apply to any Signal Boosters determined by Wilson Electronics to have been subjected to

misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties.

Failure to use a surge protected AC Power Strip with at least a 1000 Joule rating will void your warranty.

RMA numbers may be obtained by contacting Technical Support at 866-294-1660.

Disclaimer: The information provided by Wilson Electronics, LLC is believed to be complete and accurate. However, no

responsibility is assumed by Wilson Electronics, LLC for any business or personal losses arising from its use, or

for any infringements of patents or other rights of third parties that may result from its use.

U.S. Patent Nos.– 7,221,967; 7,729,669; 7,486,929; 7,409,186; 7,783,318; 8,583,034; 8,583,033

111218_RevP_1.21.14

Wilson Electronics 460001 Model 460001 Signal Booster User Manual rev3

Wilson Electronics, LLC Model 460001 Signal Booster rev3

Contents

User Manual rev3

Navigation menu

Namespaces

Views

Navigation
