Wilson Electronics 460009 Dual Band Direct Connect Signal Booster User Manual
Wilson Electronics, LLC Dual Band Direct Connect Signal Booster Users Manual
Contents
- 1. Users Manual
- 2. User Manual
Users Manual
Contents
Before Getting Started ............................1
Accessories and Antenna Options ..................1
Quick Installation Overview ........................2
Installation Diagram ..............................2
Installing the External Adapter ......................3
Installing the Outside Antenna ......................3
Installing a Wilson Electronics Signal Booster. . . . . . . . . . 3
Powering Up a Wilson Electronics Signal Booster ......3
Installing the Mounting Plate (sold separately) .........4
Warnings and Recommendations ...................5
Guarantee and Warranty ..........................6
Signal Booster Specifications ..............Back Cover
DataPro™
Smartech III
Note: This manual contains important safety and operating information.
Please read and follow the instructions in this manual. Failure to do so could
be hazardous and result in damage to your Signal Booster.
Appearance of device and accessories may vary.
1Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com Mon.- Fri. Hours: 7 am to 6 pm MST.
Inside this Package
Before Getting Started
This guide will help you properly install your Wilson Electronics Signal Booster. It is important
to read through all of the installation steps for your particular application prior to
installing any equipment. Read through the instructions, visualize where all the equipment
will need to be installed and do a soft installation before mounting any equipment. For further
assistance please contact our Wilson Electronics Technical Support Team: 866-294-1660.
Installation Instructions for the Following Wilson Electronics
Signal Booster:
DataPro: Model: 460009 FCC ID: PWO460009 IC: 4726A-460009
The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met.
Mounting Plate
(901138)
Mobile Power
Adapter
(859910)
Lightning
Surge Protector
(859902)
5V Power
Supply
(859969)
3’ RG174 w/
SMA Male to
SMA Male
(951151)
Appearance of device and accessories may vary.
Accessories (adapters may be required)
DataPro
Signal Booster
Mobile Antennas
Mini-Mag
• 301126 w/ 12.5 RG174
cable- SMA
• 301113 w/ 12.5 RG174
cable- FME
12” Mag Mount w/ 12.5’ RG174
• 311103
• 311125
• 311128
• 314202
• 311703
Trucker antenna w/10.5’ RG58
• 311101
• 311701
Trucker antenna w/13.5’ RG58
• 31111 9
• 311133
NMO Antenna’s w/ RG174
Kit 311104-17410
• 800/1900 NMO antenna
• 10’ RG174 cable
Kit 311112-17410
• 800/1900 NMO antenna
• 10’ RG174 cable
Kit 314203-17410
• 800/900/1900 NMO antenna
• 10’ RG174 cable
Marine antenna w/ 10’ RG58
Kit 311130-5810
• Marine Antenna
• 10’ RG58 cable
Glass Mount w/14’ RG58 cable
• 311102
• 311114 ( Mini Glass Mount)
NMO Antenna’s w/ RG58
Kit 311104-5810
• 800/1900 NMO antenna
• 10’ RG58 cable
Kit 311112-5810
• 800/1900 NMO antenna
• 10’ RG58 cable
Kit 314203-5810
• 800/900/1900 NMO antenna
• 10’ RG58 cable
301152 Slim Low Profile w/ 10’ RG174
311106 Low Profile w/ 10’ RG58
Outside Fixed Antennas
50 Ohm Outside Antenna Kits
Kit 314453-5825
• 50 Ohm Pole Mount Panel Antenna
• 25’ RG58 Cable
Kit 314411-5825
• 50 Ohm Wide Band Directional
• 25’ RG58 Cable
Kit 301111-5850
• Yagi Directional Antenna
• 50’ RG58 Cable
Kit 311129-5840
• 800 MHz Yagi Directional
• 40’ RG58 Cable
Kit 311203-5820
• Omni-Directional antenna
• 20’ RG58 Cable
Kit 311124-5830
• 1900 MHz Yagi Antenna
• 30’ RG58 Cable
Kit 314411-40075
• 50 Ohm Wide Band Directional
• 75’ LMR400 Cable
Kit 311203-40020
• Omni-Directional antenna
• 20’ LMR400 Cable
Kit 301111-400170
• Yagi Directional w/ N-Female
• 170’ LMR400
Kit 311124-400100
• 1900 MHz Yagi Directional
• 100’ LMR400 Cable
Kit 311129-400100
• 800 MHz Yagi Antenna
• 100’ LMR400 Cable
Kit 314453-40075
• 50 Ohm Pole Mount Panel Antenna
• 75’ LMR400 Cable
75 Ohm Outside Antenna Kits
Kit 301111-0675
• Yagi Directional Antenna
• 75’ RG6 Cable
• N-Male to F-Female adapter
Kit 311201-0620
• Omni Directional w/ F-Female
• 20’ RG6 Cable
Kit 311129-0660
• 800 MHz Yagi Directional
• 60’ RG6 Cable
• N-Male to F-Female adapter
Kit 311124-0650
• 1900 MHz Yagi Directional
• 50’ RG6 Cable
• N-Male to F-Female adapter
Kit 314473-0640
• 75 Ohm Pole Mount Panel Antenna
• 40’ RG6 Cable
Kit 314475-0630
• 75 Ohm Wide Band Directional
• 30’ RG6 Cable
Kit 311141-0620
• 75 Ohm Grey Brick Antenna
• 20’ RG6 Cable
Kit 301111-11140
• Yagi Directional Antenna
• 140’ RG11 Cable
• N-Male to F-Female adapter
Kit 311201-1120
• Omni Directional w/ F-Female
• 20’ RG11 Cable
Kit 311129-11110
• 800 MHz Yagi Directional
• 110’ RG11 Cable
• N-Male to F-Female adapter
Kit 311124-1180
• 1900 MHz Yagi Directional
• 80’ RG11 Cable
• N-Male to F-Female adapter
Kit 314473-1175
• 75 Ohm Pole Mount Panel Antenna
• 75’ RG11 Cable
Kit 314475-1175
• 75 Ohm Wide Band Directional
• 75’ RG11 Cable
Kit 311141-1120
• 75 Ohm Grey Brick Antenna
• 20’ RG11 Cable
Accessories & Antenna Options (sold separately)
2
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com Mon.- Fri. Hours: 7 am to 6 pm MST.
1. Select a location to install the Signal Booster that is away from excessive heat, direct
sunlight, moisture and that has proper ventilation. Do not place the Signal Booster in
an air-tight enclosure.
2. Select a location on the top of the structure to install the Outside Antenna. Use a cell
phone
in test mode to find the strongest signal from the cell tower. Visit
www.WilsonElectronics.com to find test mode function for your particular cell phone.
3. Run the Outside Antenna cable to the Signal Booster and attach it to the connector
labeled “Outside Antenna.”
4. An external adapter is required to connect the cell phone or cellular data card to the
Signal Booster. The external adapter plugs into the included antenna extension cable
and directly into a socket on the cellular device. Run the extension cable from the
external adapter and attach it to the connector labeled “cellular phone or data card”
on the Signal Booster.
Note: Be careful when plugging the connector in so as not to bend the center pins on
the connectors. Ensure all cables have a tight connection.
5. Before powering up the Signal Booster verify that both the Outside Antenna and the
Inside Antenna are connected and check that all connections are tight. An AC surge
protector is recommended for all installations (not included).
Quick Installation Overview
The following steps provide a summary of the Signal Booster/antenna installation process.
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660.
Power Strip Surge Protector
Power Supply
DataPro
Signal Booster
Cellular Modem
Mini-Magnet
Antenna

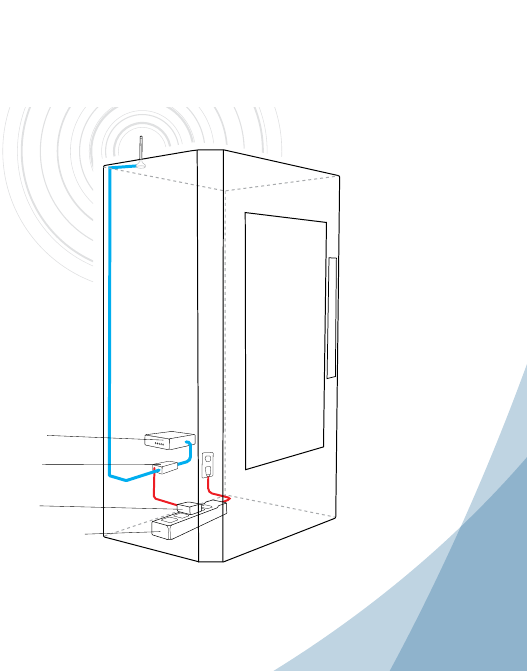

Installation Diagram
(Figure 1)
3Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com Mon.- Fri. Hours: 7 am to 6 pm MST.
How it Works
Wilson Electronics Signal Boosters are bi-directional devices that deliver service levels
consistent with what would be expected in areas of high cell network coverage. They
amplify a weak or shadowed signal in mobile, marine, machine to machine and in-building
applications. When using a Wilson Electronics Signal Booster in conjunction with Wilson
Electronics antennas, the Outside Antenna will collect the cell tower signal and send
it through the cable to the Signal Booster. Cell phones and cellular data cards then
communicate with the improved signal. When a cellular device transmits, the signal is
amplified by the Signal Booster and transmitted back to the cell tower through the Outside
Antenna.
Installing the External Adapter
An external adapter is required to connect the cell phone or cellular data card to the Signal
through a local retailer. Refer to Wilson Electronics Adapter Guide to identify the correct
adapter for your cell phone or cellular data card. The adapter guide is available through a
local retailer or at www.WilsonElectronics.com. The external adapter plugs into the antenna
extension cable (included) and directly into a socket on the cellular device.
The external adapter and the extension cable are long enough to reach the Signal Booster
location. This allows for ease and convenience of use. Run the extension cable from the
external adapter and attach it to the connector labeled “Cellular Phone or Data Card” on the
Signal Booster.
NOTE: Depending on your specific cell phone, the adapter socket may be located
beneath a rubber plug.
Installing a Wilson Electronics Outside Antenna
Select a location on the top of the structure to install the Outside Antenna that has the
most unobstructed line of sight to the cell tower. To obtain maximum performance, the
antenna should point toward the cell tower. Follow the instructions included with the
Outside Antenna and the RF Safety Warning (page 5). Run the cable from the Outside
Antenna and attach it to the connector labeled “Outside Antenna” on the Signal Booster.
Lightning protection is recommended for all stationary installations (sold separately). Take
extreme care to ensure neither you nor the antenna come in contact with any electrical
power lines. Ensure there are at least three feet of clearance in all directions surrounding
the antenna.
Installing a Wilson Electronics Signal Booster
Select a location to install the Signal Booster that is away from excessive heat, direct
sunlight, moisture and that has proper ventilation. Ensure the Signal Booster is installed
within six feet of where the cell phone or cellular data card will be used (to accommodate
the six-foot adapter extension cable).
Powering up a Wilson Electronics Signal Booster
1. Ensure that both the Outside Antenna cable and the adapter cable are connected to the
Signal Booster before powering up the Signal Booster.
2. Connect the power supply to the power input labeled with the USB symbol on
the Signal Booster. Plug the power supply into a power strip surge protector
(recommended).
3. The indicator light on the top of the Signal Booster will be GREEN when the unit is
powered up and working properly.
4. If the light is off, ensure power supply connections are tight.
4
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com Mon.- Fri. Hours: 7 am to 6 pm MST.

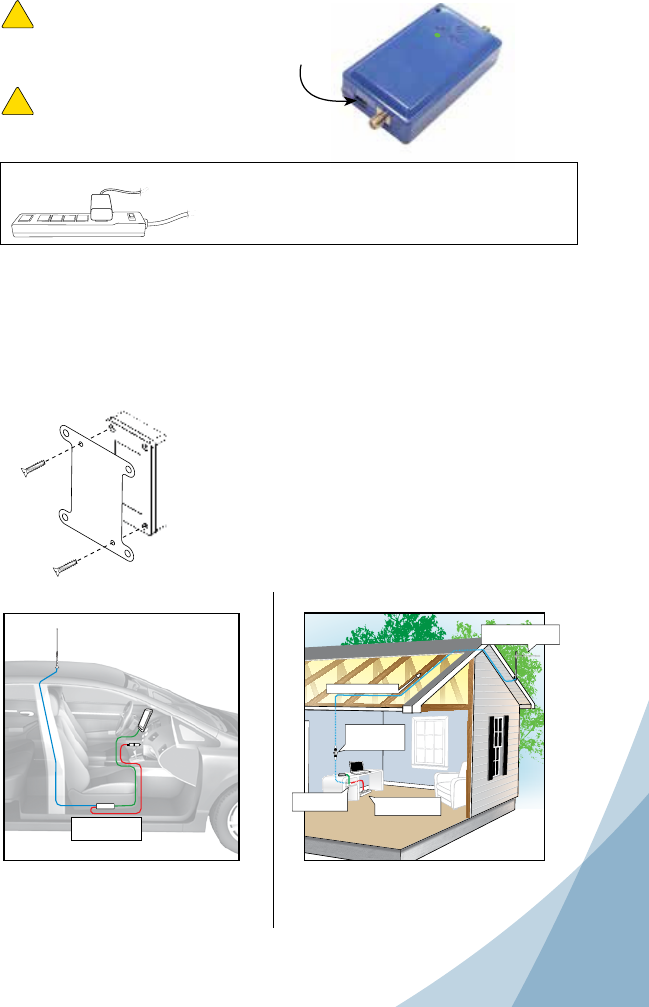

Carefully
insert the
power cable.
Warning: Use only a Wilson Electronics
power supply. Use of a non-Wilson
Electronics product could damage your
equipment.
!
Warning: Verify that both the Outside
Antenna and the adapter extension
cable are connected to the Signal
Booster before powering up the Signal
Booster.
!
Testing a Wilson Electronics Signal Booster
To test your Signal Booster, go to a weak signal area where your cell phone registers only
1-2 bars without the Signal Booster turned on. Then, connect the Signal Booster to the
phone and you should see a signal improvement of 2 or more bars. Note: Many phones
take up to 30 seconds to reset the bar indicator.
Installing the Mounting Plate
To purchase a mounting plate contact Wilson Electronics Sales Team 800-204-4104.
Remove two screws from back of Signal Booster that
correspond with the mounting plate.
Place Signal Booster on mounting plate and reinstall
the two screws previously removed from back of
Signal Booster.
Caution: Do not remove “Void Sticker.”
Mobile Installation In-Building Installation
Outside
Antenna
DC Power Supply
Connect to
cell phone or
data card
This is the recommended install for in-vehicle
use. Contact our Technical Support Team for
more information at: 866-294-1660 or
tech@wilsonelectronics.com
This is the recommended install for in-building
use. Contact our Technical Support Team for
more information at: 866-294-1660 or
tech@wilsonelectronics.com
(sold separately)
(PN# 901138)
Lightning
Surge Protector
(sold separately)
DataPro
Signal Booster
DataPro
Signal Booster
Power Strip Surge
Protector
Outside Antenna
Point toward cell tower
To Outside Antenna
Connect DataPro to cell
phone or data card
IMPORTANT NOTICE
• It is very important to power your Signal Booster using a surge
protected AC Power Strip with at least a 1000 Joule rating.
• Failure to do this will void your warranty in the event of a power surge
or lightning strike.
5Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com Mon.- Fri. Hours: 7 am to 6 pm MST.
Warning: Verify that both the Outside Antenna and the adapter extension cable are
connected to the Signal Booster before powering up the Signal Booster.
Warning: Use only the power supply provided in this package. Use of a non-Wilson
Electronics products may damage your equipment.
RF Safety Warning: Any antenna used with this device must be located at least 8
inches from all persons.
Warnings and Recommendations
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your
provider’s consent. Most wireless providers consent to the use of signal boosters. Some
providers may not consent to the use of this device on their network. If you are unsure, contact
your provider.
You MUST operate this device with approved antennas and cables as specified by the
manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
You MUST cease operating this device immediately if requested by the FCC or a licensed
wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls served
by using this device.
This is a CONSUMER device.
Lightning protection is recommended for all in-building installations.
It is recommended to verify that outside building antenna installations comply with relevant
electrical codes (e.g. National Electrical Code).
NOTE: The aluminum casing of a Wilson Electronics Signal Booster will adjust very quickly to
the ambient temperature of its environment. For example, in the summer, when the inside of a
car can reach 140 degrees Fahrenheit, the Signal Booster temperature may be 150 degrees or
higher. The casing will be hot to the touch, similar to a metal door handle or a steering wheel.
Such high temperatures will not damage the Signal Booster, nor do they pose a fire risk to the
structure. As recommended in these instructions, install the Signal Booster in a location with
adequate ventilation. Keep the area free of items that could block air flow to the Signal Booster.
Do not install the Signal Booster in direct sunlight.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation. Changes
or modifications made that are not expressly approved by Wilson Electronics could void authority
to operate this equipment.
Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal
Booster cannot be adjusted without factory reprogramming or disabling the hardware. The Signal
Booster will amplify, but not alter incoming and outgoing signals in order to increase coverage of
authorized frequency bands only. If the Signal Booster is not in use for five minutes, it will reduce
gain until a signal is detected. If a detected signal is too high in a frequency band, or if the Signal
Booster detects an oscillation, the Signal Booster will automatically turn the power off on that
band. For a detected oscillation the Signal Booster will automatically resume normal operation
after a minimum of 1 minute. After 5 (five) such automatic restarts, any problematic bands are
permanently shut off until the Signal Booster has been manually restarted by momentarily
removing power from the Signal Booster. Noise power, gain, and linearity are maintained by the
Signal Booster’s microprocessor.
6
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com Mon.- Fri. Hours: 7 am to 6 pm MST.
Disclaimer: The information provided by Wilson Electronics, LLC is believed to be complete
and accurate. However, no responsibility is assumed by Wilson Electronics, LLC for any
business or personal losses arising from its use, or for any infringements of patents or other
rights of third parties that may result from its use.
U.S. Patent Nos. – 7,221,967 7,729,669 7,486,929 7,409,186 7,783,318 8,583,034
8,583,033 8,639,180
About Wilson Electronics
Wilson Electronics, LLC has been a leader in the wireless communications industry
for over 40 years. The company designs and manufactures Signal Boosters, antennas
and related components that significantly improve cellular telephone signal reception
and transmission in a wide variety of applications, mobile (marine, RV, vehicles) and in-
building (home, office, machine to machine).
With extensive experience in antenna and Signal Booster research and design, the
company’s engineering team uses a state-of-the-art testing laboratory, including an
anechoic chamber and network analyzers, to fine-tune antenna designs and performance.
For its Signal Boosters, Wilson Electronics uses a double electrically shielded RF
enclosure and cell tower simulators for compliance testing.
Wilson Electronics Signal Boosters feature patented Smart Technology™ that enables
them to automatically adjust their power based on cell tower requirements. By detecting
and preventing oscillation feedback, signal overload and interference with other users,
these Smart Technology™ Signal Boosters improve network cell phone areas without
compromising carrier systems.
All products are engineered and assembled in the company’s 55,000-square-foot
headquarters in St. George, Utah. Wilson Electronics has product dealers in all 50 states
as well as in countries around the world.
30-Day Money-Back Guarantee
All Wilson Electronics products are protected by Wilson Electronic’s 30-day money-back guarantee. If for any
reason the performance of any product is not acceptable, simply return the product directly to the reseller with
a dated proof of purchase.
2-Year Warranty
Wilson Electronics Signal Boosters are warranted for two (2) years against defects in workmanship and/or
materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof
of purchase.
Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated
proof of purchase and a Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson
Electronics shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the
repaired or replaced product back to the original consumer if located within the continental U.S.
This warranty does not apply to any Signal Boosters determined by Wilson Electronics to have been subjected
to misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties.
Failure to use a surge protected AC Power Strip with at least a 1000 Joule rating will void your warranty.
RMA numbers may be obtained by contacting Technical Support at 866-294-1660.
Copyright © 2013 Wilson Electronics, LLC. All rights reserved.
110867_ICCCert_06.10.14
3301 East Deseret Drive, St. George, UT 84790
For additional Technical Support visit www.WilsonElectronics.com
or email at: tech@wilsonelectronics.com
Phone: 866-294-1660 Local: 435-673-5021 Fax: 435-656-2432
www.twitter.com/WilsonCellular www.facebook.com/WilsonCellular
Signal Booster Specifications
Dual-Band 800/1900 MHz Specifications
Model Number 460009
Connectors SMA-Female
Antenna Impedance 50 Ohms
Frequency 824-894 MHz & 1850-1995 MHz
Passband Gain (nominal) 800 MHz
13.4
1900 MHz
12.3
20 dB Bandwidth (MHz)
800 MHz 1900 MHz
Typical
Maximum
41.7
43.3
84.1
88.9
Power output for single cell phone (dBm)
800 MHz 1900 MHz
Uplink
Downlink
23.8
-6.05
22.3
-6.3
Power output for multiple received channels
(Uplink) dBm
No. Tones
800 MHz 1900 MHz
224.1 23.2
320.5 19.6
418.0 17.1
516.1 15.2
614.5 13.6
Power output for multiple received channels
(Downlink) dBm
No. Tones
800 MHz 1900 MHz
2-3.2 -4.7
3-6.7 -8.2
4-9.2 -10.7
5-11.1 -12.7
6-12.7 -14.2
Noise Figure (typical downlink/uplink) 4 dB (nominal)
Isolation > 60 dB
Power Requirements 5.5 V DC, 1A
The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating
would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This power
reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device.
