Wilson Electronics 460035 Quint Band Bi-Directional Direct Contact Coupling Amplifier User Manual Revised

Wilson Electronics, LLC Quint Band Bi-Directional Direct Contact Coupling Amplifier Users Manual Revised

Users Manual Revised

User Manual
Vehicle Signal Booster Kit
DRIVE SLEEK
A WILSON ELECTRONICS BRAND
NEED HELP? support.weboost.com 866.294.1660
______
Index
Package Contents 1
STEP 1: Mount Outside Antenna 2
STEP 2: Route & Connect Booster 3
STEP 3: Route Cable To Front Of Vehicle 5
STEP 4: Connect System To Power 6
STEP 5: Insert Phone Into Cradle 7
Light Patterns 8
Troubleshooting 9
Safety Guidelines 11
Specifications 12
Warranty 14
DRIVE SLEEK CELL PHONE SIGNAL BOOSTER 1
________

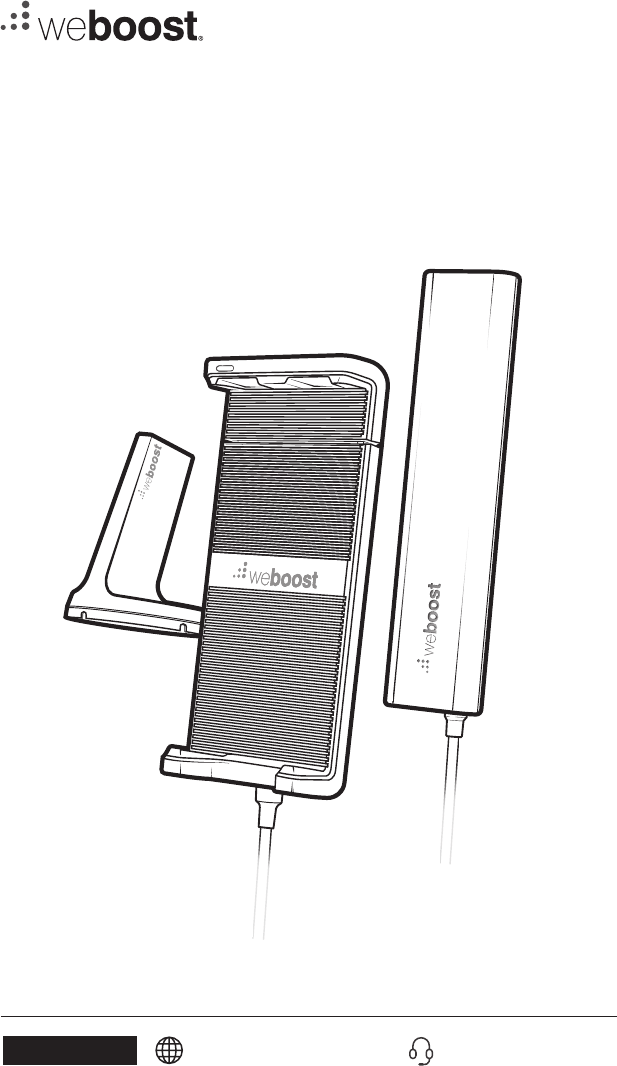

Package
Contents
Sleek
Cradle
Outside
Antenna
Signal
Booster
Power
Supply
Magnetic
Vent Mount
(for cradle)
2CELL PHONE SIGNAL BOOSTER DRIVE SLEEK
______

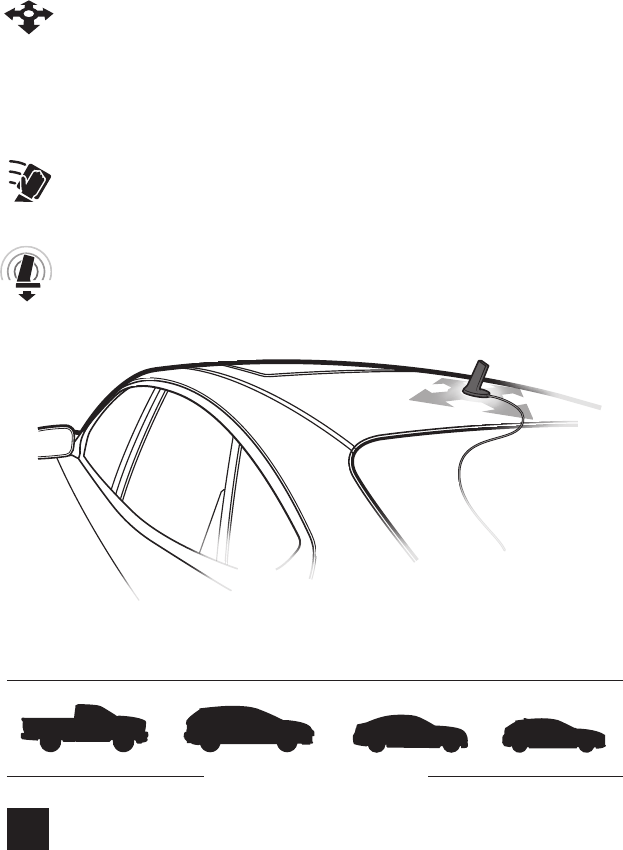

Step 1: Mount Outside
Magnetic Antenna
NOTE: For roofs that are not metallic, use the included metal disk by peeling
away the adhesive cover and sticking on the clean surface.
6 in. away from windows
(including sunroofs)
WORKS WITH ALL VEHICLES
Identify a location on the top of your vehicle that is:
Near the center of the roof
At least 12 inches away from any other antennas
At least 6 inches away from any windows
(including sunroofs)
Cle an the surface where you will place the outside
antenna.
Mount the outside antenna.
DRIVE SLEEK CELL PHONE SIGNAL BOOSTER 3
______
Step 2: Route & Connect
Booster
Route the cable into the vehicle. See examples below.
NOTE: The cable is strong enough that it may be shut in most vehicle doors
without damaging the cable.

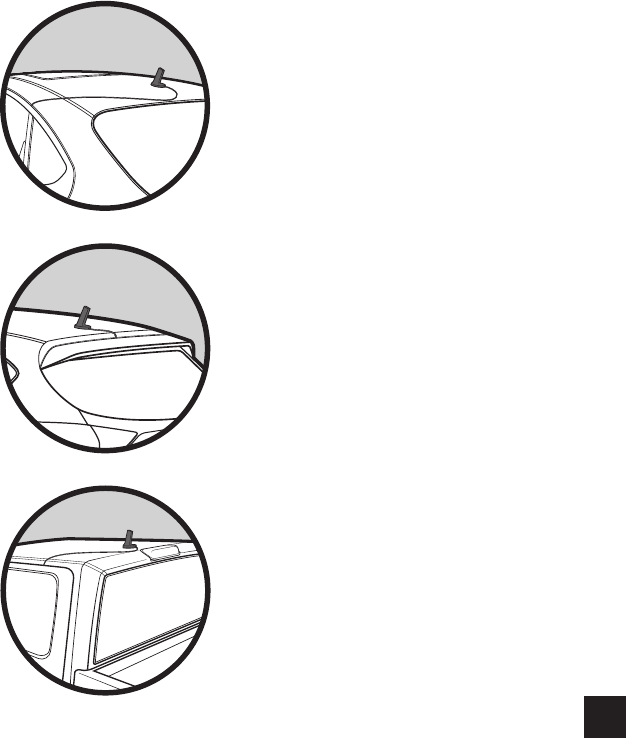

Car/Sedan: Cable routed
into rear side door.
SUV/Van/Hatchback: Cable
routed into top of hatchback door.
Truck: Cable routed into
side door.
Identify a location on the top of your vehicle that is:
Near the center of the roof
At least 12 inches away from any other antennas
At least 6 inches away from any windows
(including sunroofs)
Cle an the surface where you will place the outside
antenna.
Mount the outside antenna.
4CELL PHONE SIGNAL BOOSTER DRIVE SLEEK
______
(STEP 2 cont.)

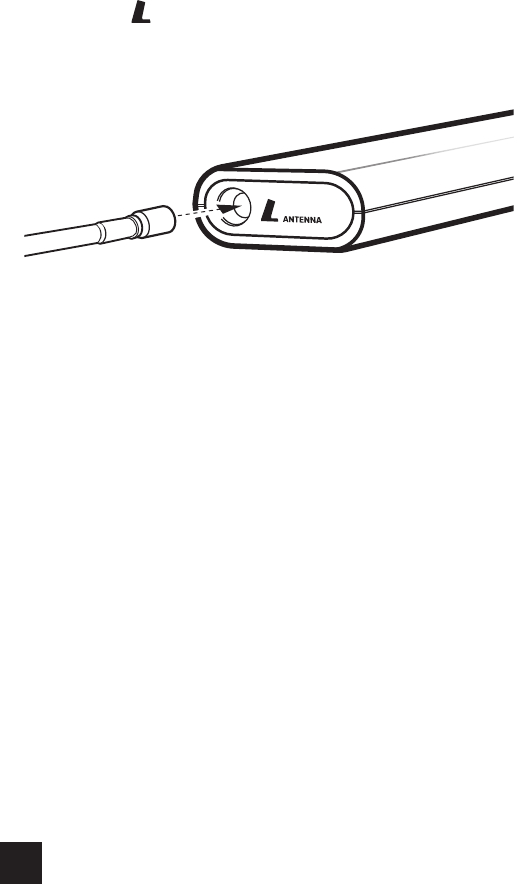

Connect the cable from the outside antenna to the booster
port labeled
ANTENNA
by simply pressing the connector in
until you hear a “click”.
ANTENNA
cable from
outside antenna
booster
DRIVE SLEEK CELL PHONE SIGNAL BOOSTER 5
______

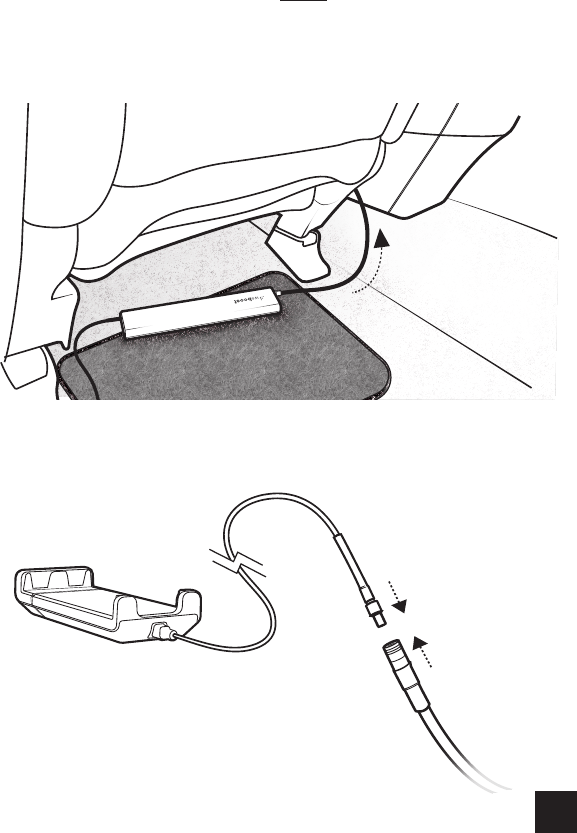

Step 3: Route Cable To Front
Of Vehicle
We recommend routing the 15ft. fixed cable from the
booster, under mats and between seats up to the front of
the vehicle where the cradle will be located.
Connect booster cable to cable from cradle.
to front of
vehicle
snap-in
connectors
cradle
6CELL PHONE SIGNAL BOOSTER DRIVE SLEEK
______
Step 4: Connect System To
Power

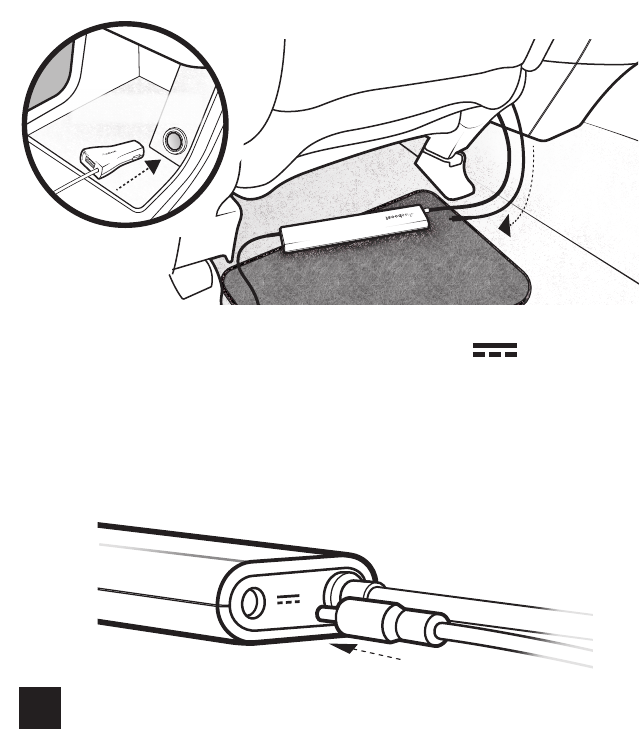

Connect the power to the 12V CLA port on your vehicle and
route power cable back to the booster.
Connect power cable to booster port labeled .
NOTE: We recommend routing with the same path as the cable going up to
the cradle (under mats and between seats).
NOTE: The booster will be on whenever there is power from the 12V CLA
port. If your vehicle always has power going to this port, you may want to
unplug this when you’re not driving so the booster does not drain your
battery.
ANTENNA
connect power supply
to 12V port
connect
to booster
DRIVE SLEEK CELL PHONE SIGNAL BOOSTER 7
______

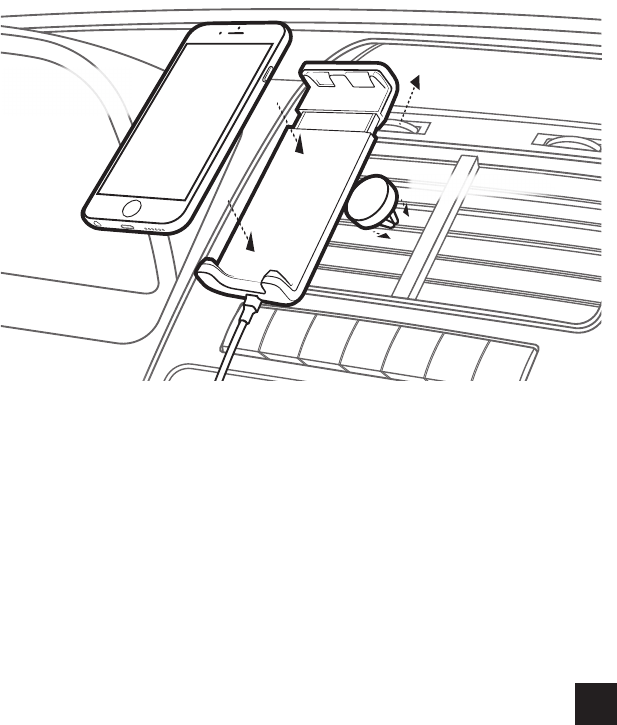

Step 5: Insert Your Phone
Into Cradle
Make sure you have plenty of slack in the cable going up
to the cradle (velcro straps included to manage excess
cable). Insert your phone into cradle and watch your signal
increase!
NOTE: Magnetic vent mount included to mount the cradle to your dash.
connect
to booster
cradle extends
insert phone into
cradle to boost signal
magnetic vent mount
8CELL PHONE SIGNAL BOOSTER DRIVE SLEEK
______
Light Patterns
Solid White
This indicates that your booster is functioning properly and at maximum gain.
Light O
Needs power.
NEED HELP? support.weboost.com 866.294.1660
DRIVE SLEEK CELL PHONE SIGNAL BOOSTER 9
FREQUENTLY ASKED QUESTIONS
What hours can I contact customer support?
Customer Support can be reached monday thru friday by calling 866.294.1660, or
through our support site at support.weboost.com.
Why do I need to create distance between the booster and the antenna?
Antennas connected to a booster create spheres of signal. When these spheres
overlap, a condition called oscillation occurs. Oscillation can be thought of as noise,
which causes the booster to shut down to prevent damage. The best way to keep
these spheres of signal from overlapping is to maximize separation between the
Booster and Antenna.
______
Troubleshooting
FIXING BLINKING LIGHT ISSUES
1
2
3
Make sure all connections are tight.
Increase the distance between the outside antenna and cradle, by moving
them horizontally and/or vertically farther apart until the light change to green.
Remember to keep the antenna at least 6 inches from any window or sunroof.
Reset system by disconnecting and reconnecting the power supply.
If you are having any diculties while testing or installing your booster, contact
our weBoost Customer Support team for assistance (866.294.1660).
4
NEED HELP? support.weboost.com 866.294.1660
10 CELL PHONE SIGNAL BOOSTER DRIVE SLEEK
______
Antenna Kit Options
MOBILE
Outside Antenna Options
Mini-Mag
301126 w/ 12.5 RG174 cable - SMA
301113 w/ 12.5 RG174 cable - FME
12” Mag Mount w/12.5’ RG58
301103
311125
311128
314202
311703
Trucker Antenna w/10.5’ RG58
311101
311701
4G Trucker Antenna w/13.5’ RG58
311119
311133
4G Trucker Antenna w/15’ RG58
304415
304414
Marine Antenna w/10’ RG58
311130-5810
Marine Antenna w/20’ RG58
304420
Glass Mount w/14’ RG58
311102
NMO Antenna w/RG174
Kit 311104-17410
800/1900 NMO Antenna
10’ RG174 Cable
Kit 311112-17410
800/1900 NMO Antenna
10’ RG174 Cable
Kit 314203-17410
800/900/1900 NMO Antenna
10’ RG174 Cable
NMO Antenna w/RG58
Kit 311104-5810
800/1900 NMO Antenna
10’ RG58 Cable
Kit 311112-5810
800/1900 NMO Antenna
10’ RG58 Cable
Kit 314203-5810
800/900/1900 NMO Antenna
10’ RG58 Cable
DRIVE SLEEK CELL PHONE SIGNAL BOOSTER 11
______
Safety Guidelines
Use only the power supply provided in this package. Use of a non-weBoost product may damage
your equipment.
Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the cell
phone.
Use only the power supply provided in this package. Use of a non-weBoost product may damage
your equipment.
The Signal Booster unit is designed for use in an indoor, temperature-controlled environment
(less than 150 degrees Fahrenheit). It is not intended for use in attics or similar locations subject to
temperatures in excess of that range.
The outside antenna must be installed no higher than 10 meters (32’9”) above ground.
Any antenna used with this device must be located at least 8 inches from all persons.
FCC requires to never use the cell phone in the cradle next to your ear.
FOR MORE INFORMATION ON REGISTERING YOUR SIGNAL BOOSTER WITH YOUR
WIRELESS PROVIDER, PLEASE SEE BELOW:
Sprint: http://www.sprint.com/legal/fcc_boosters.html
T-Mobile/MetroPCS: https://support.t-mobile.com/docs/DOC-9827
Verizon Wireless: http://www.verizonwireless.com/wcms/consumer/register-signal-booster.html
AT&T: https://securec45.securewebsession.com/attsignalbooster.com/
U.S. Cellular: http://www.uscellular.com/uscellular/support/fcc-booster-registration.jsp
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your
provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers
may not consent to the use of this device on their network. If you are unsure, contact your provider.
In Canada, BEFORE USE you must meet all requirements set out in ISED CPC-2-1-05. You MUST
operate this device with approved antennas and cables as specified by the manufacturer. Antennas
MUST be installed at least 20 cm (8 inches) from (i.e., MUST NOT be installed within 20 cm of) any
person.
You MUST cease operating this device immediately if requested by the FCC (or ISED in Canada) or
licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls served by
using this device.
ISED CPC-2-1-05: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08942.html
12 CELL PHONE SIGNAL BOOSTER DRIVE SLEEK
Drive Sleek
Model Number 460035
FCC ID: PWO460035
IC: 4726A-460035
Frequency 698-716 MHz, 729-746 MHz, 777-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz
Maximum Power
Power output for single cell
phone (Uplink) dBm
700 MHz
Band 12/17
18.74
700 MHz
Band 13
21.57
800 MHz
Band 5
22.65
1700 MHz
Band 4
25.56
1900 MHz
Band 2
19.19
Power output for single cell
phone (Downlink) dBm
700 MHz
Band 12/17
2.1
700 MHz
Band 13
2.1
800 MHz
Band 5
-2.5
2100 MHz
Band 4
-0.6
1900 MHz
Band 2
2.5
Noise Figure 5 dB nominal
Power Requirements 12 V 1.5 A / USB 5V 2.1 A
______
Specifications
DRIVE SLEEK CELL PHONE SIGNAL BOOSTER 13
______
(SPECIFICATIONS cont.)
The term “IC” before the radio certification number only signifies that Industry Canada technical
specifications were met.
Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal Booster cannot
be adjusted without factory reprogramming or disabling the hardware. The Signal Booster will amplify, but not
alter incoming and outgoing signals in order to increase coverage of authorized frequency bands only. If the
Signal Booster is not in use for five minutes, it will reduce gain until a signal is detected. If a detected signal is
too high in a frequency band, or if the Signal Booster detects an oscillation, the Signal Booster will automatically
turn the power o on that band. For a detected oscillation the Signal Booster will automatically resume normal
operation after a minimum of 1 minute. After 5 (five) such automatic restarts, any problematic bands are
permanently shut o until the Signal Booster has been manually restarted by momentarily removing power from
the Signal Booster. Noise power, gain, and linearity are maintained by the Signal Booster’s microprocessor.
This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation. Changes or modifications not expressly approved by weBoost could void
the authority to operate this equipment.
3301 East Deseret Drive, St. George, UT
866.294.1660 www.weboost.com support.weboost.com
Copyright © 2016 weBoost. All rights reserved.
weBoost products covered by U.S. patent(s) and pending application(s)
For patents go to: weboost.com/us/patents
NOT AFFILIATED WITH WILSON ANTENNA GDE000009_RevP_ErinFCC_07.10.17
2 YEAR WARRANTY
weBoost Signal Boosters are warranted for two (2) years against defects in
workmanship and/or materials. Warranty cases may be resolved by returning the
product directly to the reseller with a dated proof of purchase.
Signal Boosters may also be returned directly to the manufacturer at the
consumer’s expense, with a dated proof of purchase and a Returned Material
Authorization (RMA) number supplied by weoost. weBoost shall, at its option,
either repair or replace the product.
This warranty does not apply to any Signal Boosters determined by weBoost
to have been subjected to misuse, abuse, neglect, or mishandling that alters or
damages physical or electronic properties.
Replacement products may include refurbished weBoost products that have been
recertified to conform with product specifications.
RMA numbers may be obtained by contacting Customer Support
DISCLAIMER: The information provided by weBoost is believed to be complete
and accurate. However, no responsibility is assumed by weBoost for any business
or personal losses arising from its use, or for any infringements of patents or other
rights of third parties that may result from its use.
