Wilson Electronics 8013SB In Building Wireless PCS Smart Amplifier User Manual users manual
Wilson Electronics, LLC In Building Wireless PCS Smart Amplifier users manual
users manual
Wilson Electronics, Inc.
3301 E. Deseret Drive, St. George, Utah 84790
For additional technical support visit
www.wilsonelectronics.com
Phone: 1-866-294-1660 Fax: 1-435-656-2432
IN-BUILDING
Wireless
The term “IC:” before the radio certification number signifies
that Industry of Canada technical specifications were met.
PCS Smart Technology™ Amplifier
Installation Guide
In-Building
Wireless PCS
Smart TechnologyTM Amplier
PART # 801306
1850-1990 MHz
FCC ID: PWO8013SB
IC: 4726A-8013SB
2
3
1. PURPOSE OF THE AMPLIFIER
The PCS Smart TechnologyTM Amplier improves RF coverage for areas in which low signal
strength is a concern.
2. PACKAGE CONTENTS
2.1 Amplier
2.2 AC/DC 110 volt Power Supply
3. HOW THE AMPLIFIER FUNCTIONS
The signal is received by the outside antenna from the cell site. The signal is then
AMPLIFIED and transmitted to your phone through the inside antenna. When the phone
transmits, the signal is received by the inside antenna and then AMPLIFIED and transmitted
to the cell site through the outside antenna.
4. AMPLIFIER INSTALLATION (see illustration on pg. 4 & 5)
4.1 Installing the Wilson Cellular Outside Antenna
WARNING: The outside antenna used with this amplier must be xed-mounted on
an outdoor permanent structure with a separation of at least 20 feet from all persons
during normal operation.
4.1.1 Select a location on the roof using your phone in test mode to nd the best signal
strength. (See leaet titled PHONE TEST MODES)
4.1.2 The outside antenna should be located in an area with at least a 3 foot radius clear of
obstructions and other radiating elements.
4.2 Installing The Amplier
WARNING: Connecting amplier directly to cell phone may damage phone.
WARNING: Connect both antennas before connecting power to the amplier.
4.2.1 Mount the AMPLIFIER on a wall or ceiling using #6 screws.
NOTE: Mount the AMPLIFIER away from direct sunlight, excessive heat and/or
moisture. The amplifier needs proper ventilation. DO NOT place the amplifier
in an air-tight enclosure.
4.2.2 Connect outside antenna to the amplier side labeled “OUTSIDE ANTENNA”.
4.2.3 Connect inside antenna to the amplier side labeled “INSIDE ANTENNA”.
4.2.4 Verify that both the outside and inside antennas are connected before connecting
the AC-DC power supply to the power outlet.
2
3
4.4 Installing The Wilson Cellular Inside Antenna
4.4.1 See antenna packaging for model specic instructions.
4.4.2 The inside antenna should be centered in the weak signal area. The inside antenna
should be at least 7 feet from the oor.
FCC Separation Warning
WARNING: The inside antenna used with this amplier must have a separation
distance from all persons that is at least:
9 inches for the 2.5 dBi Dome antenna.
14 inches for the 7 dBi Panel antenna.
The amplier must not be co-located or operating in conjunction with any other
antenna or amplier.
4.5 When covering multiple areas a 1900 MHz splitter can be used to allow for more than one
inside antenna. Extension cables can also be used if the weak signal area is located far from the
location of the outside antenna. For coax runs more than 20 feet use 9913 or equivalent coax.
NOTE: For Maximum gain (60 dB), keep a separation distance of at least 50 feet
between the outside and inside antennas. Closer spacings may be used,
but may cause the amplier to automatically reduce its gain.
NOTE: When using a Yagi antenna make sure the Yagi is pointed away from the
inside antenna.

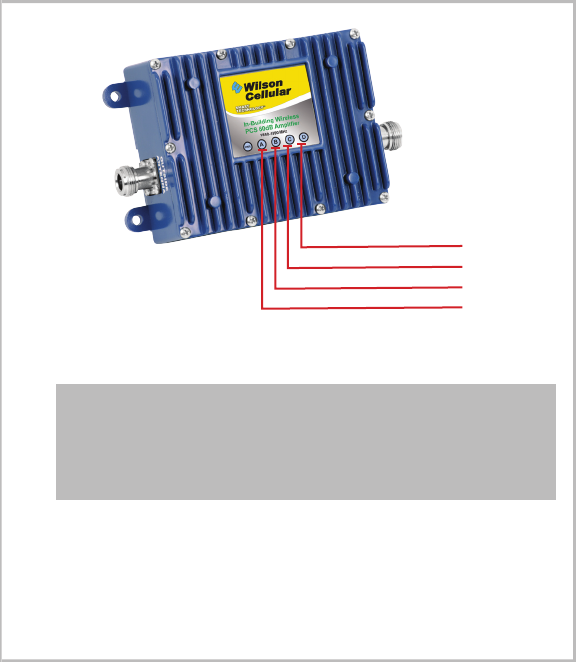

ALL LIGHTS GREEN = 60 dB GAIN
LIGHT D OFF = 2 dB REDUCTION
LIGHT D & C OFF = 10 dB REDUCTION
LIGHT D, C & B OFF = 20 dB REDUCTION
LIGHT A RED = 40 dB REDUCTION
4.3 Indicator Lights
4
5
AC / DC
Power Supply
Amplifier
Inside Antenna to
Amplifier Connection
Cell
Site
Supports
Multiple
Users
Outside Antenna
1900 MHz Yagi Antenna Shown
Outside Antenna to
Amplifier Connection
Inside Antenna
Optional Dome
Antenna Shown
If using a Yagi Antenna,
Make sure the Yagi is not pointed
toward the inside antenna.
AMPLIFIER PHYSICAL
SPECIFICATIONS
Connectors N-Female 50 ohms
Dimensions 4.5 x 3.5 x 1.25 inches
11.4 x 8.9 x 3.2 (cm)
Weight 1.5 lbs / 0.7 kg
4
5
For maximum gain, keep a separation
distance of at least 50 feet between the
outside and inside antennas.
AC / DC
Power Supply
Amplifier
Inside Antenna to
Amplifier Connection
Cell
Site
Supports
Multiple
Users
Outside Antenna
1900 MHz Yagi Antenna Shown
Outside Antenna to
Amplifier Connection
Inside Antenna
Optional Dome
Antenna Shown

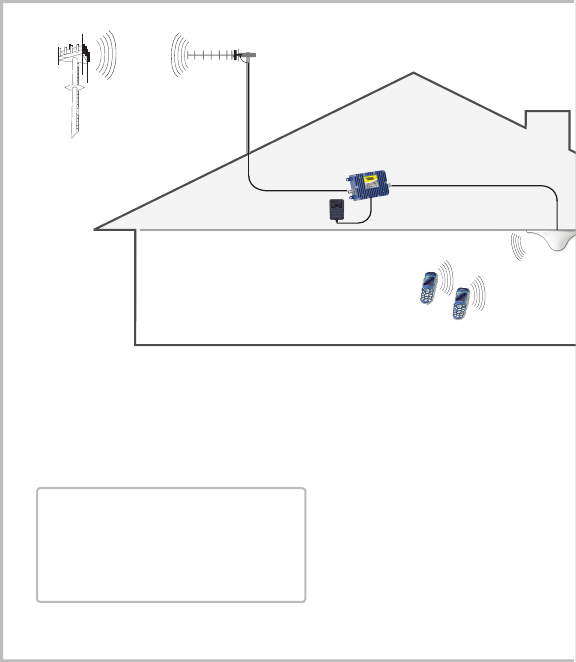

AMPLIFIER LAYOUT
DIAGRAM
5. AMPLIFIER SPECIFICATIONS
Part Number 801306
Gain 60 dB
Frequency PCS
1850-1910 MHz / 1930-1990 MHz
Linear Output Power 30 dBm
Max Output Power 3 watts
Max RF (up/down) +30 dBm / +30 dBm
Noise Figure (typical) 4 dB
Flatness (up/down) ± 4 dB
Isolation > 90 dB
Power Requirements 120 V AC 3 A Max
Connectors N-Female
Dimensions 4.5 x 3.5 x 1.25 (inch)
11.43 x 8.9 x 3.2 (cm)
Weight 1.5 lbs / 0.7 kg
6
7
6. OPTIONAL ACCESSORIES/ANTENNA OPTIONS
WARNING: Lightning protection is recommended for all installations.
6.1 3dB Dual-Band Splitter Part # 859911
6.2 Coax Cable Extensions 50Ω (see chart on next page)
6.3 Antenna Options:
Inside Antenna Options Outside Antenna Option
301103 - Magnet Mount 5 dBi 301124 - Yagi 13 dBi
301106 - Low Prole 2.2 dBi
301113 - Mini Magnet 2.12 dBi
301121 - Dome 2.5 dBi
301122 - Panel 7 dBi
301123 - Dual Polarity Dome, Unity
6.4 N-Male to FME-Male adapter Part # 971113
6.5 Lightning Surge Protection Part # 859902
7. TECH SUPPORT
If you need further assistance with your installation:
1) Call Toll-Free 866-294-1660 8:00 AM – 4:30 PM (Mountain Time)
2) E-mail tech support at tech@wilsonelectronics.com
3) Visit www.wilsonelectronics.com
8. WARNINGS
WARNING: The outside antenna used with this amplier must be xed-mounted on an out-
door permanent structure with a separation of at least 20 feet from all persons
during normal operation.
WARNING: The inside antenna used with this amplier must have a separation distance
from all persons that is at least:
9 inches for the 2.5 dBi Dome antenna.
14 inches for the 7 dBi Panel antenna.
The amplier must not be co-located or operating in conjunction with any
other antenna or amplier.
WARNING: Verify that both the Outside and Inside Antennas are connected before plug-
ging in the AC/DC power supply to the power outlet.
WARNING: Lightning protection is recommended for all installations.
Lightning protection is required for warranty validation.
The information provided by Wilson Electronics, Inc. is believed to be complete and accurate. However, no respon-
sibility is assumed by Wilson Electronics, Inc. for any business or personal losses arising from its use, or for any
infringements of patents or other rights of third parties that may result from its use.
Copyright © 2006 Wilson Electronics, Inc.
6
7
951110 2’ Extension Cable RG58U
Low Loss Coax
N-Male to FME-Female
Used with the Yagi antenna to help nd the
optimum signal strength (for installation purposes
only).
951101 5’ Extension Cable RG58U
Low Loss Coax
0.6 dB loss
951102 10’ Extension Cable RG58U
Low Loss Coax
1.2 dB loss
951103 15’ Extension Cable RG58U
Low Loss Coax
1.8 dB loss
951104 20’ Extension Cable RG58U
Low Loss Coax
2.4 dB loss, N-Male to FME-Female
951113 2’ Extension Cable 9913 Equivalent
Ultra Low Loss Coax
0.08 dB loss, Jumper Coax - Can be used to con-
nect a splitter behind an amplier.
951108 20’ Extension Cable 9913 Equivalent
Ultra Low Loss Coax
Only use 9913 Equivalent Low Loss Coax for
extensions 20 feet or longer, 0.8 dB loss
951105 30’ Extension Cable 9913 Equivalent
Ultra Low Loss Coax
1.2 dB loss
951106 50’ Extension Cable 9913 Equivalent
Ultra Low Loss Coax
2.0 dB loss
951117 75’ Extension Cable 9913 Equivalent
Ultra Low Loss Coax
3.0 dB loss
951107 100’ Extension Cable 9913 Equivalent
Low Loss Coax
4.0 dB loss
EXTENSION CABLE CHART
RG58U - FME connectors / 9913 Equivalent - N connectors
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of this device.
The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when mul-
tiple carrier signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is
re-radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power
or gain reduction and not by an attenuator at the output of the device.
Trucker 3/8"
Mount
Mini
Magnet
Magnet
Mount
Low
Profile
1900 MHz
Yagi
Dome Dual Polarity
Dome
Panel
Optional Accessories
Coax Cable Extension
Ultra Low Loss Coax
Lightning Suppressor
FME Male to
N-Male
15 DAY
MONEY BACK
GUARANTEE
All Wilson products
have a 15 day
money back
guarantee with
Proof of Purchase
1 YEAR WARRANTY
The Wilson amplifier is warranted for one year against defects in workmanship
and/or materials and will be repaired or replaced, at the discretion of the manufac-
turer, to the original purchaser with dated proof of purchase or sales receipt.
If any questions arise about an amplifier please call technical support toll-
free 1-866-294-1660 or E-mail tech@wilsonelectronics.com
Most warranty cases may be handled by taking the amplifier and the re-
ceipt to the store where it was purchased. If inconvenient, the amplifier and a
copy of the receipt, may be sent to the factory, at purchasers expense. It will
be repaired or replaced and returned shipping paid. Warranty does not cover
damages caused by abuse, misuse, and negligence.
