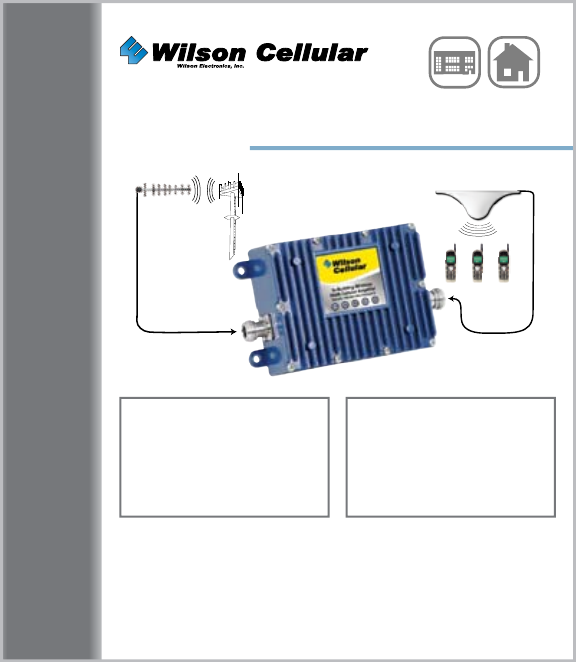

Wilson Electronics 8040SB In-Building Wireless iDEN SmartTech Amplifier User Manual

Wilson Electronics, LLC In-Building Wireless iDEN SmartTech Amplifier Users Manual

Users Manual

Wilson Electronics, Inc.
3301 E. Deseret Drive, St. George, Utah 84790
For additional technical support go to
www.wilsonelectronics.com
Phone: 1-866-294-1660 Fax: 1-435-656-2432
IN-BUILDING
Wireless
The term “IC:” before the radio certification number only signifies
that Industry of Canada technical specifications were met.
Cellular & iDEN Amplifier
Installation Guide
Cellular & iDEN
Analog & Digital - CDMA, GPRS, GSM, TDMA
In-Building
Wireless Cellular
Smart TechnologyTM
Amplier
824-894 MHz
FCC ID:PWO8011SB
IC: 4726A-8011SB
In-Building
Wireless iDEN
Smart TechnologyTM
Amplier
806-866 MHz
FCC ID:PWO8040SB
IC: 4726A-8040SB
2
3
1. PURPOSE OF THE AMPLIFIER
The Smart TechnologyTM Ampliers improve RF coverage for areas in which low signal
strength is a problem.
2. PACKAGE CONTENTS
2.1 Amplier
2.2 AC-to-DC (110 volt) Power Supply
3. HOW THE AMPLIFIER FUNCTIONS
The signal is received by the outside antenna from the cell site. The signal is then
AMPLIFIED and transmitted to your phone through the inside antenna. When the phone
transmits, the signal is received by the inside antenna and then
AMPLIFIED and transmitted to the cell site through the outside antenna.
4. AMPLIFIER INSTALLATION (see illustration on pg. 4 & 5)
4.1 Installing the Wilson Cellular Outside Antenna
4.1.1 Select a location on the roof using your phone in test mode to nd the best signal
strength. (See leaet titled PHONE TEST MODES)
4.1.2 The Outside Antenna should be located in an area with at least a 3’ radius clear of
obstructions and other radiating elements.
NOTE: Mount the AMPLIFIER away from direct sunlight, excessive heat
and/or moisture. The amplifier needs proper ventilation.
DO NOT place the amplifier in an air-tight enclosure.
WARNING: The outside antenna used with this amplier must be xed-mounted on
an outdoor permanent structure with a separation of at least 20 feet from all persons
during normal operation.
4.2 Installing The Amplier
WARNING: Connecting amplier directly to cell phone may damage phone.
WARNING: Connect both antennas before connecting power to the amplier.
4.2.1 Mount the AMPLIFIER on a wall or ceiling using #6 screws.
4.2.2 Connect Outside Antenna to the AMPLIFIER side labeled OUTSIDE ANTENNA”.
4.2.3 Connect Inside Antenna to the AMPLIFIER side labeled “INSIDE ANTENNA”.
4.2.4 Verify that both the OUTSIDE and INSIDE antennas are connected
before connecting the AC-DC power supply to the power outlet.
4.4 Installing The Wilson Cellular Inside Antenna
4.4.1 See antenna packaging for model specic instructions.
4.4.2 The Inside Antenna should be centered in the weak signal area. The INSIDE AN-
TENNA should be at least 7’ from the oor.
WARNING: The inside antenna used with this amplier must have a separation dis-
tance from all persons that is at least:
9 inches for the 2.5 dBi Dome antenna.
14 inches for the 7 dBi Panel antenna.
The amplier must not be co-located or operating in conjunction with any other
antenna or amplier.
4.5 When covering large areas a splitter can be used to allow for more than one inside antenna.
Extension cables can also be used if the weak signal area is located far from the location of the
outside antenna. For coax runs more than 20’ use 9913 or equivalent coax.
NOTE: For Maximum gain (60 dB), keep a separation distance of at least 75 feet
between the outside and inside antennas. Closer spacings may be used,
but may cause the amplier to (automatically) reduce its gain.
NOTE: When using the Yagi antenna make sure the Yagi is pointed away from
the inside antenna.

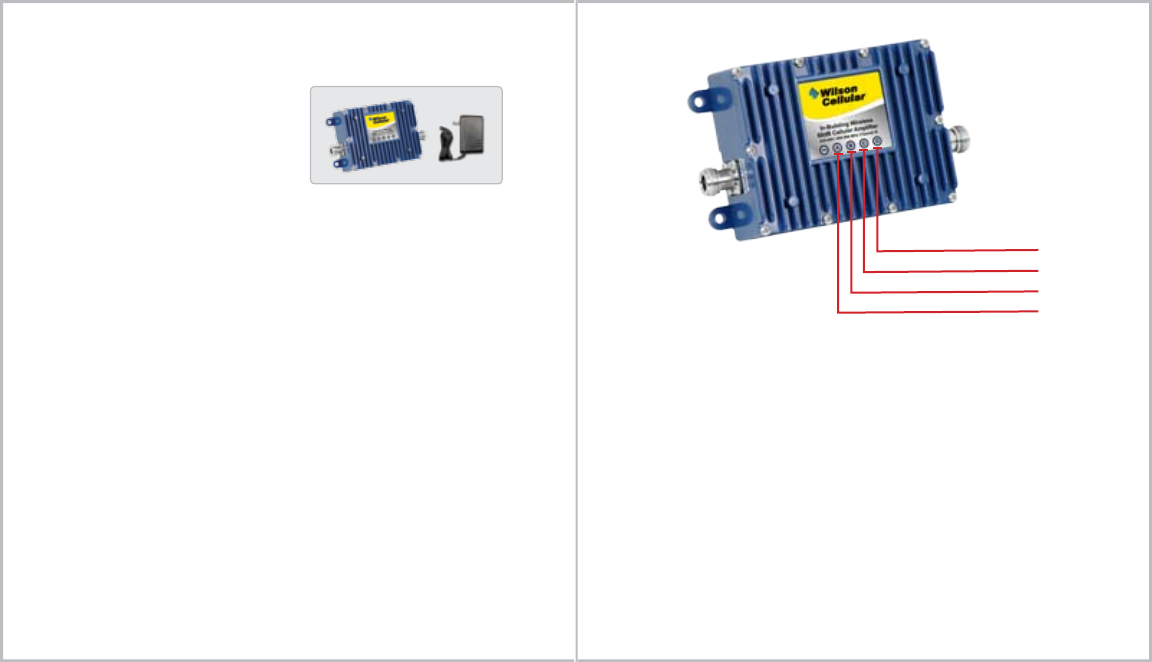

ALL LIGHTS GREEN = 60 dB GAIN
LIGHT D OFF = 2 dB REDUCTION
LIGHT D & C OFF = 10 dB REDUCTION
LIGHT D, C & B OFF = 20 dB REDUCTION
LIGHT A RED = 40 dB REDUCTION
4.2 Indicator Lights
4
5
For maximum gain, keep a separation
distance of at least 75 ft between the
outside and inside antennas.
AC/DC
Power Supply
Amplifier
Inside Antenna to
Amplifier Connection
Cell
Site
Supports
Multiple
Users
Outside Antenna
Yagi Antenna Shown
Outside Antenna to
Amplifier Connection
Inside Antenna
Optional Dome
Antenna Shown

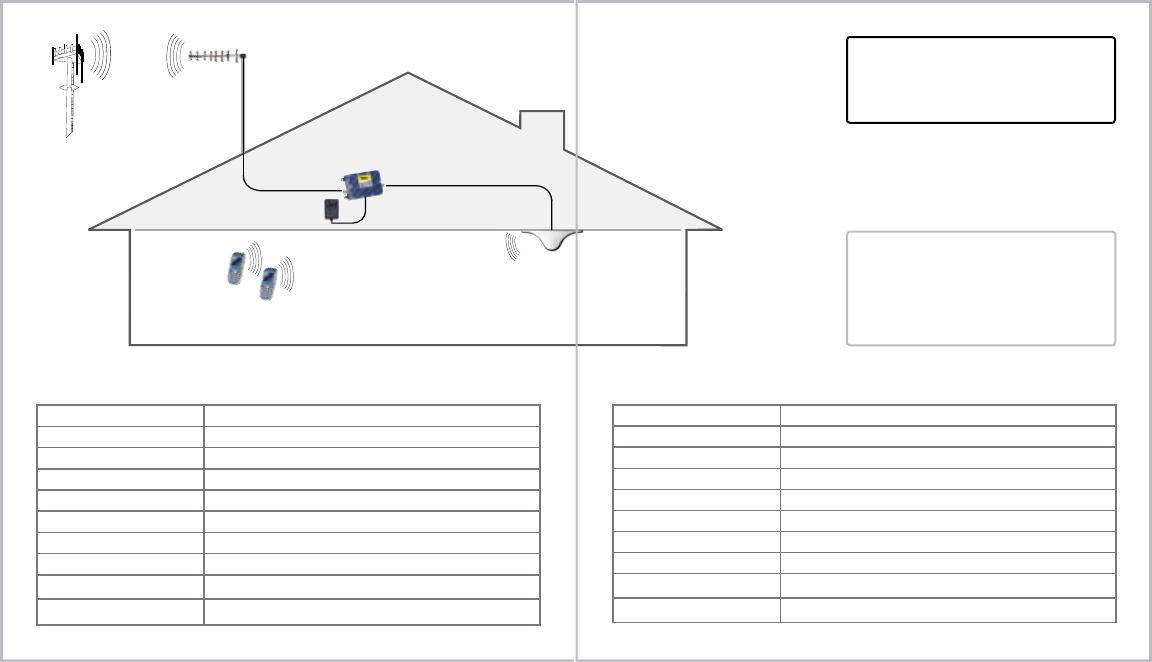

AMPLIFIER LAYOUT
DIAGRAM
If using the Yagi Antenna,
Make sure the Yagi is not pointed
toward the inside antenna.
5. AMPLIFIER SPECIFICATIONS FOR CELLULAR MODEL
Part # 801106
Frequency 824-849 MHz Uplink 869-894 MHz Downlink
Gain (up/down) 60 dB Max
Flatness (up/down) +/- 2.5 dB
Max RF (up/down) + 32 dBm
Noise Figure (down) 3 dB nominal
Isolation Uplink/Downlink More than 90 dB
Power Consumption 13.8 V, 1.5 A
Receiver overload light Outside antenna has exceeded -5 dBM
Transmit overload light Inside antenna has exceeded -5 dBM
AMPLIFIER SPECIFICATIONS FOR iDEN MODEL
Part # 804006
Frequency 806-821MHz Uplink 851-866MHz Downlink
Gain (up/down) 60 dB Max
Flatness (up/down) +/- 2.5 dB
Max RF (up/down) + 32 dBm
Noise Figure (down) 3 dB nominal
Isolation Uplink/Downlink More than 90 dB
Power Consumption 13.8 V, 1.5 A
Receiver overload light Outside antenna has exceeded -5 dBM
Transmit overload light Inside antenna has exceeded -5 dBM
AMPLIFIER PHYSICAL
SPECIFICATIONS
Connectors N-Female 50 Ohms
Dimensions 4.5” x 3.5” x 1.25”
(11.4 x 8.9 x 3.2 cm)
Weight 1.5 lbs (682 gr)
6
7
6. OPTIONAL ACCESSORIES/ANTENNA OPTIONS
6.1 3 dB Splitter (Part# 859901)
6.2 6 dB Tap (Part# 859906) & 10 dB Tap (Part# 859907)
6.3 Coax Cable Extensions 50Ω (see chart on next page)
6.4 Antenna Options:
Inside Antenna Options Outside Antenna Option
301103 - Magnet Mount, 5 dBi 301111 - Yagi, 13 dBi
301106 - Low Prole, 2.2 dBi
301113 - Mini Magnet, 2.12 dBi
301121 - Dome, 2.5 dBi
301122 - Panel, 7 dBi
6.5 N-Male to FME-Male adapter (Part# 971113)
Adapts 9913 Coax to t the Amplier
6.6 Lightning Surge Protection (Part# 859903)
WARNING: Lightning protection is recommended for all installations.
7. TECH SUPPORT
If you need further assistance with your installation:
1) Call us Toll-Free at 866-294-1660 (8:00 AM – 4:30 PM Mountain Time)
2) E-mail tech support at tech@wilsonelectronics.com
3) Go to www.wilsonelectronics.com
8. WARNINGS
WARNING: The outside antenna used with this amplier must be xed-mounted on an out-
door permanent structure with a separation of at least 20 feet from all persons
during normal operation.
WARNING: The inside antenna used with this amplier must have a separation distance
from all persons that is at least:
9 inches for the 2.5 dBi Dome antenna.
14 inches for the 7 dBi Panel antenna.
The amplier must not be co-located or operating in conjunction with any
other antenna or amplier.
WARNING: Verify that both the Outside and Inside Antennas are connected before plug-
ging in the AC-DC power supply to the power outlet.
WARNING: Lightning protection is recommended for all installations.
Lightning protection is required for warranty validation.
951110 2’ Extension Cable RG58U
Low Loss Coax
(N-Male to FME Female)
Used with the Yagi antenna to help nd the
optimum signal strength (for installation purposes
only).
951101 5’ Extension Cable RG58U
Low Loss Coax
(0.6 db loss)
951102 10’ Extension Cable RG58U
Low Loss Coax
(1.2 db loss)
951103 15’ Extension Cable RG58U
Low Loss Coax
(1.8 db loss)
951104 20’ Extension Cable RG58U
Low Loss Coax
(2.4 db loss) N-Male to FME Female
951113 2’ Extension Cable 9913 Equivalent
Ultra Low Loss Coax
(0.08 db loss) Jumper Coax - Can be used to con-
nect a splitter behind an amplier.
951108 20’ Extension Cable 9913 Equivalent
Ultra Low Loss Coax
Only use 9913 Equivalent Low Loss Coax for
extensions 20’ or longer (0.8 db loss)
951105 30’ Extension Cable 9913 Equivalent
Ultra Low Loss Coax
(1.2 db loss)
951106 50’ Extension Cable 9913 Equivalent
Ultra Low Loss Coax
(2.0 db loss)
951117 75’ Extension Cable 9913 Equivalent
Ultra Low Loss Coax
(3.0 dB Loss)
951107 100’ Extension Cable 9913 Equivalent
Low Loss Coax
(4.0 db loss)
EXTENSION CABLE CHART
RG58U - FME connectors / 9913 Equivalent - N connectors
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of this device.
The Manufacturers rated output power of this equipment is for single carrier operation. For situations when mul-
tiple carrier signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is
re-radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power
or gain reduction and not by an attenuator at the output of the device.
The information provided by Wilson Electronics, Inc. is believed to be complete and accurate. However, no respon-
sibility is assumed by Wilson Electronics, Inc. for any business or personal losses arising from its use, or for any
infringements of patents or other rights of third parties that may result from its use.
Copyright © 2004 Wilson Electronics, Inc.
8
Trucker 3/8"
Mount
Mini
Magnet
Magnet
Mount
Low
Profile
Yagi
Single-Band
Dome
Panel

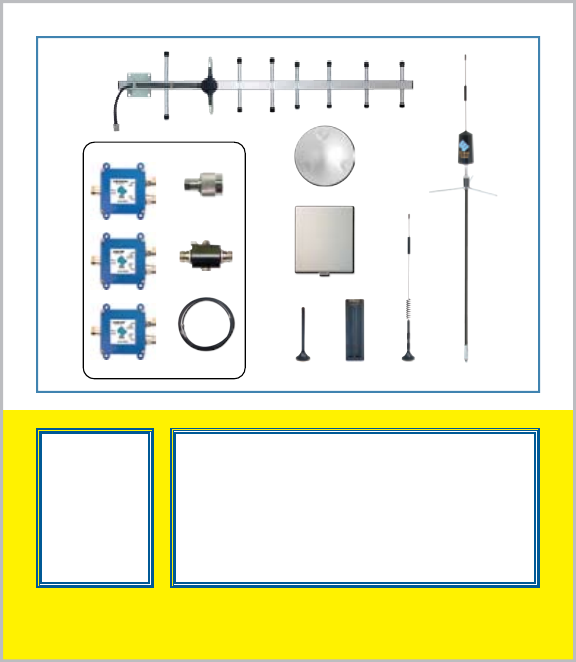

Optional Accessories
Coax Cable Extension
Ultra Low Loss Coax
Lightning Suppressor
FME Male to
N-Male
3 dB Splitter
6 dB Tap
10 dB Tap
15 DAY
MONEY BACK
GUARANTEE
All Wilson products
have a 15 day
money back
guarantee with
Proof of Purchase
1 YEAR WARRANTY
The Wilson amplifier is warranted for one year against defects in workmanship
and/or materials and will be repaired or replaced, at the discretion of the manufac-
turer, to the original purchaser with dated proof of purchase or sales receipt.
If you have questions about your amplifier please call technical support
call 1-866-294-1660 or E-mail tech@wilsonelectronics.com
Most warranty cases can be handled by taking the amplifier and the re-
ceipt to the store where it was purchased. If inconvenient, the amplifier and a
copy of the receipt, may be sent to the factory, at purchasers expense, where
it may be repaired or replaced and returned shipping paid. Warranty does not
cover damages caused by abuse, misuse, and negligence.
801106_804006_005
