Direct Connection Instructions 1
iDEN
DIRECT CONNECTION
AMPLIFIER
Part# 814001
FCC ID: PWO806D
IC: 4726A-806D
Installation Guide
Wilson Electronics, Inc.
3301 E. Deseret Drive, St. George, Utah 84790
For additional technical support go to
www.wilsonelectronics.com
Phone: 1-866-294-1660 Fax: 1-435-656-2432
DIRECT CONNECTION
Vehicle & Building
The term “IC:” before the radio certification number only signifies
that Industry of Canada technical specifications were met.
2
3
1. PURPOSE OF THE DIRECT CONNECTION AMPLIFIER
The Direct Connection Bi-directional Amplifier improves RF coverage in areas
with no signal or low signal strength. Part# 811101 Amplifies the signal on
800MHz up to 3 watts and allows for the full benefit of the outside antenna on
1900MHz frequencies. Part# 814001 Amplifies the iDEN (Nextel) frequencies
up to 3 watts.
2. PACKAGE CONTENTS
2.1 Bi-directional Direct Connection Amplifier.
2.2 DC plug-in power supply with ON/OFF switch.
2.3 6ft. Adapter Extension Cable.
3. HOW THE DIRECT CONNECTION AMPLIFIER FUNCTIONS
When using 800 MHz the signal is received by the outside antenna from the cell site.
The signal is then AMPLIFIED and sent into your phone through the adapter (sold
separately). When the phone transmits, the signal is sent to the amplifier through the
adapter then AMPLIFIED and transmitted to the cell site through the outside antenna.
When using 1900MHz (PCS) the signal bypasses the amplifier’s circuitry while getting
full benefit from the outside antenna.
NOTE: Amplifier #814001 does not have a 1900MHz (PCS) bypass as iDEN
(Nextel) does not utilize this frequency.
Package Contents
AMPLIFIER
DC PLUG-IN
POWER SUPPLY
6FT ADAPTER
EXTENSION CABLE
2
3
4. AMPLIFIER INSTALLATION (see illustration on pg.4)
4.1 Installing the
Wilson Cellular
Antenna
4.1.1 See antenna packaging for model specific instructions.
WARNING: Verify that both the outside antenna and adapter extension cable are
connected before powering up the AMPLIFIER.
RF SAFETY WARNING: (MOBILE ONLY) The outside antenna must be
mounted with a separation distance of at least 15.5 inches from
any of the vehicle occupants or nearby persons and must not be
co-located or operating in conjunction with any other antenna or
amplifier. Use of a cellular amplifier with antenna gains higher
than 5.12dBi is in violation of FCC regulations for which the offender
is fully liable. All Wilson Mobile Antennas are 5.12dBi or less.
WARNING: (IN-BUILDING ONLY)
Lightning protection is recommended for all
in-building installations.
RF SAFETY WARNING: (IN-BUILDING ONLY) When using in-building, the outside
antenna must be fixed-mounted on an outdoor permanent structure with a
separation of at least 20 feet from all persons during normal operation.
4.2 Installing The Amplifier
4.2.1 Select a suitable location to mount the AMPLIFIER.
• In vehicle installation - under the dash or vehicle seat
• In building installation - on a wall or ceiling
NOTE: Mount the AMPLIFIER away from direct sunlight, excessive heat and/or
moisture. The amplifier needs proper ventilation. DO NOT place the
amplifier in an air-tight enclosure. Use #6 screws to mount the amplifier.
4.2.2 Connect the outside antenna to the AMPLIFIER side labeled “OUTSIDE
ANTENNA”.
4.2.3 Connect the ADAPTER EXTENSION CABLE to the AMPLIFIER side
The information provided by Wilson Electronics, Inc. is believed to be complete and accurate.
However, no responsibility is assumed by Wilson Electronics, Inc. for any business or personal
losses arising from its use, or for any infringements of patents or other rights of third parties
that may result from its use.
Copyright © 2004 Wilson Electronics, Inc.
4
5

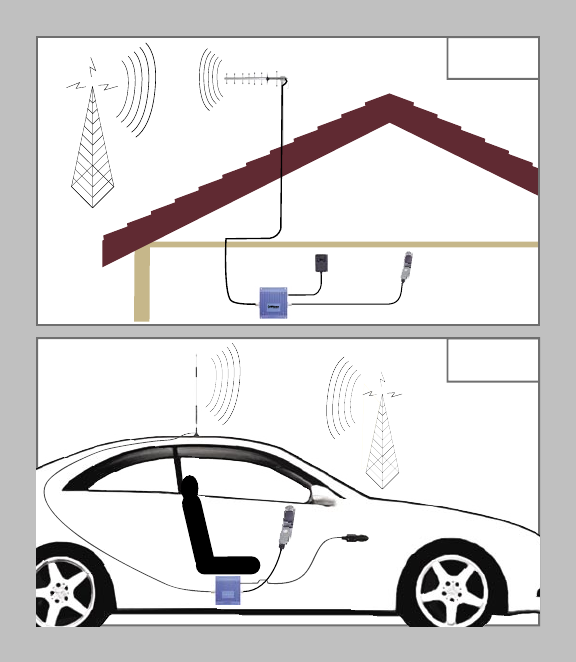

In-Building
Installation
Mobile
Installation
