Direct Connection Instructions 2
4
5
labeled “CELLULAR PHONE”.
4.2.4 An external antenna adapter is required (sold separately) to connect the
AMPLIFIER to the cellphone. External antenna adapters connect directly
to the antenna extension cable.
4.2.5 Connect the DC power supply to the AMPLIFIER. Verify that both
the OUTSIDE ANTENNA and the ADAPTER EXTENSION
CABLE are connected before powering up the AMPLIFIER.
NOTE: Visit our website at www.wilsonelectronics.com for the latest adapter
cross reference chart. If your phone’s adapter is not available from
your retailer contact us at 1-866-294-6996 and we will help you locate
one in your area. For further assistance contact our technical support
Toll-Free at 1-866-294-1660.
NOTE: iDEN Antennas are recommended for iDEN Amplifier 814001.
5. AMPLIFIER SPECIFICATIONS
DIRECT CONNECTION AMPLIFIER PHYSICAL SPECIFICATIONS
Connectors FME-Male 50 Ohms
Dimensions 5.5x4.3x1.4 (inch) or 14.0x10.8x3.5 (cm)
Weight 1.32 Pounds or 600G
iDEN #814001 AMPLIFIER SPECIFICATIONS
Frequency 806-821MHz Uplink 851-866MHz Downlink
Gain (up/down) Cell Site Controlled-Max 10/10db
Flatness (up/down) (+/- 2dB / +/-3dB)
Max RF (up/down) (+35dBm/+15dBm)
Noise Figure (down) (3.5dB nominal)
Isolation Uplink/Downlink 90dB
Power Consumption 1.5A@12V
6
7

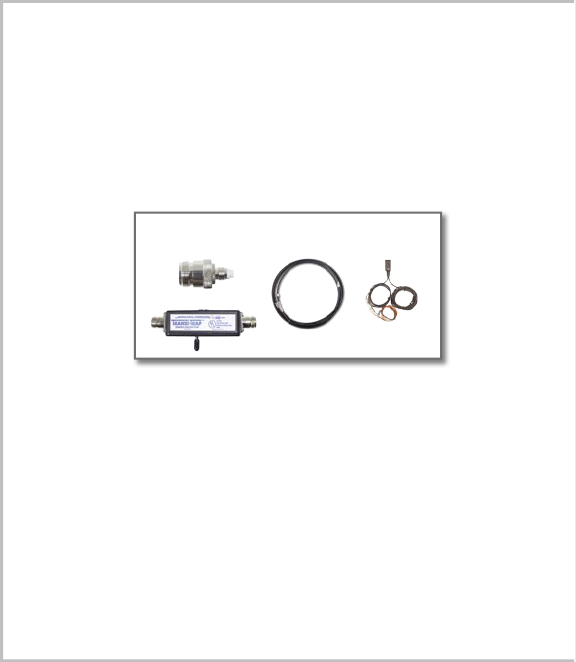

6. OPTIONAL ACCESSORIES/ANTENNA OPTIONS
6.1 Coax Cable Extensions 50Ω (see chart on pg.7)

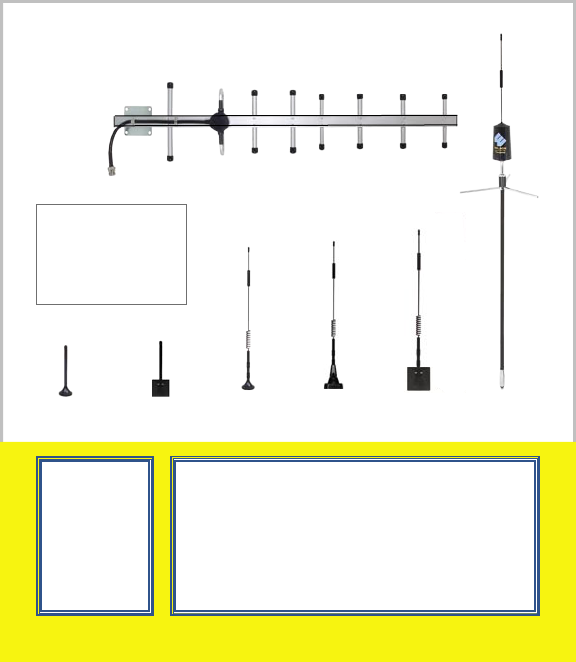

6.2 Antenna Options (see chart on last page)
6.3 N-Female To FME-Female Adapter - Adapts 9913 Coax to the
814001 Bi-directional Amplifier.
6.4 Lightning Suppressor (In-Building application)
WARNING: Lightning protection is recommended for all In-Building
installations.
6.5 Hardwire Power Supply Kit.
7
. WARNINGS
:
:
in-building installations.
WARNING: Verify that both the outside antenna and adapter extension cable are
connected before powering up the AMPLIFIER.
RF SAFETY WARNING: (MOBILE ONLY) The outside antenna must be
mounted with a separation distance of at least 15.5 inches from
any of the vehicle occupants or nearby persons and must not be
co-located or operating in conjunction with any other antenna or
amplifier. Use of a cellular amplifier with antenna gains higher
than 5.12dBi is in violation of FCC regulations for which the offender
is fully liable. All Wilson Mobile Antennas are 5.12dBi or less.
WARNING: (IN-BUILDING ONLY) Lightning protection is recommended for all
in-building installations.
RF SAFETY WARNING: (IN-BUILDING ONLY) When using in-building, the outside
antenna must be fixed-mounted on an outdoor permanent structure with a
separation of at least 20 feet from all persons during normal operation.
6
7
8. TECH SUPPORT
If you need further assistance with your installation:
1) Call us Toll-Free at 866-294-1660
2) E-mail tech support at tech@wilsonelectronics.com
3) Go to www.wilsonelectronics.com
Our Hours of Operation are: 8:00 AM – 4:30 PM (Mountain Time)
951101 5’ Extension Cable RG 58
Low Loss Coax
(0.6 db loss)
951102 10’ Extension Cable RG 58
Low Loss Coax
(1.2 db loss)
951103 15’ Extension Cable RG 58
Low Loss Coax
(1.8 db loss)
951104 20’ Extension Cable RG 58
Low Loss Coax
(2.4 db loss) Used with the Yagi
Antenna - (N-Male to FME Female)
951108 20’ Extension Cable 9913
Ultra Low Loss Coax
Only use 9913 Low Loss Coax for
extensions 20’ or longer (0.8 db loss)
951105 30’ Extension Cable 9913
Ultra Low Loss Coax
(1.2 db loss)
951106 50’ Extension Cable 9913
Ultra Low Loss Coax
(2.0 db loss)
951107 100’ Extension 9913 Low
Loss Coax
(4.0 db loss)
EXTENSION CABLE CHART (RG 58 - FME connectors / 9913 - N connectors)
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of this device.
Leaving the amplifier on in an unused vehicle for days may drain your battery. This can be avoided by
plugging into an ignition switched outlet or by using the small white switch located on the power supply.
