Win Accord PTT726B2 MOBILE INTERNET DEVICE-WIFI PORTION User Manual 1
Win Accord Ltd. MOBILE INTERNET DEVICE-WIFI PORTION 1
Users Manual
QUICK START GUIDE

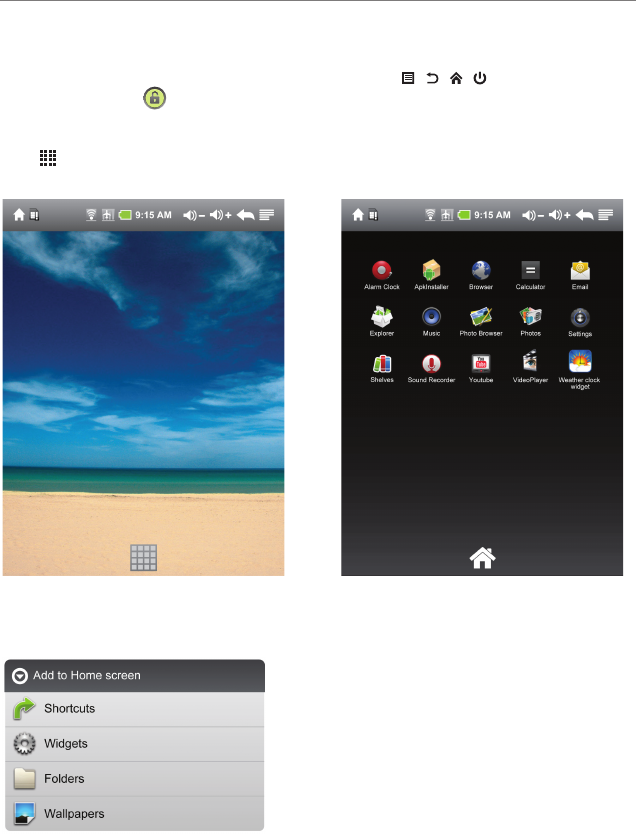

1. Tap on Home screen to find application.
See as following:
1. Tap any blank on Home screen for a while to show “Add to Home screen”, then you can add Shortcuts\ Widgets\
Folders\Wallpapers by a slight Tap. See as following:
2. Tap and hold any icon on Home screen until it becomes bigger, then drag the icon into the recycle bin to delete
short cut and widget.
2. Tap any icon to run application
1.Press and hold Power button for 3 seconds to turn on Personal Touch Tablet.
2.Click the “Lock” icon on Home screen and slide up to unlock PTT.
3.Press Power button for a while to show “Device options”, then you can choose Power off \ Suspend \ Cancel.
Note: When PTT has a screen timeout and automatically turns off, press / / / button on the body
to wakeup PTT then tap up to unlock PTT.
Find and run application
Create \delete short cut and widget on Home screen
1.
1.
2.
2.
3.
3.
4.
4.
5.
5.
6.
6.
7.
7.
8.
8.
9.
9.
10.
10.
11.
11.
12.
12.
RESET
Headphone jack
Volume up
Home button Back button MENU
Volume down MIC
DC in jack POWER
Micro SD USB Device
1. Tap in upper right of Home screen to show “Settings” in button line ＞Tap Settings ＞Tap Wireless & networks ＞
Tap “Wi-Fi” to turn it on , it will search Wi-Fi network automatically.
2. Go to “Wi-Fi settings” ＞Choose your network account and enter wireless password ＞Tap “Connect” to setup Wi-Fi.
3. When Wi-Fi is set up successfully, icon will be shown on the top of screen.
How to setup WiFi
Buttons overview
Status bar overview
14:35
In any function screen, tap button once can back to Home screen
Shows Mini SD card was removed
When WiFi is turned on, will be shown
Airplane mode
Shows battery status
Indicates alarm clock is turned on
Volume down & up icon
Back icon
Shows Menu under different status
FCC Statement
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
