WF‐4000QuickStartGuide:
Ensurethatyourdeviceispoweredon.
ConnectingadevicetotheWF‐4000:
1. Scanforwirelessnetworkswithyourdevice.
2. SelecttheWinegardConnectNetworklistedonthelabelonthebackoftheWF‐4000shown
belowaftertheDefaultSSID:
Onceselected,theWF‐4000willaskforaPassword.EntertheDefaultPasswordonthebackofthe
WF‐4000
NowthatthedeviceisconnectedtotheWF‐4000,openaninternetbrowserandenter
10.11.12.1
intotheaddressbar.
Loginusing
1. UserName:admin
2. Password:admin

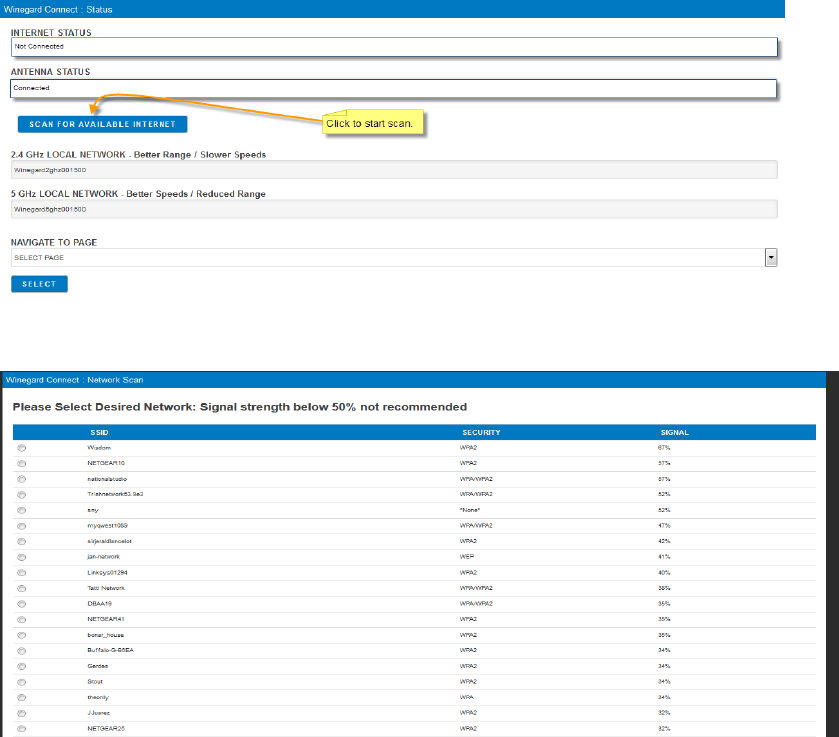

Scanningforavailableinternet:
Navigatetohomescreen.
Select“Scanforavailableinternet.”
TheWF‐4000willscanforavailablenetworksanddisplayalistsortedbysignalstrength.
Selectthedesirednetworkandclickcontinue.

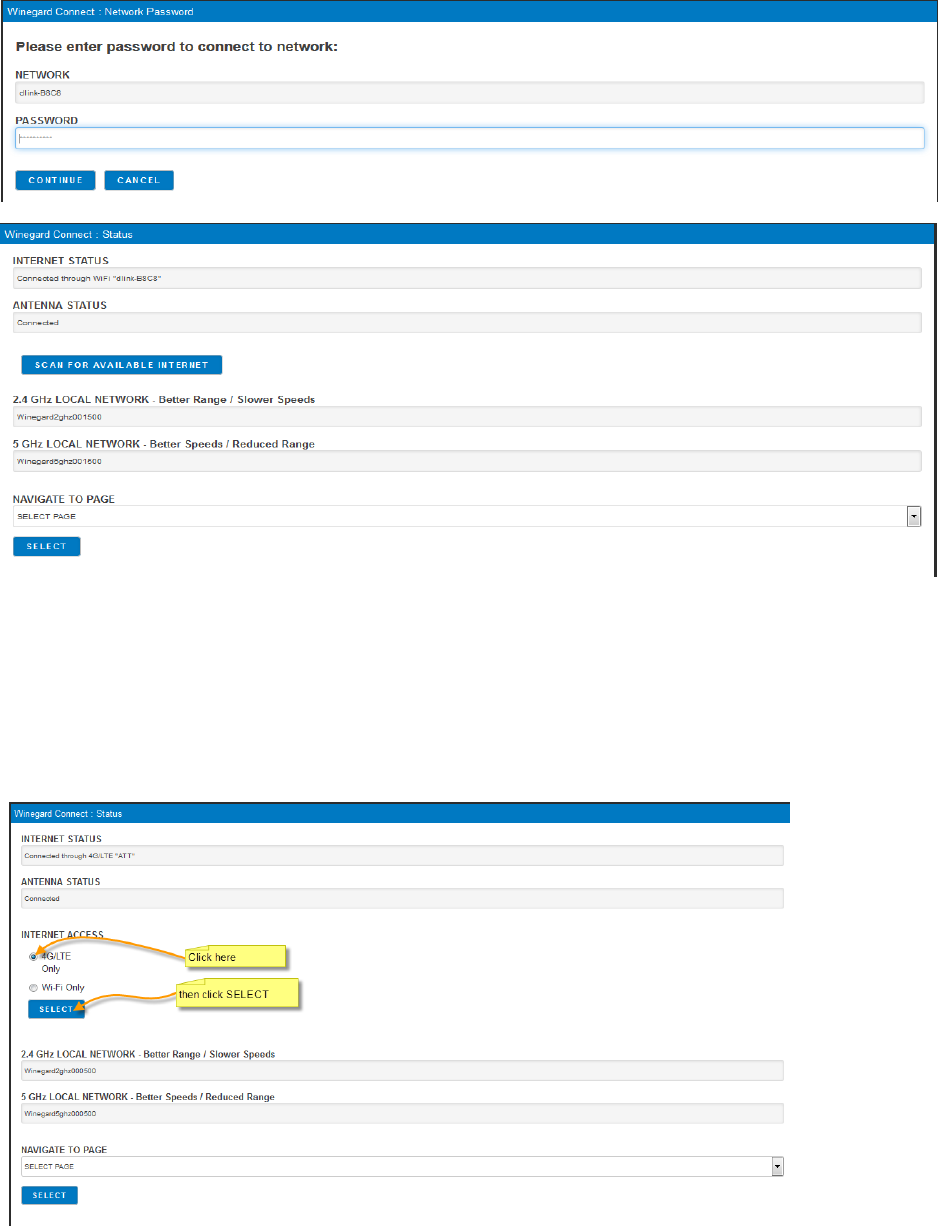

Enterthenetworkpasswordifneeded.Somenetworkswilldisplaya“SplashPage”whenconnecting.
OncetheWF‐4000connects,openafreshbrowserandthenetworkwilldisplaythispage.
Once“InternetStatus”showsConnectedtothechosennetwork,(thiscouldtakeupaslongastwo
minutes)thesystemisreadytobrowse.
4G/LTESetup:
Tousethe4Gconnectionclickthebulletfor4G/LTEintheInternetAccesssectionandclickselect.There
maybeathreeminutedelayastheWF‐4000connects.OnceInternetStatusshows“Connected”thisset
upiscomplete.
FCCStatement
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmful
interference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.These
limitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentusesandcan
radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio
communications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause
harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedto
trytocorrecttheinterferencebyoneormoreofthefollowingmethods:
Reorientorrelocatethereceivingantenna.
Increasetheseparationbetweentheequipmentanddevices.
Connecttheequipmentintoanelectricaloutletonacircuitdifferentfromthatwhichtheradioreceiverisconnected.
Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
FCCCaution
Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatethis
equipment.
Onlychannel1~11canbeoperated.Selectionofotherchannelsisnotpossible.
Thisdeviceanditsantenna(s)mustnotbeco‐locatedoroperationinconjunctionwithanyotherantennaortransmitter.
FCCRadiationExposureStatement
ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.Thisequipmentshouldbeinstalledand
operatedwithminimumdistance25cmbetweentheradiatorandyourbody.
Thisdeviceanditsantenna(s)mustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaortransmitterexceptinaccordance
withFCCmulti‐transmitterproductprocedures.
