Winmax Industry UM028C WIRELESS DIGITAL MAGNIFIER User Manual

Winmax Industry Co., Ltd. WIRELESS DIGITAL MAGNIFIER Users Manual

Users Manual

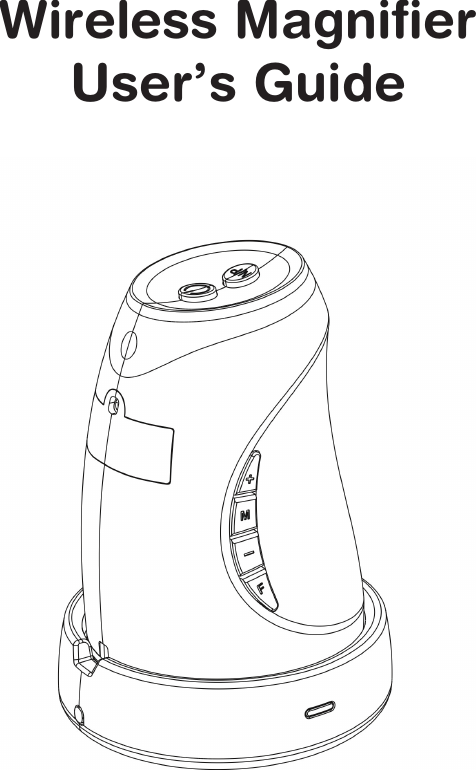

Wireless MagnierUser’s Guide

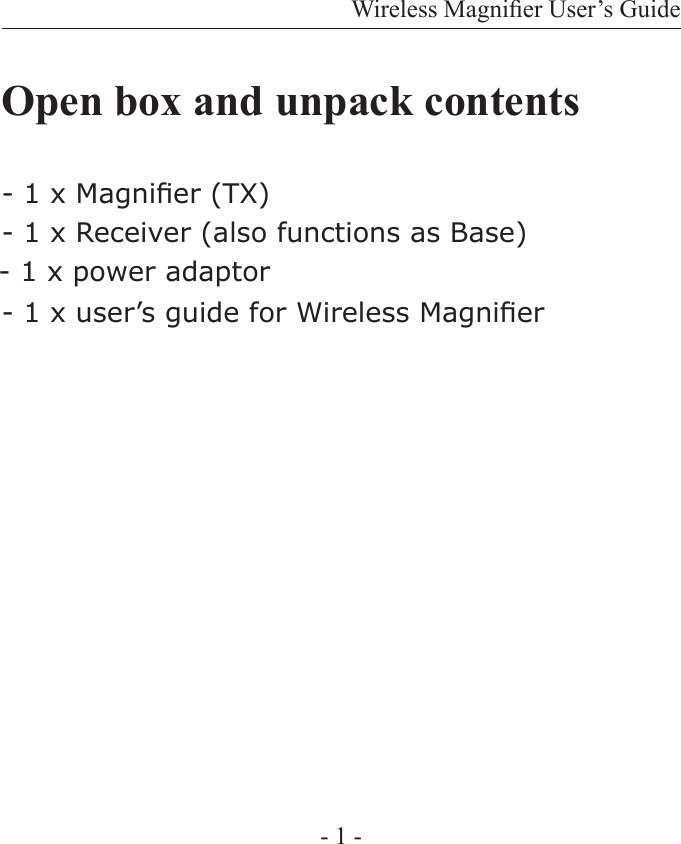

Wireless Magnier User’s Guide- 1 -Open box and unpack contents- 1 x Magnier (TX)- 1 x Receiver (also functions as Base)- 1 x power adaptor- 1 x user’s guide for Wireless Magnier

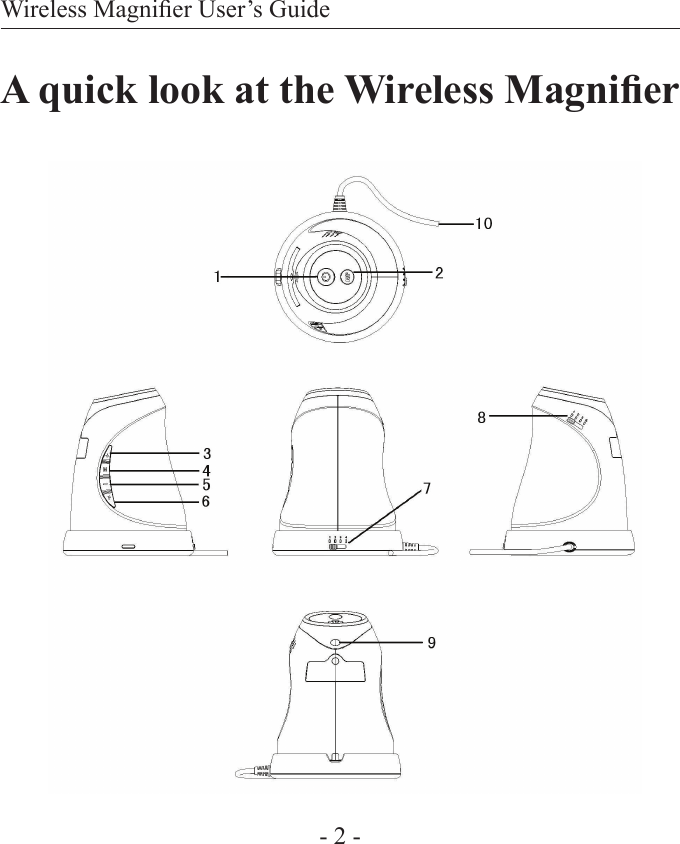

Wireless Magnier User’s Guide- 2 -A quick look at the Wireless Magnier

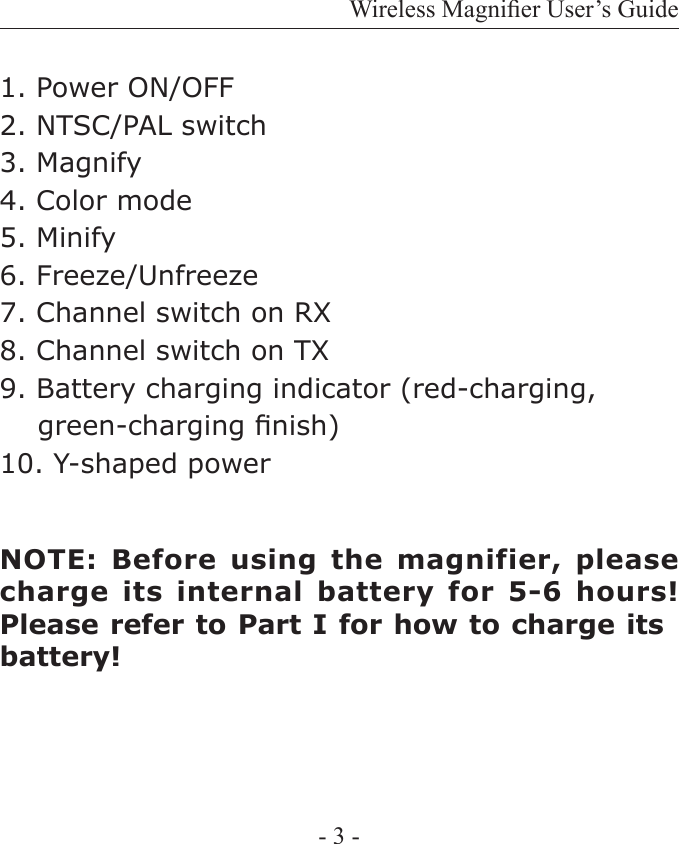

Wireless Magnier User’s Guide- 3 -1. Power ON/OFF2. NTSC/PAL switch3. Magnify4. Color mode5. Minify6. Freeze/Unfreeze7. Channel switch on RX8. Channel switch on TX9. Battery charging indicator (red-charging,     green-charging nish)10. Y-shaped powerNOTE: Before using the magnifier, please charge its internal  battery  for 5-6 hours! Please refer to Part I for how to charge its battery!

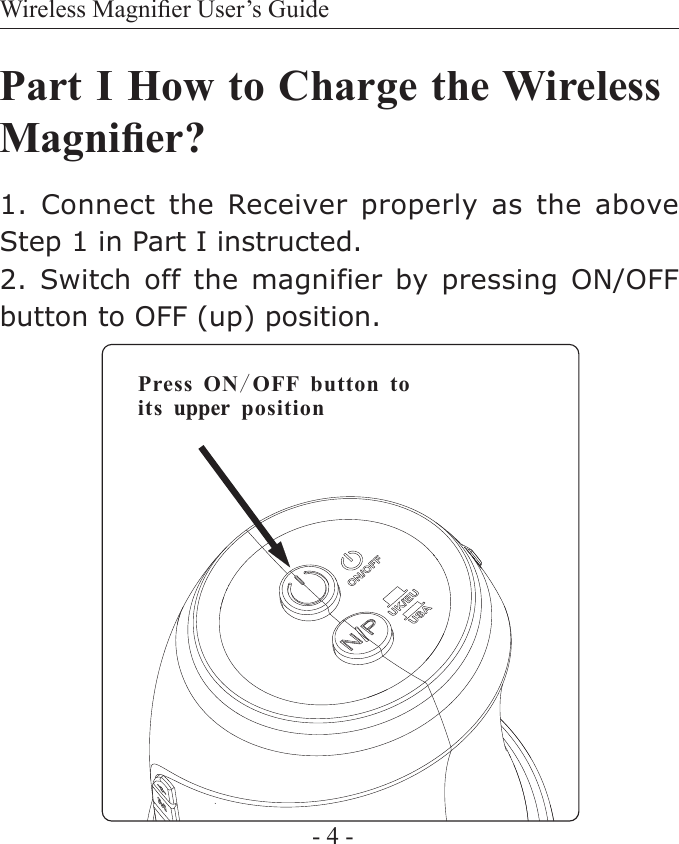

Wireless Magnier User’s Guide- 4 -Part I How to Charge the Wireless Magnier?1. Connect the  Receiver properly as the above Step 1 in Part I instructed.2. Switch off the magnifier  by  pressing  ON/OFF button to OFF (up) position.Press ON/OFF button toits upper position

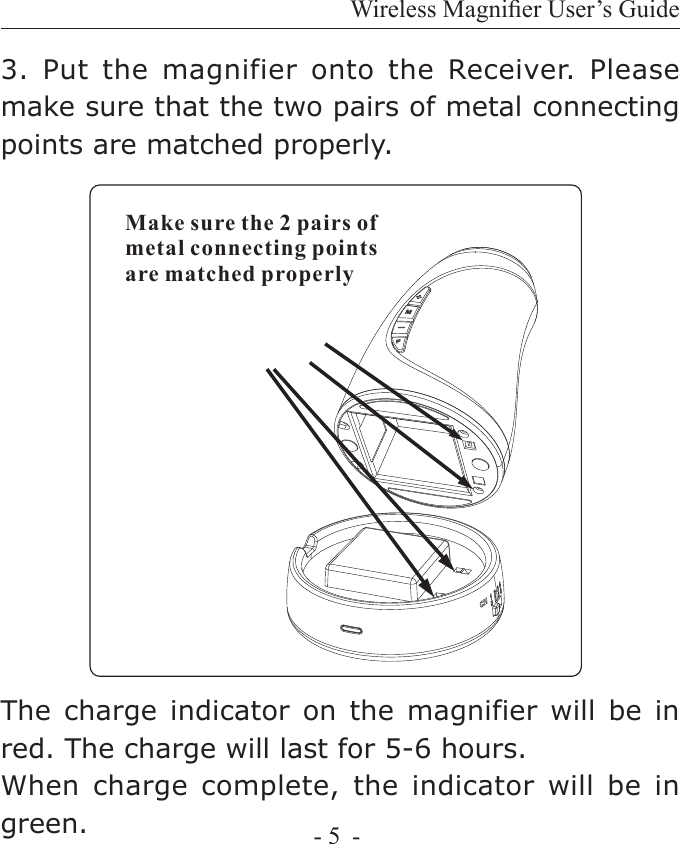

Wireless Magnier User’s Guide- 5  -3. Put  the  magnifier  onto the Receiver. Please make sure that the two pairs of metal connecting points are matched properly.The charge  indicator  on the magnifier  will  be in red. The charge will last for 5-6 hours. When charge  complete,  the  indicator will  be  in green.Make sure the 2 pairs ofmetal connecting pointsare matched properly

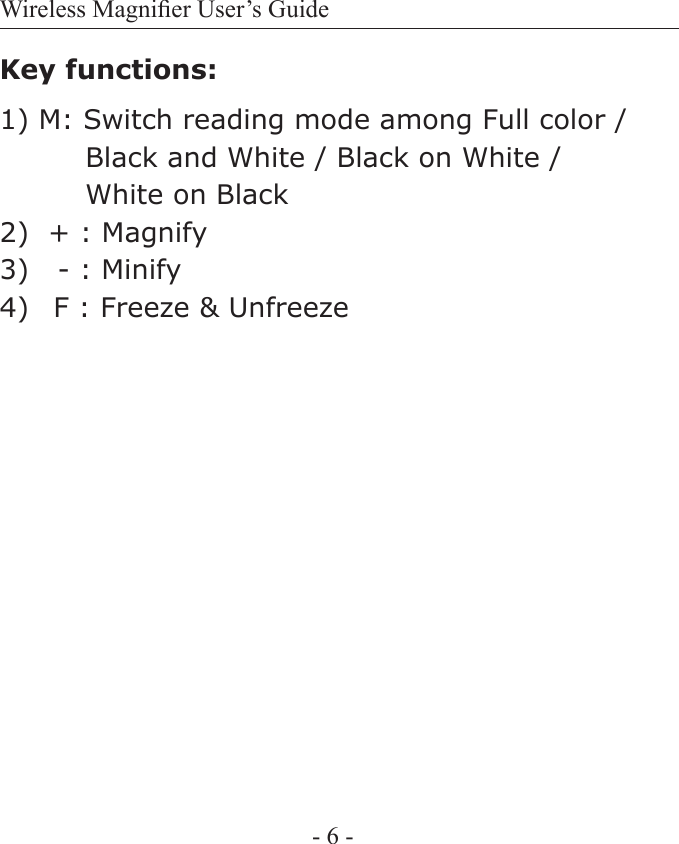

Wireless Magnier User’s Guide- 6 -Key functions:1) M: Switch reading mode among Full color /          Black and White / Black on White /          White on Black2)  + : Magnify 3)   - : Minify 4)   F : Freeze & Unfreeze

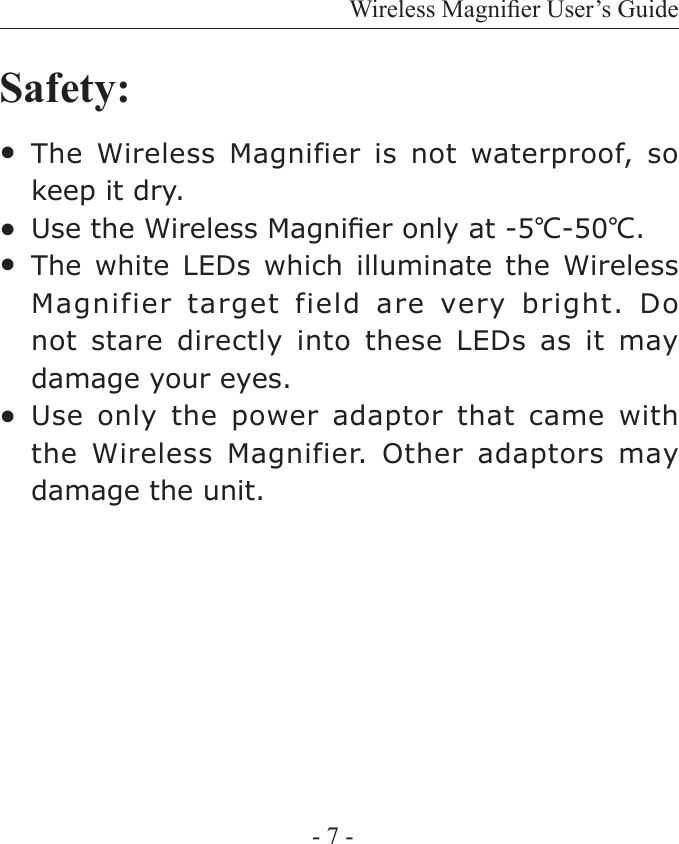

Wireless Magnier User’s Guide- 7 -The  Wireless  Magnifier  is  not  waterproof,  so keep it dry.Use the Wireless Magnier only at -5℃-50℃.The white  LEDs  which illuminate  the  Wireless Magnifier target  field  are very bright. Do not stare  directly  into these LEDs  as  it may damage your eyes.Use only  the  power  adaptor that  came  with the Wireless  Magnifier. Other adaptors  may damage the unit.Safety:●●●●

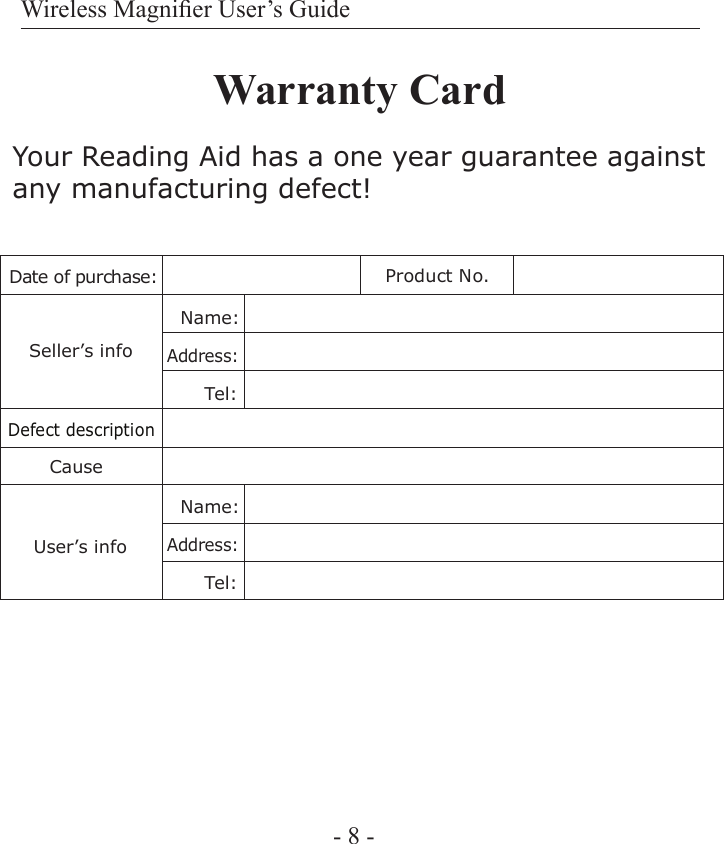

Wireless Magnier User’s Guide- 8 -Warranty CardYour Reading Aid has a one year guarantee against any manufacturing defect!Date of purchase:  Product No.             Defect description   Cause         User’s infoSeller’s info    Name:Address:Tel:Name:Address:Tel:

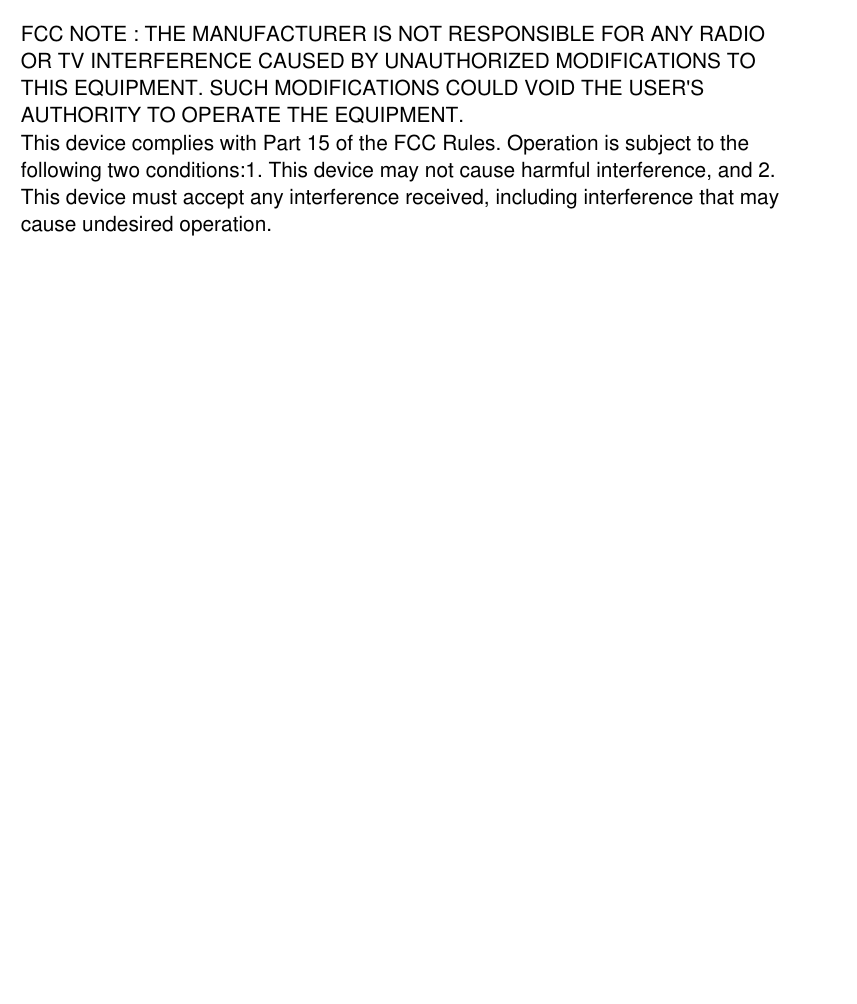

FCC NOTE : THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.
