Winplus LM56123 LED CEILING LIGHT User Manual

Winplus Co., Ltd. LED CEILING LIGHT

User Manual

CARE & USE INSTRUCTIONS
IMPORTANT, RETAIN FOR
FUTURE REFERENCE: READ CAREFULLY
For assistance with assembly or installation, parts and customer service, call us at 1-866-294-9244 (English),
Monday - Friday, 8am - 5pm Pacic Time, email us at info@winplususa.com
820 South Wanamaker Ave., Ontario, CA 91761, USA
www.winplus.com
ITM. / ART. 1165831
Model: LM56123
LED CEILING LIGHT
2
This LED Ceiling Light is suitable for use in any indoor location (e.g. home, oce,
warehouse, workshop, garage, and etc.). This light has the following unique features:
• Built-inSmartSensorControlSystem:ThisLEDCeilingLightusesamicrowavesensor
to automatically turn on when motion is detected and will turn o automatically after no
movement is detected in the area after the preset (5 min or 30 min) time.
• ConvenientWirelessRemote:Withtheremotecontrol,youcaneasilyadjustthelight
color, brightness, sensor distance, and the timer for auto-o.
• AdjustableLightColor:Alongwiththeremotecontrol,youcaneasilyadjustthelight
color from warm white to cool white for the best t for your environment.
• CRI90:ThehighCRI(colorrenderingindex)helpsshowtheobjectcolormorenaturally
 andclearlythanlightswithlowerCRIratings.
Important Safety Instructions:
Please read the following safety information before use.
Toreduceriskofre,electricshock,orinjurytopersons:
• TurnOFFthemainpoweratthefuseorcircuitbreakerbeforeinstallingthelightxture
or making any electrical connection.
• Makesurethislightxtureisadequatelygrounded.Toensurepropergrounding,there
 mustbeaseparategroundwire(barecopper)contactbetweenthislightxtureandthe
ground connection of your main power supply panel. Do not connect the bare or green
 insulationxturegroundwiretotheblack(hot)current-carryingwireorthewhite
 (neutral)wire.Connectionofthebareorgreenxturegroundwiretotheblackorwhite
 wiresmaycausemetalpartsofthexturetocarryelectricalcurrents,andmaycause
 electricalshock,whichcouldcauseseriousinjuryordeath.
• Donotsuspendanyxturebythehousewires.Suspendingaxturebythehousewires
 andwireconnectorsmayresultinthexturefalling,possiblycausingpersonalinjuryand
the danger of electrical shock or re.
• Itisrecommendedthataqualiedelectricianperformallwiringconnections.All
electrical connections must be in accordance with all national and local electrical codes.
• Thislightxtureisdesignedforuseina110–120VAC,60Hzfusecircuit.Notforuseona
dimming circuit.
• Forindooruseonly.
Warning:
• LEDlightoutputisstrongenoughtoinjurehumaneyes.Precautionsmustbetakento
prevent looking directly at the LEDs without installing the diuser (cover) for more
than a few seconds.
• Ifthelightinglightxtureisdamaged,itshallbeexclusivelyreplacedbythe
 manufacturerortheserviceagentorqualiedpersoninordertoavoidahazard.
• DonottamperwithorattempttorepairtheLEDcomponentorxture.Thelight
source is designed for this specic application and should not be serviced by
untrained personnel. Contact the customer service department if any servicing is required.
• Thewarnings,precautions,andinstructionsdiscussedinthismanualcannotcoverall
possible conditions and situations that may occur. The operator must understand that
3
common sense and caution are factors which cannot be built into this product, but
must be supplied by the operator.
• DonotinstallthisLEDwithadimmer.Doingsomaydamagethedriverinsideifused
with a dimming circuit.
• Thisdevicedoesnothaveaplug;rewiringisrequired.Ifyouareunsurehowtorewire
this light, please contact a qualied electrician to install instead of attempting to
rewire yourself.
• PowerwillstillruntothelightevenaftertheLEDlifespanrunsout.Alwaysshutthe
power from the fuse (breaker) when conducting any type of maintenance on the light.
Cleaning:
• Cleantheoutsideofthexturewithasoft,dryclothorslightlydampenedcleancloth.
Neveruseacleanerwithchemicals,solvents,orharshabrasivestocleantheproduct.
• DonotspraycleanerdirectlyontoanypartofthextureorLEDsasthismay
permanently damage the light or its functions.

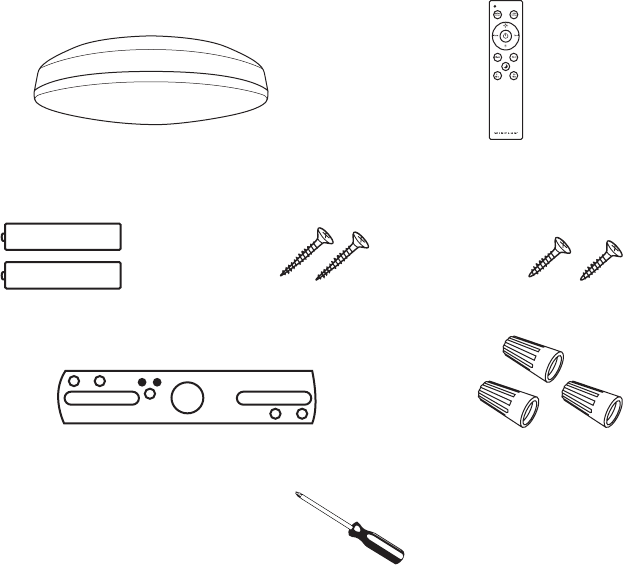

Package Contains:
ToolsNeeded(notincluded):
 1xLEDCeilingLight 1xWirelessRemote
2xAAABatteries  2xLongMountingScrews 2xShortMountingScrews
  1xCrossbar 3xWireNuts
Phillips-HeadScrewdriver
Please lay out all parts and read the instructions prior to installation.
AAA
AAA
GND
4
Installation Procedures:
Before Installation:
Carefullyremovethelightxture,mountingpackage,andwirelessremotefromthebox
and check that all parts are included. Do not attempt to assemble the product if any
part is missing or damaged.
Theoutletboxdescribedinthismanualisnotprovided.Astandardoutletboxneedsto
be pre-installed in the ceiling, and the power supply wires need to be run to the outlet
boxproviding120Vacofpower.Ifanoutletboxdoesnotexist,contactaqualied
electrician for installation.
Please turn OFF the main power at the fuse or circuit breaker before installing the light
xtureormakinganyelectricalconnection.Youmayuseanon-contactvoltagetesterto
ensure no power running to the wires.
Warning: Failure to disconnect the power supply prior to installation may result in
seriousinjuryordeath.

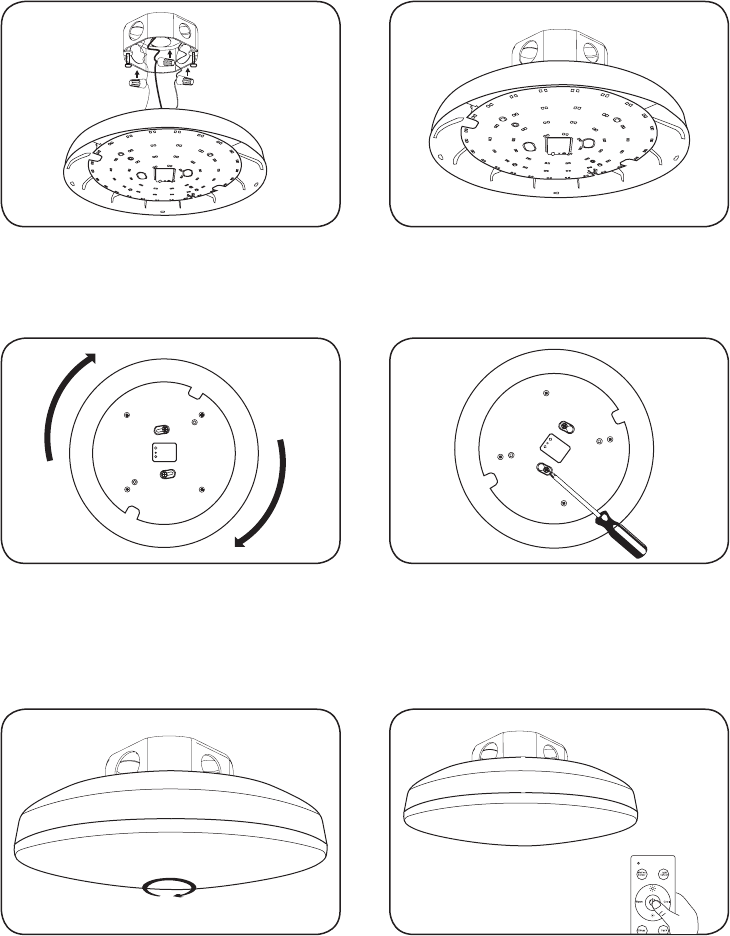

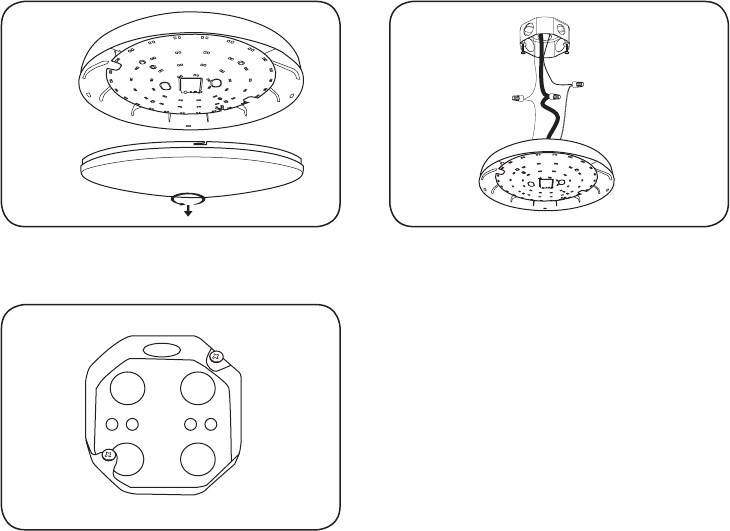

1.Rotatethecover(PartB)clockwiseto
detach it from the lamp body (Part A).
PartB
Part A
3. Make the following spliced wire connections
using wire nuts:
•White(neutral)supplywiretoWhitelightxture
wire
•Black(hot)supplywiretoBlacklightxturewire
•Green(ground)supplywiretoGreenlightxture
wires
Screw the wire nuts in a clockwise direction. Make
sure no bare wire or wire strands are visible after
making the connections.
Consult with a qualied electrician if you have
any electrical questions or if your current power
supply does not include a ground wire.
Warning:Neverconnectthegroundwiretothe
black or white power supply wires.
2.Installthelongmountingscrewsinto
outletboxuntilthereisabout½in.between
the ceiling and underside of the screw head.
5
5.Placethelampbodyovertheoutletbox
and feed the mounting screws through the
inner keyhole slots.
6.Rotatethelampbodyclockwisesothatthe
mounting screws slide into the narrow ends
of the keyhole slots.
7. Tighten the mounting screws to ensure the
lamp body is secured against the ceiling.
9. When the installation is nished, you can
turn on the main power and the light will
turnon.Ifthelightdoesnotturnon,please
refer to the Troubleshooting section of this
manual.
8. Attach the cover to the lamp body, and
rotate the cover counter-clockwise to secure
in place. To ensure complete securement,
please rotate the cover until you cannot
rotate further.
4. Carefully place all the wires and wire
connectionsintotheoutletbox.
6
Wireless Remote:
Beforeuse,pleaseopentheswitchcoveronthebackoftheremote,andinserttwoAAA
batteries.
When using the remote, you must point the remote directly to the light, to ensure the
signals can be sent to the light. When the light receives the remote signal, the light will
blinkoncesothatyouwillrecognizeit.
1. Motion Sensor
YoucanpresstheMotionSensorbuttontoswitchON(green
indicator) or OFF (red indicator).
ON:Thelightwillautomaticallyturnonwhenmotionisdetected
and will turn o automatically when there is no movement in
area for preset time.
OFF: The light will be function as an ordinary light to operate
manuallythroughtheRemoteorwallswitch.
Themotionsensorindicator(Green/Red)willashwheneveryou
pressotherremotebuttons,toreectthestatusofmotionsensor.
2. Light Sensor
YoucanpresstheLightSensorbuttontoswitchON(green
indicator) or OFF (red indicator).
ON:Whentheambientsurroundingisbright,thelightwillstay
OFF even if motion has been detected. When the surrounding
is less bright and there is motion detected, the light will turn
on. The light will turn o automatically when there is no further
movement during the preset time.
OFF: The light turns on and o accordingly to Motion Sensor
setting, and is not aected by surrounding light.
Thelightsensorindicator(Green/Red)willashwheneveryou
pressotherremotebuttons,toreectthestatusoflightsensor.
NOTE:IftheMotionSensoristurnedOFFtodisablethemotionsensorfeature,theLight
SensorfeaturewillalsoautomaticallybeturnedOFF.Inthiscase,thelightmustbe
turnedonwiththeRemoteorwallswitch.
3. Brightness
Youcanadjustthebrightnessfrom10%to100%fullbrightness,bypressing
continuously the brightness buttons. Press the top brightness button to increase the
brightness, and press the down button to decrease the brightness.
4. Color Temperature
Youcanadjustthecolortemperaturefrom2700Kto5000K,bypressingcontinuously
the color temperature buttons. Press the left color temperature button for a warmer
color temperature, and press the right button for a cooler color temperature.
Remote Setting:
1
2
3
4
5
6
7
8
7
5. Power Button
Youcanpressthepowerbuttontoturnlightonandoaccordingly.
NOTE:WhenyoupresspowerbuttontoturnlightowhiletheMotionSensorfunction
issettoON,thelightwillturnONautomaticallyagainwhenthereismotiondetected.
6. Distance
Distanceisthesensordetectionareaofthesmartsensor.Youcanchoosefromvarious
settings:Verynear,Near,Mid-rangeandFar.Thesensingdistancewouldberangedfrom
around1m/3.2ftto8m/26.2ft.Youmayrefertothetablebelowforthemaximum
sensingdistanceforthelightinstalledataheightof3m/9.8ft.
BypressingtheNearbutton,youcanchangetoashorterdistance.BypressingtheFar
button, you can change to a longer distance.
Forexample:
-Currentsetting:Near
-Ifpress“Near”once,thesettingwillbechangedto“VeryNear”,andtheMotionSensor
button will blink 1 time as indication.
-Ifpress“Far”once,thesettingwillbechangedbackto“Near”,andtheMotionSensor
button will blink 2 times as indication.
Anymovementinsidethedetectionzonewillbedetectedbythemotionsensor.
Actualsensingdistancemaybeinuencedbyenvironmentconditions.
Forexample,thesensingdistancedecreasesinanopenareafreeofobjects.The
distanceincreasesinanareawithlotsofmetallicobjects.
7. Night Mode
BypressingtheNightModebutton,thebrightnesswillchangeto20%offull
brightness. The color temperature will be kept the same.
8. Motion Sensor Time Until O
Motion Sensor Time Until O is the time for the light to turn OFF completely when there
isnomotiondetected.Youcanchooseeither5minor30min.
The light will be turned OFF when there is no motion detected within the preset time.
Whenchoosing5min,thelightwillbedimmeddownto50%ofcurrentbrightness
when no motion has been detected for 4 minutes and the light will be turned OFF
when no motion is detected 1 further minute.
Whenchoosing30min,thelightwillbedimmeddownto50%ofcurrentbrightness
when no motion has been detected for 29 minutes and the light will be turned OFF
when no motion is detected 1 further minute.
Any movement detected within this period will restart the timer and the light will be
turned on again.
Setting Maximum Sensing Distance (D) Blink(s) on Motion Sensor Button
Verynear 1m/3.2ft-2m/6.5ft 1 time
Near 2m/6.5ft-3.5m/11.4ft 2 times
Mid-range 3.5m/11.4ft-5m/16.4ft 3 times
Far 5m/16.4ft-7m/22.9ft 4 times
8
Product Specications:
1. OperatingVoltage:120Vac,60Hz
2. Maximumwattage:22W
3. MaximumLightOutput:1700lm
4. ColorTemperature:2700K–5000K
5. LED Life Cycles: up to 50,000 hrs*
6. CRI:90
*Note:50,000-hourlifespanisfortheLEDonly.Lifespandependsonoperating
temperature, environmental conditions, etc.
Troubleshooting:
Problem Possible Cause Solution
Light does not
illuminate.
Light does not turn on.
LED light burned out. ReplacetheLEDCeilingLight
Power is o.
Make sure power supply is on. Ensure
the circuit breaker is in the on position
as well.
Faulty wire connection Check wiring to ensure all wires are
correctly wired and are wired securely
Faulty switch Testand/orreplaceswitch
Light does not turn
on during the day.
Make sure the Light Sensor feature is not
enabled (only allowing the light to turn
on when the background light is darker).
Turn Light Sensor o to disable
this feature.
Fuse blows or circuit
breaker trips when
light is illuminated.
The wires are crossed (not wired properly)
or the power wire is grounding out.
Turn power to the light o from the
breaker. Check the wires to ensure
the wires were properly connected.
Ifeverythinglookscorrect,contacta
qualied electrician to check
your wires.
Light settings cannot
be changed from the
remote.
Batteriesnotinsertedcorrectly.
Open the battery compartment
cover and conrm the batteries were
insertedcorrectly.Replacewithnew
batteries if needed.
Batteriesareout. ReplacewithtwonewAAAbatteries.
Remotecontrolisoutofrange Move closer to the LED Ceiling Light to
select changes from the remote.
9
Warranty:
Winplus North America
This Winplus product carries a 1 year warranty against defects in workmanship and
materials.Thisproductisnotguaranteedagainstwearorbreakageduetomisuseand/
or abuse.
NOTE:WarrantyonlyappliesforNorthAmericancustomersofpurchasesmadeinNorth
America.
Conditions of Warranty
Ifduringthe1yearwarrantyperiodyournewproductisfoundtobedefective,Winplus
NorthAmericawillrepairsuchdefect,orreplacetheproduct,withoutchargeforparts
orlaborsubjecttothefollowingconditions:
• AllrepairsmustbeperformedbyWinplusNorthAmerica.
• Allwarrantyclaimsmustbeaccompaniedbyacopyofthesalesreceiptorbillofsale.
• Theequipmentmustnothavebeenalteredordamagedthroughnegligence,
accident, improper operation, or failure to follow the product instructions for
installation, use, or care.
• Thereplacementofpartsisexcludedfromthewarrantywhenreplacementis
necessary due to normal wear and tear.
• RepairorreplacementpartssuppliedbyWinplusNorthAmericaunderthiswarranty
 areprotectedonlyfortheunexpiredportionoftheoriginalwarranty.
• Thisisa“repairorreplace”warrantyonly,anddoesnotcoverthecostsincurredfor
the installation, removal or reinstallation of the product.
OWNER’SRESPONSIBILITIES:WinplusNorthAmericawillmakeeveryeortto
providewarrantyservicewithinareasonableperiodoftime.SHOULDYOUHAVE
ANYQUESTIONSABOUTSERVICERECEIVEDORIFYOUWOULDLIKEASSISTANCE
INOBTAININGSERVICE,PLEASECALLTOLLFREE1.866.294.9244DURINGREGULAR
BUSINESSHOURSMONDAYTHROUGHFRIDAY9:00AMTO5:00PMPST.
10
ThisdevicecomplieswithPart15oftheFCCrulesandIndustryCanadalicense-exempt
RSSstandard(s).Operationissubjecttothefollowingtwoconditions:(1)thisdevice
may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Warning:Changesormodicationstothisunitnotexpresslyapprovedbytheparty
responsibleforcompliancecouldvoidtheuser’sauthoritytooperatetheequipment.
ThemanufacturerisnotresponsibleforanyradioorTVinterferencecausedby
unauthorizedmodicationsorchangetothisequipment.Suchmodicationsorchange
couldvoidtheuser’sauthoritytooperatetheequipment.
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB
digitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications.However,thereisnoguaranteethatinterferencewillnotoccurina
particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor
television reception, which can be determined by turning the equipment o and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorientorrelocatethereceivingantenna.
-Increasetheseparationbetweentheequipmentandreceiver.
NOTE:TollFree#isforNorthAmericaCustomersONLY.SeeCustomerservicesection
forcustomercontactnumbersforotherregions/oces.
For customer service and technical support, please call us at 1.866.294.9244 or email
usatinfo@winplususa.com.Ifatthattimeitisdeterminedthatareplacementunitis
needed,thesupportrepresentativewillissueaReturnAuthorizationandinstructon
how to get a new unit.
WinplusNorthAmericamakesnootherwarrantyofanykindasidefromthelimited
expresswarrantystatedherein.
DISCLAIMEROFWARRANTIES,INCLUDINGWARRANTYOFMERCHANTABILITYAND
WARRANTYOFFITNESSFORPARTICULARPURPOSE:EXCEPTASSPECIFICALLYSET
FORTHHEREIN,NOWARRANTYORREPRESENTATION,EXPRESSORIMPLIES,ISMADEAS
TOTHELEDSHOPLIGHT.EXCEPTASEXPRESSLYSETFORTHHEREIN,WINPLUSNORTH
AMERICAAND/ORITSAFFILIATESEXPRESSLYDISCLAIMS,WITHOUTLIMITATION,ANY
STATUTORYWARRANTIESANDALLIMPLIEDWARRANTIES,INCLUDINGANYIMPLIED
WARRANTYOFMERCHANTABILITYORFITNESSFORAPARTICULARPURPOSE.
FCC / IC Compliance Statement:
11
- Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
-Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement.
TomaintaincompliancewithFCC’sRFexposureguidelines,thisequipmentshouldbe
installed and operated with a minimum distance of 20cm between the radiator and
your body.
DISTRIBUTEDBY:
COSTCOWHOLESALECORPORATION
P.O.BOX34535
SEATTLE, WA 981241535, USA
TEL: 18007742678
www.costco.com
MADEINCHINA
Haveacommentorquestion?Emailusatinfo@winplususa.com
or visit us online at www.winplus.com
820 South Wanamaker Ave., Ontario, CA 91761, USA | Tel: 1-866-294-9244
©2017WinplusNorthAmericaInc.Allrightsreserved.
ML-56123_V1Revisiondate:May2017

Navigation menu
