Wintecronics TR68A1-1 Remote Control Transmitter User Manual L TR68A 1

Wintecronics Ltd Remote Control Transmitter L TR68A 1

User Manual

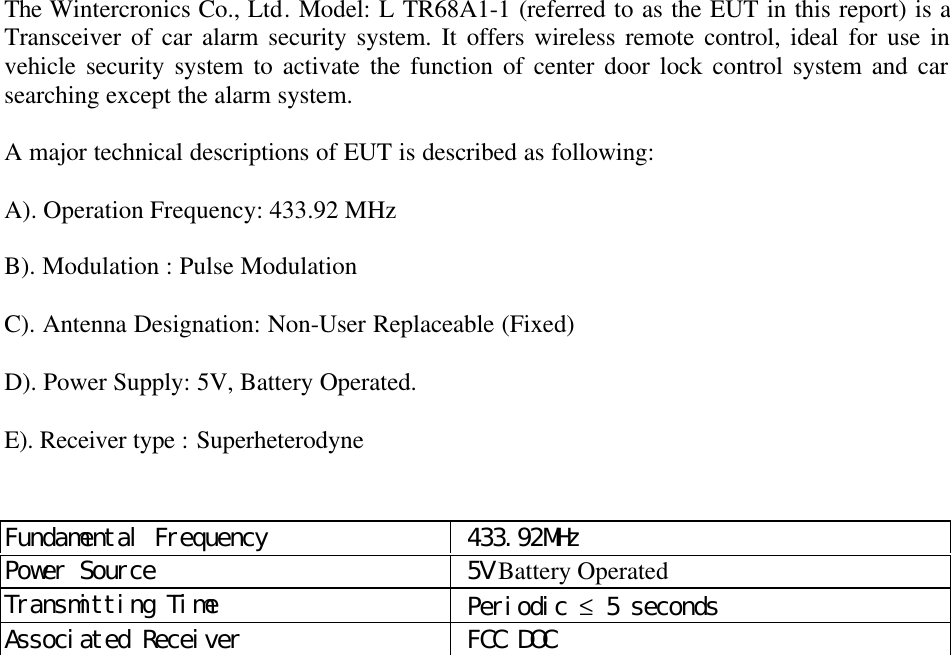

The Wintercronics Co., Ltd. Model: L TR68A1-1 (referred to as the EUT in this report) is aTransceiver of car alarm security system. It offers wireless remote control, ideal for use invehicle security system to activate the function of center door lock control system and carsearching except the alarm system.A major technical descriptions of EUT is described as following:A). Operation Frequency: 433.92 MHzB). Modulation : Pulse ModulationC). Antenna Designation: Non-User Replaceable (Fixed)D). Power Supply: 5V, Battery Operated.E). Receiver type : SuperheterodyneFundamental Frequency  433.92MHzPower Source  5V Battery OperatedTransmitting Time  Periodic ≤ 5 secondsAssociated Receiver  FCC DOC

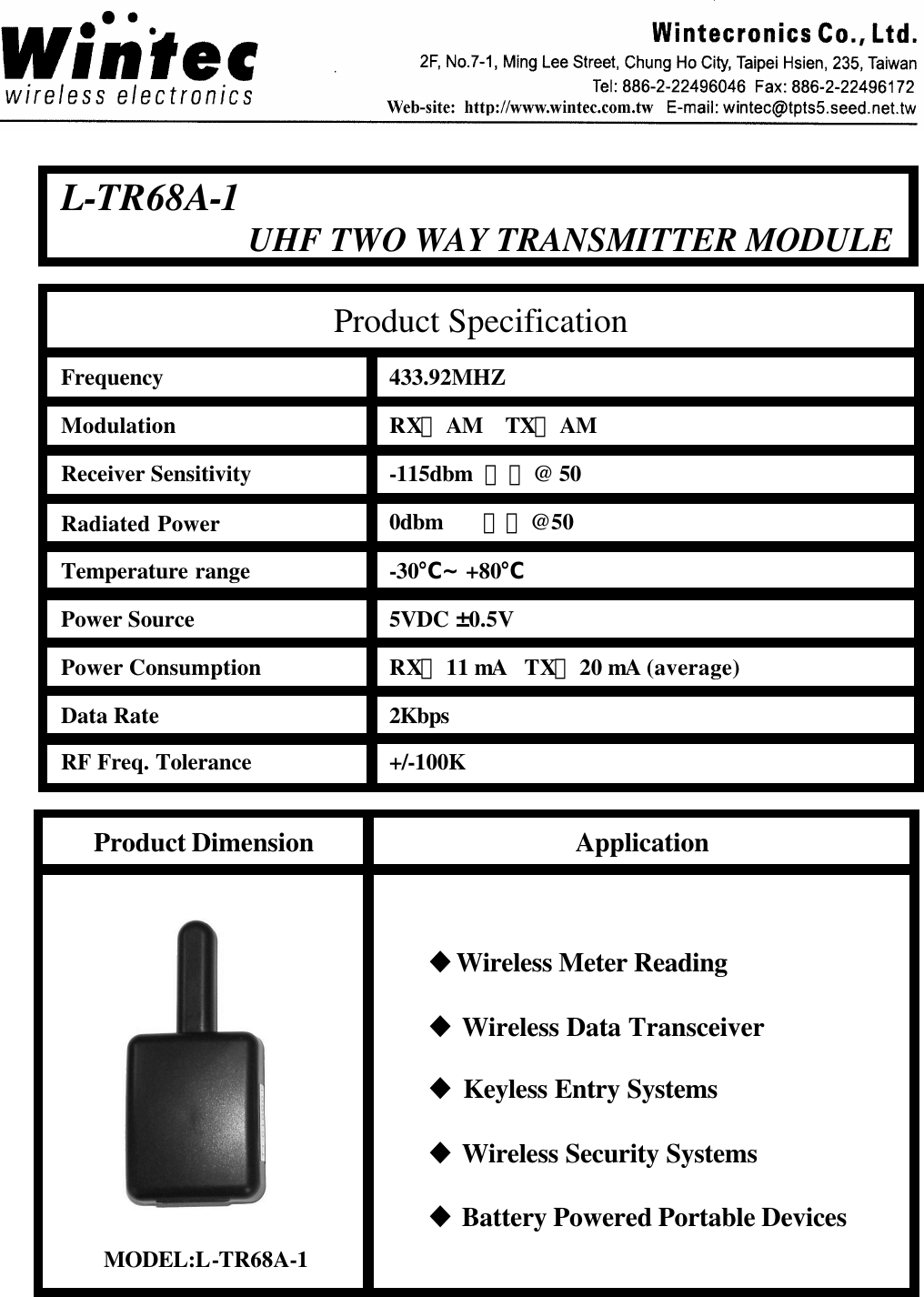

L-TR68A-1UHF TWO WAY TRANSMITTER MODULEFrequencyModulationReceiver SensitivityRadiated PowerTemperature rangePower SourcePower ConsumptionData RateRF Freq. Tolerance433.92MHZRX:AM    TX:AM-115dbm  最小@ 500dbm       最小@50-30℃ ∼+80℃5VDC ±0.5VRX:11 mA TX:20 mA (average)2Kbps+/-100KProduct SpecificationProduct Dimension ApplicationuWireless Meter ReadinguWireless Data TransceiveruKeyless Entry SystemsuWireless Security SystemsuBattery Powered Portable DevicesMODEL:L-TR68A-1

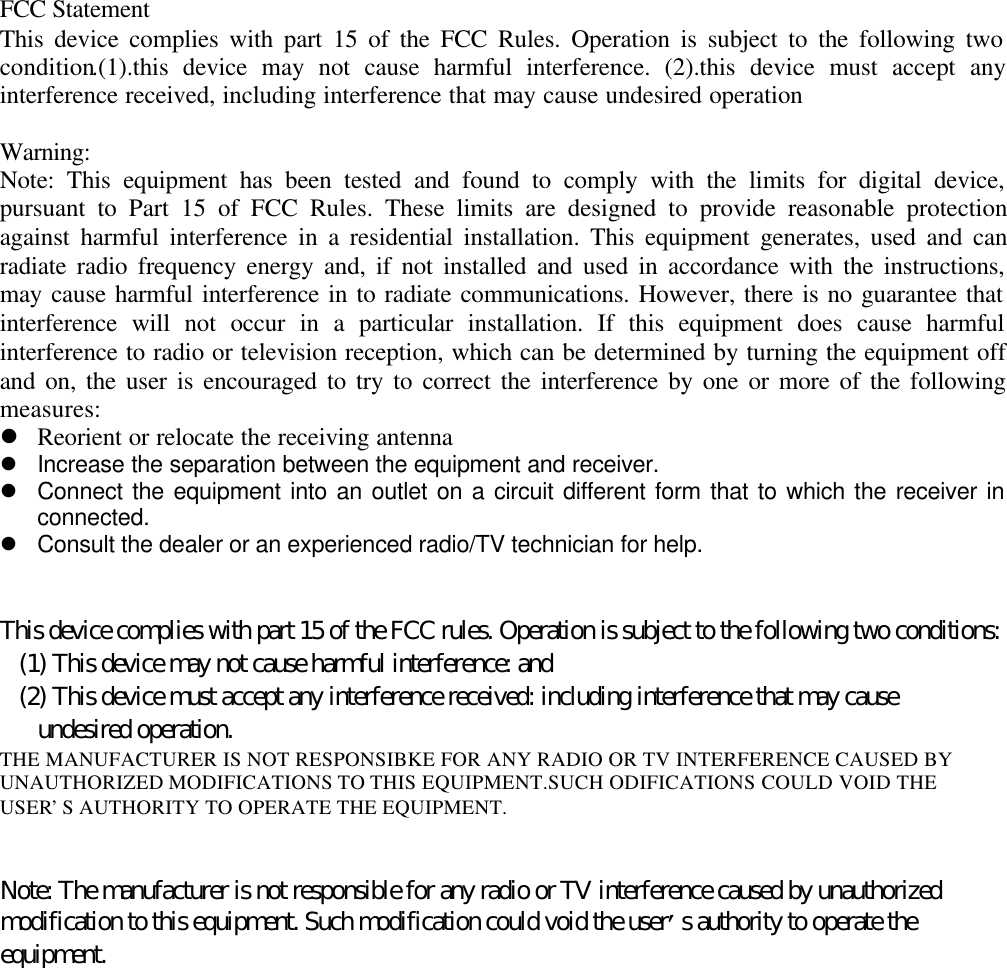

FCC StatementThis device complies with part 15 of the FCC Rules. Operation is subject to the following twocondition.(1).this device may not cause harmful interference. (2).this device must accept anyinterference received, including interference that may cause undesired operationWarning:Note: This equipment has been tested and found to comply with the limits for digital device,pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. This equipment generates, used and canradiate radio frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference in to radiate communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipment offand on, the user is encouraged to try to correct the interference by one or more of the followingmeasures:l Reorient or relocate the receiving antennal Increase the separation between the equipment and receiver.l Connect the equipment into an outlet on a circuit different form that to which the receiver inconnected.l Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:   (1) This device may not cause harmful interference: and   (2) This device must accept any interference received: including interference that may cause      undesired operation.THE MANUFACTURER IS NOT RESPONSIBKE FOR ANY RADIO OR TV INTERFERENCE CAUSED BYUNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.SUCH ODIFICATIONS COULD VOID THEUSER’S AUTHORITY TO OPERATE THE EQUIPMENT.Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorizedmodification to this equipment. Such modification could void the user’s authority to operate theequipment.
