Wireless Engineering Inc. Wireless Trackball Keyboard RF KBD manual v1 1
Users Manual
XBOARD RF05
2.4GHz RF Trackball Keyboard
Quick Installation Guide
(Preliminary)
G
GY

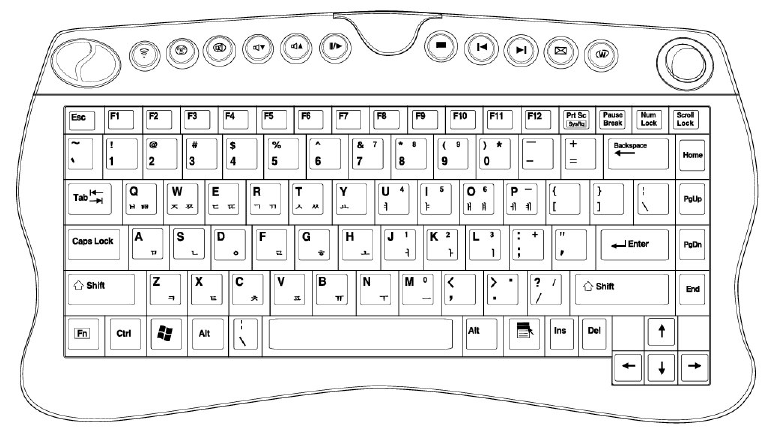

XBOARD RF (2.4GHz RF Trackball Keyboard)
XBOARD RF, The 2.4GHz RF Wireless Trackball Keyboard and USB Receiver
can create a flexible, convenient and wireless working environment. XBOARD
RF with fancy design offers high frequency penetration, low interference, and
omni-directional signal transmission. Employing reliable 2.4GHz RF wireless
technology, XBOARD RF can be positioned up to 10 meters away from the PC
in any direction (or angle), even with objects placed between the keyboard and
USB receiver.
G
GZ
Installing XBOARD RF

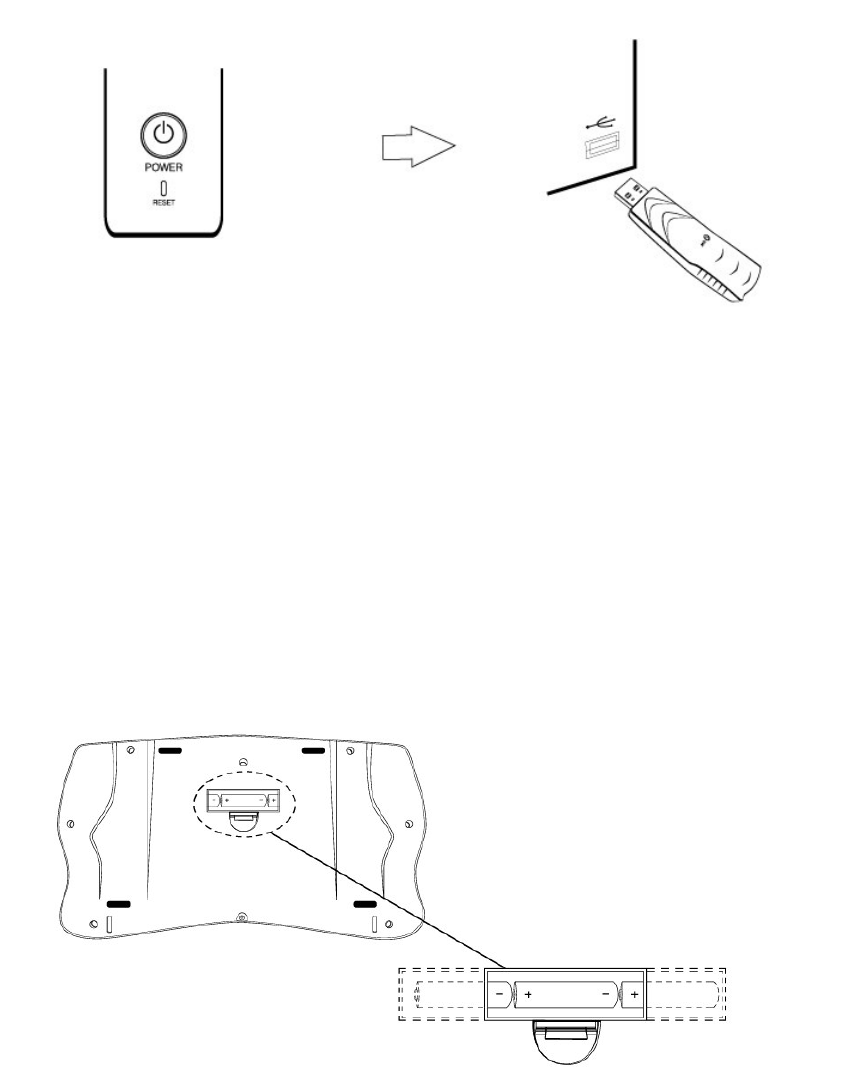

1. Install USB receiver
1.
Plug the USB receiver into a free USB port of PC.
2. Connect the XBOARD RF
1. Install the Batteries.
Install 3 AA batteries in the keyboard.
Make sure they are inserted in the correct direction.
[Caution]
Windows 98 or later operating system is required for USB connectivity,
and some computer systems do not fully support USB keyboards.
G
G[

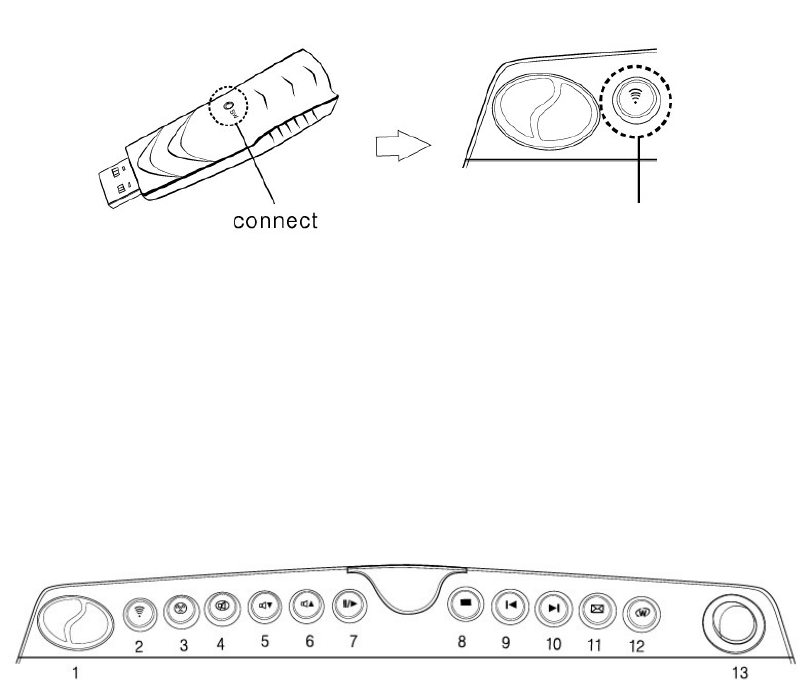

2. Connect the XBOARD RF with USB receiver
The following steps initiate a connecting process of XBOARD RF to your
PC. See Figure for the locations of the keys.
(1) Push the Connect Button of USB receiver for 1 second
(2) Press the ID Button of Keyboard.
3. Take your keyboard for a Spin
You can now begin using your XBOARD RF.
11 Multimedia Hot keys
1. Mouse Button: Left/Right 8. Stop
2. ID Button 9. Scan previous Track
3. Windows Media Player 10. Scan Next Track
4. Mute 11. Email
5. Decrease Volume 12. Internet
6. Increase Volume 13. Trackball Mouse
7. Play/Pause
ID Button
G
G\
Caring for Your XBOARD RF
To keep the trackball on your XBOARD RF performing smoothly, you should
clean it on a regular basis or as needed:
Weekly:
Wipe the trackball with an alcohol wipe or the cleaning cloth. Rotate the
trackball 360 degree as you clean it.
Monthly:
1. Remove the trackball cover by turning the cover about 1/8-turn
counterclockwise.
2. Holding your hand over the trackball, turn the keyboard upside down.
The cover and trackball should drop out of the keyboard.
3. Wipe the trackball slot, rollers, bearings, other trackball slot components,
and the trackball with an alcohol wipe or the cleaning cloth.
4. Replace the trackball in the slot.
5. Replace the trackball cover: turn it 1/8-turn clockwise to lock it in place.
CAUTION
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party
responsible for compliance could void the authority to operate equipment.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
G
G]
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Specifications
Electrical/RF KEYBOARD
Battery AA * 3
Power Consumption
Power : 5VDC, +/-5%
Working mode : 7.8mA,MAX
Standby mode : 6.7Ma
Sleep mode :32uA(after 10 minutes)
RF specification
Frequency : 2.420GHz
Modulation mode :G FSK
Channel : 1chs
ID number : 256
Link : “ID” Key
Effective distance : 7M
Mouse function
Track ball+2 button
G
G^
Compatible with Windows
Windows 98/ME/2000/XP
Mechanical specification
Dimension
326(L)*178(W)*27.5(H)mm
Weight
520g (No Battery).
Receiver Specification
Electronics specification
Power consumption
5VDC, ·5%,60mA Maximum
RF specification
Frequency : 2.420GHz
Modulation mode : GFSK
Channel : 1ch
ID number : 256
Link : “SW” Key
Effective distance : 7M
Compatible with Windows
Windows 98/ME/2000/XP
Mechanical specification
Dimension
80(L) * 21.5(W) * 12(H)mm
Weight
12g max
