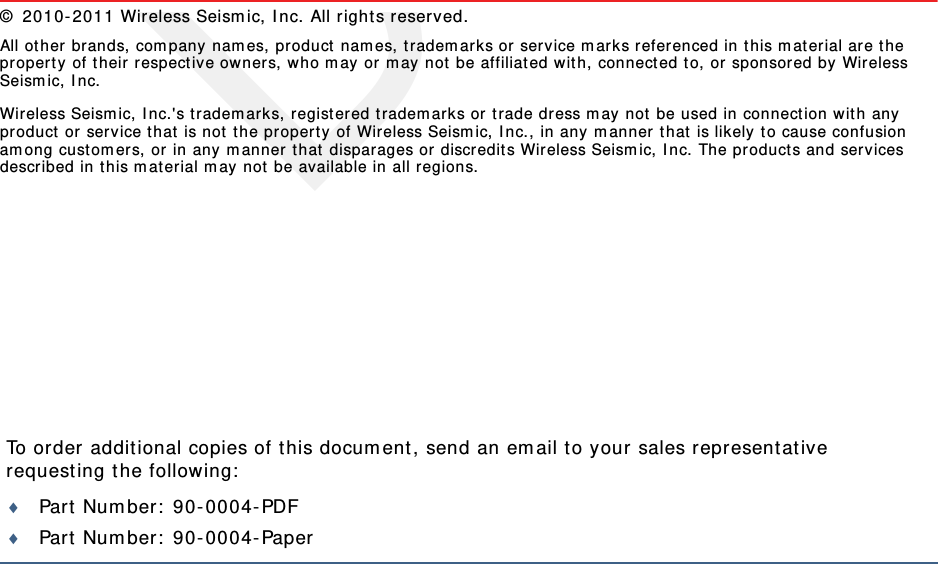

DraftTo order additional copies of this document, send an email to your sales representative requesting the following:Part Number: 90-0004-PDFPart Number: 90-0004-Paper© 2010-2011 Wireless Seismic, Inc. All rights reserved. All other brands, company names, product names, trademarks or service marks referenced in this material are the property of their respective owners, who may or may not be affiliated with, connected to, or sponsored by Wireless Seismic, Inc.Wireless Seismic, Inc.'s trademarks, registered trademarks or trade dress may not be used in connection with any product or service that is not the property of Wireless Seismic, Inc., in any manner that is likely to cause confusion among customers, or in any manner that disparages or discredits Wireless Seismic, Inc. The products and services described in this material may not be available in all regions.

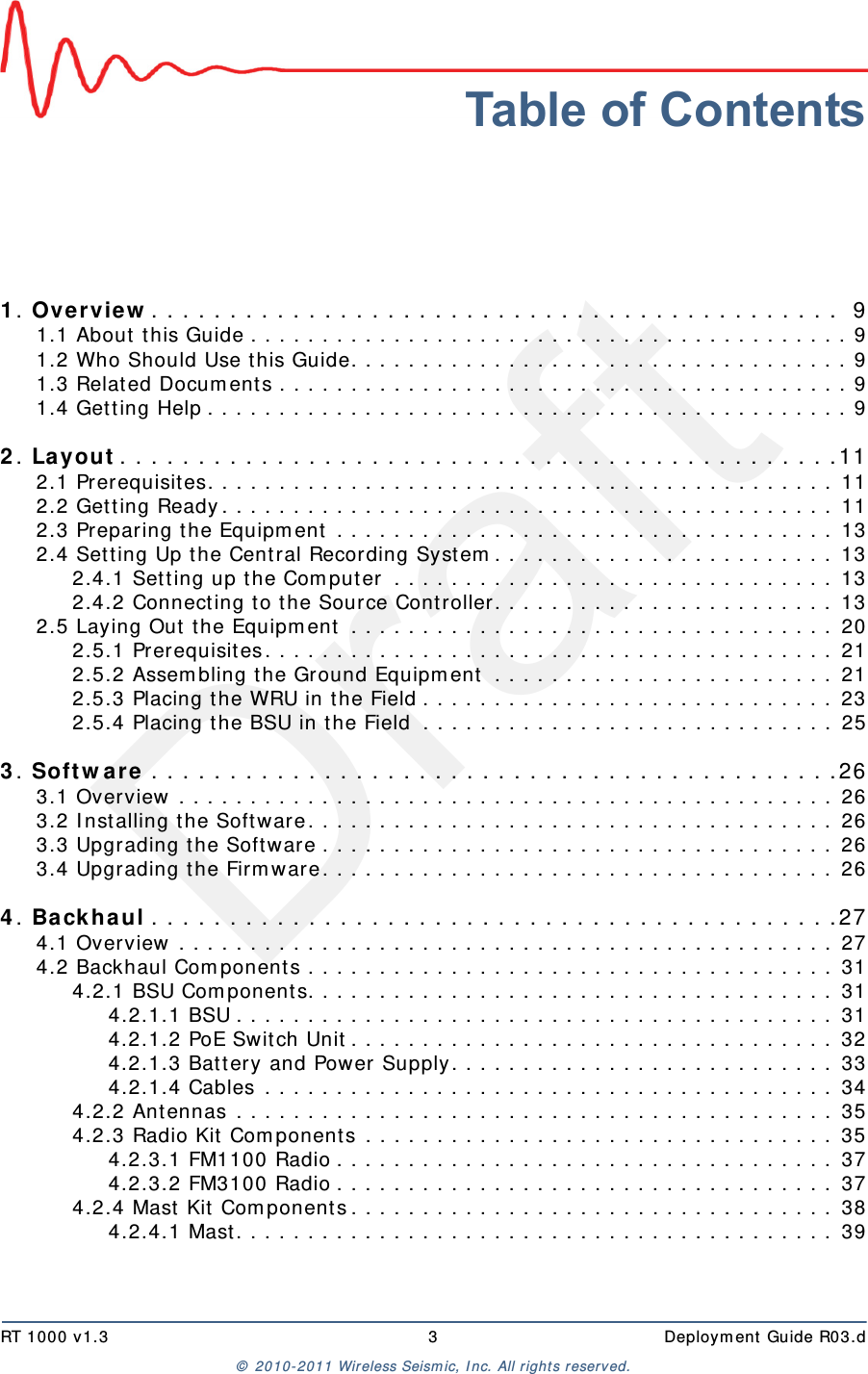

DraftRT 1000 v1.3 3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.Table of Contents1. Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91.1 About this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91.2 Who Should Use this Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91.3 Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91.4 Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92. Layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112.1 Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112.2 Getting Ready. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112.3 Preparing the Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132.4 Setting Up the Central Recording System. . . . . . . . . . . . . . . . . . . . . . . . 132.4.1 Setting up the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132.4.2 Connecting to the Source Controller. . . . . . . . . . . . . . . . . . . . . . . . 132.5 Laying Out the Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202.5.1 Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212.5.2 Assembling the Ground Equipment . . . . . . . . . . . . . . . . . . . . . . . . 212.5.3 Placing the WRU in the Field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232.5.4 Placing the BSU in the Field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253. Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .263.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263.2 Installing the Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263.3 Upgrading the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263.4 Upgrading the Firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264. Backhaul . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .274.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274.2 Backhaul Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314.2.1 BSU Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314.2.1.1 BSU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314.2.1.2 PoE Switch Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324.2.1.3 Battery and Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . 334.2.1.4 Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344.2.2 Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354.2.3 Radio Kit Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354.2.3.1 FM1100 Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 374.2.3.2 FM3100 Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 374.2.4 Mast Kit Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384.2.4.1 Mast. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

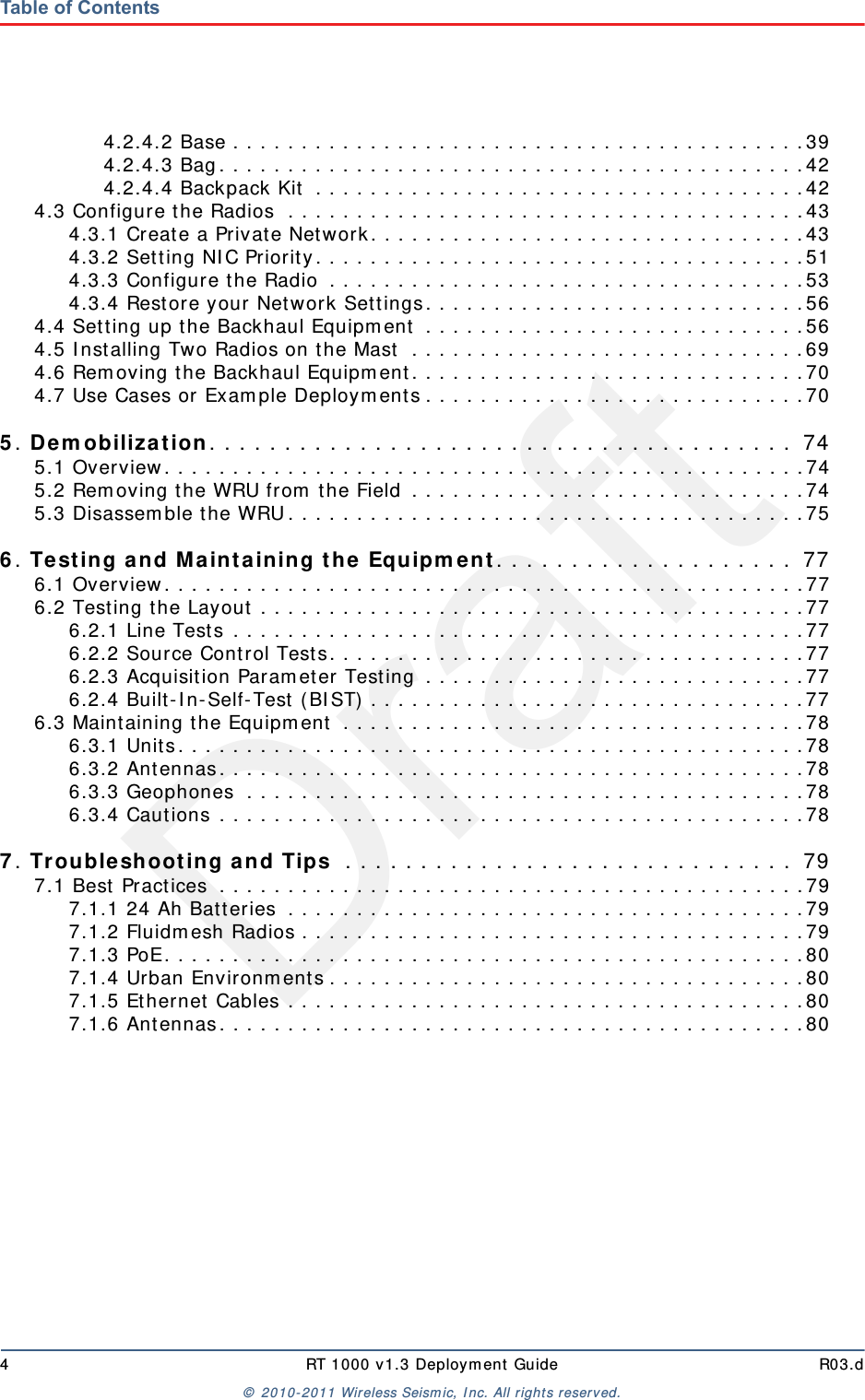

Draft4 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.Table of Contents4.2.4.2 Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .394.2.4.3 Bag. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .424.2.4.4 Backpack Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .424.3 Configure the Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .434.3.1 Create a Private Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .434.3.2 Setting NIC Priority. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .514.3.3 Configure the Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .534.3.4 Restore your Network Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . .564.4 Setting up the Backhaul Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . .564.5 Installing Two Radios on the Mast . . . . . . . . . . . . . . . . . . . . . . . . . . . . .694.6 Removing the Backhaul Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . .704.7 Use Cases or Example Deployments . . . . . . . . . . . . . . . . . . . . . . . . . . . .705. Demobilization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 745.1 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .745.2 Removing the WRU from the Field . . . . . . . . . . . . . . . . . . . . . . . . . . . . .745.3 Disassemble the WRU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .756. Testing and Maintaining the Equipment. . . . . . . . . . . . . . . . . . . . 776.1 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .776.2 Testing the Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .776.2.1 Line Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .776.2.2 Source Control Tests. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .776.2.3 Acquisition Parameter Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . .776.2.4 Built-In-Self-Test (BIST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .776.3 Maintaining the Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .786.3.1 Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .786.3.2 Antennas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .786.3.3 Geophones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .786.3.4 Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .787. Troubleshooting and Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 797.1 Best Practices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .797.1.1 24 Ah Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .797.1.2 Fluidmesh Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .797.1.3 PoE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .807.1.4 Urban Environments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .807.1.5 Ethernet Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .807.1.6 Antennas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
DraftR03.d RT 1000 v1.3 Deployment Guide 5© 2010-2011 Wireless Seismic, Inc. All rights reserved.Table of Contents8. Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .818.1 Lithium Ion Battery Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 818.2 Lithium Ion Battery Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 828.3 BSU Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84A. Legal Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85A.1 FCC Rules and Regulations Compliance . . . . . . . . . . . . . . . . . . . . . . . . . 85B. Fluidmesh Radio Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . .87B.1 The Fluidmesh Mito Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87B.2 Fluidmesh 1100 with MITO Technology . . . . . . . . . . . . . . . . . . . . . . . . . 89B.3 Fluidmesh 3100 with MITO Technology . . . . . . . . . . . . . . . . . . . . . . . . . 90B.4 MITO Series General Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . 91C. LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93D. Weighted Mast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98D.1 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98D.2 Hardware Supplied . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99D.3 Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Draft6 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.List of FiguresList of FiguresFigure 2–1 BSU DATA-POWER Cable..................................................................15Figure 2–2 SIU Source Control Cable................................................................. 18Figure 2–3 BSU at Recording Truck Cable...........................................................20Figure 2–4 WRU ............................................................................................. 20Figure 2–5 BSU ..............................................................................................20Figure 2–6 Geophone...................................................................................... 20Figure 2–7 Battery Latch ................................................................................. 22Figure 2–8 Installing the Battery....................................................................... 22Figure 2–9 Installing the Geophone................................................................... 23Figure 2–10 Installing the Antenna ..................................................................... 23Figure 2–11 Power on the Unit ........................................................................... 24Figure 2–12 Place the Unit................................................................................. 24Figure 4–1 Possible LTU Components................................................................. 28Figure 4–2 Central Recording Truck Components ................................................ 29Figure 4–3 Single Backhaul Data Direction ......................................................... 30Figure 4–4 Backhaul Components Packed for Transport........................................ 31Figure 4–5 Base Station Unit (BSU)................................................................... 32Figure 4–6 PoE...............................................................................................33Figure 4–7 Protective Battery Case....................................................................34Figure 4–8 Protective Ethernet Connector .......................................................... 34Figure 4–9 Channel Color Example....................................................................36Figure 4–10 FM1100 Radio ................................................................................ 37Figure 4–11 FM3100 Radio ................................................................................ 37Figure 4–12 Mast .............................................................................................39Figure 4–13 Electronics Carrier........................................................................... 39Figure 4–14 Base ............................................................................................. 40Figure 4–15 Assembled Backhaul Mast ................................................................41Figure 4–16 Base (70-0070) .............................................................................. 42Figure 4–17 Fluidmesh Radio Private Network ......................................................44Figure 4–18 Control Panel, Network and Internet..................................................45Figure 4–19 Control Panel, Network and Sharing Center ........................................46Figure 4–20 Control Panel, Change Adapter Settings .............................................47Figure 4–21 Control Panel, LAN Properties ........................................................... 48Figure 4–22 Control Panel, Networking Properties.................................................49Figure 4–23 Control Panel, IP Address.................................................................50Figure 4–24 Advanced Network Settings Menu ..................................................... 52Figure 4–25 LAN Hierarchy ................................................................................52Figure 4–26 Radio Login Window........................................................................ 53Figure 4–27 Radio Home Window, Mesh End ........................................................54Figure 4–28 Fluidmesh MeshWizard Interface.......................................................55Figure 4–29 Unpacking the Backhaul Equipment...................................................57Figure 4–30 Securing the Base...........................................................................58Figure 4–31 Inserting the Mast into the Base and Extending the Mast......................59Figure 4–32 Inserting the Electronics Carrier into the Mast.....................................59Figure 4–33 Securing Guy Line to Base................................................................60Figure 4–34 Hammering Guy Line Stakes............................................................. 61Figure 4–35 Guy Line Collar...............................................................................62Figure 4–36 Threading Guy Lines Through Cleats..................................................62Figure 4–37 Walking the Mast to Vertical 1 .......................................................... 63

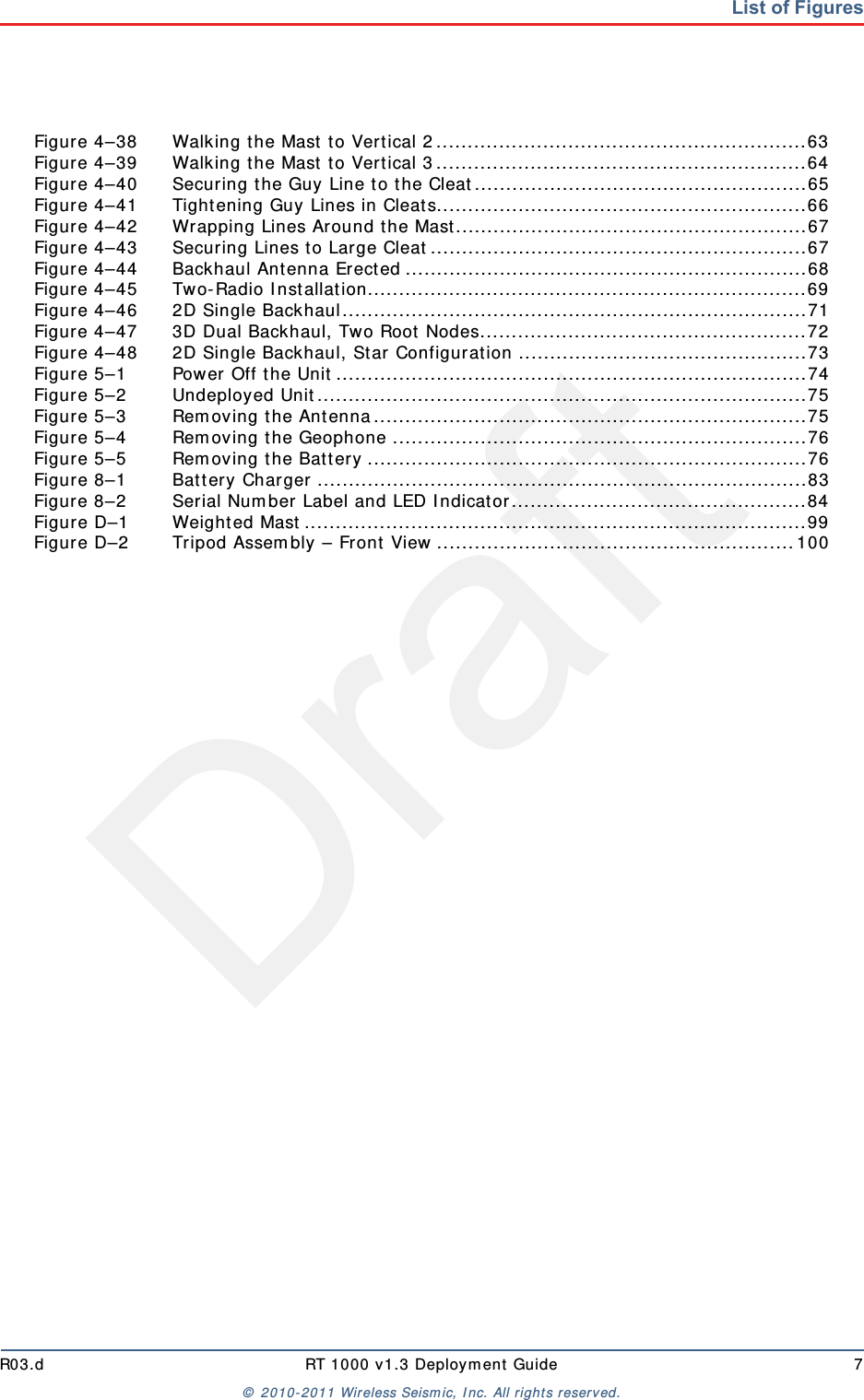

DraftR03.d RT 1000 v1.3 Deployment Guide 7© 2010-2011 Wireless Seismic, Inc. All rights reserved.List of FiguresFigure 4–38 Walking the Mast to Vertical 2...........................................................63Figure 4–39 Walking the Mast to Vertical 3...........................................................64Figure 4–40 Securing the Guy Line to the Cleat.....................................................65Figure 4–41 Tightening Guy Lines in Cleats...........................................................66Figure 4–42 Wrapping Lines Around the Mast........................................................67Figure 4–43 Securing Lines to Large Cleat............................................................67Figure 4–44 Backhaul Antenna Erected ................................................................68Figure 4–45 Two-Radio Installation......................................................................69Figure 4–46 2D Single Backhaul..........................................................................71Figure 4–47 3D Dual Backhaul, Two Root Nodes....................................................72Figure 4–48 2D Single Backhaul, Star Configuration ..............................................73Figure 5–1 Power Off the Unit...........................................................................74Figure 5–2 Undeployed Unit..............................................................................75Figure 5–3 Removing the Antenna.....................................................................75Figure 5–4 Removing the Geophone ..................................................................76Figure 5–5 Removing the Battery ......................................................................76Figure 8–1 Battery Charger ..............................................................................83Figure 8–2 Serial Number Label and LED Indicator...............................................84Figure D–1 Weighted Mast................................................................................99Figure D–2 Tripod Assembly – Front View .........................................................100

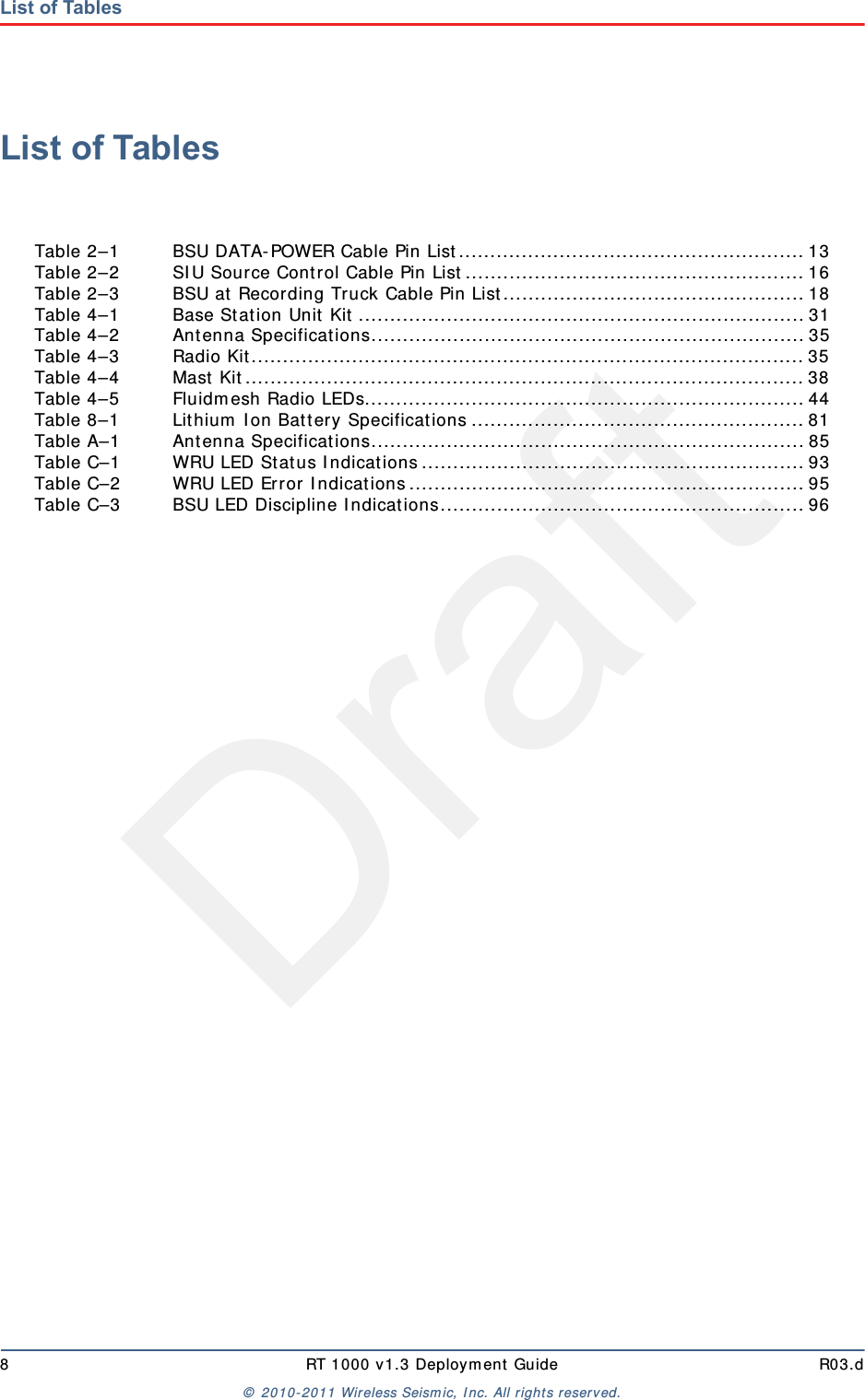

Draft8 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.List of TablesList of TablesTable 2–1 BSU DATA-POWER Cable Pin List....................................................... 13Table 2–2 SIU Source Control Cable Pin List......................................................16Table 2–3 BSU at Recording Truck Cable Pin List................................................ 18Table 4–1 Base Station Unit Kit .......................................................................31Table 4–2 Antenna Specifications.....................................................................35Table 4–3 Radio Kit........................................................................................35Table 4–4 Mast Kit......................................................................................... 38Table 4–5 Fluidmesh Radio LEDs......................................................................44Table 8–1 Lithium Ion Battery Specifications ..................................................... 81Table A–1 Antenna Specifications..................................................................... 85Table C–1 WRU LED Status Indications.............................................................93Table C–2 WRU LED Error Indications...............................................................95Table C–3 BSU LED Discipline Indications..........................................................96

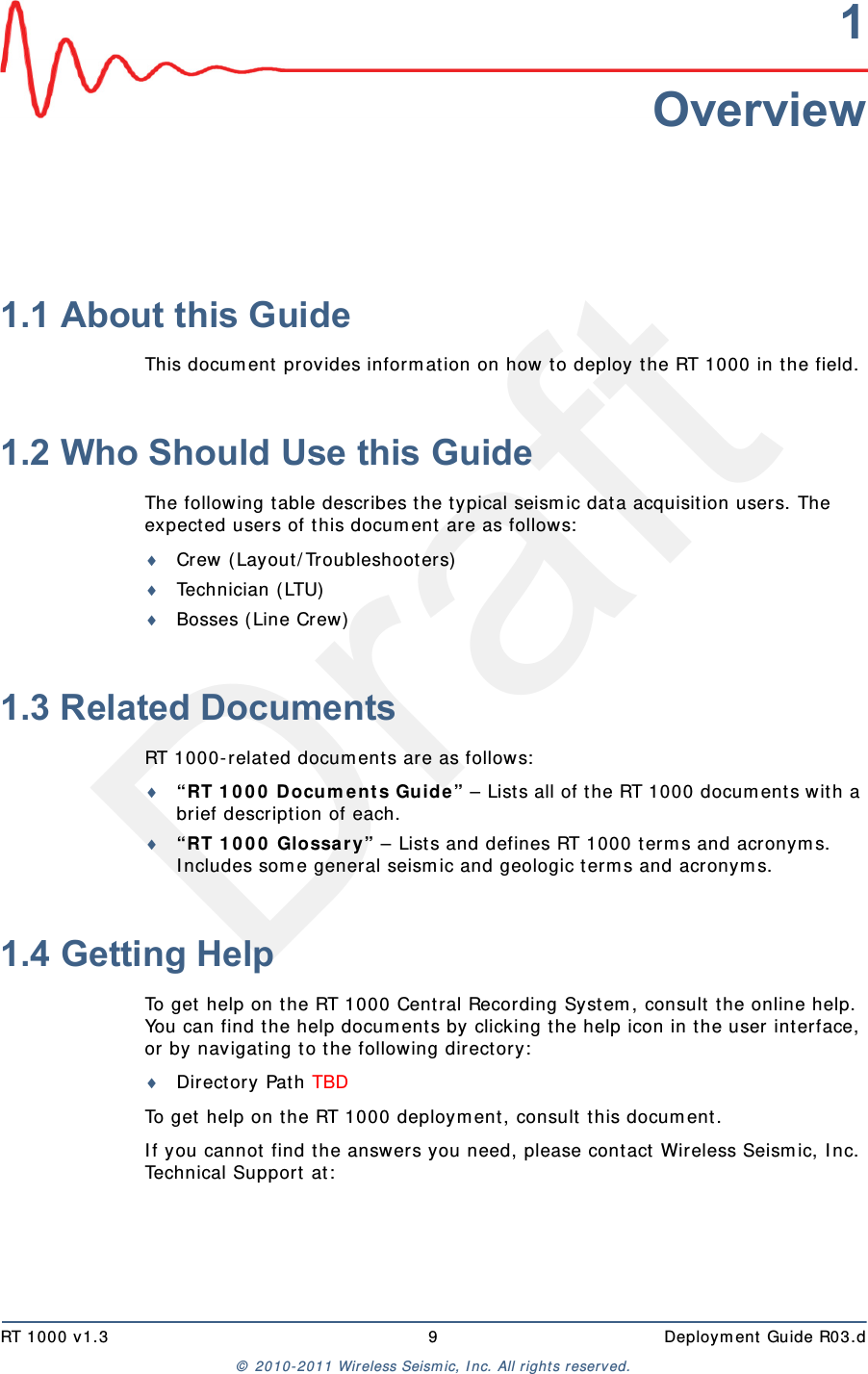

DraftRT 1000 v1.3 9 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.1Overview1.1 About this GuideThis document provides information on how to deploy the RT 1000 in the field.1.2 Who Should Use this GuideThe following table describes the typical seismic data acquisition users. The expected users of this document are as follows:Crew (Layout/Troubleshooters)Technician (LTU)Bosses (Line Crew)1.3 Related DocumentsRT 1000-related documents are as follows:“RT 1000 Documents Guide” – Lists all of the RT 1000 documents with a brief description of each.“RT 1000 Glossary” – Lists and defines RT 1000 terms and acronyms. Includes some general seismic and geologic terms and acronyms.1.4 Getting HelpTo get help on the RT 1000 Central Recording System, consult the online help. You can find the help documents by clicking the help icon in the user interface, or by navigating to the following directory:Directory Path TBDTo get help on the RT 1000 deployment, consult this document. If you cannot find the answers you need, please contact Wireless Seismic, Inc. Technical Support at:

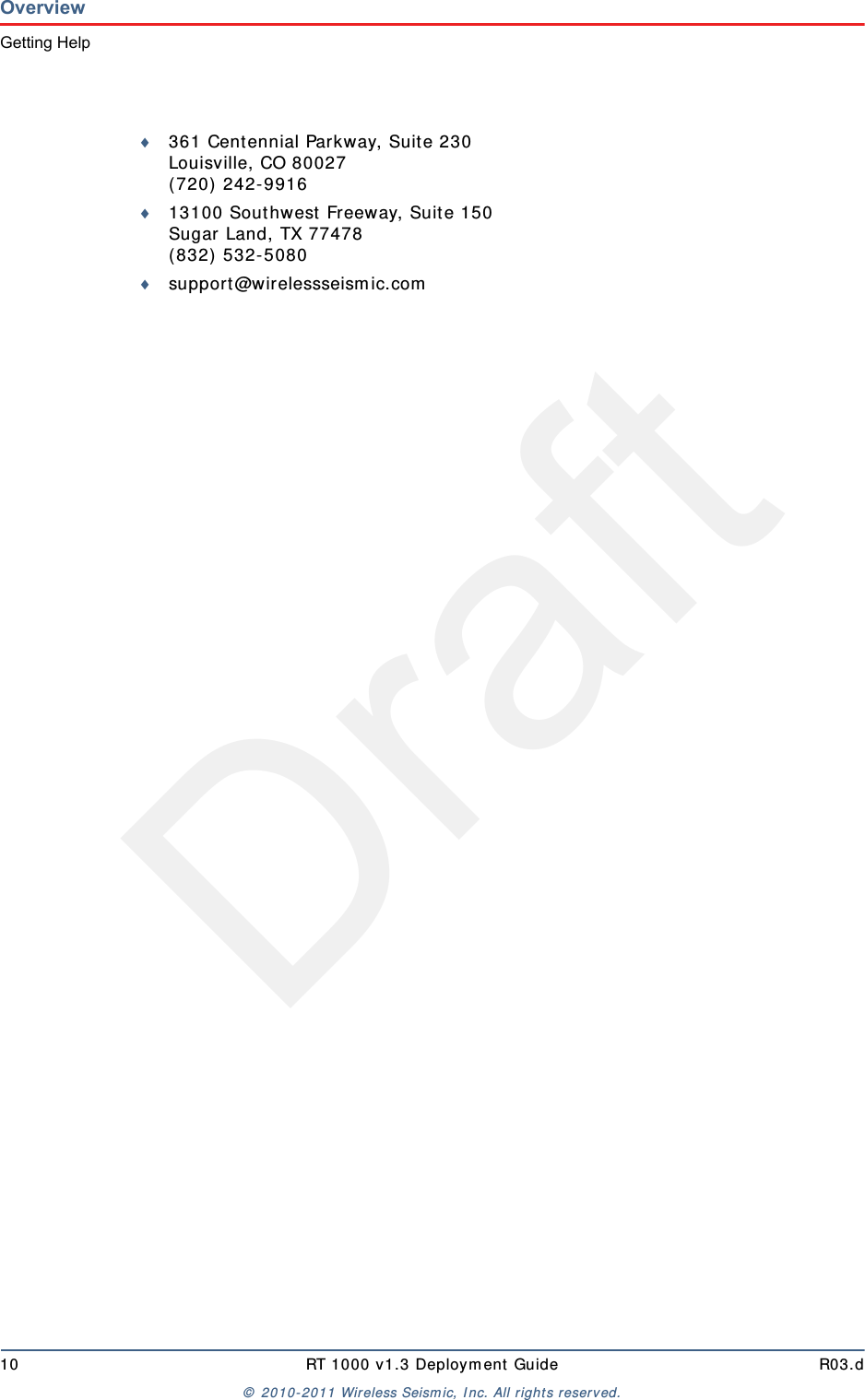

Draft10 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.OverviewGetting Help361 Centennial Parkway, Suite 230 Louisville, CO 80027 (720) 242-991613100 Southwest Freeway, Suite 150 Sugar Land, TX 77478 (832) 532-5080support@wirelessseismic.com

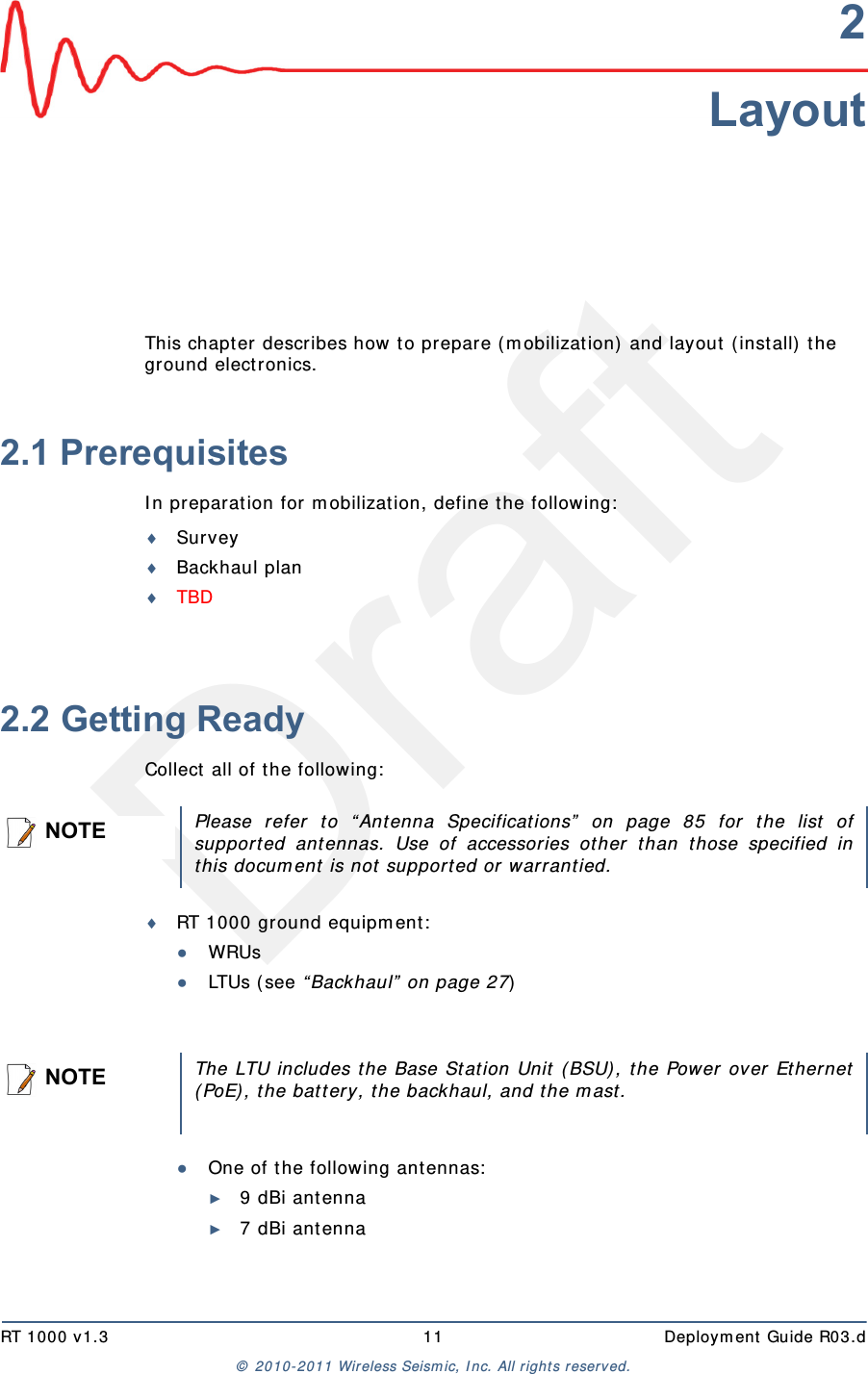

DraftRT 1000 v1.3 11 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.2LayoutThis chapter describes how to prepare (mobilization) and layout (install) the ground electronics. 2.1 PrerequisitesIn preparation for mobilization, define the following:SurveyBackhaul planTBD 2.2 Getting ReadyCollect all of the following:RT 1000 ground equipment:●WRUs●LTUs (see “Backhaul” on page 27)●One of the following antennas:►9 dBi antenna►7 dBi antennaNOTEPlease refer to “Antenna Specifications” on page 85 for the list ofsupported antennas. Use of accessories other than those specified inthis document is not supported or warrantied.NOTEThe LTU includes the Base Station Unit (BSU), the Power over Ethernet(PoE), the battery, the backhaul, and the mast.

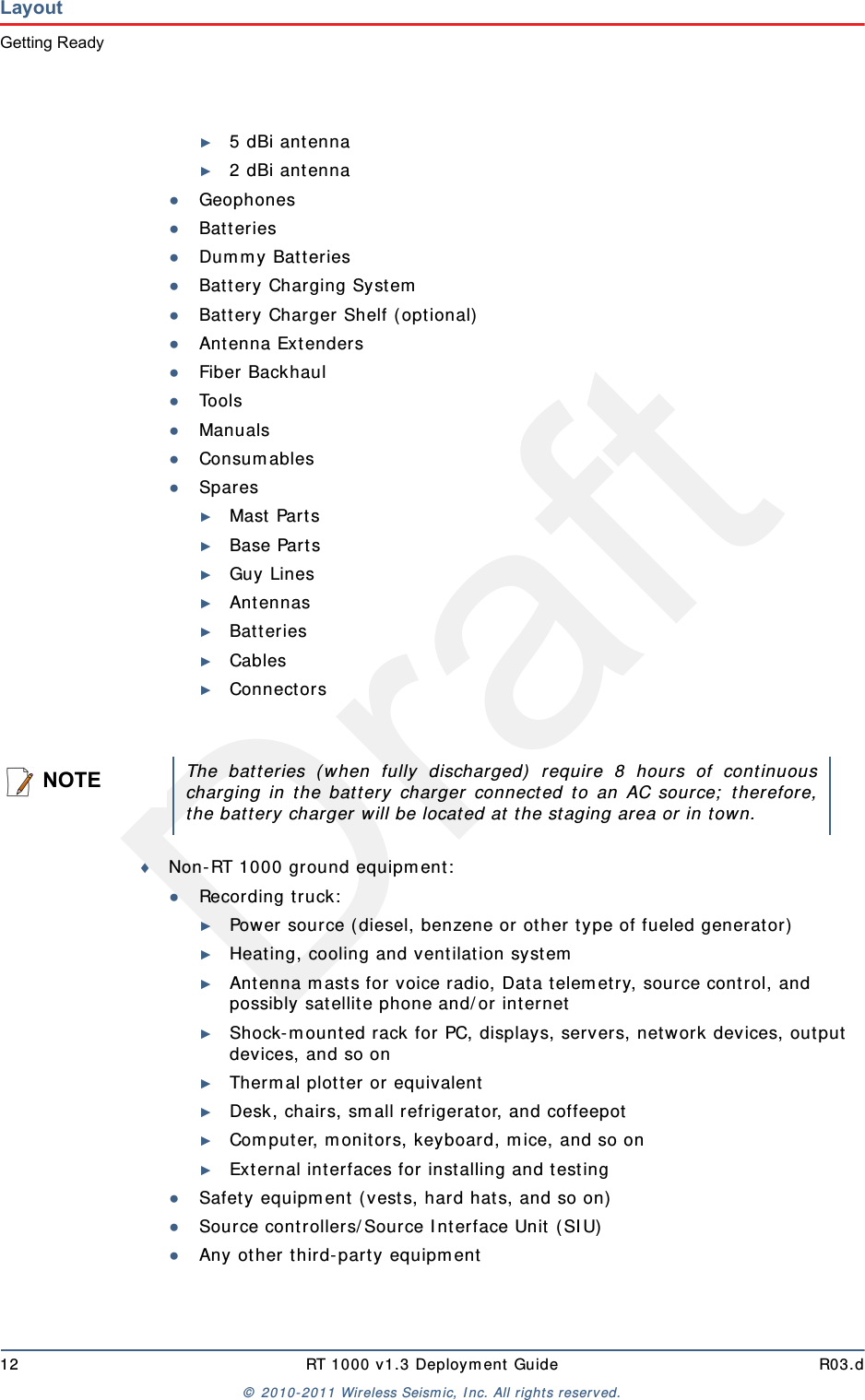

Draft12 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.LayoutGetting Ready►5 dBi antenna►2 dBi antenna●Geophones●Batteries●Dummy Batteries●Battery Charging System●Battery Charger Shelf (optional)●Antenna Extenders●Fiber Backhaul●Tools●Manuals●Consumables●Spares►Mast Parts►Base Parts►Guy Lines►Antennas►Batteries►Cables►ConnectorsNon-RT 1000 ground equipment:●Recording truck:►Power source (diesel, benzene or other type of fueled generator)►Heating, cooling and ventilation system►Antenna masts for voice radio, Data telemetry, source control, and possibly satellite phone and/or internet►Shock-mounted rack for PC, displays, servers, network devices, output devices, and so on►Thermal plotter or equivalent►Desk, chairs, small refrigerator, and coffeepot►Computer, monitors, keyboard, mice, and so on ►External interfaces for installing and testing●Safety equipment (vests, hard hats, and so on)●Source controllers/Source Interface Unit (SIU)●Any other third-party equipmentNOTEThe batteries (when fully discharged) require 8 hours of continuouscharging in the battery charger connected to an AC source; therefore,the battery charger will be located at the staging area or in town.

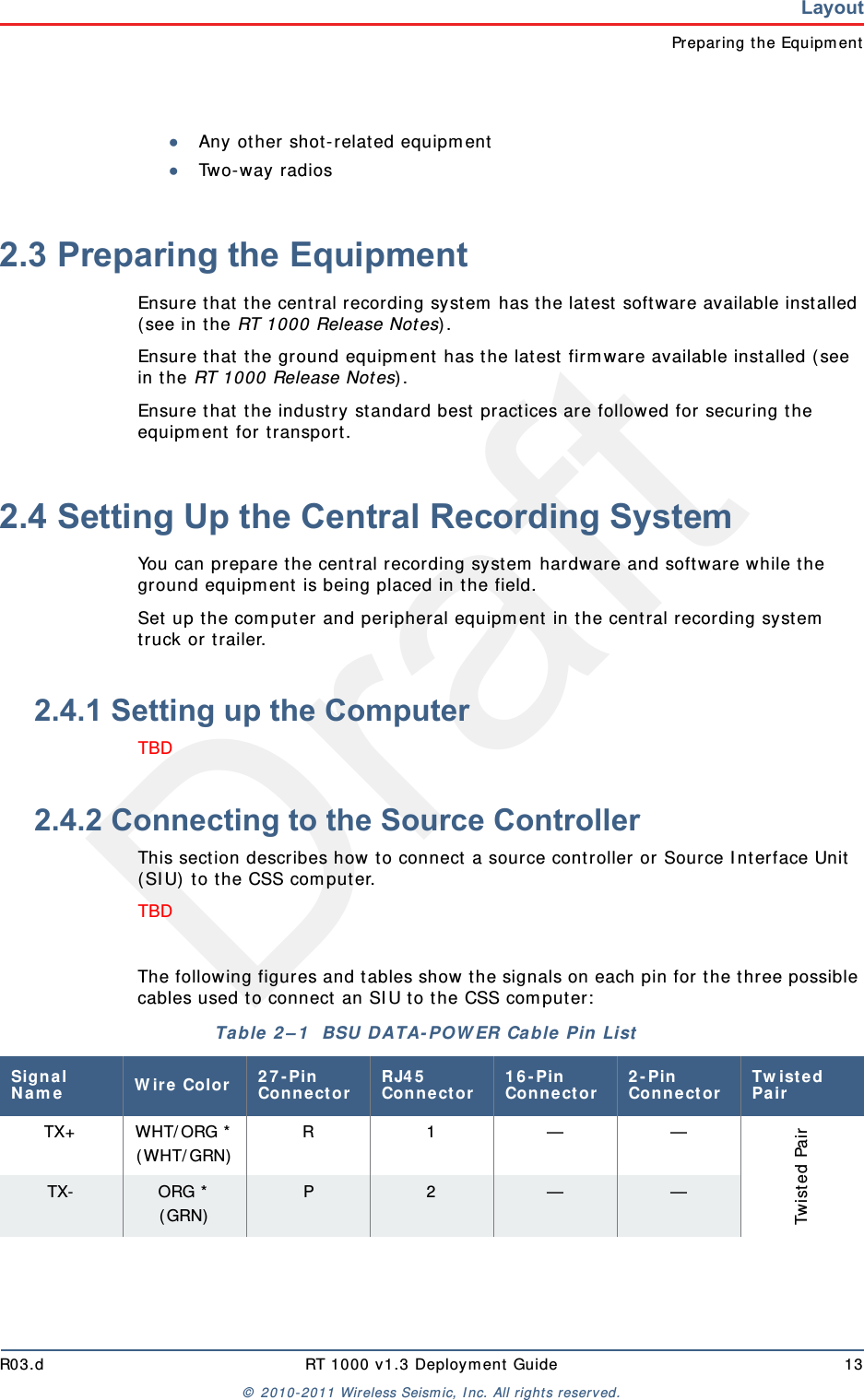

DraftR03.d RT 1000 v1.3 Deployment Guide 13© 2010-2011 Wireless Seismic, Inc. All rights reserved.LayoutPreparing the Equipment●Any other shot-related equipment●Two-way radios2.3 Preparing the EquipmentEnsure that the central recording system has the latest software available installed (see in the RT 1000 Release Notes).Ensure that the ground equipment has the latest firmware available installed (see in the RT 1000 Release Notes).Ensure that the industry standard best practices are followed for securing the equipment for transport. 2.4 Setting Up the Central Recording SystemYou can prepare the central recording system hardware and software while the ground equipment is being placed in the field. Set up the computer and peripheral equipment in the central recording system truck or trailer.2.4.1 Setting up the ComputerTBD 2.4.2 Connecting to the Source ControllerThis section describes how to connect a source controller or Source Interface Unit (SIU) to the CSS computer.TBD The following figures and tables show the signals on each pin for the three possible cables used to connect an SIU to the CSS computer:Table 2–1 BSU DATA-POWER Cable Pin List Signal Name Wire Color 27-Pin Connector RJ45 Connector 16-Pin Connector 2-Pin Connector Twisted PairTX+ WHT/ORG *(WHT/GRN) R1——Twisted PairTX- ORG *(GRN) P 2 — —

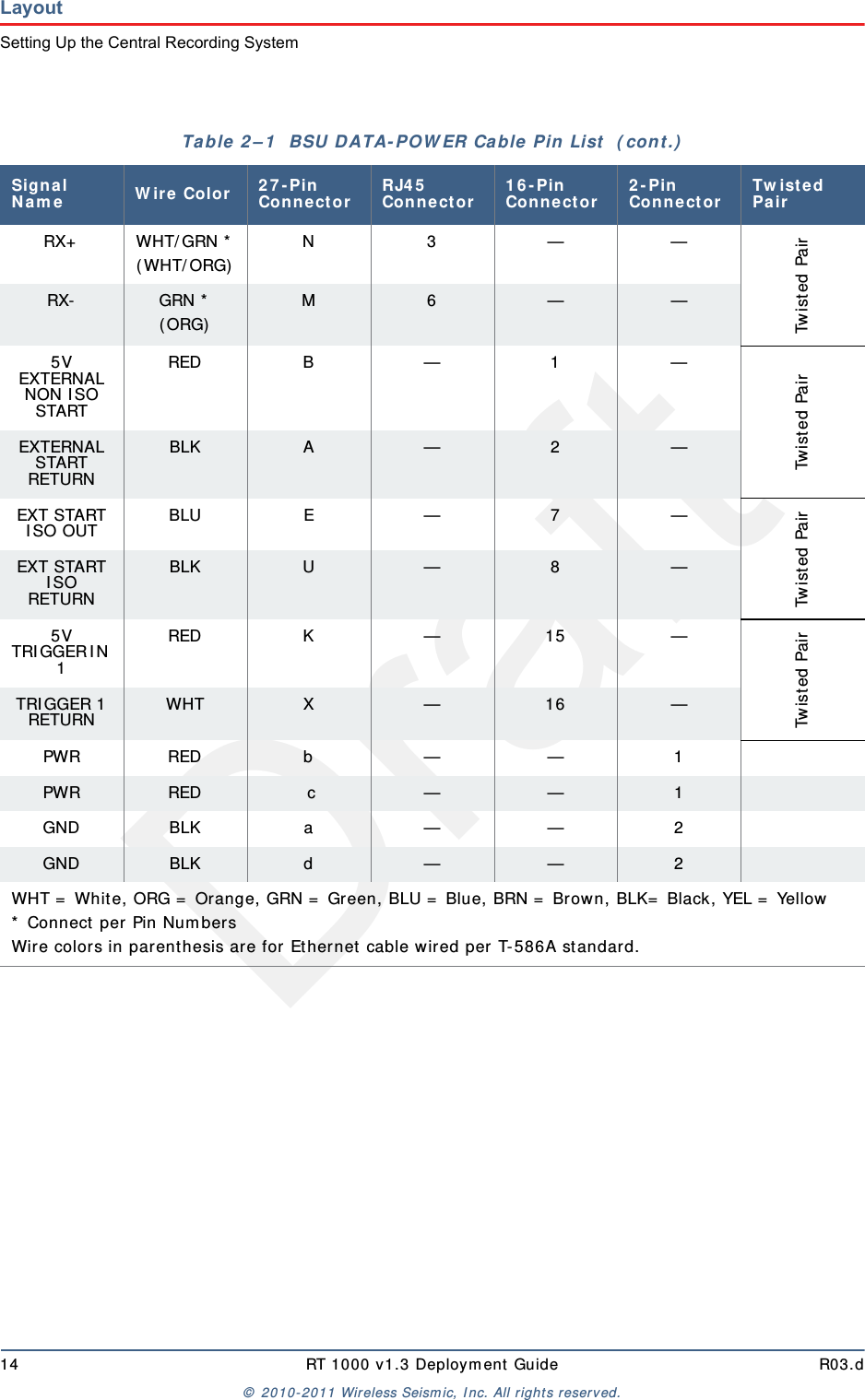

Draft14 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.LayoutSetting Up the Central Recording SystemRX+ WHT/GRN *(WHT/ORG) N3——Twisted PairRX- GRN *(ORG) M 6 — —5V EXTERNAL NON ISO STARTRED B — 1 —Twisted PairEXTERNAL START RETURNBLK A — 2 —EXT START ISO OUT BLU E — 7 —Twisted PairEXT START ISO RETURNBLK U — 8 —5V TRIGGER IN 1RED K — 15 —Twisted PairTRIGGER 1 RETURN WHT X — 16 —PWR RED b — — 1PWR RED c — — 1GND BLK a — — 2GND BLK d — — 2WHT = White, ORG = Orange, GRN = Green, BLU = Blue, BRN = Brown, BLK= Black, YEL = Yellow* Connect per Pin NumbersWire colors in parenthesis are for Ethernet cable wired per T-586A standard.Table 2–1 BSU DATA-POWER Cable Pin List (cont.)Signal Name Wire Color 27-Pin Connector RJ45 Connector 16-Pin Connector 2-Pin Connector Twisted Pair

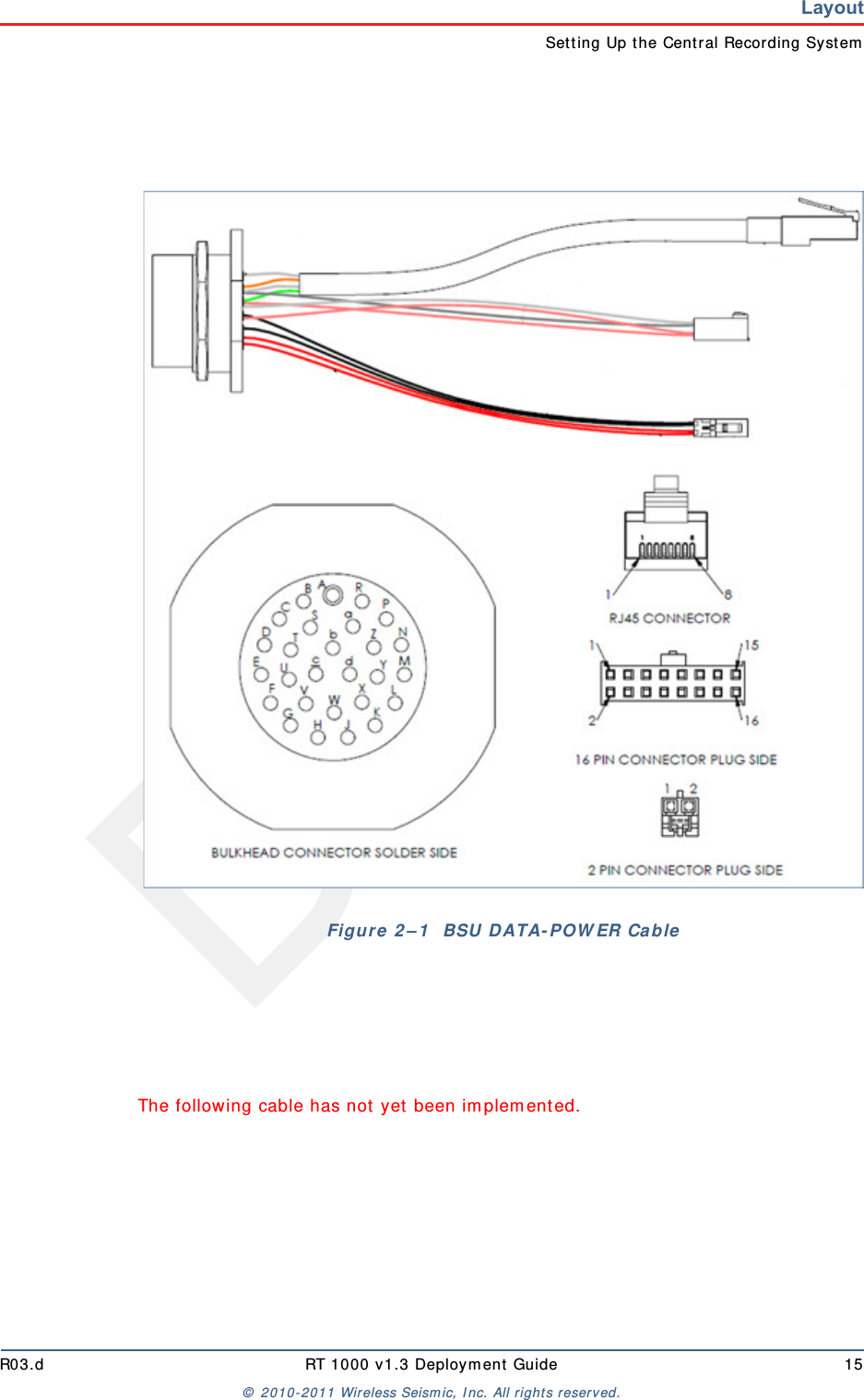

DraftR03.d RT 1000 v1.3 Deployment Guide 15© 2010-2011 Wireless Seismic, Inc. All rights reserved.LayoutSetting Up the Central Recording SystemThe following cable has not yet been implemented. Figure 2–1 BSU DATA-POWER Cable

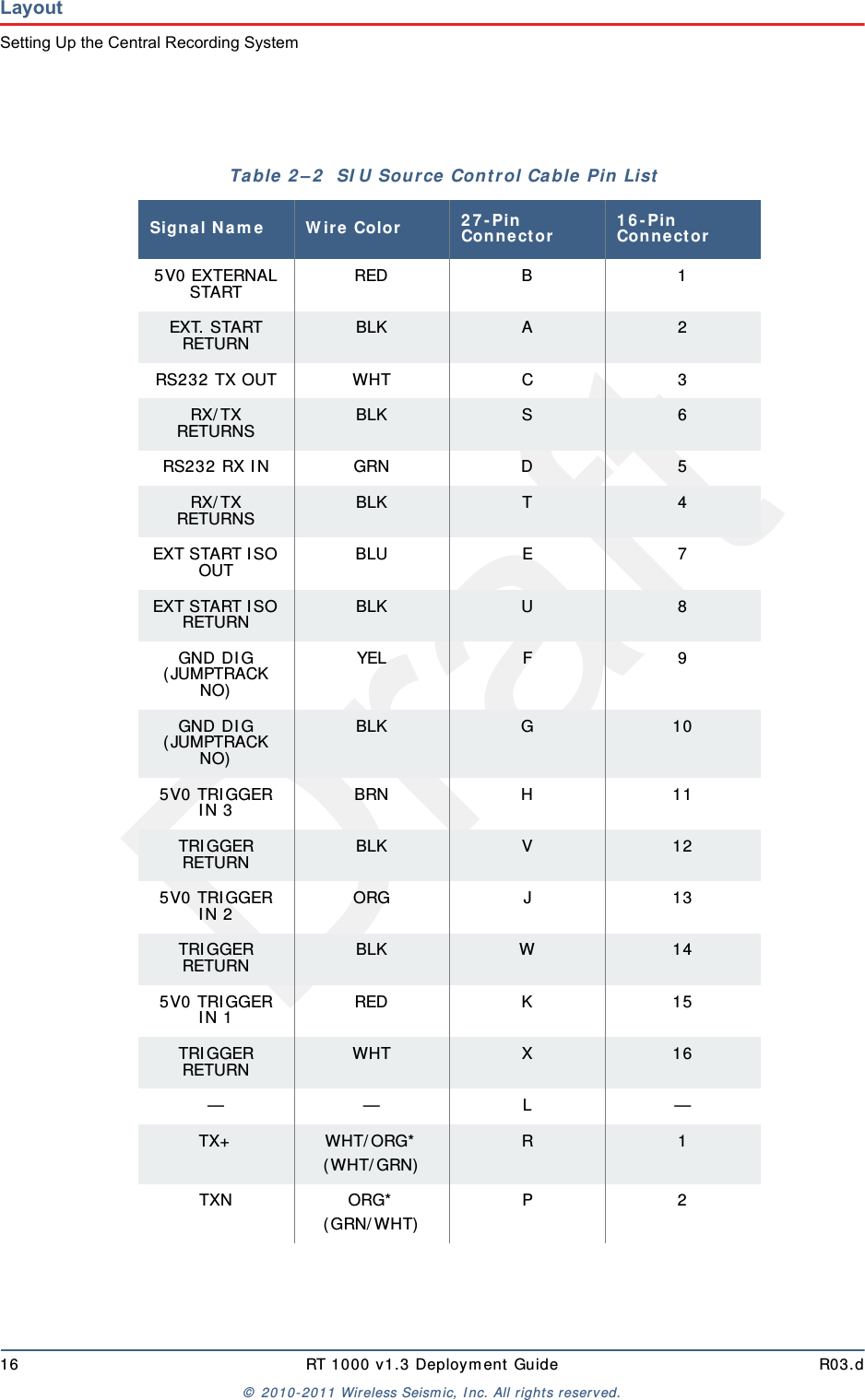

Draft16 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.LayoutSetting Up the Central Recording SystemTable 2–2 SIU Source Control Cable Pin List Signal Name Wire Color 27-Pin Connector 16-Pin Connector5V0 EXTERNAL START RED B 1EXT. START RETURN BLK A 2RS232 TX OUT WHT C 3RX/TX RETURNS BLK S 6RS232 RX IN GRN D 5RX/TX RETURNS BLK T 4EXT START ISO OUT BLU E 7EXT START ISO RETURN BLK U 8GND DIG (JUMPTRACK NO)YEL F 9GND DIG (JUMPTRACK NO)BLK G105V0 TRIGGER IN 3 BRN H 11TRIGGER RETURN BLK V125V0 TRIGGER IN 2 ORG J 13TRIGGER RETURN BLK W145V0 TRIGGER IN 1 RED K 15TRIGGER RETURN WHT X16—— L —TX+ WHT/ORG*(WHT/GRN) R 1TXN ORG*(GRN/WHT) P2

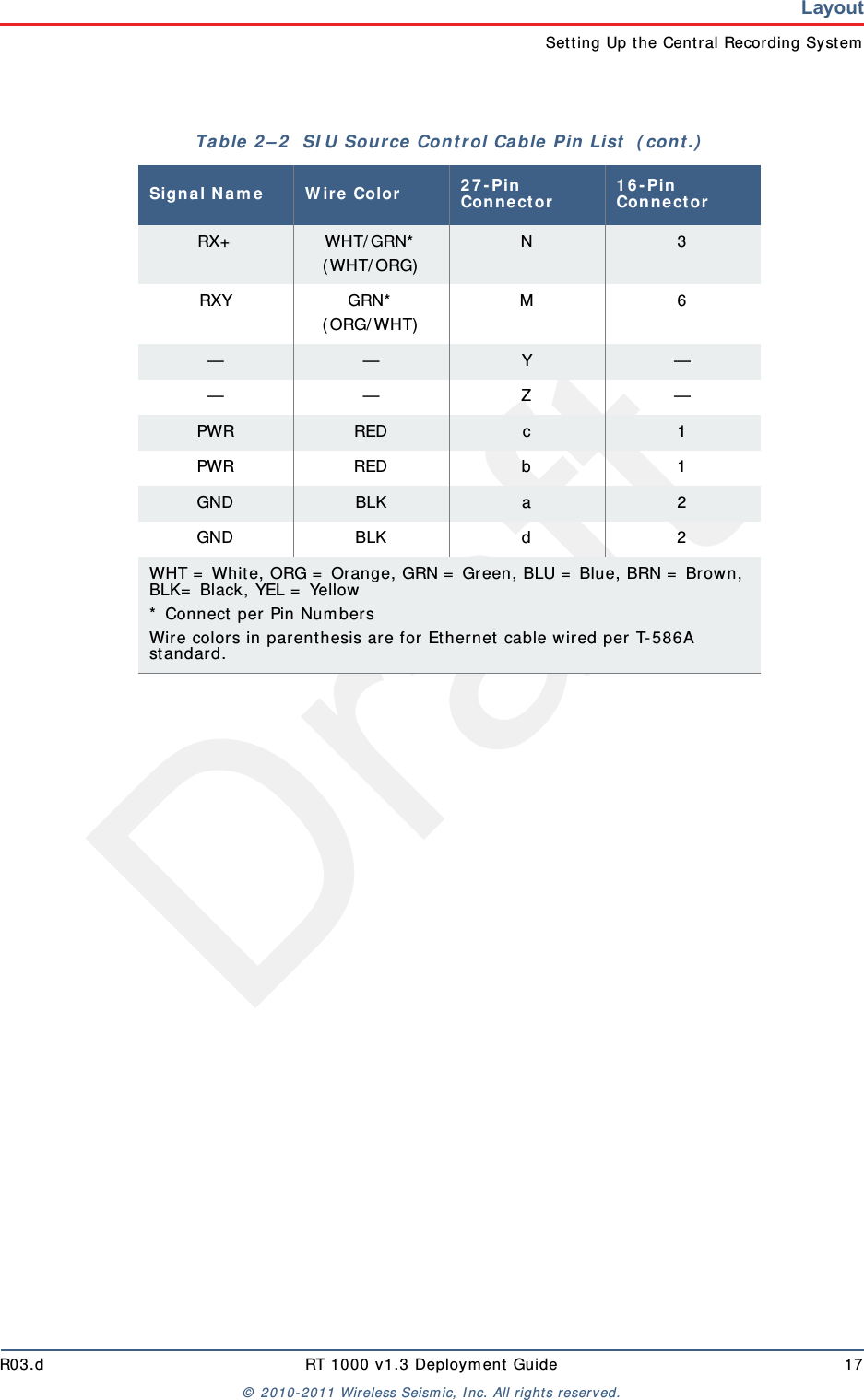

DraftR03.d RT 1000 v1.3 Deployment Guide 17© 2010-2011 Wireless Seismic, Inc. All rights reserved.LayoutSetting Up the Central Recording SystemRX+ WHT/GRN*(WHT/ORG) N 3RXY GRN*(ORG/WHT) M6— — Y ———Z—PWR RED c 1PWR RED b 1GND BLK a 2GND BLK d 2WHT = White, ORG = Orange, GRN = Green, BLU = Blue, BRN = Brown, BLK= Black, YEL = Yellow* Connect per Pin NumbersWire colors in parenthesis are for Ethernet cable wired per T-586A standard.Table 2–2 SIU Source Control Cable Pin List (cont.)Signal Name Wire Color 27-Pin Connector 16-Pin Connector

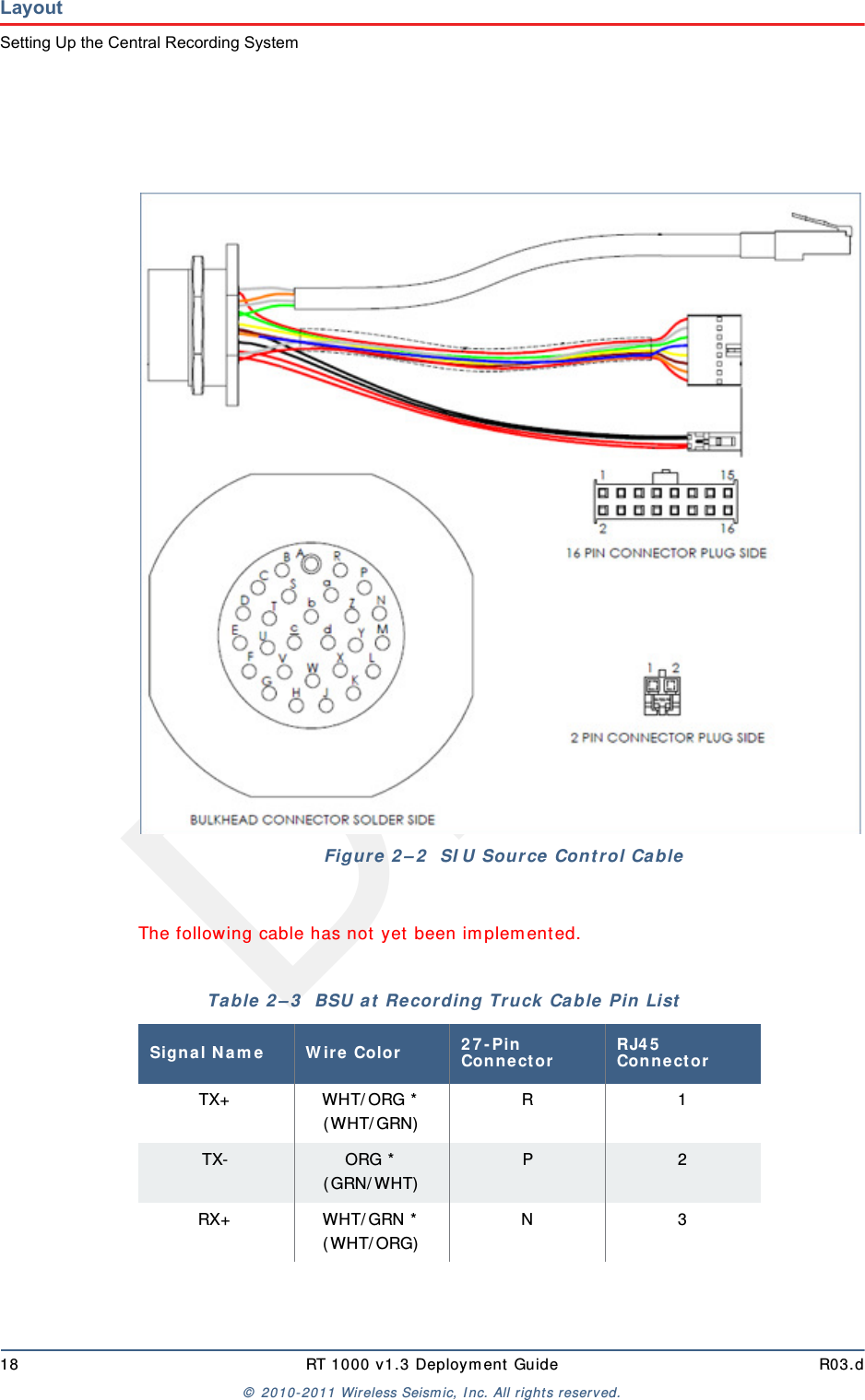

Draft18 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.LayoutSetting Up the Central Recording SystemThe following cable has not yet been implemented. Figure 2–2 SIU Source Control CableTable 2–3 BSU at Recording Truck Cable Pin List Signal Name Wire Color 27-Pin Connector RJ45 ConnectorTX+ WHT/ORG *(WHT/GRN) R1TX- ORG *(GRN/WHT) P 2RX+ WHT/GRN *(WHT/ORG) N3

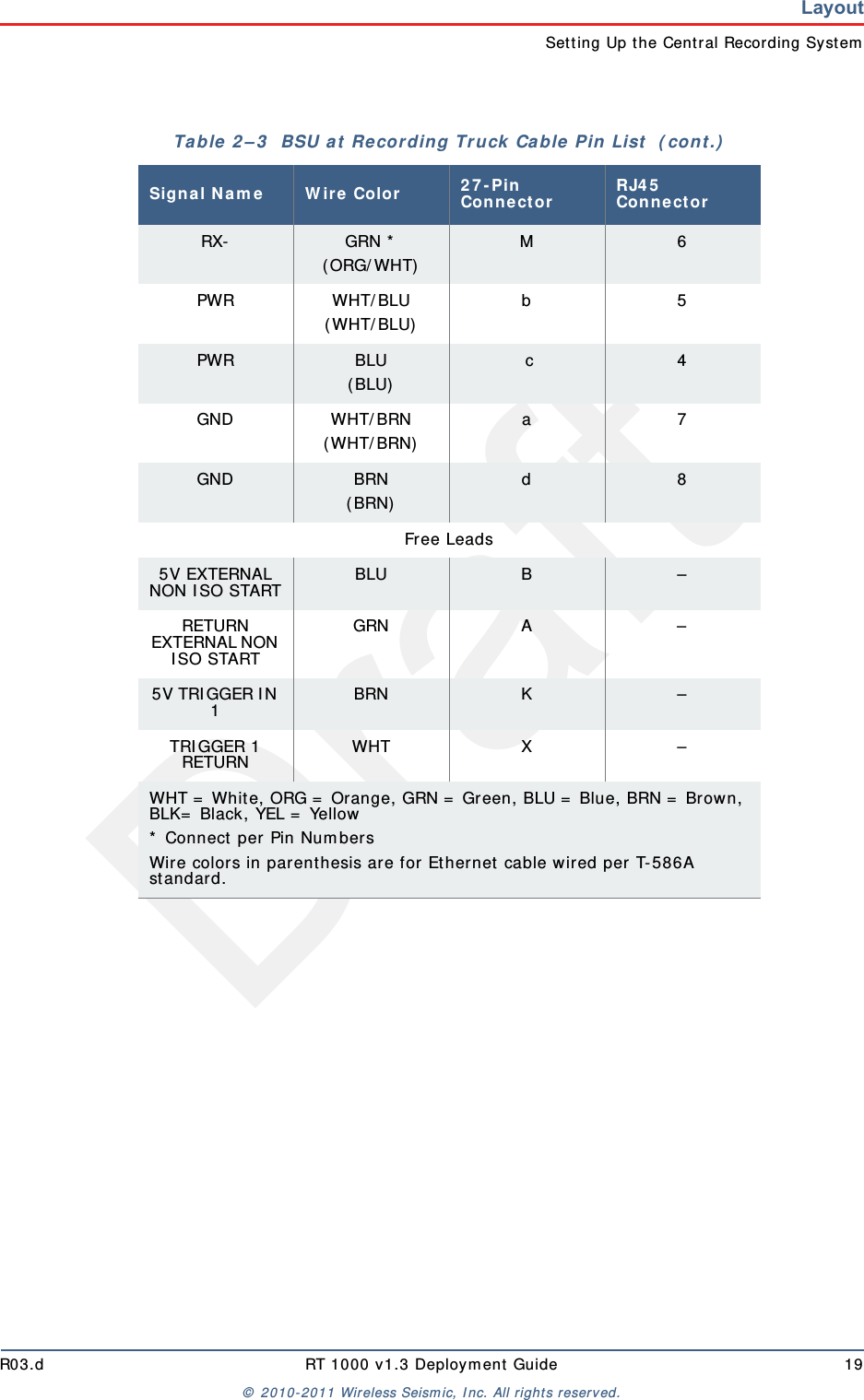

DraftR03.d RT 1000 v1.3 Deployment Guide 19© 2010-2011 Wireless Seismic, Inc. All rights reserved.LayoutSetting Up the Central Recording SystemRX- GRN *(ORG/WHT) M 6PWR WHT/BLU(WHT/BLU) b5PWR BLU(BLU) c 4GND WHT/BRN(WHT/BRN) a7GND BRN(BRN) d 8Free Leads5V EXTERNAL NON ISO START BLU B –RETURN EXTERNAL NON ISO STARTGRN A –5V TRIGGER IN 1BRN K –TRIGGER 1 RETURN WHT X –WHT = White, ORG = Orange, GRN = Green, BLU = Blue, BRN = Brown, BLK= Black, YEL = Yellow* Connect per Pin NumbersWire colors in parenthesis are for Ethernet cable wired per T-586A standard.Table 2–3 BSU at Recording Truck Cable Pin List (cont.)Signal Name Wire Color 27-Pin Connector RJ45 Connector

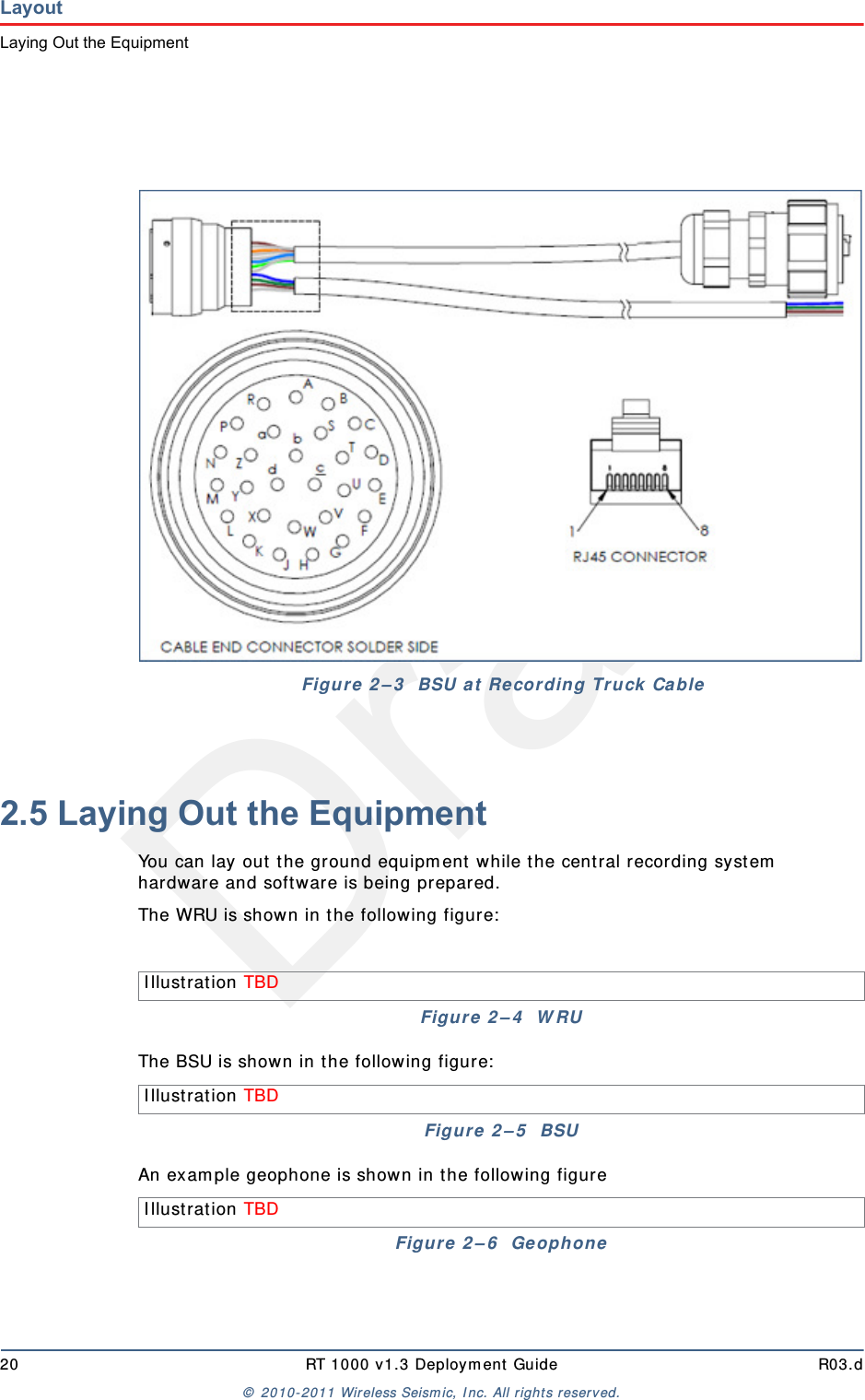

Draft20 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.LayoutLaying Out the Equipment2.5 Laying Out the EquipmentYou can lay out the ground equipment while the central recording system hardware and software is being prepared. The WRU is shown in the following figure:The BSU is shown in the following figure:An example geophone is shown in the following figureFigure 2–3 BSU at Recording Truck CableIllustration TBD Figure 2–4 WRUIllustration TBD Figure 2–5 BSUIllustration TBD Figure 2–6 Geophone

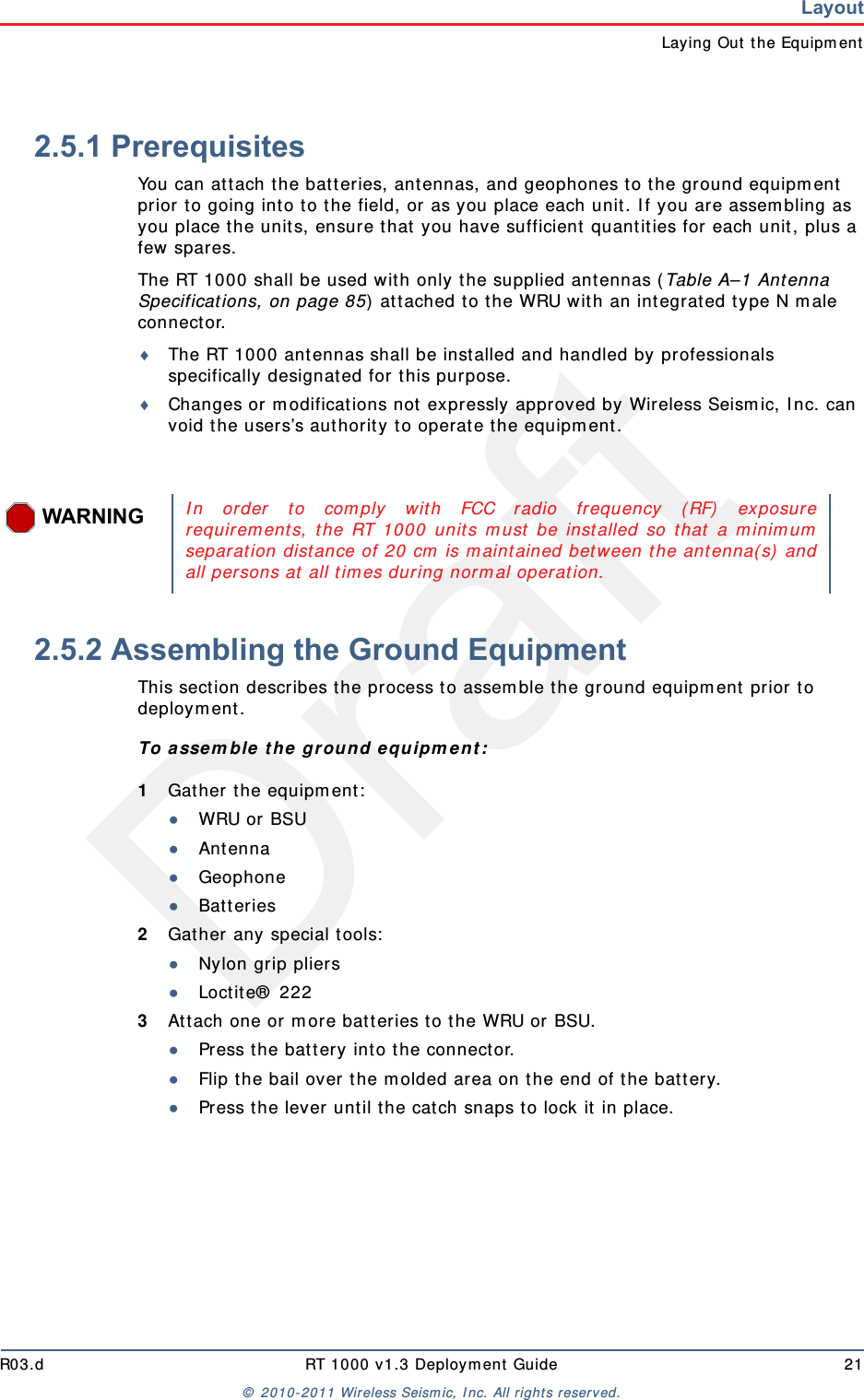

DraftR03.d RT 1000 v1.3 Deployment Guide 21© 2010-2011 Wireless Seismic, Inc. All rights reserved.LayoutLaying Out the Equipment2.5.1 PrerequisitesYou can attach the batteries, antennas, and geophones to the ground equipment prior to going into to the field, or as you place each unit. If you are assembling as you place the units, ensure that you have sufficient quantities for each unit, plus a few spares.The RT 1000 shall be used with only the supplied antennas (Table A–1 Antenna Specifications, on page 85) attached to the WRU with an integrated type N male connector.The RT 1000 antennas shall be installed and handled by professionals specifically designated for this purpose.Changes or modifications not expressly approved by Wireless Seismic, Inc. can void the users’s authority to operate the equipment. 2.5.2 Assembling the Ground Equipment This section describes the process to assemble the ground equipment prior to deployment.To assemble the ground equipment:1Gather the equipment:●WRU or BSU●Antenna●Geophone●Batteries2Gather any special tools:●Nylon grip pliers●Loctite® 2223Attach one or more batteries to the WRU or BSU.●Press the battery into the connector.●Flip the bail over the molded area on the end of the battery.●Press the lever until the catch snaps to lock it in place.WARNINGIn order to comply with FCC radio frequency (RF) exposurerequirements, the RT 1000 units must be installed so that a minimumseparation distance of 20 cm is maintained between the antenna(s) andall persons at all times during normal operation.

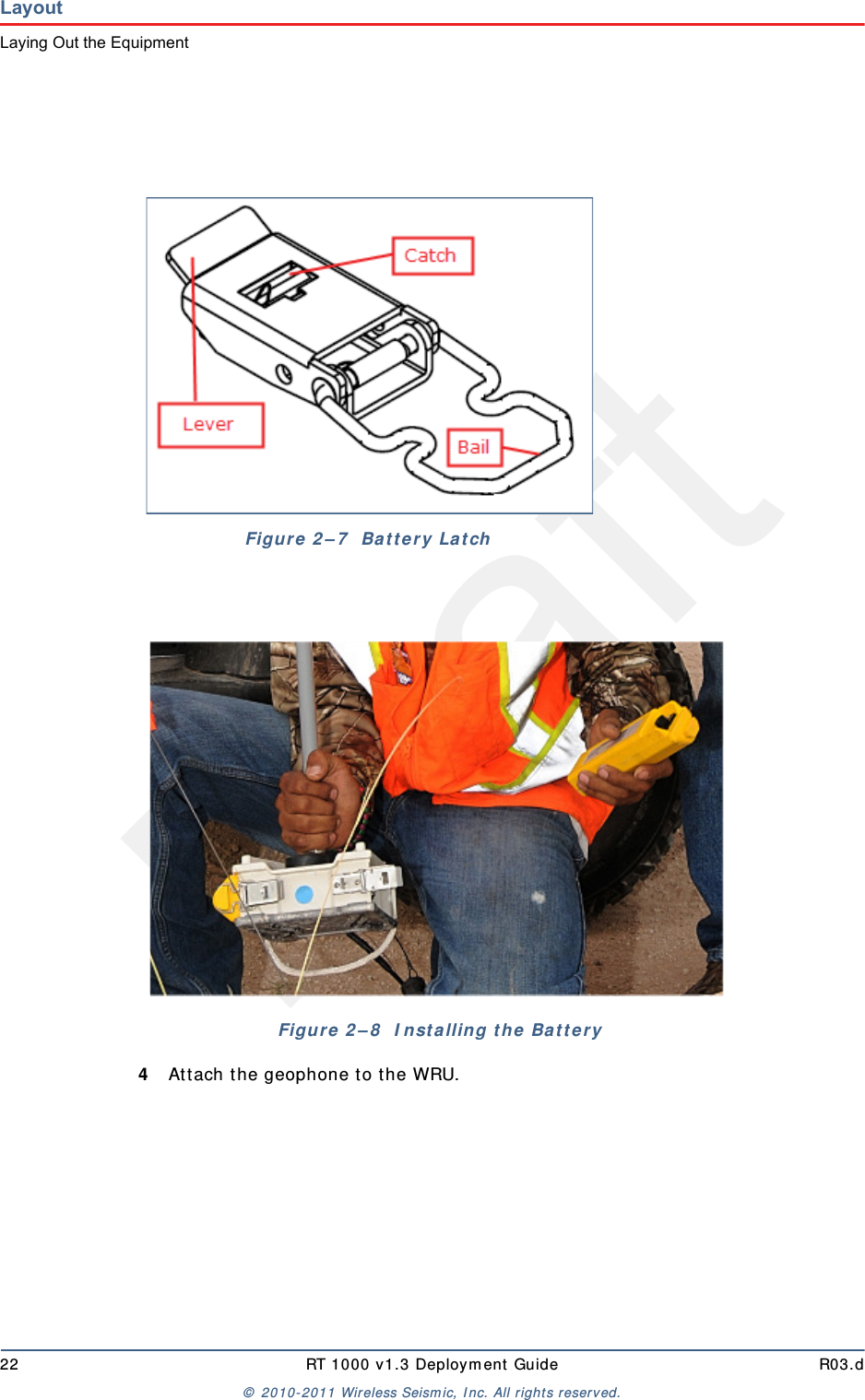

Draft22 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.LayoutLaying Out the Equipment4Attach the geophone to the WRU.Figure 2–7 Battery LatchFigure 2–8 Installing the Battery

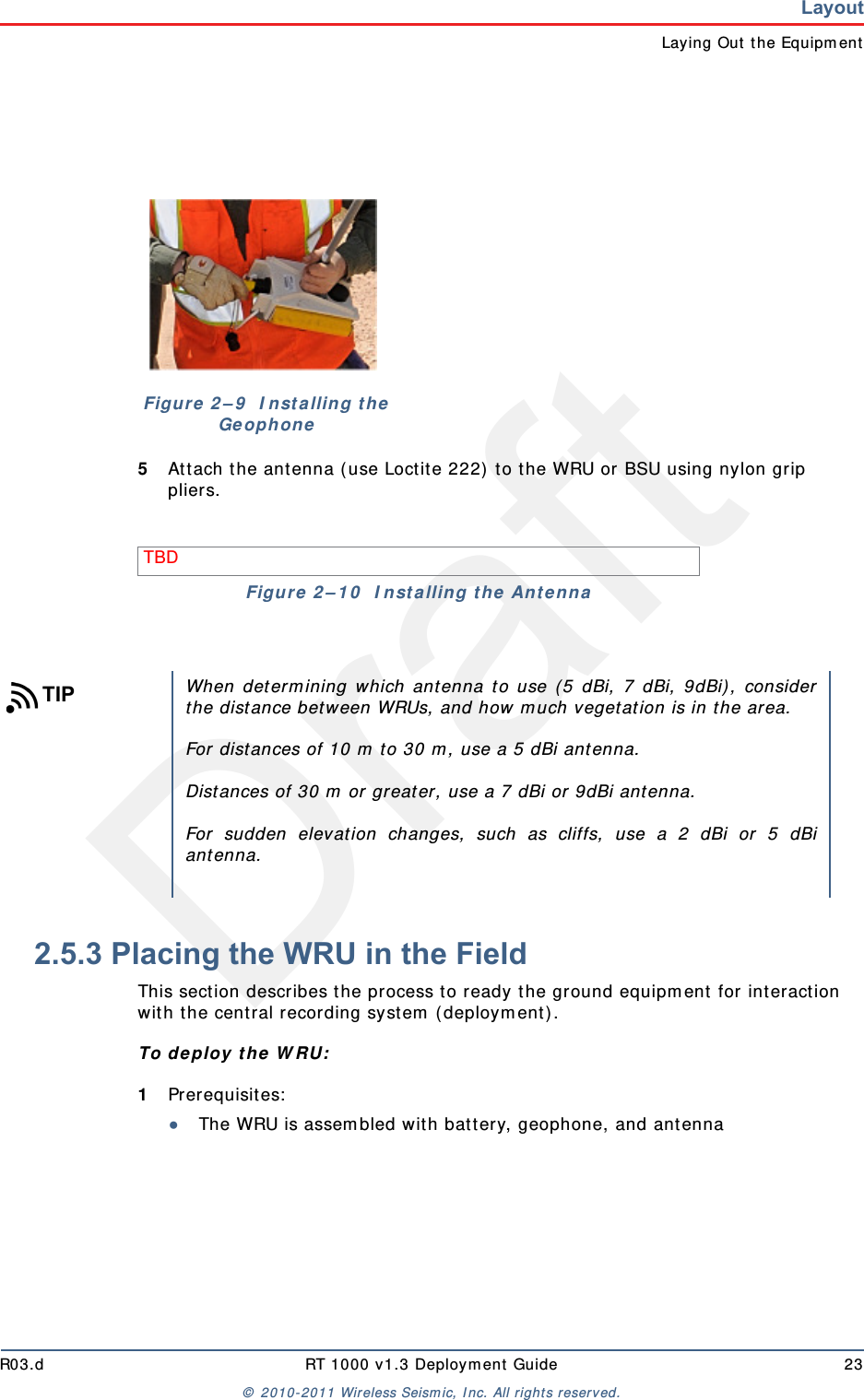

DraftR03.d RT 1000 v1.3 Deployment Guide 23© 2010-2011 Wireless Seismic, Inc. All rights reserved.LayoutLaying Out the Equipment5Attach the antenna (use Loctite 222) to the WRU or BSU using nylon grip pliers.2.5.3 Placing the WRU in the FieldThis section describes the process to ready the ground equipment for interaction with the central recording system (deployment).To deploy the WRU:1Prerequisites:●The WRU is assembled with battery, geophone, and antennaFigure 2–9 Installing the GeophoneTBD Figure 2–10 Installing the AntennaTIPWhen determining which antenna to use (5 dBi, 7 dBi, 9dBi), considerthe distance between WRUs, and how much vegetation is in the area. For distances of 10 m to 30 m, use a 5 dBi antenna. Distances of 30 m or greater, use a 7 dBi or 9dBi antenna.For sudden elevation changes, such as cliffs, use a 2 dBi or 5 dBiantenna.

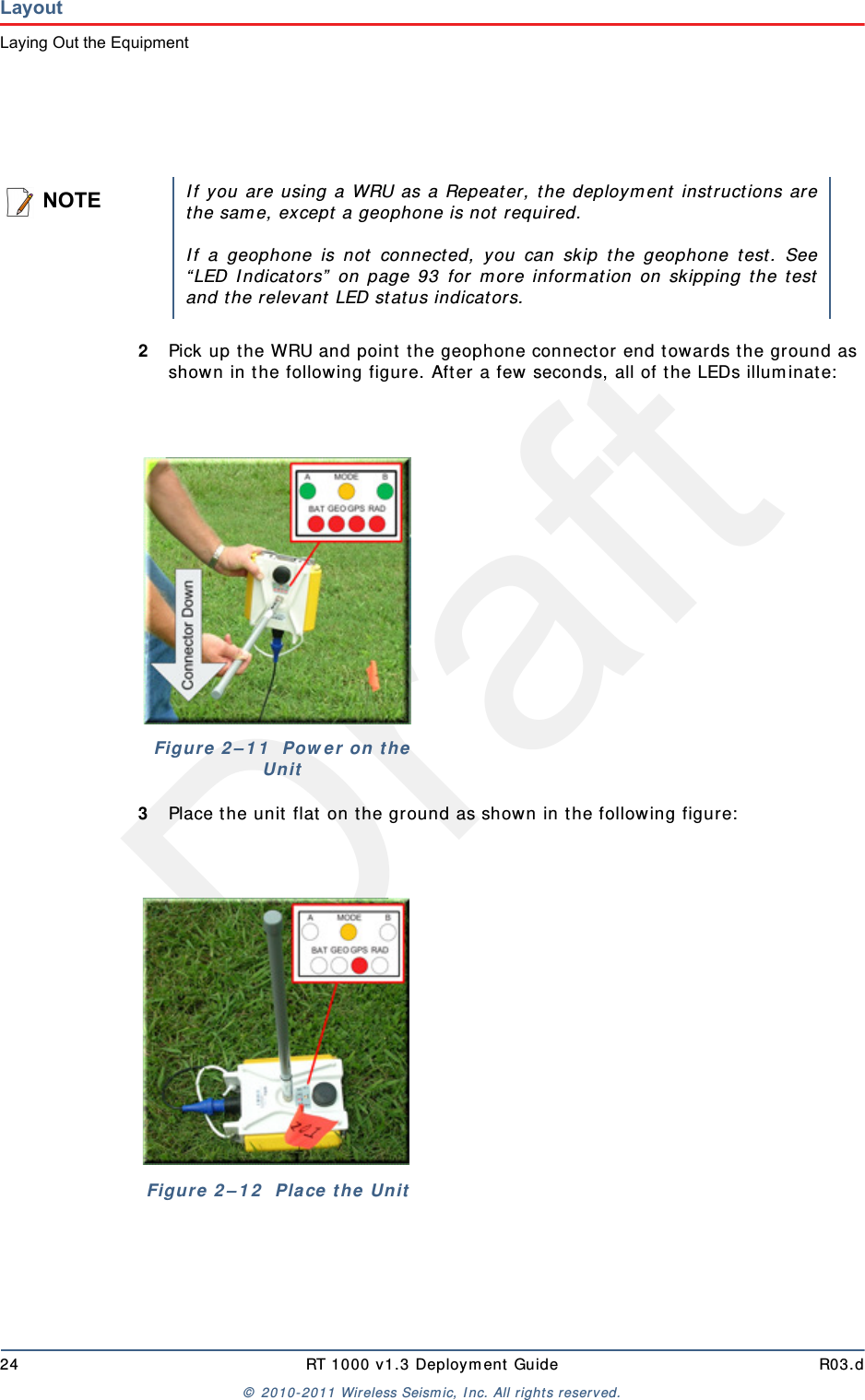

Draft24 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.LayoutLaying Out the Equipment2Pick up the WRU and point the geophone connector end towards the ground as shown in the following figure. After a few seconds, all of the LEDs illuminate:3Place the unit flat on the ground as shown in the following figure:NOTEIf you are using a WRU as a Repeater, the deployment instructions arethe same, except a geophone is not required. If a geophone is not connected, you can skip the geophone test. See“LED Indicators” on page 93 for more information on skipping the testand the relevant LED status indicators.Figure 2–11 Power on the UnitFigure 2–12 Place the Unit

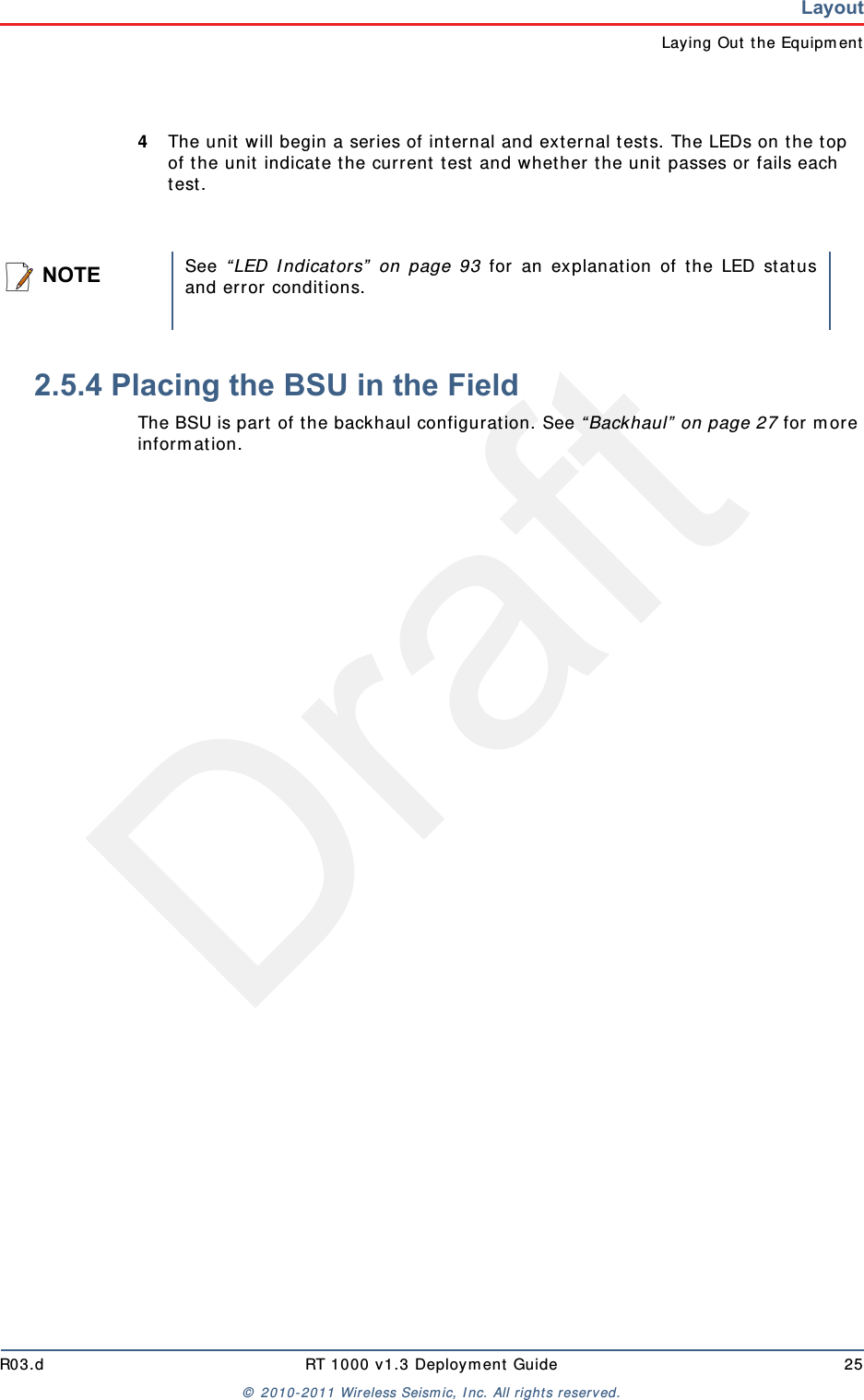

DraftR03.d RT 1000 v1.3 Deployment Guide 25© 2010-2011 Wireless Seismic, Inc. All rights reserved.LayoutLaying Out the Equipment4The unit will begin a series of internal and external tests. The LEDs on the top of the unit indicate the current test and whether the unit passes or fails each test. 2.5.4 Placing the BSU in the FieldThe BSU is part of the backhaul configuration. See “Backhaul” on page 27 for more information. NOTESee “LED Indicators” on page 93 for an explanation of the LED statusand error conditions.

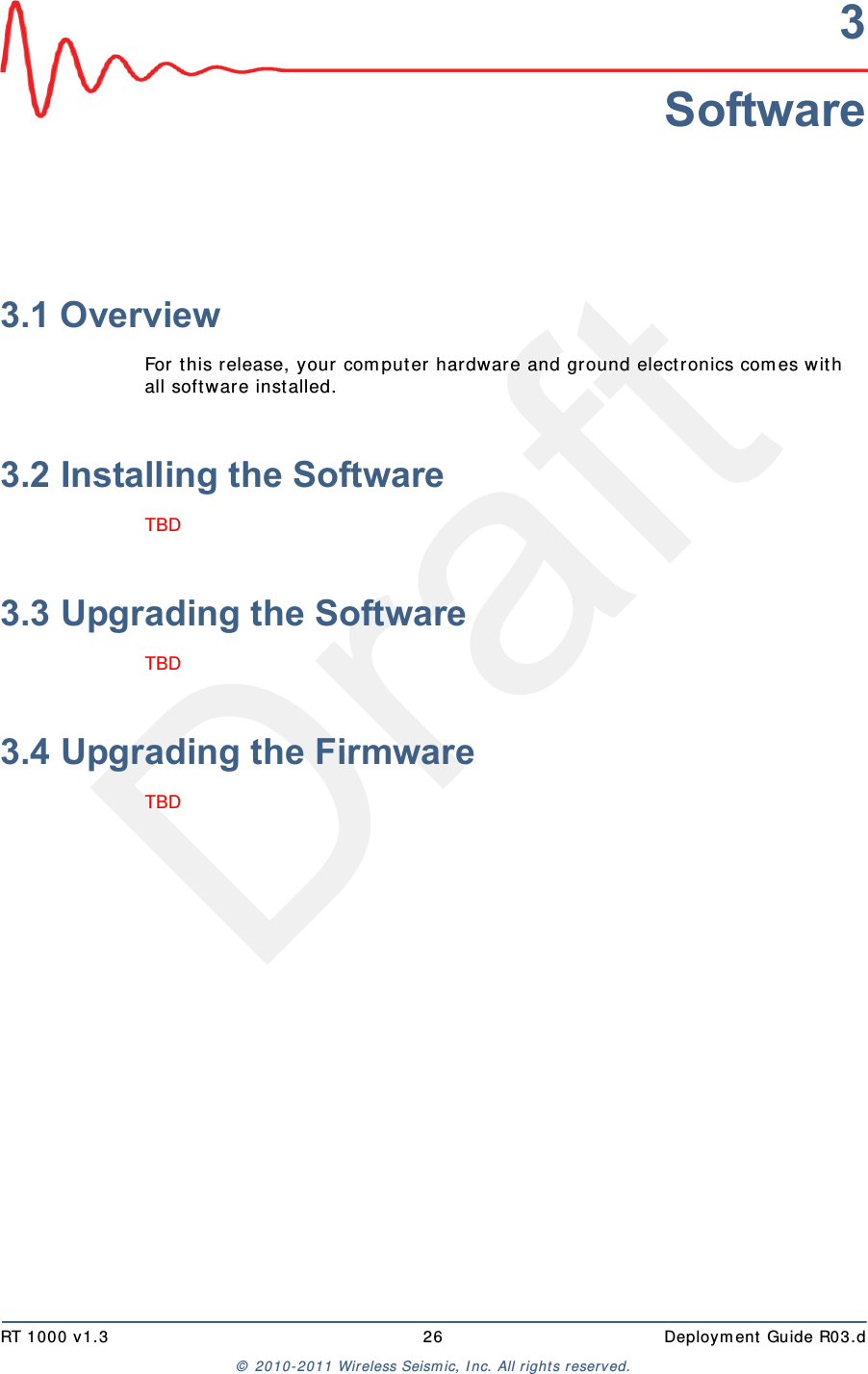

DraftRT 1000 v1.3 26 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.3Software3.1 OverviewFor this release, your computer hardware and ground electronics comes with all software installed. 3.2 Installing the SoftwareTBD 3.3 Upgrading the SoftwareTBD 3.4 Upgrading the FirmwareTBD

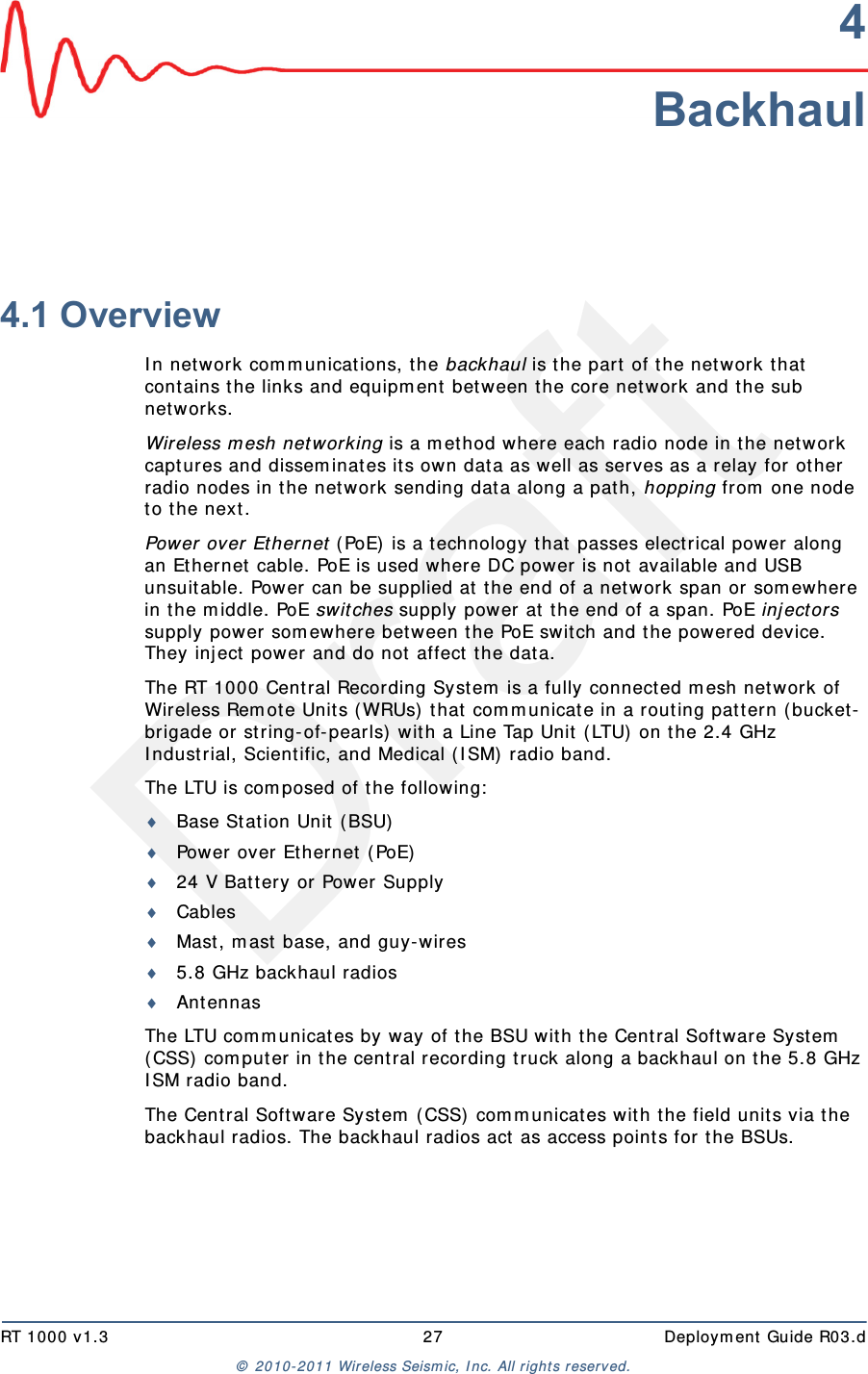

DraftRT 1000 v1.3 27 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.4Backhaul4.1 OverviewIn network communications, the backhaul is the part of the network that contains the links and equipment between the core network and the sub networks.Wireless mesh networking is a method where each radio node in the network captures and disseminates its own data as well as serves as a relay for other radio nodes in the network sending data along a path, hopping from one node to the next. Power over Ethernet (PoE) is a technology that passes electrical power along an Ethernet cable. PoE is used where DC power is not available and USB unsuitable. Power can be supplied at the end of a network span or somewhere in the middle. PoE switches supply power at the end of a span. PoE injectors supply power somewhere between the PoE switch and the powered device. They inject power and do not affect the data.The RT 1000 Central Recording System is a fully connected mesh network of Wireless Remote Units (WRUs) that communicate in a routing pattern (bucket-brigade or string-of-pearls) with a Line Tap Unit (LTU) on the 2.4 GHz Industrial, Scientific, and Medical (ISM) radio band. The LTU is composed of the following:Base Station Unit (BSU)Power over Ethernet (PoE)24 V Battery or Power SupplyCablesMast, mast base, and guy-wires5.8 GHz backhaul radiosAntennasThe LTU communicates by way of the BSU with the Central Software System (CSS) computer in the central recording truck along a backhaul on the 5.8 GHz ISM radio band. The Central Software System (CSS) communicates with the field units via the backhaul radios. The backhaul radios act as access points for the BSUs.

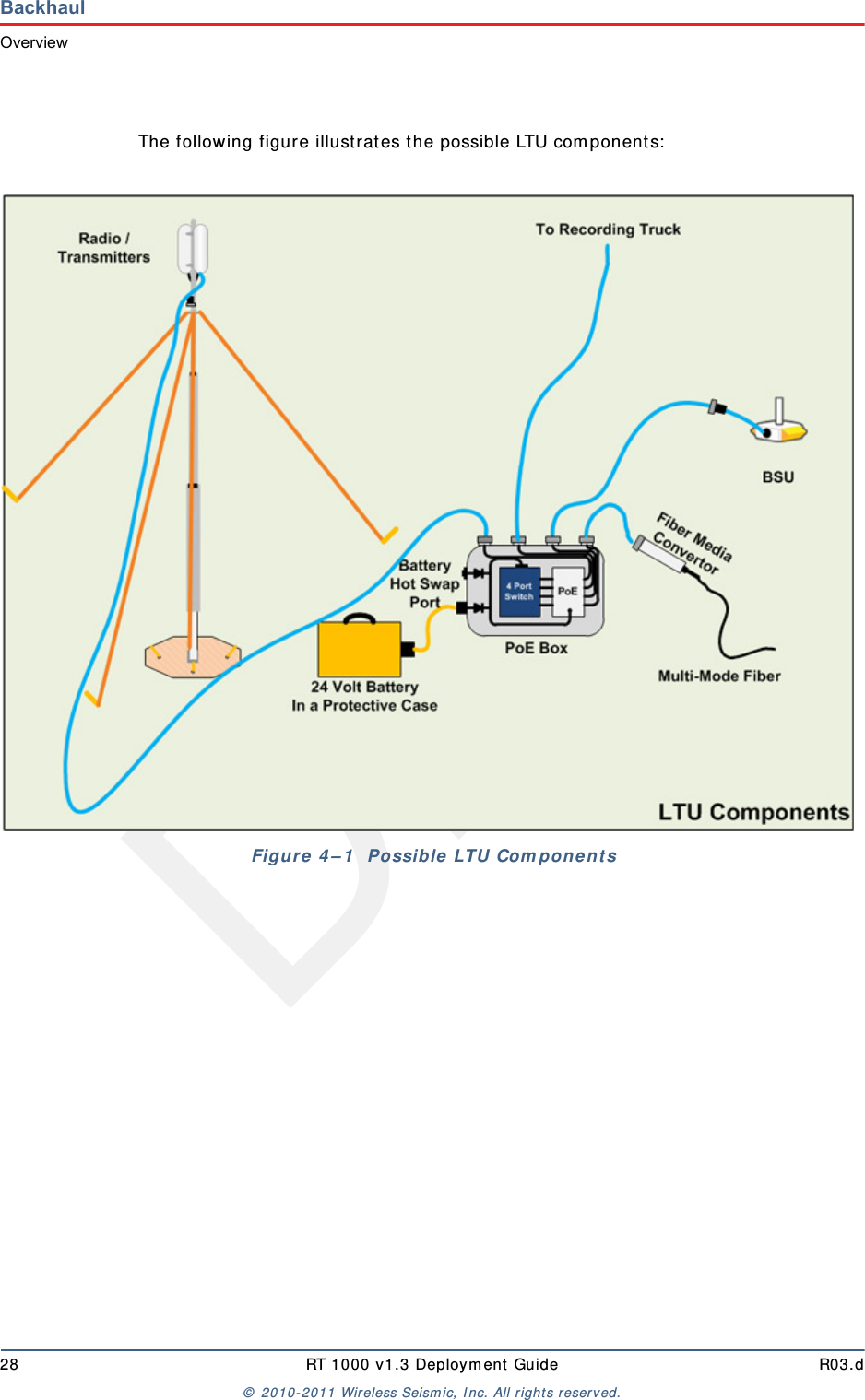

Draft28 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulOverviewThe following figure illustrates the possible LTU components:Figure 4–1 Possible LTU Components

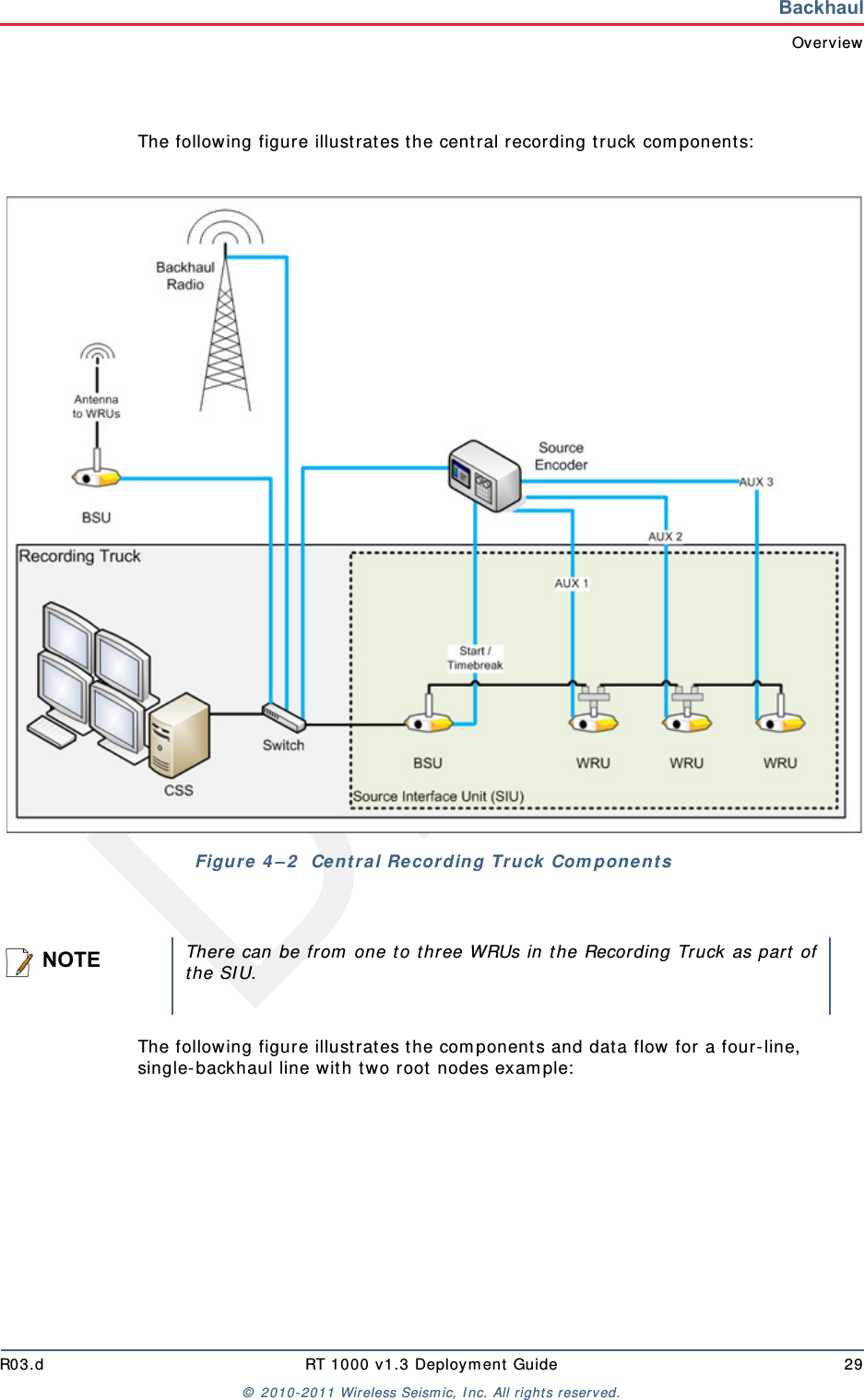

DraftR03.d RT 1000 v1.3 Deployment Guide 29© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulOverviewThe following figure illustrates the central recording truck components:The following figure illustrates the components and data flow for a four-line, single-backhaul line with two root nodes example:Figure 4–2 Central Recording Truck ComponentsNOTEThere can be from one to three WRUs in the Recording Truck as part ofthe SIU.

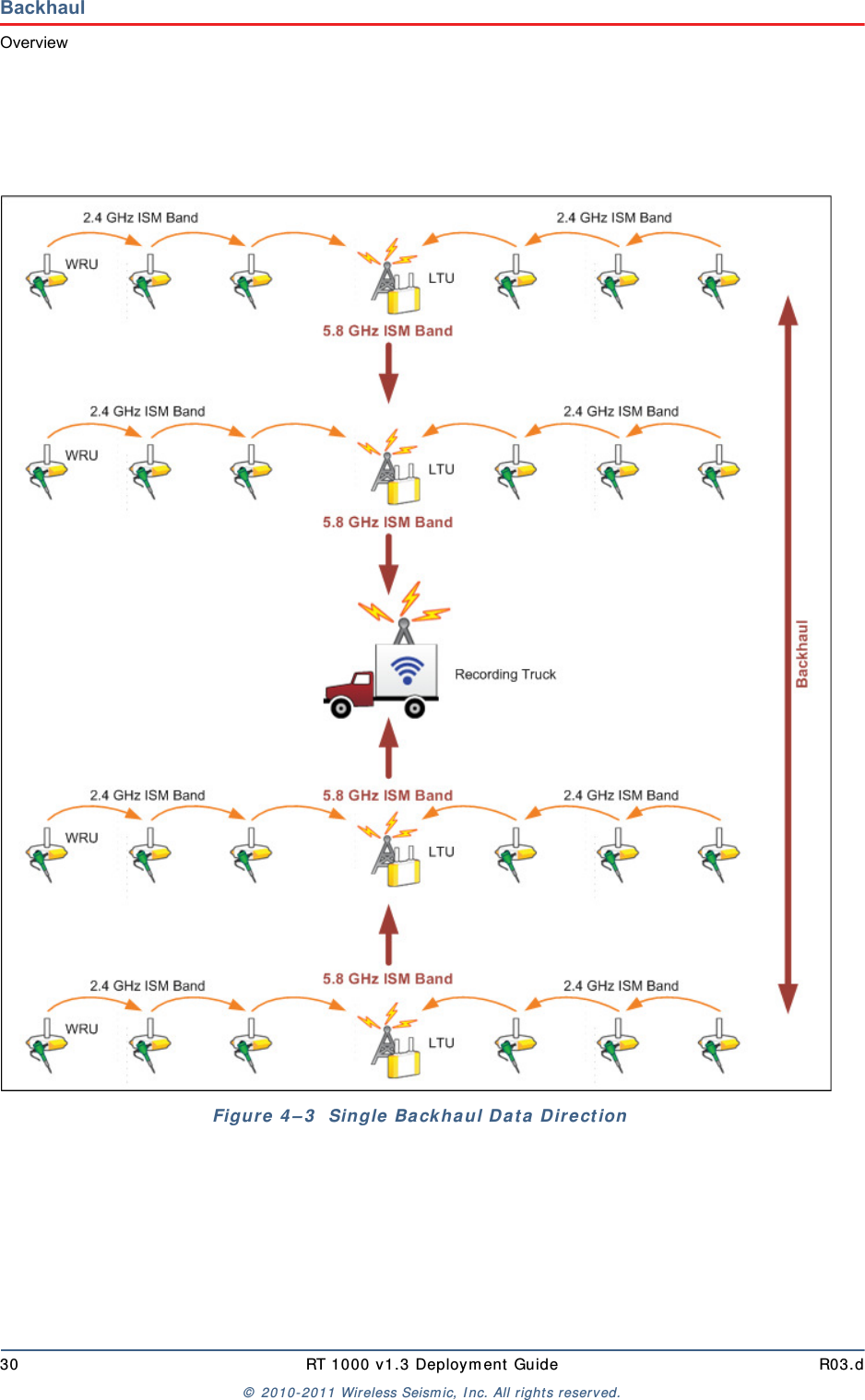

Draft30 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulOverviewFigure 4–3 Single Backhaul Data Direction

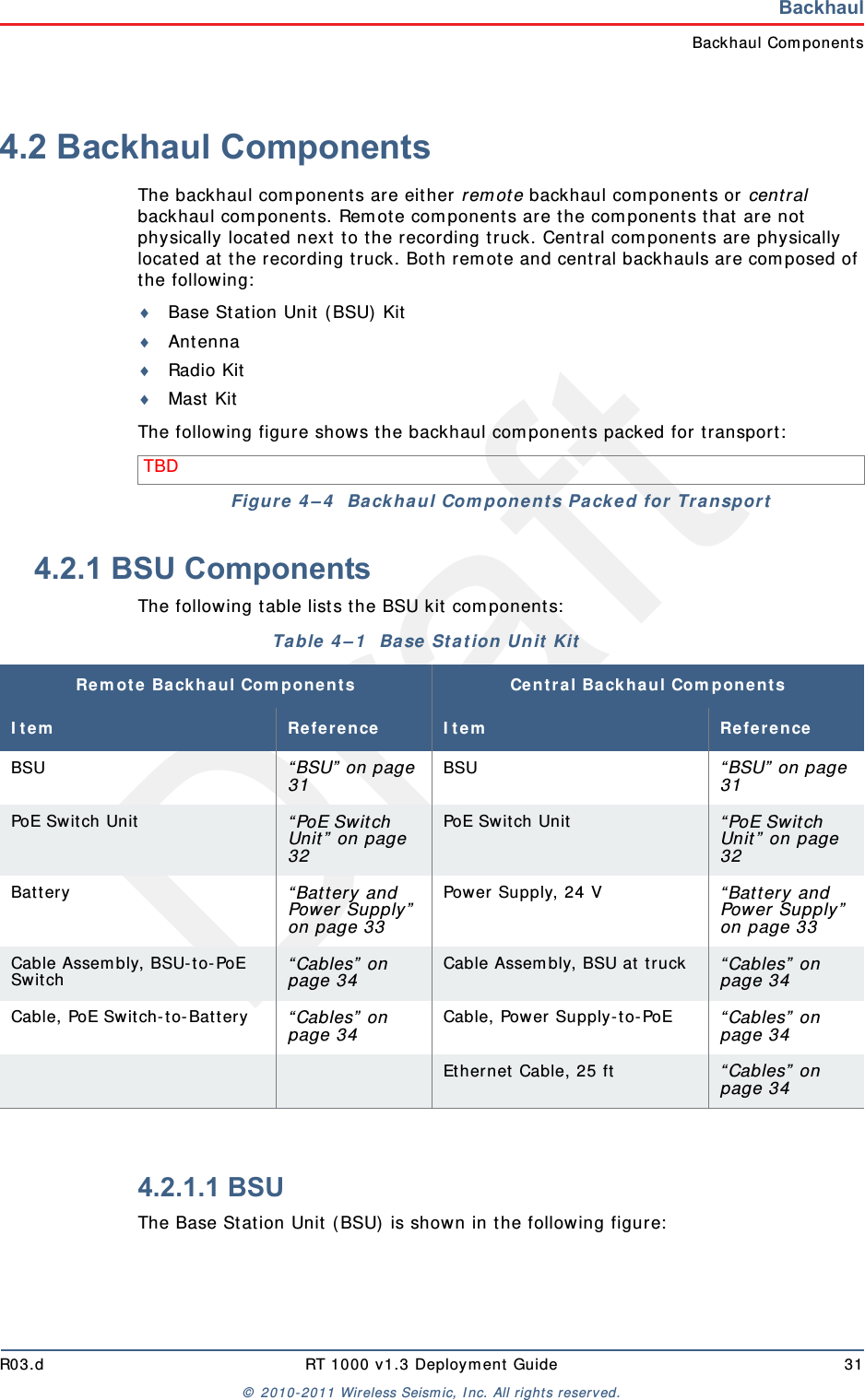

DraftR03.d RT 1000 v1.3 Deployment Guide 31© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulBackhaul Components4.2 Backhaul ComponentsThe backhaul components are either remote backhaul components or central backhaul components. Remote components are the components that are not physically located next to the recording truck. Central components are physically located at the recording truck. Both remote and central backhauls are composed of the following:Base Station Unit (BSU) KitAntennaRadio KitMast KitThe following figure shows the backhaul components packed for transport:4.2.1 BSU ComponentsThe following table lists the BSU kit components:4.2.1.1 BSUThe Base Station Unit (BSU) is shown in the following figure:TBD Figure 4–4 Backhaul Components Packed for TransportTable 4–1 Base Station Unit Kit Remote Backhaul Components Central Backhaul ComponentsItem Reference Item ReferenceBSU “BSU” on page 31 BSU “BSU” on page 31PoE Switch Unit “PoE Switch Unit” on page 32PoE Switch Unit “PoE Switch Unit” on page 32Battery “Battery and Power Supply” on page 33Power Supply, 24 V “Battery and Power Supply” on page 33Cable Assembly, BSU-to-PoE Switch “Cables” on page 34 Cable Assembly, BSU at truck “Cables” on page 34Cable, PoE Switch-to-Battery “Cables” on page 34 Cable, Power Supply-to-PoE “Cables” on page 34Ethernet Cable, 25 ft “Cables” on page 34

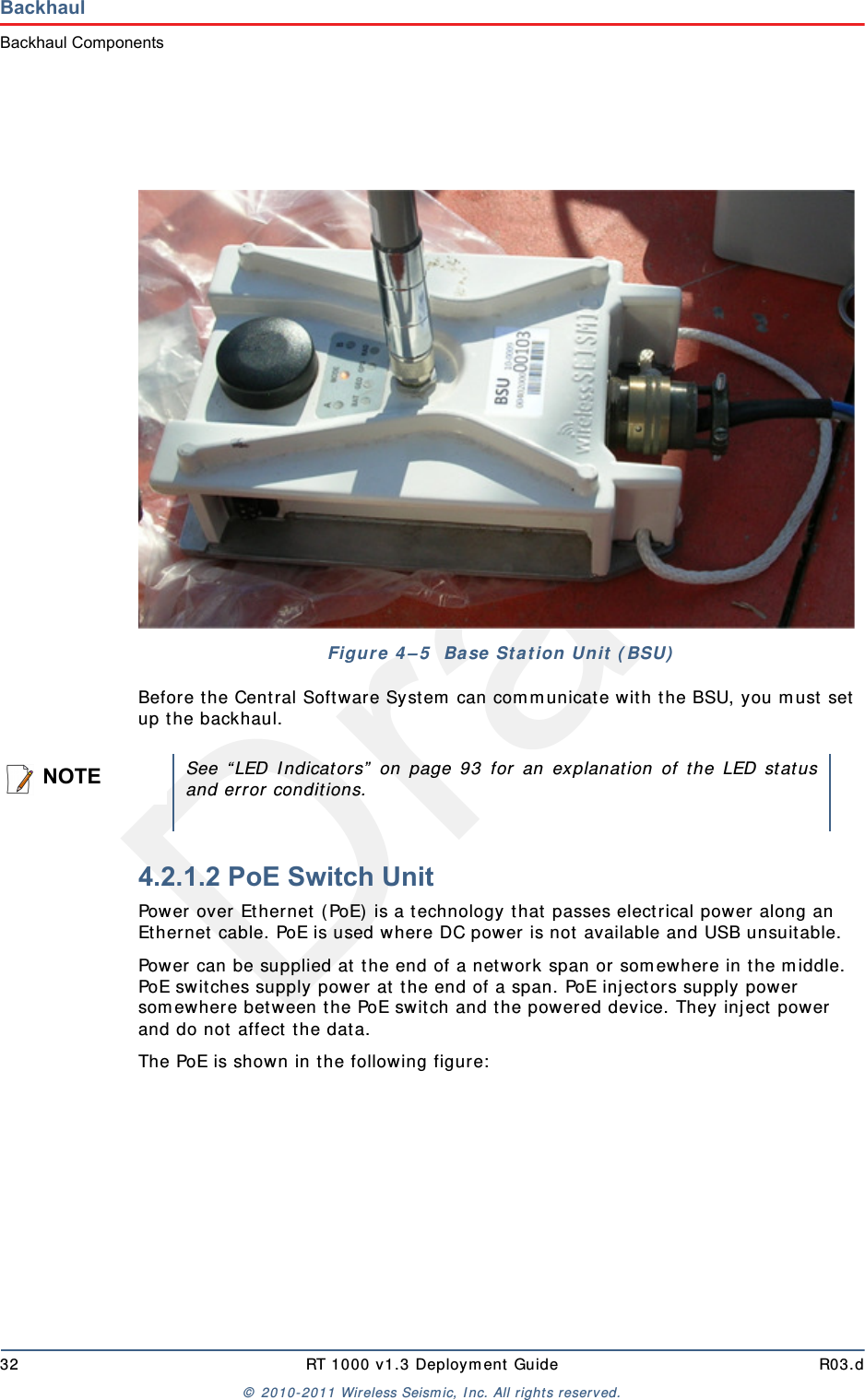

Draft32 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulBackhaul ComponentsBefore the Central Software System can communicate with the BSU, you must set up the backhaul.4.2.1.2 PoE Switch UnitPower over Ethernet (PoE) is a technology that passes electrical power along an Ethernet cable. PoE is used where DC power is not available and USB unsuitable. Power can be supplied at the end of a network span or somewhere in the middle. PoE switches supply power at the end of a span. PoE injectors supply power somewhere between the PoE switch and the powered device. They inject power and do not affect the data.The PoE is shown in the following figure:Figure 4–5 Base Station Unit (BSU)NOTESee “LED Indicators” on page 93 for an explanation of the LED statusand error conditions.

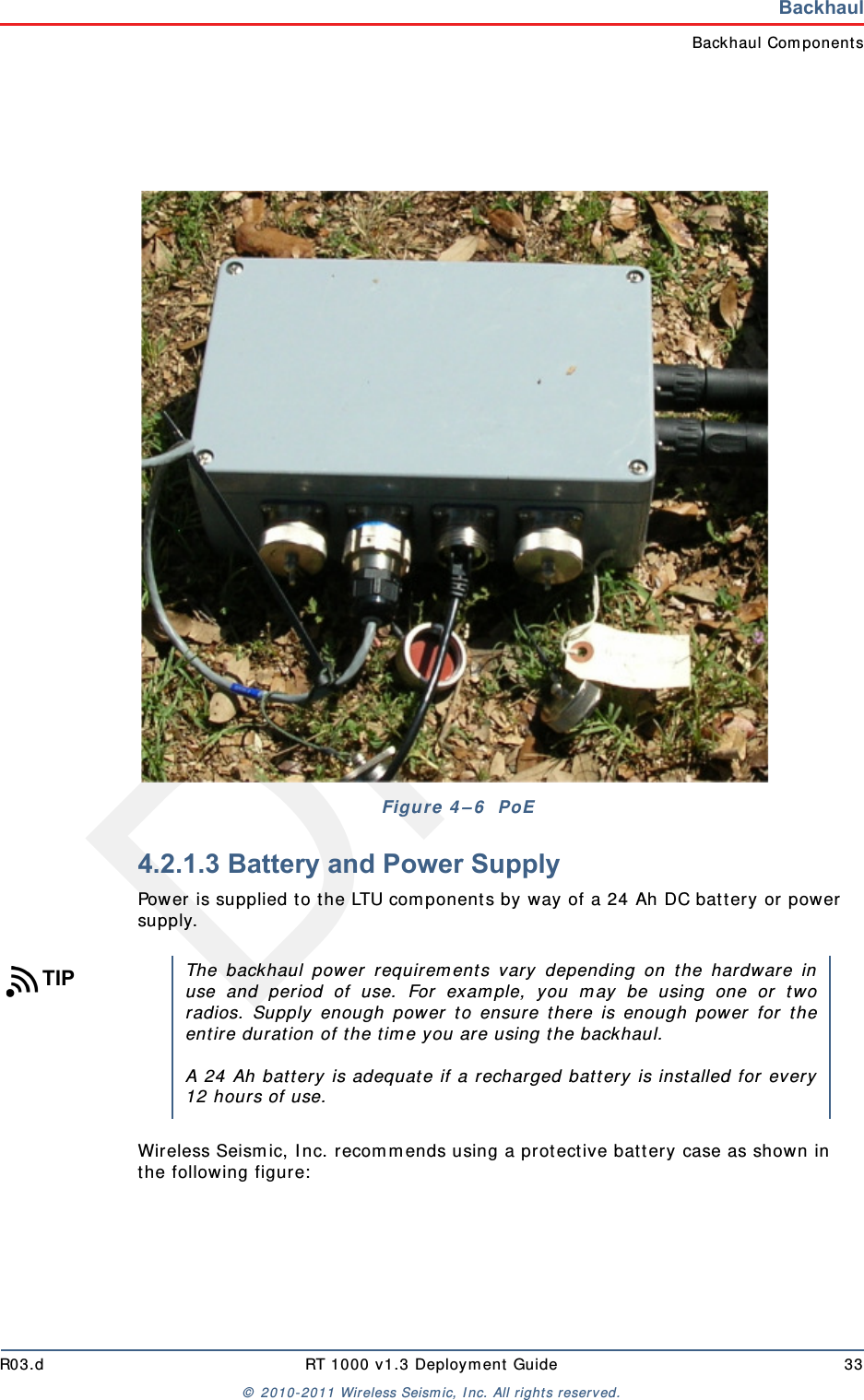

DraftR03.d RT 1000 v1.3 Deployment Guide 33© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulBackhaul Components4.2.1.3 Battery and Power SupplyPower is supplied to the LTU components by way of a 24 Ah DC battery or power supply.Wireless Seismic, Inc. recommends using a protective battery case as shown in the following figure:Figure 4–6 PoETIPThe backhaul power requirements vary depending on the hardware inuse and period of use. For example, you may be using one or tworadios. Supply enough power to ensure there is enough power for theentire duration of the time you are using the backhaul. A 24 Ah battery is adequate if a recharged battery is installed for every12 hours of use.

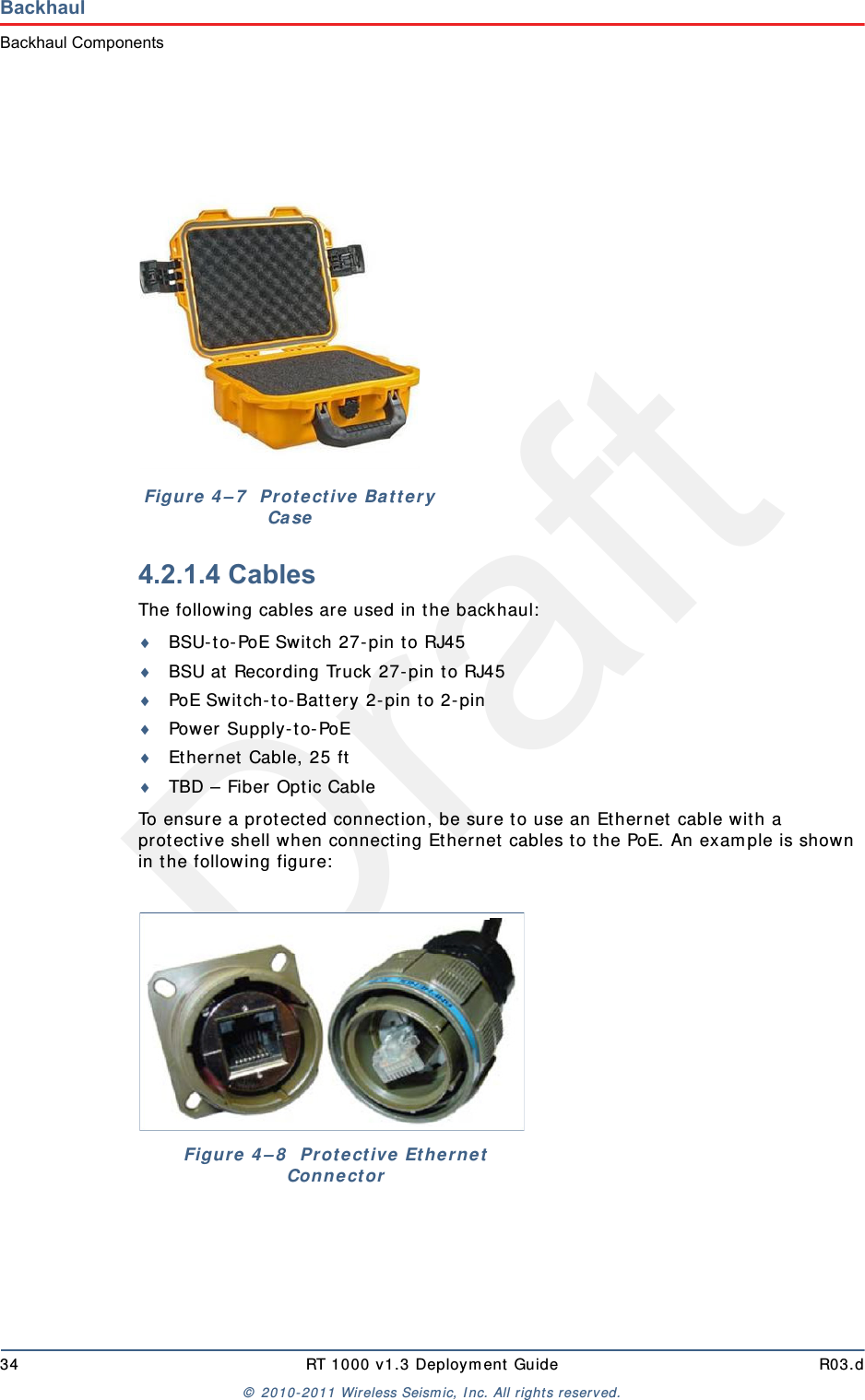

Draft34 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulBackhaul Components4.2.1.4 CablesThe following cables are used in the backhaul:BSU-to-PoE Switch 27-pin to RJ45BSU at Recording Truck 27-pin to RJ45PoE Switch-to-Battery 2-pin to 2-pinPower Supply-to-PoEEthernet Cable, 25 ftTBD – Fiber Optic CableTo ensure a protected connection, be sure to use an Ethernet cable with a protective shell when connecting Ethernet cables to the PoE. An example is shown in the following figure:Figure 4–7 Protective Battery CaseFigure 4–8 Protective Ethernet Connector

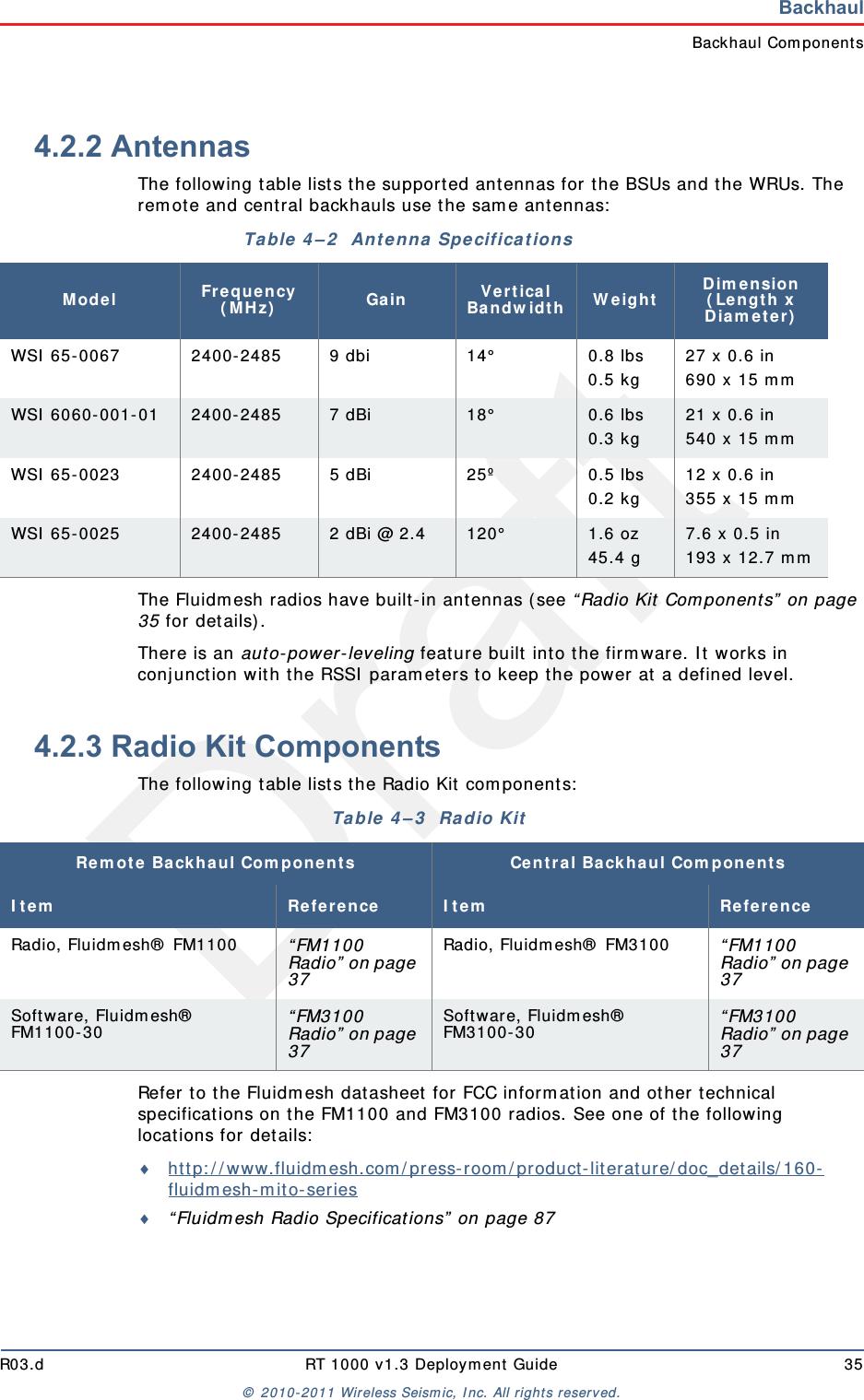

DraftR03.d RT 1000 v1.3 Deployment Guide 35© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulBackhaul Components4.2.2 AntennasThe following table lists the supported antennas for the BSUs and the WRUs. The remote and central backhauls use the same antennas: The Fluidmesh radios have built-in antennas (see “Radio Kit Components” on page 35 for details). There is an auto-power-leveling feature built into the firmware. It works in conjunction with the RSSI parameters to keep the power at a defined level. 4.2.3 Radio Kit ComponentsThe following table lists the Radio Kit components:Refer to the Fluidmesh datasheet for FCC information and other technical specifications on the FM1100 and FM3100 radios. See one of the following locations for details: http://www.fluidmesh.com/press-room/product-literature/doc_details/160-fluidmesh-mito-series “Fluidmesh Radio Specifications” on page 87Table 4–2 Antenna Specifications Model Frequency (MHz) Gain Vertical Bandwidth Weight Dimension (Length x Diameter)WSI 65-0067 2400-2485 9 dbi 14° 0.8 lbs0.5 kg 27 x 0.6 in690 x 15 mmWSI 6060-001-01 2400-2485 7 dBi 18° 0.6 lbs 0.3 kg 21 x 0.6 in540 x 15 mmWSI 65-0023 2400-2485 5 dBi 25º 0.5 lbs 0.2 kg 12 x 0.6 in355 x 15 mmWSI 65-0025 2400-2485 2 dBi @ 2.4 120° 1.6 oz 45.4 g 7.6 x 0.5 in193 x 12.7 mmTable 4–3 Radio KitRemote Backhaul Components Central Backhaul ComponentsItem Reference Item ReferenceRadio, Fluidmesh® FM1100 “FM1100 Radio” on page 37Radio, Fluidmesh® FM3100 “FM1100 Radio” on page 37Software, Fluidmesh® FM1100-30 “FM3100 Radio” on page 37Software, Fluidmesh® FM3100-30 “FM3100 Radio” on page 37

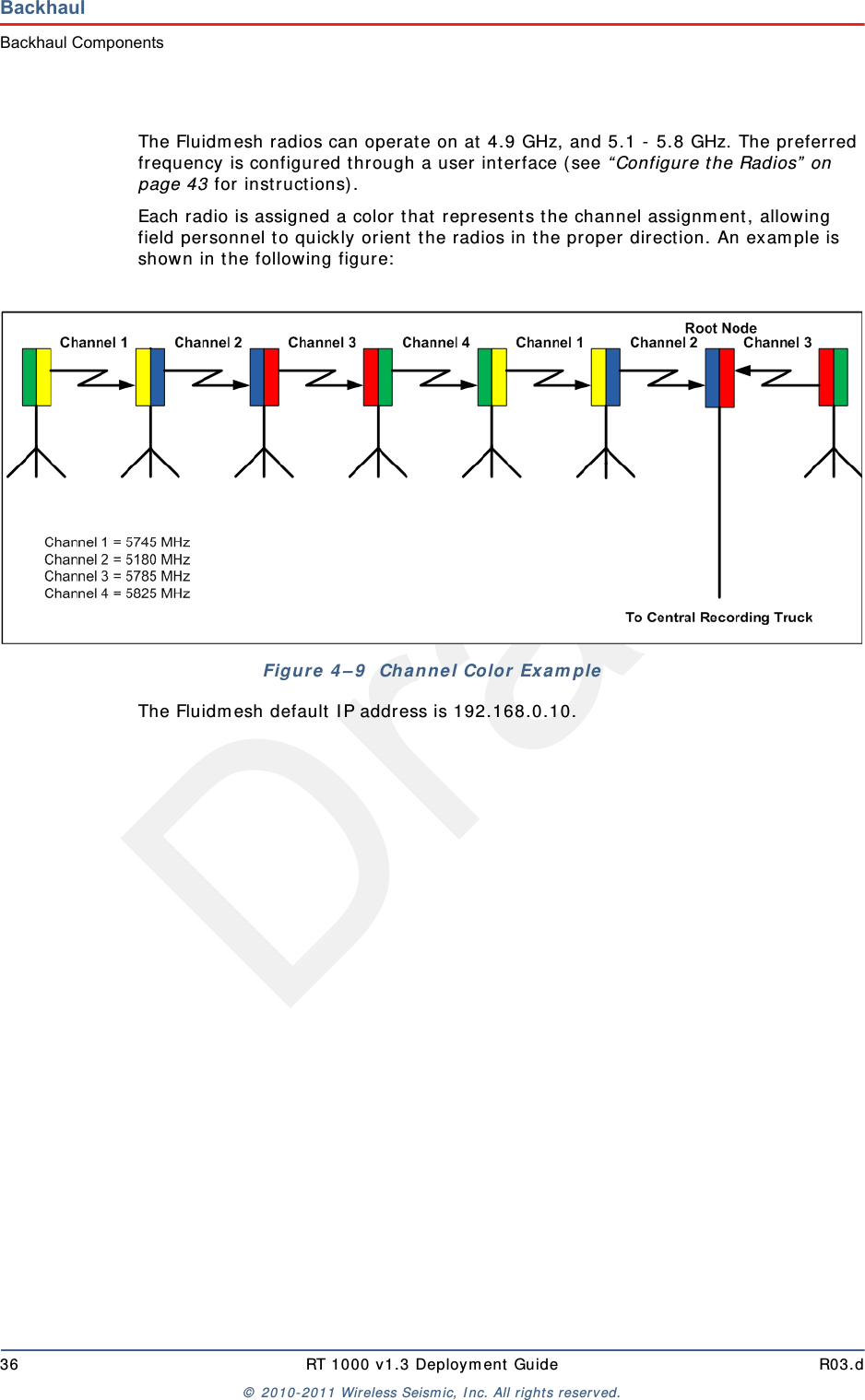

Draft36 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulBackhaul ComponentsThe Fluidmesh radios can operate on at 4.9 GHz, and 5.1 - 5.8 GHz. The preferred frequency is configured through a user interface (see “Configure the Radios” on page 43 for instructions). Each radio is assigned a color that represents the channel assignment, allowing field personnel to quickly orient the radios in the proper direction. An example is shown in the following figure:The Fluidmesh default IP address is 192.168.0.10.Figure 4–9 Channel Color Example

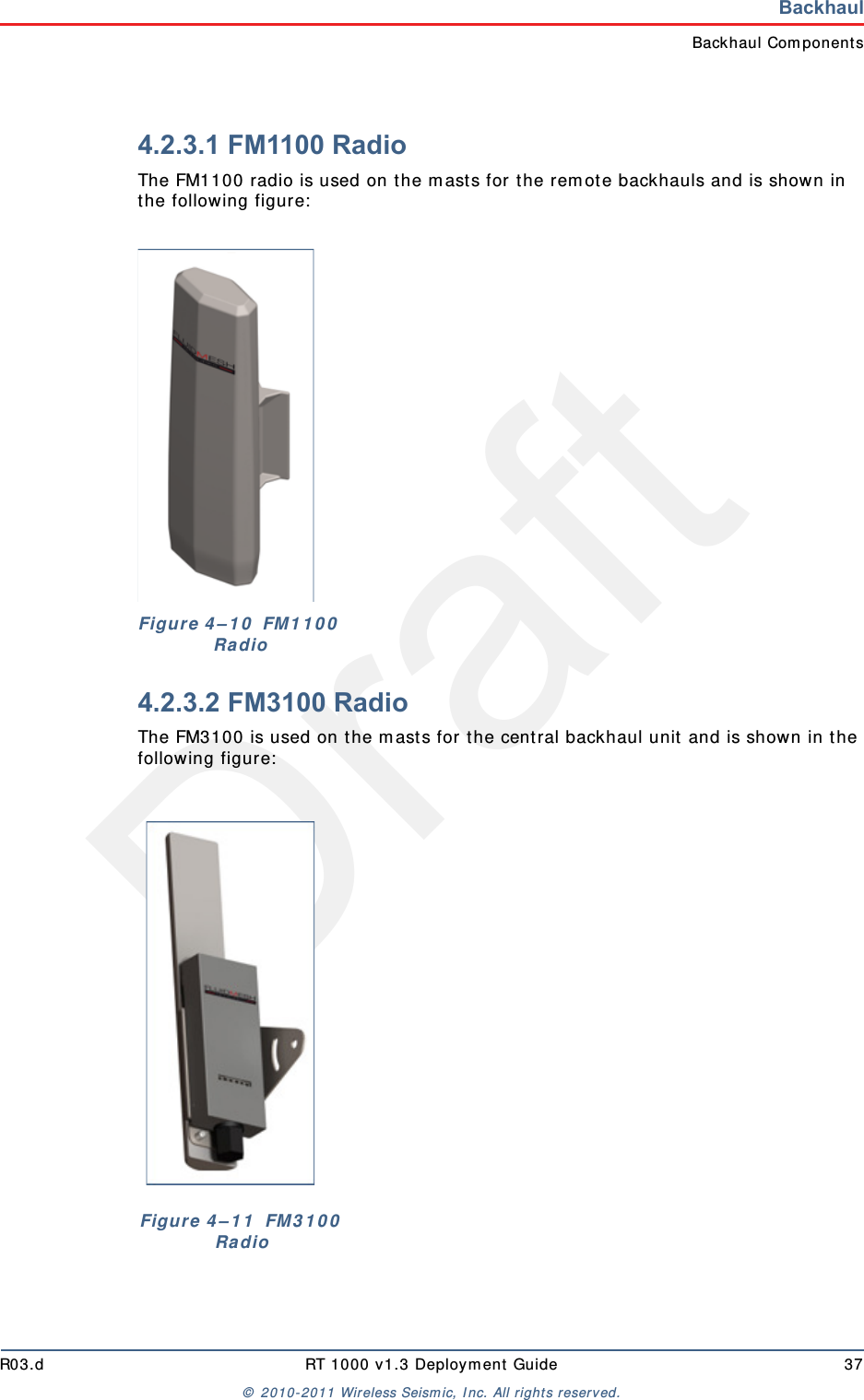

DraftR03.d RT 1000 v1.3 Deployment Guide 37© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulBackhaul Components4.2.3.1 FM1100 RadioThe FM1100 radio is used on the masts for the remote backhauls and is shown in the following figure:4.2.3.2 FM3100 RadioThe FM3100 is used on the masts for the central backhaul unit and is shown in the following figure:Figure 4–10 FM1100 RadioFigure 4–11 FM3100 Radio

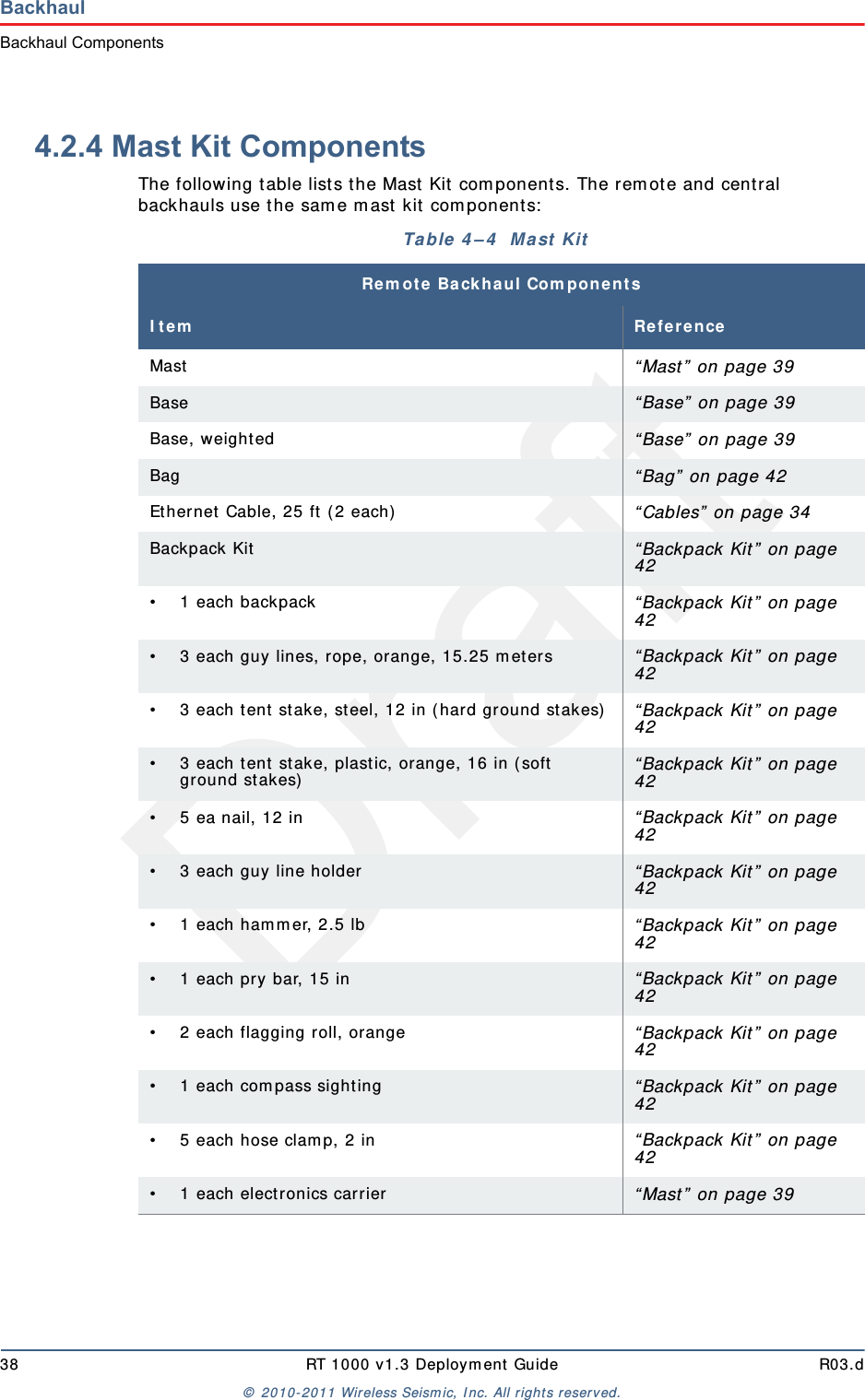

Draft38 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulBackhaul Components4.2.4 Mast Kit ComponentsThe following table lists the Mast Kit components. The remote and central backhauls use the same mast kit components:Table 4–4 Mast Kit Remote Backhaul ComponentsItem ReferenceMast “Mast” on page 39Base “Base” on page 39Base, weighted “Base” on page 39Bag “Bag” on page 42Ethernet Cable, 25 ft (2 each) “Cables” on page 34Backpack Kit “Backpack Kit” on page 42• 1 each backpack “Backpack Kit” on page 42• 3 each guy lines, rope, orange, 15.25 meters “Backpack Kit” on page 42• 3 each tent stake, steel, 12 in (hard ground stakes) “Backpack Kit” on page 42• 3 each tent stake, plastic, orange, 16 in (soft ground stakes) “Backpack Kit” on page 42• 5 ea nail, 12 in “Backpack Kit” on page 42• 3 each guy line holder “Backpack Kit” on page 42•1 each hammer, 2.5 lb “Backpack Kit” on page 42• 1 each pry bar, 15 in “Backpack Kit” on page 42• 2 each flagging roll, orange “Backpack Kit” on page 42• 1 each compass sighting “Backpack Kit” on page 42• 5 each hose clamp, 2 in “Backpack Kit” on page 42• 1 each electronics carrier “Mast” on page 39

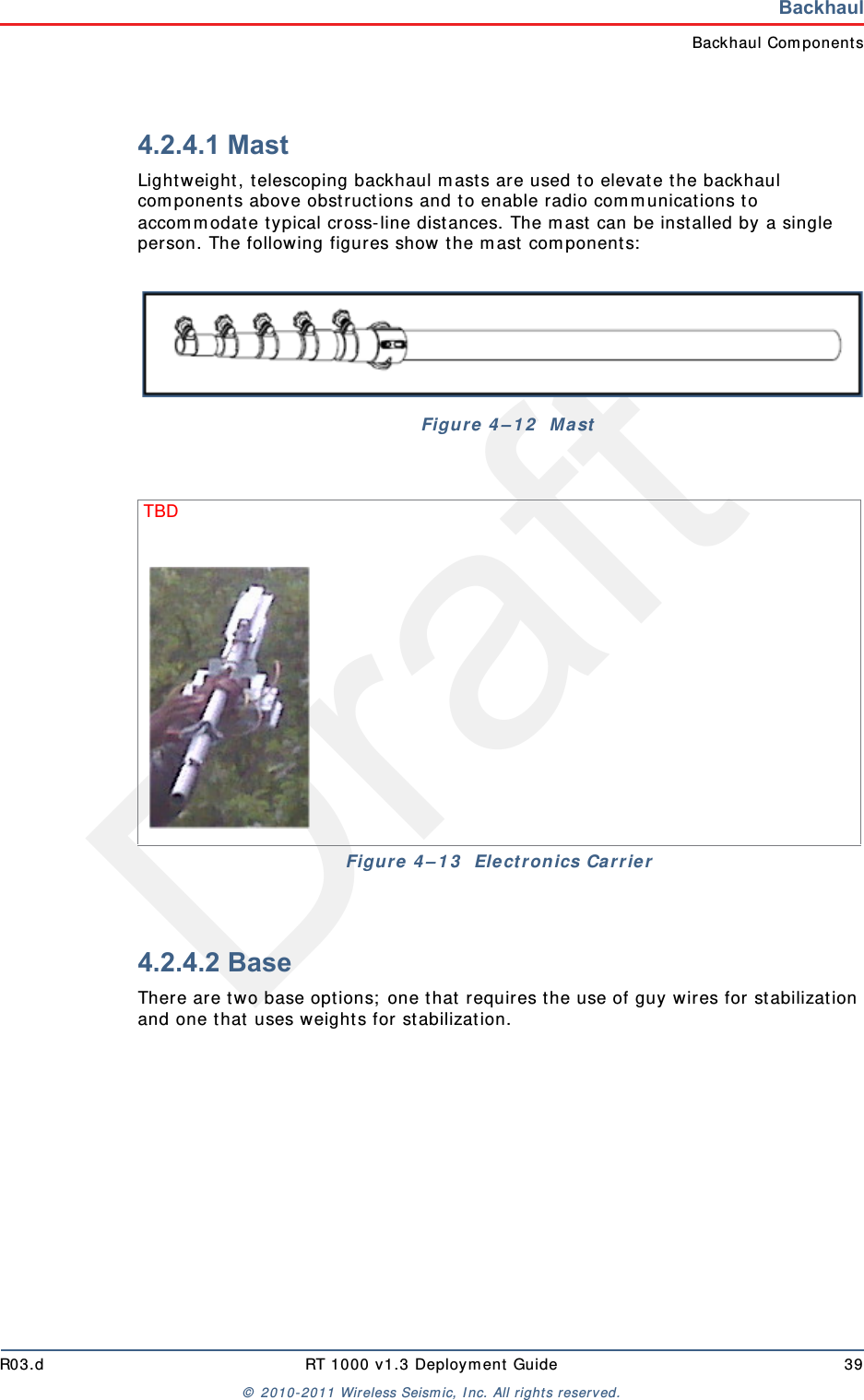

DraftR03.d RT 1000 v1.3 Deployment Guide 39© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulBackhaul Components4.2.4.1 MastLightweight, telescoping backhaul masts are used to elevate the backhaul components above obstructions and to enable radio communications to accommodate typical cross-line distances. The mast can be installed by a single person. The following figures show the mast components:4.2.4.2 BaseThere are two base options; one that requires the use of guy wires for stabilization and one that uses weights for stabilization.Figure 4–12 MastTBD Figure 4–13 Electronics Carrier

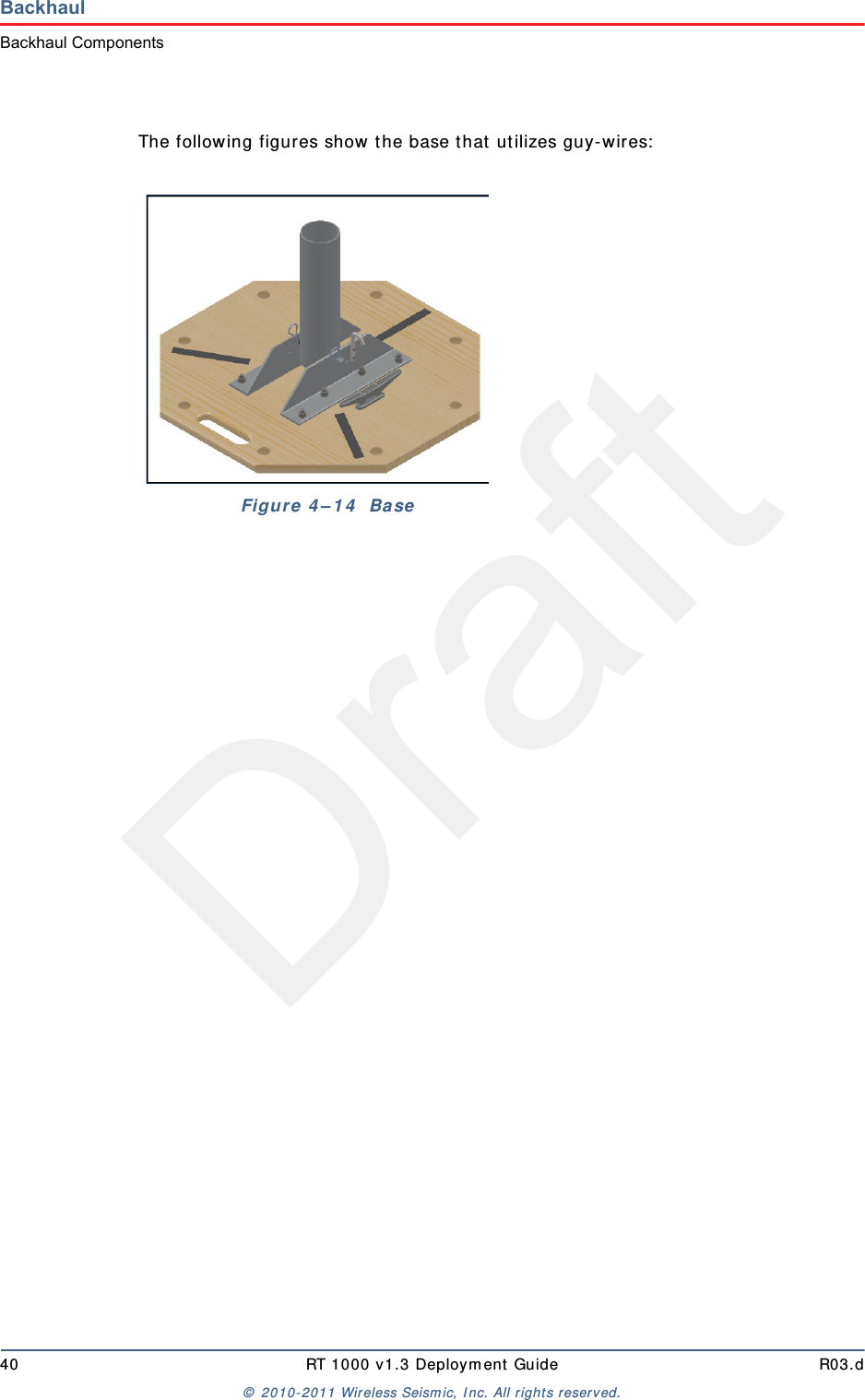

Draft40 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulBackhaul ComponentsThe following figures show the base that utilizes guy-wires:Figure 4–14 Base

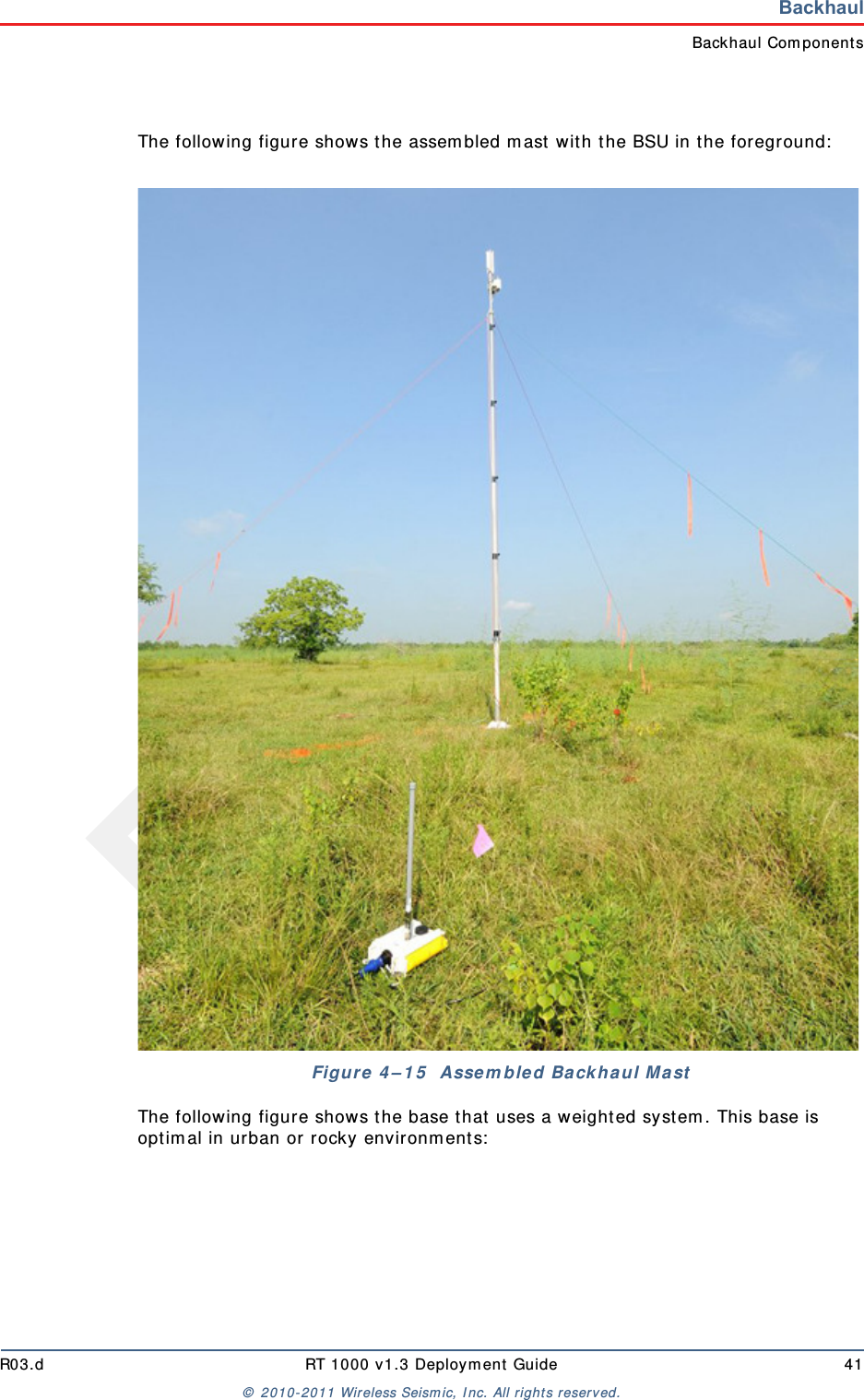

DraftR03.d RT 1000 v1.3 Deployment Guide 41© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulBackhaul ComponentsThe following figure shows the assembled mast with the BSU in the foreground:The following figure shows the base that uses a weighted system. This base is optimal in urban or rocky environments:Figure 4–15 Assembled Backhaul Mast

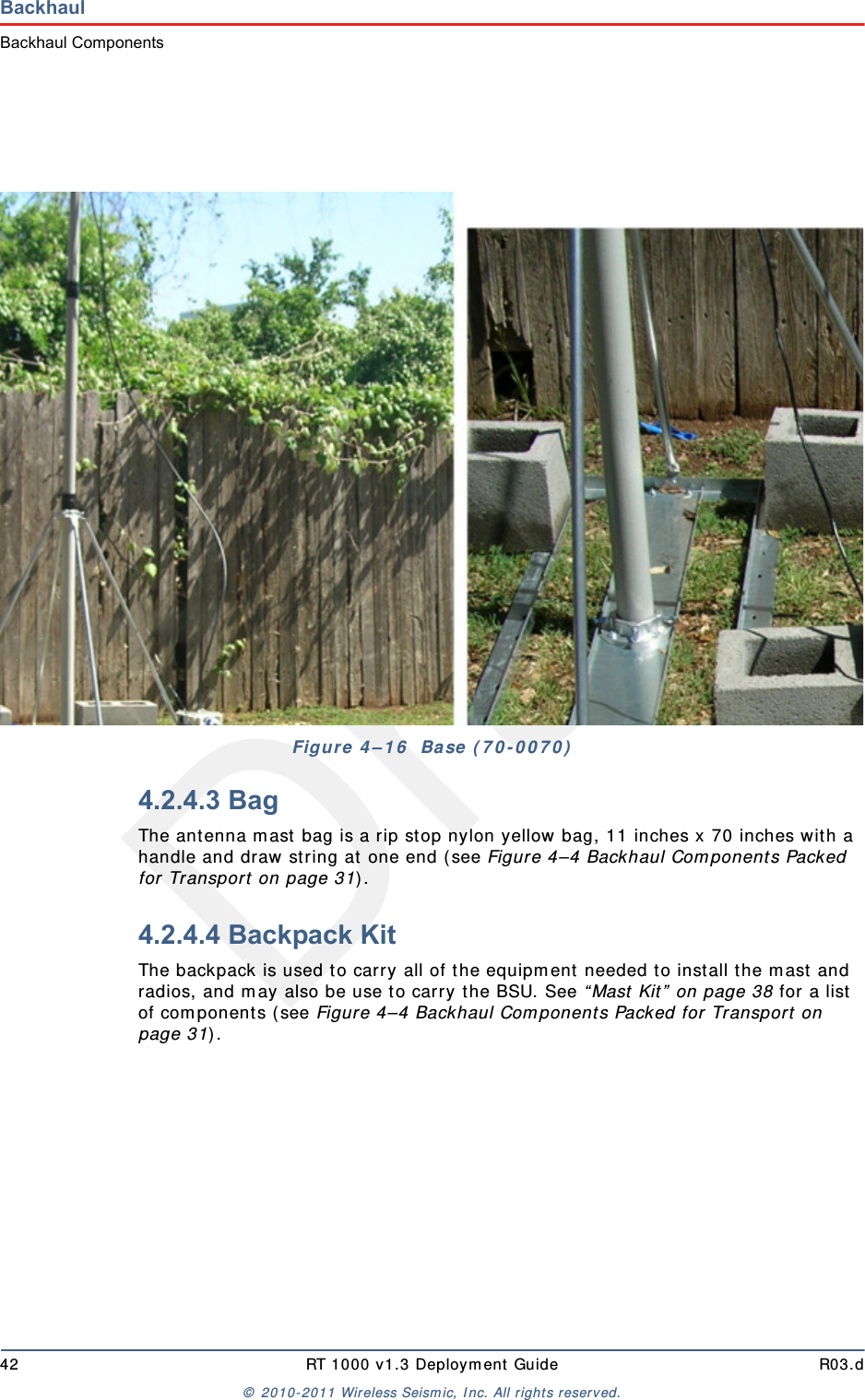

Draft42 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulBackhaul Components4.2.4.3 BagThe antenna mast bag is a rip stop nylon yellow bag, 11 inches x 70 inches with a handle and draw string at one end (see Figure 4–4 Backhaul Components Packed for Transport on page 31).4.2.4.4 Backpack KitThe backpack is used to carry all of the equipment needed to install the mast and radios, and may also be use to carry the BSU. See “Mast Kit” on page 38 for a list of components (see Figure 4–4 Backhaul Components Packed for Transport on page 31). Figure 4–16 Base (70-0070)

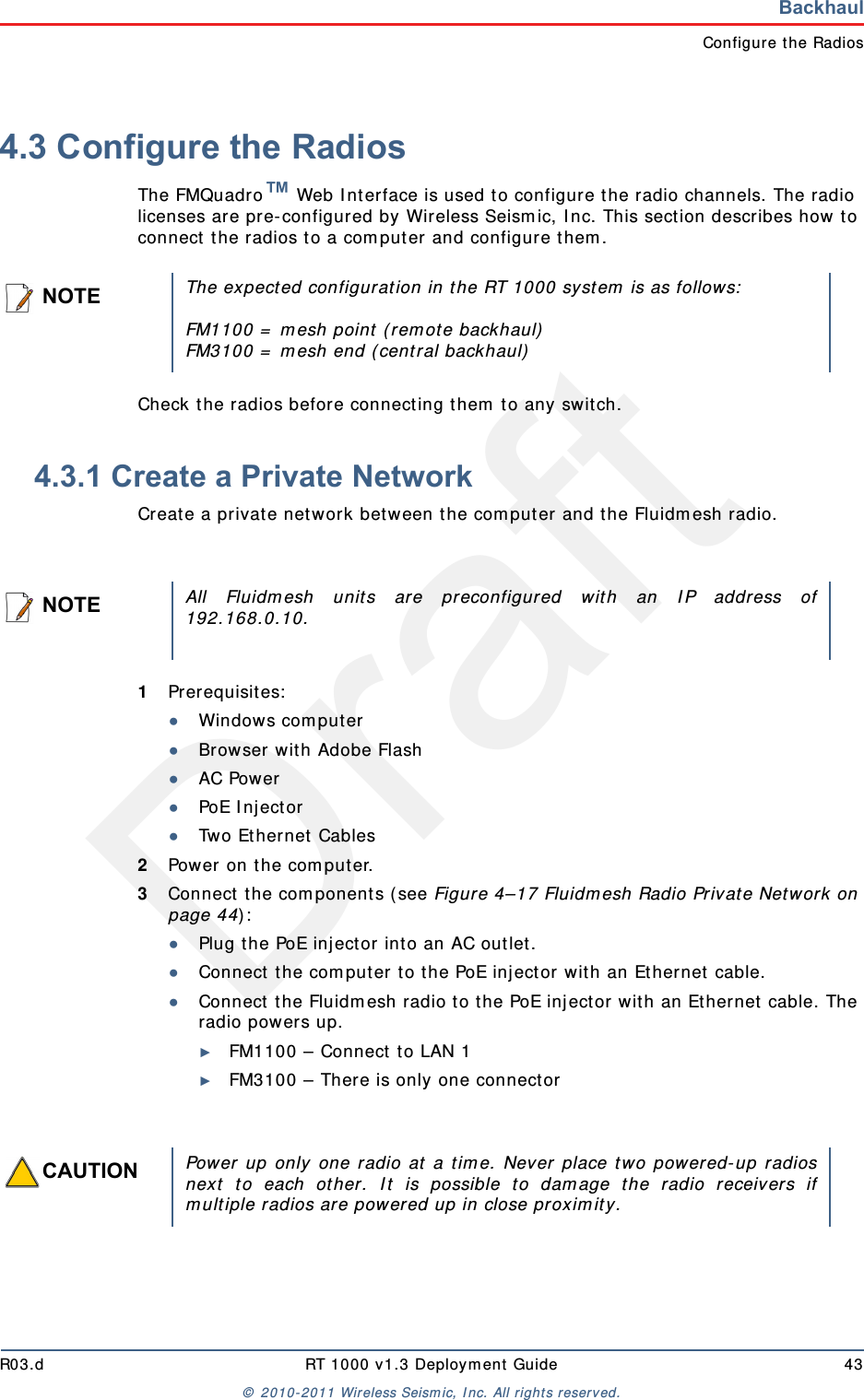

DraftR03.d RT 1000 v1.3 Deployment Guide 43© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulConfigure the Radios4.3 Configure the RadiosThe FMQuadro™ Web Interface is used to configure the radio channels. The radio licenses are pre-configured by Wireless Seismic, Inc. This section describes how to connect the radios to a computer and configure them.Check the radios before connecting them to any switch.4.3.1 Create a Private NetworkCreate a private network between the computer and the Fluidmesh radio.1Prerequisites:●Windows computer●Browser with Adobe Flash●AC Power●PoE Injector●Two Ethernet Cables2Power on the computer.3Connect the components (see Figure 4–17 Fluidmesh Radio Private Network on page 44):●Plug the PoE injector into an AC outlet.●Connect the computer to the PoE injector with an Ethernet cable.●Connect the Fluidmesh radio to the PoE injector with an Ethernet cable. The radio powers up.►FM1100 – Connect to LAN 1►FM3100 – There is only one connectorNOTEThe expected configuration in the RT 1000 system is as follows:FM1100 = mesh point (remote backhaul)FM3100 = mesh end (central backhaul)NOTEAll Fluidmesh units are preconfigured with an IP address of192.168.0.10.CAUTIONPower up only one radio at a time. Never place two powered-up radiosnext to each other. It is possible to damage the radio receivers ifmultiple radios are powered up in close proximity.

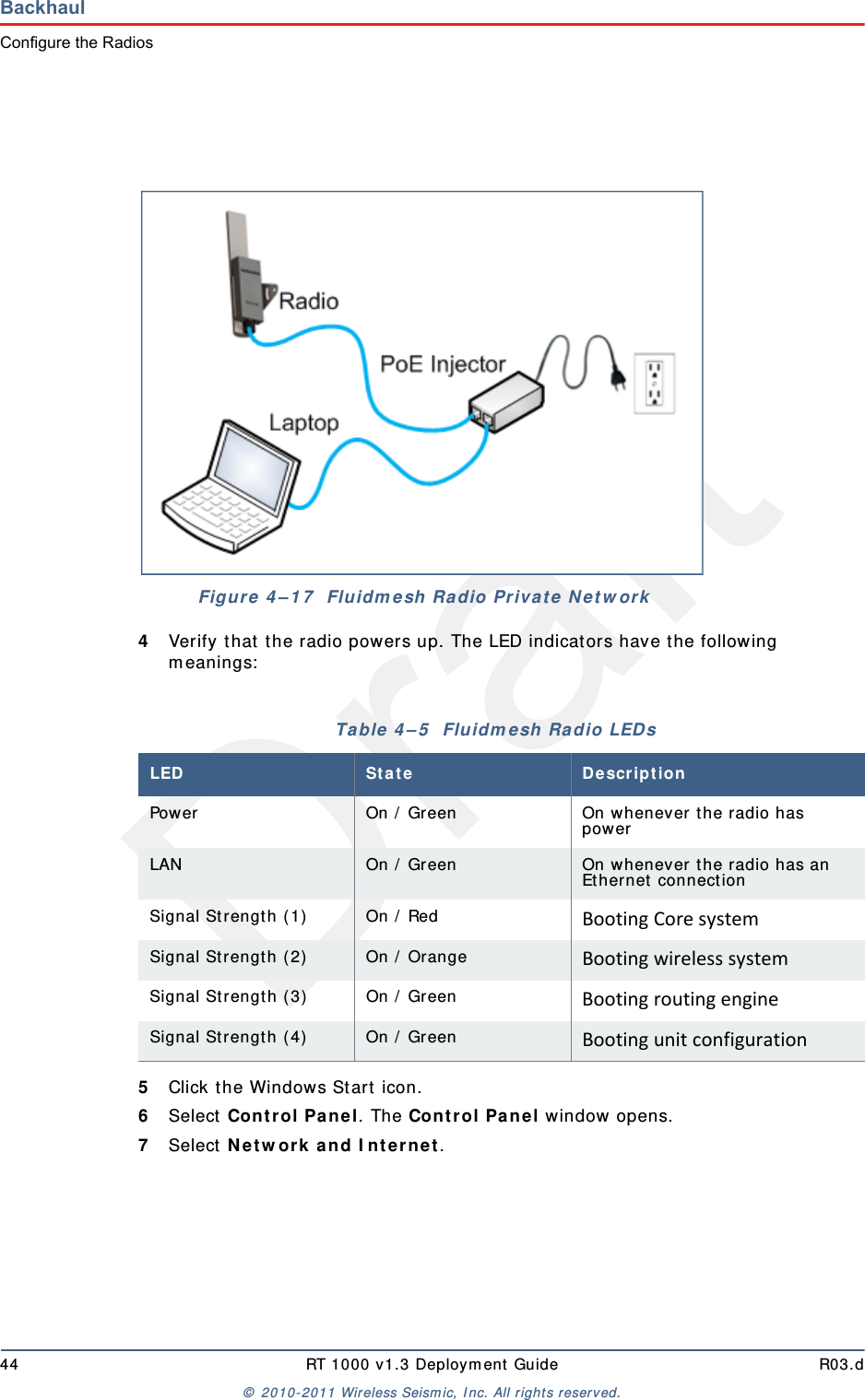

Draft44 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulConfigure the Radios4Verify that the radio powers up. The LED indicators have the following meanings:5Click the Windows Start icon.6Select Control Panel. The Control Panel window opens. 7Select Network and Internet. Figure 4–17 Fluidmesh Radio Private NetworkTable 4–5 Fluidmesh Radio LEDs LED State DescriptionPower On / Green On whenever the radio has powerLAN On / Green On whenever the radio has an Ethernet connectionSignal Strength (1) On / Red BootingCoresystemSignal Strength (2) On / Orange BootingwirelesssystemSignal Strength (3) On / Green BootingroutingengineSignal Strength (4) On / Green Bootingunitconfiguration

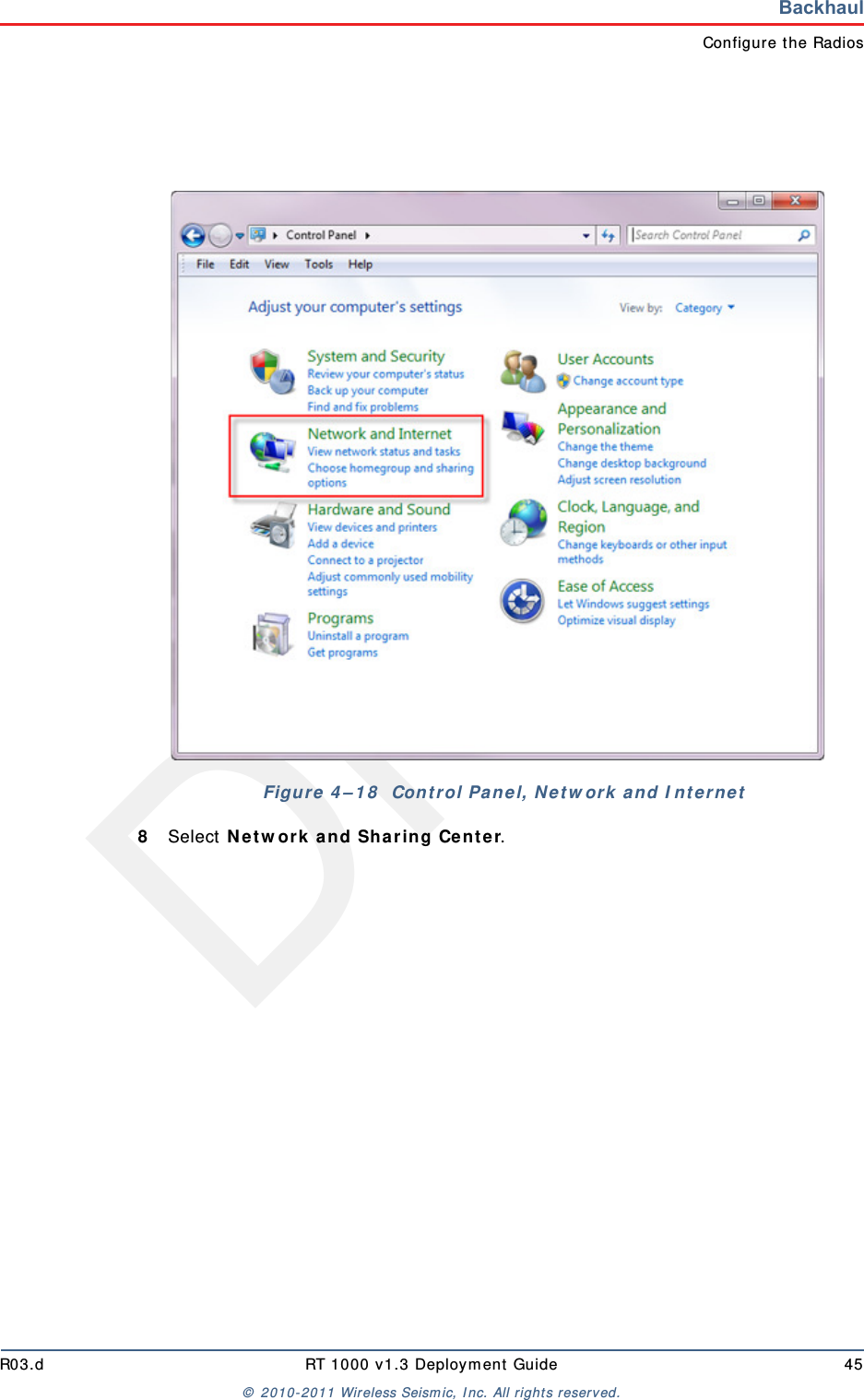

DraftR03.d RT 1000 v1.3 Deployment Guide 45© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulConfigure the Radios8Select Network and Sharing Center.Figure 4–18 Control Panel, Network and Internet

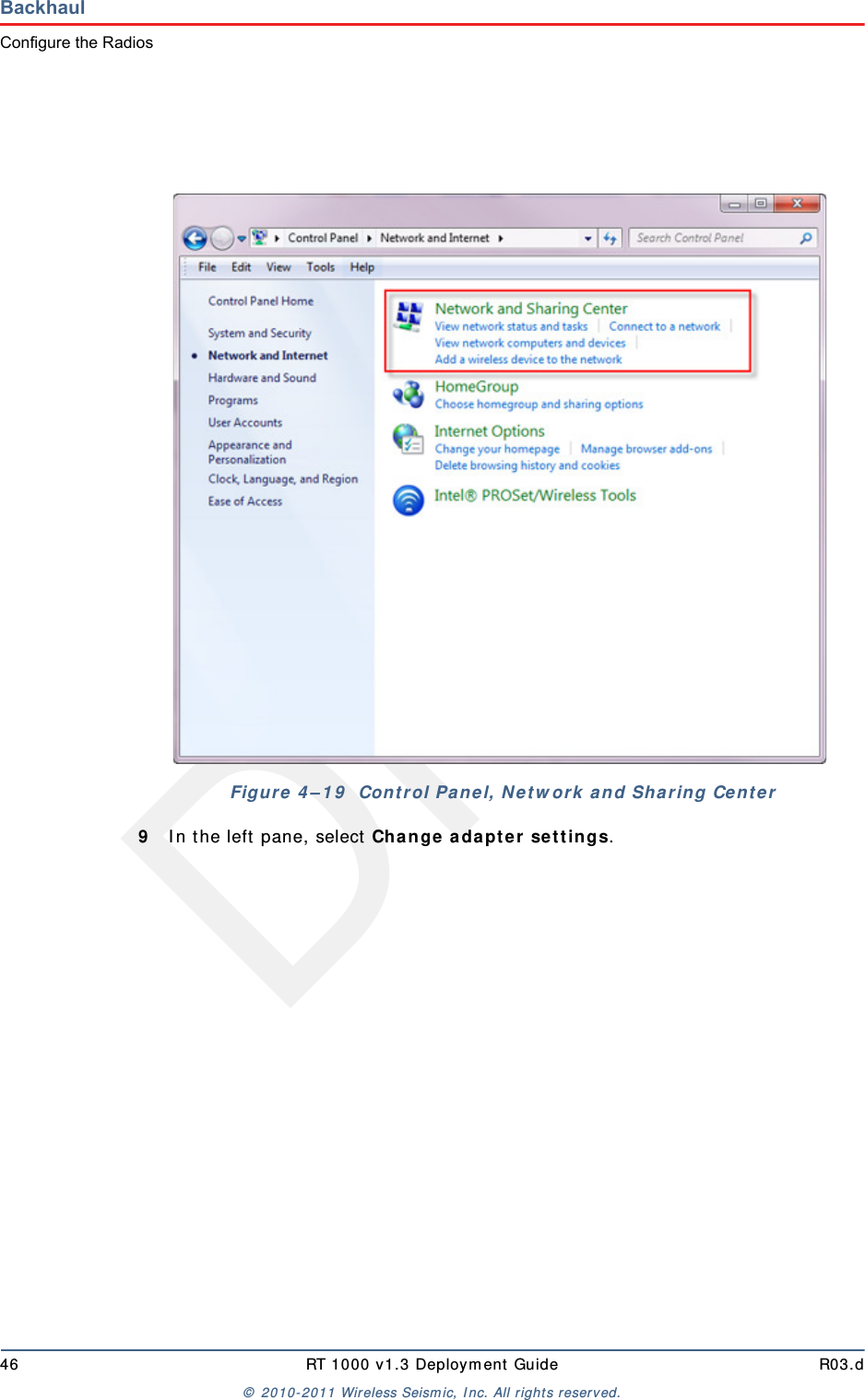

Draft46 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulConfigure the Radios9In the left pane, select Change adapter settings.Figure 4–19 Control Panel, Network and Sharing Center

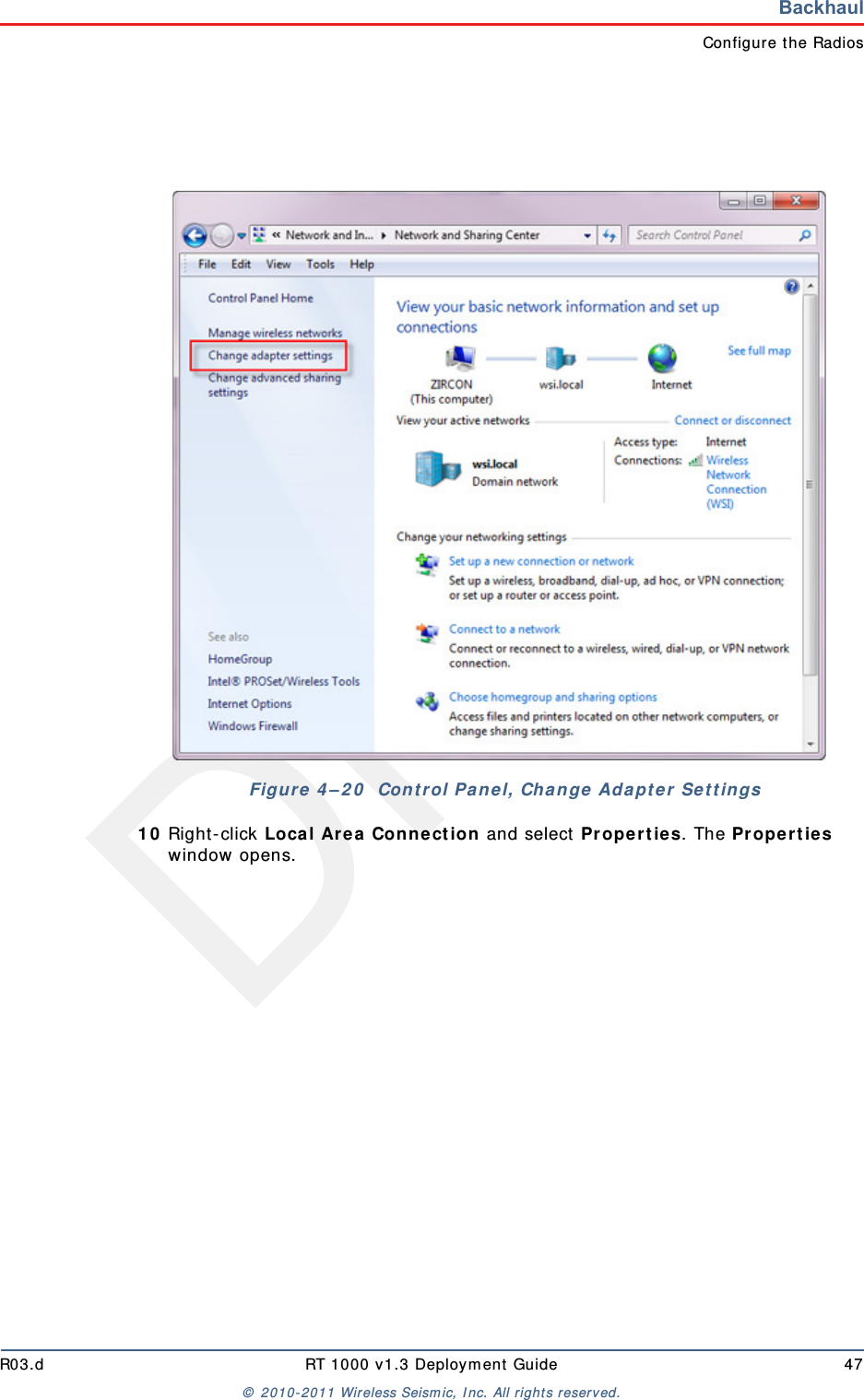

DraftR03.d RT 1000 v1.3 Deployment Guide 47© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulConfigure the Radios10 Right-click Local Area Connection and select Properties. The Properties window opens. Figure 4–20 Control Panel, Change Adapter Settings

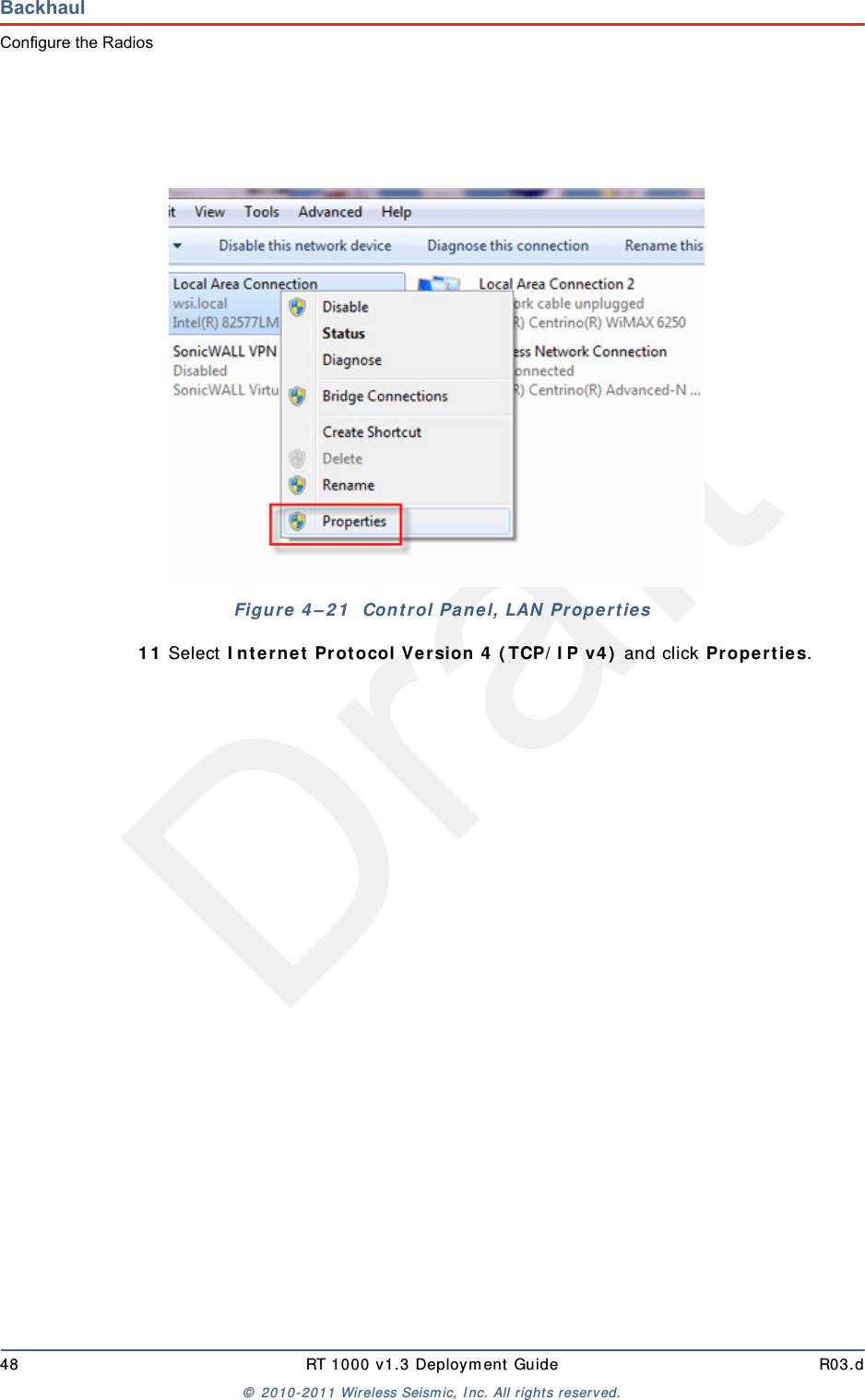

Draft48 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulConfigure the Radios11 Select Internet Protocol Version 4 (TCP/IP v4) and click Properties. Figure 4–21 Control Panel, LAN Properties

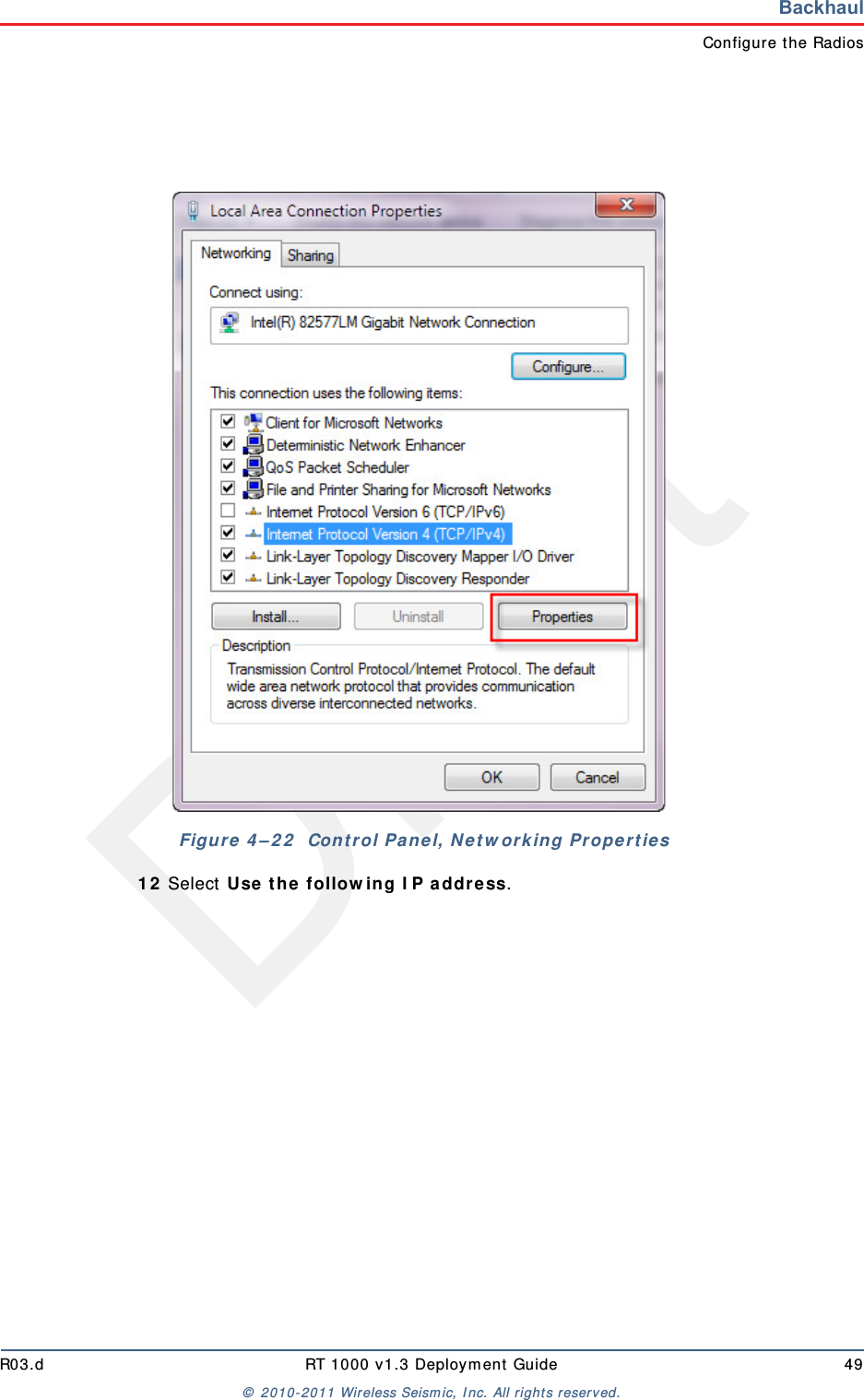

DraftR03.d RT 1000 v1.3 Deployment Guide 49© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulConfigure the Radios12 Select Use the following IP address.Figure 4–22 Control Panel, Networking Properties

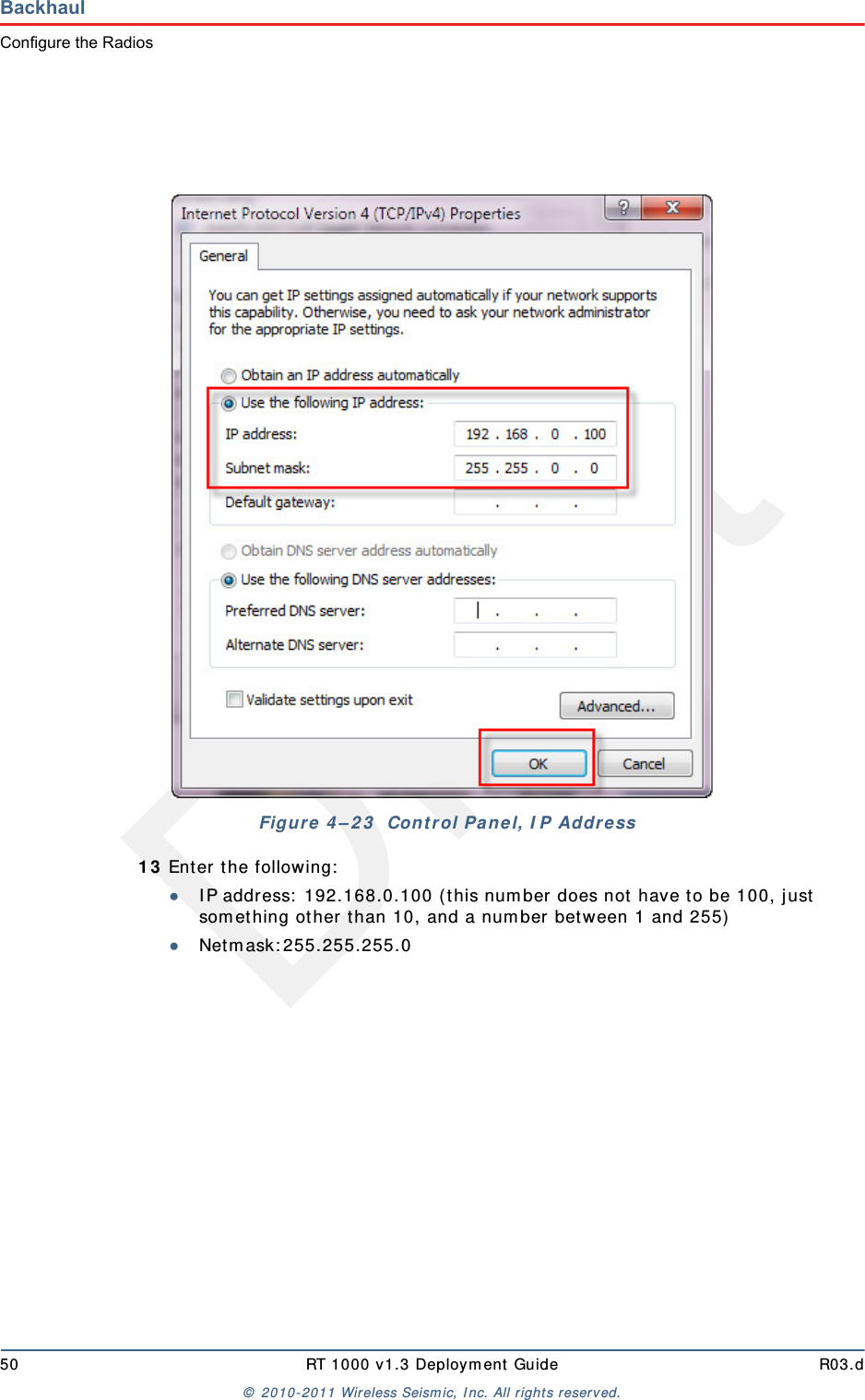

Draft50 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulConfigure the Radios13 Enter the following:●IP address: 192.168.0.100 (this number does not have to be 100, just something other than 10, and a number between 1 and 255)●Netmask:255.255.255.0Figure 4–23 Control Panel, IP Address

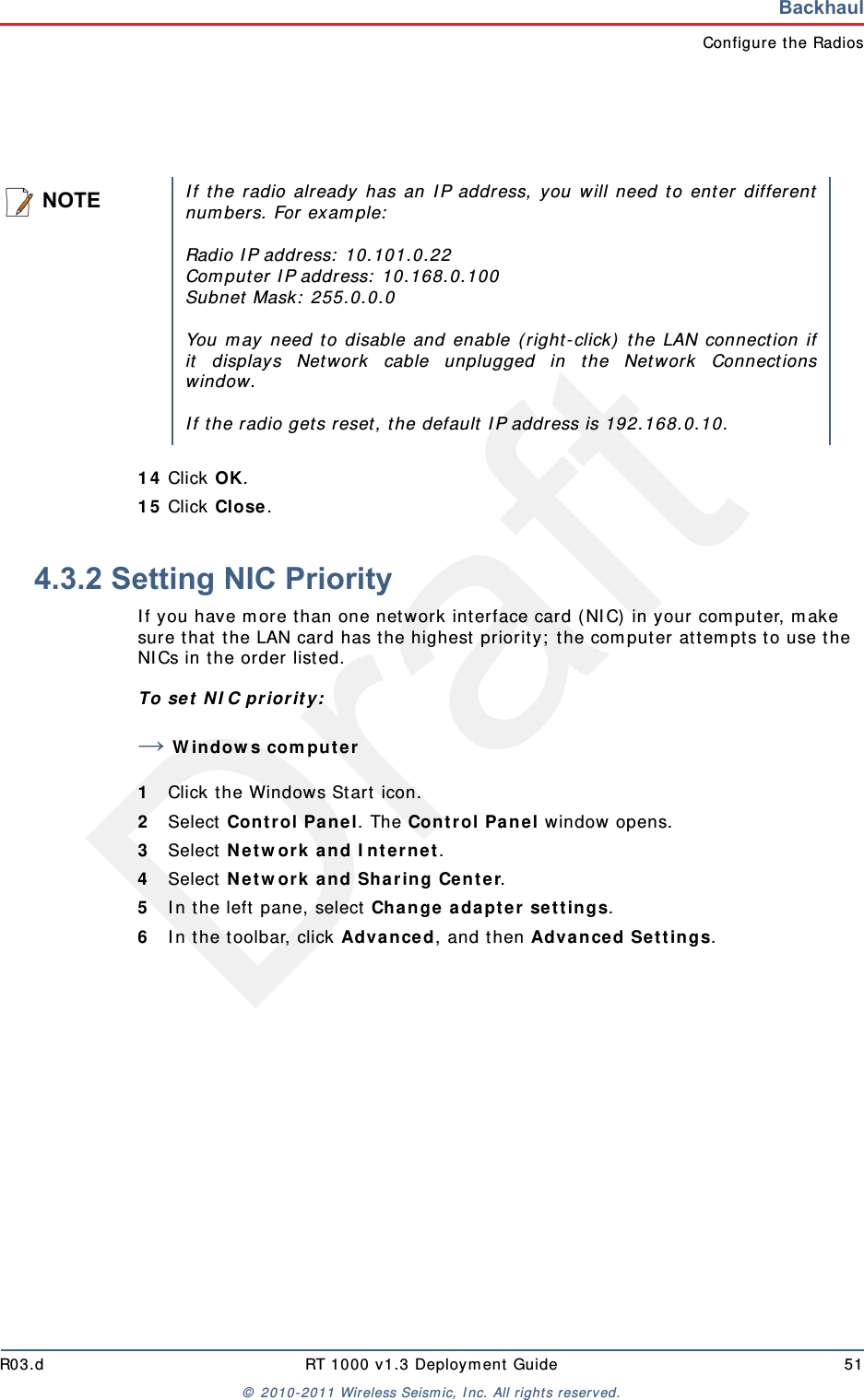

DraftR03.d RT 1000 v1.3 Deployment Guide 51© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulConfigure the Radios14 Click OK.15 Click Close.4.3.2 Setting NIC PriorityIf you have more than one network interface card (NIC) in your computer, make sure that the LAN card has the highest priority; the computer attempts to use the NICs in the order listed.To set NIC priority:→Windows computer1Click the Windows Start icon.2Select Control Panel. The Control Panel window opens. 3Select Network and Internet. 4Select Network and Sharing Center.5In the left pane, select Change adapter settings.6In the toolbar, click Advanced, and then Advanced Settings.NOTEIf the radio already has an IP address, you will need to enter differentnumbers. For example:Radio IP address: 10.101.0.22Computer IP address: 10.168.0.100Subnet Mask: 255.0.0.0You may need to disable and enable (right-click) the LAN connection ifit displays Network cable unplugged in the Network Connectionswindow. If the radio gets reset, the default IP address is 192.168.0.10.

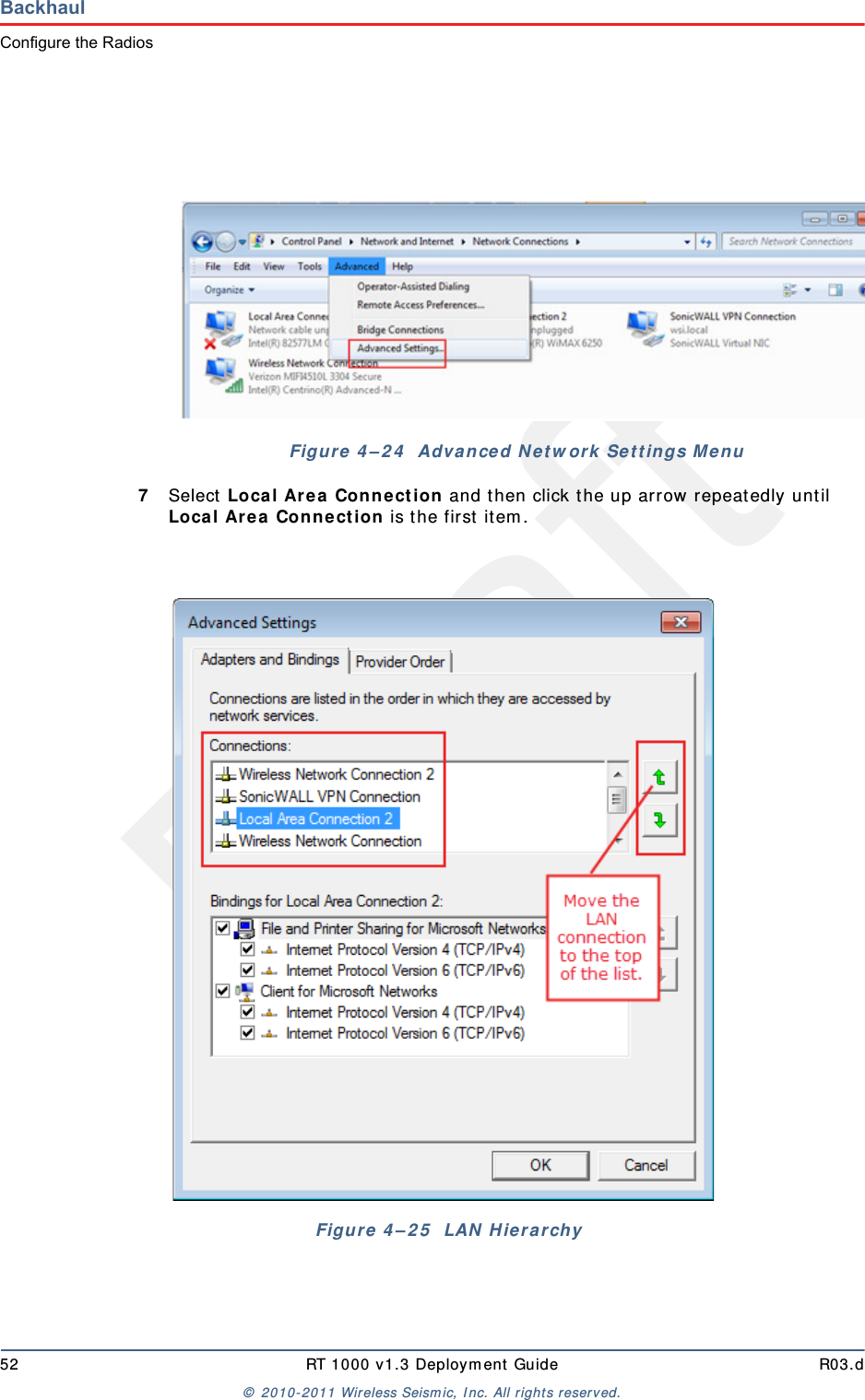

Draft52 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulConfigure the Radios7Select Local Area Connection and then click the up arrow repeatedly until Local Area Connection is the first item. Figure 4–24 Advanced Network Settings MenuFigure 4–25 LAN Hierarchy

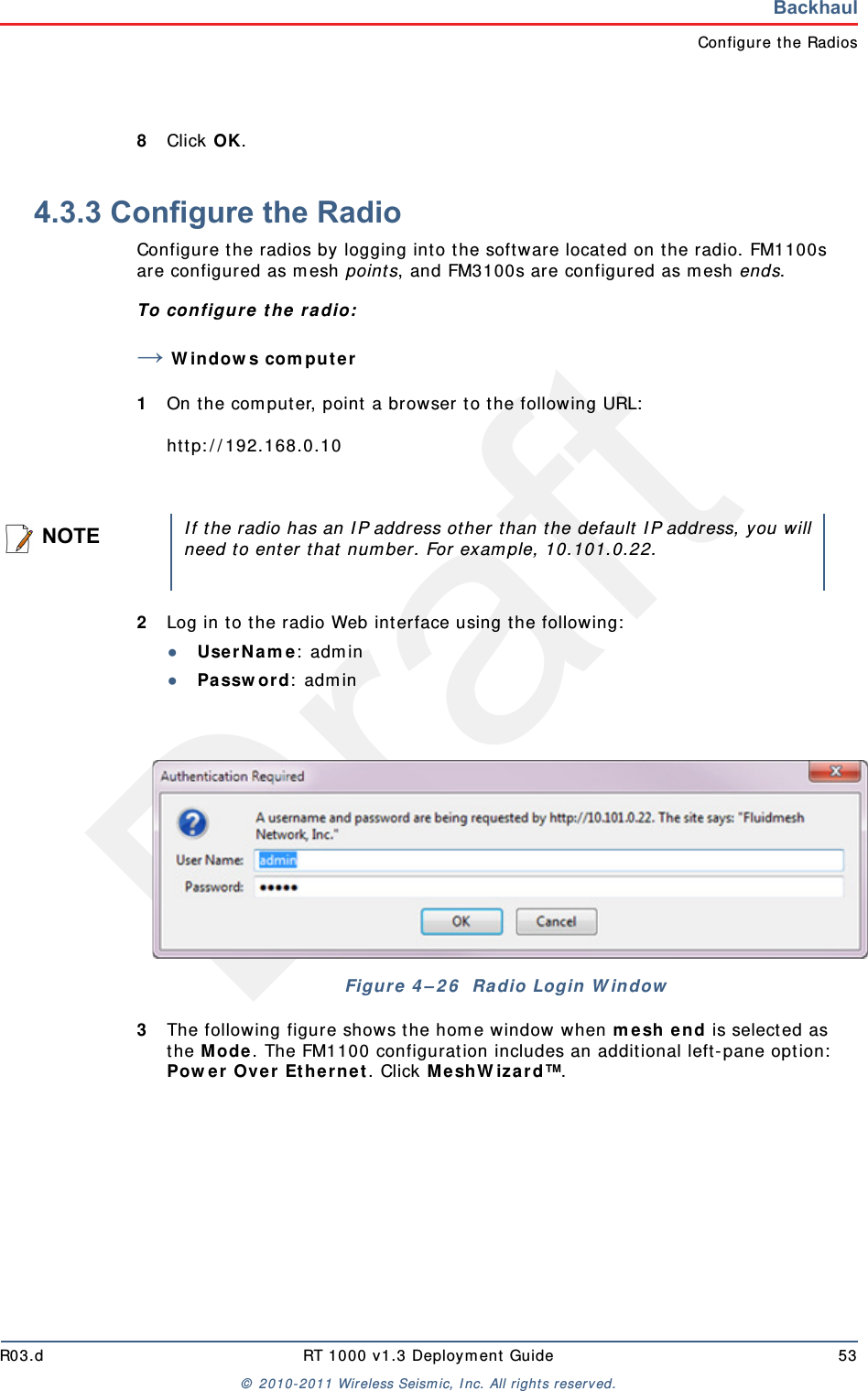

DraftR03.d RT 1000 v1.3 Deployment Guide 53© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulConfigure the Radios8Click OK. 4.3.3 Configure the RadioConfigure the radios by logging into the software located on the radio. FM1100s are configured as mesh points, and FM3100s are configured as mesh ends.To configure the radio:→Windows computer1On the computer, point a browser to the following URL:http://192.168.0.102Log in to the radio Web interface using the following:●UserName: admin●Password: admin3The following figure shows the home window when mesh end is selected as the Mode. The FM1100 configuration includes an additional left-pane option: Power Over Ethernet. Click MeshWizard™.NOTEIf the radio has an IP address other than the default IP address, you willneed to enter that number. For example, 10.101.0.22.Figure 4–26 Radio Login Window

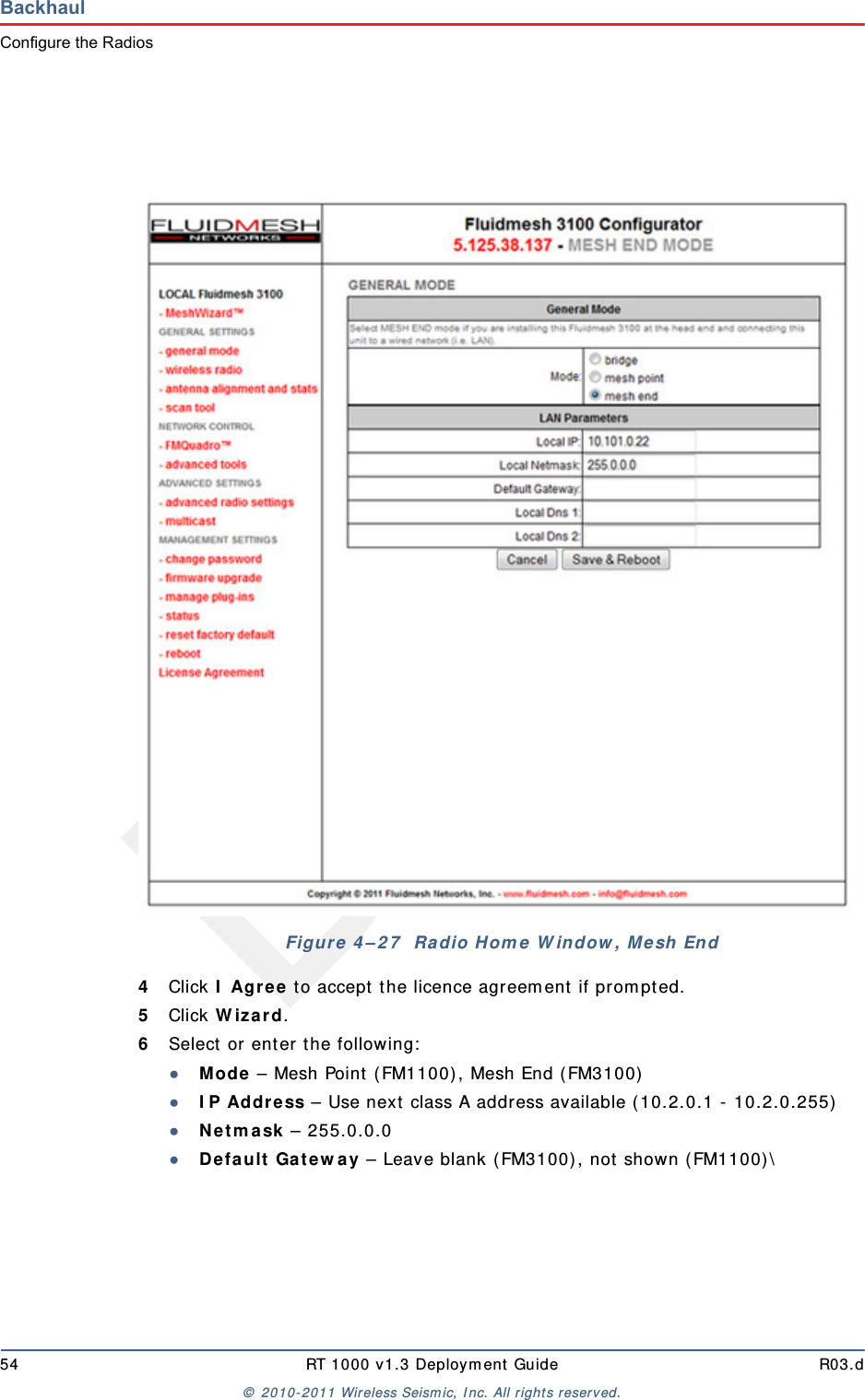

Draft54 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulConfigure the Radios4Click I Agree to accept the licence agreement if prompted.5Click Wizard.6Select or enter the following:●Mode – Mesh Point (FM1100), Mesh End (FM3100)●IP Address – Use next class A address available (10.2.0.1 - 10.2.0.255)●Netmask – 255.0.0.0●Default Gateway – Leave blank (FM3100), not shown (FM1100)\Figure 4–27 Radio Home Window, Mesh End

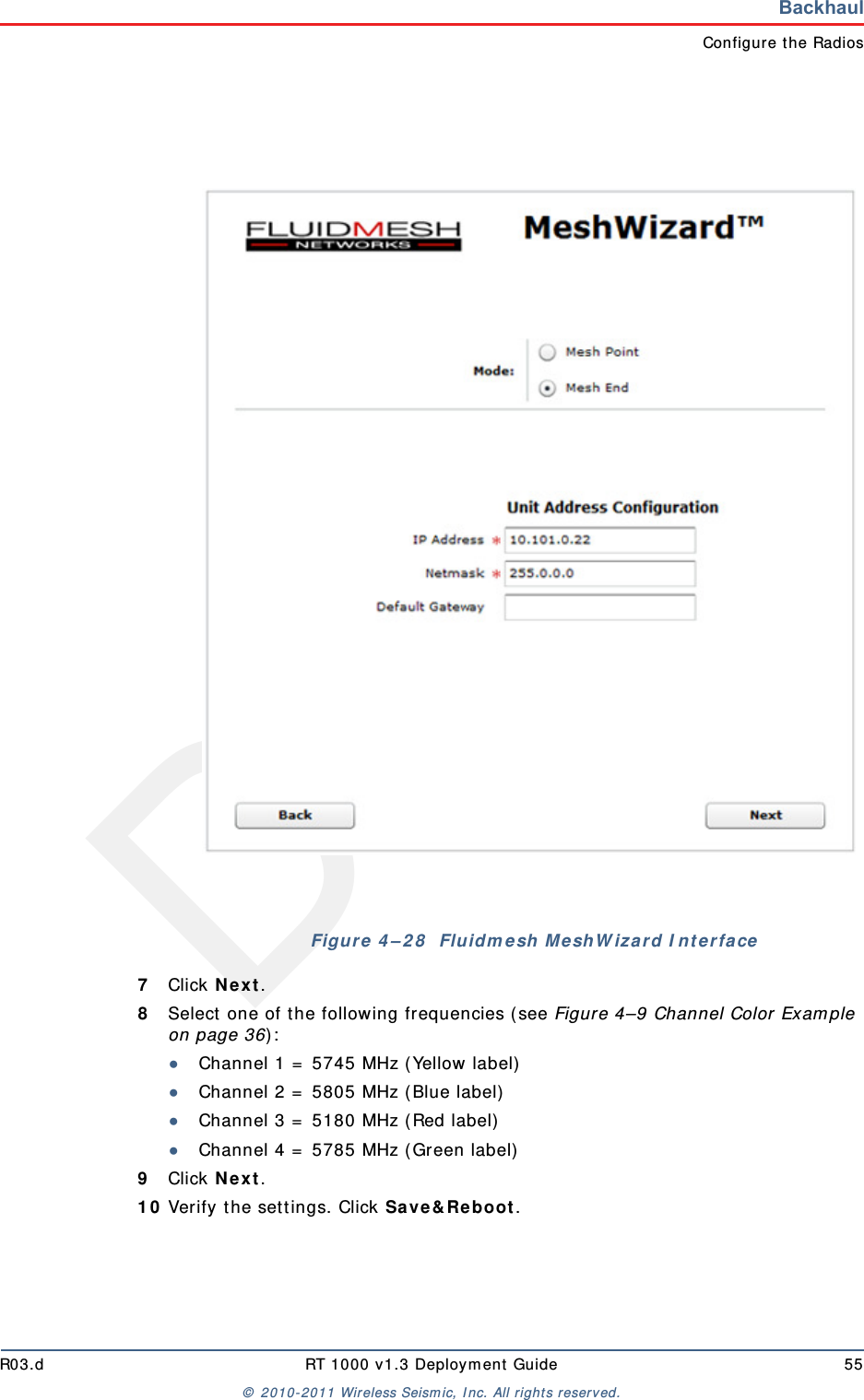

DraftR03.d RT 1000 v1.3 Deployment Guide 55© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulConfigure the Radios7Click Next.8Select one of the following frequencies (see Figure 4–9 Channel Color Example on page 36):●Channel 1 = 5745 MHz (Yellow label)●Channel 2 = 5805 MHz (Blue label)●Channel 3 = 5180 MHz (Red label)●Channel 4 = 5785 MHz (Green label)9Click Next.10 Verify the settings. Click Save&Reboot.Figure 4–28 Fluidmesh MeshWizard Interface

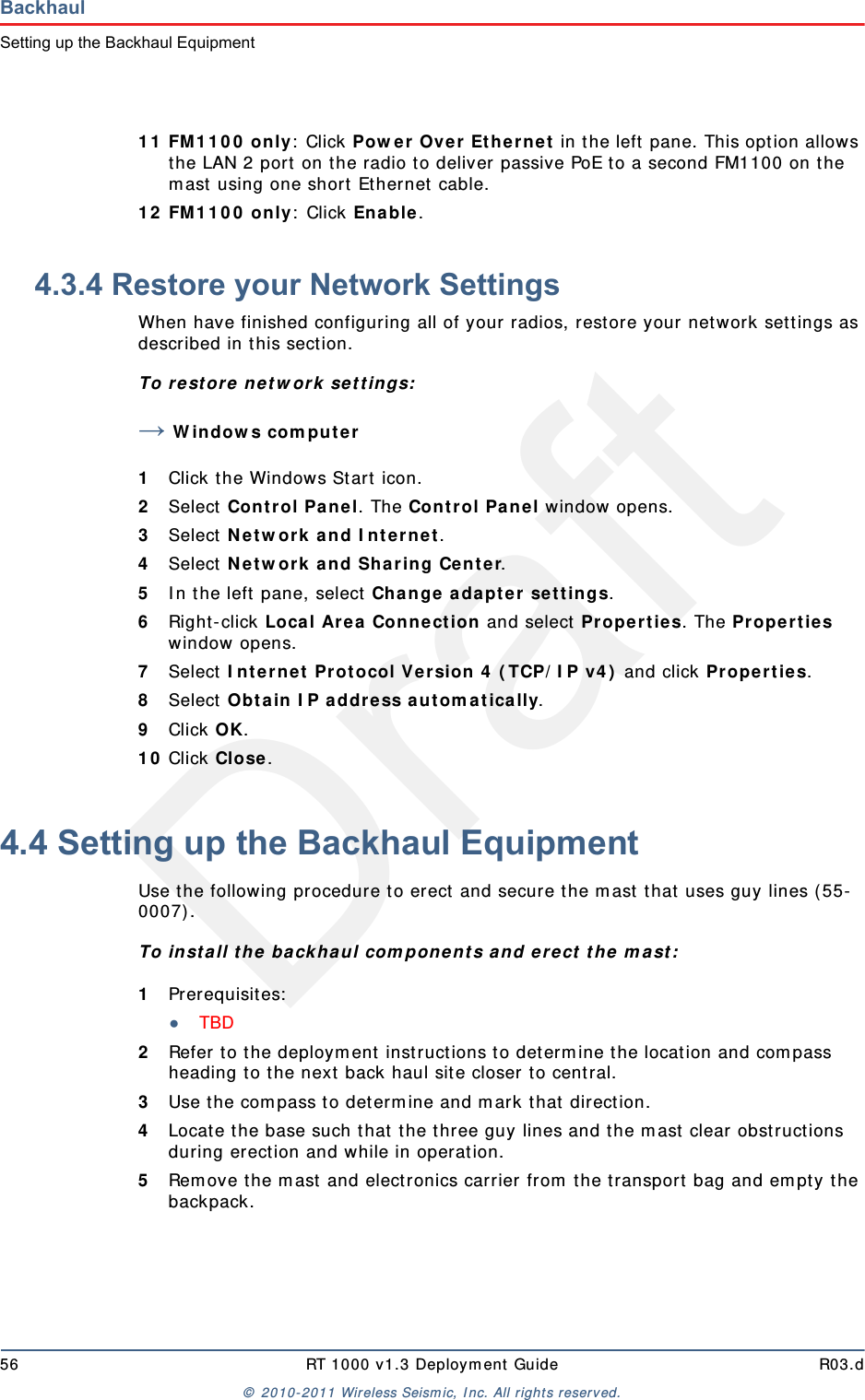

Draft56 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulSetting up the Backhaul Equipment11 FM1100 only: Click Power Over Ethernet in the left pane. This option allows the LAN 2 port on the radio to deliver passive PoE to a second FM1100 on the mast using one short Ethernet cable. 12 FM1100 only: Click Enable.4.3.4 Restore your Network SettingsWhen have finished configuring all of your radios, restore your network settings as described in this section. To restore network settings:→Windows computer1Click the Windows Start icon.2Select Control Panel. The Control Panel window opens. 3Select Network and Internet. 4Select Network and Sharing Center.5In the left pane, select Change adapter settings.6Right-click Local Area Connection and select Properties. The Properties window opens. 7Select Internet Protocol Version 4 (TCP/IP v4) and click Properties. 8Select Obtain IP address automatically.9Click OK.10 Click Close.4.4 Setting up the Backhaul EquipmentUse the following procedure to erect and secure the mast that uses guy lines (55-0007).To install the backhaul components and erect the mast:1Prerequisites:●TBD 2Refer to the deployment instructions to determine the location and compass heading to the next back haul site closer to central.3Use the compass to determine and mark that direction.4Locate the base such that the three guy lines and the mast clear obstructions during erection and while in operation.5Remove the mast and electronics carrier from the transport bag and empty the backpack.

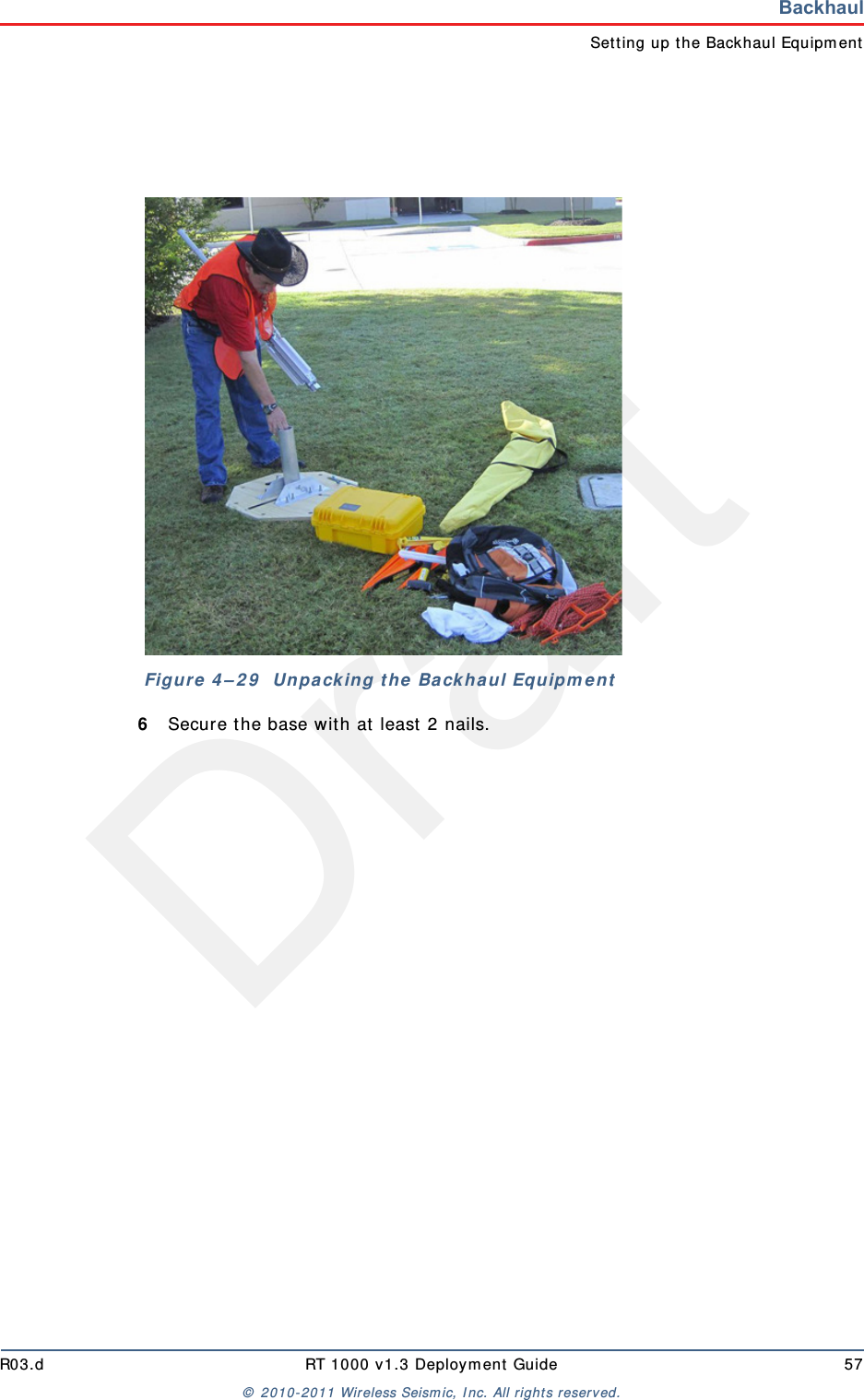

DraftR03.d RT 1000 v1.3 Deployment Guide 57© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulSetting up the Backhaul Equipment6Secure the base with at least 2 nails. Figure 4–29 Unpacking the Backhaul Equipment

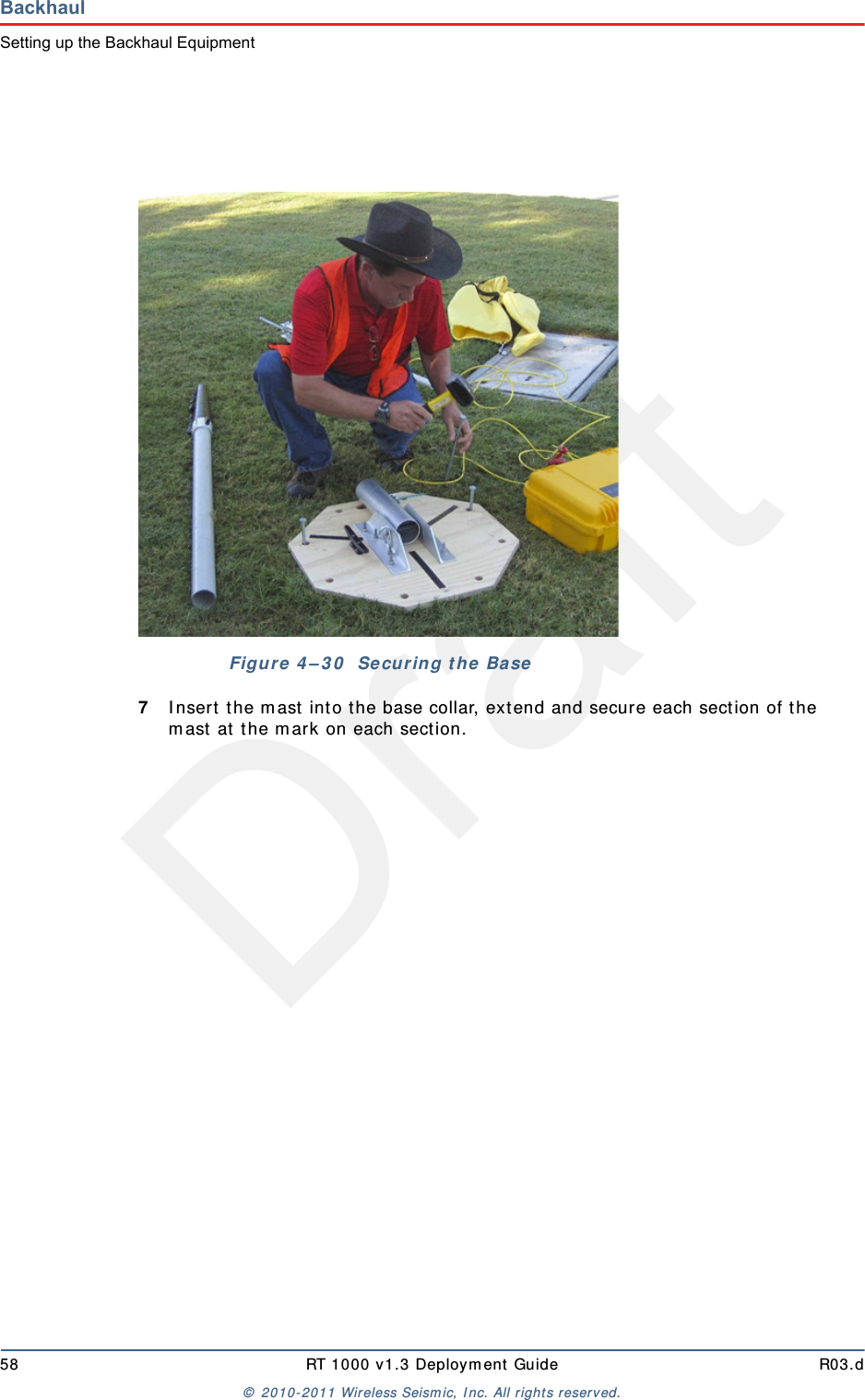

Draft58 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulSetting up the Backhaul Equipment7Insert the mast into the base collar, extend and secure each section of the mast at the mark on each section. Figure 4–30 Securing the Base

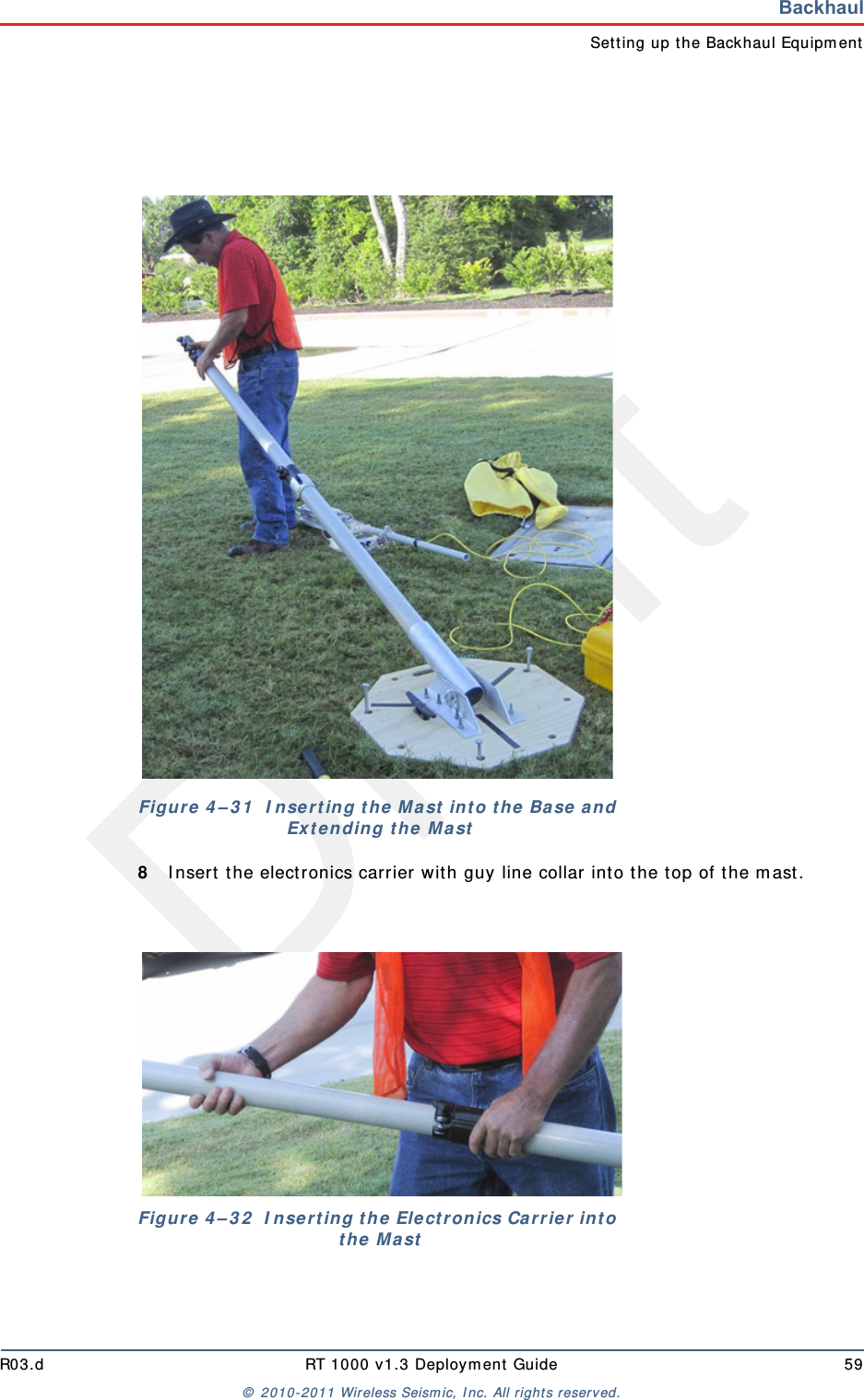

DraftR03.d RT 1000 v1.3 Deployment Guide 59© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulSetting up the Backhaul Equipment8Insert the electronics carrier with guy line collar into the top of the mast.Figure 4–31 Inserting the Mast into the Base and Extending the MastFigure 4–32 Inserting the Electronics Carrier into the Mast

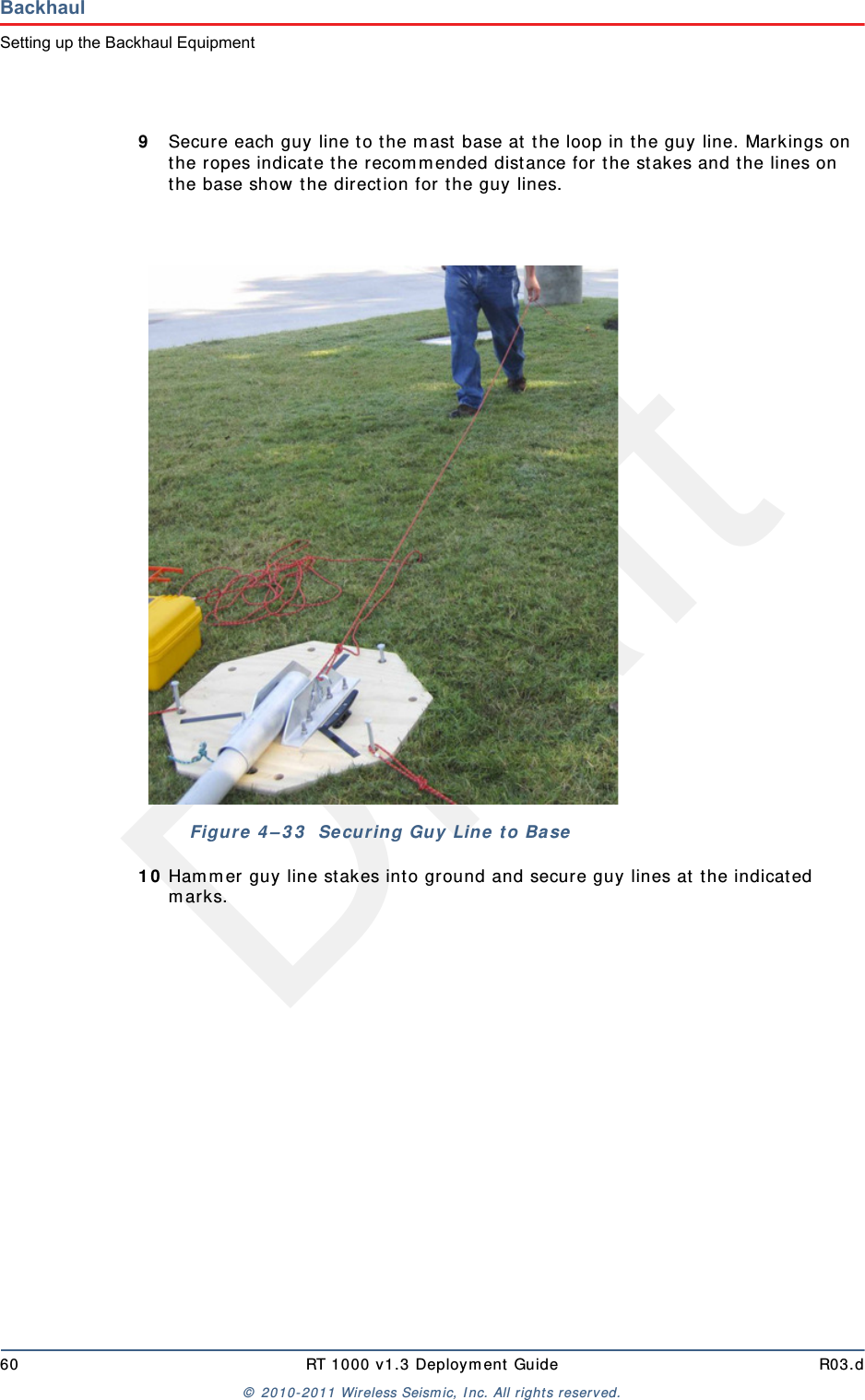

Draft60 RT 1000 v1.3 Deployment Guide R03.d© 2010-2011 Wireless Seismic, Inc. All rights reserved.BackhaulSetting up the Backhaul Equipment9Secure each guy line to the mast base at the loop in the guy line. Markings on the ropes indicate the recommended distance for the stakes and the lines on the base show the direction for the guy lines.10 Hammer guy line stakes into ground and secure guy lines at the indicated marks. Figure 4–33 Securing Guy Line to Base
