Wireless N2-4XE1-5G7 Point to Point Data Transceiver User Manual Test report updated per 14 April FCC email

Wireless Inc Point to Point Data Transceiver Test report updated per 14 April FCC email

Contents

Test report updated per 14 April FCC email

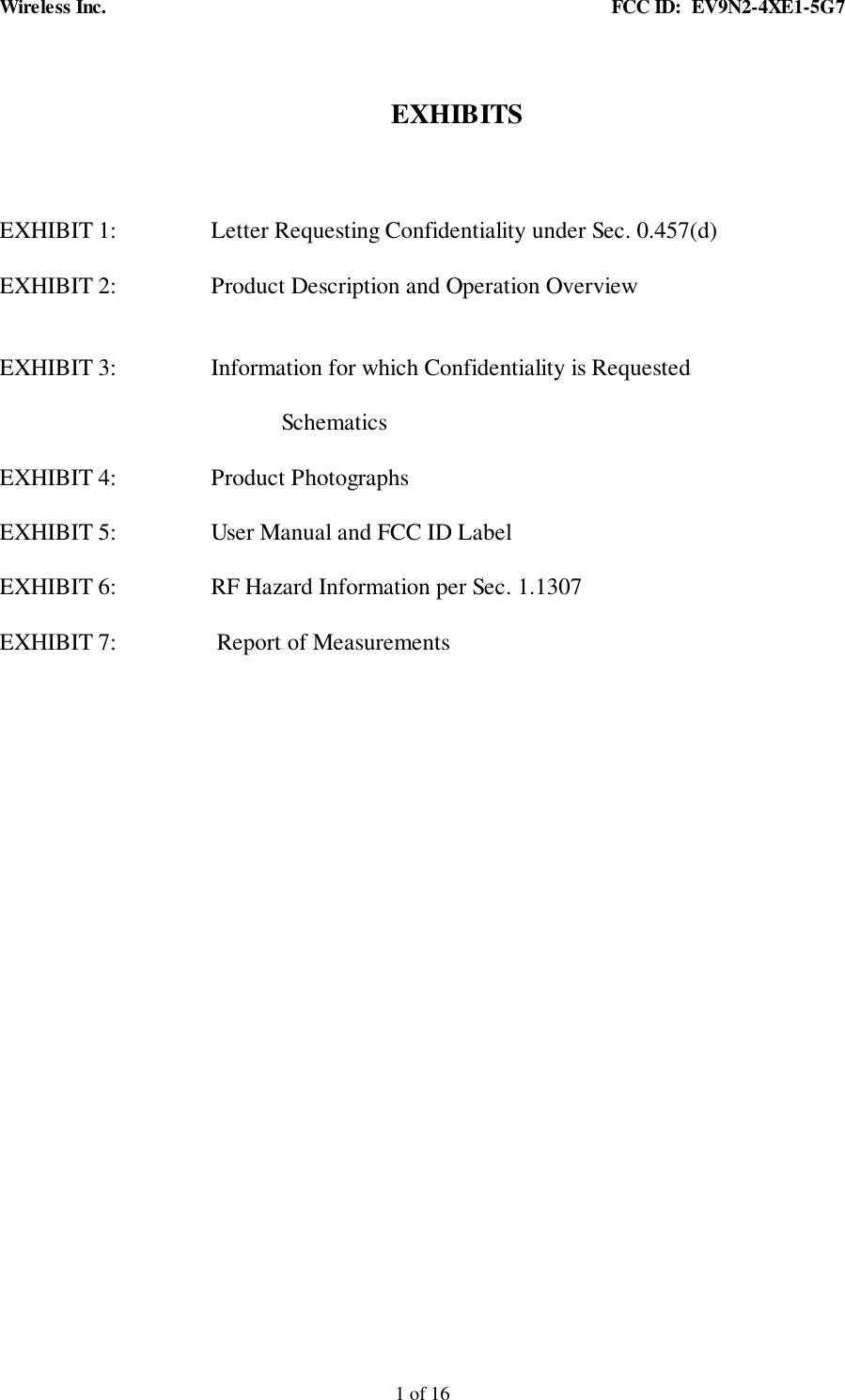

Wireless Inc. FCC ID: EV9N2-4XE1-5G71 of 16EXHIBITSEXHIBIT 1: Letter Requesting Confidentiality under Sec. 0.457(d)EXHIBIT 2: Product Description and Operation OverviewEXHIBIT 3: Information for which Confidentiality is RequestedSchematicsEXHIBIT 4: Product PhotographsEXHIBIT 5: User Manual and FCC ID LabelEXHIBIT 6: RF Hazard Information per Sec. 1.1307EXHIBIT 7: Report of Measurements

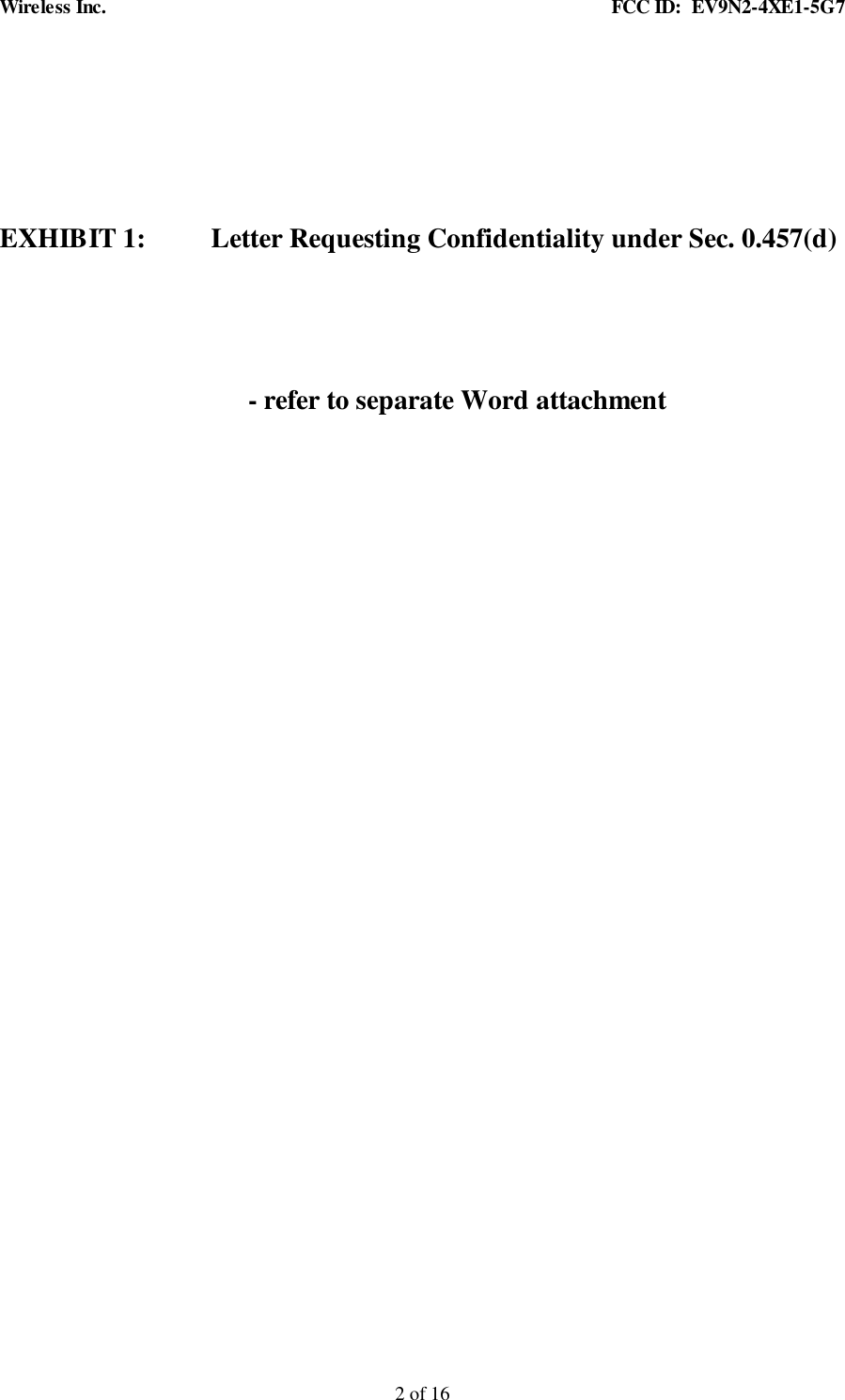

Wireless Inc. FCC ID: EV9N2-4XE1-5G72 of 16EXHIBIT 1: Letter Requesting Confidentiality under Sec. 0.457(d)- refer to separate Word attachment

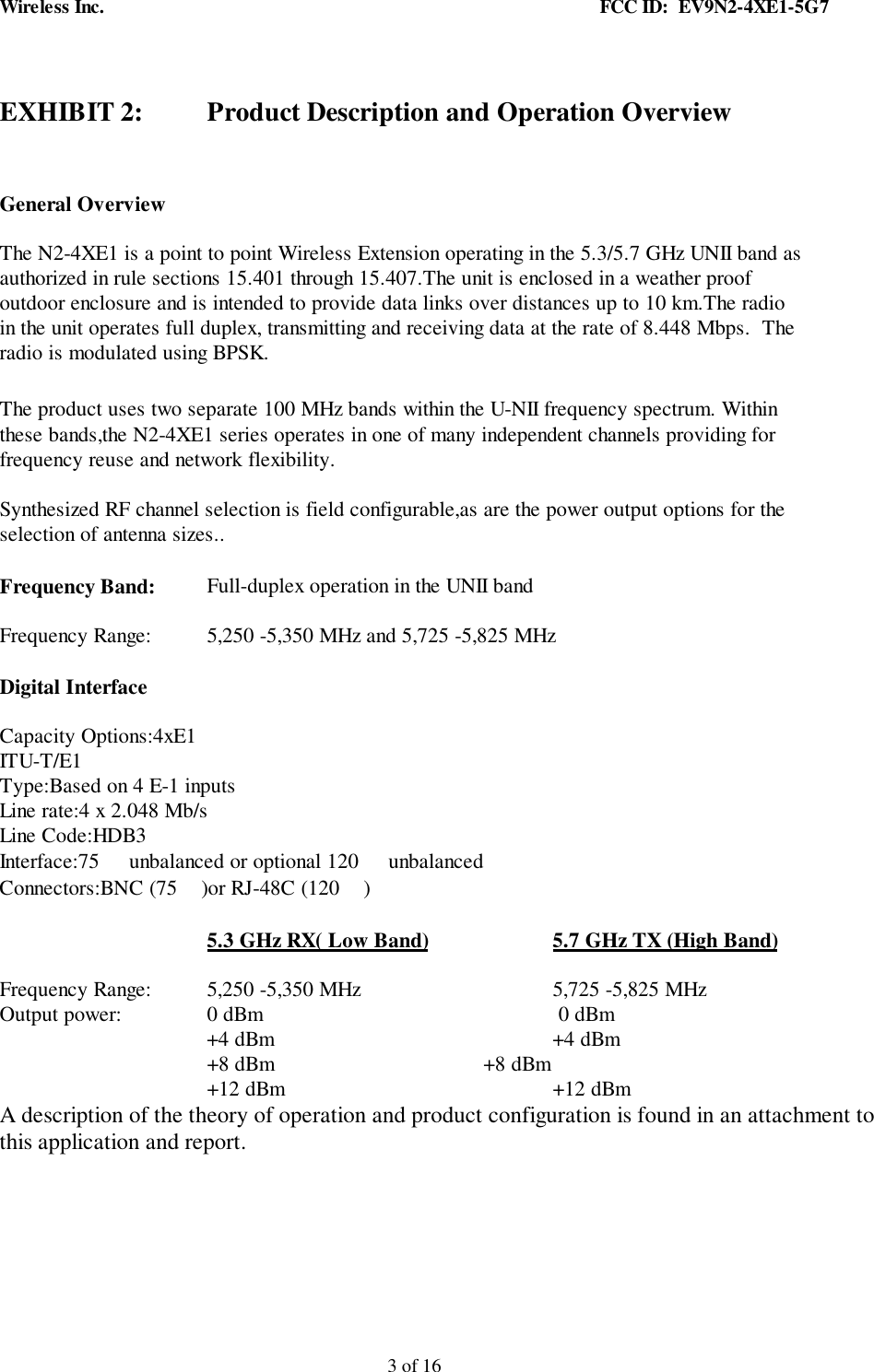

Wireless Inc. FCC ID: EV9N2-4XE1-5G73 of 16EXHIBIT 2: Product Description and Operation OverviewGeneral OverviewThe N2-4XE1 is a point to point Wireless Extension operating in the 5.3/5.7 GHz UNII band asauthorized in rule sections 15.401 through 15.407.The unit is enclosed in a weather proofoutdoor enclosure and is intended to provide data links over distances up to 10 km.The radioin the unit operates full duplex, transmitting and receiving data at the rate of 8.448 Mbps. Theradio is modulated using BPSK.The product uses two separate 100 MHz bands within the U-NII frequency spectrum. Withinthese bands,the N2-4XE1 series operates in one of many independent channels providing forfrequency reuse and network flexibility.Synthesized RF channel selection is field configurable,as are the power output options for theselection of antenna sizes..Frequency Band: Full-duplex operation in the UNII bandFrequency Range: 5,250 -5,350 MHz and 5,725 -5,825 MHzDigital InterfaceCapacity Options:4xE1ITU-T/E1Type:Based on 4 E-1 inputsLine rate:4 x 2.048 Mb/sLine Code:HDB3Interface:75  unbalanced or optional 120  unbalancedConnectors:BNC (75 )or RJ-48C (120 )5.3 GHz RX( Low Band) 5.7 GHz TX (High Band)Frequency Range: 5,250 -5,350 MHz 5,725 -5,825 MHzOutput power: 0 dBm 0 dBm +4 dBm +4 dBm+8 dBm +8 dBm+12 dBm +12 dBmA description of the theory of operation and product configuration is found in an attachment tothis application and report.

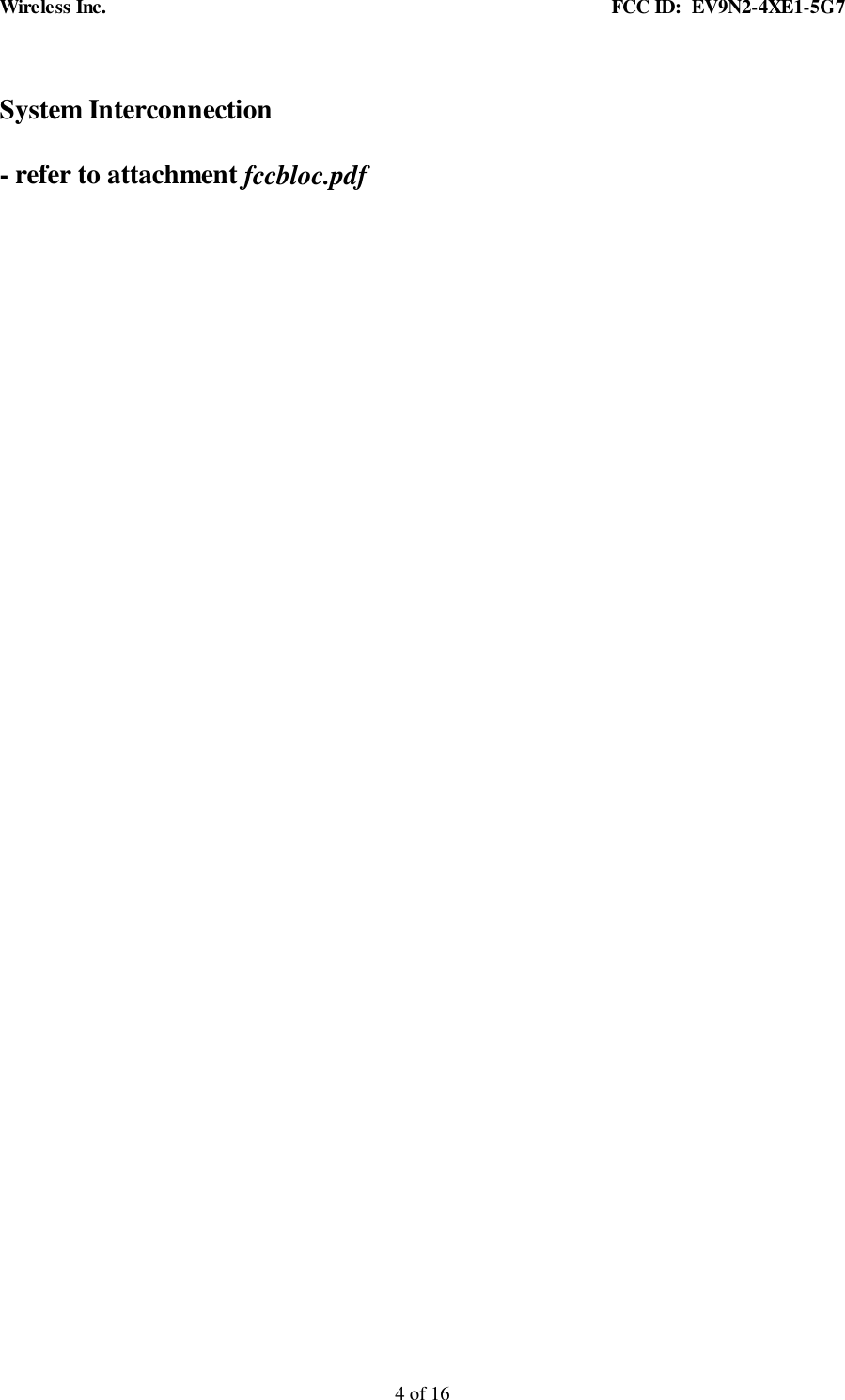

Wireless Inc. FCC ID: EV9N2-4XE1-5G74 of 16System Interconnection- refer to attachment fccbloc.pdf

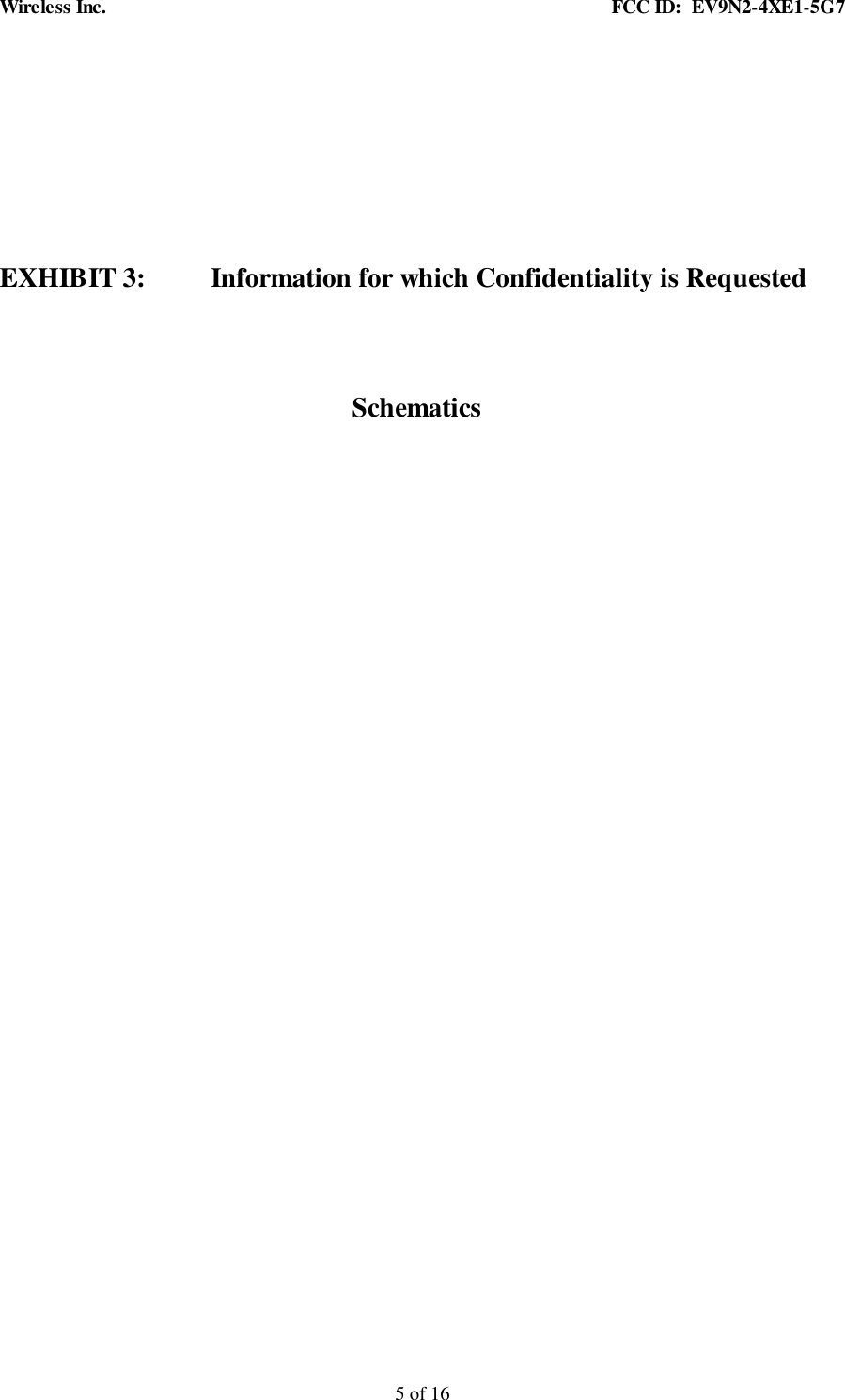

Wireless Inc. FCC ID: EV9N2-4XE1-5G75 of 16EXHIBIT 3: Information for which Confidentiality is Requested Schematics

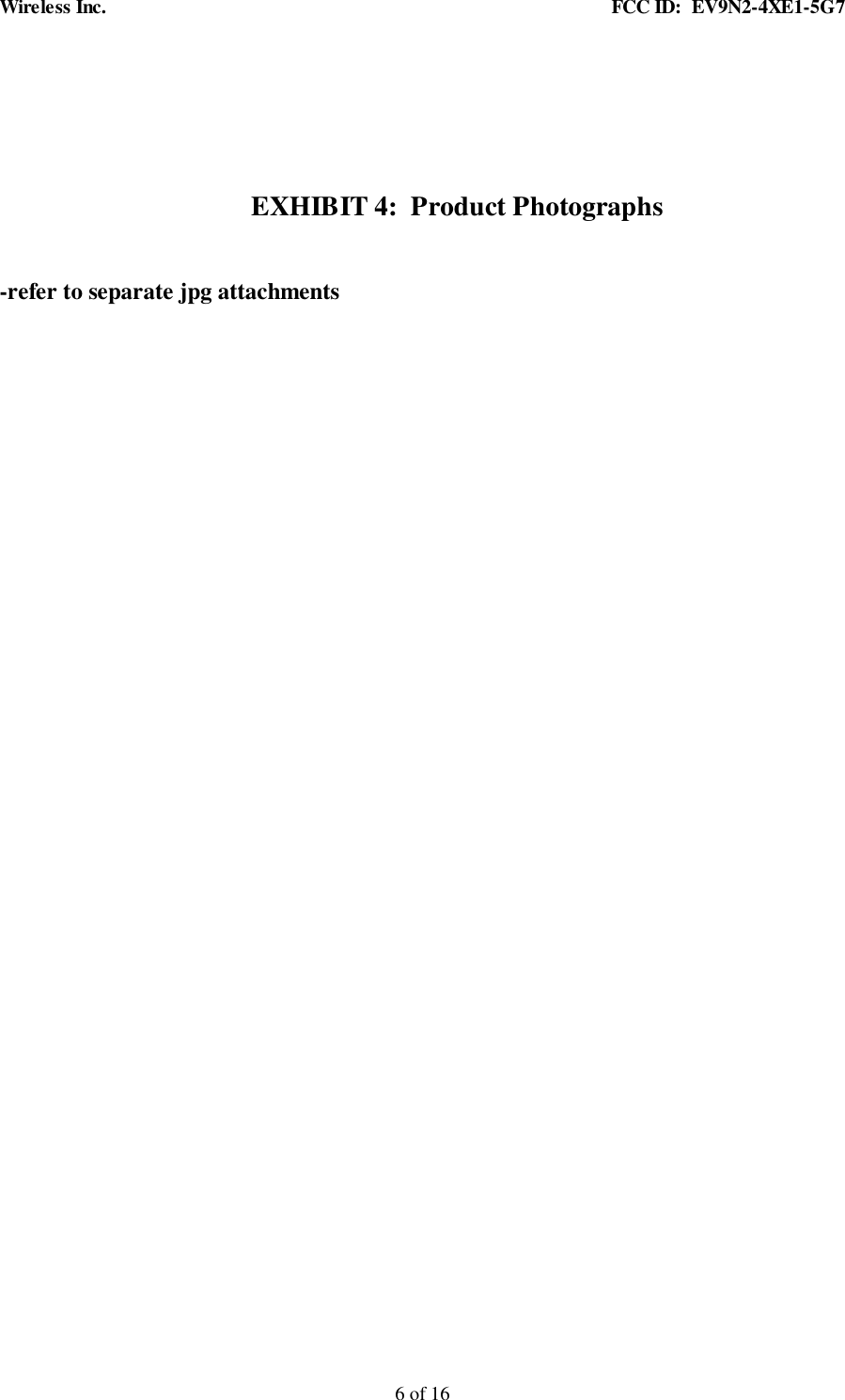

Wireless Inc. FCC ID: EV9N2-4XE1-5G76 of 16EXHIBIT 4: Product Photographs-refer to separate jpg attachments

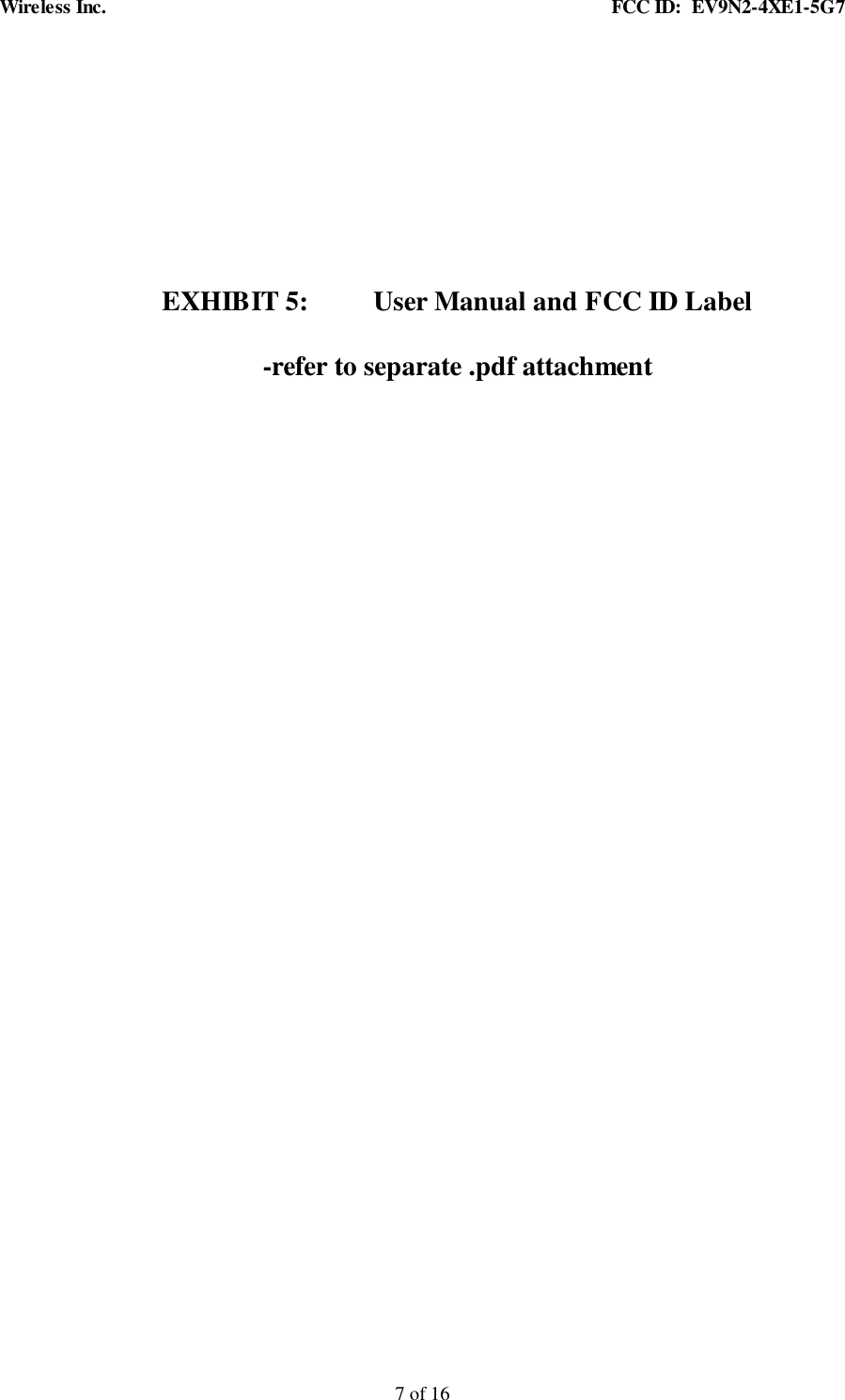

Wireless Inc. FCC ID: EV9N2-4XE1-5G77 of 16EXHIBIT 5: User Manual and FCC ID Label-refer to separate .pdf attachment

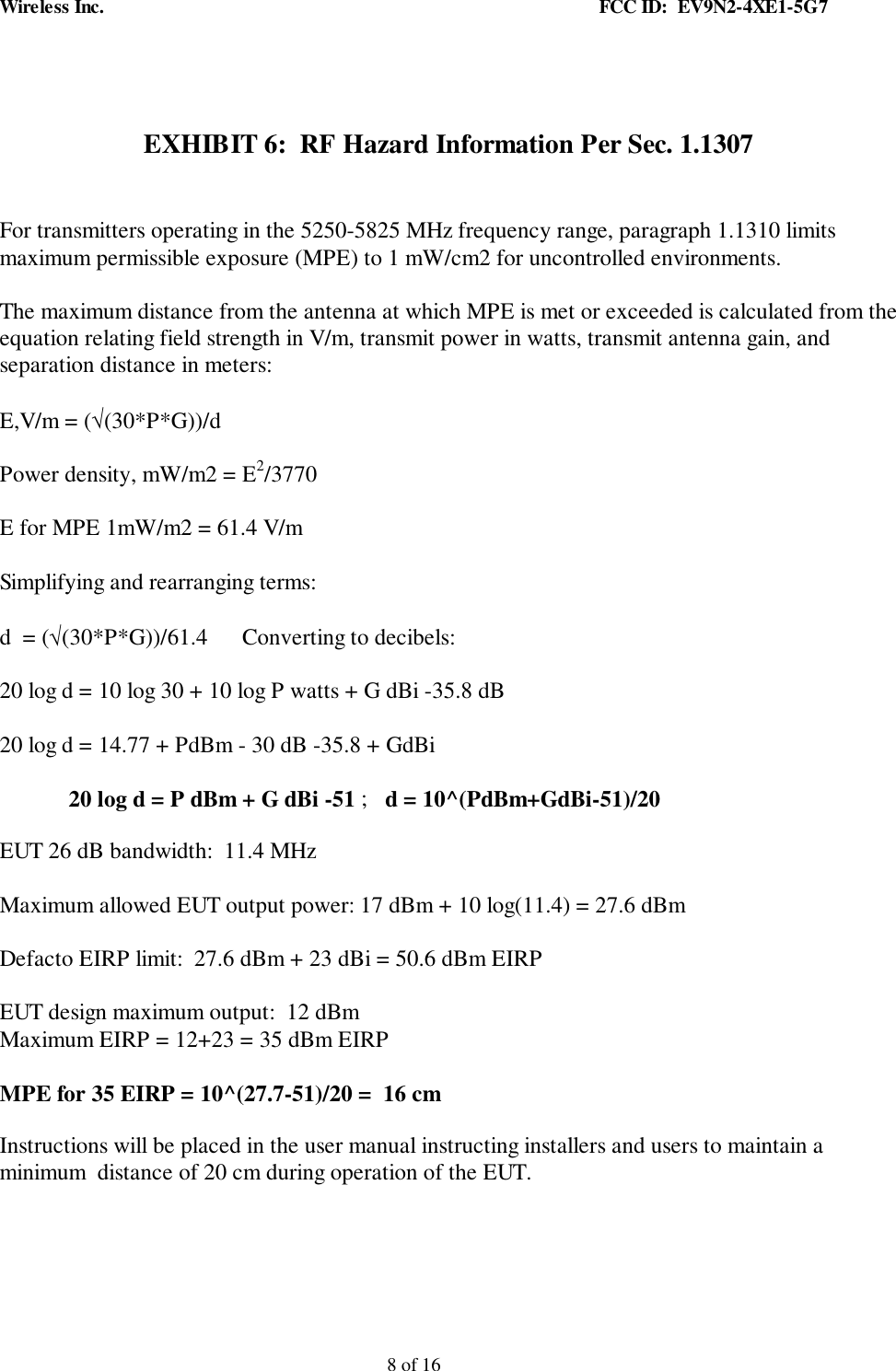

Wireless Inc. FCC ID: EV9N2-4XE1-5G78 of 16EXHIBIT 6: RF Hazard Information Per Sec. 1.1307For transmitters operating in the 5250-5825 MHz frequency range, paragraph 1.1310 limitsmaximum permissible exposure (MPE) to 1 mW/cm2 for uncontrolled environments.The maximum distance from the antenna at which MPE is met or exceeded is calculated from theequation relating field strength in V/m, transmit power in watts, transmit antenna gain, andseparation distance in meters:E,V/m = (√(30*P*G))/dPower density, mW/m2 = E2/3770E for MPE 1mW/m2 = 61.4 V/mSimplifying and rearranging terms:d = (√(30*P*G))/61.4 Converting to decibels:20 log d = 10 log 30 + 10 log P watts + G dBi -35.8 dB20 log d = 14.77 + PdBm - 30 dB -35.8 + GdBi20 log d = P dBm + G dBi -51 ; d = 10^(PdBm+GdBi-51)/20EUT 26 dB bandwidth: 11.4 MHzMaximum allowed EUT output power: 17 dBm + 10 log(11.4) = 27.6 dBmDefacto EIRP limit: 27.6 dBm + 23 dBi = 50.6 dBm EIRPEUT design maximum output: 12 dBmMaximum EIRP = 12+23 = 35 dBm EIRPMPE for 35 EIRP = 10^(27.7-51)/20 = 16 cmInstructions will be placed in the user manual instructing installers and users to maintain aminimum distance of 20 cm during operation of the EUT.

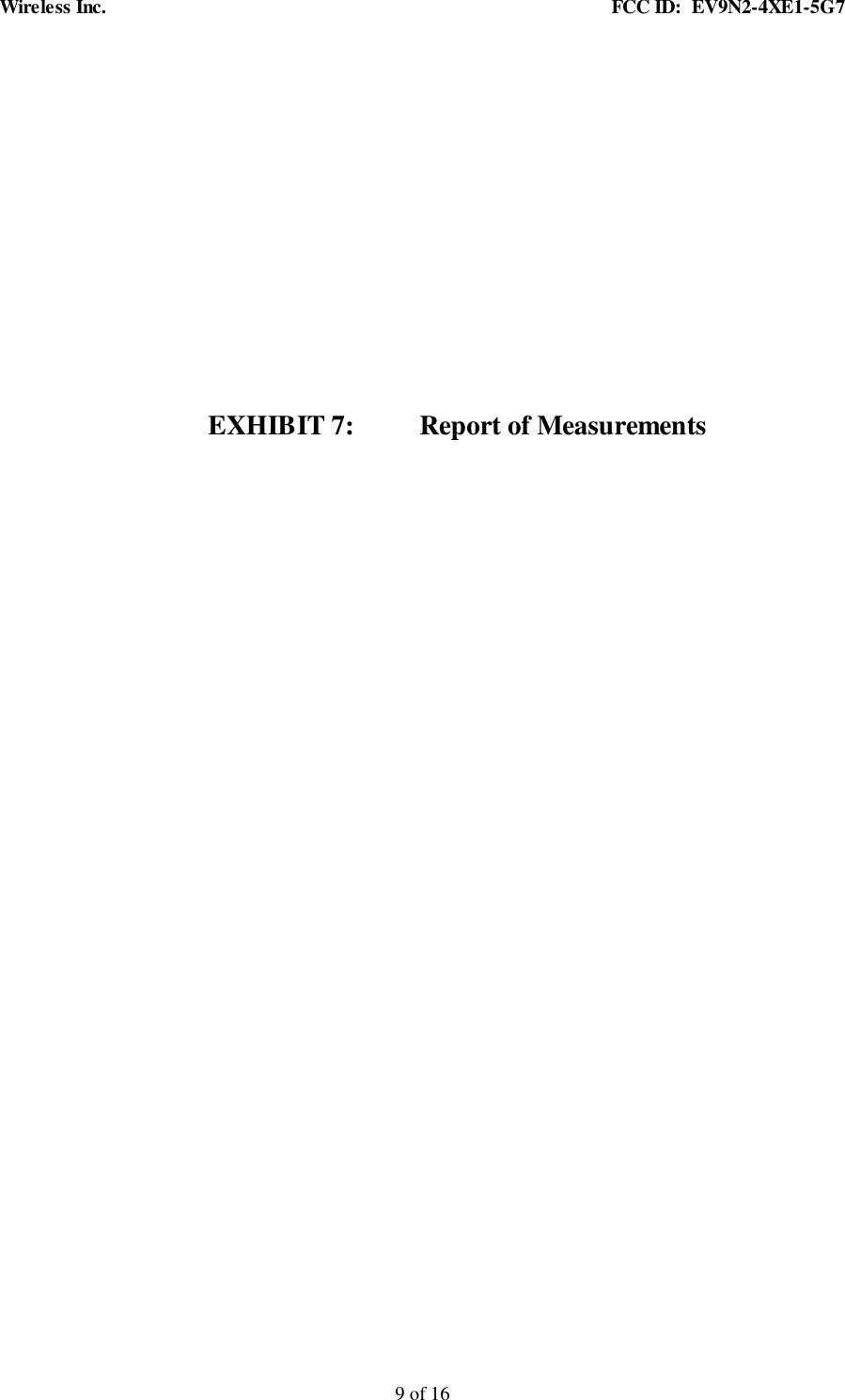

Wireless Inc. FCC ID: EV9N2-4XE1-5G79 of 16EXHIBIT 7: Report of Measurements

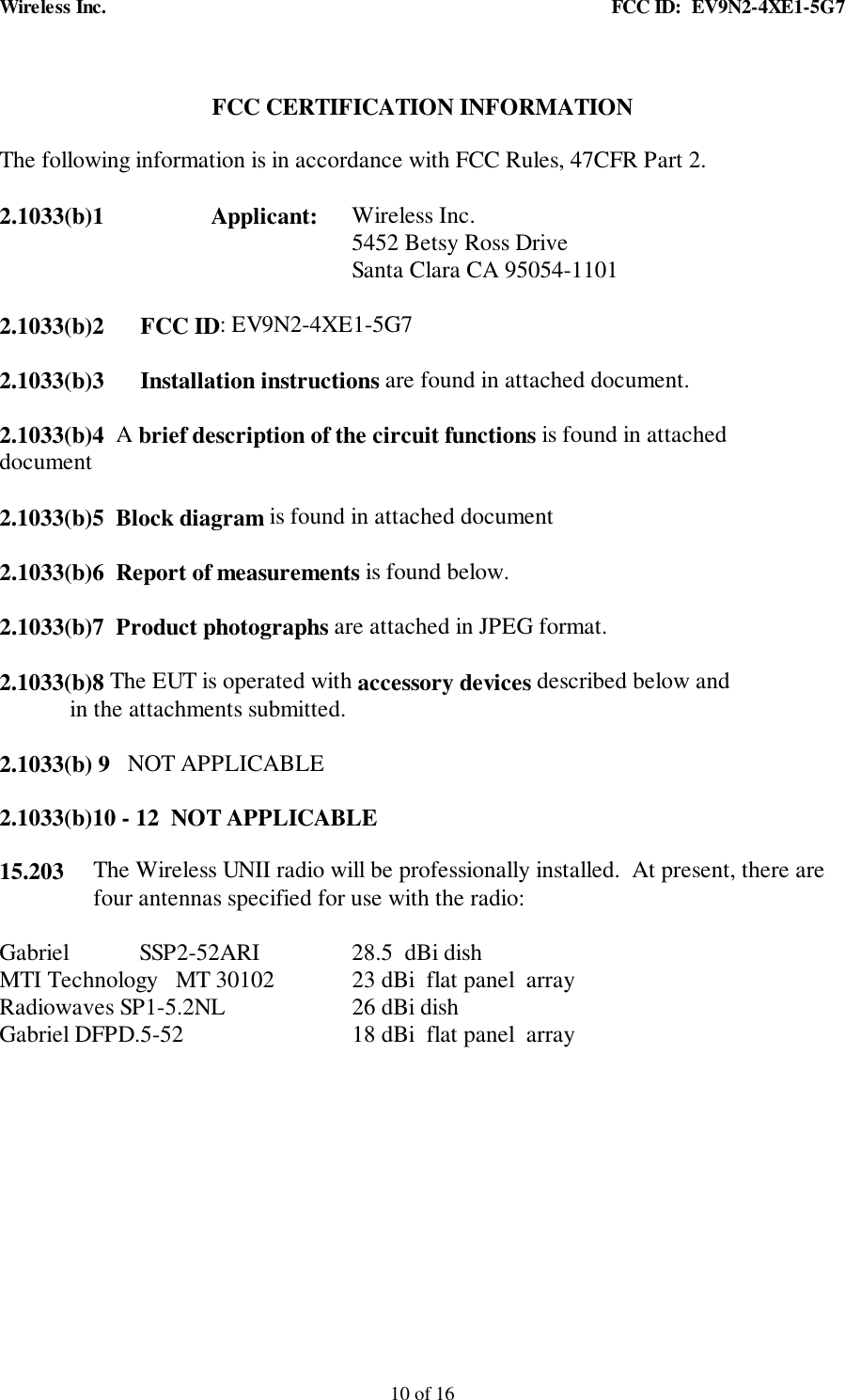

Wireless Inc. FCC ID: EV9N2-4XE1-5G710 of 16FCC CERTIFICATION INFORMATIONThe following information is in accordance with FCC Rules, 47CFR Part 2.2.1033(b)1 Applicant: Wireless Inc.5452 Betsy Ross DriveSanta Clara CA 95054-11012.1033(b)2 FCC ID: EV9N2-4XE1-5G72.1033(b)3 Installation instructions are found in attached document.2.1033(b)4 A brief description of the circuit functions is found in attacheddocument2.1033(b)5 Block diagram is found in attached document2.1033(b)6 Report of measurements is found below.2.1033(b)7 Product photographs are attached in JPEG format.2.1033(b)8 The EUT is operated with accessory devices described below and in the attachments submitted.2.1033(b) 9 NOT APPLICABLE2.1033(b)10 - 12 NOT APPLICABLE15.203 The Wireless UNII radio will be professionally installed. At present, there arefour antennas specified for use with the radio:Gabriel SSP2-52ARI 28.5 dBi dish MTI Technology MT 30102 23 dBi flat panel arrayRadiowaves SP1-5.2NL 26 dBi dishGabriel DFPD.5-52 18 dBi flat panel array

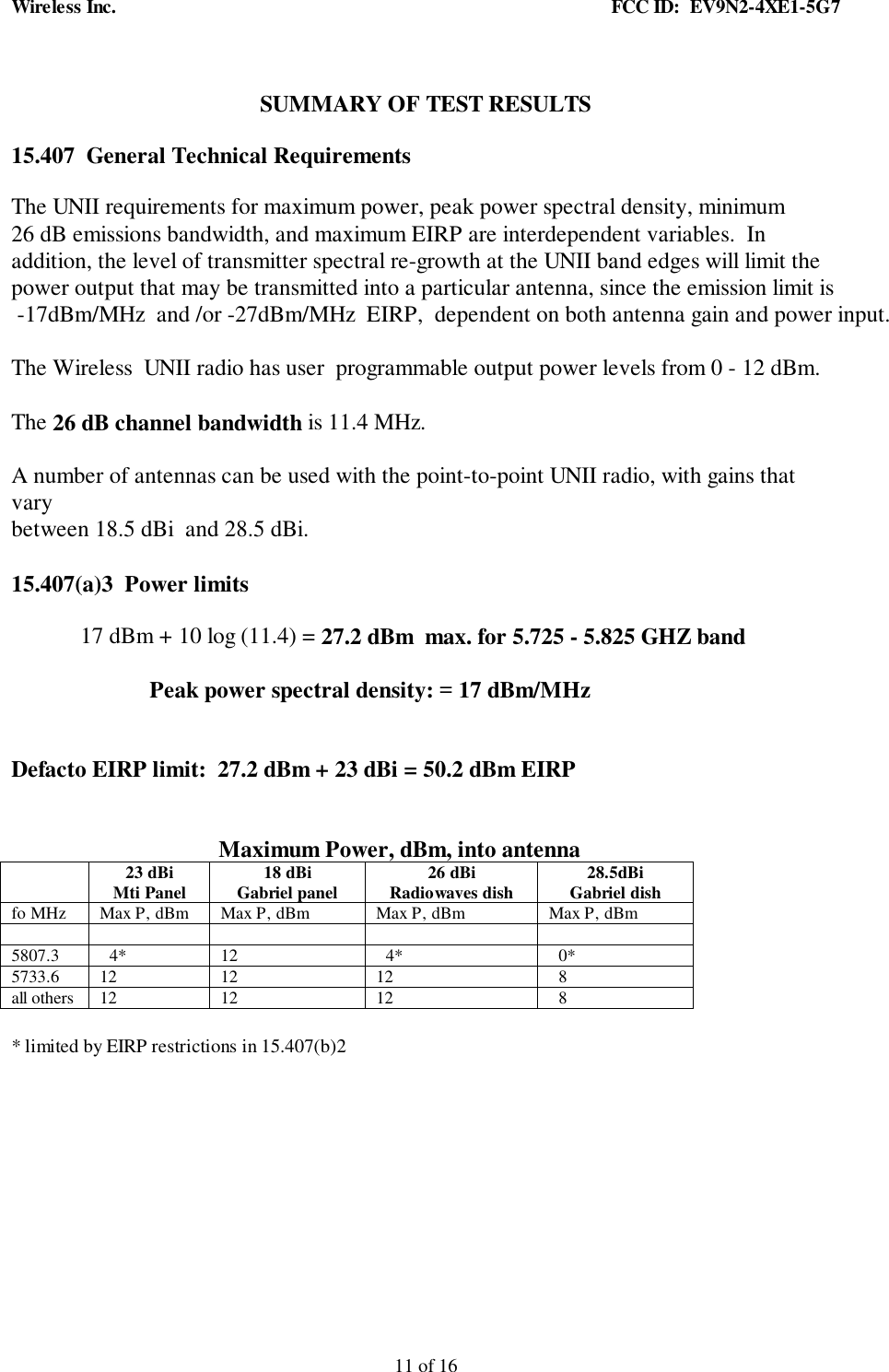

Wireless Inc. FCC ID: EV9N2-4XE1-5G711 of 16SUMMARY OF TEST RESULTS15.407 General Technical RequirementsThe UNII requirements for maximum power, peak power spectral density, minimum26 dB emissions bandwidth, and maximum EIRP are interdependent variables. Inaddition, the level of transmitter spectral re-growth at the UNII band edges will limit thepower output that may be transmitted into a particular antenna, since the emission limit is -17dBm/MHz and /or -27dBm/MHz EIRP, dependent on both antenna gain and power input.The Wireless UNII radio has user programmable output power levels from 0 - 12 dBm.The 26 dB channel bandwidth is 11.4 MHz.A number of antennas can be used with the point-to-point UNII radio, with gains thatvarybetween 18.5 dBi and 28.5 dBi.15.407(a)3 Power limits17 dBm + 10 log (11.4) = 27.2 dBm max. for 5.725 - 5.825 GHZ bandPeak power spectral density: = 17 dBm/MHzDefacto EIRP limit: 27.2 dBm + 23 dBi = 50.2 dBm EIRPMaximum Power, dBm, into antenna23 dBiMti Panel 18 dBiGabriel panel 26 dBiRadiowaves dish 28.5dBiGabriel dishfo MHz Max P, dBm Max P, dBm Max P, dBm Max P, dBm5807.3 4* 12 4* 0*5733.6 12 12 12 8all others 12 12 12 8* limited by EIRP restrictions in 15.407(b)2

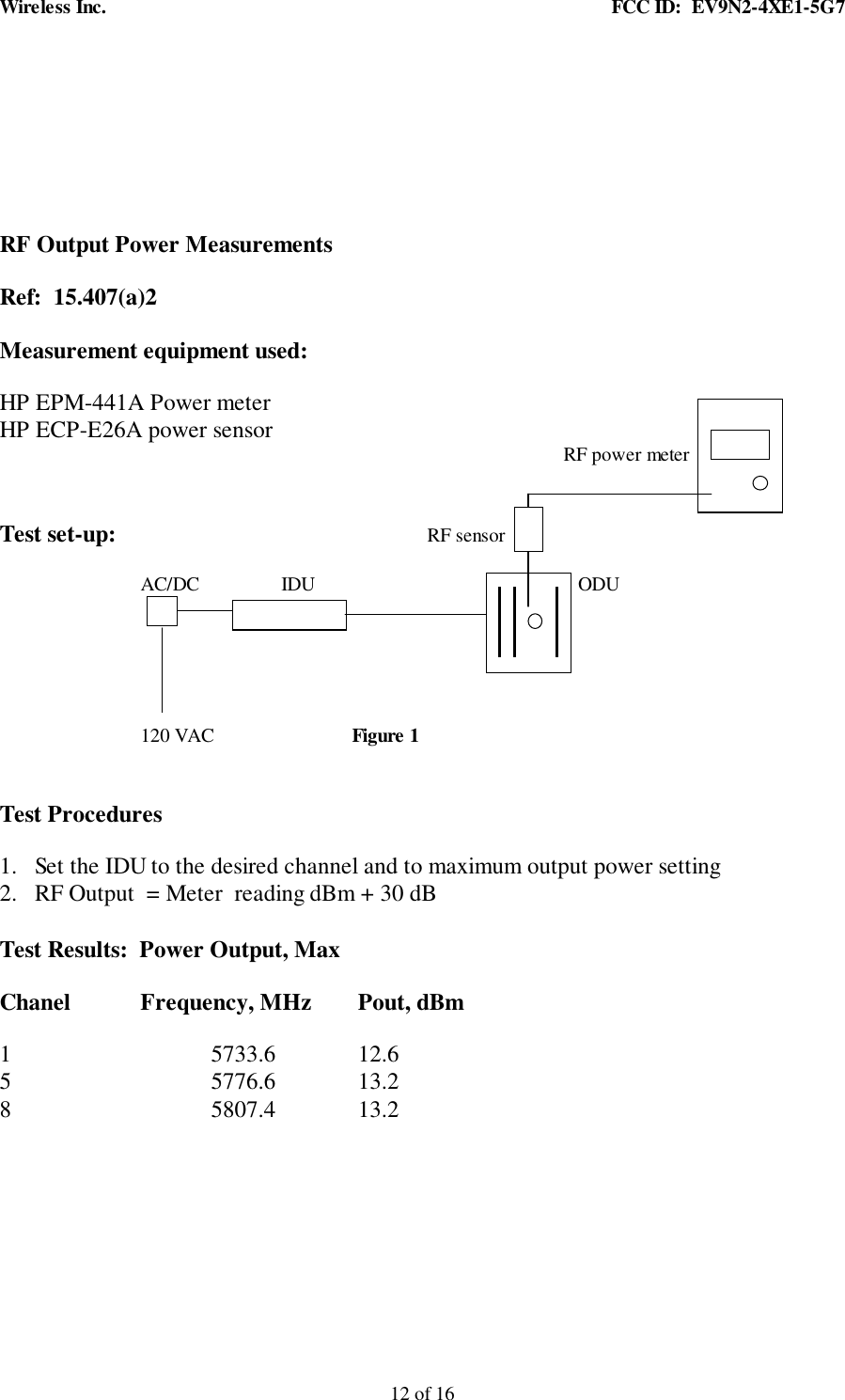

Wireless Inc. FCC ID: EV9N2-4XE1-5G712 of 16RF Output Power MeasurementsRef: 15.407(a)2Measurement equipment used:HP EPM-441A Power meterHP ECP-E26A power sensor RF power meterTest set-up: RF sensorAC/DC IDU ODU 120 VAC Figure 1Test Procedures1. Set the IDU to the desired channel and to maximum output power setting2. RF Output = Meter reading dBm + 30 dBTest Results: Power Output, MaxChanel Frequency, MHz Pout, dBm1 5733.6 12.65 5776.6 13.28 5807.4 13.2

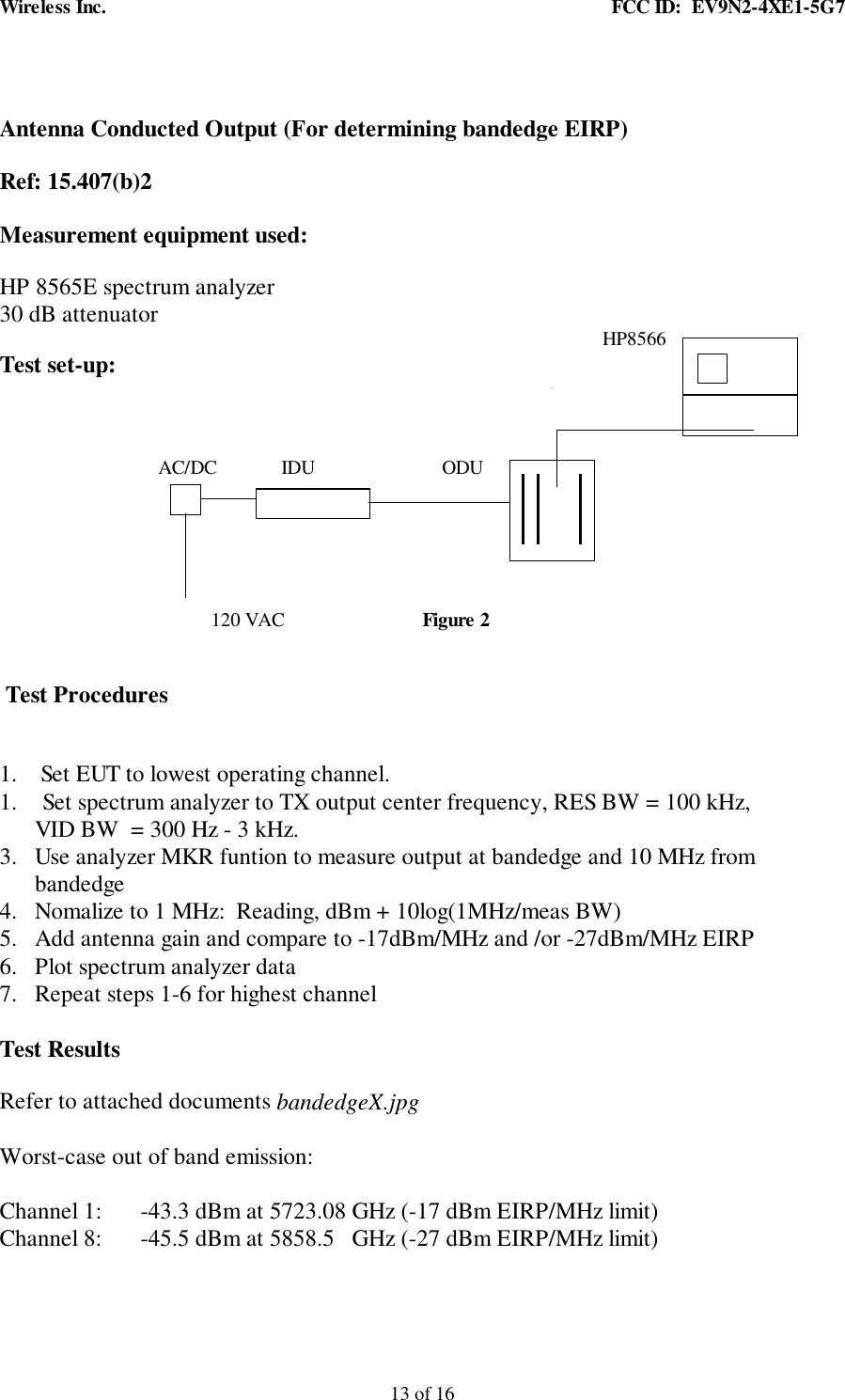

Wireless Inc. FCC ID: EV9N2-4XE1-5G713 of 16Antenna Conducted Output (For determining bandedge EIRP)Ref: 15.407(b)2Measurement equipment used:HP 8565E spectrum analyzer30 dB attenuator HP8566Test set-up: AC/DC IDU ODU120 VAC Figure 2Test Procedures1. Set EUT to lowest operating channel.1. Set spectrum analyzer to TX output center frequency, RES BW = 100 kHz,VID BW = 300 Hz - 3 kHz.3. Use analyzer MKR funtion to measure output at bandedge and 10 MHz frombandedge4. Nomalize to 1 MHz: Reading, dBm + 10log(1MHz/meas BW)5. Add antenna gain and compare to -17dBm/MHz and /or -27dBm/MHz EIRP6. Plot spectrum analyzer data7. Repeat steps 1-6 for highest channelTest ResultsRefer to attached documents bandedgeX.jpgWorst-case out of band emission:Channel 1: -43.3 dBm at 5723.08 GHz (-17 dBm EIRP/MHz limit)Channel 8: -45.5 dBm at 5858.5 GHz (-27 dBm EIRP/MHz limit)

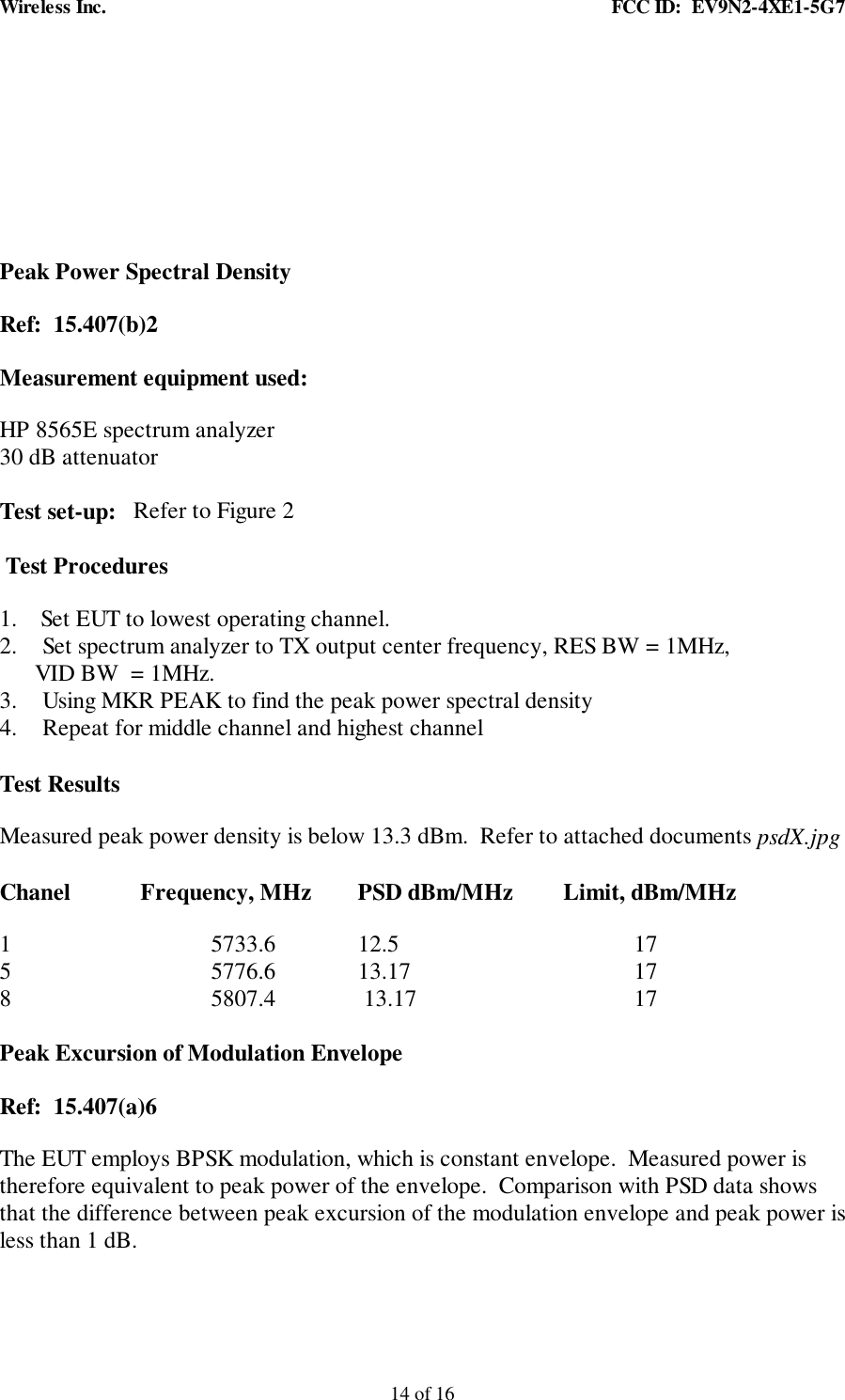

Wireless Inc. FCC ID: EV9N2-4XE1-5G714 of 16Peak Power Spectral DensityRef: 15.407(b)2Measurement equipment used:HP 8565E spectrum analyzer30 dB attenuatorTest set-up: Refer to Figure 2Test Procedures1. Set EUT to lowest operating channel.2. Set spectrum analyzer to TX output center frequency, RES BW = 1MHz,VID BW = 1MHz.3. Using MKR PEAK to find the peak power spectral density4. Repeat for middle channel and highest channelTest ResultsMeasured peak power density is below 13.3 dBm. Refer to attached documents psdX.jpgChanel Frequency, MHz PSD dBm/MHz Limit, dBm/MHz1 5733.6 12.5 175 5776.6 13.17 178 5807.4 13.17 17Peak Excursion of Modulation EnvelopeRef: 15.407(a)6The EUT employs BPSK modulation, which is constant envelope. Measured power istherefore equivalent to peak power of the envelope. Comparison with PSD data showsthat the difference between peak excursion of the modulation envelope and peak power isless than 1 dB.

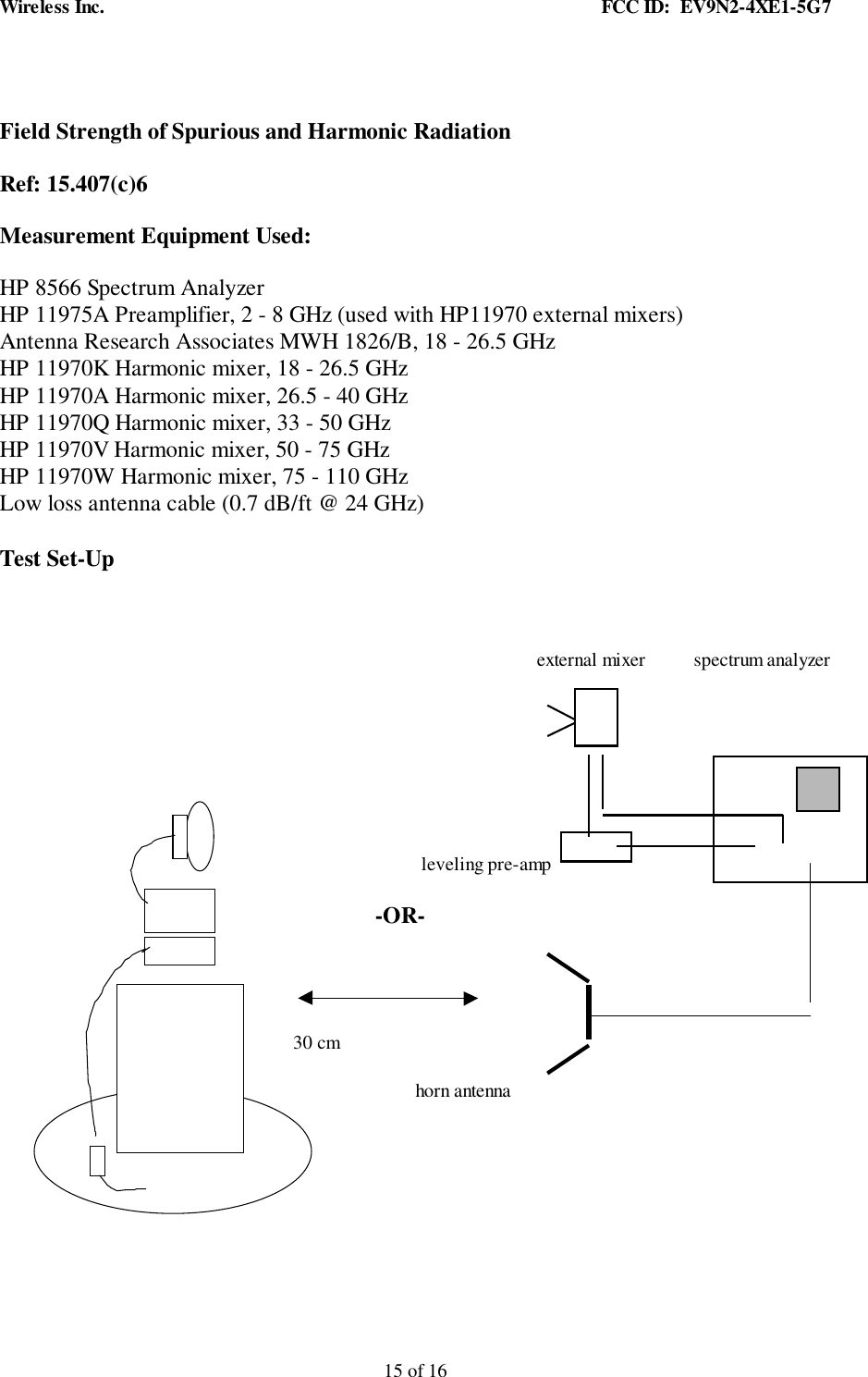

Wireless Inc. FCC ID: EV9N2-4XE1-5G715 of 16Field Strength of Spurious and Harmonic RadiationRef: 15.407(c)6Measurement Equipment Used:HP 8566 Spectrum AnalyzerHP 11975A Preamplifier, 2 - 8 GHz (used with HP11970 external mixers)Antenna Research Associates MWH 1826/B, 18 - 26.5 GHzHP 11970K Harmonic mixer, 18 - 26.5 GHzHP 11970A Harmonic mixer, 26.5 - 40 GHzHP 11970Q Harmonic mixer, 33 - 50 GHzHP 11970V Harmonic mixer, 50 - 75 GHzHP 11970W Harmonic mixer, 75 - 110 GHzLow loss antenna cable (0.7 dB/ft @ 24 GHz)Test Set-Up external mixer spectrum analyzer leveling pre-amp -OR- 30 cmhorn antenna
Wireless Inc. FCC ID: EV9N2-4XE1-5G716 of 16Test MethodWith the transmitter operating at full power, the EUT was rotated 360° and the searchantenna was raised and lowered in both polarities, all in an attempt to maximize thelevels of the received emission for each harmonic and spurious emission up to 40 GHz.Test ResultsNo emissions above instrumentation noise floor were detected. Tests were performed foreach of the 4 antennas at a LOW, MID, and HIGH channel.Antenna conducted measurements confirmed there are no harmonic emissions generatedby this transmitter above the noise floor of the spectrum analyzer (-51 dBm or lower).Using the relationship between field strength, output power and distanceEV/m = (•(30*PW*G))/d meters (E volts/m, P watts, G numeric gain over isotropic)Assuming G=1, converting volts to microvolts and watts to milliwatts, simplifying and combiningterms, and using a distance of d = 3mE@3m, dBuV/m = (95.24 + PdBm) dBuV/m = 95.24- 51dBm = 44.24 dBuV/m!5.205, 15.209 limit: 54 dBuV/m @ 3m
