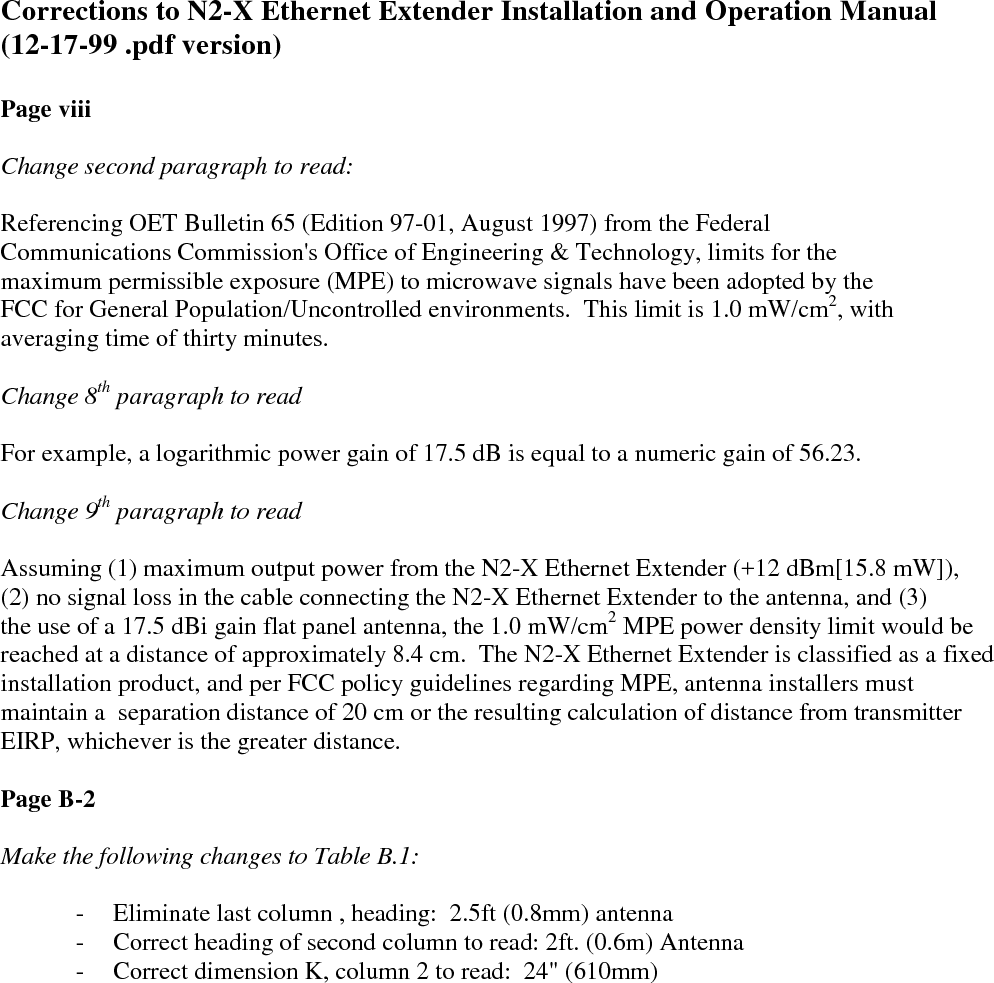

Corrections to N2-X Ethernet Extender Installation and Operation Manual(12-17-99 .pdf version)Page viiiChange second paragraph to read:Referencing OET Bulletin 65 (Edition 97-01, August 1997) from the FederalCommunications Commission's Office of Engineering & Technology, limits for themaximum permissible exposure (MPE) to microwave signals have been adopted by theFCC for General Population/Uncontrolled environments. This limit is 1.0 mW/cm2, withaveraging time of thirty minutes.Change 8th paragraph to readFor example, a logarithmic power gain of 17.5 dB is equal to a numeric gain of 56.23.Change 9th paragraph to readAssuming (1) maximum output power from the N2-X Ethernet Extender (+12 dBm[15.8 mW]),(2) no signal loss in the cable connecting the N2-X Ethernet Extender to the antenna, and (3)the use of a 17.5 dBi gain flat panel antenna, the 1.0 mW/cm2 MPE power density limit would bereached at a distance of approximately 8.4 cm. The N2-X Ethernet Extender is classified as a fixedinstallation product, and per FCC policy guidelines regarding MPE, antenna installers mustmaintain a separation distance of 20 cm or the resulting calculation of distance from transmitterEIRP, whichever is the greater distance.Page B-2Make the following changes to Table B.1:- Eliminate last column , heading: 2.5ft (0.8mm) antenna- Correct heading of second column to read: 2ft. (0.6m) Antenna- Correct dimension K, column 2 to read: 24" (610mm)
Page 9Change footnote to Table 2.3 - Recommended Antennas to read:*The 4-foot dish antennas are for use outside the USA only, and are not FCC compliant.
