1. Introduction
Thank you for purchasing the WLAN a+b+g Cardbus Adapter that provides the
easiest way to wireless networking. This User Manual contains detailed instructions in
the operation of this product. Please keep this manual for future reference.
1.1 Kit Contents
WLAN a+b+g Cardbus Adapter
Installation Software CD
Quick Start Guide
1.2 System Requirements
A laptop PC contains:
- 32-bit Cardbus slot (or Desktop PC with PC Card-PCI adapter)
- 32 MB memory or greater
- 300 MHz processor or higher
Microsoft® Win™2000/ME/98 Second Edition/XP
1.3 Status LED
There are 2 Status LEDs on the WLAN a+b+g Cardbus Adapter. You can check
your network connectivity status by looking at the LEDs.
Off: Power off.
Slow Blink: A connection is made. There is no activity yet.
Fast Blink: There are activities in a connected network.
Alternate Blink between LEDs: Look for a network association.
One LED Blink: Power Saving Mode is on.
One LED Steady Light: Awake from Power Saving Mode.
5
2. Driver/Utility Installation / Uninstallation
2.1 Installation
Note! The Installation Section in this User Manual describes the first-time installation
for Windows. To re-install the driver, please first uninstall the previously
installed driver. See Chapter 2.2 “Uninstallation” section in this User Manual.
Note! Do Not insert the Adapter into the Cardbus slot before the driver installation.
Note! If you have inserted the Adapter into the Cardbus slot before installing the
driver, a warning message pops up informing you that the software has not yet
been installed. Please click “Cancel” to close the warning message. Remove
the Adapter, and then start to install the driver.
Follow the steps below to complete the driver/utility installation:

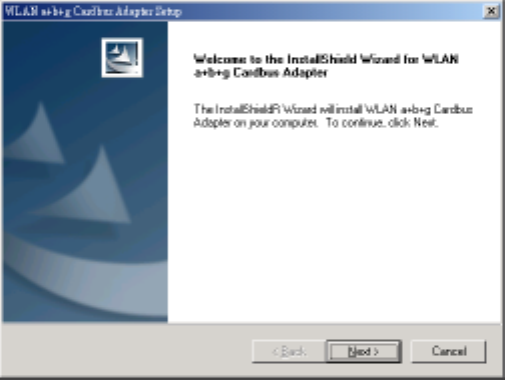

1. Insert the Installation Software CD into the CD-Rom Drive.
2. Click “Next”.
6

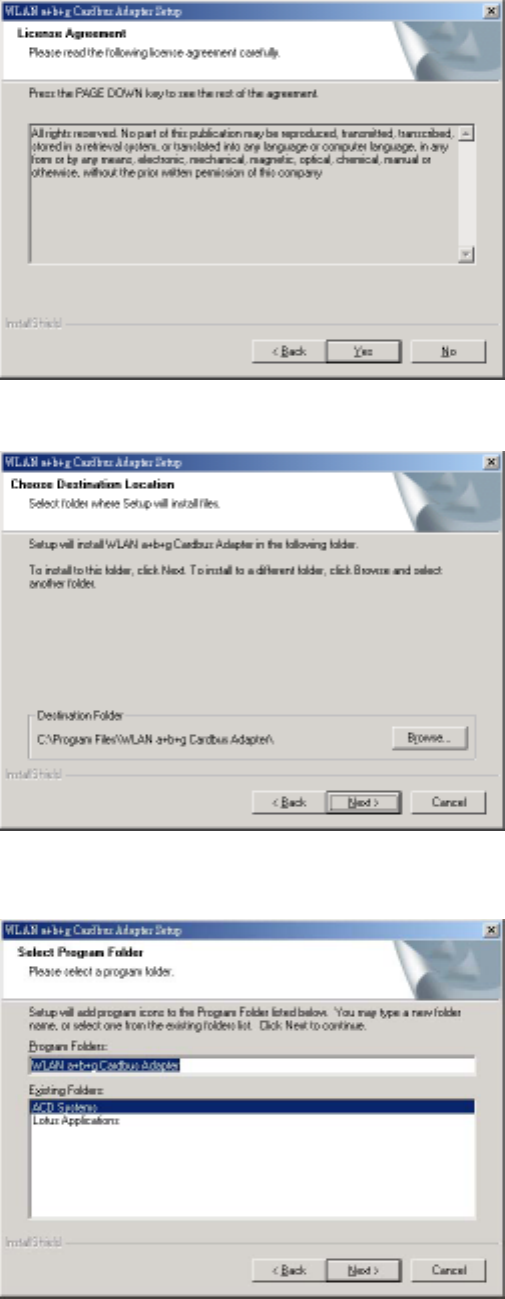

3. Read the License Agreement and click “Yes”.
4. Click “Next” to continue or click “Browse” to choose a destination folder.
5. Click “Next”.
7

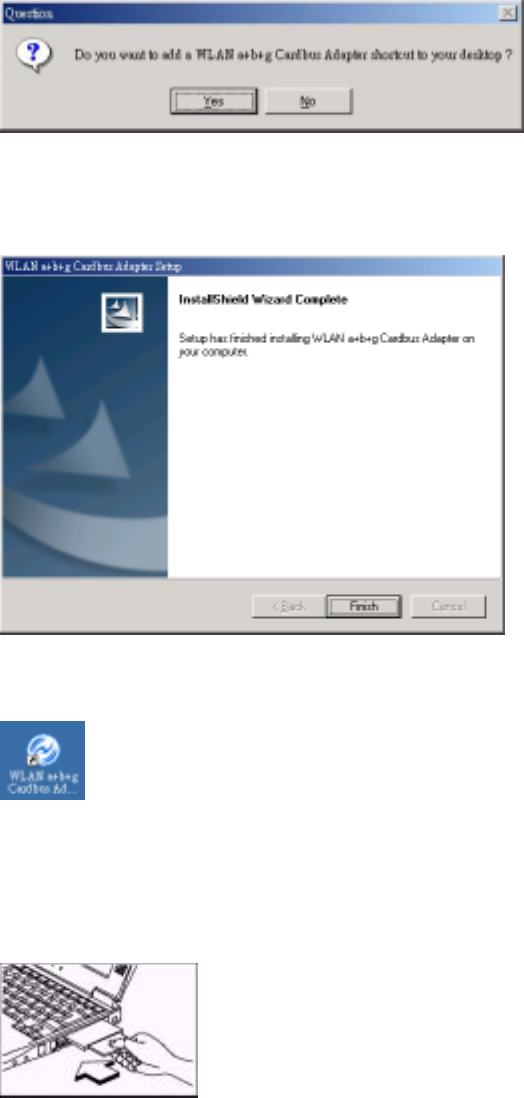

6. Click “Yes” to create a shortcut icon on your desktop.
7. Click “Finish”.
8. You should now see the shortcut icon on your desktop.
9. Insert the Adapter into the Cardbus slot, and the Windows Operating System will
find the new hardware and automatically install it. (For Windows 98SE or
Windows Me, please restart your computer before inserting the Adatper).
8
2.1.1 Additional Setup Processes
During software installation procedure, each operating system may prompt different
specific options:
1. Windows 98SE: The system will request the original Windows CD during the
installation process. When the installation is finished, you’ll have to restart your
computer.
2. Windows Me: Please restart your computer when the installation is finished.
3. Windows 2000/XP: Select “Install the software automatically” when the window
with this option appears, and then click “Next” to continue installation.
2.1.2 Verifying the Driver
1. Windows 98SE/Me:
Step 1. Right-click “My Computer” icon on the desktop and choose “Properties”.
Step 2. Select “Device Manager” tab and open “Network adapters”. You should
see your WLAN a+b+g Cardbus Adapter in the list. Highlight it and click
“Properties” button.
Step 3. From the “Device status”, you should see the line “This device is working
properly”. If, instead, you see error messages displayed, please remove
this Adapter (highlight this Adapter and click “Remove” button). Restart
your PC and go through the installation process again.
2. Windows 2000:
Step 1. Right-click “My Computer” icon on the desktop and choose “Properties”.
Step 2. Select “Hardware” tab and click “Device Manager”. Open “Network
adapters”. You should see your WLAN a+b+g Cardbus Adapter in the list.
Right-click this Adapter and choose “Properties”.
Step 3. From the “Device status”, you should see the line “This device is working
properly”. If, instead, you see error messages displayed, please uninstall
this Adapter (right-click this Adapter from the “Network adapters” list and
choose “Uninstall”). Restart your PC and go through the installation
process again.
9
3. Windows XP:
Step 1. Click Start>Control Panel> System.
Step 2. Select “Hardware” tab, and click “Device Manager”. Open “Network
adapters”. You should see your WLAN a+b+g Cardbus Adapter in the list.
Right-click this Adapter and choose “Properties”.
Step 3. From the “Device status”, you should see the line “This device is working
properly”. If, instead, you see error messages displayed, please uninstall
this Adapter (right-click this Adapter from the “Network adapters” list and
choose “Uninstall”). Restart your PC and go through the installation
process again.
10
2.2 Uninstallation
Note! Before uninstallation, please close all running programs.
1. Click Start>Programs>WLAN a+b+g Cardbus Adapter>UnInstall WLAN a+b+g
Cardbus Adapter.
2. Choose “Remove”. Click “Next”.
3. Click “OK” to start Uninstall.
4. Click “Finish”. Uninstall is now completed.
11
3. Connecting to an Existing Network

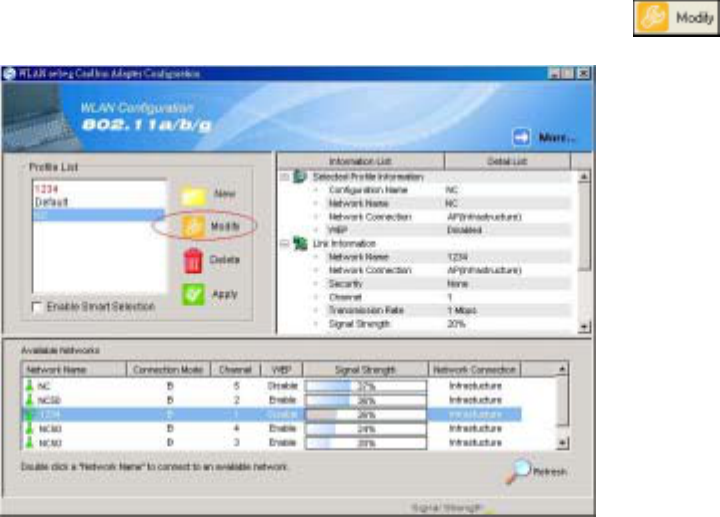

1. Double click the shortcut icon of “WLAN a+b+g Cardbus Adapter” on the
desktop, and the Configuration window appears.

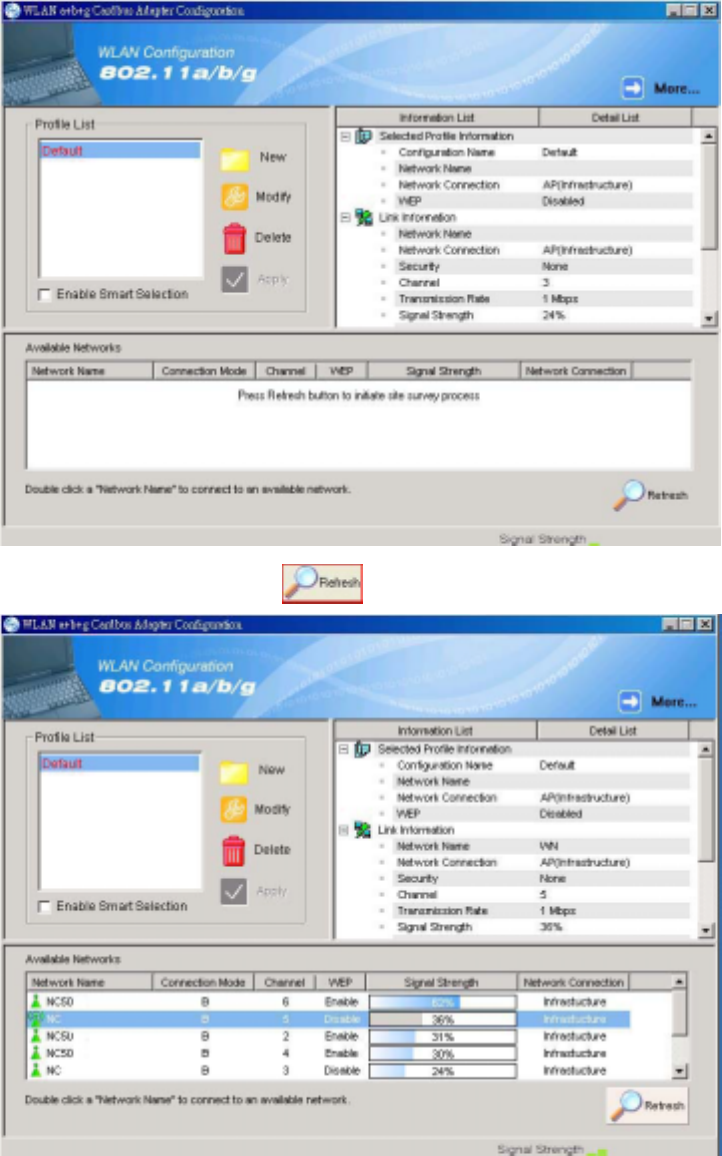

2. Click on the Refresh button to list all available networks.
12
Note: To automatically connect to the network with the strongest signal, select
Enable Smart Selection. Any displays in Profile List.

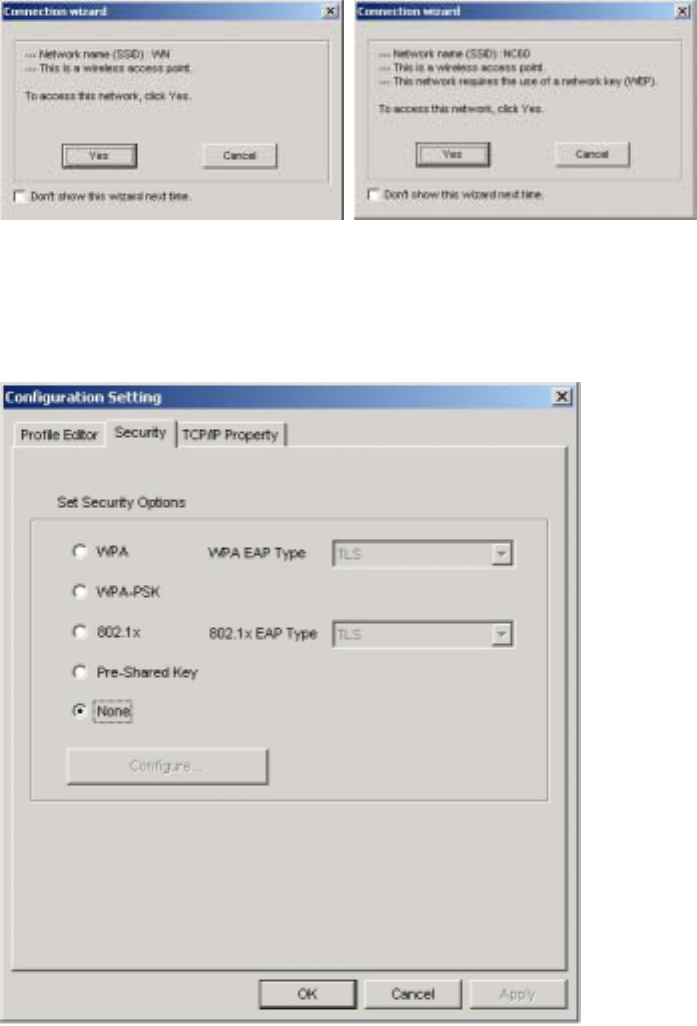

3. From the list of “Available Networks”, choose one network by double clicking the
Network Name. One of the following dialog boxes appears. Click “Yes” to
continue.
4. If the chosen network has security enabled, the Security tab displays. Select the
security option used by the network. Contact the network administrator for the
correct settings.
13

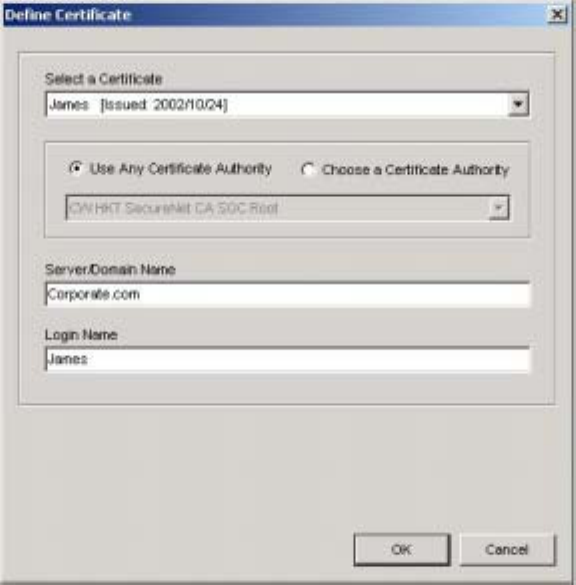

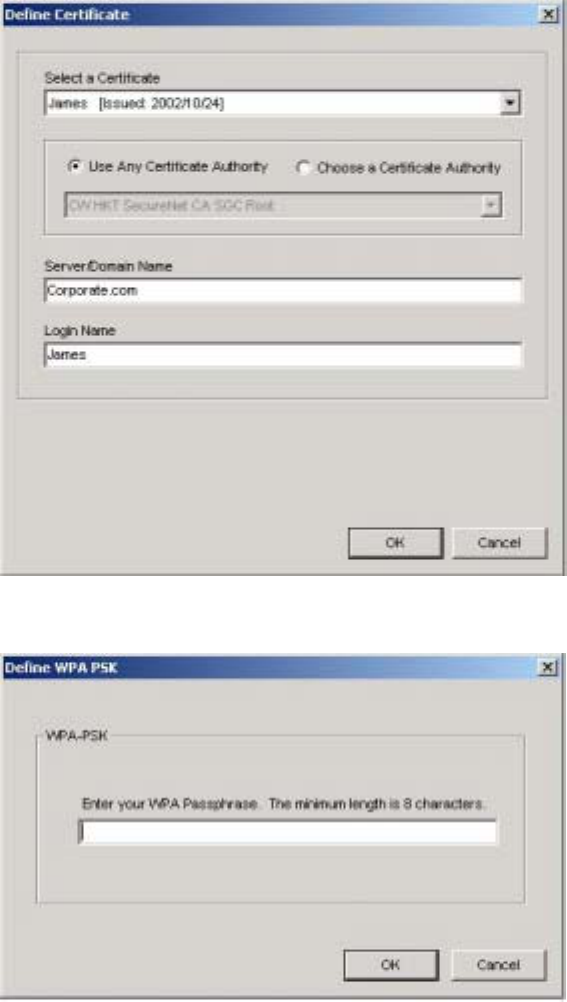

5. If selecting WPA or 802.1X, select the EAP type, then click on the Configure
button to select the certificate.
6. If selecting WPA-PSK, click on the Configure button to enter the PassPhrase.
14

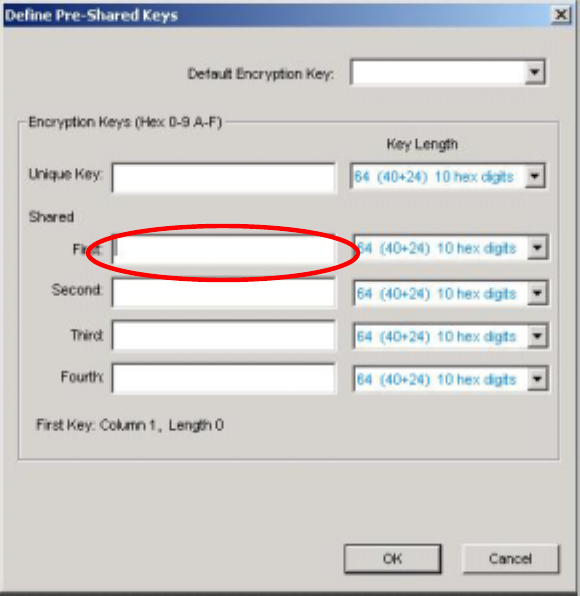

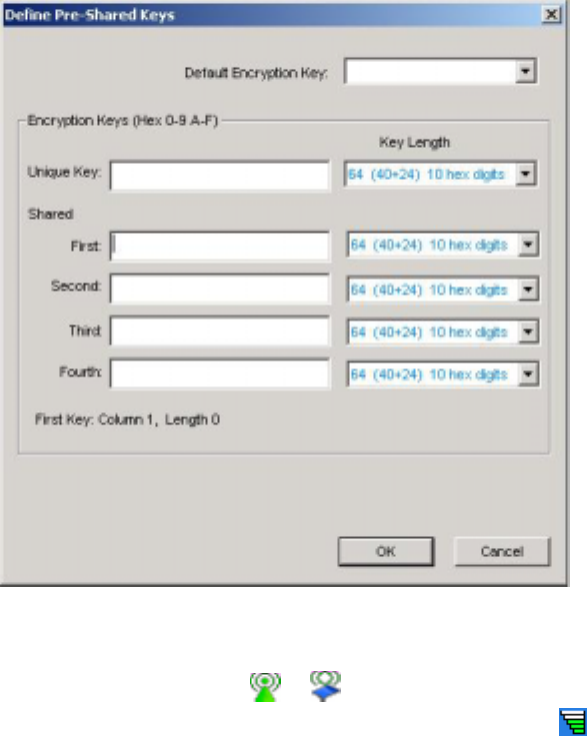

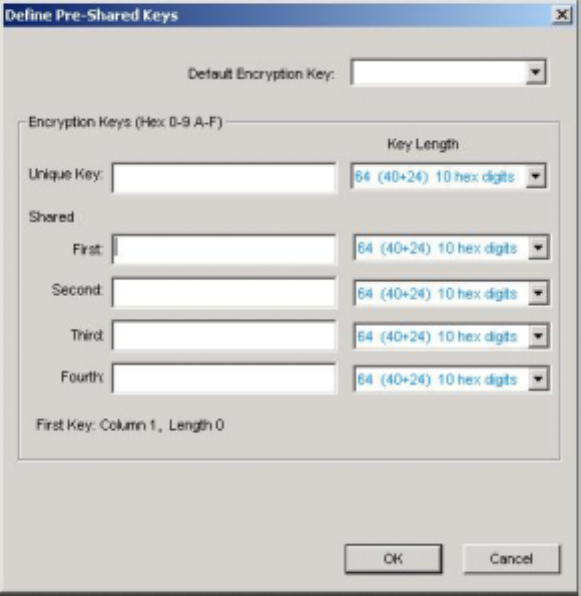

7. If selecting Pre-Shared Key, click on the Configure button to enter the correct
Encryption Keys.
Key entry method: a.10hex digits: User must enter 10 hexadecimal digits.
The hexadecimal define is "0-9" and "A-F".
ex: 123456abc
b.5 chars: User must enter 5 characters. ex: ab3#@
c.13 chars: User must enter 13 characters.
ex: ab3#@kf08&kdk
d.16 chars: User must enter 16 characters.
ex: ab3#@kf08&kdk456
For WEP key, please contact with MIS administrator.
8. Click on OK (or Apply if using the other tabs) when done to save the settings.
9. Once connected (the icon or in front of the name of the Connected
Network), you can check the signal strength from the icon in the Windows
System Tray.
15
3.1 Additional Note for Windows XP
In Windows XP, it is recommended that you use the WLAN a+b+g Cardbus Adapter
Configuration Utility. Before using the Utility, please follow the steps below to
disable the Windows XP Zero Configuration:

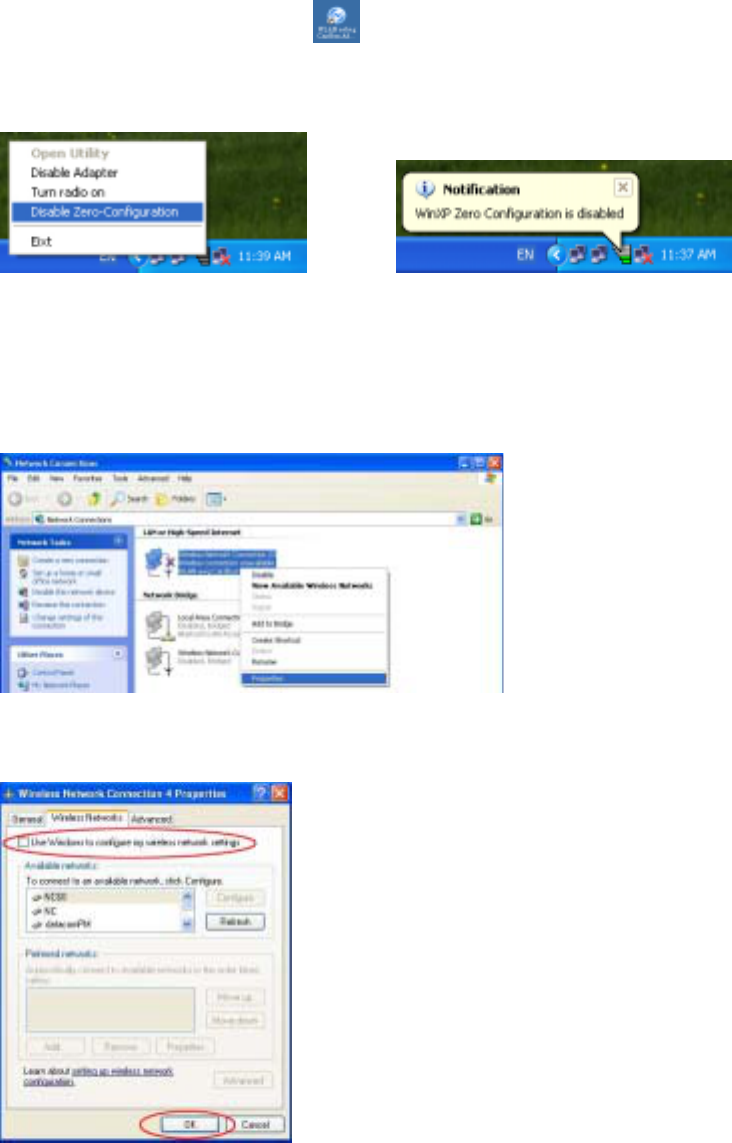

Option 1:
1. Double click the shortcut icon to open the Utility.
2. From the Windows System Tray, you should see the signal icon. Right-click it
and select “Disable Zero-Configuration”.
Option 2:
1. Go to “Control Panel” and double click “Network Connections”.
2. Right-click “Wireless Network Connection” of “WLAN a+b+g Cardbus Adapter”,
and select “Properties”.
3. Select “Wireless Networks” tab, and uncheck the check box of “Use Windows to
configure my wireless network settings”, and then click “OK”.
16
4. Creating an Ad Hoc New Network

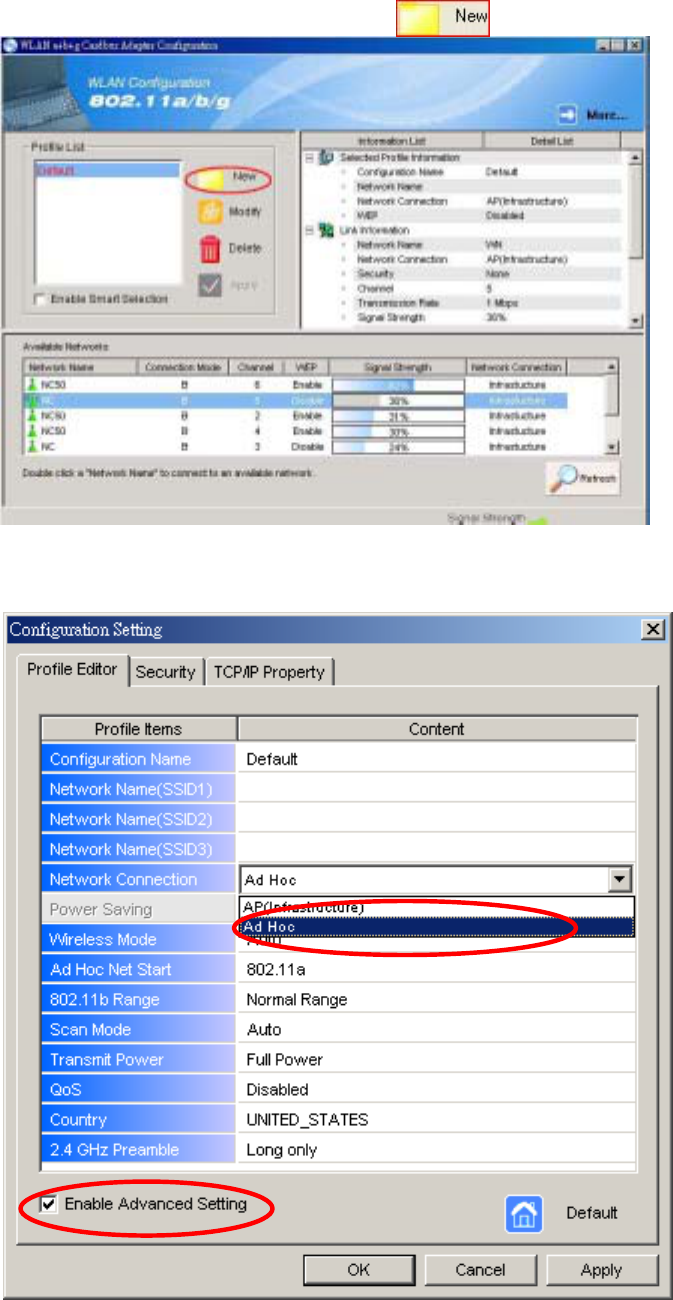

1. In the Configuration window, click New .
2. Select the “Profile Editor” tab.
17

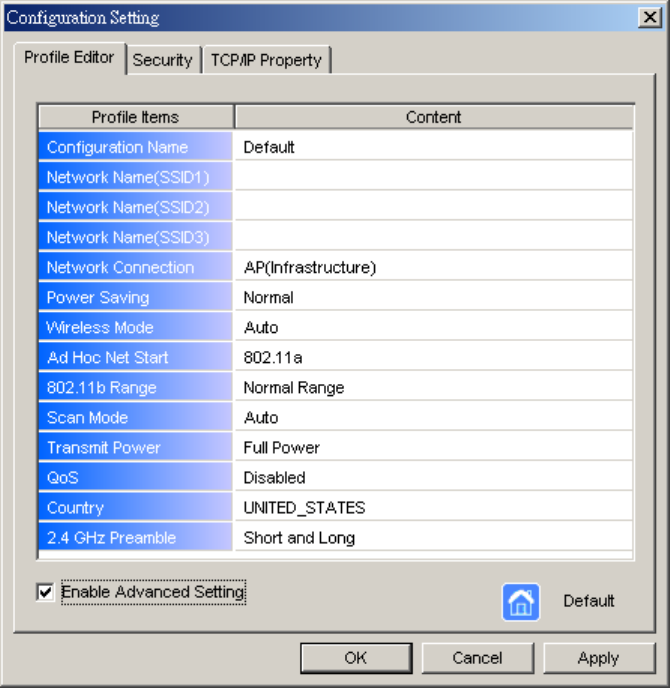

3. Choose the check box of Enable Advanced Setting to edit all settings.
4. If joining or creating an Ad-Hoc network, choose Ad Hoc.
5. If the correct country is not selected, select the country where the computer is
located.
ALERT: Different countries have different regulations that affect which channels
can be used. You should always choose the country where you are physically
located to avoid using an illegal channel.
6. Click OK (or Apply if using the other tabs) to save the settings.
For details of each setting, refer to Modifying a Wireless Network on page 20.

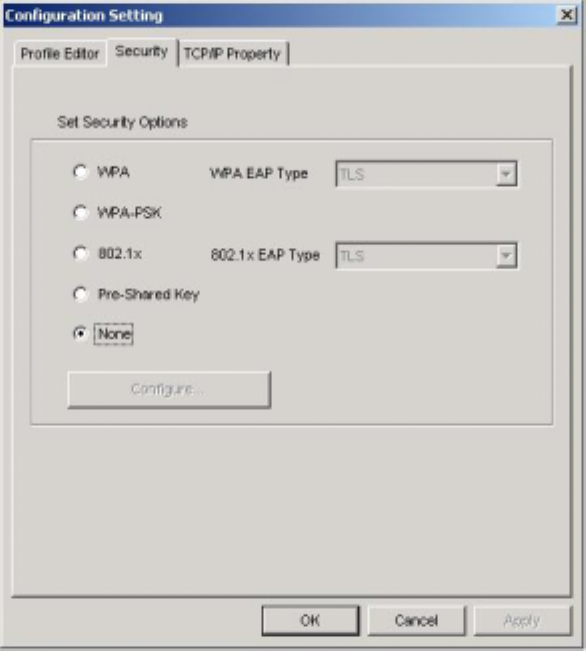

7. Click the Security tab. If not using security, select None.
8. If security is used, select Pre-Shared Key and click on the Configure button.
18
9. Enter an encryption key in the Shared: First field.
10. Click OK (or Apply if using the other tabs) to save the settings.
The new Network Name is listed in the Profile List.
The driver does not allow channel selection in Ad-Hoc mode. Instead, the driver starts
with an initial channel then checks channel status. If the channel is busy, the driver
automatically uses a different channel.
For details of each setting, see Modifying a Wireless Network on page 20.
19
5. Modifying a Wireless Network
5.1 Infrastructure Mode vs. Ad Hoc Mode
You can set the Wireless Network Adapter to work in either Infrastructure mode or
Ad Hoc mode.

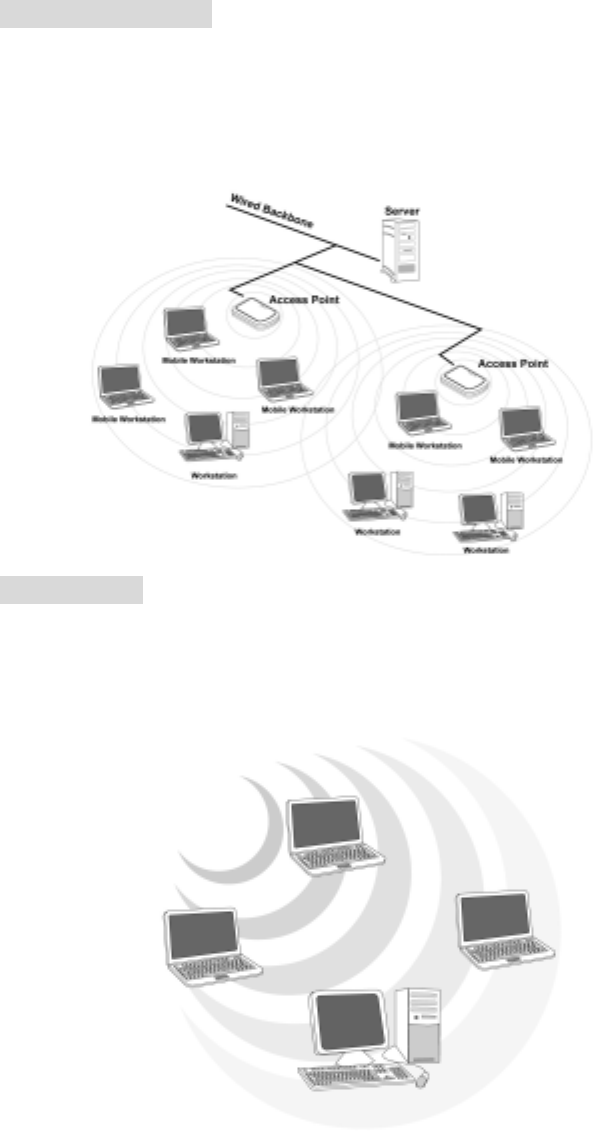

Infrastructure Mode
In infrastructure mode, devices communicate with each other by first going through
an Access Point (AP). Wireless devices can communicate with each other or can
communicate with a wired network. When one AP is connected to wired network
and a set of wireless stations, it is referred to as a BSS (Basic Service Set).
Ad Hoc Mode
Ad-hoc mode is also called “peer-to-peer mode” or “Independent Basic Service Set
(IBSS)”. In ad hoc mode, devices communicate directly with each other without
using an Access Point (AP).
20
5.2 Modifying a Wireless Network
1. Open “WLAN a+b+g Cardbus Adapter Configuration” by double clicking the
shortcut icon on the desktop.
Note! If there’s no network name listed in the “Profile List”, click Refresh
button and double click a Network Name from Available Networks.
The chosen Network Name is listed in the Profile List.
2. From the Profile List, select one Profile and click Modify button .
21
3. Select Profile Editor tab and edit the settings. Click OK to save the
modifications.
Configuration Name: This name identifies the configuration. This name
should be unique.
Network Name (SSID1) (SSID2) (SSID3): The name of the wireless
network. This name cannot be longer than 32 characters. If the field is
set to be “ANY” or is left blank, your computer will connect to an AP with
the best signal strength.
Network Connection: Specifies the mode of the network. Two options
are “Infrastructure” and “Ad Hoc”.
Power Saving: Minimizes power consumption while maintaining network
connectivity and high data transfer performance. In Ad Hoc mode, Power
Savings function cannot be enabled. The power management options are:
• Off: PC Card is powered up at all times.
• Normal: PC Card sleeps less often and stays asleep for a shorter period.
• Maximum: PC Card sleeps more frequently and stays asleep as much as
possible.
Wireless Mode: Three options are “802.11b”, “802.11a”, “802.11g”,
22
“Super A”, “Super G” or “Auto”. “Auto” allows the use of either 802.11a,
802.11g or 802.11b mode.
Ad Hoc Net Start: Specifies a band to establish an Ad Hoc network if no
matching SSID is found. Four options are available: 802.11b, 802.11a,
802.11aTurbo and 802.11g.
802.11b Range: Options are Normal Range and Extended Range. This
function can let user to determine the transfer range in 802.11b mode.
Extended Range can prolong the transfer range with a lower data
transmitting rate.
Scan Mode: Options are Active Scan, Passive Scan and Auto. In Active
Scan, the driver sends out the probe request frames from each channel and
collects the response frames from the responding. In Passive Scan, the
driver scan each requested channel, listening the beacons on each channel.
Transmit Power: This setting allows you to change the output power of the
PC Card to increase or decrease the coverage area.
QoS: Disables or enables the PC Card to cooperate in a network using QoS
(Quality of Service).
Country: Select the country where this PC Card will operate.
ALERT: Different countries have different regulations that affect which
channels can be used. You should always choose the country where you are
physically located to avoid using an illegal channel.
2.4 GHz Preamble: Allows Ad-Hoc compatibility with other 2.4 GHz
devices. Two options are Short and Long and Long only. Use Long Only
when configuring the client for an 802.11b RoamAbout AP wireless
network.
23
4. Select Security tab and choose the security mode.
Note: Check with your Network Administrator for the security features supported
by your AP.
WPA: Enables the use of WiFi protected Access (WPA). This option
requires IT administration.
a) Select WPA to open the WPA EAP drop-down menu. The options
includes TLS and PEAP.
b) Click on the Configure button and complete the configuration
information in the Define Certificate dialog.
WPA-PSK: Enables the WPA-Pre Shared Key (PSK). Click on the
Configure button and complete the configuration information in the WPA
Passphrase dialog.
802.1x: Enables 802.1x security. This option requires IT administration.
a) Select 802.1x to open the 802.1x EAP drop-down menu. The options
include TLS and PEAP.
b) Click on the Configure button and complete the configuration
information in the Define Certificate dialog.
24
Pre-Shared Key: Enables the use of pre-shared keys that are defined on the
AP and the station.
a) Select the Pre-Shared Key radio button.
b) Click on the Configure button and complete the configuration
information in the Define Certificate dialog.
None: No security.
5. Define the Certificate.
Select a Certificate: Select the Certificate to Authenticate to the RADIUS
server from the drop-down menu.
Use any Certificate Authority: The Default Setting. Select this radio
button to use any Certificate Authority (CA) for authentication.
Choose a Certificate Authority: Select this radio button to choose the
desired Certificate Authority for authentication from the drop-down menu.
Server/Domain Name: The the RADIUS server name or the domain name
used for the network access.
Login Name: The username used to log into the server or domain.
Define User Information (PEAP): Click on the Define User Information
button and complete the configuration information in the Define User
Information dialog.
25
6. If selecting WPA-PSK, click on the Configure button to enter the PassPhrase. The
PassPhrase must be a minimum of 8 printable ASCII characters. The PassPhrase
should be at least 20 characters to make it more difficult for an attacker to decipher
the key.
7. If selecting Pre-Shared Key, click on the Configure button to enter the
Encryption Keys.When finished, click OK. For WEP key, please contact with
MIS administrator.
Key Entry Method: Determines the entry method for the key. Hexadecimal
(0-9, A-F) or ASCII text (all keyboard characters).
Default Encryption Key: Allows you to choose one encryption key (First,
Second, Third, or Fourth) as the transmit key, which encrypts transmissions
from the PC Card.
Unique Key: Defines the per-session encryption key for the current network
configuration. Not used in Ad-Hoc mode.
Shared Keys: Use these fields to enter the wireless network’s encryption keys.
The keys must be in the correct position (First, Second, Third, or Fourth).
Key Length: Defines the length of each encryption key.
o For 40/64 bit (enter 10 digits for hexadecimal or 5 characters for ASCII)
o For 104/128 bit (Enter 26 digits for hexadecimal or 13 characters for ASCII)
26
When the length is changed, the number of available characters in the field
automatically changes. If a previously entered key is too long, the key is
automatically truncated to fit. If the key length is increased again, the key does
not update to the previous value.
8. Click OK to save the settings.

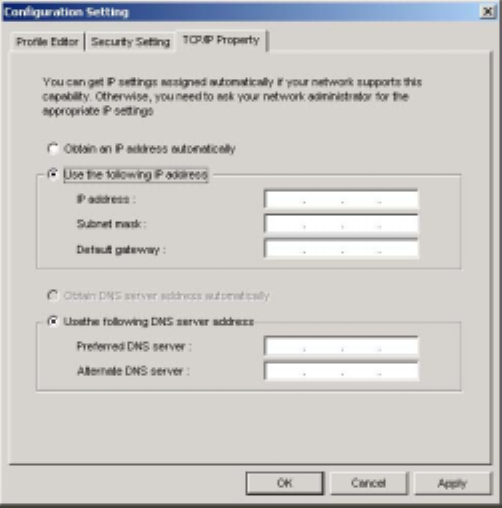

9. Select “TCP/IP Property” tab. Enter the settings and click “OK” to save the
settings.
If the network uses DHCP server, choose Obtain an IP address automatically.
If the network does not use DHCP server, choose Use the following IP address
to set the relative settings. For the IP configuration information, please contact
the network administrator.
27
5.3 Default Settings Windows XP Zero-Configuration
You may also choose the default parameters and directly proceed to Windows XP
zero-configuration through the steps below:
1. Go to “Control Panel” and open “Network Connections”.
2. Right-click the Wireless Network Connection of “WLAN a+b+g Cardbus
Adapter”, and make sure this connection is Enabled.
3. Right-click the Wireless Network Connection of “WLAN a+b+g Cardbus
Adapter”, and then click “Properties”.
4. Select “Wireless Networks” tab and select “Use Windows to configure my
wireless network settings” check box.
Note! Clear the check box of “Use Windows to configure my wireless network
settings” will disable automatic wireless network configuration.
5.4 Super A/G Setting
The Super A/G features do not require station configuration as the command are
handled during auto-negotiation.
1. User can double click the AP that set in Super A/G mode in the site survey list, the
configuration tool would auto connect to that AP.
2. User can manually create a new profile, and then modify the profile setting by
changing the “wireless Mode” to “Super A” or “Super G”.
28
Appendix A: Troubleshooting
Common Problems and Solutions
This chapter provides solutions to problems that may occur during the installation and
operation of the WLAN 802.11a+b+g Cardbus. Read the descriptions below to solve
your problems.
1. My computer does not recognize the Cardbus.
• Make sure the Cardbus is properly inserted into the CardBus slot. Note that the
Cardbus can be inserted either way, but is correctly only when it is inserted so that the
“Instant Wireless” logo on the front of the Cardbus cannot be seen. If in doubt, try
inserting the Cardbus both ways. The Cardbus will slide in further when it is correct.
2. The Cardbus does not work properly.
• Reinsert the Cardbus into your notebook’s CardBus slot. A beep should be heard if
the Cardbus is properly inserted.
• For non-Windows environments, make sure that a CARDBUS card service driver is
installed on your PC.
• Open the Control Panel and click the PC Card. Check whether it has a Cardbus in
one of the sockets or not. If you find the Cardbus in one of the sockets, it means
that the Cardbus has been detected properly. If you see a yellow question mark, the
resources are in conflict.
• Right-click My Computer and select Properties. Select Device Manager and click
the Network Adapter. You will find the WLAN 802.11a+b+g Cardbus if it is
installed successfully. If you see the yellow exclamation mark, the resources are in
conflict. Click Cardbus and then click Cardbus service. You will see the status of
the Cardbus. If there is a yellow question mark please check the following:
• Make sure that your notebook has a free IRQ.
• Make sure that you have inserted the right Cardbus and installed the proper driver.
If the Cardbus does not function after attempting the above steps, remove the
Cardbus and do the following:
• Uninstall the driver software from your PC.
• Restart your PC and repeat the hardware and software installation as specified in this
User Guide.
29
3. I cannot communicate with a wired computer linked via an access point in
the infrastructure configuration.
• Make sure that the notebook PC is powered on.
• Make sure that the Cardbus is configured with the same SSID and security options
as the other computers in the infrastructure configuration.
Co
Frequently Asked Questions
1. Can I run an application from a remote computer over the wireless network?
This will depend on whether or not the application is designed to be used over a
network. Consult the application’s user guide to determine if it supports operation
over a network.
2. Can I play computer games with other members of the wireless network?
Yes, as long as the game supports multiple players over a LAN (local area network).
Refer to the game’s user guide for more information.
3. What is Spread Spectrum?
Spread Spectrum technology is a wideband radio frequency technique developed by
the military for use in reliable, secure, mission-critical communications systems. It is
designed to trade off bandwidth efficiency for reliability, integrity, and security. In
other words, more bandwidth is consumed than in the case of narrowband
transmission, but the trade-off produces a signal that is, in effect, louder and thus
easier to detect, provided that the receiver knows the parameters of the
spread-spectrum signal being broadcast. If a receiver is not tuned to the right
frequency, a spread-spectrum signal looks like background noise. There are two main
alternatives, Direct Sequence Spread Spectrum (DSSS) and Frequency Hopping
Spread Spectrum (FHSS).
4. What is DSSS? What is FHSS? And what are their differences?
Frequency-Hopping Spread-Spectrum (FHSS) uses a narrowband carrier that changes
frequency in a pattern that is known to both transmitter and receiver. Properly
synchronized, the net effect is to maintain a single logical channel. To an unintended
receiver, FHSS appears to be short-duration impulse noise. Direct-Sequence
Spread-Spectrum (DSSS) generates a redundant bit pattern for each bit to be
transmitted. This bit pattern is called a chip (or chipping code). The longer the chip,
the greater the probability that the original data can be recovered. Even if one or more
bits in the chip are damaged during transmission, statistical techniques embedded in
30
the radio can recover the original data without the need for retransmission. To an
unintended receiver, DSSS appears as low power wideband noise and is rejected
(ignored) by most narrowband receivers.
5. Would the information be intercepted while transmitting on air?
WLAN features two-fold protection in security. On the hardware side, as with Direct
Sequence Spread Spectrum technology, it has the inherent security feature of
scrambling. On the software side, WLAN offers the encryption function (WEP) to
enhance security and access control.
6. What is WEP?
WEP is Wired Equivalent Privacy, a data privacy mechanism based on a 64-bit or
128-bit shared key algorithm, as described in the IEEE 802.11 standard.
7. What is infrastructure mode?
When a wireless network is set to infrastructure mode, the wireless network is
configured to communicate with a wired network through a wireless access point.
8. What is roaming?
Roaming is the ability of a portable computer user to communicate continuously
while moving freely throughout an area greater than that covered by a single access
point. Before using the roaming function, the workstation must make sure that it is the
same channel number with the access point of dedicated coverage area.
To achieve true seamless connectivity, the wireless LAN must incorporate a number
of different functions. Each node and access point, for example, must always
acknowledge receipt of each message. Each node must maintain contact with the
wireless network even when not actually transmitting data. Achieving these functions
simultaneously requires a dynamic RF networking technology that links access points
and nodes. In such a system, the user’s end node undertakes a search for the best
possible access to the system. First, it evaluates such factors as signal strength and
quality, as well as the message load currently being carried by each access point and
the distance of each access point to the wired backbone. Based on that information,
the node next selects the right access point and registers its address. Communications
between end node and host computer can then be transmitted up and down the
backbone. As the user moves on, the end node’s RF transmitter regularly checks the
system to determine whether it is in touch with the original access point or whether it
should seek a new one. When a node no longer receives acknowledgment from its
31
original access point, it undertakes a new search. Upon finding a new access point, it
then re-registers, and the communication process continues.
9. What is ISM band?
The FCC and their counterparts outside of the U.S. have set aside bandwidth for
unlicensed use in the ISM (Industrial, Scientific and Medical) band. Spectrum in the
vicinity of 2.4 GHz, in particular, is being made available worldwide. This presents a
truly revolutionary opportunity to place convenient high-speed wireless capabilities in
the hands of users around the globe.
32
Appendix B: Specification
Item Key specifications
Main Chipset AR5213 with AR5112
Frequency range U-NII: 2.412 ~ 2.462Ghz, 5.15 ~ 5.35Ghz, 5.725 ~ 5.825Ghz
2.400 – 2.483GHz,
Modulation
technique
802.11b/g
DSSS (DBPSK, DQPSK, CCK)
OFDM for data rate > 20 Mbps
802.11a
OFDM(BPSK,QPSK, 16-QAM, 64-QAM)
Host interface Cardbus form factor with 32-bit interface
Channels support 802.11b/g
US/Canada: 11 (1 ~ 11)
802.11a
US/Canada:12 non-overlapping channels (5.15 ~ 5.35GHz, 5.725 ~ 5.825GHz)
Operation voltage 3.3V +/- 5%
Power
consumption
802.11a 802.11b 802.11g
Continuous Tx 490~510mA @18dBm 570~590mA @18dBm 610~640mA@18dBm
Continuous Rx 340~350mA 360~380mA 420~440mA
FTP Tx 420~440mA 510~530mA 530~545mA
FTP Rx 400~420mA 470~485mA 490~510mA
Standby mode 360~380mA 440~450mA 450~470mA
Power saving mode 50mA 50mA 50mA
RF Kill 40mA 40mA 40mA
Output power 802.11b/g
18 dBm peak power
802.11a
US/Canada :
5.150 – 5.250: 15 dBm
5.250 – 5.350: 18 dBm
5.470 – 5.725: not allowed
5.725 – 5.825: 17 dBm
Operation
distance
802.11a
Outdoor: 40m@72Mbps,85m@54Mbps,250m@48Mbps,310m@36Mbps
Indoor:20m@72Mbps,25m@54Mbps,35m@48Mbps,40m@36Mbps
802.11b
Outdoor:300m@11Mbps,465m@5.5Mbps,500m@2Mbps,515m@1Mbps
Indoor: 60m@11Mbps,70m@5.5Mbps,83m@2Mbps,85m@1Mbps
802.11g
Outdoor: 82m@54Mbps,100m@48Mbps,300m@36Mbps
Indoor:20m@54Mbps,25m@48Mbps,35m@36Mbps
Operation
system supported
Windows 98SE, ME, 2K, XP
Dimension
119mm (L) * 54mm (W) * 9.4 (H)
Security 64-bit,128-bit, 152-bit WEP Encryption
802.1x Authentication
AES-CCM & TKIP Encryption
Operation mode
Infrastructure & Ad-hoc mode
33
Transfer data rate 802.11b/g
11, 5.5, 2, 1 Mbps, auto-fallback, up to 54 Mbps
802.11g (Super mode)
up to 108 Mbps
802.11a (Normal mode)
54, 48, 36, 24, 18, 12, 9, 6Mbps, auto-fallback
802.11a (Turbo mode)
108,96,72,48,36,24,18,12 Mbps, auto-fallback
Operation
temperature
0o ~ 70o C
Storage
temperature
-20o ~ 80o C
Wi-Fi Alliance
WECA Compliant
WHQL Microsoft 2K, XP Complaint
FAA S/W audio On/Off support
EMC certificate FCC part 15 (USA)
IC RSS210 (Canada)
Media access
protocol
CSMA/CA with ACK architecture 32-bit MAC
Embedded
Antenna
Embedded Dual Band Antenna
