I. Introduction
DFCN2 is a kind of NFC (Near Field Communication) module that could be embedded in one IT system
by simply connecting the module to his target microcontroller and start developing his application
software.
II. DESIGNREFERENCE
DFCN2 reference design module consists of the following:
• Reference Design:
When the user wishes to incorporate the DFCN2 to their device, it is strongly recommended that this
reference design is copied “as is” in the final application board to guarantee optimum performance,
regulatory compliance and lowest development time and design effort.
• MCU FPC/FFC Connector:
Allow user to connect the DFCN2 module to the host board via FPC/FFC connector.
• Antenna Connector:
Connected to FPC antenna, please note that matching circuitry should designed on antenna.
USER MANUAL
III. FEATURE
Cont act less prot ocols:
• I SO14443 A/ B
• I SO15693
• I SO18092
Contact less t ransm ission of data and RF energy
Peer- t o- peer com m unication
Card em ulat ion
NFC card reader/ writer
Program m able receiver sensit ivity
Carrier frequency: 13.56 MHz
RF Field detect ion
Single ended external ant enna connect ion

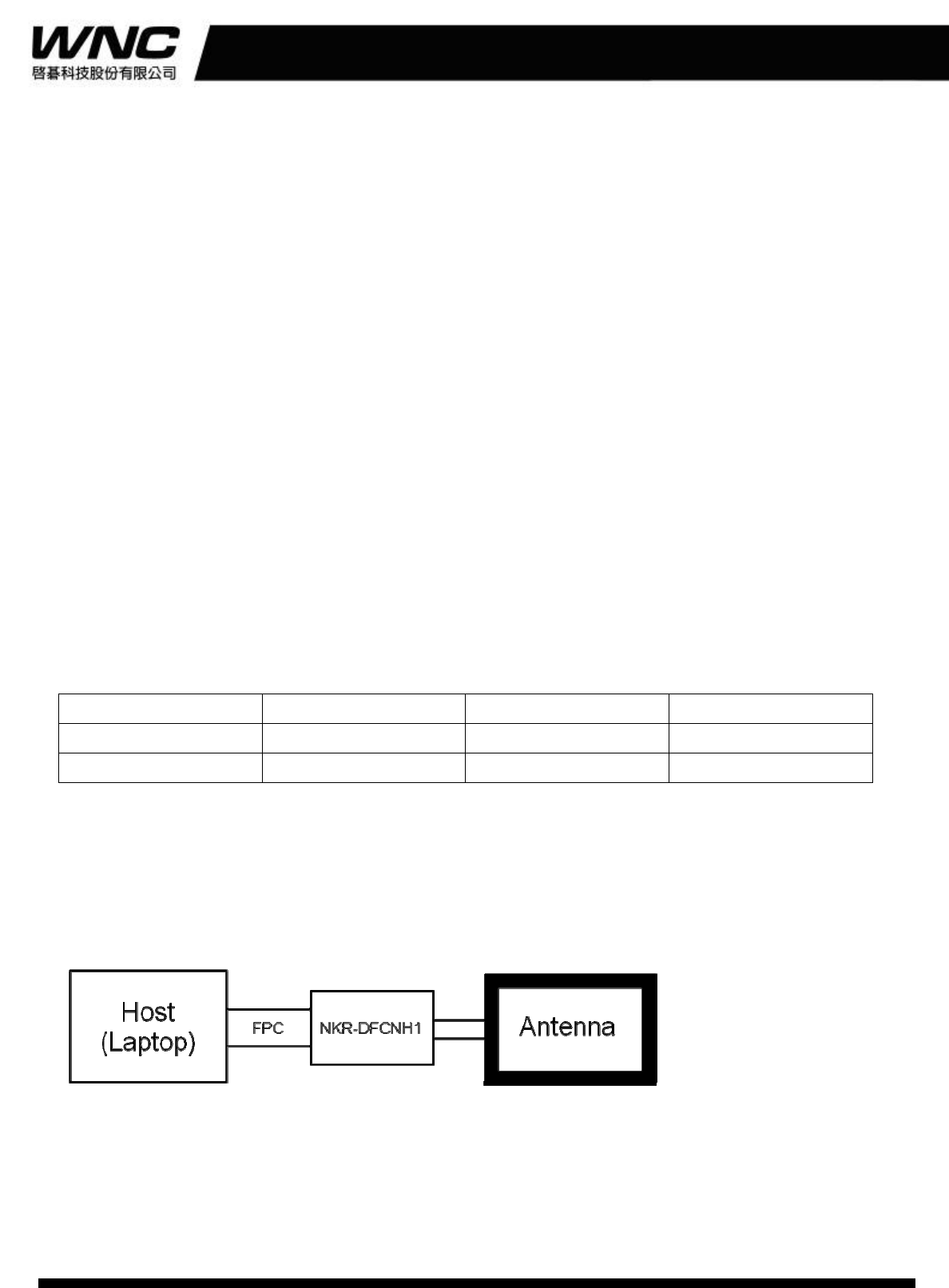

IV. OperationConditions
Supply voltage AC mains DC
Type of DC Source Internal DC supply External DC adapter Battery
Operational Climatic Tnom (20°C) Tmax (55°C) Tnim (-20°C)
V. Assembly Guidelines
USER MANUAL

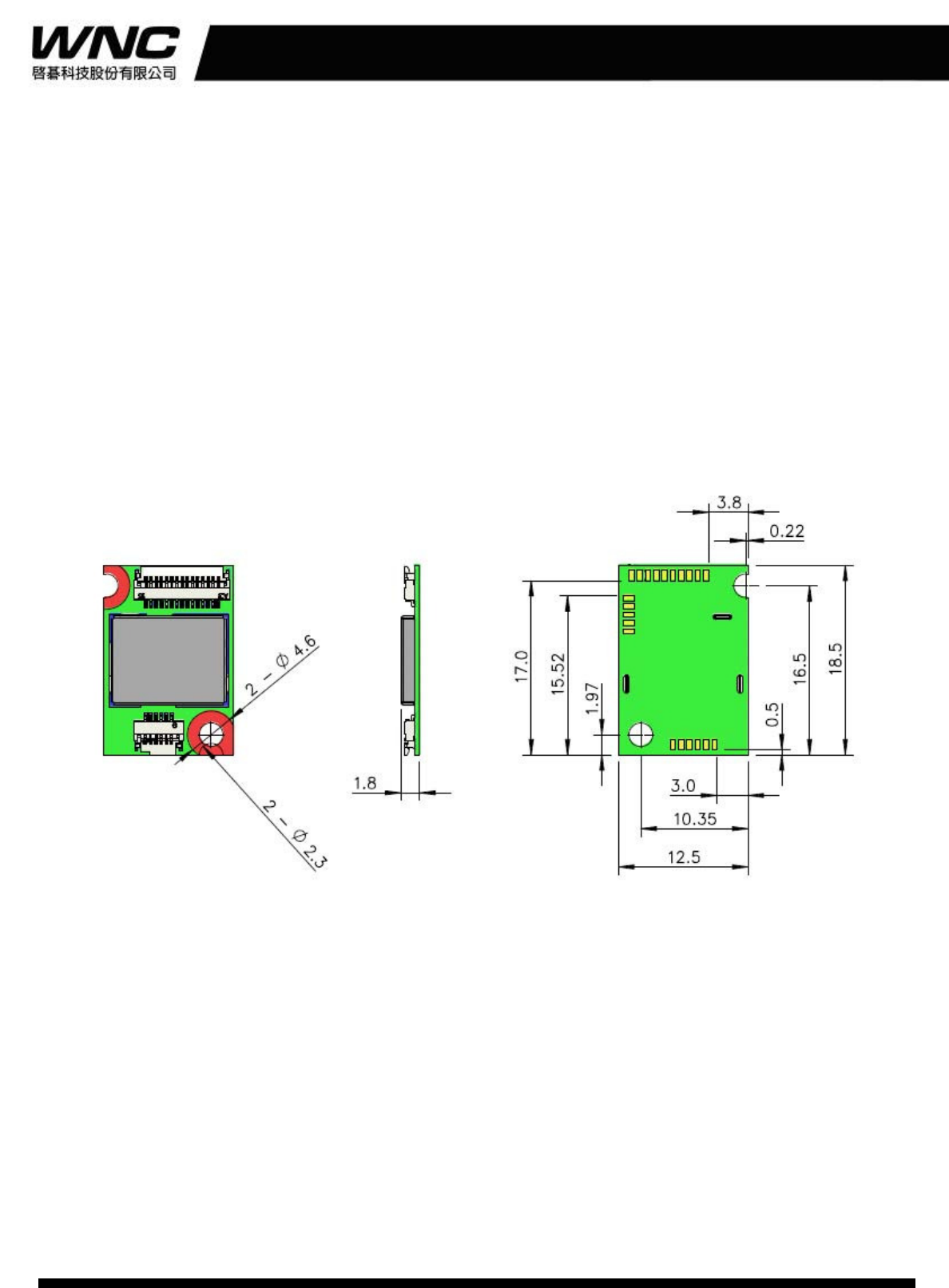

VI. MECHANICALDIMENSION
USER MANUAL
VII. CertificationsandRegulatory
Item Feature Description
6.1 FCC
RF: FCC part 15C
EMI: FCC part 15B
FCC grant: TCB Filing fee
6.2 CE
RF: EN302291 Class B
EMC: EN301489-1/-3
Safety: EN 60950-1:2006/A11:2009
6.3 IC RSS-210 ISSUE 8
RSS-GEN ISSUUE 3
General:
This modular approval is limited to OEM/Integrators installation only.
OEM integrators are responsible for ensuring that the end-user has no manual instructions to remove or
install module.
End Product Labeling (FCC)
When the module is installed in the host device, the FCC ID label must be visible through a window on
the final device or it must be visible when an access panel, door or cover is easily re-moved. If not, a
second label must be placed on the outside of the final device that contains the following text: “Contains
FCC ID: NKR-DFCN2”.
The grantee's FCC ID can be used only when all FCC compliance requirements are met.
Required FCC Compliance Statement for Host Integration
To integrate this module into the host, the host manufacturer is responsible for the applicable FCC rules,
including the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
In the user manual of the host device, the following statements are required to be included.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
USER MANUAL
This device has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiated
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and receiver.
–Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
–Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user‘s authority to operate the equipment.
FCC Module Integration Restriction:
This module has been certified by FCC as single module approval with the following restrictions:
1. The Loop antenna was verified in the conformity testing, and for compliance the antenna shall not be
modified. A separate approval is required for all other operating configurations, including different
antenna configurations.
2. If any other simultaneous transmission radio is installed in the host platform together with this module,
or above restrictions cannot be kept, a separate RF exposure assessment and FCC equipment
authorization is required.
End Product Labeling (IC)
Labeling Requirements for the Host Device (from Section 3.2.1, RSS-Gen, Issue 3, December 2010): The
host device shall be properly labeled to identify the module within the host device. The Industry Canada
certification label of a module shall be clearly visible at all times when installed in the host device,
otherwise the host device must be labeled to display the Industry Canada certification number of the
module, preceded by the words ―Contains transmitter module, or the word ―Contains, or similar
wording expressing the same meaning, as follows: "Contains transmitter module IC: 4441A-DFCN2 ".
Required IC Compliance Statement for Host Integration
To integrate this module into the host, the host manufacturer is responsible for the applicable Industry
Canada rules, including the limits for a Class B digital device, pursuant to ICES-003 of the Industry
Canada Rules
USER MANUAL
In the user manual of the host device, the following statements are required to be included.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to
the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement."
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
IC Module Integration Restriction:
This module has been certified by Industry Canada as modular approval with the following restrictions:
1. The Loop antenna was verified in the conformity testing, and for compliance the antenna shall not be
modified. A separate approval is required for all other operating configurations, including different
antenna configurations.
2. If any other simultaneous transmission radio is installed in the host platform together with this module,
or above restrictions cannot be kept, a separate RF exposure assessment and IC equipment certification
is required.
