Wistron NeWeb DHUAW8S WLAN/Bluetooth module - 802.11ac/a/b/g/n 2x2 & BT4.1 User Manual Product Specifications
Wistron NeWeb Corporation WLAN/Bluetooth module - 802.11ac/a/b/g/n 2x2 & BT4.1 Product Specifications
Users Manual
MODEL: DHUA-W8S
Confidential. Wistron Neweb Corporation
1 / 20
To Wistron Date: 2017/12/19
Delivery Specifications
Product Description
WLAN 802.11ac a/b/g/n + Bluetooth 4.1 Combo Module
Customer Part Number
054.03007.M001
WNC Part Number
91DHUA13.G11
WNC Model Name
DHUA-W8S
Issue Version :
V1.0
Manufacturer
Wistron NeWeb Corporation (WNC)
Address: 20 Park Avenue II Road, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
(ZIP Code: 308)
Tel: +886-3-666-7799
Production Factory
Wistron NeWeb (Kunshan) Corporation
Address: 789 Yujinxiang Road, Comprehensive Free Trade Zone, Kunshan City, Jiangsu
Province, P.R.C (ZIP Code: 215300)
Tel: 0086-512-5772-2688
Production Country
People’s Republic of China
PO Reception & Invoice
Release Company
ANC holding Corporation
P.O. Box 3152, Road Town, Tortola, British Virgin Islands
MODEL: DHUA-W8S
Confidential. Wistron Neweb Corporation
3 / 20
Contents
1. Production Introduction ............................................................................................. 4

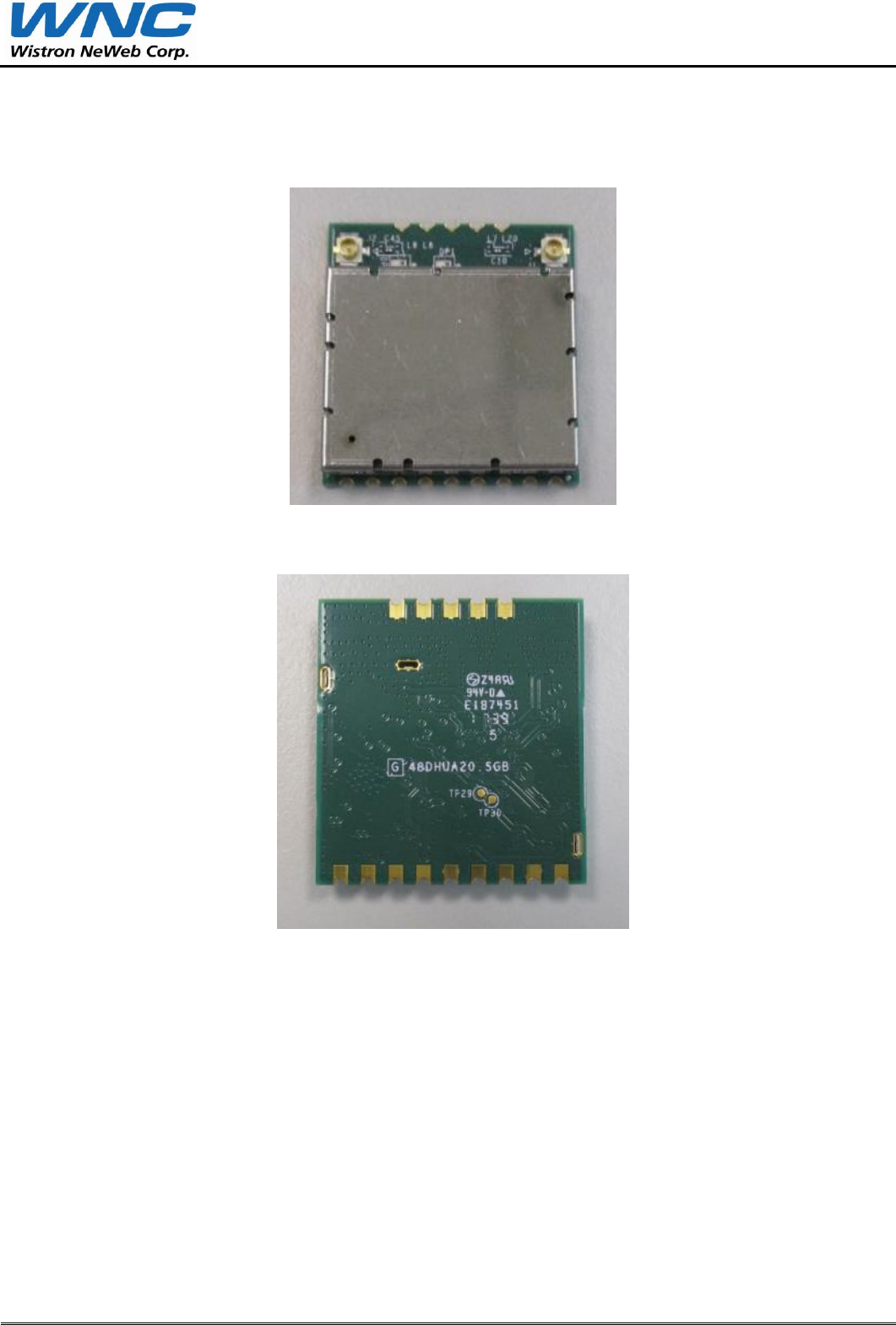

2. Photo Photograph ...................................................................................................... 5
3. Functional Block Diagram ......................................................................................... 6

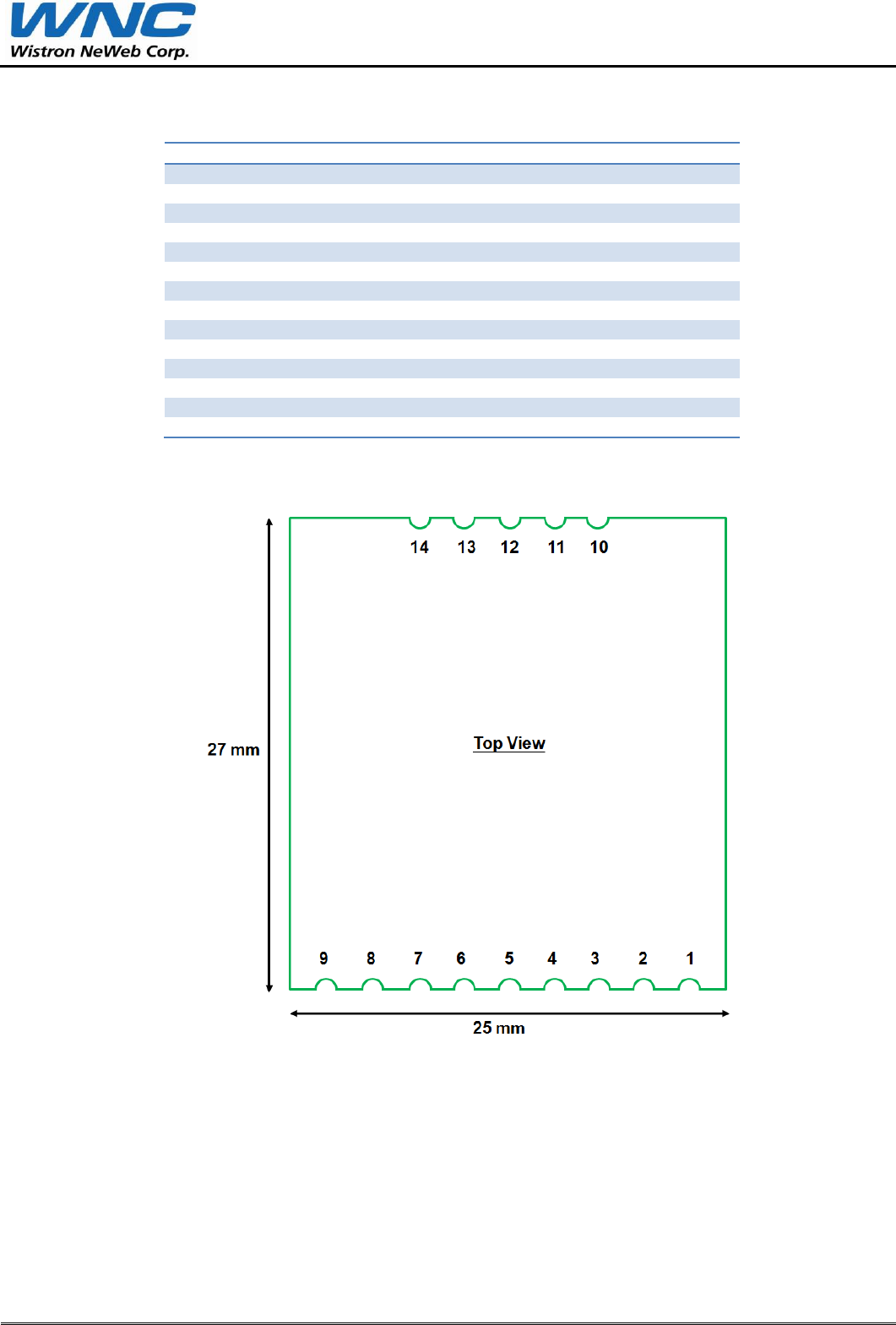

4. I/O Pin Definition ......................................................................................................... 7
5. Product Specification ................................................................................................. 8
5.1 WLAN portion ............................................................................................................................................ 8
5.2 BT portion.................................................................................................................................................. 15
5.3 EEPROM Information ............................................................................................................................... 16
6. Schematic.................................................................................................................... 17
7. PCB Layout ................................................................................................................. 20
8. Mechanical Dimension ............................................................................................... 22
8.1 Connector Dimension ............................................................................................................................... 22
8.2 Shielding Dimension ................................................................................................................................. 24
8.3 Module Dimension .................................................................................................................................... 27
9. Module Label Information .......................................................................................... 28
10. Packing Information ................................................................................................... 29
10.1 Packing Assembly ..................................................................................................................................... 29
10.2 Carton Label Information .......................................................................................................................... 29
11. BOM ............................................................................................................................. 30
12. Reliability Specifications ........................................................................................... 31
13. Component Certification Marks/File No. ................................................................. 33
14. Moisture-Sensitive Caution ....................................................................................... 38
MODEL: DHUA-W8S
Confidential. Wistron Neweb Corporation
4 / 20
1. Product Introduction
DHUA-W8S is a WLAN / Bluetooth combo USB module based on Qualcomm Atheros
QCA9378-7 chipset solution.
Features
[WLAN] IEEE 802.11 ac/a/b/g/n compliance
[WLAN] Supports 20 MHz at 2.4GHz and 20/40/80 MHz at 5 GHz.
[WLAN] The maximum data rate up to 867 Mbps (5GHz, 80MHz, NSS2,MCS9, SGI)
[BT] Bluetooth 4.1 (BDR/EDR/LE)
[BT] Bluetooth class-1 or 2 transmitter operation
Wake on WLAN/Bluetooth function
Single-side SMT process (stamp module)
Two RF connector for external antenna
Interfaces and Power supply
14 pins I/O stamp module
WLAN / Bluetooth RF interface
USB interface (USB 2.0 for WLAN, and USB 1.1 for Bluetooth)
3.3V/1.5A power supply required
MODEL: DHUA-W8S
Confidential. Wistron Neweb Corporation
7 / 20
5. Product Specification
5.1 WLAN portion
Item
Key specifications
Main chipset
QCA QCA9378-7
TX/RX
2T2R
Frequency
range
2.400 ~ 2.497GHz,5.15GHz ~ 5.85GHz
Modulation
technique
802.11 a/b/g
DSSS (DBPSK, DQPSK, CCK)
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
DSSS (Direct Sequence Spread Spectrum) with
DBPSK (Differential Binary Phase Shift Keying 1Mbps),
DQPSK (Differential Quaternary Phase Shift Keying 2Mbps), and
CCK (Complementary Code Keying 5.5&11Mbps), and
OFDM (Orthogonal Frequency Division Multiplexing with BPSK for 6,9Mbps、 QPSK for
12,18Mbps、 16QAM for 24,36Mbps、 64QAM for 48,54Mbps)
802.11n a/g
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11 ac
OFDM (BPSK, QPSK, 16-QAM, 64-QAM,256-QAM)
Host
interface
USB 2.0
Operation
voltage
3.3 V DC +/-5% (including voltage ripple)
Current
consumption
@3.3V, 25 o
C
Mode
Average
Peak
2.4 GHz
5 GHz
2.4 GHz
5 GHz
WLAN Tx
850 mA
1080 mA
960 mA
1260 mA
WLAN Rx
160 mA
160 mA
280 mA
280 mA
Driver disable
110 mA
220 mA
Standby
WLAN+BT
100 mA
200 mA
*WLAN Tx/Rx means continuous Tx/Rx
**Current consumption, measured on PC platform.
The maximum power-on inrush current consumption is 1.5A within 10us.
MODEL: DHUA-W8S
Confidential. Wistron Neweb Corporation
8 / 20
Output power
(for each
chain;
tolerance
+1.5/-1.5 dB)
802.11a
Test Frequencies 6-12_Target 18_Target 24_Target 36_Target 48_Target 54_Target
5180 14 14 14 13 12 12
5320 14 14 14 13 12 12
5500 14 14 14 13 12 12
5600 14 14 14 13 12 12
5700 14 14 14 13 12 12
5825 14 14 14 13 12 12
802.11b
Test Frequencies 1/2_Target 5.5_Target 11_Target
2412 15 15 15
2442 15 15 15
2472 15 15 15
802.11g
Test Frequencies 6-12_Target 18_Target 24_Target 36_Target 48_Target 54_Target
2412 14 14 14 14 14 14
2442 14 14 14 14 14 14
2472 14 14 14 14 14 14
802.11n
Freq. Range: HT20
Test Freq MCS 0/8 MCS 1/9 MCS 2/10 MCS 3/11 MCS 4/12 MCS 5/13 MCS 6/14 MCS 7/15
5180 11 11 11 11 11 11 11 11
5240 11 11 11 11 11 11 11 11
5320 11 11 11 11 11 11 11 11
5500 11 11 11 11 11 11 11 11
5700 11 11 11 11 11 11 11 11
5745 11 11 11 11 11 11 11 11
5825 11 11 11 11 11 11 11 11
Freq. Range: HT40
Test Freq MCS 0/8 MCS 1/9 MCS 2/10 MCS 3/11 MCS 4/12 MCS 5/13 MCS 6/14 MCS 7/15
5190 11 11 11 11 11 11 11 11
5230 11 11 11 11 11 11 11 11
5270 11 11 11 11 11 11 11 11
5510 11 11 11 11 11 11 11 11
5670 11 11 11 11 11 11 11 11
5755 11 11 11 11 11 11 11 11
5795 11 11 11 11 11 11 11 11
Freq. Range: HT20
Test Freq MCS 0/8 MCS 1/9 MCS 2/10 MCS 3/11 MCS 4/12 MCS 5/13 MCS 6/14 MCS 7/15
2412 14 14 14 14 14 14 14 14
2447 14 14 14 14 14 14 14 14
2472 14 14 14 14 14 14 14 14
Freq. Range: HT40
Test Freq MCS 0/8 MCS 1/9 MCS 2/10 MCS 3/11 MCS 4/12 MCS 5/13 MCS 6/14 MCS 7/15
2422 14 14 14 14 14 14 14 14
2447 14 14 14 14 14 14 14 14
2462 14 14 14 14 14 14 14 14
802.11ac
Freq. Range: HT80
Test Freq MCS 0 MCS 1 MCS 2 MCS 3 MCS 4 MCS 5 MCS 6 MCS 7 MCS 8 MCS 9
5210 8 8 8 8 8 8 8 8 7 7
5290 8 8 8 8 8 8 8 8 7 7
5530 8 8 8 8 8 8 8 8 7 7
5610 8 8 8 8 8 8 8 8 7 7
5690 8 8 8 8 8 8 8 8 7 7
5775 8 8 8 8 8 8 8 8 7 7
MODEL: DHUA-W8S
Confidential. Wistron Neweb Corporation
9 / 20
EVM
The transmit modulation accuracy is measured using error vector magnitude (EVM).
EVM is the magnitude of the phase difference as a function of time between an ideal reference
signal and the measured transmitted signal.
802.11a
Modulation
Code Rate
Relative constellation error (dB)
Relative constellation error (dB)
IEEE Spec (1Tx dB)
Typical (1Tx dB)
BPSK
1/2
-5
-15
BPSK
3/4
-8
-18
QPSK
1/2
-10
-20
QPSK
3/4
-13
-22
16-QAM
1/2
-16
-24
16-QAM
3/4
-19
-26
64-QAM
2/3
-22
-28
64-QAM
3/4
-25
-30
802.11b
Modulation
Code Rate
Relative constellation error (dB)
Relative constellation error (dB)
IEEE Spec (1Tx dB)
Typical (1Tx dB)
DBPSK
-10
-12
DQPSK
-10
-12
CCK
-10
-12
802.11g
Modulation
Code Rate
Relative constellation error (dB)
Relative constellation error (dB)
IEEE Spec (1Tx dB)
Typical (1Tx dB)
BPSK
1/2
-5
-15
BPSK
3/4
-8
-18
QPSK
1/2
-10
-20
QPSK
3/4
-13
-22
16-QAM
1/2
-16
-24
16-QAM
3/4
-19
-26
64-QAM
2/3
-22
-28
64-QAM
3/4
-25
-30
802.11ng（HT20）
Modulation
Code Rate
Relative constellation error (dB)
Relative constellation error (dB)
IEEE Spec (1Tx dB)
Typical (1Tx dB)
(MCS0) BPSK
1/2
-5
-15
(MCS1) QPSK
1/2
-10
-18
(MCS2) QPSK
3/4
-13
-20
(MCS3) 16-QAM
1/2
-16
-22
(MCS4) 16-QAM
3/4
-19
-24
(MCS5) 64-QAM
2/3
-22
-26
(MCS6) 64-QAM
3/4
-25
-28
(MCS7) 64-QAM
5/6
-27
-30
(MCS8) BPSK
1/2
-5
-15
(MCS9) QPSK
1/2
-10
-18
(MCS10) QPSK
3/4
-13
-20
(MCS11) 16-QAM
1/2
-16
-22
(MCS12) 16-QAM
3/4
-19
-24
(MCS13) 64-QAM
2/3
-22
-26
(MCS14) 64-QAM
3/4
-25
-28
(MCS15) 64-QAM
5/6
-27
-30
（HT40）
Modulation
Code Rate
Relative constellation error (dB)
Relative constellation error (dB)
IEEE Spec (1Tx dB)
Typical (1Tx dB)
(MCS0) BPSK
1/2
-5
-15
(MCS1) QPSK
1/2
-10
-18
(MCS2) QPSK
3/4
-13
-20
(MCS3) 16-QAM
1/2
-16
-22
MODEL: DHUA-W8S
Confidential. Wistron Neweb Corporation
10 / 20
(MCS4) 16-QAM
3/4
-19
-24
(MCS5) 64-QAM
2/3
-22
-26
(MCS6) 64-QAM
3/4
-25
-28
(MCS7) 64-QAM
5/6
-27
-30
(MCS8) BPSK
1/2
-5
-15
(MCS9) QPSK
1/2
-10
-18
(MCS10) QPSK
3/4
-13
-20
(MCS11) 16-QAM
1/2
-16
-22
(MCS12) 16-QAM
3/4
-19
-24
(MCS13) 64-QAM
2/3
-22
-26
(MCS14) 64-QAM
3/4
-25
-28
(MCS15) 64-QAM
5/6
-27
-30
802.11na（HT20）
Modulation
Code Rate
Relative constellation error (dB)
Relative constellation error (dB)
IEEE Spec (1Tx dB)
Typical (1Tx dB)
(MCS0) BPSK
1/2
-5
-15
(MCS1) QPSK
1/2
-10
-18
(MCS2) QPSK
3/4
-13
-20
(MCS3) 16-QAM
1/2
-16
-22
(MCS4) 16-QAM
3/4
-19
-24
(MCS5) 64-QAM
2/3
-22
-26
(MCS6) 64-QAM
3/4
-25
-28
(MCS7) 64-QAM
5/6
-27
-30
(MCS8) BPSK
1/2
-5
-15
(MCS9) QPSK
1/2
-10
-18
(MCS10) QPSK
3/4
-13
-20
(MCS11) 16-QAM
1/2
-16
-22
(MCS12) 16-QAM
3/4
-19
-24
(MCS13) 64-QAM
2/3
-22
-26
(MCS14) 64-QAM
3/4
-25
-28
(MCS15) 64-QAM
5/6
-27
-30
（HT40）
Modulation
Code Rate
Relative constellation error (dB)
Relative constellation error (dB)
IEEE Spec (1Tx dB)
Typical (1Tx dB)
(MCS0) BPSK
1/2
-5
-15
(MCS1) QPSK
1/2
-10
-18
(MCS2) QPSK
3/4
-13
-20
(MCS3) 16-QAM
1/2
-16
-22
(MCS4) 16-QAM
3/4
-19
-24
(MCS5) 64-QAM
2/3
-22
-26
(MCS6) 64-QAM
3/4
-25
-28
(MCS7) 64-QAM
5/6
-27
-30
(MCS8) BPSK
1/2
-5
-15
(MCS9) QPSK
1/2
-10
-18
(MCS10) QPSK
3/4
-13
-20
(MCS11) 16-QAM
1/2
-16
-22
(MCS12) 16-QAM
3/4
-19
-24
(MCS13) 64-QAM
2/3
-22
-26
(MCS14) 64-QAM
3/4
-25
-28
(MCS15) 64-QAM
5/6
-27
-30
802.11ac（HT80）
Modulation
Code Rate
Relative constellation error (dB)
Relative constellation error (dB)
IEEE Spec (1Tx dB)
Typical (1Tx dB)
(MCS0) BPSK
1/2
-5
-15
(MCS1) QPSK
1/2
-10
-18
(MCS2) QPSK
3/4
-13
-20
(MCS3) 16-QAM
1/2
-16
-22
(MCS4) 16-QAM
3/4
-19
-24
MODEL: DHUA-W8S
Confidential. Wistron Neweb Corporation
11 / 20
(MCS5) 64-QAM
2/3
-22
-26
(MCS6) 64-QAM
3/4
-25
-28
(MCS7) 64-QAM
5/6
-27
-30
(MCS8) 256-QAM
3/4
-30
-32
(MCS9) 256-QAM
5/6
-32
-33.5
Sensitivity
802.11a
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
BPSK
1/2
-82
-88
BPSK
3/4
-81
-86
QPSK
1/2
-79
-84
QPSK
3/4
-77
-82
16-QAM
1/2
-74
-78
16-QAM
3/4
-70
-76
64-QAM
2/3
-66
-72
64-QAM
3/4
-65
-70
802.11b
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
DBPSK
not specified
-92
DQPSK
not specified
-90
CCK
not specified
-86
802.11g
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
BPSK
1/2
-82
-90
BPSK
3/4
-81
-88
QPSK
1/2
-79
-86
QPSK
3/4
-77
-84
16-QAM
1/2
-74
-82
16-QAM
3/4
-70
-78
64-QAM
2/3
-66
-74
64-QAM
3/4
-65
-72
802.11ng（HT20）
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
(MCS0) BPSK
1/2
-82
-88
(MCS1) QPSK
1/2
-79
-86
(MCS2) QPSK
3/4
-77
-82
(MCS3) 16-QAM
1/2
-74
-80
(MCS4) 16-QAM
3/4
-70
-76
(MCS5) 64-QAM
2/3
-66
-73
(MCS6) 64-QAM
3/4
-65
-71
(MCS7) 64-QAM
5/6
-64
-69
（HT40）
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
(MCS0) BPSK
1/2
-79
-86
(MCS1) QPSK
1/2
-76
-82
(MCS2) QPSK
3/4
-74
-80
(MCS3) 16-QAM
1/2
-71
-77
(MCS4) 16-QAM
3/4
-67
-74
(MCS5) 64-QAM
2/3
-63
-69
(MCS6) 64-QAM
3/4
-62
-68
(MCS7) 64-QAM
5/6
-61
-66
802.11na（HT20）
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
(MCS0) BPSK
1/2
-82
-86
(MCS1) QPSK
1/2
-79
-84
(MCS2) QPSK
3/4
-77
-82
(MCS3) 16-QAM
1/2
-74
-80
MODEL: DHUA-W8S
Confidential. Wistron Neweb Corporation
12 / 20
(MCS4) 16-QAM
3/4
-70
-77
(MCS5) 64-QAM
2/3
-66
-71
(MCS6) 64-QAM
3/4
-65
-70
(MCS7) 64-QAM
5/6
-64
-69
（HT40）
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
(MCS0) BPSK
1/2
-79
-84
(MCS1) QPSK
1/2
-76
-80
(MCS2) QPSK
3/4
-74
-78
(MCS3) 16-QAM
1/2
-71
-75
(MCS4) 16-QAM
3/4
-67
-71
(MCS5) 64-QAM
2/3
-63
-67
(MCS6) 64-QAM
3/4
-62
-66
(MCS7) 64-QAM
5/6
-61
-64
802.11ac（HT80）
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
(MCS0) BPSK
1/2
-76
-80
(MCS1) QPSK
1/2
-73
-77
(MCS2) QPSK
3/4
-71
-75
(MCS3) 16-QAM
1/2
-68
-72
(MCS4) 16-QAM
3/4
-64
-68
(MCS5) 64-QAM
2/3
-60
-64
(MCS6) 64-QAM
3/4
-59
-63
(MCS7) 64-QAM
5/6
-58
-62
(MCS8) 256-QAM
3/4
-53
-59
(MCS9) 256-QAM
5/6
-51
-56
Transmit
spectrum
mask
For transmitted spectral mask for 11b shall be less than –50dBr for 22MHz<f<fc+22MHz.
For transmitted spectral mask for 11g shall be less than –40dBr for fc–30MHz<f<fc+30MHz.
For transmitted spectral mask for 11n 20MHz shall be less than –45dBr for
fc–30MHz<f<fc+30MHz.
For transmitted spectral mask for 11n 40MHz shall be less than –45dBr for
fc–60MHz<f<fc+60MHz.
Transmit
spectrum
flatness
For 802.11g the average energy of the constellations in each of spectral lines –16..-1
and +1..+16 will deviate no more than +/- 2dB from their average energy.
For 802.11n 40MHz mode, the average energy of the constellations in each of spectral
lines –42..-2 and +2..+42 will deviate no more than +/- 2dB from their average energy.
The transmitted spectral flatness should be with in +2/- 4dB.
Transmit
center
frequency
tolerance
The transmitted center frequency tolerance shall be ±20 ppm maximum.
Carrier
suppression
802.11a:
The leakage of the center frequency component shall not exceed -15 dB relative to
overall transmitted power or, equivalently, +2 dB relative to the average energy of the
rest of the sub-carriers.
802.11b:
The RF carrier suppression, measured at the channel center frequency, shall be at least
15 dB below the peak SIN(x)/x power spectrum.
802.11g:
The leakage of the center frequency component shall not exceed -15 dB relative to
overall transmitted power or, equivalently, +2 dB relative to the average energy of the
rest of the sub-carriers.
802.11n:
For all 20 MHz modes of transmission
The leakage of the center frequency component shall not exceed -15 dB relative to
overall transmitted power or, equivalently, +2 dB relative to the average energy of the
rest of the sub-carriers.
For all 40 MHz modes of transmission
The center frequency leakage shall not exceed -18 dB relative to overall transmitted
power or equivalently, +2 dB relative to the average energy of the rest of the sub-carriers.
MODEL: DHUA-W8S
Confidential. Wistron Neweb Corporation
13 / 20
Transmit
power on
ramp and
power down
ramp time
The transmitting power-on ramp for 10% to 90% of maximum power m shall be no greater than 2 µs.
The transmitting power-down ramp for 90% to 10% of maximum power shall be no greater than 2 µs.
Receiver
maximum
input level
802.11a
Modulation Code Rate IEEE Spec (1Rx dBm)
>-30
802.11b
Modulation IEEE Spec (1Rx dBm)
DBPSK >-10
DQPSK >-10
CCK >-10
802.11g
Modulation Code Rate IEEE Spec (1Rx dBm)
>-20
802.11na
Modulation Code Rate IEEE Spec (1Rx dBm)
>-30
802.11ng
Modulation Code Rate IEEE Spec (1Rx dBm)
>-20
802.11ac
Modulation Code Rate IEEE Spec (1Rx dBm)
>-30
PCB
dimension
100+/-0.2.mm x 18.00+/-0.2mm x 1.0+/-0.1mm 4L FR4
Transfer data
rate
802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: @800GI(400GI)
20MHz BW
1 Nss: 65(72.2) Mbps maximal
2 Nss: 130(144.444) Mbps maximal
40MHz BW
1 Nss: 135(150) Mbps maximal
2 Nss: 270(300) Mbps maximal
802.11ac: @800GI(400GI)
80MHz BW
1 Nss: 390(433.3) Mbps maximal
2 Nss: 780(866.7) Mbps maximal
Security
WEP, WPA ,WPA2 ,AES, TKIP
Operation
temperature
-10o ~ 60o C
Storage
temperature
- 35o ~ 70o C ,R.H:90%
RF port
2 RF connector for external antenna (ANT-0 and ANT1)
PID/VID
PID: 9378, VID: 0CF3
MODEL: DHUA-W8S
Confidential. Wistron Neweb Corporation
14 / 20
5.2 BT portion
Item
Key specifications
Main chipset
QCA QCA9378-7
Compliance
Bluetooth v4.1 LE
Frequency
range
2402 ~ 2480 MHz
Initial carrier
frequency
tolerance
+/- 20 kHz (typical)
Modulation
technique
Frequency hopping, 1600 hops/sec
Channel
spacing
1 MHz
Channels
support
79 channels for Bluetooth, 40 channels for BLE
Operation
voltage
3.3V +/- 5% (including voltage ripple)
Current
consumption
@3.3V, 25 o
C
Avg (mA)
Max (mA)
Idle mode
160
310
Continuous DH5 TX
220
370
Continuous 2DH5 TX
220
370
Continuous 3DH5 TX
220
370
*Measured on PC platform.
Output power
(dBm)
Class 1, BT output power is adjusted by FW .
Sensitivity
-80 dBm (typ.) for pi/4-DQPSK, 0.1%BER
Operation
temperature
-10o ~ 60o C
Storage
temperature
-35o ~ 70o C , R.H. : 90%
RF port
1 RF connector (co-used with WLAN ANT-0) for external antenna
PID/VID
PID: 3004, VID: 0CF3
MODEL: DHUA-W8S
Confidential. Wistron Neweb Corporation
16 / 20
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Country Code selection feature to be disabled for products marketed to the US/CANADA
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and
users, and
2) The transmitter module may not be co-located with any other transmitter or antenna,
3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for
2.4G band by supplied firmware programming tool. OEM shall not supply any tool or info
to the end-user regarding to Regulatory Domain change.
MODEL: DHUA-W8S
Confidential. Wistron Neweb Corporation
17 / 20
As long as 3 conditions above are met, further transmitter test will not be required. However, the
OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed
IMPORTANT NOTE
In the event that these conditions can not be met (for example certain laptop configurations or co-
location with another transmitter), then the FCC authorization is no longer considered valid and the
FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and obtaining a separate
FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed
such that 20 cm may be maintained between the antenna and users. The final end product must
be labeled in a visible area with the following: “Contains FCC ID: NKR-DHUAW8S”.
Manual Information to the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user’s manual of the end product which integrates this
module.
The end user manual shall include all required regulatory information/warning as show in this
manual.
MODEL: DHUA-W8S
Confidential. Wistron Neweb Corporation
18 / 20
Industry Canada statement:
This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the
following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
1) l’appareil ne doit pas produire de brouillage;
2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.
This radio transmitter (IC: 4441A-DHUAW8S) has been approved by Industry Canada to operate
with the antenna types listed below with the maximum permissible gain indicated. Antenna types
not included in this list, having a gain greater than the maximum gain indicated for that type, are
strictly prohibited for use with this device.
Le présent émetteur radio (IC: 4441A-DHUAW8S) a été approuvé par Industrie Canada pour
fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal.
Les types d'antenne non inclus dans cette liste, et dont le gain est supérieur au gain maximal
indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
Wi Fi Antenna info.
Antenna
Peak gain ( dBi )
Model
Type
Connector
2400~2483.5MHz
5150~5250MHz
5250~5350MHz
5470~5725MHz
5725~5850MHz
025.9019W.0001
PIFA
UFL
-1.9
2.2
2.5
3.2
3.4
025.9019V.0001
PIFA
UFL
-3.5
3.1
3.3
3.7
3.9
025.9019U.0001
PIFA
UFL
-3.4
0.7
1.1
1.4
1.2
BT Antenna info.
Type
Connector
Peak Gain(dBi)
PIFA
UFL
-1.9
MODEL: DHUA-W8S
Confidential. Wistron Neweb Corporation
19 / 20
Caution:
(i) the device for operation in the band 5150–5250 MHz is only for indoor use to reduce the
potential for harmful interference to co-channel mobile satellite systems;
(ii) for devices with detachable antenna(s), the maximum antenna gain permitted for devices in the
bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with
the e.i.r.p. limit;
(iii) for devices with detachable antenna(s), the maximum antenna gain permitted for devices in
the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits
specified for point-to-point and non-point-to-point operation as appropriate; and
Avertissement:
(i) les dispositifs fonctionnant dans la bande de 5150 à 5250MHz sont réservés uniquement
pour une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes
de satellites mobiles utilisant les mêmes canaux;
(ii) pour les dispositifs munis d'antennes amovibles, le gain maximal d'antenne permis pour les
dispositifs utilisant les bandes de 5250 à 5350MHz et de 5470 à 5725 MHz doit être conforme à la
limite de la p.i.r.e;
(iii) pour les dispositifs munis d'antennes amovibles, le gain maximal d'antenne permis (pour
les dispositifs utilisant la bande de 5725 à 5850 MHz) doit être conforme à la limite de la p.i.r.e.
spécifiée pour l'exploitation point à point et l'exploitation non point à point, selon le cas;
Les opérations dans la bande de 5.25-5.35GHz sont limités à un usage intérieur seulement.
Radiation Exposure Statement:
This equipment complies with Canada radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme Canada limites d'exposition aux radiations dans un environnement
non contrôlé. Cet équipement doit être installé et utilisé à distance minimum de 20cm entre le
radiateur et votre corps.
This device is intended only for OEM integrators under the following conditions:
1) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 1 condition above are met, further transmitter test will not be required. However, the
OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed.
MODEL: DHUA-W8S
Confidential. Wistron Neweb Corporation
20 / 20
Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes:
1) Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne.
Tant que les 1 condition ci-dessus sont remplies, des essais supplémentaires sur l'émetteur ne
seront pas nécessaires. Toutefois, l'intégrateur OEM est toujours responsable des essais sur son
produit final pour toutes exigences de conformité supplémentaires requis pour ce module installé.
IMPORTANT NOTE:
In the event that these conditions can not be met (for example certain laptop configurations or co-
location with another transmitter), then the Canada authorization is no longer considered valid and
the IC ID can not be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and obtaining a separate
Canada authorization.
NOTE IMPORTANTE:
Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour certaines
configurations d'ordinateur portable ou de certaines co-localisation avec un autre émetteur),
l'autorisation du Canada n'est plus considéré comme valide et l'ID IC ne peut pas être utilisé sur le
produit final. Dans ces circonstances, l'intégrateur OEM sera chargé de réévaluer le produit final (y
compris l'émetteur) et l'obtention d'une autorisation distincte au Canada.
End Product Labeling
The final end product must be labeled in a visible area with the following: “Contains IC: 4441A-
DHUAW8S”.
Plaque signalétique du produit final
Le produit final doit être étiqueté dans un endroit visible avec l'inscription suivante: "Contient des
IC: 4441A-DHUAW8S".
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user’s manual of the end product which integrates this
module.
The end user manual shall include all required regulatory information/warning as show in this
manual.
Manuel d'information à l'utilisateur final
L'intégrateur OEM doit être conscient de ne pas fournir des informations à l'utilisateur final quant à
la façon d'installer ou de supprimer ce module RF dans le manuel de l'utilisateur du produit final
qui intègre ce module.
Le manuel de l'utilisateur final doit inclure toutes les informations réglementaires requises et
avertissements comme indiqué dans ce manuel.
