User manual

WLD71-T3 LTE Router

User Manual

Safety Precautions

Please read this user’s manual before operating this product.

The information contained in this document is subject to

change without notice. Features or specifications may be

different depending on the type of product model purchased.

Safe Use of This Product

Carefully follow the warnings and safety notices presented

within this manual. Please pay special attention to the

following indications of potentially hazardous situations:

Warning:

Indicates a hazardous situation, which, if not avoided, could

result in serious injury.

Caution:

Indicates a situation, which, if not avoided, could damage this

product or other devices.

Note:

Indicates additional user information to make the user aware

of possible problems and to help the user understand, use and

maintain the product.

 This product needs only an occasional wipe with a dry

cloth.

 Avoid high moisture conditions and keep away from liquids

and humidity.

 Do not install or use the product where it is exposed to

direct sunlight or heat.

 Care must be taken when using the device in close

proximity to personal medical devices, such as pacemakers

and hearing aids.

 Do not use this product in environments with a potential

explosion hazard.

 The product must be placed horizontally on a hard flat

surface. Do not place the product where it may be subject

to physical shock or vibration or where the product may

drop, topple, slide or shake, which may cause personal

injury or damage to the product.

 If lightning is expected, or the product is not going to be

used for a long period of time, unplug the power cord from

the unit.

 The use of electronic transmitting devices in aircraft,

hospitals and petrol stations is forbidden. Please follow the

rules and warnings in these conditions.

 The product must ONLY be used with the power supply

cord and power adapter supplied by the manufacturer.

 Openings on the housing of the product are required for

ventilation. Do not block or obstruct the airflow through

these openings.

 Do not operate the product on a soft surface such as a

carpet, rug, bed, etc.

FEDERAL COMMUNICATIONS COMMISSION

INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses and can radiates

radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try

to correct the interference by one or more of the following

measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and

receiver.

 Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

 Consult the dealer or an experienced radio/ TV technician

for help.

RF Exposure Warning

This equipment must be installed and operated in accordance

with provided instructions and the antenna(s) used for this

transmitter must be installed to provide a separation distance

of at least 20 cm from all persons and must not be co-located

or operating in conjunction with any other antenna or

transmitter. End-users and installers must be provided with

antenna installation instructions and transmitter operating

conditions for satisfying RF exposure compliance.

CAUTION:

Any changes or modifications not expressly approved by the

grantee of this device could void the user's authority to

operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) this device may not

cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause

undesired operation.

This radio device has been tested to operate with the WWAN

external antenna types listed below with the maximum

permissible gain and required antenna impedance for each

antenna type indicated. Antenna types not included in this list,

having a gain greater than the maximum gain indicated for that

type, are strictly prohibited for use with this device.

Antenna type: Dipole

Antenna peak Gain (dBi)

2.78 dBi (max.) @ 698 MHz to 960 MHz

2.16 dBi (max.) @ 1710 MHz to 2170 MHz

2.77 dBi (max.) @ 2300 MHz to 2690 MHz

Table of Contents

1. UNPACKING INFORMATION .......................................... 8

2. INTRODUCTION ............................................................. 9

2.1 REAR PANEL ............................................................... 9

2.2 LED DEFINITIONS ...................................................... 10

3. INSTALLATION ............................................................. 12

4. CONNECT DEVICES TO THE ROUTER............................. 14

5. WEB USER INTERFACE ................................................. 18

5.1 ACCESSING THE WEB USER INTERFACE .......................... 18

5.2 WEB USER INTERFACE INTRODUCTION .......................... 19

6. HOME .......................................................................... 20

7. WI-FI ............................................................................ 21

7.1 WLAN SETTINGS ...................................................... 22

7.2 WLAN ADVANCED SETTINGS ...................................... 24

7.3 WLAN MAC FILTER .................................................. 27

7.4 WPS SETTINGS ......................................................... 27

7.5 CONNECTED DEVICES ................................................. 29

8. SETTINGS ..................................................................... 30

8.1 QUICK SETUP ............................................................ 31

8.2 DIAL-UP .................................................................. 34

8.3 ETHERNET ................................................................ 39

8.4 SECURITY ................................................................. 44

8.5 DHCP ..................................................................... 55

8.6 STATISTICS ............................................................... 56

8.7 ANTENNA ................................................................ 58

8.8 VOICE ..................................................................... 59

9. SYSTEM ....................................................................... 64

9.1 DEVICE INFORMATION ................................................ 64

9.2 MODIFY PASSWORD .................................................. 65

9.3 DIAGNOSIS ............................................................... 66

9.4 RESTORE DEFAULTS ................................................... 67

9.5 REBOOT................................................................... 68

9.6 DATE AND TIME ........................................................ 68

9.7 SMS ....................................................................... 70

10. UPDATE................................................................... 71

10.1 ONLINE UPDATE........................................................ 71

10.2 LOCAL UPDATE ......................................................... 71

11. SPECIFICATIONS ...................................................... 72

1. Unpacking Information

Thank you for purchasing this product. Before installation,

please confirm you have all required items on hand:

 WLD71-T3 LTE Router × 1

 Power Adaptor: AC 90 V–264 V (47 Hz–63 Hz) input,

DC 12 V output (1 A) × 1

 Ethernet Cable × 1

 Telephone Cable × 1

 Quick Start Guide × 1

 Warranty Card × 1



2. Introduction

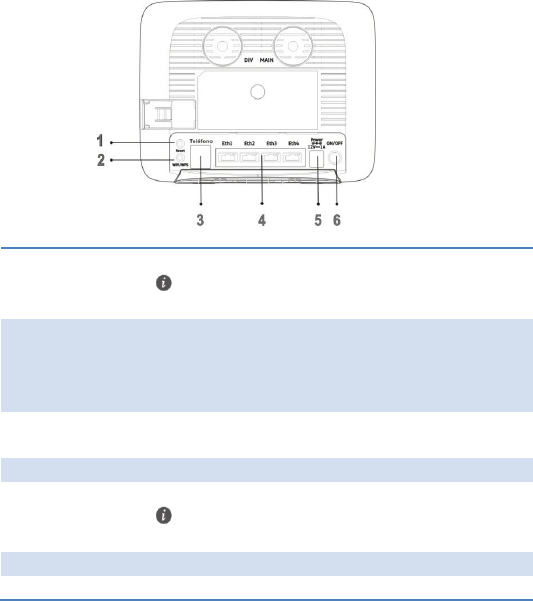

2.1 Rear Panel

1. Reset

Reset the Router by pressing this button.

Resetting the router defaults will erase all

previous settings.

2. Wi-Fi/WPS

Connect to other WPS-compatible devices by

pressing this button.

Wi-Fi function is turned on/off by a long press

(for 5 seconds).

WPS association window is activated by a short

press (less than 3 seconds).

3. Phone

Allows connection to the telephone line.

4. Ethernet

ports 1–4

Connect to your devices such as a PC and laptop.

Eth1 also functions as a WAN port for

connecting to a DSL or cable modem.

5. 12 V

Connect to the power adapter

6. ON/OFF

Press to turn the power on or off.

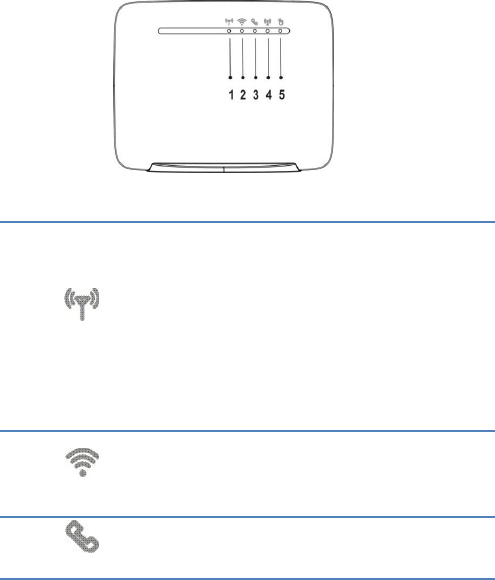

2.2 LED Definitions

4G/3G/2G

Network

Cyan: Connected to 4G network

Blue: Connected to 3G network

Green: Connected to 2G network

Blinking red (2 times per second):

Connection failure

Red: Failure during POST

(power-on self-test), or error due

to hardware or firmware problems

2. Signal Strength

Blue: Good coverage

Green: Minimum coverage

Blinking red: No signal

Telephone

Blue: Off-hook

Off: On-hook

4. Wi-Fi/WPS

Blue: Wi-Fi enabled

Blinking blue: A WPS connection is being

established.

Off: Wi-Fi function off

Internet

Blue: Internet connection in progress

Off: No internet connection

3. Installation

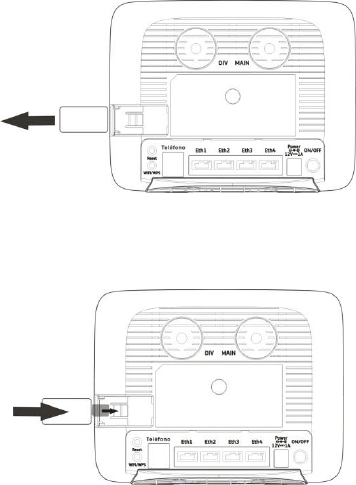

1. Open the SIM card slot cover.

2. Insert a SIM card into the SIM card slot

3. Slide the cover back over the SIM card slot.

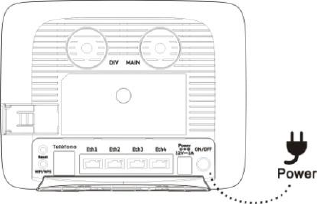

4. Connect the Router to the power adapter and plug the

power adapter into a wall outlet.

Note: Always use the adapter that comes with the Router

for the power supply.

5. Turn on the power switch of the Router.

4. Connect devices to the Router

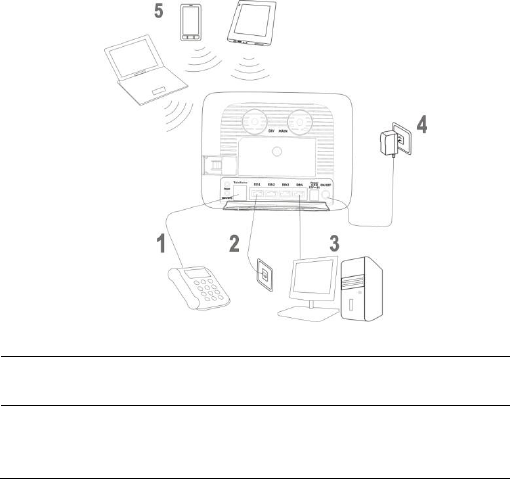

Scenario 1: Access the Internet through an LTE, 3G, or 2G

network

Telephone

Computer

Power adapter

Notebook, tablet, or

smartphone

The DHCP server in the Router is turned on as a default

setting. When connecting a computer to the Router,

please ensure that the computer is set up to obtain an IP

address automatically.

Scenario 2: Access the Internet through another device

You can use the router to access the internet through other

access you have at home, such as FTTH or xDSL. To do this, the

Eth1 port also functions as a WAN port when connecting to

another computer or external socket that provides an Internet

connection.

Telephone

Ethernet wall

outlet

Computer

Power adapter

Notebook,

tablet, or

smartphone

Scenario 3: Wi-Fi connection

If you want to connect a computer or device wirelessly, make

sure the Wi-Fi indicator is lit in blue without blinking, this

means that the router's Wi-Fi function is enabled.

To establish the Wi-Fi connection, you can do it manually or

automatically via WPS.

Set up a Wi-Fi connection manually

1. Locate the label on the back of the computer that displays

all the data needed to connect to the wireless network

pre-configured on your computer.

2. Search for wireless networks on your computer or Wi-Fi

device.

3. Connect to the network with the same name that appears

on the device label.

4. When the password is requested, enter the Wi-Fi key that

is on the same label. (Wi-Fi key is case-sensitive). The

customer will notify you when you are connected.

To prevent unauthorized users from accessing your Wi-Fi

network, it is recommended that you periodically change

your SSID and Wi-Fi password. For detailed information,

see the web administration page help.

Establish a Wi-Fi connection automatically using WPS:

If the client supports WPS, it is possible to configure a WPS

connection as follows:

1. Ensure that the Wi-Fi feature is enabled on the client.

2. Press and hold the WPS button for 3 seconds. The

indicator starts blinking.

3. Activate the WPS connection on the computer or Wi-Fi

device within a period of 2 minutes.

For instructions on how to enable the WPS connection

on your computer or Wi-Fi device, refer to the Wi-Fi

user's guide.

5. Web User Interface

5.1 Accessing the Web User Interface

The Web User Interface allows you to configure the Router

using your web browser.

1. Ensure that the computer you use is connected to the

Router.

2. Open your web browser and type

192.168.1.1

in the address field.

3. An authentication screen will appear. Use the default

username and password printed on the label on the

housing of the Router.

4. The Web UI page will appear. Click the items on the

banner to access different management functions.

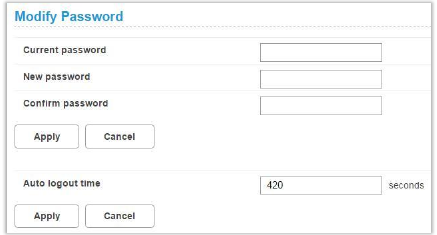

5. We recommend you change the password for greater

system security. Please access the Web UI and then go to

System  Modify Password.

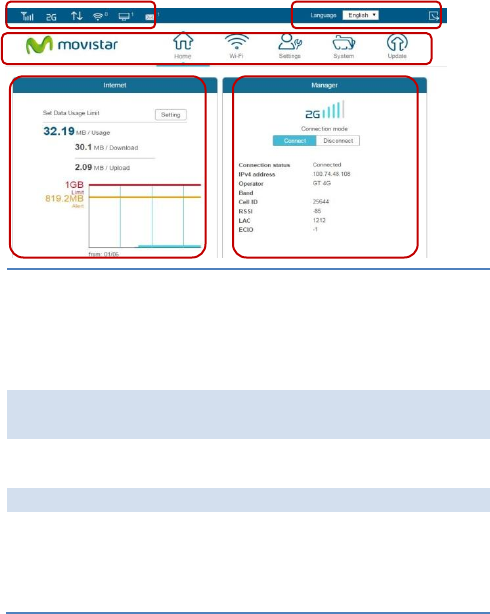

5.2 Web User Interface Introduction

1. Basic

Information

Provides information including:

Signal strength of the connected

mobile network, connection

mode, Wi-Fi connection status,

number of connected devices, and

unread SMS.

2. Language/Web

UI Log-out

Click the drop-down list to select a

preferred language.

3. Management

Function

Click the icon to access each

management function.

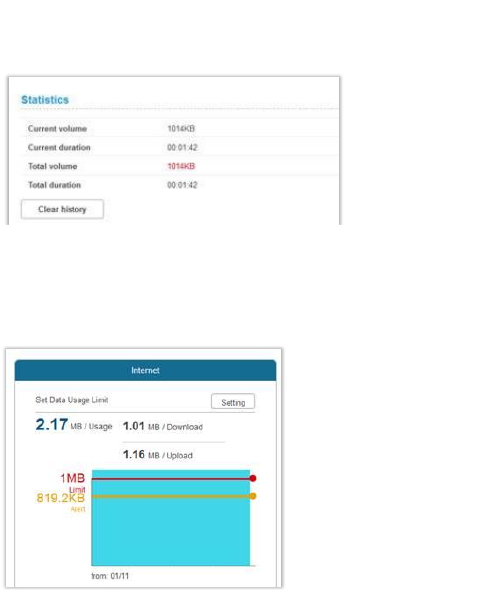

4. Internet Usage

Display of data usage

5. Connection

Information

Provides information including:

Name of the mobile network

service provider, connection mode,

cell ID, and signal strength

indicators

6. Home

This page displays basic system information including a

summary of the Internet and Manager.

Internet:

Indicates Internet data usage, including total data usage

(download/upload); click Setting to view the data plan.

Manager:

Displays the connection mode, connection status, IPv4 address,

operator, Band, cell ID, RSSI, LAC, and ECIO

7. Wi-Fi

Click the Wi-Fi icon on the top menu, and the following content

will appear. The side menu indicates the current displayed

menu.

Select the Wi-Fi profile for which you wish to change security

settings.

Note:

 The Wi-Fi profile supports establishment of four local

wireless networks with different SSIDs. Each profile has its

own security mode.

7.1 WLAN Settings

Status: Choose

Enable or Disable

to enable or disable

the SSID function.

SSID: The Service

Set Identifier (SSID)

is the name of the

wireless network

broadcasting from

this system. In

order for computers

to connect to the local network over a wireless link, they must

select this network name from the list of detected wireless

networks in the area.

Security mode: Select one security method from the

drop-down menu.

None (Open): This mode allows all Wi-Fi devices to connect to

the Router without any security protection.

WPA2-PSK: Use for WPA2-level encryption.

WPA/WPA2-PSK: Enables both WPA- and WPA2-level wireless

protected access modes.

Cipher mode: Select one cipher mode from the drop-down

menu.

TKIP+AES: This is what the encryption standards are for WEP2

(TKIP) and WPA2/802.11i (AES).It will attempt to use AES if it’s

available. If not, it will fall back to TKIP. This setting offers the

most compatibility but won't guarantee a higher level of

encryption if a device falls back to TKIP.

AES: The Advanced Encryption Standard (AES) is a symmetric

key encryption standard that has been widely adopted today.

Password: Specify a password for your wireless network.

Show password: Displays the password when the check box is

selected.

Broadcast SSID: Select Enable if you want to broadcast this

SSID. The SSID will be displayed when you search for available

networks. Select Disable if you do not want to broadcast this

SSID.

Maximum stations: The maximum number of guest Wi-Fi

clients allowed on the Router.

Click Apply to activate your settings, or click Cancel to discard

any changes you made.

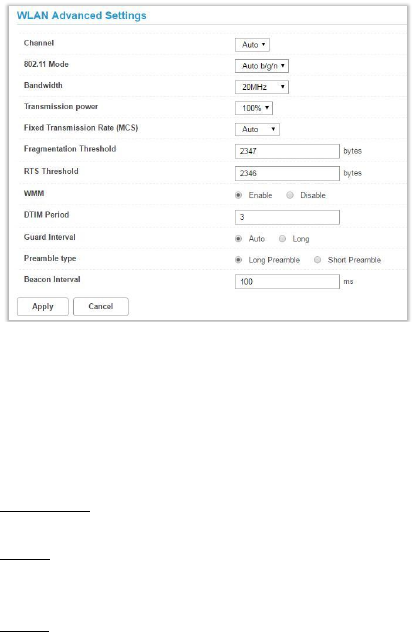

7.2 WLAN Advanced Settings

Channel: This specifies the frequency the radio uses to

transmit the wireless frames. Select a channel from the list of

channels or choose Auto to allow the system to determine the

best channel to use.

802.11 Mode: Select the 802.11 modulation technique. The

available modes are:

Auto b/g/n: Select this mode to allow devices supporting

802.11b, 802.11g, or 802.11n to connect to the Router.

b only: Establishes the Wi-Fi network in 802.11b mode. Only

802.11b-compatible devices can connect to the Router via

Wi-Fi.

g only: Establishes the Wi-Fi network in 802.11g mode. Only

802.11g-compatible devices can connect to the Router via

Wi-Fi.

n only: Establishes the Wi-Fi network in 802.11n mode. Only

802.11n-compatible devices can connect to the Router via

Wi-Fi.

Auto b/g: Select this mode to allow devices supporting 802.11b

or 802.11g to connect to the Router.

Auto g/n: Select this mode to allow devices supporting 802.11g

or 802.11n to connect to the Router.

Bandwidth: You can then specify the bandwidth for each

channel.

Transmission power: Select the signal power strength of the

Router’s Wi-Fi network.

Fixed Transmission Rate (MCS): Modulation and Coding

Scheme (MCS) refers to the index values showing the

maximum available data rate of WLD71. It is

based on channel size, number of spatial streams, coding

method, modulation technique, and guard interval.

Fragmentation Threshold: This is the maximum length of the

frame, in bytes, beyond which packets must be broken up

(fragmented) into two or more frames. Collisions occur more

often for long frames because while sending them they occupy

the channel for a longer time. The default value is 2347, which

effectively disables fragmentation.

RTS Threshold: The Request to Send (RTS) threshold is the

frame size in bytes above which the Router is required to check

the transmitting frames to determine if RTS/Clear to Send (CTS)

handshake is required with the receiving client. Using a small

value causes RTS packets to be sent more often, thus no

available time can be used to transmit data, reducing the

apparent throughput of the network packets. The default value

is 2346, which effectively disables RTS.

WMM: WMM stands for Wi-Fi Multimedia, a standard that

allows routers to rearrange packets based on the contents of

those packets. WMM was designed to enhance the streaming

of multimedia over wireless devices. Select Enable or Disable

to have the WMM function activated or deactivated.

DTIM Period: A delivery traffic indication map (DTIM) informs

client that the broadcast data has been stored in the AP buffer.

It is generated within the periodic beacon at a frequency

specified by the DTIM Interval. Enter DTIM Period between 1

to 10.

Guard Interval: A guard interval is the space between symbols

being transmitted. It is intended to avoid inter-symbol

interference from multipath effect. Select Auto or Long for the

guard interval.

Preamble type:Select Long Preamble or Short Preamble for

the Preamble type.

Beacon Interval: Enter the time in milliseconds between

beacon transmissions. The default interval is 100 milliseconds.

Click Apply to activate your settings, or click Cancel to discard

any changes you made.

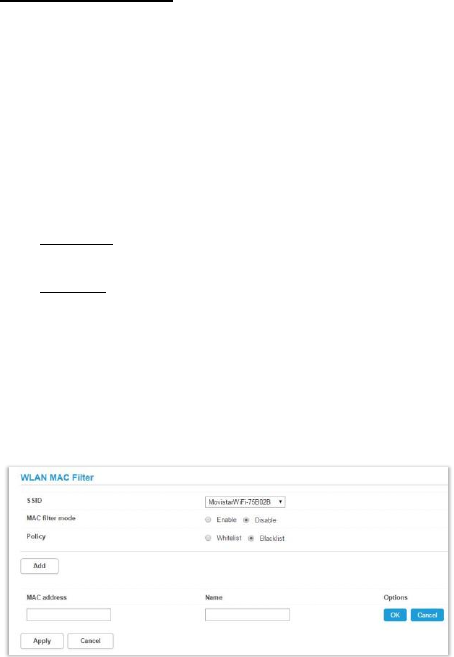

7.3 WLAN MAC Filter

For detailed instructions on the WLAN MAC Filter, please refer

to section 8.4.

7.4 WPS Settings

WPS (Wi-Fi Protected Setup) is a computing standard for easy

and secure setup of a wireless connection. This function allows

rapid wireless connection between the Router and other

WPS-compatible devices.

WPS mode:

Select Enable or Disable to enable or turn off the WPS function,

then click Apply.

WPS method:

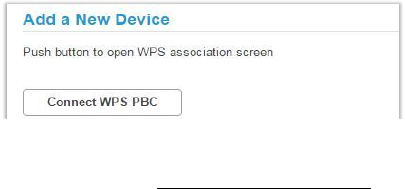

Connect WPS PBC (Push-button configuration):

1. Press the WPS button on the WPS-compatible device

that supports WPS connectivity.

2. Click Connect WPS PBC to establish a wireless

connection.

7.5 Connected Devices

The function presents a list of devices that are currently

connected to the Router. Select one SSID from the drop-down

menu to see the information of the devices that are connected

via Wi-Fi.

When a wireless device is connected via Wi-Fi, you can click

the Add to blacklist button to add this device to the access

control list of MAC addresses. Connection to this device will

then be blocked.

8. Settings

Click the Settings icon on the top menu, and the following

content will appear. The side menu indicates the current menu

link.

8.1 Quick Setup

Click Quick Setup on the side menu to start configuring the

basic settings for using the Router. Detailed instructions can be

referenced in other sections of the manual.

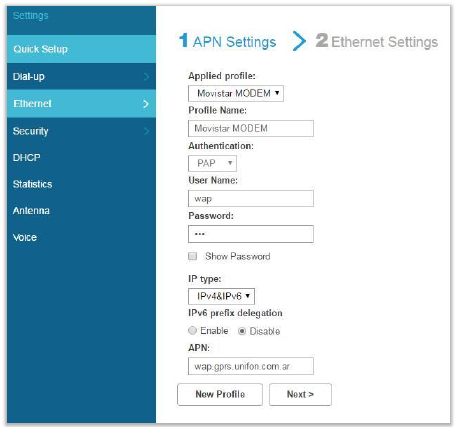

1 APN Settings > 2 Ethernet Settings

For detailed instructions on the APN Settings, please refer to

section 8.2.

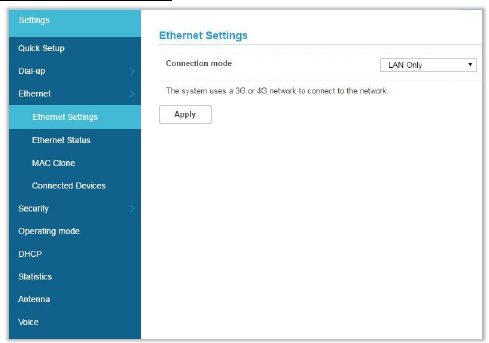

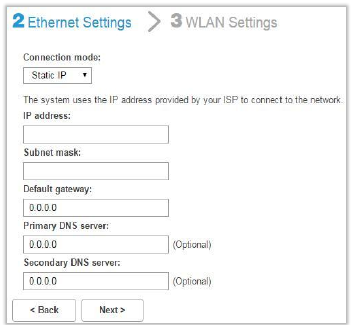

2 Ethernet Settings > 3 WLAN Settings

Select a connection mode and enter its related information to

complete the settings. Refer to section 8.3 for detailed

descriptions.

2 Ethernet Settings > 3 WLAN Settings

Specify a name and password for your wireless network, then

click Finish.

The statements below indicate that all the necessary settings

have been performed:

8.2 Dial-up

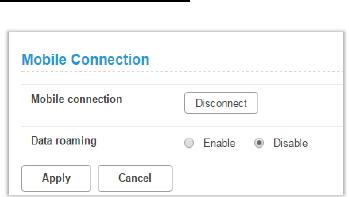

Mobile Connection

Mobile connection: Your mobile connection status is displayed

here. Click Disconnect to disable mobile data connection.

Data roaming: Click Enable to activate the data roaming

function. Click Disable to stop data roaming.

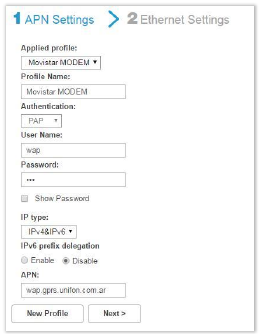

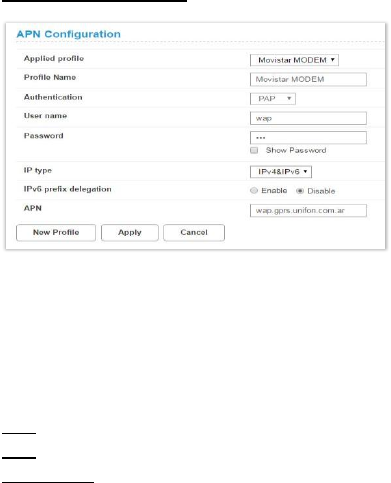

APN Configuration

Applied profile: Select a profile from the drop-down list.

Profile Name: Specify a profile name for the selected profile.

Authentication: Select an authentication type for the profile.

User name: The user name that you registered for the service.

Password: The password that you registered for the service.

IP type:

IPv4: Use Internet Protocol version 4 (IPv4).

IPv6: Use Internet Protocol version 6 (IPv6).

IPv4 & IPv6: Use both IPv4 and IPv6.

IPv6 prefix delegation: Click Enable to enable prefix delegation.

Click Disable to stop the prefix delegation function.

APN: Specify the Access Point Name (APN).

After the settings are completed, click Apply.

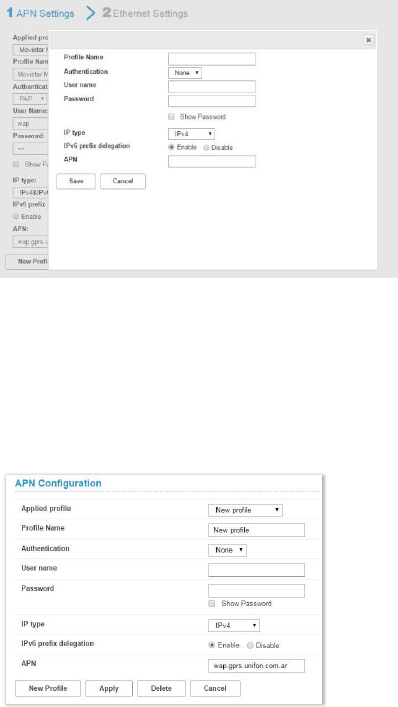

To create a new profile, click New Profile. The following

window will then appear:

After you enter the related information, click Save.

If you want to delete a particular profile, select the profile you

want to delete and then click Delete.

Click Apply to save your changes, or click Cancel to discard any

changes you made.

Network Settings

The section enables you to perform settings for the LTE band,

3G band, and 2G band. Select the appropriate check boxes and

click Apply to save the changes. Click Cancel to discard any

changes you made.

Cellular network mode: Select your operator’s network mode

to log in to the network.

Network search mode: Select Auto or Manual to search the

network.

Click Apply to save your changes, or click Cancel to discard any

changes you made.

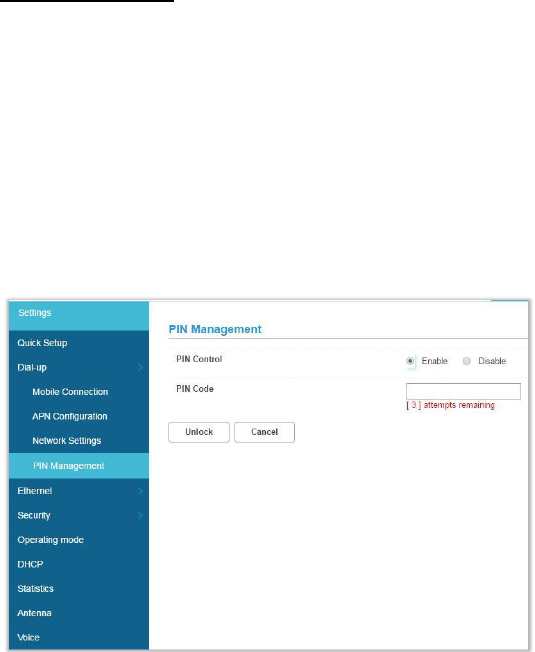

PIN Management

PIN Control: Select Enable to enable PIN protection.

Select Disable to disable PIN protection.

PIN Code: Enter your PIN code here, then click Unlock.

After you enter the PIN code, click Unlock, or click Cancel to

undo the changes.

Note: PIN can only be set when PIN control is enabled. When

you select Disable PIN control, you will not see the Change PIN

Code option.

8.3 Ethernet

Ethernet Settings

You can select a connection mode for your Internet connection

according to your application situation.

<Auto>

In Auto mode, the Router selects the best network access

mode based on the network environment.

1. Select Auto from the Connection mode drop-down list.

2. Set Point-to-Point Protocol over Ethernet (PPPoE) and the

Dynamic IP parameters.

3. Click Apply to save your changes.

< PPPoE + Dynamic IP >

The PPPoE + Dynamic IP mode enables you to access the

Internet using a PPPoE dial-up connection or a dynamic IP

address.

1. Select PPPoE + Dynamic IP from the Connection mode

drop-down list.

2. Set Point-to-Point Protocol over Ethernet (PPPoE) and

Dynamic IP parameters.

3. Click Apply to save your changes.

< PPPoE>

This option is normally used by the DSL modem users to enter

authentication information. You will need to have the user

name and password provided by your network service provider

for the PPPoE dial-up connection.

1. Select PPPoE from the Connection mode drop-down list.

2. Enter the user name and password provided by your

network service provider.

3. Set the MTU. The default MTU size is 1480. Please do not

edit the number unless absolutely necessary.

4. Click Apply to save your changes.

This option is suitable for Internet services that do not require

account authentication, for example, in most cable-modem

usage scenarios.

1. Select Dynamic IP from the Connection mode drop-down

list.

2. Select the Set DNS server manually check box.

3. Enter Primary DNS server and Secondary DNS server.

4. Set the MTU. The default MTU size is 1480. Please do not

edit the number unless absolutely necessary.

5. Click Apply to save your changes.

This option is suitable for services that use a fixed IP address.

1. Select Static IP from the Connection mode drop-down list.

2. Enter the IP address, subnet mask, gateway address, and

DNS address (optional) provided by your network service

provider.

3. Set the MTU. The default MTU size is 1480. Please do not

edit the number unless absolutely necessary.

4. Click Apply to save your changes.

This option is suitable when the client is connected with a

network cable but without Ethernet connection.

1. Select LAN only from the Connection mode drop-down

list.

2. Click Apply to save your changes.

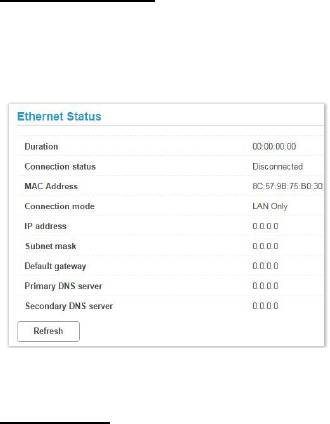

Ethernet Status

The section displays basic Ethernet status. To change the

connection mode, go to Settings  Ethernet  Ethernet

Settings.

MAC Clone

Some ISPs may register the MAC address of your computer

when dialing up to the Internet for the first time via modem. If

you add a router into your network to share your Internet

connection, the ISP will not accept that policy. Therefore, you

need to create a MAC clone on the router.

At the Host MAC address field, click Clone to clone your PC’s

MAC address as the WAN MAC address of the router. The same

MAC address will be cloned to the Current MAC address field.

Click Apply to save the settings.

Connected Devices

The section displays information of LAN connected devices,

including the IP address, host name, and MAC address.

8.4 Security

Firewall Switch

A firewall is used to prevent traffic from entering and/or

leaving the areas of your network.

Enable Firewall: The Router has a built-in firewall. To disable

the firewall, select Disable.

Enable IP address filter: To limit the Internet access on some

specified computers through the router, enable the IP Address

Filter.

Enable Port forwarding: Port Forwarding can be used to

translate the common service port to a custom port inside your

local network such as web or FTP.

Disable WAN port ping: Disabling WAN port ping will make the

Router drop any ICMP ping requests (which is usually used for

network diagnostic purposes) to prevent DoS (Denial of Service)

attacks.

Enable domain name filter: Domain name filter can be used to

block computers from accessing certain websites through the

router.

Click Apply to activate your settings, or click Cancel to discard

any changes you made.

WLAN MAC Filter

Enabling the WLAN MAC Filter function allows you to block or

allow computer devices from establishing a wireless link to the

Router. The filtering is based on the wireless computer’s

unique hardware ID (MAC address).

1. Select the device SSID and choose a corresponding MAC

filter mode (Enable or Disable).

2. Select a policy for the MAC filter mode:

Whitelist: Only devices with its MAC address listed here

are allowed to connect to this Router via Wi-Fi.

Blacklist: Devices with its MAC address listed in the table

will be blocked when attempting to connect to this Router

via Wi-Fi.

To add a MAC address to the Blacklist or Whitelist, click Add

and enter the MAC address. Then click OK and Apply. Click

Cancel to discard any changes you made.

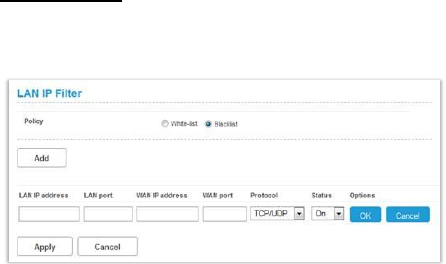

LAN IP Filter

Turn the LAN IP Filter on to limit the Internet access on some

specified computers.

1. In the Policy field, select Whitelist or Blacklist if you would

like to allow or ban connections, respectively, of a certain

device.

2. Click Add and type the IP address of the device in the

LAN IP address field.

3. Type the value range of the LAN port in the LAN port field.

4. Type the IP address of the device in the WAN IP address

field.

5. Type the value range of the WAN port in the WAN port

field.

6. At the Protocol drop-down list, select a protocol. The

service uses the following layer-4 protocols: TCP/UDP, TCP,

UDP, and ICMP.

7. At the Status drop-down list, select On or Off as the status

of the service.

8. At Options, click OK to complete entry of the information.

Click Cancel to undo the changes.

9. Click Apply to confirm your settings, or click Cancel to

discard any changes you made.

Port Forwarding

Port Forwarding can be used to open certain ports of a device

to communicate with an Internet service. If a computer in your

LAN is configured as a Web server, a designated port must also

be opened for devices from the Internet to communicate with

this server.

Name: The name of the service for which the port forwarding

rule has been created

WAN port: Type the value range of the WAN port.

LAN IP address: The IP address of the computer on the local

network to which the traffic will be forwarded

LAN port: Type the value range of the LAN port.

Protocol: The layer-4 protocol that the service uses. This can

be TCP, UDP, or both. If you are unsure, select the TCP/UDP

option.

Status: Select On or Off as the status of the service.

1. To add a port forwarding rule, click Add.

2. Enter the relevant information for which the port

forwarding rule has been created.

3. Select the protocol it uses from the Protocol drop-down

list, then select On or Off.

4. Click Apply to save your changes, or click Cancel to discard

any changes you made.

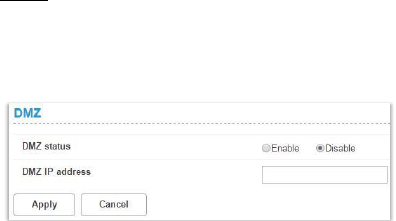

DMZ

DMZ (De-Militarized Zone) allows you to specify a DMZ host IP

to redirect requests to a virtual DMZ host in order to enhance

the security of the local area network.

DMZ status: If this function is enabled, threats from external

networks will be directed to the DMZ instead of the network.

DMZ IP address: The IP address of the host DMZ.

To designate a device as a DMZ host, enter its IP address in the

DMZ IP Address text field. Click Apply to apply the changes, or

click Cancel to undo your configuration.

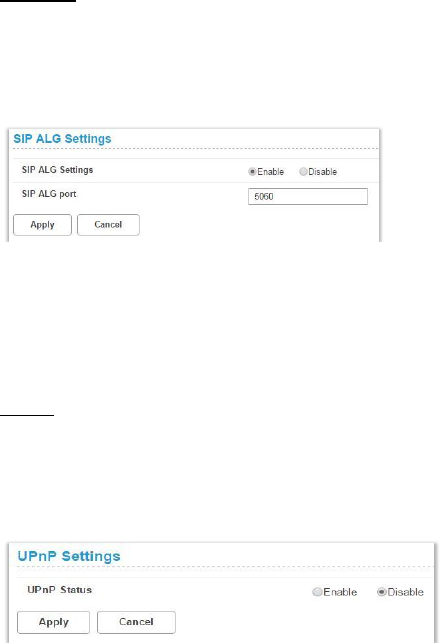

SIP ALG

The Session Initiation Protocol (SIP) is used to begin, change, or

end a session, and an Application Layer Gateway (ALG) is

a security component for checking the status of data packages.

To complete an SIP ALG, enable the SIP ALG Settings function.

1. Select Enable to enable the SIP ALG.

2. In SIP ALG port, specify the SIP port number provided by

your Internet service provider. Click Apply.

UPnP

For devices that support Universal Plug and Play (UPnP),

enabling the UPnP function will allow automatic port

forwarding that helps your UPnP devices communicate with

the Internet.

1. At the UPnP Status, select Enable to enable the UPnP port

mapping function.

2. Click Apply to apply the settings, or click Cancel to

discard any changes you made.

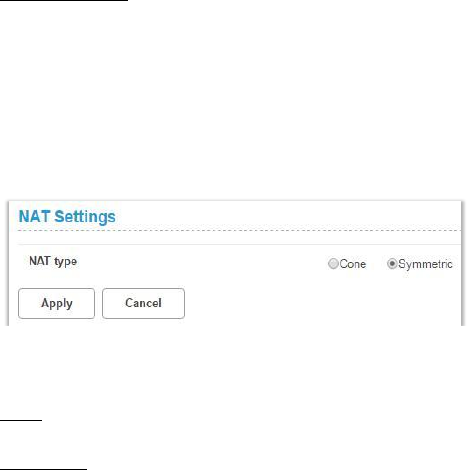

NAT Settings

Network Address Translation (NAT) is a technique which allows

several computers on a LAN to share an Internet connection.

The computers on the LAN use a “private” IP address range

while the WAN port is configured with a single “public”

IP address.

Along with connection sharing, NAT also hides internal

IP addresses from computers on the Internet.

NAT Type:

Cone: Based on a cone NAT type, the port is permanently open

and allows inbound connections from any external host.

Symmetric: Each request from the same internal IP address

and port to a specific destination IP address and port is

mapped to a unique external source IP address and port. Even

if the same internal host sends a packet with the same source

address and port but to a different destination, a different

mapping is used. Only an external host that receives a packet

from an internal host can send a packet back.

Select an NAT type, and then click Apply. Click Cancel to undo

the settings.

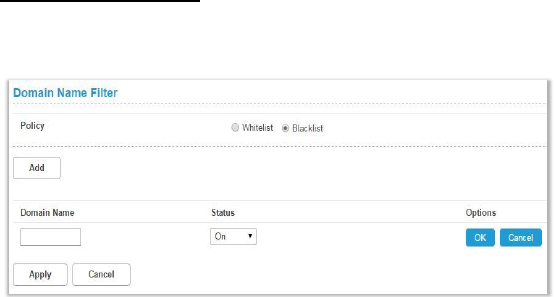

Domain Name Filter

A domain name filter can be used to block computers from

accessing certain websites through the router.

1. At the Policy field, select Whitelist or Blacklist to allow or

block a domain name.

2. Click Add to create an entry, and type in the domain name

in the Domain Name text field.

3. Select On or Off from the Status drop-down list.

4. At Options, click OK to complete entry of the information.

Click Cancel to undo the changes.

5. Click Apply to activate your settings, or click Cancel to

discard any changes you made.

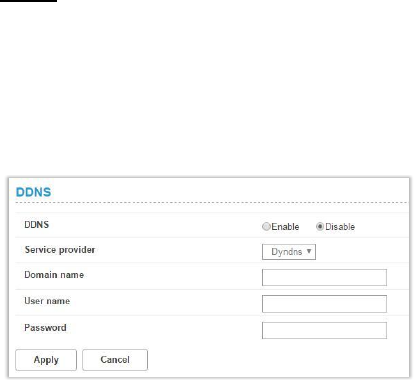

DDNS

Dynamic DNS (DDNS) is an Internet service that allows routers

with varying public IP addresses to be located using Internet

domain names. To use DDNS, you must set up an account with

a DDNS provider such as DynDNS.org and fill in the required

account details including the Domain Name, Username, and

Password on this page.

Service provider: Select the DNS service that you are

subscribed to.

Domain name: Enter the domain name of the DDNS account.

User name: Enter the username of the DDNS account. This will

be provided by the DDNS service provider.

Password: Enter the password for the DDNS account.

Click Apply to apply the changes, or click Cancel to undo your

configurations.

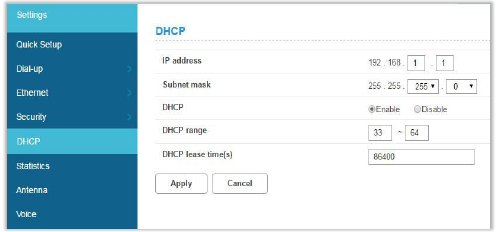

8.5 DHCP

DHCP assigns LAN IP addresses for connected devices. You can

specify an IP address range for the Router to assign from.

IP address: Specify an IP address range for the Router to assign

from.

Subnet mask: The subnet mask along with the previously

configured IP address defines the network. The default value

for subnet mask is 255.255.255.0.

DHCP: Select Enable or Disable to activate the function.

DHCP range: Type a DHCP range in the fields.

DHCP lease time(s): You can specify a period of time after

which an assigned IP address will be retrieved from devices.

Click Apply to apply the settings, or click Cancel to discard any

changes you made.

8.6 Statistics

Statistics

Here you can view the statistics of the router, including total

traffic volume/duration and current traffic volume/duration of

the last packets statistic interval.

To reset the statistics, click Clear history.

Data Plan

You can set the monthly traffic statistics and view the network

traffic of the month. Set the monthly traffic statistics

parameters and click Apply to apply the settings. Click Cancel

to discard any changes you made.

Note: When your data usage exceeds the defined threshold,

the total volume will be highlighted in red text.

Meanwhile, the blue area that indicates current data usage will

exceed the defined threshold indicated by a red line.

8.7 Antenna

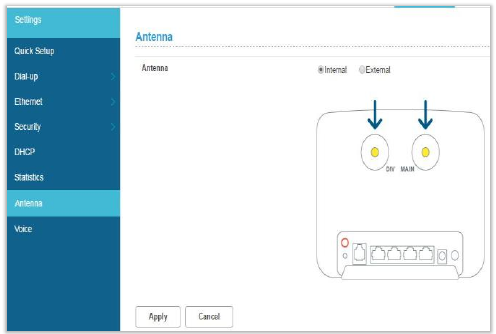

Antenna: Select Internal if you are using an internal antenna

with this Router, or select External if you are using the Router’s

external antenna. Click Apply to apply the settings, or click

Cancel to discard any changes you made.

8.8 Voice

In this section, users can perform settings of voice-related

communication features. Supplementary services are also

available to enhance telephone services.

DTMF (Dual Tone Multi-Frequency) tones are used during a call

to signal to a far-end device; these signals may be for

navigating a menu system, entering data, or for other types of

manipulation.

VoLTE: Select Turn on to activate VoLTE on the router. Select

Turn off to use CSFB (Circuit-Switched Fallback).

For the Select DTMF tones, select Inband or Outband. It is

recommended that you do not change the default settings.

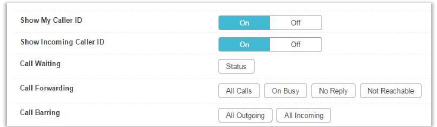

Users can perform settings on features such as displaying caller

ID, call waiting, call forwarding, call barring, and conference

calling. Management functions such as activation, deactivation,

and simple settings are provided.

When the settings are saved successfully, you will hear the dial

tone. If the settings are not successful, you will get a busy tone.

Show My Caller ID: This feature enables you to choose

whether to show your own number to the called party’s

equipment. Click On or Off to turn on or turn off the function.

Show Incoming Caller ID: The feature allows the calling party

to receive a connected party's phone number. Click On or Off

to turn on or turn off the function.

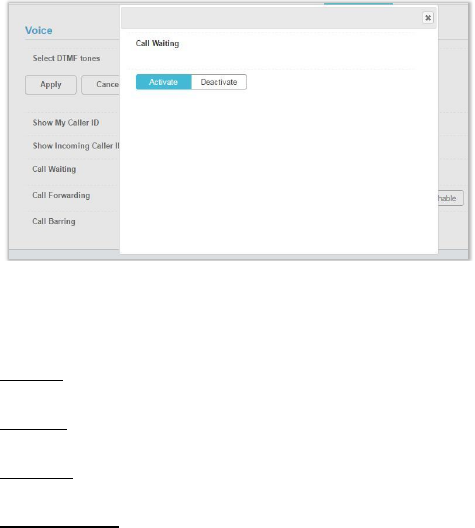

Call Waiting: The call waiting feature allows the user to

suspend a phone call that is already ongoing to answer another

incoming call. Click Status and select Activate or Deactivate to

turn on or turn off the function.

Call Forwarding: The call forwarding feature enables a user to

divert incoming calls to the number specified by the user:

All Calls: All incoming calls will be forwarded to the designated

phone number.

On Busy: If the line is busy, incoming calls will be forwarded to

the designated phone number.

No Reply: When there is no answer, incoming calls will be

forwarded to the designated phone number.

Not Reachable: If you are not in a coverage area of your service

provider, incoming calls will be forwarded to the designated

phone number.

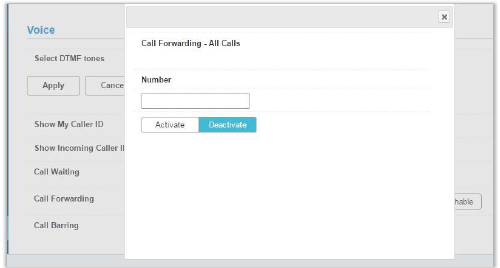

1. Click on the type of call forwarding you want. A window

will appear for you to enter the specified number to which

incoming calls will be forwarded.

2. After you enter the number, click Activate. To deactivate

the feature, click Deactivate.

Call Barring: The call barring feature allows the user to bar

incoming or outgoing calls.

All Outgoing: All outgoing calls will be barred. Users who

activate the feature will not be able to make phone calls.

All Incoming: All incoming calls will be barred. Users who

activate the feature will not receive any phone calls.

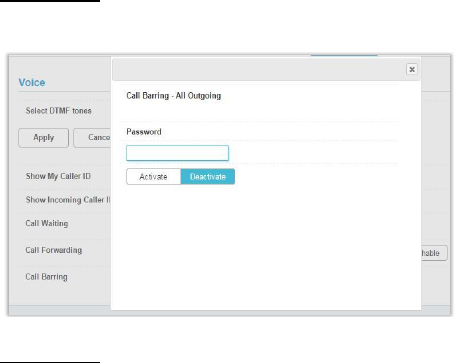

1. Click on the type of call barring you want. A window will

appear for you to enter the password to enable the

feature.

2. After you enter the password, click Activate. To deactivate

the feature, click Deactivate.

Note: Please ask your operator for the password to enable or

disable the feature.

9. System

9.1 Device Information

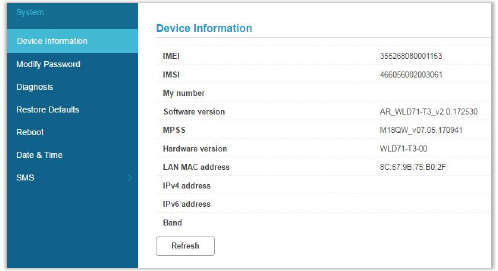

This page displays relevant information of the Router including:

IMEI, IMSI, your number, software version, MPSS (Manycore

Platform Software Stack), hardware version, LAN MAC address,

IPv4 address, IPv6 address, and the Band that is currently in

use.

Refresh: To update device information, click Refresh.

9.2 Modify Password

You can change the password used for accessing this Web UI

and adjust the session expiration time.

To modify your password, type the current password first in

the Current password field. Then input a new password in the

New password field. Re-type the password in the Confirm

password field. Click Apply to apply the settings, or click Cancel

to discard any changes you made.

The default auto logout time is 420 seconds. To adjust the login

time-out on the Web UI, input a time range between 30

seconds–600 seconds at the Auto logout time field. Click Apply

to set your preferences, or click Cancel to discard any changes

you made.

9.3 Diagnosis

If the Router cannot connect to the Internet, you can perform a

diagnosis to find out the possible causes.

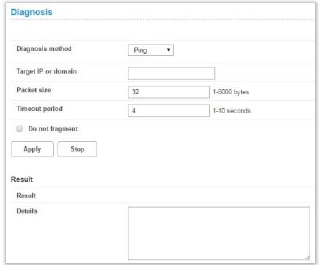

<Ping>

Select Ping from the Diagnosis method drop-down list.

1. Enter the IP address or domain name in the Target IP or

domain text field.

2. Set the Packet size.

3. Set the Timeout period.

4. Select or clear Do not fragment.

5. Clear Do not fragment if you set Packet size to a value

greater than its default value.

6. Click Apply. The diagnostics results will then be displayed

in the Result area at the bottom of the page.

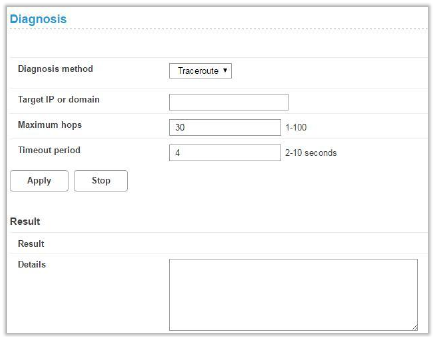

Select Traceroute from the Diagnosis method drop-down list.

1. Enter the IP address or domain name in the Target IP or

domain text field.

2. Set the Maximum hops.

3. Set the Timeout period.

4. Click Apply. The diagnostics results will then be displayed

in the Result area at the bottom of the page.

9.4 Restore Defaults

Restore the configuration to factory settings by clicking

Restore.

9.5 Reboot

To restart the device, click Reboot.

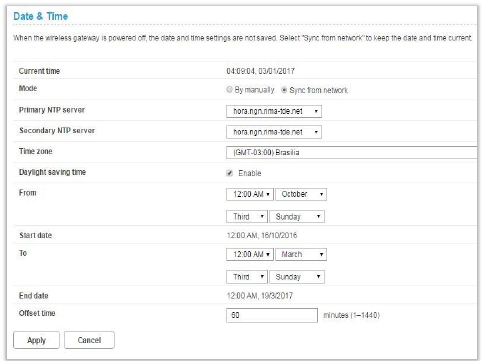

9.6 Date and Time

Network Time Protocol (NTP) is a protocol that is used to

synchronize the computer clock time among a network of

computers. This page allows you to set the date, time, and NTP

(Network Time Protocol) servers.

Current time: Displays the current time of the Router.

Mode: You can set the computer clock time manually or

choose to synchronize the time automatically.

Primary NTP server: Select an NTP server from the drop-down

list to sync.

Secondary NTP server: The second NTP server to sync in case

the first server does not respond. Select one from the

drop-down list.

Time zone: Select the local time zone.

Daylight saving time: Check Enable to turn on the daylight

saving function.

From: Select from the drop-down lists the time, month, ordinal

and day of the week for the start of the daylight saving

function.

Start date: Enter the start date on which you wish the

synchronization to start.

To: Select from the drop-down lists the time, month, ordinal,

and day of the week for the date on which you want the

synchronization to end.

End date: Indicates the date on which the synchronization will

end.

Offset time: Specify a value between 1–1440 (minutes) as the

offset time.

If you want to configure the time manually, select By manually

and enter the local time.

Click Apply to save your changes, or click Cancel to discard any

changes you made.

9.7 SMS

In this section, you can write new messages and view messages

saved in your Inbox, Outbox, and Drafts. You may also view the

SMSs stored on your SIM.

1. New Message

You can compose new messages

in this section.

2. Inbox

Displays information about

messages stored in the Inbox.

3. Outbox

Displays information about

messages stored in the Outbox.

4. Drafts

Displays incomplete messages

that have been temporarily

saved.

5. SIM SMS

Displays information about the

SMS stored on your SIM card.

6. SMS Settings

Enables you to select SMS over

IMS or SMS over SGs.

10. Update

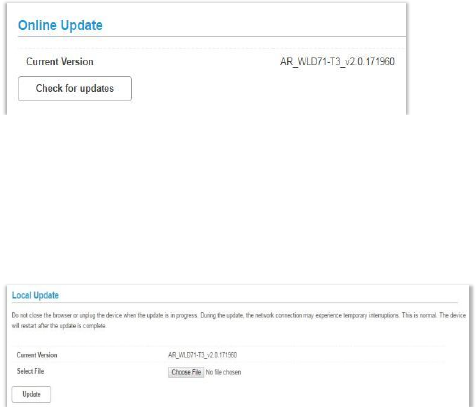

10.1 Online Update

Firmware will be continually updated as more features are

added and known issues are resolved.

This section shows the current version of your firmware and

helps you upgrade the firmware to the latest version online.

Click Check for updates to see if updates are available.

10.2 Local Update

This section allows you to select a file locally to perform an

update. At the Select File field, click Choose File and select the

update package saved on your computer.

11. Specifications

 Hardware and Port Characteristics

Button: Power/Reset/WPS

SIM Card Slot: 3FF (Micro)

Power Adapter: DC 12 V/1 A

Ethernet Port: 4 × Fast Ethernet LAN

RJ11 Port (6P2C) × 1

 LGA Modules (Cat. 4)

LTE: 2/4/28, 3G: 2/5 GSM: 2/5

@ supported 20 MHz bandwidth

 LTE Antenna

Internal antennas × 2

 WLAN

IEEE 802.11b/g/n–compliant

 Antenna:

Two internal antennas for Wi-Fi 2.4 G

 Environmental

Ambient Operating Temperature: –10 °C to +50 °C

Ambient Operating Humidity: 5% to 95%

Storage Temperature: –25 °C to +70 °C

 Dimensions

168 mm × 131.2 mm × 59.1 mm

Wistron NeWeb WLD71-T3A LTE Router User Manual

Wistron NeWeb Corporation LTE Router

User manual

Navigation menu

Namespaces

Views

Navigation
