Connecting to a Hidden Network

To connect to a wireless network whose network name (SSID) is

not being broadcast:

1. From the NETWORK menu,

highlight Hidden Network

and press OK. The ENTER

ACCESS POINT NAME screen is

displayed.

2. Using the keyboard on the

remote, enter your network’s

name (SSID), then highlight

Connect and press OK.

3. Using the keyboard on the

remote, enter your network’s

password, then highlight

Connect and press OK.

4. Press the EXIT button on the

remote.

VIZIO

ENTER ACCESS POINT NAME

Enter your access point name. This

is used to connect to an access

point with a hidden SSID.

a b c d e f g h i

j k l m n o p q r

s t u v w x y z 0

1 2 3 4 5 6 7 8 9

.@# .com Space

Connect

Testing Your Network Connection

To test your network connection:

1. From the NETWORK menu, highlight Test Connection and

press OK.

2. The TEST CONNECTION screen displays the connection

method, network name, signal strength, and download

speed of your network connection.

3. Press the EXIT button on the remote.

äêí

Selecting a Tuner Input

Select the type of tuner input you will be using. You can select either

Antenna (Over-the-air) or Cable (Out-of-the-wall) connections.

1. From the TUNER menu, highlight Tuner Mode and press OK.

The TUNER MODE menu displays.

2. Highlight Antenna or Cable and press OK. Press EXIT.

Scanning for Channels

The TV may need to scan for channels before it can display

programs and their associated information. A channel scan is

required for free over-the-air channels (using an antenna) and

cable channels from an out-of-the-wall connection (without a

cable box). Moving the TV to an area with different channels

requires the TV to scan for channels again.

To perform an Auto Channel Scan:

1. From the TUNER menu, highlight

Auto Channel Scan, and press

OK. The auto channel scan

begins.

2. Wait until the channel scan is

100% complete. Highlight Done

and press OK.

3. Press the EXIT button on the

remote.

If the channel scan is cancelled,

the channels that were already

discovered are retained. A new

channel scan will clear all channels.

SETTING UP THE TUNER

You can use the TV’s Tuner menu to:

• Select a Tuner Input

• Perform an Auto Channel Scan

• Perform a Partial Channel Scan

• Manually Add Channels

• Select channels to skip

• Select Analog MTS modes

• Select Digital Languages

VIZIO

TUNER

Tuner Mode Cable

Auto Channel Scan

Partial Channel Scan

Add Analog Channel

Skip Channel

Analog Audio Stereo

Digital Language English

VIZIO

AUTO CHANNEL SCAN

Channels Found

Digital: 0

Analog: 19

18% Complete

Cancel

Cancel the channel scan.

Adding New Channels

Occasionally, you may need to add a new range of channels or

add a new analog channel. You can do this by using the Partial

Channel Scan and Add Analog Channel options. This is quicker

than scanning all possible channels.

To add a range of new channels:

1. From the TUNER menu, highlight Partial Channel Scan, and

press OK. The PARTIAL CHANNEL SCAN menu is displayed.

2. Highlight Scan Mode and select the type of channel you

are adding: Analog, Digital, or Analog/Digital.

3. Highlight From Channel and enter the channel where

you want to begin the scan. (Use the Left Arrow button to

backspace. Use the Number Pad on the remote to enter the

channel.)

4. Highlight To Channel and enter the channel where you want

to end the scan. (Use the Left Arrow button to backspace.

Use the Number Pad on the remote to enter the channel.)

5. Highlight Start and press OK. The partial channel search

begins.

6. Wait until the partial channel search is 100% complete.

Highlight Done and press OK.

7. Press the EXIT button on the remote.

To add a single new analog channel:

1. From the TUNER menu, highlight

Add Analog Channel and

press OK. The ADD ANALOG

CHANNEL menu is displayed.

2. Highlight Enter Channel # and

use the Number Pad on the

remote to enter the number of

the channel you are adding.

3. Highlight Add Channel and

press OK. The TV scans for the

channel.

4. When the TV is done scanning

for the channel, press the EXIT

button on the remote.

VIZIO

ADD ANALOG CHANNEL

Enter Channel

Add Channel

Skipping Channels

After a channel scan is completed, you may ﬁnd that some

channels are too weak to watch comfortably. There may also be

some channels you do not want to view. You can remove these

channels from the TV’s memory with the Skip Channel feature.

Channels that have been removed with the Skip

Channel feature can still be viewed if the channel

is entered using the Number Pad. If you wish to

completely block a channel from being viewed, use

the parental controls. See

Locking and Unlocking

Channels

on page 43.

To remove a channel:

1. From the TUNER menu, highlight

Skip Channel, and press OK.

The SKIP CHANNEL menu is

displayed.

2. For each channel you wish

to remove, use the Up/Down

Arrow buttons on the remote

to highlight the channel and

press OK. A 3 appears to the

right of each channel you

select.

3. When you have selected all

of the channels you wish to

remove, press the EXIT button

on the remote.

VIZIO

SKIP CHANNEL

1Test 0

1Test 1 3

1-2 Test 2 3

2Test 3

2-2 Test 4 3

2-3 Test 5

LISTENING TO ALTERNATE AUDIO

Changing the Analog Audio Language

Some analog over-the-air (free) and cable channels broadcast

programs in more than one language. The TV’s Analog Audio

feature allows you to listen to audio in an alternate language

using Secondary Audio Programming (SAP).

Not all programs are broadcast in SAP. The Analog

Audio Language feature only works when the

program being viewed is being broadcast with

Secondary Audio Programming.

To use the Analog Audio feature:

1. From the TUNER menu, highlight

Analog Audio and press OK.

The ANALOG AUDIO menu is

displayed.

2. Select Stereo, SAP (secondary

audio programming), or Mono.

Press OK.

3. Press the EXIT button on the

remote.

VIZIO

ANALOG AUDIO

Stereo

SAP

Mono

Changing the Digital Audio Language

Some digital over-the-air (free) and cable channels broadcast

programs in more than one language. The TV’s Digital Audio

feature allows you to listen to audio in alternate languages.

Not all programs are broadcast in alternate

languages. The Digital Audio Language feature only

works when the program being viewed is being

broadcast in the language you select.

1. From the TUNER menu, highlight

Digital Language and press

OK. The DIGITAL LANGUAGE

menu is displayed.

2. Select your preferred language:

English, Español, or Français .

Press OK.

3. Press the EXIT button on the

remote.

VIZIO

DIGITAL LANGUAGE

English

Español

Français

SETTING UP CLOSED CAPTIONING

Your TV can display closed captions for programs that include

them. Closed captions display a transcription of a program’s

dialogue.

To activate or deactivate closed captions:

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the

remote to highlight Closed

Captions and press OK. Th e

CLOSED CAPTIONS menu is

displayed.

3. Use the Arrow buttons on the

remote to highlight Closed

Captions and then use the

Left/Right Arrow buttons to

select On or Off.

4. Use the Arrow buttons on

the remote to highlight either

Analog or Digital Closed

Captions.

5. Use the Left/Right Arrow

buttons on the remote to select

the caption channel you wish

to display, then press EXIT.

If the program you are viewing is not being

broadcast with closed captions, the TV will not

display them.

VIZIO

CLOSED CAPTIONS

Closed Captions Off

Analog Closed Captions CC1

Digital Closed Captions CS1

Digital Style

The Closed Captions menu does not appear when

an HDMI input is selected.

Changing the Appearance of Digital Closed Captions

Digital closed captions can be displayed according to your

preference. See the diagram on the next page for an explanation

of the parts of the closed caption area.

To change the appearance of digital closed captions:

1. From the CLOSED CAPTIONS

menu, use the Arrow buttons

to highlight Digital Style and

press OK.

2. Use the Left/Right Arrow

buttons on the remote to select

Custom. The DIGITAL STYLE

menu appears as shown.

3. Use the Up/Down Arrow

buttons on the remote to

highlight the setting you wish

to change, then use the Left/

Right Arrow buttons to change

the setting:

• Caption Style - Choose

As Broadcast to keep

default settings or Custom

to manually change each

setting.

• Text Style - Change the

font used for the closed

captioning text.

• Text Size - Make the text larger or smaller.

• Text Color - Change the color of the text.

• Text Opacity - Change the transparency of the text.

• Text Edges - Change the effects at the edges of the text,

such as raising the edges or adding drop shadows.

• Text Edges Color - Change the color of the text edge

effects.

VIZIO

DIGITAL STYLE

Caption Style Custom

Text Style As Broadcast

Text Size Large

Text Color Green

Text Opacity As Broadcast

Text Edges As Broadcast

Text Edges Color As Broadcast

Background Color Black

Background Opacity As Broadcast

Window Color Red

Window Opacity As Broadcast

• Background Color - Change the color of the

background directly behind the text.

• Background Opacity - Change the transparency of the

background directly behind the text.

• Window Color - Change the color of the closed

captioning box.

• Window Opacity - Change the opacity of the closed

captioning box.

4. When you are satisﬁed with the appearance of the closed

captions, press the EXIT button on the remote.

Typical choices include:

• Opaque background, transparent window—Only a strip

of background appears behind the text, expanding as

the text appears. This is the typical "As Broadcast" mode.

• Opaque background and window in the same color—

When text appears, the entire line ﬁlls with color at once.

In the example below, the closed caption text is green, the

background is black, and the window is red.

CLOSED CAPTIONS SCREEN LAYOUT

Text

Window

Background

CLOSED CAPTION TEXT SAMPLE

SED CAPTION TEXT SASED CAP

ackground

RENAMING DEVICES ON THE INPUT MENU

You can rename the inputs to make them easier to recognize on

the Input menu. For example, if you have a DVD player connected

to the Component input, you can rename that input to display

“DVD Player.” See

Changing the Input Source on page 23

To change the name of an input:

1. Press the MENU button on the remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the remote to highlight Devices

and press OK. The DEVICES menu is displayed.

3. Highlight the input device that you want to rename and

press OK.

4. To use a preset input name:

a. Highlight the Input Port row and press OK.

b. Highlight the input name you want to use and press OK.

—or—

To enter a custom name:

a. Enter your custom label using the keyboard on the

remote.

b. Highlight OK and press OK.

c. The Input Name changes to show the custom name that

you created.

5. When you have ﬁnished naming your input, press the EXIT

button on the remote.

VIZIO

NAME INPUT

HDMI-1 DVD

DVD_

Cancel

Select the input name from a list

of common device names (Blu-ray,

Cable Box, DVD, etc).

a b c d e f g h i

j k l m n o p q r

s t u v w x y z 0

1 2 3 4 5 6 7 8 9

.@# .com Space

Input Port

Custom Name

Input Name

äêí

CHANGING THE TV SETTINGS

Using the System menu, you can:

• View system information

• Change the on-screen

menu language

• Set time zone and local

settings

• Set up parental controls

• Resize the video size

• Change your TV Name

• Adjust wide mode

• Adjust the CEC settings

• Adjust when the power

indicator is illuminated

• Reset the TV settings & set

up administrative controls

VIZIO

SYSTEM

System Information

Menu Language English

Time & Local Settings

Parental Controls

View Mode Overlay

Wide

TV Name VIZIOTV

CEC

Power Indicator Off

Reset & Admin

View status information for the TV,

current input and your network.

Viewing System Information

To view a summary of the TV settings:

1. Press the MENU button on the remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the remote to highlight System

and press OK. The SYSTEM menu is displayed.

3. Highlight System Information and press OK.

4. Use the Up/Down Arrow buttons to scroll through the system

information.

5. When you are ﬁnished reviewing the system information,

press the EXIT button on the remote.

Changing the On-Screen Menu Language

Your TV can display the on-screen menu in different languages.

To change the on-screen menu language:

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the

remote to highlight System and

press OK. The SYSTEM menu is

displayed.

3. Use the Arrow buttons on the

remote to highlight Menu

Language and press OK. Th e

MENU LANGUAGE menu is

displayed.

4. Highlight your preferred

language (English, Español, o r

Français) and press OK.

5. Press the EXIT button on the

remote.

VIZIO

MENU LANGUAGE

English

Español

Français

Enabling or Disabling Program Ratings

To manage program content according to its rating, you must

enable the Program Rating feature.

To enable or disable the Program Rating feature:

1. From the PARENTAL CONTROLS menu, highlight Locks and

press OK. The LOCKS menu is displayed.

2. Select On or Off and press OK.

Locking and Unlocking Channels

When a channel is locked, it will be inaccessible. Locking

a channel is a good way to prevent children from viewing

inappropriate material.

To lock or unlock a channel:

1. From the PARENTAL CONTROLS menu, highlight Channel

Locks and press OK. The CHANNEL LOCKS menu is displayed.

2. Highlight the channel you want to lock or unlock and press

OK.

3. When a channel is locked, the Lock icon appears locked.

The channel is not accessible unless the parental PIN is

entered.

4. When a channel is unlocked, the Lock icon appears

unlocked. The channel is accessible.

Using the Parental Controls

The TV’s parental controls allow you to prevent the TV from

displaying certain channels or programs without a password.

The Parental Controls menu only appears when:

• You are using the tuner to receive your TV signals, such as

when you are using an antenna for Over-the-Air signals

or when connected to cable TV directly from the wall (no

cable box).

• You have a device connected using a composite video

cable or a coaxial cable, such as a VCR, satellite or

cable box, or DVR.

Accessing the Parental Controls Menu

To access the Parental Controls menu:

1. Press the MENU button on the remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the remote to highlight System

and press OK. The SYSTEM menu is displayed.

3. Use the Arrow buttons on the remote to highlight Parental

Controls and press OK.

4. Enter your parental PIN. If you have not set a PIN, enter the

default, 0000. The PARENTAL CONTROLS menu is displayed.

To set a custom parental passcode, see

Changing

the Parental Control PIN

on page 44.

Setting the Time and Local Settings

To ensure the correct time is displayed when you press the INFO

button, set the TV’s time zone:

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the

remote to highlight System and

press OK. The SYSTEM menu is

displayed.

3. Use the Arrow buttons on the

remote to highlight Time &

Local Settings and press OK.

The menu headed by the local

date and time is displayed.

4. Highlight Time Zone and press

OK. The TIME ZONE menu is

displayed.

5. Highlight your time zone and press OK.

6. Highlight Daylight Saving Time and press OK. The DAYLIGHT

SAVING TIME menu is displayed. Choose On if your locale

observes daylight savings time, Off if it does not, or Auto

to have the system automatically detect Daylight Savings

Settings.

7. If you are in the United States, highlight Zip Code. Enter your

Zip code using the keypad on the remote, then press OK. Zip

codes are often used by V.I.A. Plus Apps to give you the most

accurate location-based information, such as weather or

news.

8. Highlight Country and press OK. The COUNTRY menu is

displayed.

9. Highlight your country and press OK.

10. Press the EXIT button on the remote.

TIME ZONE

Hawaii (-10)

Alaska (-9)

Paciﬁc (-8)

Mountain (-7)

Arizona (-7)

Central (-6)

Indiana (-5)

Eastern (-5)

Atlantic (-4)

Newfoundland (-3.5)

-3

Resetting the Content Locks

To reset the content locks to the factory-default settings:

1. From the PARENTAL CONTROLS menu, highlight Reset Locks

and press OK. The TV displays, “Select Reset to restore

Parental Controls to factory defaults.”

2. Highlight Reset and press OK.

Changing the Parental Control PIN

If you use the parental controls, you should change the PIN to

prevent children from accessing inappropriate material.

To change the parental control PIN:

1. From the PARENTAL CONTROLS menu, highlight Change PIN

and press OK. The CHANGE PIN menu is displayed.

2. In the NEW PIN ﬁeld, use the Number Pad on the remote to

enter your new 4-digit parental control PIN.

3. In the CONFIRM PIN ﬁeld, use the Number Pad on the

remote to re-enter your new 4-digit parental control PIN.

4. Write down your new parental control PIN and save it in a

secure location.

5. Press the EXIT button on the remote.

Blocking and Unblocking Content by Rating

A channel may sometimes broadcast programs that are meant

for children, and at other times broadcast programs that are

meant for mature audiences. You may not want to block the

channel completely using a channel lock, but you may wish to

block certain programs from being viewed.

When this is the case, you can use the TV’s Rating Block feature

to block content based on its rating.

For a list of content ratings and their deﬁnitions, visit

www.tvguidelines.org.

To block or unblock content by its rating:

1. From the PARENTAL CONTROLS menu, highlight the content

type you want to adjust and press OK:

USA TV - USA television program broadcasts.

USA Movie - USA movie broadcasts.

Canadian English - Canadian English television program

broadcasts.

Canadian French - Canadian French television program

broadcasts.

2. For each rating type you want to block or unblock, use the

Up/Down and Left/Right Arrow buttons on the remote to

highlight the rating type and press OK.

3. When the rating type is blocked, the Lock icon appears

locked. Content with this rating and all higher ratings

cannot be viewed.

4. When the rating type is unblocked, the Lock icon appears

unlocked. Content with this rating and all lower ratings can

be viewed.

If you want to block all unrated content, highlight Block

Unrated Shows and use the Arrow buttons on the remote to

select On.

5. When you are ﬁnished adjusting the rating level blocks, press

the EXIT button on the remote.

Changing the View Mode Settings

You can resize the video content to ﬁt while the menu is open.

To change the view mode settings:

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the

remote to highlight System and

press OK. The SYSTEM menu is

displayed.

3. Use the Arrow buttons on the

remote to highlight View Mode

and press OK. The VIEW MODE

menu is displayed.

4. Highlight Viewport, Overlay, or

Centered Overlay and press

OK.

• Viewport - The entire picture

is visible in the space to the

right of the menu.

• Overlay - The left-hand

portion of the picture

covered by the menu.

• Centered Overlay - The picture extends off of the right

side of the screen.

5. Press the EXIT button on the remote. See

Viewing Video

with the Menu Open

on page 24 for an alternate way of

resizing the video content.

VIZIO

VIEW MODE

Viewport

Overlay

Centered Overlay

Adjusting the Wide Mode (Aspect Ratio)

The TV can display images in ﬁve different modes: Normal,

Stretch, Panoramic, Wide, and Zoom. Each mode displays the

picture differently. See

Changing the Screen Aspect Ratio on

page 24

for an alternate way of adjusting the Wide Mode.

To change the screen aspect ratio from the SYSTEM menu:

1. Press the MENU button on the remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the remote to highlight System

and press OK. The SYSTEM menu is displayed.

3. Highlight Wide and press

OK. Use the Arrow buttons to

highlight the aspect ratio you

wish to view and press OK.

• Normal preserves the content’s

original aspect ratio. Since the

4:3 aspect ratio is not large

enough to ﬁll the TV’s screen,

black bars are added to the left

and right of the display image.

• Stretch expands the display image to ﬁll the screen. Images

may appear wider than intended. If you are watching

widescreen (1.85:1 or 2.35:1) content, black bars will still

appear on the top and bottom of the display image. This

option is only available when the TV is displaying a

720p/1080i/1080p source.

• Panoramic expands the display image to ﬁll the screen.

Images may appear wider than intended. If you are

watching widescreen (1.85:1 or 2.35:1) content, black

bars will still appear on the top and bottom of the display

image. This option is only available when the TV is

displaying a 480i/480p source.

• Wide stretches a 4:3 aspect ratio picture to the edges of

the screen. Since the picture is being stretched, the display

image may appear distorted. If the program is already

formatted for widescreen viewing (1.85:1 or 2.35:1), then

black bars will appear on the top and bottom of the

display image.

• Zoom expands images with black bars to ﬁt the screen.

Panoramic

Wide

Zoom

Normal

Changing your TV Name

Enter a custom DNLA name for your TV (Up to 10 characters long)

To create a custom name for your TV:

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the

remote to highlight System and

press OK. The SYSTEM menu is

displayed.

3. Use the Arrow buttons on the

remote to highlight TV Name

and press OK. The TV NAME

menu is displayed.

4. Use either the on-screen

keyboard or keyboard on your

remote control to enter a name

for your TV (Name can be up to

10 characters long).

When you are ﬁnished,

highlight OK and press the OK

button.

5. Press the EXIT button on the remote.

Stretch

Wide

Zoom

Normal

Note: Aspect ratio settings may

vary by Input source.

VIZIO

TV NAME

VIZIOTV_

Cancel

a b c d e f g h i

j k l m n o p q r

s t u v w x y z 0

1 2 3 4 5 6 7 8 9

.@# .com Space

äêí

Turning the Power Indicator On or Off

The Power Indicator on the front of your TV normally does not

glow when the TV is on. You can change this setting if you prefer

the light to be on.

To turn the Power Indicator Light on or off:

1. Press the MENU button on the remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the remote to highlight System

and press OK. The SYSTEM menu is displayed.

3. Highlight Power Indicator and press OK.

4. Use the Up/Down Arrow buttons to select On or Off, then

press OK.

Adjusting the CEC Settings

The CEC function on your TV enables you to control

HDMI-connected devices with the included remote without any

additional programming.

Not all HDMI devices support CEC. See your device’s

user manual for details.

To enable, disable, or adjust CEC settings:

1. Press the MENU button on the remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the remote to highlight System

and press OK. The SYSTEM menu is displayed.

3. Use the Arrow buttons on the remote to highlight CEC and

press OK. The CEC menu is displayed.

4. Use the Arrow and OK buttons to adjust each setting:

• CEC - Select Enable to use the TV remote to control CEC

devices connected to HDMI. Select ARC Only for plug

and play of an audio device connected to the HDMI ARC

input. The ARC setting does not support video devices

connected to the audio device (Select Enable to enable

support for these devices).

Select Disable to turn CEC off.

• Device Discovery - Use this function to determine if your

device is connected and supports CEC. (Required for

Enable option only)

5. Press the EXIT button on the remote.

5. If you have changed the default parental control PIN, enter it

now.

The TV displays, “Select Reset to restore all TV settings to

factory defaults and clear all account information.”

6. Highlight Reset and press OK.

7. Wait for the TV to turn off. The TV will turn back on shortly

afterward and the Setup App will begin.

USING THE RESET & ADMIN MENU

You can use the TV’s Reset & Admin menu to restore the TV to its

factory default settings.

Restoring the TV to Factory Default Settings

All of the on-screen menu settings can be reset to the factory

defaults.

If you restore the TV to the factory default settings, all

changes you have made to the settings will be lost!

This includes any V.I.A. Plus Apps that you have

added and any changes you have made to the

settings for those Apps.

To restore the TV to its factory default settings:

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Use the Arrow buttons on the

remote to highlight System and

press OK. The SYSTEM menu is

displayed.

3. Highlight Reset & Admin and

press OK. The RESET & ADMIN

menu is displayed.

4. Highlight Reset TV to Factory

Defaults and press OK.

VIZIO

RESET & ADMIN

Reset TV to Factory Defaults

VIZIO Privacy Policy

Smart Interactivity On

Store Demo

USING THE GUIDED SETUP MENU

Using Guided Setup

The TV’s Setup App can be used to easily set up the TV tuner or

to connect the TV with your network.

To use guided setup:

1. Press the MENU button on the

remote. The on-screen menu is

displayed.

2. Highlight Guided Setup and

press OK.

3. Highlight the guided setup you

want to use and press OK:

• Tuner Setup - Set up the TV

tuner.

• Network Setup - Connect

the TV to the Internet using

your network.

4. Follow the on-screen

instructions. When ﬁnished,

press the EXIT button on the

remote.

VIZIO

GUIDED SETUP

Tuner Setup

Network Setup

USING THE INFO WINDOW

The Info Window can be displayed by pressing the INFO or GUIDE

button on the remote:

• Press the INFO or GUIDE button one time to display

channel, input, and display information.

• Press the INFO or GUIDE button two times to display the

program title, program rating, audio information, and the

start and end times of the program.

DIGITAL EPISODE GUIDE & INFO WINDOW

Oliver’s Holiday Surprise

1080p 6:15pm

11:00AM - 12:00PM

TV-PG-V Dolby D Stereo

Oliver wakes up one morning only to discover that his pals are missing. In this

hour-long holiday special, Oliver goes on a journey in search of his pals. Who

knows what he’ll encounter on the way?

Program Description

Program Title/Rating Information

Network/Display Information

28-1

KCET-HD Normal

Channel/Input Information

5Using the USB Media Player

USING THE USB MEDIA PLAYER

The USB Media Player allows you to connect a USB thumb drive to

your TV and play music, video, or photos.

Preparing Your USB Drive to Play USB Media

To play USB media, you must ﬁrst save your ﬁles onto a USB thumb

drive:

• The USB thumb drive must be formatted as FAT32.

• Files on the USB thumb drive must end in a supported ﬁle

extension (.mp3, .jpg, etc.).

• The player is not designed to play media from external

hard drives, MP3 players, cameras, or smartphones

Playing USB Media

To play your USB media:

1. Connect your USB thumb drive to the USB port on the side of

the TV.

2. Press the V button on the remote.

3. Use the Arrow buttons to highlight the Multimedia app in

the V.I.A. Plus Dock and press OK. (The highlighted App is in

the center of the dock.)

4. Use the Arrow buttons to highlight the USB drive from the list

and press OK.

5. Use the Arrow buttons to highlight the type of media to

display (Music, Video, or Photo) and press OK.

6. Use the Arrow buttons to highlight the ﬁle you want to

display. Press OK. Music or video ﬁles play, photos display.

You can display your photos in fullscreen. Select the

photo, press OK, then highlight Fullscreen and press

OK.

Removing the USB Drive from the TV

Do not remove the USB thumb drive while the TV is

on. Doing so may damage the drive.

To safely remove your USB drive from the TV:

1. Turn off the TV.

2. Disconnect your USB thumb drive from the USB port on the

side of the TV.

FPO

B thumb drive t

thumb drive

•

Playing

Play

To pla

To p

Browse Photos

Artist A-Z

View:

Sort:

Music

MyFlashDrive\Audio\root\My Music

USB1: MyFlashDrive

My Music

Page 1 of 1

VIZIO

Album Art

If included on the

USB thumb drive and

associated with your music,

the album art will display

here.

Progress Bar

Displays the duration of the current-

ly-playing song. The blue bar will

lengthen as the song progresses.

Page Information

If your USB thumb drive has more

ﬁles than can be displayed on a

single screen, the page information

is displayed here.

Now Playing Information

Displays song title, album title, and artist name.

Connected

Sources

Displays

connected USB

devices.

Current Folder

Playback Controls

Use to control audio

playback. Highlight Play/

Pause, Previous, or Next

and press OK.

Toggle Music/Photos

Toggle between

viewing all content

and only viewing

folders.

MUSIC PLAYER

All

Sort by Album/Artist/

Track

Fab Apple Dream

On January Mix Comp

By Oliver

5:50 8:46

Track Album Artist Duration

Starry Summer Summer Mix JCheesy 2:42

Downspin JCheesy 6:20

Mango Dream Oliver 8:46

Crystal Waters The Dash 4:21

Smooth Waves Rio Steve 7:58

Back Button

Highlight this button

and press OK to return

to the previous screen.

Folder Contents/

Playlist

This area displays

the contents of the

currently selected

folder. You can browse

ﬁles and folders

using the Arrow and

OK buttons on the

remote.

Summer Mix

Beach Mix

Breezy Mix

Date New-Old

View:

Sort:

Video

MyFlashDrive\Video\root\My Videos

USB1: MyFlashDrive

My Videos

Page 1 of 1

VIZIO

Page Information

If your USB thumb drive has more

ﬁles than can be displayed on a

single screen, the page information

is displayed here.

Connected

Sources

Displays

connected USB

devices.

Current Folder

View All or

View Folders

VIDEO PLAYER

Folders

File Date Duration#

Family Vacation - California - 00:23:431

26th Birthday Party - 00:38:182

Summer 2012 - 00:41:083

Greatest Trip Ever - 00:05:324

Folder Contents/

Playlist

This area displays

the contents of the

currently selected

folder. You can

browse among ﬁles

using the Arrow and

OK buttons on the

remote.

Back Button

Highlight this button

and press OK to return

to the previous screen.

Sort by Date

or File Name

Start Slideshow

Name A-Z

Thumbnails

Settings

View:

Sort:

Photo VIZIO_2GB\Photo\root

File Name: D 1920x1080

Resolution: 1920x1080

Size: 1607270KB

USB1:


root B.jpg C.jpg

D.jpg E.jpg F.jpg

G.jpg H.jpg I.jpg

Page 1 of 1

VIZIO

Current Folder

Displays the folder path.

Back Button

Highlight and press OK to return to left column.

Connected

Sources

Displays

connected USB

devices.

Current Folder

View Thumbnails/Folders

Adjust Slideshow Settings

Start Fullscreen

Slideshow

PHOTO VIEWER

Browse Music

View Music Files

Back Button

Highlight this button

and press OK to return

to the previous screen.

Folder Contents

This area displays the

contents of the currently

selected folder. You can

browse ﬁles and folders

using the Arrow and OK

buttons on the remote.

Page Information

If your USB thumb drive has more

ﬁles than can be displayed on a

single screen, the page information

is displayed here.

Photo Information

Displays the name,

resolution, and ﬁle

size of the selected

photo.

Sort by Date

or File Name

6Using VIZIO Internet Apps Plus® (V.I.A. Plus)

VIZIO Internet Apps Plus® (V.I.A. Plus) delivers popular online

content to your TV. V.I.A. Plus features a selection of Apps that

allow you to watch movies and TV shows, listen to music, get

weather and news information, and more–all on demand.

A high-speed Internet connection is required to receive

product updates and to access online content.

See

Using the Network Connection Menu on page 34

if your TV

is not yet connected to your home network.

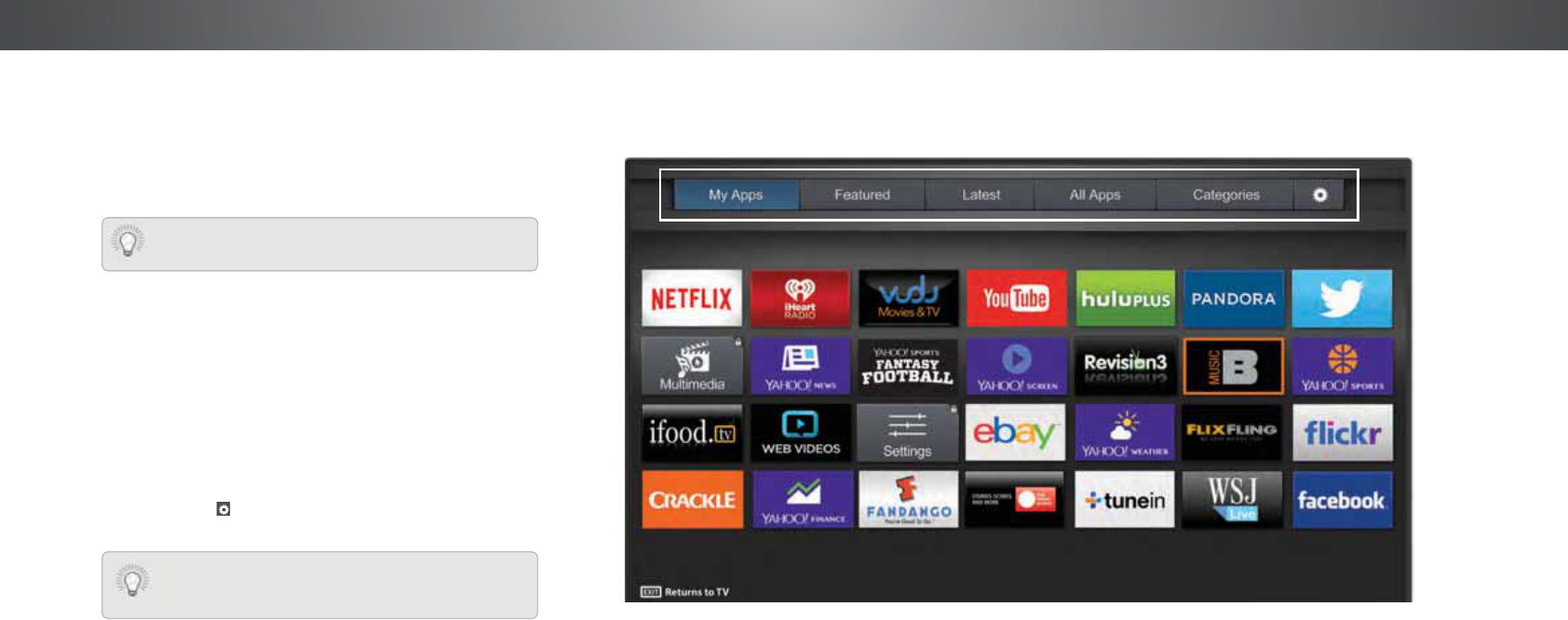

USING THE V.I.A. PLUS APP DOCK

The V.I.A. Plus App Dock is where all of your V.I.A. Apps are accessed.

To launch an App from the Dock:

1. Press the V Button on the remote.

2. Highlight a V.I.A. Plus App by

scrolling left and right using the

Left/Right Arrow buttons on the

remote. (The highlighted App is

in the center of the dock.)

3. Press the OK button on the

remote to launch the App.

V Button

Note: App location, appearance, and availability subject to change without notice.

FPO

My Apps Tab

Displays the apps

installed on your TV.

Installed Apps

The Apps displayed

here are also

available in the V.I.A.

Plus App Dock.

App Store Tabs

Browse through

Apps on these tabs

to run them and

add them to your

My Apps tab.

USING THE FULLSCREEN V.I.A. APPS WINDOW

The Fullscreen V.I.A. Plus Apps window allows you to add and

store Apps. The Apps on the ﬁrst page are displayed in the Dock

and Apps on additional pages can be moved to the Dock.

To open the Fullscreen V.I.A. Plus Apps Window:

1. Press the V Button on the remote twice.

2. Highlight an App by using the Arrow buttons on the remote.

3. Press the OK button on the remote to launch the App.

4. To exit from an open App or to close the App Dock, press the

Exit button on the remote.

Note: App location, appearance, and availability subject to change without notice.

FULLSCREEN V.I.A. PLUS APPS WINDOW OVERVIEW

The Fullscreen V.I.A. Plus Apps Window allows you to add, delete

and organize your Apps. The My Apps tab displays Apps that

are already installed on your TV. The Apps on the ﬁrst page are

displayed in the V.I.A. Plus App Dock.

The following tabs are located at the top of your Fullscreen V.I.A.

Plus Apps Window:

• My Apps: Displays apps that are installed on your TV.

• Featured: Displays apps that are recommended by Yahoo!

• Latest: Displays apps that were most recently added to

the library of apps.

• All Apps: Displays every app that is available for download.

• Categories: Displays apps sorted into categories:

Spotlight, Yahoo!, Weather, News and Finance, Movies

and TV, Photos and Video, Sports, Music, Social,

Information, Fun and Games, Shopping, and Local TV.

• Settings ( ): Displays App software information and

development settings.

Apps with a small lock icon in the right-hand corner

cannot be deleted.

You can also preview Apps without installing them.

Simply highlight the App you wish to preview and press

OK to open it.

Note: App location, appearance, and availability subject to change without notice.

CUSTOMIZING THE V.I.A. PLUS APPS WINDOW

You can add, delete, and move apps around on your My Apps

tab for a custom look and feel.

Adding an App to the My Apps Tab

To add an app to your TV:

1. Use the Arrow buttons on the remote to highlight one of the

App Store tabs (Featured, Latest, All Apps, or Categories).

1. Use the Arrow buttons to highlight the app you wish to add.

2. Press and hold the OK button until [

App Name

]

has been

added to your My Apps list

appears.

Once the app has been installed, a star appears in the top

right-hand corner of the app icon as shown below.

Moving an App in My Apps

You can organize your Apps on your My Apps tab by moving

them where you want.

To move the Apps on your My Apps tab:

1. Use the Arrow buttons on the remote to highlight the app

you wish to move.

2. Press and hold the OK button. The following options appear:

Star

Note: App location, appearance, and availability subject to change without notice.

Deleting an App from the My Apps Tab

To delete an app from your TV:

1. Use the Arrow buttons on the remote to highlight the App

you wish to delete.

2. Press and hold the OK button. The following options appear:

3. Press OK to delete the app. The following dialog box appears:

4. Use the Left/Right Arrow buttons to select Delete and press OK.

The App is removed from your My Apps tab.

Note: App location, appearance, and availability subject to change without notice.

Only the Apps on the ﬁrst page appear in the Dock.

3. Use the Arrow buttons to move the app to the desired

location and press OK to place the app.When you can

move the app, it appears as shown below.

Note: App location, appearance, and availability subject to change without notice.

Cursor showing the location that

the app will move to

WHAT YOU NEED TO VIEW ULTRA HD CONTENT

To view Ultra HD content, you will need:

• Ultra HD TV

• High-speed Internet connection

• 802.11n Wireless Router

802.11ac Wireless Router (For best performance)

• SSID (Wireless network name) and Network Password

• High-Speed HDMI cable

And at least one of the following:

• Netﬂix® or other streaming service account that offers

Ultra HD content

• Device with 4K Ultra HD output such as a

high-performance PC

Viewing Ultra HD Content

WHAT IS ULTRA HD?

Ultra HD (UHD) offers four times the resolution of 1080p (That’s

twice as many pixels in each direction, horizontally and vertically).

The detail and resolution available from UHD makes everything

you watch more vibrant and lifelike, giving you a phenomenal

viewing experience.

The VIZIO P-Series Ultra HDTV is your crystal-clear window to a

brand-new entertainment experience, featuring powerful Ultra

HD performance, best-in-class picture quality, and premium

Smart TV features.

In addition, P-Series is fully equipped and ready for nearly all Ultra

HD entertainment options. With support for HEVC decoding and

the latest Wi-Fi standard 802.11ac (that’s up to 3x faster than

802.11n1), P-Series lets you stream Ultra HD from popular apps

such as Netﬂix®. Its superior Spatial Scaling Engine accurately and

beautifully transforms your favorite 1080p entertainment such

as sports, movies, and TV shows into spectacular Ultra HD. And

support for the latest HDMI standards enables Ultra HD playback

from next generation cable and satellite receivers, Blu-ray players

and game consoles.

WHAT IS HDMI 2.0 AND HDCP 2.2?

Your P-Series TV supports the latest HDMI standards. This allows

next-gen cable and satellite receivers, Blu-Ray players, game

consoles, and more to deliver Ultra HD content.

In addition, the TV supports HDCP 2.2 technology which allows

you to play protected content from Ultra HD players and next-gen

video game consoles. The P-Series is built to be future proof

where it will allow users to view Ultra HD content as it becomes

readily available. See

Connecting A Device on page 14

for

more information about connected HDMI 2.0/HDCP 2.2

enabled devices.

Remember:

HDMI ports 1,2, and 5 support HDCP 2.2 technology.

HDMI ports 1 through 4 support Ultra HD inputs at

up to 30Hz, while HDMI port 5 can support Ultra HD

inputs of up to 60Hz. For best performance with HDMI

port 5, only connect high-performance devices that

are capable of outputting 1080p or higher resolution.

Source: IEEE standard 802.11 speciﬁcations. Maximum throughput rate of 802.11ac (1300

Mbps) is approximately three times faster than that of 802.11n (450 Mbps). Actual rate will

vary, and will be subject to router model, site environment, range, Internet bandwidth,

and other factors.

FPO

allo

ailable. S

ormation ab

ed devices.ed devices.

Remember:

ports 1,2, and 5

ports 1 through

o 30Hz, while HDMI

puts of up to 60Hz. Fo

ort 5, only connect hi

are capable of output

ATroubleshooting & Technical Support

Find help with:

• New Product Setup

• Connecting Your Devices

• Technical Problems

• Product Updates

• And More

You can also contact our

award-winning support team at:

Phone:

Email:

(877) 878-4946 (TOLL-FREE)

techsupport@VIZIO.com

Hours Of Operation:

Monday - Friday: 7 AM TO 11 PM (CST)

Saturday - Sunday: 9 AM TO 6 PM (CST)

Live Chat

Support Available

Do You Have Questions? Find Answers At

SUPPORT.VIZIO.COM

Take A Moment To Register Your Product At

VIZIO.COM/PRODUCT-REGISTRATION

Customized Support

Get assistance quickly with your information on-hand.

News & Offers

Take advantage of the latest news and special offers from VIZIO.

Safety & Satisfaction

Stay up to date with important product updates and notifications.

Why Register?

The remote is not responding.

• Make sure the batteries are properly inserted matching

the - and + symbols.

• Replace the batteries with fresh ones.

The TV displays “No Signal.”

• Press the INPUT button on the remote control to select a

different input source.

• If you are using cable TV or antenna connected directly

to the TV, scan for channels. See

Scanning for Channels

on page 36

There is no power.

• Ensure the TV is plugged into a working electrical outlet.

• Ensure the power cable is securely attached to the TV.

• Press the Power/Standby button on the remote or on

the back of the TV to turn the TV on.

The power is on, but there is no image on the screen.

• Ensure all cables are securely attached to the TV.

• Ensure all devices are connected correctly. Devices

differ; see your device’s user manual for details.

• Adjust Brightness, Contrast, or Backlight. See

Adjusting

the Picture Settings on page 25

• Press the INPUT button on the remote to select a

different input source.

There is no sound.

• Press Volume Up on the remote control.

• Press the MUTE button on the remote to ensure mute is off.

• Check the audio settings. See

Adjusting the Audio

Settings on page 31.

• Check the audio connections of external devices

(Blu-ray player, game console, cable/satellite box) that

are connected to the TV.

• If you are using an antenna, the signal strength of the

channel may be low. Ensure your antenna is connected

securely to the TV and move the antenna around the

room or close to a window for the best signal.

The sound is ﬂat or dialog is not audible.

• Turn off Volume Leveling. See

Adjusting the Audio

Settings on page 31

The colors on the TV don’t look right.

• Adjust the Color and Tint settings in the Picture menu.

See

Adjusting the Picture Settings on page 25

• Select a pre-set picture mode. See

Adjusting the Picture

Settings on page 25

. VIZIO recommends selecting

Calibrated.

• Check all cables to ensure they are securely attached.

The buttons on the remote aren’t working.

• Ensure you are only pressing one button at a time.

• Point the remote directly at the TV when pressing a button.

• Replace the remote batteries with new ones. See

Replacing the Batteries on page 13.

The image quality is not good.

• For the best image quality, view high-deﬁnition

programs using digital sources. Connect your devices

with HDMI cables.

• If you are using an antenna, the signal strength of the

channel may be low. Ensure your antenna is connected

securely to the TV and move the antenna around the

room or close to a window for the best signal.

The picture is distorted.

• Move the TV away from electrical appliances, cars, and

ﬂuorescent lights.

• Ensure all cables are securely attached.

The display image does not cover the entire screen.

• If you are using TV, AV, or Component with 480i input,

press the button on the remote to change the

screen mode.

The TV has pixels (dots) that are always dark.

• Your UHD TV is precision-manufactured using an

extremely high level of technology. However, sometimes

pixels may not display correctly. These types of

occurrences are inherent to this type of product and do

not constitute a defective product.

I see “noise” or static on the screen.

• When your TV’s digital capabilities exceed a

digital broadcast signal, the signal is up-converted

(improved) to match your TV’s display capabilities. This

up-converting can sometimes cause irregularities in the

image.

• If you are using an antenna, the signal strength of the

channel may be low. Ensure your antenna is connected

securely to the TV and move the antenna around the

room or close to a window for the best signal.

When I change input source, the display image changes size.

• The TV remembers the viewing mode on each input

source. If the viewing mode on the new input source

differs from the one on the input source you switch from,

the difference may be noticeable.

• See

Changing the Screen Aspect Ratio on page 24.

BSpeciﬁcations

RS65-B2

Screen Size: 65"

Viewable Area: 64.52"

Dimensions

w/ Stand and Sound Bar:

w/o Stand, w/Sound Bar:

57.37” x 39.68” x 16.7”

57.37” x 38.50” x 2.28”

Weight

w/ Stand and Sound Bar:

w/o Stand, w/ Sound Bar:

114.19 lbs

96.67 lbs

LCD Backlight: DLED

Active LED Zones: 384 Zones

Refresh Rate: 240 Hz Effective Refresh Rate

Clear Action: TBD

Maximum Resolution: 3840 x 2160 (UHD, 2160p)

Dynamic Contrast Ratio: 100,000,000:1

Pixel Pitch: .372 mm (H) x .372 mm (V)

Viewing Angle: 178° (H) / 178° (V)

HDMI Inputs: 5

Component Video Inputs: 1

Composite Inputs: 1 (Shared with Component)

RF Antenna Input: 1

USB Port: 1

Ethernet: 1

Audio Outputs: RCA Analog Stereo Output, Optical Digital

OSD Language: English, French, Spanish

Ambient Light Sensor: Yes

RS65-B2

Remote Control Model: XRT500

Certiﬁcations: UL/CUL, FCC Class B, HDMI 1.4b/2.0, Dolby Digital Plus

Voltage Range: 120V @ 60 Hz

Power Consumption: TBD

Standby Power: <1W

Zero Bright Pixel Guarantee: Yes

CWarranty

ON PARTS AND LABOR

Covers units purchased as new in United States and

Puerto Rico Only. VIZIO provides a warranty to the original

purchaser of a new Product against defects in materials and

workmanship for a period of one (1) year of non-commercial

usage and ninety (90) days of commercial use. If a Product

covered by this warranty is determined to be defective

within the warranty period, VIZIO will either repair or replace

the Product at its sole option and discretion.

To obtain warranty service, contact VIZIO Technical Support

via e-mail: TechSupport@VIZIO.com or via phone at 877

MY VIZIO (877.698.4946) from 5:00AM to 9:00PM Monday

through Friday and 8:00AM to 4:00PM Saturday and Sunday,

Paciﬁc Time, or visit www.VIZIO.com. PRE-AUTHORIZATION

MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A

VIZIO SERVICE CENTER. Proof of purchase in the form of a

purchase receipt or copy thereof is required to show that a

Product is within the warranty period.

Parts and Labor

There will be no charge for parts or labor during the

warranty period. Replacement parts and Products may

be new or recertiﬁed at VIZIO’s option and sole discretion.

Replacement parts and Products are warranted for the

remaining portion of the original warranty or for ninety (90)

days from warranty service or replacement, whichever is

greater.

Type of Service

Defective Products must be sent to a VIZIO service center

to obtain warranty service. VIZIO is not responsible for

transportation costs to the service center, but VIZIO will

cover return shipping to the customer. PRE-AUTHORIZATION

IS REQUIRED BEFORE SENDING ANY PRODUCT TO A VIZIO

SERVICE CENTER FOR WARRANTY SERVICE.

Product returns to VIZIO’s service centers must utilize either

the original carton box and shipping material or packaging

that affords an equal degree of protection. VIZIO Technical

Support will provide instructions for packing and shipping

the covered Product to the VIZIO service center.

Limitations and Exclusions

VIZIO’s one-year limited warranty only covers defects in

materials and workmanship. This warranty does not cover,

for example: cosmetic damage, normal wear and tear,

improper operation, improper voltage supply or power

surges, signal issues, damages from shipping, acts of God,

any type of customer misuse, modiﬁcations or adjustments,

as well as installation and set-up issues or any repairs

attempted by anyone other than by a VIZIO authorized

service center. Products with unreadable or removed serial

numbers, or requiring routine maintenance are not covered.

This one year limited warranty does not cover Products

sold “AS IS”, “FACTORY RECERTIFIED”, or by a non-authorized

reseller.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE

LISTED OR DESCRIBED ABOVE. ANY IMPLIED WARRANTIES,

INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN

DURATION TO THE PERIOD OF TIME SET FORTH ABOVE. VIZIO’S

TOTAL LIABILITY FOR ANY AND ALL LOSSES AND DAMAGES

RESULTING FROM ANY CAUSE WHATSOEVER INCLUDING

VIZIO’S NEGLIGENCE, ALLEGED DAMAGE, OR DEFECTIVE

GOODS, WHETHER SUCH DEFECTS ARE DISCOVERABLE OR

LATENT, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF

THE PRODUCT. VIZIO SHALL NOT BE RESPONSIBLE FOR LOSS OF

USE, LOSS OF INFORMATION OR DATA, COMMERCIAL LOSS,

LOST REVENUE OR LOST PROFITS, OR OTHER INCIDENTAL OR

CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW

LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS

OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL

DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY

NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL

RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH

VARY FROM STATE TO STATE. THIS WARRANTY IS SUBJECT TO

CHANGE WITHOUT NOTICE.

CHECK WWW.VIZIO.COM FOR THE MOST CURRENT VERSION.

Personal Data

If your VIZIO product is capable of storing personal data

and other information, ALL CONTENTS AND INFORMATION

WILL BE DELETED IN THE COURSE OF SOME IN-HOME AND ALL

SHIP-IN WARRANTY SERVICE. If this occurs, your product will

be restored to you conﬁgured as originally purchased. You

will be responsible for restoring all applicable data and

passwords. Recovery and reinstallation of user data is not

covered under this Limited Warranty. In order to protect your

personal information, VIZIO recommends that you always

clear all personal information from the unit before it is

serviced, regardless of the servicer.

Zero Bright Pixel Defect Guarantee

This policy covers “zero bright pixel” defects for the duration

of the limited “ONE YEAR WARRANTY” on select new product

purchases. To determine if this guarantee applies to your

product, refer to the “DETAILS” tab of the model’s product

information page (www.VIZIO.com) or look for the “zero

bright pixel” guarantee on the box.

DLegal & Compliance

FCC Class B Radio Interference Statement

NOTE: This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy, and if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for

help.

This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Notice

1. The changes or modiﬁcations not expressly approved by the party

responsible for compliance could void the user’s authority to

operate the equipment.

2. Shielded interface cables and AC power cord, if any, must be used

in order to comply with the emission limits.

3. The manufacturer is not responsible for any radio or TV

interference caused by unauthorized modiﬁcation to this

equipment. It is the responsibilities of the user to correct such

interference.

FCC warning

Changes or modiﬁcations not expressly approved by the party responsible

for compliance with the FCC Rules could void the user’s authority to operate

this equipment.

Caution

Always use an AC/DC power adapter that is properly grounded. Use the AC

cords listed below for each area.

USA: UL

Canada: CSA

Germany: VDE

UK: BASE/BS

Japan: Electric Appliance Control Act

Open Source Software Notice

Your VIA device may contain GPL executables and LGPL libraries that are

subject to the PL2.0/LGPL2.1 License Agreements. VIZIO offers to provide

source code to you on CD-ROM for a processing fee covering the cost

of performing such distribution, such as the cost of media, shipping and

handling upon request made to VIZIO at www.VIZIO.com.

This offer is valid for a period of three (3) years from the date of the

distribution of this VIA device by VIZIO.

You can obtain a copy of the GPL, LGPL licenses from:

http://www.gnu.org/licenses/old-licenses/gpl-2.0.html

and

http://www.gnu.org/licenses/oldlicenses/lgpl-2.1.html

You can also obtain a copy of gSOAP public license from:

http://www.cs.fsu.edu/~engelen/license.html

Please visit www.VIZIO.com for attribution of copyrights to any open source

software on your VIZIO VIA device.

Permission is hereby granted, free of charge, to any person obtaining a

copy of any such software and associated documentation ﬁles (the “Open

Source Software”), to deal in the Open Source Software without restriction,

including without limitation the rights to use, copy, modify, merge, publish,

distribute, sublicense, and/or sell copies of the Open Source Software, and

to permit persons to whom the Open Source Software is furnished to do so,

subject to the following conditions:

THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND,

EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGE-

MENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE

FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF

CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION

WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

VIZIO Internet Applications Disclaimer

VIZIO Internet Applications (“VIA”) affords the opportunity to access third

party Internet product offerings or services (“VIA Services”) on certain VIZIO

TVs. The VIA Services accessible herein are provided as per our agreement

with these third parties. These agreements are subject to change,

interruption, suspension (including termination) at any time and for various

reasons. VIZIO makes no warranties or representations that any particular

VIA Service will be accessible, available, function in any particular manner

or function at all.

To use these VIA Services, you must obtain access to the Internet, either

directly or through devices that access the Internet and pay any service fees

associated with such access. In addition, you must provide all equipment

necessary to make such connection to the Internet including a modem or

other Internet access device.

VIZIO or said third parties providing VIA Services reserve the right to delete

data from their servers, or prevent access to their servers or to change data

categories, product offerings or service levels for any reason that VIZIO or

said third parties deem sufﬁcient in their sole discretion at any time, without

notice. Some or all of the data or functionality of VIA Services may require

additional payment by you. However, in no event will you be charged

for any VIA Services unless those charges are made available to you in

advance. VIZIO makes no warranties or representations of any kind as to the

accuracy, currency, or completeness of any information contained on the

data servers of such third party providers of any VIA Services. Furthermore,

we do not review, control, or endorse the content, products or services of

VIA Services or their data servers.

Your rights to use the widget links to access VIA Services is governed by

the VIZIO Internet Applications Software License Agreement (“VIA Software

License Agreement”), the terms of which are available in your Product

Guide, all of which are incorporated herein by this reference. In the event

of a conﬂict between this VIZIO Internet Applications Disclaimer and the

VIA Software License Agreement, the VIA Software License Agreement shall

control.

VIZIO INTERNET APPLICATIONS SOFTWARE LICENSE AGREEMENT

THE FOLLOWING AGREEMENT EXPLAINS HOW YOU MAY USE THE VIZIO INTERNET

APPLICATIONS (“VIA”) TO ACCESS THIRD PARTY INTERNET PRODUCT OFFERINGS

AND SERVICES (“VIA SERVICES”) AND THE VIZIO SOFTWARE INSTALLED ON

YOUR VIZIO HD TV. BY USING THE VIZIO INTERNET APPLICATIONS, YOU CONSENT

AND AGREE TO BE BOUND BY ALL OF THE TERMS AND CONDITIONS BELOW

AND YOU MAY, SUBJECT TO THOSE TERMS AND CONDITIONS, USE THE VIZIO

SOFTWARE AND ACCESS THE VIA SERVICES.

FCC RF Radiation Exposure Statement:

This equipment complies with FCC RF radiation exposure limits set forth for

an uncontrolled environment. This equipment should be installed and

operated with a minimum distance of 20 centimeters between the radiator

and your body.

FCC warning

Changes or modifications not expressly approved by the party responsible

for compliance with the FCC Rules could void the user's authority to

operate this equipment.

VIZIO SOFTWARE LICENSE AGREEMENT

The following terms and conditions govern the use of any software on your

VIZIO HD TV:

1. General. The software, documentation and any fonts accompanying

this License Agreement whether on disk, in read only memory, on any

other media or in any other form (collectively the “VIZIO Software”) are

licensed, not sold, to you by VIZIO, Inc. (“VIZIO”) for use only under the

terms of this License Agreement, and VIZIO reserves all rights not expressly

granted to you. The rights granted herein are limited to VIZIO’s and its third

party licensors’ intellectual property rights in the VIZIO Software and do

not include any other patents or intellectual property rights. You own the

media on which the VIZIO Software is recorded or resides but VIZIO and/or

its licensor(s) retain ownership of the VIZIO Software itself. The terms of this

License Agreement will govern any software upgrades provided or made

available by or through VIZIO that replace and/or supplement the original

VIZIO Software, unless such upgrade is accompanied by a separate license

in which case the terms of that license will govern.

2. Permitted Uses and Restrictions. This License Agreement allows you to

use the VIZIO Software and, through functions solely found within the VIZIO

HD TV, this Agreement also allows you to install upgrades thereto. The VIZIO

Software may be used to access VIA Services and view materials so long

as such use is limited to materials in which you are authorized or legally

permitted to view. You may not make the VIZIO Software or VIA Services

available over a network or where it could be used by multiple televisions

at the same time. Except as and only to the extent expressly permitted in

this License Agreement or by applicable law, you may not copy, decompile,

reverse engineer, disassemble, modify, or create derivative works of the

VIZIO Software or any part thereof. THE VIZIO SOFTWARE AND VIA SERVICES

ARE NOT INTENDED FOR USE IN ANY EQUIPMENT OR ENVIRONMENT IN WHICH

THE FAILURE OF THE VIZIO SOFTWARE OR VIA SERVICES COULD LEAD TO DEATH,

PERSONAL INJURY, OR SEVERE PHYSICAL OR ENVIRONMENTAL DAMAGE.

3. Transfer. You may not rent, lease, lend, redistribute or sublicense the VIZIO

Software or access to the VIA Services. You may, however, make a one-time

permanent transfer of all of your license rights to the VIZIO Software to

another party, provided that: (a) the transfer must include the VIZIO HD TV,

including all its component parts, original media, printed materials and this

License Agreement; (b) you do not retain any copies of the VIZIO Software,

full or partial, including copies stored on a computer or other storage device;

and (c) the party receiving the VIZIO HD TV and VIZIO Software reads and

agrees to accept the terms and conditions of this License Agreement.

4. Consent to Use of Collected Data. You agree that VIZIO and its third party

providers of VIA Services may collect and use technical, non-technical and

related information, including but not limited to information about your

use of the VIZIO Software, the VIA Services, content viewed and attached

peripherals, products or services purchased, that is gathered periodically

to facilitate the provision of software updates, product support and other

services to you, including additional or different VIA Services related to

the VIZIO Software and to verify compliance with the terms of this License

Agreement. VIZIO and its third party providers of VIA Services and/or other

providers may use this information, as long as it is in a form that does not

personally identify you, to improve our products or to provide services or

technologies to you.

5. VIA Services and other Services. The VIZIO software affords the opportunity

to access third party Internet product offerings or services (“VIA Services”).

The VIA Services accessible herein are provided as per our agreement with

certain third parties. These agreements are subject to change, interruption,

suspension, removal (including termination) at any time and for various

reasons. Moreover, VIZIO or its third party providers of VIA Services reserve the

right to delete data from their servers, or prevent access to their servers or to

change data categories, product offerings or service levels for any reason

that VIZIO or said third parties deem sufﬁcient in their sole discretion at any

time, without notice. VIZIO may also impose additional or different limits on

the use of or access to certain VIA Services, in any case and without notice

or liability. VIZIO makes no warranties or representations that any particular

VIA Service will be accessible, available, function in any particular manner

or function at all.

Use of the VIA Services may require you to accept additional terms of

service or end user license agreements which will be presented to you

before you can use such Services. Some or all of the data, functionality of

VIA Services may require additional payment by you. However, in no event

will you be charged for any VIA Services unless those charges are made

available to you in advance.

6. Disclaimer as to Content on VIA Services. Certain VIA Services may include

materials from third parties or links to certain third party data servers. You

acknowledge and agree that VIZIO is not responsible for examining or

evaluating the content or accuracy of any VIA Services, their data servers

or related third-party materials. VIZIO does not warrant or endorse and does

not assume and will not have any liability or responsibility for any third-party

materials or websites, or for any other materials, products, or services of

third parties. Links to VIA Services and any associated links to other data

servers are provided solely as a convenience to you. To the extent provided,

content types or descriptions of VIA Services provided for convenience,

and you acknowledge and agree that VIZIO does not guarantee their

accuracy. You understand that by using any of the VIA Services, you may

encounter content that may be deemed offensive,

indecent, or objectionable, which content may or may not be identiﬁed as

having explicit language. Nevertheless, you agree to use the VIA Services

at your sole risk and that VIZIO shall have no liability to you for content that

may be found to be offensive, indecent, or objectionable.

You agree that you will not use any third-party materials in a manner that

would infringe or violate the rights of any other party, and that VIZIO is not

in any way responsible for any such use by you.

7. Internet Access Required. To use these VIA Services, you must obtain

access to the Internet, either directly or through devices that access the

Internet and pay any service fees associated with such access. In addition,

you must provide all equipment necessary to make such connection to the

Internet including a modem or other Internet access device.

8. Upgrades, Support. VIZIO or its third party providers may elect, but shall be

under no obligation, to provide you with customer support and/or software

upgrades, enhancements, or modiﬁcations to the VIZIO Software or VIA

Services (collectively, “Support”), in its sole discretion, and may terminate

such Support at any time without notice to you. VIZIO and its third party

providers reserve the right to charge you for any Support it provides but will

make a schedule of those charges available to you prior to your incurring

any costs.

9. Termination. This License is effective until terminated. Your rights under this

License will terminate automatically without notice from VIZIO if you fail to

comply with any term(s) of this License Agreement. Upon the termination

of this License Agreement, you shall cease all use of the VIZIO Software and

VIA Services.

10. Limited Warranty on VIZIO Media. VIZIO warrants the media on which the

VIZIO Software is recorded and delivered by VIZIO to be free from defects

in materials and workmanship under normal use for a period of ninety

(90) days from the date of original retail purchase. Your exclusive remedy

under this Section shall be, at VIZIO’s option, a refund of the purchase price

of the product containing the VIZIO Software or replacement of the VIZIO

Software which is returned to VIZIO or a VIZIO authorized representative with

a copy of the receipt. THIS LIMITED WARRANTY AND ANY IMPLIED WARRANTIES

ON THE MEDIA INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES

OF MERCHANTABILITY, OF SATISFACTORY QUALITY, AND OF FITNESS FOR A

PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO NINETY (90) DAYS FROM

THE DATE OF ORIGINAL RETAIL PURCHASE. SOME JURISDICTIONS DO NOT

ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE

ABOVE LIMITATION MAY NOT APPLY TO YOU. THE LIMITED WARRANTY SET FORTH

HEREIN IS THE ONLY WARRANTY MADE TO YOU AND IS PROVIDED IN LIEU OF

ANY OTHER WARRANTIES (IF ANY) CREATED BY ANY DOCUMENTATION OR

PACKAGING. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS,

AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY BY JURISDICTION.

11. Disclaimer of Warranties. YOU EXPRESSLY ACKNOWLEDGE AND AGREE

THAT USE OF THE VIZIO SOFTWARE AND VIA SERVICES (AS DEFINED ABOVE) IS

AT YOUR SOLE RISK AND THAT THE ENTIRE RISK AS TO SATISFACTORY QUALITY,

PERFORMANCE, ACCURACY AND EFFORT IS WITH YOU. EXCEPT FOR THE LIMITED

WARRANTY ON MEDIA SET FORTH ABOVE AND TO THE MAXIMUM EXTENT

PERMITTED BY APPLICABLE LAW, THE VIZIO SOFTWARE AND VIA SERVICES

ARE PROVIDED “AS IS”, WITH ALL FAULTS AND WITHOUT WARRANTY OF ANY

KIND, AND VIZIO AND VIZIO’S THIRD PARTY PROVIDERS OF VIA SERVICES AND

THIRD PARTY LICENSORS (COLLECTIVELY REFERRED TO AS “VIZIO” FOR THE

PURPOSES OF SECTIONS 10 AND 11) HEREBY DISCLAIM ALL WARRANTIES AND

CONDITIONS WITH RESPECT TO THE VIZIO SOFTWARE AND SERVICES, EITHER

EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES AND/OR CONDITIONS OF MERCHANTABILITY, OF SATISFACTORY

QUALITY, OF FITNESS FOR A PARTICULAR PURPOSE, OF ACCURACY, OF QUIET

ENJOYMENT, AND NON-INFRINGEMENT OF THIRD PARTY RIGHTS. VIZIO DOES

NOT WARRANT AGAINST INTERFERENCE WITH YOUR ENJOYMENT OF THE

VIZIO SOFTWARE OR VIA SERVICES, THAT THE FUNCTIONS CONTAINED IN THE

VIZIO SOFTWARE OR VIA SERVICES WILL MEET YOUR REQUIREMENTS, THAT THE

OPERATION OF THE VIZIO SOFTWARE OR VIA SERVICES WILL BE UNINTERRUPTED

OR ERROR-FREE, OR THAT DEFECTS IN THE VIZIO SOFTWARE OR VIA SERVICES

WILL BE CORRECTED. NO ORAL OR WRITTEN INFORMATION OR ADVICE

GIVEN BY VIZIO OR A VIZIO AUTHORIZED REPRESENTATIVE SHALL CREATE A

WARRANTY. SHOULD THE VIA SOFTWARE OR VIA SERVICES PROVE DEFECTIVE,

YOU ASSUME THE ENTIRE COST OF ALL NECESSARY SERVICING, REPAIR OR

CORRECTION. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF

IMPLIED WARRANTIES OR LIMITATIONS ON APPLICABLE STATUTORY RIGHTS OF

A CONSUMER, SO THE ABOVE EXCLUSION AND LIMITATIONS MAY NOT APPLY

TO YOU.

12. Limitation of Liability. TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT

SHALL VIZIO BE LIABLE FOR PERSONAL INJURY, OR ANY INCIDENTAL, SPECIAL,

INDIRECT OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING, WITHOUT

LIMITATION, DAMAGES FOR LOSS OF PROFITS, LOSS OF DATA, BUSINESS

INTERRUPTION OR ANY OTHER COMMERCIAL DAMAGES OR LOSSES, ARISING

OUT OF OR RELATED TO YOUR USE OR INABILITY TO USE THE VIZIO SOFTWARE OR

VIA SERVICES, HOWEVER CAUSED, REGARDLESS OF THE THEORY OF LIABILITY

(CONTRACT, TORT OR OTHERWISE) AND EVEN IF VIZIO HAS BEEN ADVISED OF

THE POSSIBILITY OF SUCH DAMAGES. SOME JURISDICTIONS DO NOT ALLOW

THE LIMITATION OF LIABILITY FOR PERSONAL INJURY, OR OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES, SO THIS LIMITATION MAY NOT APPLY TO YOU.

In no event shall VIZIO’s total liability to you for all damages (other than

as may be required by applicable law in cases involving personal injury)

exceed the amount of twenty ﬁve dollars ($25.00). The foregoing limitations

will apply even if the above stated remedy fails of its essential purpose.

13. Export Control. You may not use or otherwise export or re-export the

VIZIO Software except as authorized by United States law and the laws of

the jurisdiction in which the VIZIO Software was obtained. In particular, but

without limitation, the VIZIO Software may not be exported or re-exported

(a) into any U.S. embargoed countries or (b) to anyone on the U.S. Treasury

Department’s list of Specially Designated Nationals or the U.S. Department

of Commerce Denied Person’s List or Entity List. By using the VIZIO Software,

you represent and warrant that you are not located in any such country

or on any such list. You also agree that you will not use these products for

any purposes prohibited by United States law, including, without limitation,

the development, design, manufacture or production of missiles, or nuclear,

chemical or biological weapons.

14. Controlling Law and Severability. This License Agreement will be

governed by and construed in accordance with the laws of the State of

California, as applied to agreements entered into and to be performed

entirely within California between California residents. This License

Agreement shall not be governed by the United Nations Convention on

Contracts for the International Sale of Goods, the application of which is

expressly excluded. If for any reason a court of competent jurisdiction ﬁnds

any provision, or portion thereof, to be unenforceable, the remainder of this

License Agreement shall continue in full force and effect.

15. Complete Agreement; Governing Language. This License Agreement

constitutes the entire agreement between the parties with respect to the

use of the VIZIO Software licensed hereunder and supersedes all prior or

contemporaneous understandings regarding such subject matter, with

the exception of any additional terms and conditions you are required to

accept if you choose to access VIA Services which will govern your use

of such VIA Services. No amendment to or modiﬁcation of this License

Agreement will be binding unless in writing and signed by VIZIO. Any

translation of this License Agreement is done for local requirements and in

the event of a dispute between the English and any non-English versions,

the English version of this License Agreement shall govern.

Other

Image(s) used under license from Shutterstock.com

140925OC-US-NC

Wistron BTM8670 RS65 TV with BT SoundBar User Manual

Wistron Corporation RS65 TV with BT SoundBar

Contents

User manual 2

Navigation menu

Namespaces

Views

Navigation
