Expanding through options
Your TravelMate offers you a complete mobile computing experience.
Connectivity options
Ports allow you to connect peripheral devices to your computer as you
would with a desktop PC. For instructions on how to connect different
external devices to the computer, see your online guide for more
details.
Fax/data modem
Some models have a built-in V.90 56Kbps software modem.
Warning! This modem port is not compatible with digital
phone lines. Plugging this modem into a digital phone line
will damage the modem.

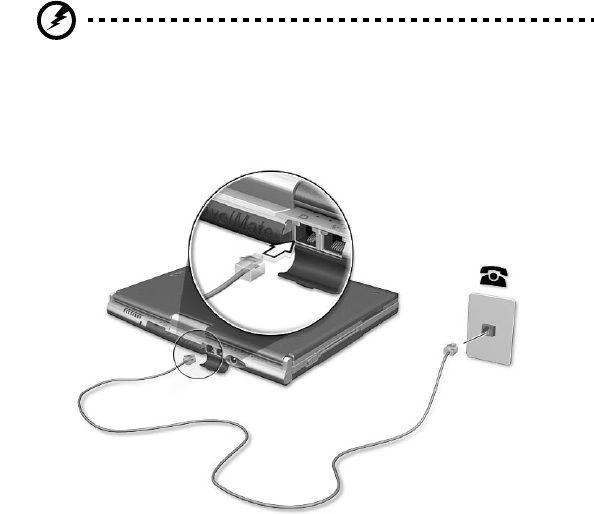

To use the fax/data modem port, connect a phone cable from the
modem port to a telephone jack.
Start your communications software program. See your
communications manual for instructions.
TM100-e.book Page 49 Thursday, August 15, 2002 3:03 PM
2 Customizing your computer50
Built-in network feature
The built-in network feature allows you to connect your computer to
an Ethernet-based (10/100 Mbps) network.

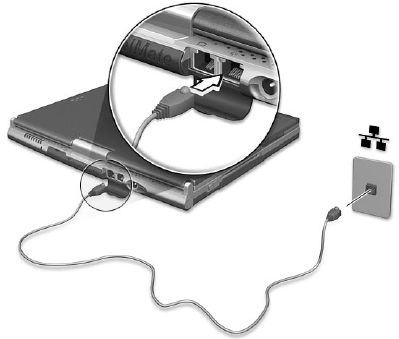

To use the network feature, connect an Ethernet cable from the
network jack on the rear of the computer to a network jack or hub on
your network.
Fast infrared
The computer’s fast infrared (FIR) port allows you to do wireless data
transfer with other IR-aware computers and peripherals such as
infrared printers. The infrared port can transfer data at speeds of up
to four megabits per second (Mbps) at a distance of up to one meter.
TM100-e.book Page 50 Thursday, August 15, 2002 3:03 PM
51

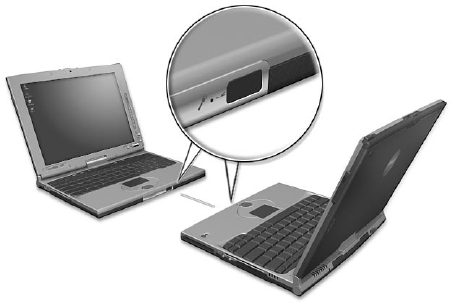

To use FIR, position two IR-aware devices such that their IR ports are no
more than one meter apart and offset no more than 15 degrees.
When the two computers are in position, simply begin the data
transfer as you normally would. See your file transfer software for
details.
Universal Serial Bus
The Universal Serial Bus (USB) port is a high-speed serial bus which
allows you to connect and daisy-chain USB peripherals without taking
up precious system resources. Your computer has two ports available.
TM100-e.book Page 51 Thursday, August 15, 2002 3:03 PM
2 Customizing your computer52

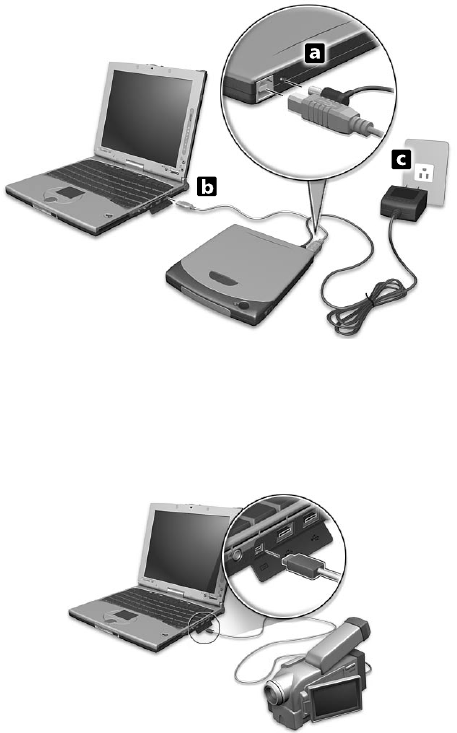

Connecting your optical drive
Connect the AC adapter and the USB cable to the rear of the optical
drive (a). Plug the other end of the USB cable to the computer (b).
Connect the AC adapter to the power outlet (c).
IEEE 1394
The computer’s fast IEEE 1394 port allows you to connect IEEE 1394
supported devices like a digital video camera.
See your video or digital camera’s documentation for details.
TM100-e.book Page 52 Thursday, August 15, 2002 3:03 PM
53
PC Card slots
There is a type II CardBus PC Card slot found on the right side of the
computer. This slot accepts credit-card-sized cards that enhance the
usability and expandability of the computer. These cards should have a
PC Card logo on them.
PC Cards (formerly PCMCIA) are add-on cards for portable computers,
giving you expansion possibilities long afforded by desktop PCs.
Popular type II cards include flash memory, SRAM, fax/data modem,
LAN and SCSI cards. CardBus improves on the 16-bit PC card
technology by expanding the bandwidth to 32 bits.
Note: Refer to your card’s manual for details on how to install
and use the card and its functions.
Inserting a PC Card

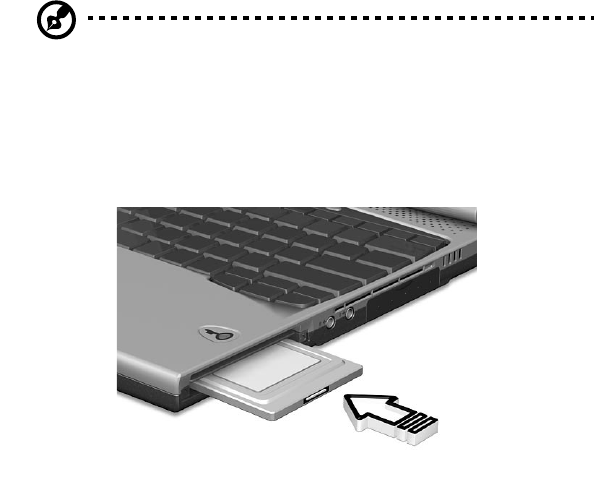

Insert the card into the slot and make the proper connections (e.g.,
network cable), if necessary. See your card manual for details.
Ejecting a PC Card
Before ejecting a PC Card:
1Exit the application using the card.
2Left-click on the PC Card icon on the taskbar and stop the card
operation.
TM100-e.book Page 53 Thursday, August 15, 2002 3:03 PM
2 Customizing your computer54

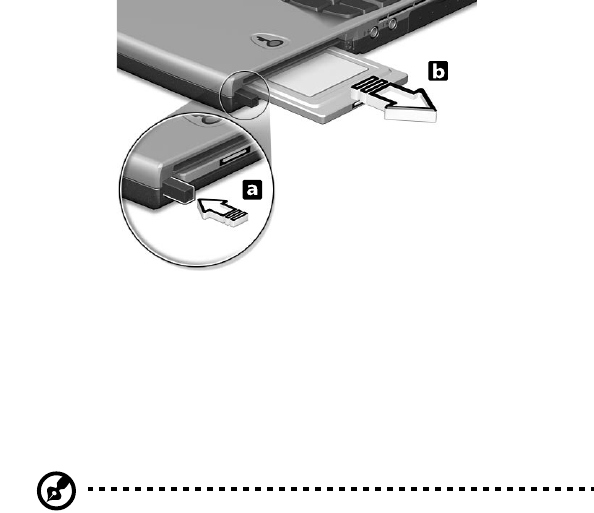

3Press the slot eject button (a) to pop out the eject button; then
press it again (a) to eject the card (b).
Upgrade options
Your computer delivers superior power and performance. However,
some users and the applications they use may demand more. This
computer allows you to upgrade key components when you need
increased performance.
Note: Contact your authorized dealer if you decide to perform a
key component upgrade.
Memory upgrade
Memory is expandable to 256 MB, employing 128-MB PC-133 MHz
industry standard soDIMMs (Small Outline Dual Inline Memory
Modules). The computer supports SDRAM (Synchronous Dynamic
Random Access Memory).
There are two memory slots on your computer, one of which is
occupied by standard memory. You can upgrade memory by installing
a memory module into the available slot.
Installing memory
Follow these steps to install memory:
TM100-e.book Page 54 Thursday, August 15, 2002 3:03 PM
55

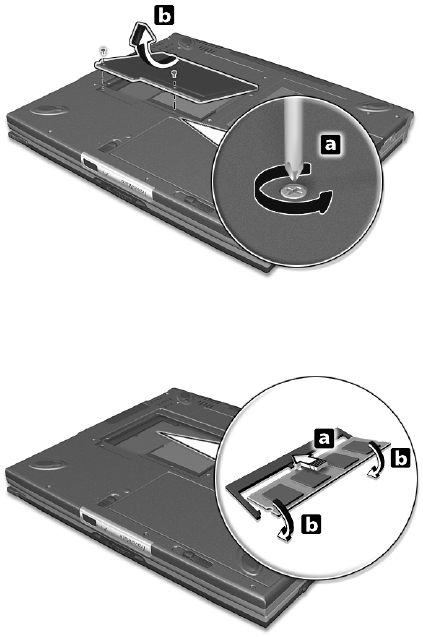

1Turn off the computer, unplug the AC adapter (if connected) and
remove the battery pack. Then turn the computer over to access
its base.
2Remove the screw (a) from the memory cover; then lift up and
remove the memory cover (b).
3Insert the memory module diagonally into the slot (a), then gently
press it down (b) until it clicks into place.
4Replace the memory cover and secure it with the screw.
The computer automatically detects and reconfigures the total
memory size.
TM100-e.book Page 55 Thursday, August 15, 2002 3:03 PM
2 Customizing your computer56

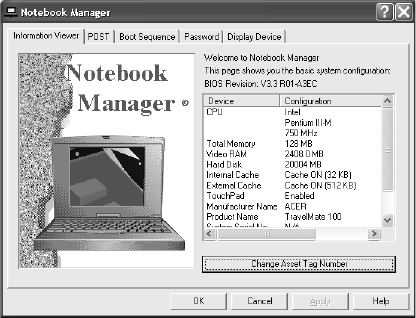

Notebook Manager
The computer has a built-in system setup program called Notebook
Manager. The Windows-based Notebook Manager allows you to set
passwords, the startup sequence of the drives, and power
management settings. It also shows current hardware configurations.
To start the Notebook Manager, press Fn-F2 or follow these steps:
1Click on Start, Programs, then Notebook Manager.
2Select the Notebook Manager application to run the program.
See your online guide for more information.
Launch Manager

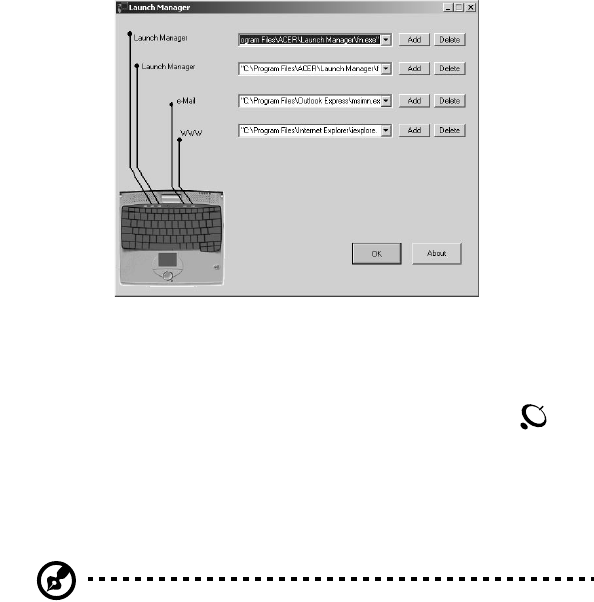

Launch Manager allows you to set the four launch keys located above
the keyboard. See “Launch Keys” on page 25 for the location of the
launch key.
You can access the Launch Manager by clicking on Start, Programs,
and then Launch Manager to start the application.
TM100-e.book Page 56 Thursday, August 15, 2002 3:03 PM
57
Launch Manager and 802.11b Wireless LAN
By default, the 802.11b wireless LAN is set to “Always Off”. You can
manually switch on the 802.11b wireless LAN by pressing the
button. Manually turning on 802.11b wireless LAN does not change
this default setting which is re-enabled when you restart your
computer. You have to go to the BIOS Utility during POST to set it to
“Always On”, so that when you turn on your computer, 802.11b
wireless LAN will be on.
Note: The built-in Ethernet port is automatically disabled when
the 802.11B Wireless LAN is enabled. You have to disable the
802.11B Wireless LAN to be able to use the built-in Ethernet port.

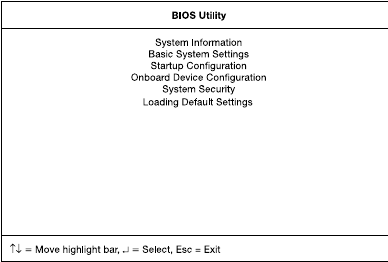

BIOS Utility
The BIOS Utility is a hardware configuration program built into your
computer’s BIOS (basic input/output system).
Your computer is already properly configured and optimized, and you
do not need to run this utility. However, if you encounter
configuration problems, you may need to run it.
TM100-e.book Page 57 Thursday, August 15, 2002 3:03 PM
2 Customizing your computer58
To activate the BIOS Utility, press F2 during the POST (power-on self-
test) while the TravelMate logo is being displayed. See your online
guide for more information.
TM100-e.book Page 58 Thursday, August 15, 2002 3:03 PM
3 Troubleshooting your
computer
TM100-e.book Page 59 Thursday, August 15, 2002 3:03 PM
This chapter instructs you on how to deal
with common system problems. Read it
before calling a technician if a problem
occurs. Solutions to more serious problems
require opening up the computer. Do not
attempt to open the computer by yourself.
Contact your dealer or an authorized
service center for assistance.
key link: www.acersupport.com
TM100-e.book Page 60 Thursday, August 15, 2002 3:03 PM
61
Frequently-asked questions
The following is a list of possible situations that may arise during the
use of your computer. Easy answers and solutions are provided for
each one.
I pressed the power switch and opened the display, but the computer
does not start or boot-up.
Look at the Power indicator (refer to “Indicators” on page 18):
• If it is not lit, no power is being applied to the computer. Check
the following:
• If you are running on battery power, it may be low and unable
to power the computer. Connect the AC adapter to recharge
the battery pack.
• Make sure that the AC adapter is plugged in properly to the
computer and to the power outlet.
• If it is lit, check the following:
• Is a non-bootable (non-system) diskette in the floppy drive?
Remove or replace it with a system diskette and press Ctrl-Alt-
Del to restart the system.
• The operating system files may be damaged or missing. Insert the
startup disk you created during Windows setup into the floppy
drive and press Ctrl-Alt-Del to restart the system. This will
diagnose your system and make necessary fixes.
Nothing appears on the screen.
The computer’s power management system automatically blanks the
screen to save power. Press any key to turn the display back on.
If pressing a key does not turn the display back on, three things might
be the cause:
• The brightness level might be too low. Press Fn-→ (increase) and
Fn-← (decrease) to adjust the brightness level.
• The display device might be set to an external monitor. Press the
display toggle hot key Fn-F5 to toggle the display back to the
computer.
• If the Sleep indicator is lit, the computer is in Sleep mode. Press,
slide, and release the power switch to resume.
TM100-e.book Page 61 Thursday, August 15, 2002 3:03 PM
3 Troubleshooting your computer62
Image is not full-screen.
Make sure that the resolution is set to 1024x768 which the system
supports natively. Right-click on your Windows desktop and select
Properties to bring up the Display Properties dialog box. Then click
on the Settings tab to make sure the resolution is set to the
appropriate resolution. Resolutions lower than the specified
resolution are not full-screen on the computer or on an external
monitor.
No audio is heard from the computer.
Check the following:
• The volume may be muted. In Windows, look at the volume
control (speaker) icon on the taskbar. If it is crossed-out, click on
the icon and deselect the Mute option.
• The speakers may be turned off. Press Fn-F8 to turn the speakers
on (this hot key also turns the speakers off).
• The volume level may be too low. In Windows, look at the volume
control icon on the taskbar. You can also use the volume control
buttons to adjust the volume. See “Hot keys” on page 22.
• If headphones, earphones or external speakers are connected to
the line-out port on the computer’s right panel, the internal
speakers automatically turn off.
The keyboard does not respond.
Try attaching an external keyboard to the USB connector on the
computer’s rear. If it works, contact your dealer or an authorized
service center as the internal keyboard cable may be loose.
The infrared port does not work.
Check the following:
• Make sure that the infrared ports of the two devices are facing
each other (+/- 15 degrees) a maximum of 1 meter apart.
• Make sure that there is a clear path between the two infrared
ports. Nothing should be blocking the ports.
• Make sure that you have the appropriate software running on
both devices (for file transfers) or that you have the appropriate
drivers (for printing to an infrared printer).
• During the POST, press F2 to access the BIOS Utility and verify that
TM100-e.book Page 62 Thursday, August 15, 2002 3:03 PM
63
the infrared port is enabled.
• Make sure that both devices are IrDA-compliant.
I want to set up my location to use the internal modem.
To properly use your communications software (e.g., HyperTerminal),
you need to set up your location:
1Click on Start, Settings, Control Panel.
2Double-click on Modems.
3Click on Dialing Properties and begin setting up your location.
Refer to the Windows manual.
TM100-e.book Page 63 Thursday, August 15, 2002 3:03 PM
3 Troubleshooting your computer64
Troubleshooting tips
This notebook computer incorporates an advanced design that delivers
onscreen error message reports to help you solve problems.
• If the system reports an error message or an error symptom occurs,
see “Error messages” on page 65.
TM100-e.book Page 64 Thursday, August 15, 2002 3:03 PM
65
Error messages
If you receive an error message, note the message and take the
corrective action. The following table lists the error messages in
alphabetical order together with the recommended course of action.
Error Messages Corrective Action
CMOS Battery Bad Contact your dealer or an authorized service
center.
CMOS Checksum Error Contact your dealer or an authorized service
center.
Disk Boot Failure Insert a system (bootable) diskette into the floppy
drive (A:), then press Enter to reboot.
Diskette Drive
Controller Error or No
Controller Present
Contact your dealer or an authorized service
center.
Diskette Drive Error Contact your dealer or an authorized service
center.
Diskette Drive Type
Mismatch Press F2 (during POST) to enter the BIOS Utility;
then press Esc to exit and reconfigure the
computer.
Equipment
Configuration Error Press F2 (during POST) to enter the BIOS Utility;
then press Esc to exit and reconfigure the
computer.
Hard Disk 0 Error Contact your dealer or an authorized service
center.
Hard Disk 0 Extended
Type Error Contact your dealer or an authorized service
center.
I/O Parity Error Contact your dealer or an authorized service
center.
Insert system diskette
and press <Enter> key
to reboot
Insert a system (bootable) diskette into the floppy
drive (A:), then press Enter to reboot.
TM100-e.book Page 65 Thursday, August 15, 2002 3:03 PM
3 Troubleshooting your computer66
If you still encounter problems after going through the corrective
measures, please contact your dealer or an authorized service center
for assistance. Some problems may be solved using the BIOS Utility.
Keyboard Error or No
Keyboard Connected Contact your dealer or an authorized service
center.
Keyboard Interface
Error Contact your dealer or an authorized service
center.
Memory Size Mismatch Press F2 (during POST) to enter the BIOS Utility;
then press Esc to exit and reconfigure the
computer.
Missing operating
system Press F2 (during POST) to enter the BIOS Utility;
then press Esc to exit and reconfigure the
computer.
Non-system disk or disk
error. Replace and
strike any key when
ready.
Insert a system (bootable) diskette into the floppy
drive (A:), then press Enter to reboot.
Pointing Device Error Contact your dealer or an authorized service
center.
Pointing Device
Interface Error Contact your dealer or an authorized service
center.
Protected Mode Test
Fail Contact your dealer or an authorized service
center.
RAM BIOS Bad Contact your dealer or an authorized service
center.
RAM Parity Error Contact your dealer or an authorized service
center.
Real-Time Clock Error Press F2 (during POST) to enter the BIOS Utility;
then press Esc to exit and reconfigure the
computer.
Video RAM BIOS Bad Contact your dealer or an authorized service
center.
Error Messages Corrective Action
TM100-e.book Page 66 Thursday, August 15, 2002 3:03 PM
67
Requesting service
International Traveler’s Warranty (ITW)
Your computer is backed by an International Traveler’s Warranty (ITW)
that gives you security and peace of mind when traveling. Our
worldwide network of service centers are there to give you a helping
hand.
An ITW passport comes with your computer. This passport contains all
you need to know about the ITW program. A list of available,
authorized service centers are in this handy booklet. Read this
passport thoroughly.
Always have your ITW passport on hand, especially when you travel to
receive the benefits from our support centers. Place your proof-of-
purchase in the flap located inside the front cover of the ITW passport.
If the country you are traveling in does not have an Acer-authorized
ITW service site, you can still get in contact with our offices worldwide.
There are three ways to access Acer for technical support and
information:
• Internet service worldwide, visit http://www.acersupport.com/
• Telephone support in the United States and Canada, call 1-800-
816-2237
• Technical support numbers in various countries
You can view a list of technical support numbers by following these
steps:
1Click on Start, Settings, Control Panel.
2Double-click on System.
3Click on the Support Information button.
Before you call
Please have the following information available when you call Acer for
online service, and please be at your computer when you call. With
your support, we can reduce the amount of time a call takes and help
solve your problems efficiently.
TM100-e.book Page 67 Thursday, August 15, 2002 3:03 PM
3 Troubleshooting your computer68
If there are error messages or beeps reported by your computer, write
them down as they appear on the screen (or the number and sequence
in the case of beeps).
If you haven’t registered your notebook computer, you will be required
to register during your first call to Acer.
You are required to provide the following information:
Name:________________________________________
Address:______________________________________
______________________________________________
Telephone number:____________________________
Machine and model type:_______________________
Serial number:_________________________________
Date of purchase:______________________________
TM100-e.book Page 68 Thursday, August 15, 2002 3:03 PM
Appendix A
Specifications
TM100-e.book Page 69 Thursday, August 15, 2002 3:03 PM
This appendix lists the general
specifications of your computer.
TM100-e.book Page 70 Thursday, August 15, 2002 3:03 PM
71
Microprocessor
• Mobile Intel® Pentium® III Processor-M with 512 KB level 2 cache
featuring the new Enhanced Intel® SpeedStep™ technology
Memory
• Main memory expandable to 256 MB support 64-bit memory bus
• Dual 144-pin soDIMM socket supporting PC-133 SDRAM
(Synchronous Dynamic Random Access Memory)
• 512 KB Flash ROM BIOS
Data storage
• One external USB CD-ROM drive
• One high-capacity, Enhanced-IDE hard disk
Display and video
• 10.4"Thin-Film Transistor (TFT) liquid-crystal display (LCD)
displaying 24-bit true-color at 1024x768 eXtended Graphics Array
(XGA) resolution
• 8 MB Video DRAM
• 3D capabilities
• Simultaneous LCD and CRT display support
• Dual display capability
• Tablet mode for LCD panel (Rotatable display)
Audio
• 16-bit AC’ 97 PCI stereo audio with built-in wavetable synthesizer
• Built-in speaker and microphone
• Sound Blaster Pro and Windows Sound System-compatible
• Separate audio ports for headphone-out and line-in devices
Keyboard and pointing device
• Acer Finetouch keyboard
• Ergonomically-centered touchpad pointing device with scroll
function
• Electromagnetic resonate (EMR) stylus for pen-based input
TM100-e.book Page 71 Thursday, August 15, 2002 3:03 PM
Appendix A Specifications72
I/O ports
•Built-in:
• One type II/I CardBus PC slot
• One Smart Card interface socket
• One RJ-11 phone jack
• One RJ-45 LAN jack
• One DC-in jack (AC adapter)
• One external monitor port
• One speaker/headphone-out jack
• One line-in jack
• One FIR wireless communications port (IrDA-compliant)
• Two USB ports
• One IEEE 1394 port
Weight and dimensions
• 3.2 lbs (1.40 kg)
• 251 (W) x 208 (D) x 25.4/29.4 (H)mm
Environment
• Temperature
• Operating: 10°C ~ 35°C
• Non-operating: -20°C ~ 60°C
• Humidity (non-condensing)
• Operating: 20% ~ 80% RH
• Non-operating: 20% ~ 80% RH
System
• Microsoft Windows XP tablet PC edition
• ACPI support
• DMI 2.0-compliant
• LDCM 6.0 support
TM100-e.book Page 72 Thursday, August 15, 2002 3:03 PM
73
Power
• Battery pack
• 24 WattHour Li-Ion main battery pack
• Smart battery management technology
• 1.5-hour rapid charge/2.5-hour charge-in-use
• AC adapter
• 60-Watt
• Auto sensing 100~240Vac, 50~60Hz
Options
• 128-MB memory upgrade module
• Higher-capacity hard disk drive
• InviLink access point
• Additional AC adapter
• Additional Li-Ion battery pack
• USB floppy disk drive
• Infrared (IR) remote control
• External battery charger
• Full size EMR pen with eraser
•EMR stylus
TM100-e.book Page 73 Thursday, August 15, 2002 3:03 PM
Appendix A Specifications74
TM100-e.book Page 74 Thursday, August 15, 2002 3:03 PM
Appendix B
Notices
TM100-e.book Page 75 Thursday, August 15, 2002 3:03 PM
This appendix lists the general
notices of your computer.
TM100-e.book Page 76 Thursday, August 15, 2002 3:03 PM
77
FCC notice
This device has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This device generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause harmful interference to radio or television
reception, which can be determined by turning the device off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the device and receiver
• Connect the device into an outlet on a circuit different from that to which
the receiver is connected
• Consult the dealer or an experienced radio/television technician for help
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables
to maintain compliance with FCC regulations.
Notice: Peripheral devices
Only peripherals (input/output devices, terminals, printers, etc.) certified to
comply with the Class B limits may be attached to this equipment. Operation
with non-certified peripherals is likely to result in interference to radio and TV
reception.
Caution
Changes or modifications not expressly approved by the manufacturer could
void the user’s authority, which is granted by the Federal Communications
Commission, to operate this computer.
Use conditions
This part complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
TM100-e.book Page 77 Thursday, August 15, 2002 3:03 PM
Appendix B Notices78
Notice: Canadian users
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Remarque à l’intention des utilisateurs canadiens
Cet appareil numérique de la classe B respected toutes les exigences du
Règlement sur le matériel brouilleur du Canada.
Modem notices
FCC
This equipment complies with Part 68 of the FCC rules. Located on the bottom
side of the modem is a label that contains, among other information, the FCC
Registration Number and Ringer Equivalence Number (REN) for this equipment.
Upon request, you must provide this information to your telephone company.
If your telephone equipment causes harm to the telephone network, the
telephone company may discontinue your service temporarily. If possible, they
will notify you in advance. But, if advance notice is not practical, you will be
notified as soon as possible. You will also be informed of your right to file a
complaint with the FCC.
Your telephone company may make changes in its facilities, equipment,
operations, or procedures that could affect the proper functioning of your
equipment. If they do, you will be notified in advance to give you an
opportunity to maintain uninterrupted telephone service.
If this equipment should fail to operate properly, disconnect the equipment
from the phone line to determine if it is causing the problem. If the problem is
with the equipment, discontinue use and contact your dealer or vendor.
TBR 21
This equipment has been approved [Council Decision 98/482/EC - “TBR 21”] for
pan-European single terminal connection to the Public Switched Telephone
Network (PSTN). However, due to differences between the individual PSTNs
provided in different countries, the approval does not, of itself, give an
unconditional assurance of successful operation on every PSTN termination
point. In the event of problems, you should contact your equipment supplier in
the first instance.
Important safety instructions
Read these instructions carefully. Save these instructions for future reference.
TM100-e.book Page 78 Thursday, August 15, 2002 3:03 PM
79
1Follow all warnings and instructions marked on the product.
2Unplug this product from the wall outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
3Do not use this product near water.
4Do not place this product on an unstable cart, stand, or table. The product
may fall, causing serious damage to the product.
5Slots and openings in the cabinet and the back or bottom are provided for
ventilation; to ensure reliable operation of the product and to protect it
from overheating, these openings must not be blocked or covered. The
openings should never be blocked by placing the product on a bed, sofa,
rug, or other similar surface. This product should never be placed near or
over a radiator or heat register, or in a built-in installation unless proper
ventilation is provided.
6This product should be operated from the type of power indicated on the
marking label. If you are not sure of the type of power available, consult
your dealer or local power company.
7Do not allow anything to rest on the power cord. Do not locate this
product where persons will walk on the cord.
8If an extension cord is used with this product, make sure that the total
ampere rating of the equipment plugged into the extension cord does not
exceed the extension cord ampere rating. Also, make sure that the total
rating of all products plugged into the wall outlet does not exceed the fuse
rating.
9Never push objects of any kind into this product through cabinet slots as
they may touch dangerous voltage points or short out parts that could
result in a fire or electric shock. Never spill liquid of any kind on the
product.
10 Do not attempt to service this product yourself, as opening or removing
covers may expose you to dangerous voltage points or other risks. Refer all
servicing to qualified service personnel.
11 Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
aWhen the power cord or plug is damaged or frayed
bIf liquid has been spilled into the product
cIf the product has been exposed to rain or water
dIf the product does not operate normally when the operating
instructions are followed. Adjust only those controls that are covered
by the operating instructions since improper adjustment of other
controls may result in damage and will often require extensive work
by a qualified technician to restore the product to normal condition.
eIf the product has been dropped or the cabinet has been damaged
TM100-e.book Page 79 Thursday, August 15, 2002 3:03 PM
Appendix B Notices80
fIf the product exhibits a distinct change in performance, indicating a
need for service.
12 Replace the battery with the same type as the product's battery we
recommend. Use of another battery may present a risk of fire or explosion.
13 Warning! Batteries may explode if not handled properly. Do not
disassemble or dispose of them in fire. Keep them away from children and
dispose of used batteries promptly.
14 Use only the proper type of power supply cord set (provided in your
accessories box) for this unit. It should be a detachable type: UL listed/CSA
certified, type SPT-2, rated 7A 125V minimum, VDE approved or its
equivalent. Maximum length is 15 feet (4.6 meters).
Laser compliance statement
The CD drive used with this computer is a laser product. The CD drive’s
classification label (shown below) is located on the drive.
CLASS 1 LASER PRODUCT
CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO
BEAM.
APPAREIL A LASER DE CLASSE 1 PRODUIT
LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS
D’OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.
LUOKAN 1 LASERLAITE LASER KLASSE 1
VORSICHT: UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET
NICHT DEM STRAHLL AUSSETZEN
PRODUCTO LÁSER DE LA CLASE I
ADVERTENCIA: RADIACIÓN LÁSER INVISIBLE AL SER ABIERTO. EVITE
EXPONERSE A LOS RAYOS.
ADVARSEL: LASERSTRÅLING VEDÅBNING SE IKKE IND I STRÅLEN.
VARO! LAVATTAESSA OLET ALTTINA LASERSÅTEILYLLE.
VARNING: LASERSTRÅLNING NÅR DENNA DEL ÅR ÖPPNAD ÅLÅ TUIJOTA
SÅTEESEENSTIRRA EJ IN I STRÅLEN
VARNING: LASERSTRÅLNING NAR DENNA DEL ÅR ÖPPNADSTIRRA EJ IN I
STRÅLEN
ADVARSEL: LASERSTRÅLING NAR DEKSEL ÅPNESSTIRR IKKE INN I STRÅLEN
Lithium battery statement
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the
TM100-e.book Page 80 Thursday, August 15, 2002 3:03 PM
81
same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to local regulations. Recycle if at all possible.
ADVARSEL!
Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun
ske med batteri af samme fabrikat og type. Léver det brugte batteri tilbage til
leverandøren.
ADVARSEL
Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller
en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i
henhold til fabrikantens instruksjoner.
VARNING
Explosionsfara vid felaktigt batteribyte. Anvãnd samma batterityp eller en
ekvivalent typ som rekommenderas av apparattillverkaren. Kassera anvãnt
batteri enligt fabrikantens instruktion.
VAROITUS
Päristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo
ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo
valmistajan ohjeiden mukaisesti.
VORSICHT!
Explosionsgefahr bei unsachgemäßen Austausch der Batterie Ersatz nur durch
denselben oder einem vom Hersteller empfohlenem ähnlichen Typ. Entsorgung
gebrauchter Batterien nach Angaben des Herstellers.
Year 2000 compliance statement
The TravelMate C100 series notebook computer carries the "Hardware NSTL
Tested Year 2000 Compliant" logo, which certifies that this model has been
tested by NSTL using the YMark2000 test, and has been found to meet NSTL's
standards for Year 2000 hardware compliance.
LCD pixel statement
The LCD unit is produced with high-precision manufacturing techniques.
Nevertheless, some pixels may occasionally misfire or appear as black or colored
dots. This has no effect on the recorded image and does not constitute a
malfunction.
TM100-e.book Page 81 Thursday, August 15, 2002 3:03 PM
Appendix B Notices82
A-Tick notice
For safety reasons, only connect headsets with a telecommunications
compliance label. This includes customer equipment previously labelled
permitted or certified.
The unit shall be connected to Telecommunication Network through a line cord
which meets the requirements of ACA Technical Standard TS008.
Australian approved mains cord set shall be used with the equipment.
TM100-e.book Page 82 Thursday, August 15, 2002 3:03 PM
83
Index
A
AC adapter
caring for vii
audio 31
adjusting the volume 31
troubleshooting 62
B
battery pack
caring for vii
charging indicator 18
BIOS utility 57
brightness
hotkeys 24
C
caps lock 20
on indicator 18
care AC adapter vii
battery pack vii
computer vii
cleaning
computer viii
computer
bringing to meetings 34
caring for vii
cleaning viii
disconnecting 33
features 3, 16
indicators 18
keyboards 20
moving around 33
on indicator 18
performance 16
security 38
setting up a home office 35
taking home 34
traveling internationally 36
traveling on local trips 36
troubleshooting 60
turning off vi
Wireless Communication indica-
tor 18
Configuring tablet mode buttons 5
connections
network 50
contrast
hotkeys 24
D
display
hotkeys 23
troubleshooting 61, 62
E
email checking function 26
error messages 65
Euro 24
F
FAQ 61
front view 3
H
hard disk 30
help online manual iv
online services 67
Hibernation mode
hotkey 23
hotkeys 22
I
indicator lights 18
infrared 50
troubleshooting 62
ITW. See warranty
K
keyboard 20
embedded numeric keypad 21
hotkeys 22
lock keys 20
troubleshooting 62
Windows keys 22
L
LEDs 18
M
media access
on indicator 18
memory
TM100-e.book Page 83 Thursday, August 15, 2002 3:03 PM
84
installing 54– 55
upgrading 54
messages
error 65
modem 49
N
network 50
Notebook Manager 56
hotkey 23
notice
year 2000 compliance 81
num lock 20
on indicator 18
numeric keypad
embedded 21
num lock 21
O
online services 67
options
memory upgrade 54
P
password 44
types 44
PC Card 53
ejecting 53
inserting 53
ports 49
POST (power-on self-test) 58
problems
display 61, 62
infrared 62
keyboard 62
startup 61
troubleshooting 60
Q
questions
setting location for modem use
63
R
Rotating the display in tablet mode
4
S
safety
CD-ROM 80
FCC notice 77
general instructions 78
lithium battery 80
modem notices 78
scroll lock 20
security
keylock 38
passwords 44
smart card 38
service
when to call viii
SmartCard 38
PlatinumKey 39
PlatinumPAS 38
PlatinumSecure 38
PlatinumSecure options 41
speakers
hotkey 24
troubleshooting 62
specifications 70
Standby mode
hotkey 23
status indicator 18
status indicators 18
storage 30
hard disk 30
support
information 67
T
Tablet mode button
enter button 4
function key button 5
page down button 4
page up button 4
windows security button 5
touchpad 28
hotkey 24
using 28– 29
travel
international flights 36
local trips 36
troubleshooting 60
tips 64
U
universal serial bus (USB) 51
Using computer in tablet mode 11
TM100-e.book Page 84 Thursday, August 15, 2002 3:03 PM
85
V
viewfront 6
left 6
rear 8
right 7
volume
adjusting 31
W
warranty
International Traveler’s Warran-
ty 67
Windows keys 22
TM100-e.book Page 85 Thursday, August 15, 2002 3:03 PM
86
TM100-e.book Page 86 Thursday, August 15, 2002 3:03 PM

Navigation menu
