INTRODUCTION
“MTP40S is an extremely small and light pocket transmitter especially designed for professional
wireless microphone applications”
Very easy and quick to use thanks to OLED display, dedicated buttons and a joggle selector.
MTP40S benefits also of the latest Wisycom RF technology along with an enhanced robustness
against noise and inter-modulation.
Fig. 1
❶
Switch to enable wireless transmission, it
also indicates the battery status and
peak/mute operation (with PTT)
❷
In order to allow front visibility same colour
information on (1) is replicated with this LED
❸
Oled display for transmitter setup
❹
<ch>, <gain> and 3 positions <selector>
❺
Battery holder
❻
Cover (to open push side buttons)
1.
6
5
4
3
2
Turn on wireless:
Move the Wireless power switch in
“I” position.
1
Open MIC Body:
Push the side buttons and flip down the cover, to access
internal setup controls and batteries.
Turn on display:
Push <select switch> and hold it.
Front LED RGB.
Fig. 2
MTP40S User Manual
3
SAFETY INSTRUCTION
Read this safety instruction and the manual first
Follow all instructions and information.
Do not lose this manual.
Do not use this apparatus under the rain or near the water.
Do not install the apparatus near heaters or in hot environments, do not use outside the
operating temperature range.
Do not open the apparatus, only qualified service technician are enabled to operate on it. The
apparatus needs servicing when it is not properly working or is damaged by liquids, moisture
or other objects are fallen in the apparatus.
Use only accessories or replacement parts authorized or specified by the manufacturer.
Clean the apparatus only with dry cloths, do not use liquids.
Report the serial number and the purchasing date in front of the manual. It is needed to have
proper replacement parts or accessories from the manufacturer.
When replacement parts are needed, use only replacement parts authorized from the
manufacturer. Substitution with not authorized parts could result in electric shock, hazards or
fire.
Keep attention on all the labels with warnings or hazards on the apparatus.
LED INDICATIONS
Led indication with LED RGB (red, green, blue) in front led (❷):
- Wireless transmission status: Green when RF transmission power is on (on power on the
device, this LED is red and become green when the RF transmission power is on).
- Battery status: green steady, slowly blinking (< 25%), quickly blinking (<12%).
- Modulation peek (if activated and the limiter is disabled): red.
- Ptt status: red if active (push to talk “pushed”).
- Limiter in action (if activated): blue.
BATTERIES
MTP40S is working with 2 AA alkaline, NiMH or Lithium batteries (select correct type on setup
controls). Battery status can be checked on internal OLED display or looking the LED status on front
❷.
BATTERY SUBSTITUTION
Open transmitter cover and insert batteries following polarity indicated.
Attention: always replace both the batteries
MTP40S User Manual
4
POWERING UP
Move the wireless power switch (see Fig. 1) in “I” position to activate wireless transmission: the
front LED ❷ lights up red and then green when the RF transmission power is on (blinking when
battery is low!)
SETUP CONTROL
Open transmitter Body to access the “display and controls” area (Fig. 3):
A. Graphics Display (OLED)
B. Channel selection buttons (ch)
C. MIC gain setup buttons (gain)
D. 3 position selector (up / down / click)
Fig. 3
OLED POWER UP (OLED IS IN OFF CONDITION)
Pushing down selector (click), oled turns on. A first menu with serial NO and brand logo is displayed,
then <status> menu enters automatically.
Pushing and holding selector, serial NO menu is displayed.
OLED POWER DOWN (OLED IS IN ON CONDITION)
Display turns off automatically after 15 sec, unless in <AUDIO> menu (with audio level < 5% from
nominal).
+
-
CLICK
A
B
C
D
MTP40S User Manual
5
DISPLAY MENU
Setup menu are accessed in sequence:
MENU
STATUS
PRESET
Current
Load FACTORY/USER/PRESET1/2/3/4/5/6/7/8
Save USER
TUNING
CH 00-59
GR 00-39
Freq according to the freq.
range of the
transmitter
AUDIO
AF In Gain
AF Level
-60 ÷ +40 dB (1dB step)
-54 ÷ +46 dBu (1dBu step)
Phase 0/180
HPass Filter Flat/60/80/120/170/250/400Hz
Noise R. ENR-Wisy/ENC-Wisy
Limiter On/Off
MIC
Mode 2 wires/2wires+bias/3 wires/
2wire&pha/2w+bias&pha
PTT Disable/Normal/Muting/No Data
Name
RF/Battery
RF Power 10/20/50/100mW *
Battery Alkaline/NiMH/Lithium
LED Led Light 0÷16
Led Mode None/ModPeak/PTT
Info
IRDA
Lock
Preset parameters
* Depending on the Power Profile
MTP40S User Manual
6
+
-
CLICK
Using <+/-> selector all menus can be accessed in sequence, push <click> to enter edit mode (in the
left side of the display appear the word EDIT and the parameter start blinking):
<+/-> to setup field
<click> again to confirm changes and exit.
exit without confirmation if no button is pressed after a few seconds time out.

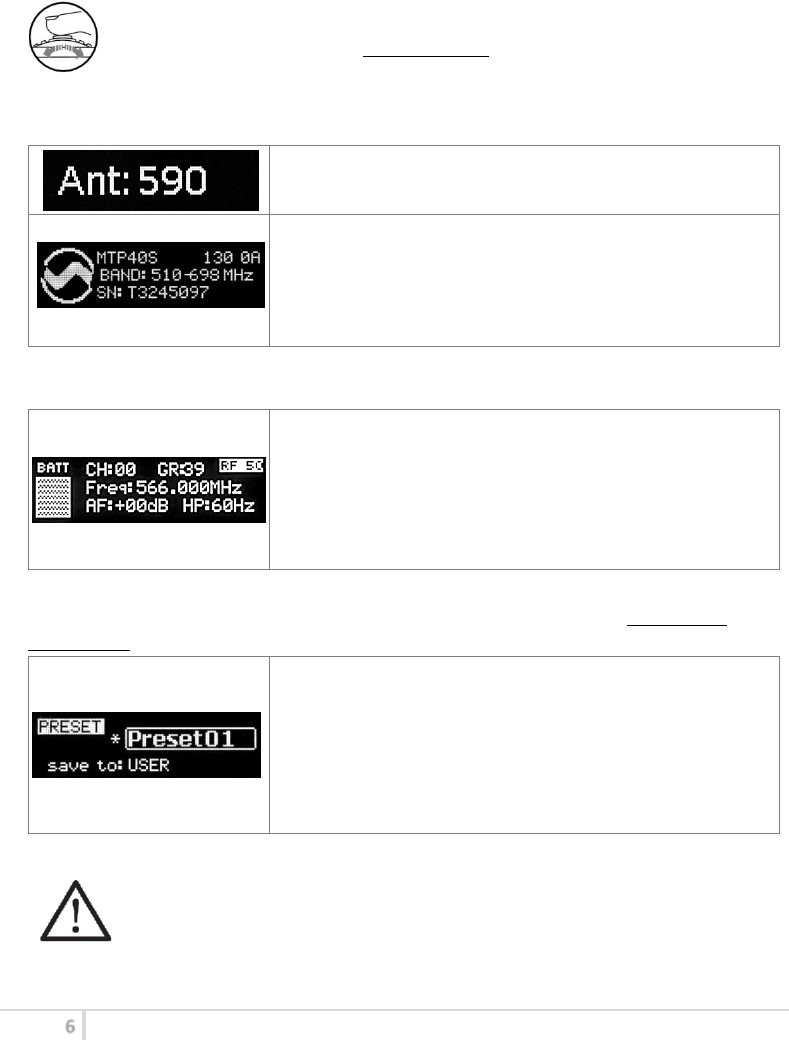

<START UP> menu
These menus are displayed during power up for few seconds.
First one gives information of antenna to be used. The number
displayed is the center-band of the antenna to be used.
The second menu gives indication on product:
- product id (MTP40S),
- the firmware release (ex. 1.30.0A),
- the band in extended format and
- the serial number.
Keep selector pushed to hold this menu!
<STATUS> menu
This is the first menu displayed after power up.
Major info are displayed:
- Current channel/group (i.e. CH:00 GR:39)
- Current frequency (i.e. 566.000 MHz)
- Mic gain (i.e. AF: +00 dB) and high pass filter (i.e. HP:60 Hz)
- “RF 100” or RF 50” or “RF 10” on top right if RF transmission
is active respectively at 100mW or 50mW or 10mW
- On left, battery bar is displayed
<PRESET> menu
This menu can be entered by scrolling selector, or pushing at the same time both quick channel
setup buttons (<ch> & <gain>).
MTP40S can recall configuration presets. “FACTORY” recalls the
Wisycom factory configuration. “USER” recalls the user
configuration (the transmitter configuration is copied into the
USER using the “save to” submenu). All “USER” menus are not
locked by default, thus this is quick way to unlock features!
When the user changes some parameters from the PRESET
configuration (for less than frequency) a star appears on the top-
right corner until a save command is executed.
The other 8 configuration presets are user programmable thru the infrared and the PC interface
(using the programmer UPK 300/UPK
Mini
or the receiver MRK950/MRK960).
We provide the device with some preset configurations specifically designed for certain types of
microphone or applications (it’s possible to change these presets in any time using the TX manager).
All parameters can be “left unchanged”, “changed” or “changed and lock”, allowing a very flexible
way to pre-program MTP40S configuration.
MTP40S User Manual
7

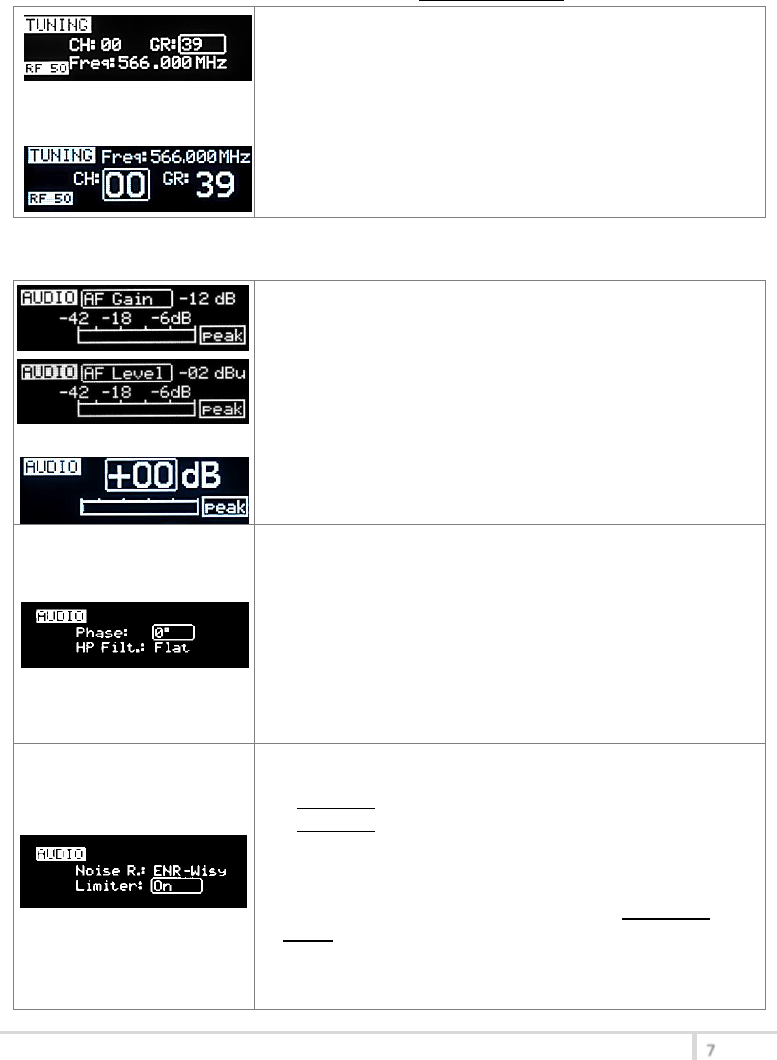

<TUNING> menu
This menu can be entered by scrolling selector or using quick channel setup buttons (<ch>).
In this menu current channel/group and frequencies can be setup.
The name of the group is shown on the top right of the display.
Sync group is a quick self-settable channel synchronized by receiver
(with SYNC group, on the top right of the display is shown the name
of the synchronized receiver).
Use the selector to change values (<+/->) and <click> to confirm.
Using quick channel setup buttons (<CH>), it is possible to enter
quickly in the tuning menu. Note that the menu has a different
layout (see the side image)
<AUDIO> menu
This menu can be entered by scrolling selector or using quick gain setup buttons (<gain>).
The sensitivity of the audio input is settable between “AF Gain”
(measured in dB) or “AF Level” (measured in dBu).
To help proper audio gain setting, an audio bar is supplied (with
maximum peak indicator) indicating the headroom to audio peak
(0 dB , nominal deviation 40KHz). Set the gain, with the maximum
input signal, avoiding the peak on the audio bar.
TRY TO SETUP TO HAVE A MAX PEAK HOLD BAR CLOSE TO -6dB.
Using quick gain setup buttons (<GAIN>), it is possible to enter
quickly in the audio gain menu. Note that the menu has a different
layout (see the side image)
The second <AUDIO> menu allows to set:
- Audio phase: 0° or 180°
Note: Since common "2-wires + bias" microphones invert the
phase, when the MIC mode of the transmitter is set to “2wires+
bias”, the phase is automatically inverted and so the complete
system (MTP4x+MIC) has 0° phase (an asterisk appear on the
display near the phase to indicate that the phase was inverted).
-High Pass Filter: applies different audio HP filter: Flat/ 60Hz/
80Hz/ 120Hz/ 170Hz/ 250Hz/ 400Hz.
The third <AUDIO> menu allows to set:
-Noise reduction:
ENR-Wisy: designed for maximum noise reduction
ENC-Wisy: designed for maximum audio fidelity (use this in
case of special vocal application or to remote instruments)
-Limiter:
if is set “On”, an input audio signal above the peak threshold (up
to 30 dB above peak) is not cut but attenuate, without lost
quality. The limiter acts as a variable attenuator (thanks to the
feedback system), maintaining a distortion <3%.
When the limiter intervene, the front led turns blue.
If this parameter is set “Off”, the limiter is disable.
MTP40S User Manual
8

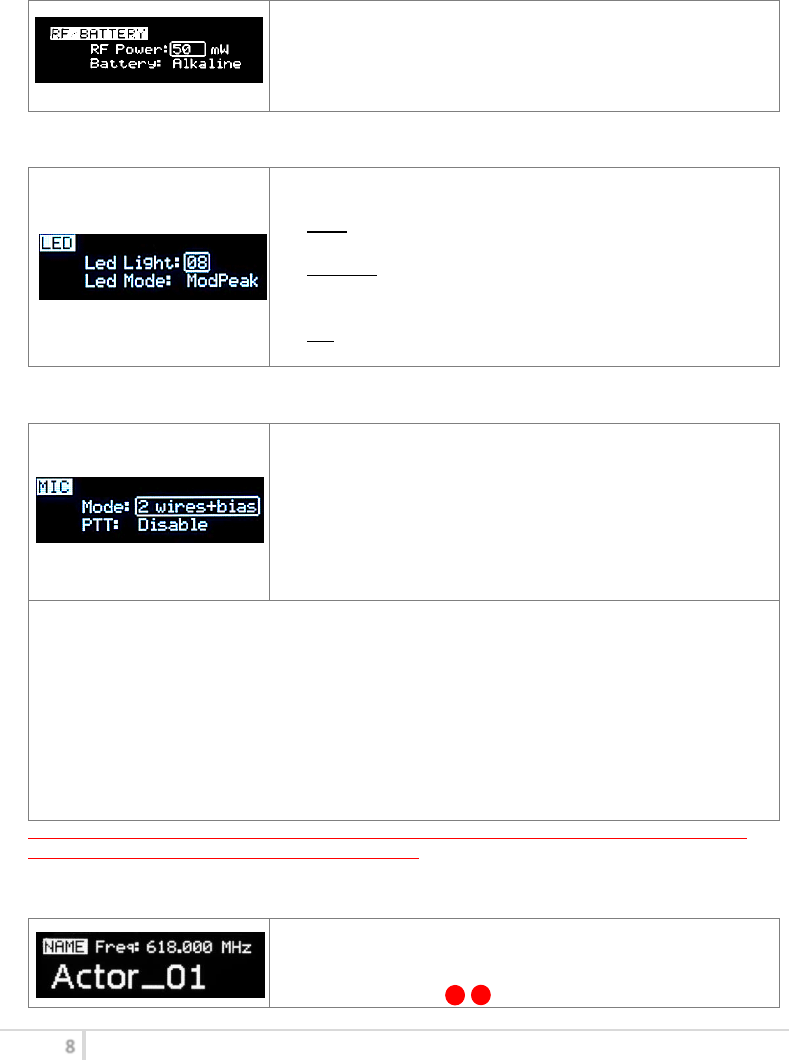

<RF/BATTERY> menu
This menu can be entered by scrolling selector.
RF power can be setup to 10mW, 20mW, 50mW or 100mW
(depending on the Power profile).
Use the Battery menu to select the type of battery used.
MTP40S support Alkaline/NiMH/Lithium battery type.
Use the selector to change values (<+/->) and <click> to confirm.
<LED> menu
This menu can be entered by scrolling selector.
Led Light allows to change the brightness of the front led (0÷16) .
Led Mode:
- None: allows to disable modulation peak LED on front led
(the red light)
- ModPeak: allows to enable modulation peak LED on front led
(become RED when audio get close to saturation when
the limiter is not enable)
- PTT: allows to enable RED color on front led when PTT button
is pushed.
<MIC> menu
This menu can be entered by scrolling selector.
Mode: Following Mic mode can be setup (for LEMO option)
-2 wires: (PTT is possible) for external audio input
-2 wires + bias: (PTT is possible) for most 2 wires MIC
-3 wires: (no PTT) for most 3 wires MIC
-2 wires & pha: to connect a wired mic thru a 48V adapter
(PHA48)
-2 wires+bias & pha: Allow to connect a ‘2 wires + bias’ MIC or a ‘2
wires & phantom’ MIC (with PHA48)
PTT setting defines how and what information the transmitter has to send in normal use or when
the PTT button is pushed.
- Disable: when the PTT button is pushed, nothing happen. (the transmitter sends AF+Tone
squelch)
- Normal: when the PTT button is pushed, the transmitter send a different RF signal. According to
the receiver configuration the audio can be enabled/disable on LINE (and/or COM).
- Muting: the transmitter doesn’t send the audio. The voice is cut, it doesn’t enter to the
microphone
- No Data: the transmitter sends neither tone squelch nor battery data.
Use the selector to change values (<+/->) and <click> to confirm.
NOTE: For DPA option (2 pin microdot audio connector), even if the MIC mode menu allows to set one of the 5
MIC modes, only 2 wires or 2 wires+bias mode are possible.
<NAME> menu
This menu can be entered by scrolling selector.
In this menu it’s possible to see the frequency set on the device
and the name of the transmitter.
It’s possible to enter on this menu also pressing at the same time
the CH/GAIN buttons ( B + C )
MTP40S User Manual
9

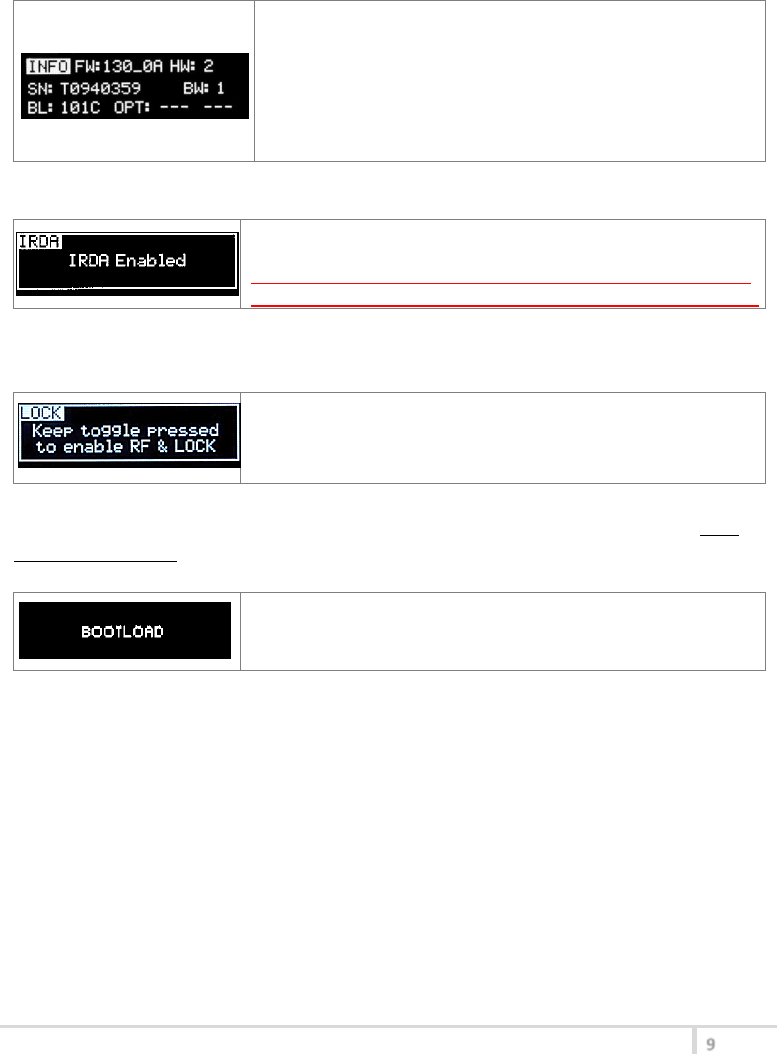

<INFO> menu
This menu can be entered by scrolling selector.
In this menu it’s possible to see:
- FW version
- HW version
- Serial number
- Bandwidth
- Bootloader version
- Option
<IRDA> menu
This menu can be entered by scrolling selector.
While there is this menu, the device can be connected to IRDA for
setup or firmware upgrades.
Note: if the IRDA interface is enabled and there’s no communication
for around 10 seconds, the IRDA interface is automatically turned off.
On power on the device, the IRDA interface is enabled for 14 seconds.
<LOCK> menu
This menu can be entered by scrolling selector.
Long pressing (2 sec.) selector button (click) it locks MTP40S in
transmission mode.
To unlock, long pressing (2 sec.) selector button again.
<BOOTLOAD> menu
This menu can be entered by turning on the transmitter while pushing at the same time both quick
channel setup buttons (<ch> & <gain>) or connecting the device via IRDA using the IR Programmer for
FW update
Device is forced in bootloader mode to allow FIRMWARE UPDATE.
MTP40S User Manual
10
The following table sums up which parameters can be set and the related range settings.
MENU
PARAM
ETER
MEANING
RANGE SETTINGS
TUNING
CH
Channel
0 ÷ 59
GR
Group
0 ÷ 39 + SYNC GROUP
Freq
Frequency
depends on the MTP40S band
see technical spec. and variants for further details
AUDIO
AF In Gain
AF Level
Gain of the audio
signal
-60dB ÷ +40dB step of 1dB
-54dBu ÷ +46dBu step of 1dBu
Phase
Audio signal phase
0° or 180°
HP Filt.
High Pass filter
Flat/60/80/120/170/250/400 Hz
Noise R.
Noise reduction
ENR: Wisycom Extended-NR, noise optimized
ENC: Wisycom Extended-NC, voice optimized
Limiter
Limiter
On/Off
RF/BATTERY
RF Power
RF Power
10mW, 20mW, 50mW, 100mW (depending on the
power profile)
Battery
Battery type
Alkaline, NiMH or Lithium
LED
Led Light
Power switch green
brightness
0 ÷ 16
Led Mode
It defines when the
power switch led
(see Fig. 3) has to
become RED
None: never
ModPeak: when audio get close to saturation
PTT: when the PTT button is pushed
MIC
Mode
MIC type
’2 wires’
‘2 wires + bias’
‘3 wires’
‘2 wires & phantom’
‘2 wires + bias & phantom’
PTT Mode
It defines how and
what information
the transmitter has
to send
Disable:when the PTT button is pushed, nothing
happen. (the transmitter sends AF+Tone squelch)
Normal: when the PTT button is pushed, the
transmitter send a different RF signal. According to the
receiver configuration the audio can be
enabled/disable on LINE (and/or COM).
Muting: the transmitter doesn’t send the audio. The
voice is cut, it doesn’t enter to the microphone
No Data: the transmitter sends neither tone squelch
nor battery data.
MTP40S User Manual
11
MIC Mode setting (only for LEMO option):
MIC Mode:
Pin out
Gain
PTT
Led Mode
’2 wires’:
1=GND
3=AF
-60/40 dB
Disable
Normal
Muting
No data
None
Mod. Peak
PTT
‘2 wires + bias’:
1=GND
3=AF+5.5V
-60/40 dB
Disable
Normal
Muting
No data
None
Mod. peak
PTT
‘3 wires’:
1=GND
2=5.5V
3=AF
-60/40 dB
Disable
No data
None
Mod. peak
‘2 wires &
phantom’:
1=GND
2=3.1V (power for
PHA48)
3=AF
-60/40 dB
Disable
No data
None
Mod. peak
‘2 wires + bias &
phantom’:
1=GND
2=3. 1V (power for
PHA48)
3=AF+5,5V
-60/40 dB
Disable
No data
None
Mod. peak

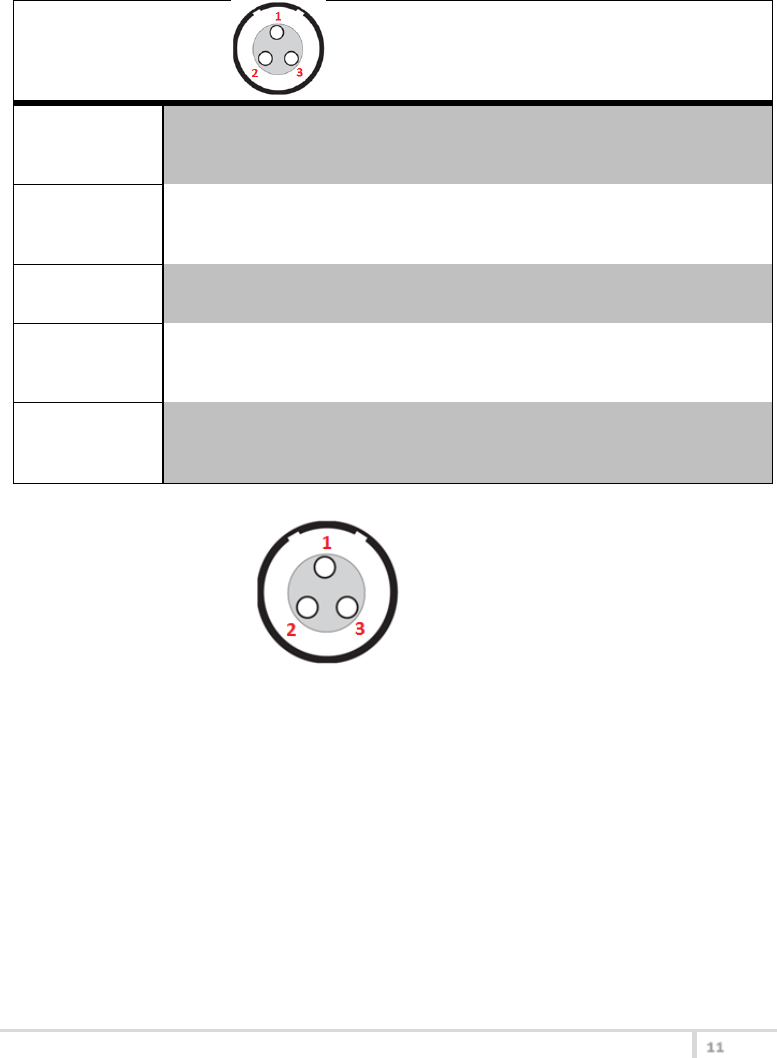

3 PIN LEMO CONNECTOR
(use FVB.00.003.NLN on Mic)
MTP40S User Manual
12
ACCESSORIES AND PARTS
AWF30-B1-507
For MTP40S-X-X1
Band 470 ÷ 547 MHz
Antenna Code label 507
AWF30-B1-590
For MTP40S-X-X1
Band 547 ÷ 640 MHz
Antenna Code label 590
AWF30-B2-616
For MTP40S-X-X2
Band 566 ÷ 672 MHz
Antenna Code label 616
AWF30-B2-732
For MTP40S-X-X2
Band 672 ÷ 798 MHz
Antenna Code label 732
AWF30-B3-552
For MTP40S-X-X3
Band 510 ÷ 595 MHz
Antenna Code label 552
AWF30-B3-646
For MTP40S-X-X3
Band 595 ÷ 698 MHz
Antenna Code label 646
CAL48
Cable to connect an MTP30 (with option /PHA) or
MTP40/40S to a PHA48 to use microphone with
XL3/48V connection
CAL120
AF cable (120cm), LEMO 3pole / XLR-3F connectors
PHA48
Plug-on for XLR3 Mic with 48V Phantom power.
To be used with CAL48 (connected to an MTP30/40/40S)
NEW REV2 with 4mA Phantom current!
ADT40
Power Adapter for MTP30/40/40S.
Power input: 9-18V DC feeding (internal switching regulation).
Variants:
ADT40: without connector (pigtail)
(Shield= GND , Blue-Red= Vdc)
ADT40X: with XLR-4pin power connector
ADT40H: with Hirose-4pin power connector
NOTE: MTP30/40/40S must have ADT option to pass thru cable
UPK300E / UPK Mini
Infrared programming kit
(interface + software) USB interface
UPK300E
UPK Mini
Antenna Code label
MTP40S User Manual
13
HOW TO USE WISYCOM TX MANAGER
Wisycom TX Manager allows to read, modify and update the configuration of Wisycom transmitters.
It is necessary to
connected the programmer UPK300E/UPKMini or the receiver MRK950/MRK960 to the PC
thru USB connection
run the Wisycom TX Manager
enable the IRDA communication on the transmitter (see IRDA menu)
NOTE: Wisycom IR Programmer doesn’t work whit MRK950/MRK960 if it is connected to the PC
using an Ethernet cable.

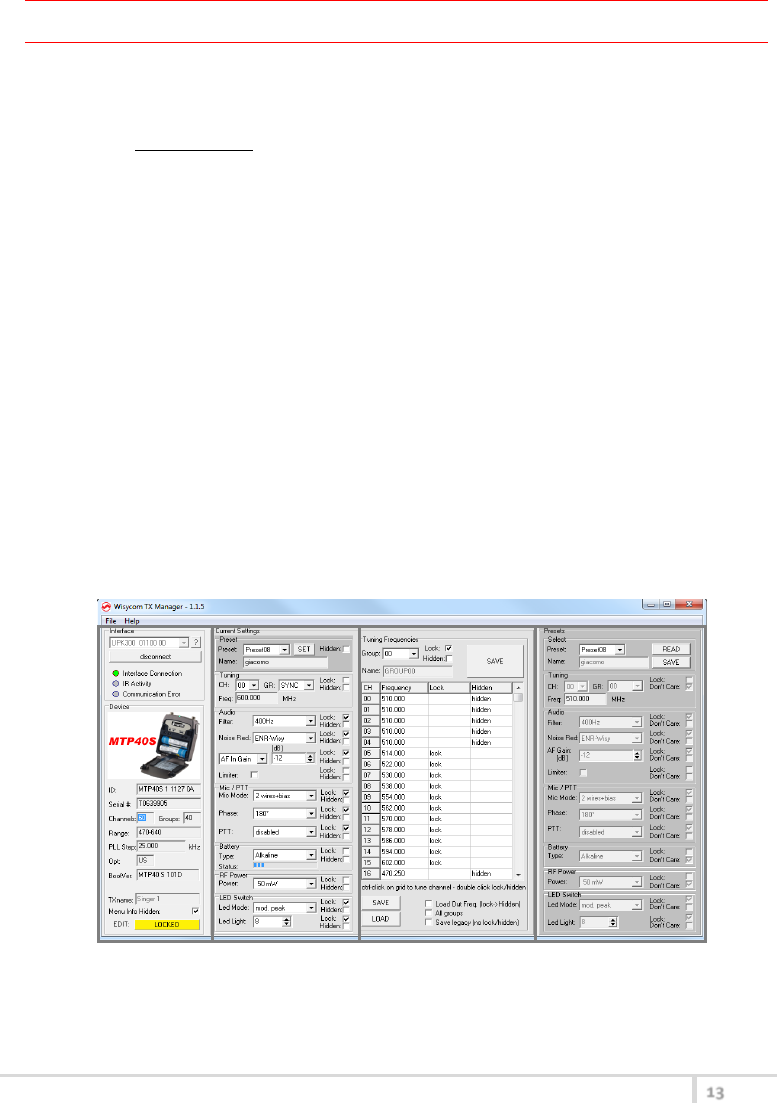

The Wisycom IR Programmer’s window is divided in 4 parts (see the image below):
❶Interface and Device panel contains all the major information of the connected device
❷Current Settings panel shows the current configuration. Thanks the PRESET panel, a previous
saved configuration can be chosen and loaded like current setting.
❸Tuning Frequencies panel allows to handle Groups, Channels and Frequencies
❹Presets panel allows to read, change and save different configurations
❶
❷
❸
❹
MTP40S User Manual
14

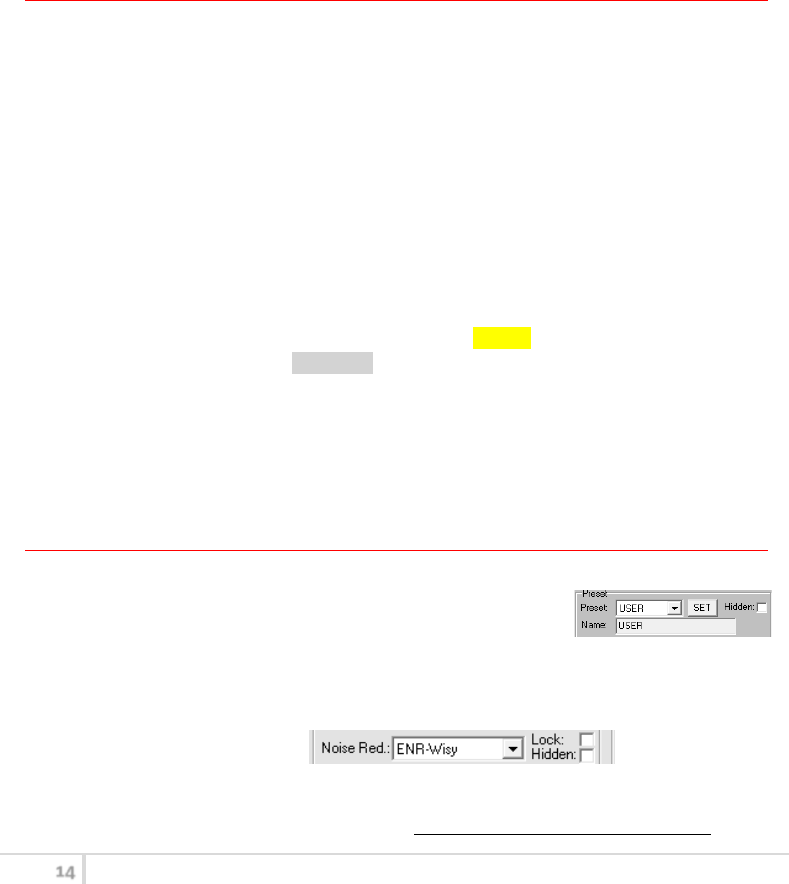

10 different configurations are available:
• FACTORY configuration is a locked configuration: no parameter can be changed.
USER configuration is the only configuration that can be saved using the OLED display (see
<PRESET> menu). Note: It is not possible to change the name of this configuration.
Other 8 configurations where the user can change both the name and the values of all
parameters.
INTERFACE AND DEVICE PANEL (❶)
At the beginning, the program checks which IR devices are detected and they appears on the
Interface panel.
The user has to select the device and push <connect> button in order to open the communication
with the IR device. A picture on the top in the Interface panel help the user in this selection showing
the type of devices detected. During this process the “IR activity” led blinks to indicate that the
program wait connection’s answer from the IR device.
A successful connection is signaled with the “interface connection” green led, while a failed
connection is signaled with the “communication error” led.
Once a supported device is found, the software automatically reads all the data related to the
remote configuration, as well as the frequencies that are pre-programmed.
Firstly, in order to avoid unwanted operation, no parameters can be changes and the EDIT button,
presents on the bottom of Device panel, is yellow and set to LOCKED state. Pushing the EDIT
button, it becomes grey and sets to UNLOCKED state to indicate that the configurations can be
modified.
In this panel it’s possible to assign a name to the TX (not available for FW v.1.22.0F or previous).
Under this parameter, there is a flag to hide the info menu on the TX (not available for FW v.1.22.0F
or previous)
CURRENT SETTINGS PANEL (❷)
In the Current Settings panel the user can
with Preset panel → load one of the 10 available configurations
with other panels → modify all the configuration’s parameters (the same that are
changeable in the OLED display). Each parameter can be locked or hidden clicking the
related lock/hidden button, so the set value cannot be changed next or cannot be visible on
the OLED display.
ATTENTION: All the modifies applied to the Current Settings panel are instantaneous: they are
applied directly to the device and save in its memory but no saved in the preset configuration.
MTP40S User Manual
15
TUNING FREQUENCIES PANEL (❸)

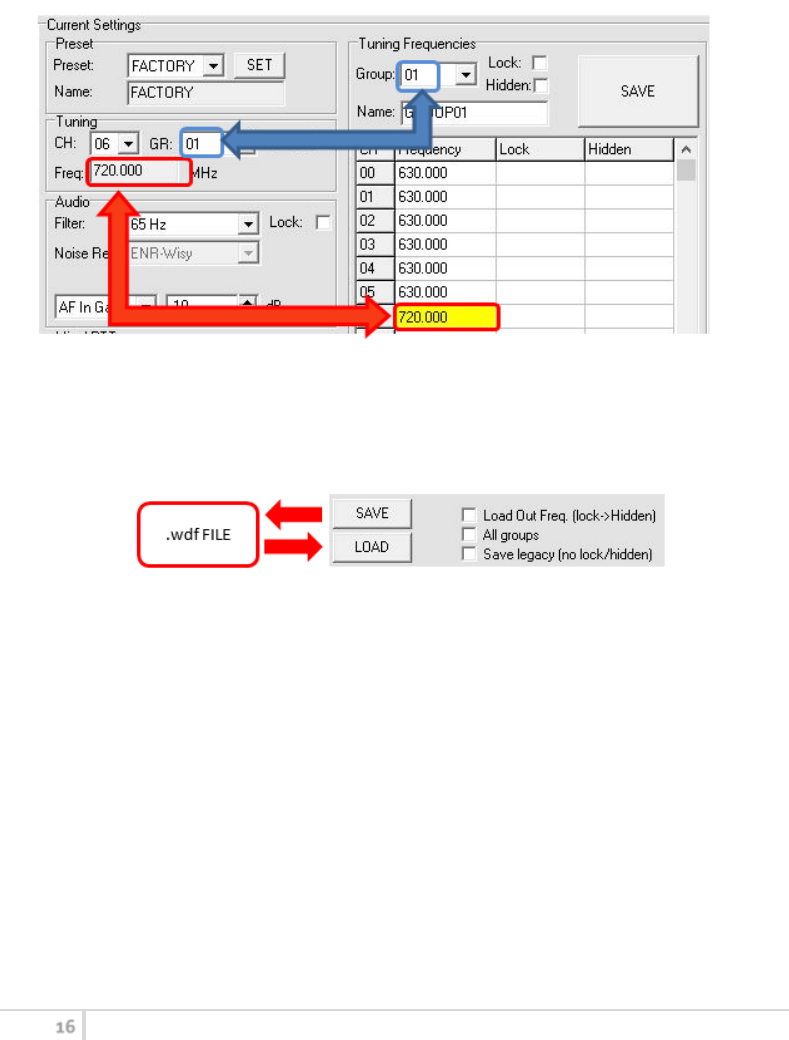

With the Tuning Frequencies panel the user can select a frequencies group (0÷39) and for each one
execute the following operations:
- modify the Group’s Name
- lock and/or hidden the group
- for each channel (0 ÷59) of the selected group: change the frequency value and the
related status (locked/hidden) (in the center grid frequency)
The SAVE button, at the top of the panel,
save the changes of the group selected
(name group, lock/hidden group).
To change a frequency
value for a specific
channel: double click
on the grid frequency
panel (row=channel’s
number), insert the
new frequency value
and press OK button.
To lock/hide a specific channel,
double click on the grid frequency
panel.
NOTE: keeping pressed the CTRL button on the keyboard and clicking the wanted channel/group
shown on the frequencies grid, the tuning process is executed. It is equivalent to configure the
Tuning in the Current Settings panel but it is easier. The device is re-tuned immediately, so be sure
that the RF power is turned off while changing frequencies with other RF systems in use around you!
MTP40S User Manual
16
If the currently tuned channel is on the same group that is listed on the grid, the background color of
the related cell (channel) on the grid becomes yellow.
Using the LOAD/SAVE button, at the bottom of the panel, it is possible to load/save the frequencies
for the selected group from/to a .wdf file. To save the frequencies of all the groups click to the
related button above. The legacy option save the channels without the hidden/lock info.
MTP40S User Manual
17
PRESETS PANEL (❹)
The Preset panel allows to manage all the 10s available configurations.
For each configuration it is possible to set the name and all the parameters value except for
FACTORY and USER configurations (see table below).
PRESETS:
NAME*
LOCK/DON’T CARE
PARAMETERS
VALUE
FACTORY
USER
√
OTHERS
√
√
√
√=change is allowed
* Be careful to write a meaningful name for the preset because the name will appear on the settings
list of the device menu! Please, avoid empty names.
If a parameter is “locked”, it cannot be modified by device menu (using OLED display), while if “don’t
care” propriety is active, when the user load the configuration, the parameter’s value doesn’t
changed.
ATTENTION: Changes are applied only after a “save” action.
NOTE: “a trick” In case of the user have a locked parameter and he is in great need for modify it, he
can save the configuration to USER configuration by OLED (see PRESET menu) and then load the
USER configuration (in this way all the parameters have the lock propriety disable and the user can
modify all the parameters).

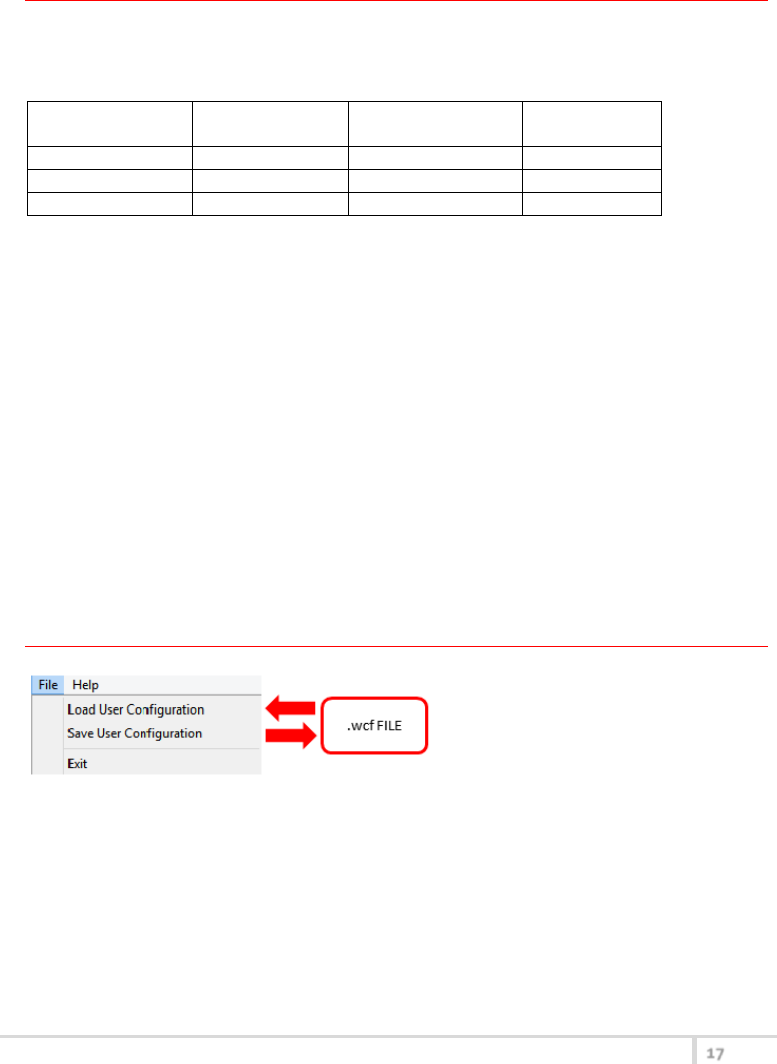

FILE MENU
Using a file menu at the top left of the
panel it is possible to load/save all the
configuration values of the device
to/from a .wcf file (Wisycom
Configuration File).
Save a .wcf file
With an infrared device correctly connected, select File->Save User Configuration and select the
destination file.
Load a .wcf file
To load a user configuration select File->Load User Configuration and select a previously saved data
file; a form will be shown, where it's possible to select which data has to be restored and which
skipped. This allow the user to load a particular configuration while keeping other data.
MTP40S User Manual
18
TECHNICAL SPECIFICATIONS
Switchable
channels
2400 allocated by 40 groups of 60 channels (in specific frequency range), quickly
selectable with dedicated buttons
Switching window
Up to 232 MHz, depending on band (see Variants on the next page)
Frequencies
Quartz PLL frequency synthesizer circuit (25 kHz step)
Frequency stability
± 2,5 ppm (in the rated temperature range)
Temp. range
-10 ÷ +55 °C
Max RF power
▪ 10mW (ERP) (to respect some local norm)
▪ 20/50/100 mW (ERP) (note: in some countries middle power can be disabled, for local
norm!)
Spurious emissions
< 2 nW
Modulation
wideband FM, with pre-emphasis
Nominal deviation
±40 kHz (Peak deviation = ±56 kHz)
Telemetry feature
MTP40S transmits also a digitally modulated sub-carrier, suitable for:
▪tone-squelch operating
▪ remote battery monitoring
▪ optional PTT (push to talk) operation
AF input connector
LEMO option
Configurable on ‘mic’ display menu in 5 options:
▪ ’2 wires’:
▪ ‘2 wires + bias’:
▪ ‘3 wires:
▪ ‘2 wires & phantom’
▪ ‘2 wires + bias & phantom’:
gain selectable -60 ÷ +40 dB (-54 dBu ÷ +46 dBu peak), no bias voltage
gain selectable -60 ÷ +40 dB (-54 dBu ÷ + 46 dBu peak), 5.5 V on 4k7 bias supply
gain selectable -60 ÷ +40 dB (-54 dBu ÷ +46 dBu peak)
gain selectable -60 ÷ +40 dB (-54 dBu ÷ +46 dBu peak),
gain selectable -60 ÷ +40 dB (-54 dBu ÷ + 46 dBu peak), 5.5 V on 4k7 bias supply
AF input level
100 dB adjustable range from -54dBu (775 uV) to 46dBu (15.5 V) at peak deviation (1kHz),
adjustable in 1 dB steps
Max. input level
+46 dBu (15.5 V) at clipping, +20 dBu (7.75 V) at nominal level
Noise-Reduction
ENR (Wisycom Extended-NR), with independent Attack- and Recovery-time, noise
optimized
ENC (Wisycom Extended-NC), with independent Attack- and Recovery-time, voice
optimized & with reduced pre-emphasis
AF bandwidth
▪ 45 Hz ÷ 21 KHz (3dB)
▪ 55 Hz ÷ 20 KHz (1dB)
Distortion
< 0.3 % (0.15 % typ.)
Signal-to-noise
ratio
▪ typ. 115 dB (A)rms with 40 kHz deviation
▪ typ. 121 dB (A)rms with 56 kHz deviation
Led
Led indication with RGB led (red, green, blue) on wireless power switch:
▪ Wireless transmission status:
GREEN on/off
▪ Battery lifetime status: GREEN - steady (> 25%)
- slowly blinking (< 25%) - quickly blinking (<12%)
▪ Modulation peek (if activated & the
limiter is disabled): RED
▪ Ptt status: RED if active
▪ Limiter into action: Blue
Display
High contrast OLED (Organic light-emitting diode) white display (128 x 32 pixels)
8 step battery lifetime indication: 7 bars (100%-87%-75%-63-50%-38%-25%) and “empty
bar” quickly blinking (12% remaining)
PTT function
Pin 3 of the AF connector can be setup to an external push button
Power supply
2 AA size batteries (Alkaline, rechargeable NiMH or Lithium)
MTP40S Battery
life (2 AA alkaline)
▪ approx. 14 hours @ 10mW continuous working
▪ approx. 10 hours @ 50mW continuous working
▪ approx. 7 hours @ 100mW continuous working
Dimensions
73 x 61 x 17.5 mm (Height-Width-Depth) without clip
Weight
Approx. 80 g. without batteries (120g with batt.)
MTP40S User Manual
19
VARIANTS:
▪ AUDIO CONNECTOR
LM 3 PIN LEMO CONNECTOR
DP 2 PIN DPA MICRODOT CONNECTOR
▪ COLOR
PV
body color titanium gray (ceramic coating)
BL body color black (powder coating)
▪ FREQUENCY RANGE
B5 470-654 MHz
B2 566-798 MHz
B3 510-698 MHz
B8 940-960 MHz
POWER PROFILE & COUNTRY
FREQUENCY RANGE:
EU max power 50mW (Europe)
0W1 / EUX max power 100mW (Europe)
US max power 50mW (USA)
USX max power 100mW (USA & Canada)
JP max power 10mW (Japan)
NZ max power 100mW (New Zealand)
CN max power 50mW (China)
US8 max power 100mW (USA & Canada)
OPTIONS:
ADT hole on battery housing for ADT40
For commercial code, see Variants area of Wisycom
Products on website
MTP40S
Note: unit is mm
MTP40S User Manual
20
Compliance
Model
In Compliance with
Max Power
Country
MTP40S
MTP40S-EU
EN 301 489-1/-9
EN 600065
EN 300 422-1/-2
50mW
Europe
MTP40S-0W1
MTP40S-EUX
EN 301 489-1/-9
EN 600065
EN 300 422-1/-2
EN 300 454-1/-2
100mW*1
Europe
MTP40S-US
PART 74
FCC-ID: POUMTP40
Limited to 698MHz
50mW
USA
MTP40S-USX
PART 74
FCC-ID: POUMTP40SUSX
RSS-123, RSS-102
IC: 11967A-MTP40SUSX
Limited to 698MHz
100mW*2
USA, Canada
MTP40S-US8
PART 74
FCC-ID: POUMTP40SUS8
Limited to
941.50-952.00MHz,
952.85-956.25MHz,
956.45-959.85MHz
100mW
USA
MTP40S-JP
202-LSC057
Limited to 714 MHz
10mW
Japan
MTP40S-NZ
EN 300 422-1/-2
EN 300 454-1/-2
Limited to the range
502÷698MHz
100mW
New Zealand
*1 MTP40S-0W1 / MTP40S-EUX is not an SRD device, thus it requires specific authorization by your local
frequency authority!
*2 in accordance with KDB 447498 D01 General RF Exposure Guidance v05r02.
Before putting the device into operation, please
observe the respective country-specific regulations!
R
MIC marking identifier can be found in the battery compartment.
MTP40S User Manual
21
MANUFACTURER DECLARATIONS
In compliance with the following requirements
RoHS Directive (2002/95/EC)
WEEE Directive (2002/96/EC)
Please dispose of the diversity transmitter at the end of its operational lifetime
by taking it to your local collection point or recycling center for such
equipment
Battery Directive (2006/66/EC)
The supplier batteries or rechargeable batteries can be recycled. Please
dispose of them as special waste or return them to your specialist dealer. In
order to protect the environment, only dispose of exhausted batteries.
FCC Conformity
The Wisycom microphone pocket transmitter model MTP40S complies with the following
requirements:
- FCC (Federal Communications Commission) Part 74
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operations.
Changes or modification not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
FCC ID can be found inside the battery compartment.
FCC-ID: POUMTP40 MTP40S US option
FCC-ID: POUMTP40SUSX MTP40S USX option
FCC-ID: POUMTP40SUS8 MTP40S US8 option
MTP40S User Manual
22
Industry Canada Conformity (MTP40S USX)
EN
This device complies with Industry Canada RSS-123. Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
FR
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio RSS-
123. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire
de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
ITALY ONLY
Obblighi di informazione agli utilizzatori
ai sensi dell’art. 13 del Decreto Legislativo 25 luglio 2005, n. 151 “Attuazione delle Direttive 2002/95/CE,
2002/96/CE e 2003/108/CE, relative alla riduzione dell’uso di sostanze pericolose nelle apparecchiature
elettriche ed elettroniche, nonché allo smaltimento dei rifiuti”
Smaltimento di apparecchiature elettriche ed elettroniche di tipo professionale
Il simbolo del cassonetto barrato riportato sull’apparecchiatura o sulla sua confezione
indica che il prodotto alla fine della propria vita utile deve essere raccolto separatamente
dagli altri rifiuti.
La raccolta differenziata della presente apparecchiatura giunta a fine vita è organizzata e
gestita dal produttore. L’utente che vorrà disfarsi della presente apparecchiatura dovrà
quindi contattare il produttore e seguire il sistema che questo ha adottato per consentire
la raccolta separata dell’apparecchiatura giunta a fine vita.
L’adeguata raccolta differenziata per l’avvio successivo dell’apparecchiatura dismessa al riciclaggio, al
trattamento e allo smaltimento ambientale compatibile contribuisce ad evitare possibili effetti negativi
sull’ambiente e sulla salute e favorisce il reimpiego e/o riciclo dei materiali di cui è composta
l’apparecchiatura.
Lo smaltimento abusivo del prodotto da parte del detentore comporta l’applicazione delle sanzioni am-
ministrative previste dalla normativa vigente.
Smaltimento batterie usate
Questo prodotto può contenere batterie. Questo simbolo apposto sulle batterie significa
che non possono essere smaltite insieme a normali rifiuti domestici, bensì devono essere
depositate negli appositi punti di raccolta delle batterie.
Iscrizione al Registro A.E.E. n. IT09100000006319
.
MTP40S User Manual
23

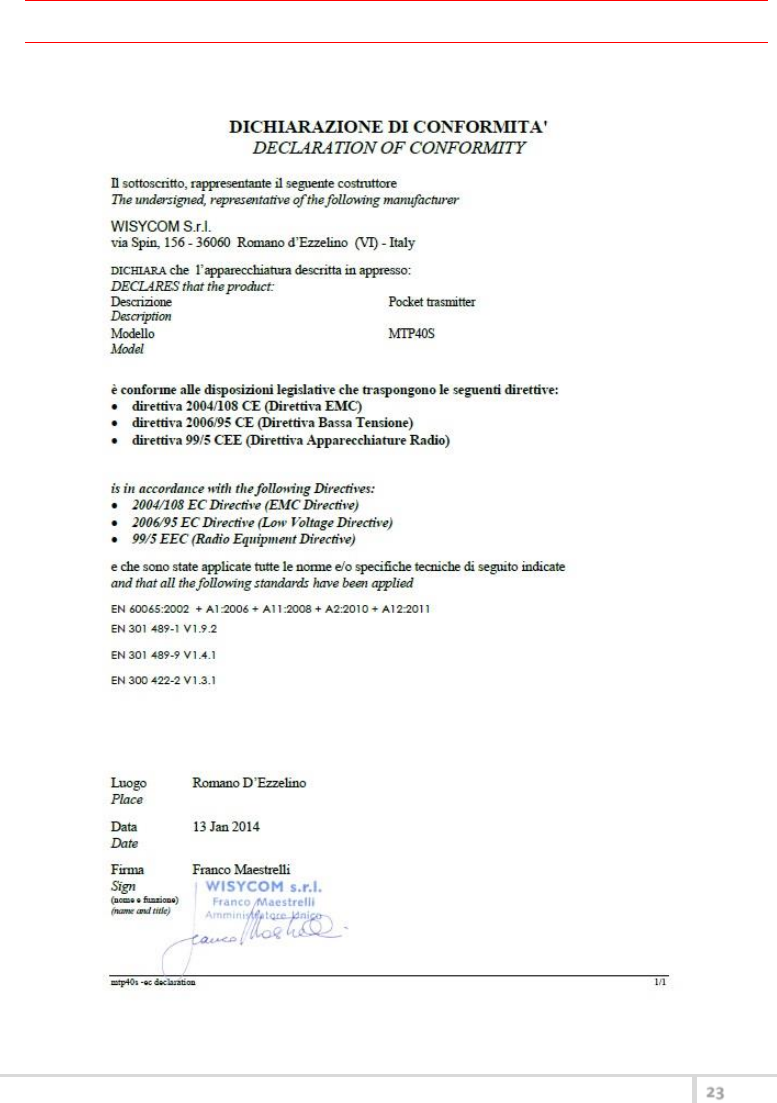

DECLARATION OF CONFORMITY
