Wonde Proud Technology WPBT100NX BLUETOOTH GPS RECEIVER User Manual USERS MANUAL
Wonde Proud Technology Co., Ltd. BLUETOOTH GPS RECEIVER USERS MANUAL
USERS MANUAL
*** USER’S MANUAL ***
FCC ID : SRKWPBT100NX
The Federal Communication Commission Statement
This equipment has been tested and found to comply with the limits for a Class B Digital Device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction, may
cause harmful interference to radio communication. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of more of the following
measures: -
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced Radio/TV technician for help.
Use only shielded cables to connect I/O devices to this equipment. You are cautioned that change
or modifications not expressly approved by the party responsible for compliance could void your
authority to operate the equipment.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO
THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERECE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause
undesired operation.

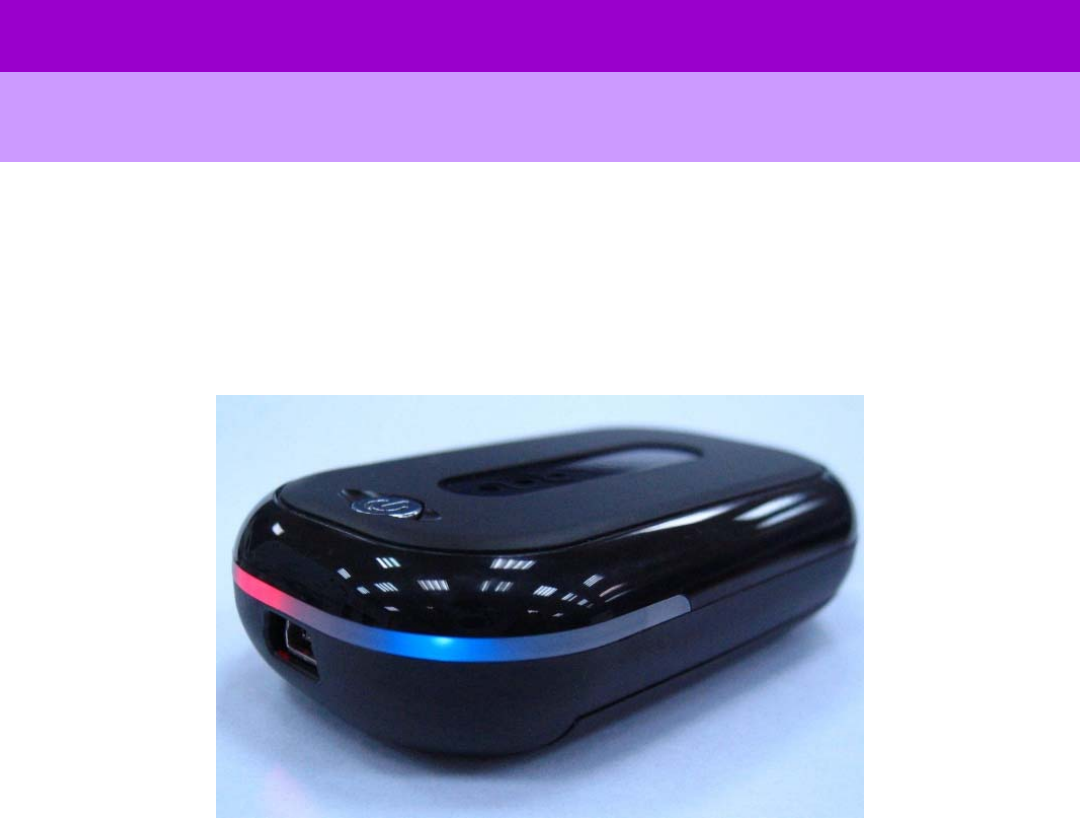

User’s Guide
GPS Bluetooth Receiver
Bluetooth GPS Receiver
User’s Guide
User’s Guide
Bluetooth GPS Receiver
Table of Contents
1. Read Me First………………………………………………………………………………….. p.3
2. Box Contents…………………………………………………………………………………… p.3
3. Getting Started…………………………………………………………………………………. p.3
4. Hardware Description…………………………………………………………………………. p.7
5. LED Indicator…………………………………………………………………………………... p.8
6. Specification……………………………………………………………………………………. p.9
2
User’s Guide
Bluetooth GPS Receiver
1. Read Me First
1. The battery must be charged for at least 8 hours for the ‘INITIAL’ use. The LED1 (ORANGE) will turn
off after 3 hours’ charging, please keep on charging for 5 more hours. Thereafter, for each time’s
battery charging please fully charge for 3 hours.
2. We strongly recommend that remove the battery if the device will not be used for over 2 weeks. Do
not remove the battery within 2 weeks.
3. For fast data tracking purpose staying still before get fixed is recommended. (FIX then GOES!!)
4. Please note that the device will only receive the signal under the open sky. In this case, putting the
device under the windshield is recommended.
2. Box Contents
1. GPS Bluetooth Receiver
2. Lithium-ion rechargeable battery
3. Car charger
4. Power adapter
5. Document CD
6. Anti-Slip Rubber Pad
3. Getting Started
1. Install the battery
2. Turn on the GPS Bluetooth receiver.
3
Press the power button for 1 second or until the LED2 (GPS Fix Status) turns into RED and LED4
(Bluetooth Status) turns into Blue.
3. Activate Bluetooth function of your PDA / PC
Prior to activating the Bluetooth function of your PDA / PC, please make sure the device is equipped
with Bluetooth function, and the driver software has been installed.
4. Activate Bluetooth Manager & Established New Connections.

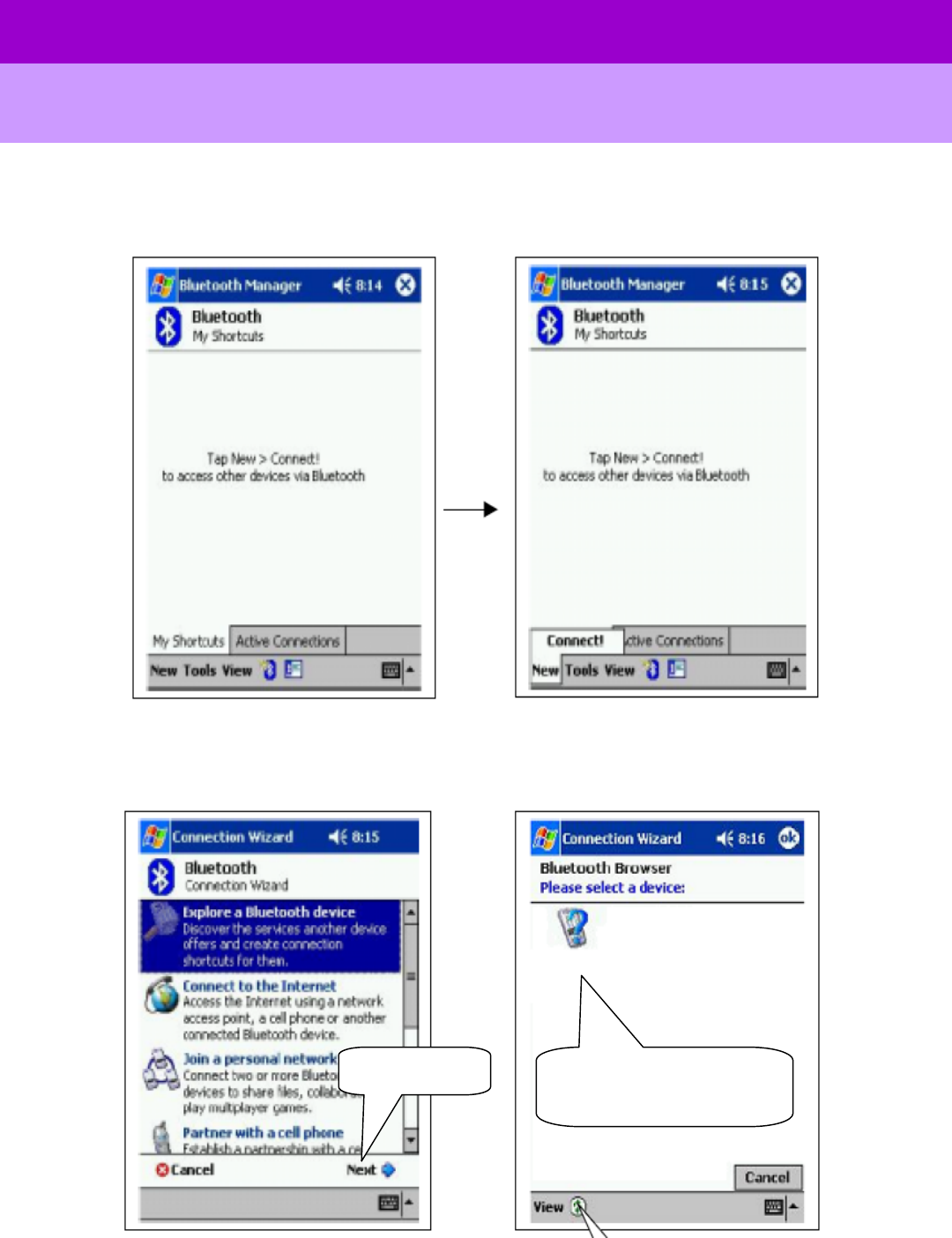

Illustrations using HP 2100 PDA as follows:
1. First, find the device with which you wish to establish connection.
2. Open “Bluetooth Manager” on your pocket PC.
3. Press “New”.
4. Press "Connect”.
User’s Guide
Bluetooth GPS Receiver
Click here Click here to select
installation
BTGPS
4
User’s Guide
Bluetooth GPS Receiver
BTGPS
****

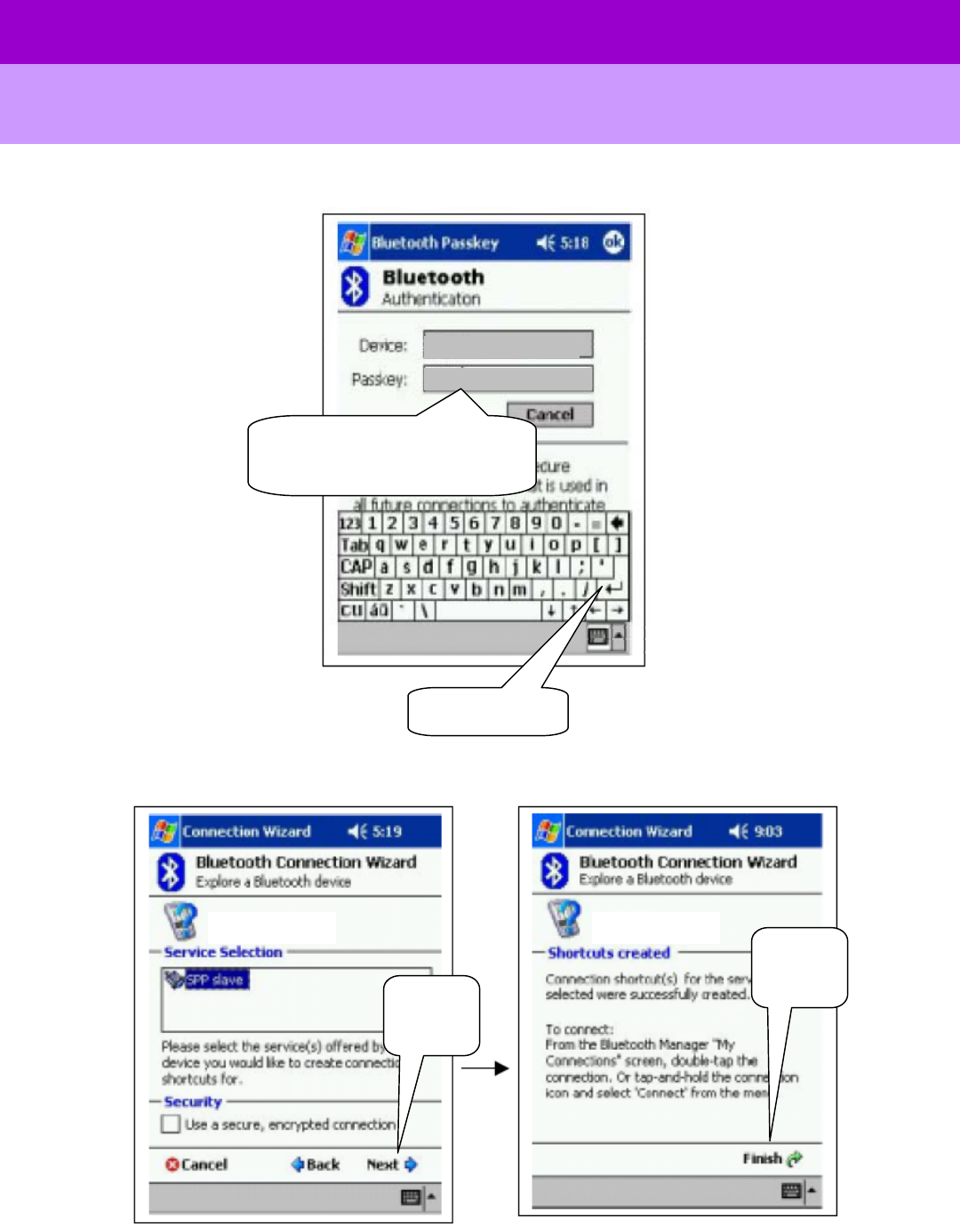

Enter Pass Key "
0000",
then Press “Enter”
Enter key
Click
here
Click
here
BTGPS BTGPS
5
User’s Guide
Bluetooth GPS Receiver
6

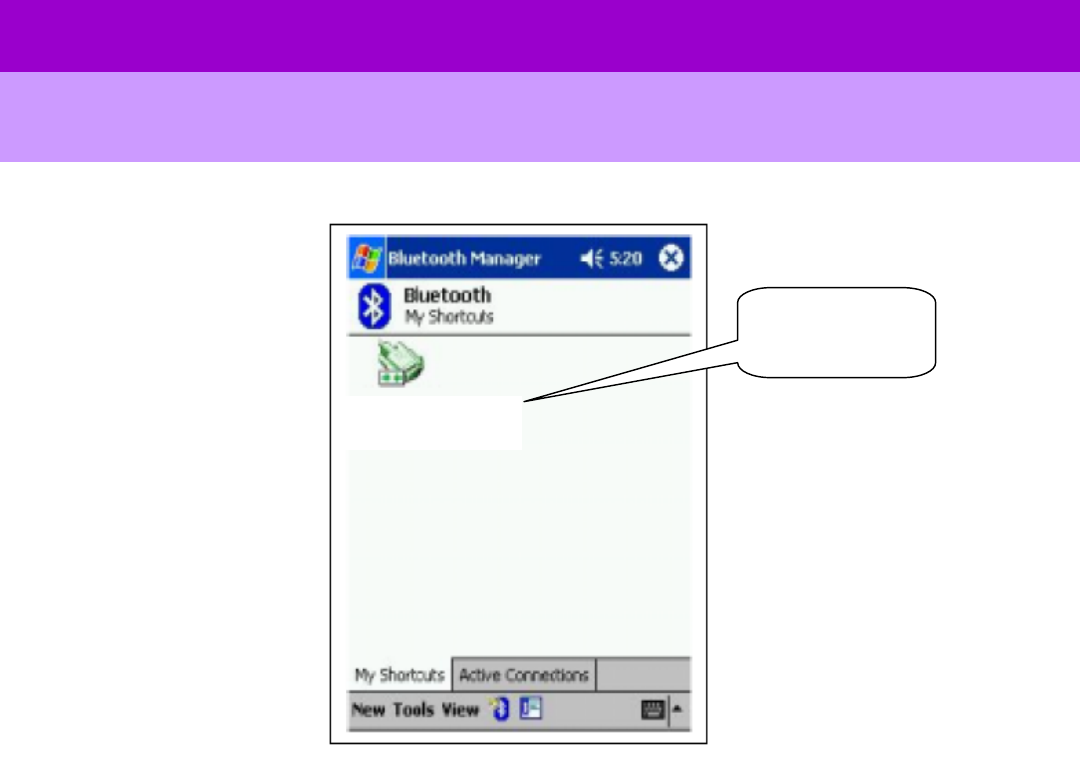

The connection between GPS Bluetooth receiver and PDA has been successfully established
5. Turn off the GPS Bluetooth receiver
Press the power button for 1 second, all LEDs will goes off.
We recommend that close the E-map before turning off the GPS Bluetooth receiver, in order to
avoid any possible PDA /PC freeze.
Connection
established
BTGPS: SPP slave
User’s Guide
Bluetooth GPS Receiver

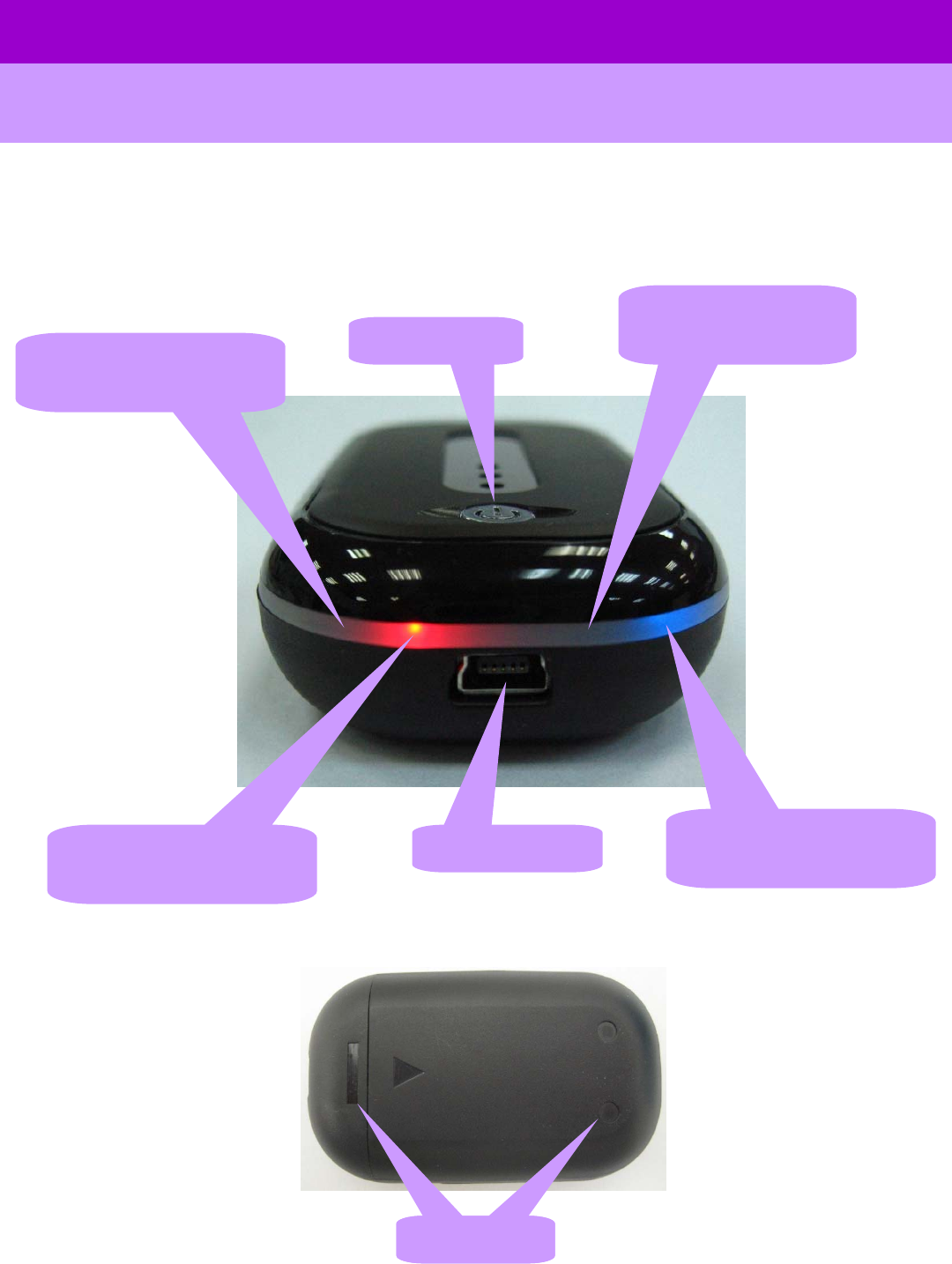

4. Hardware Description
LED3: Power Status
(GREEN)
Power Button
LED1: Charging Status
(ORANGE)
LED2: GPS Fix Status
LED4: Bluetooth Status
(BLUE)
Charge Socket
(RED)
Slip-Resistant
7
User’s Guide
Bluetooth GPS Receiver

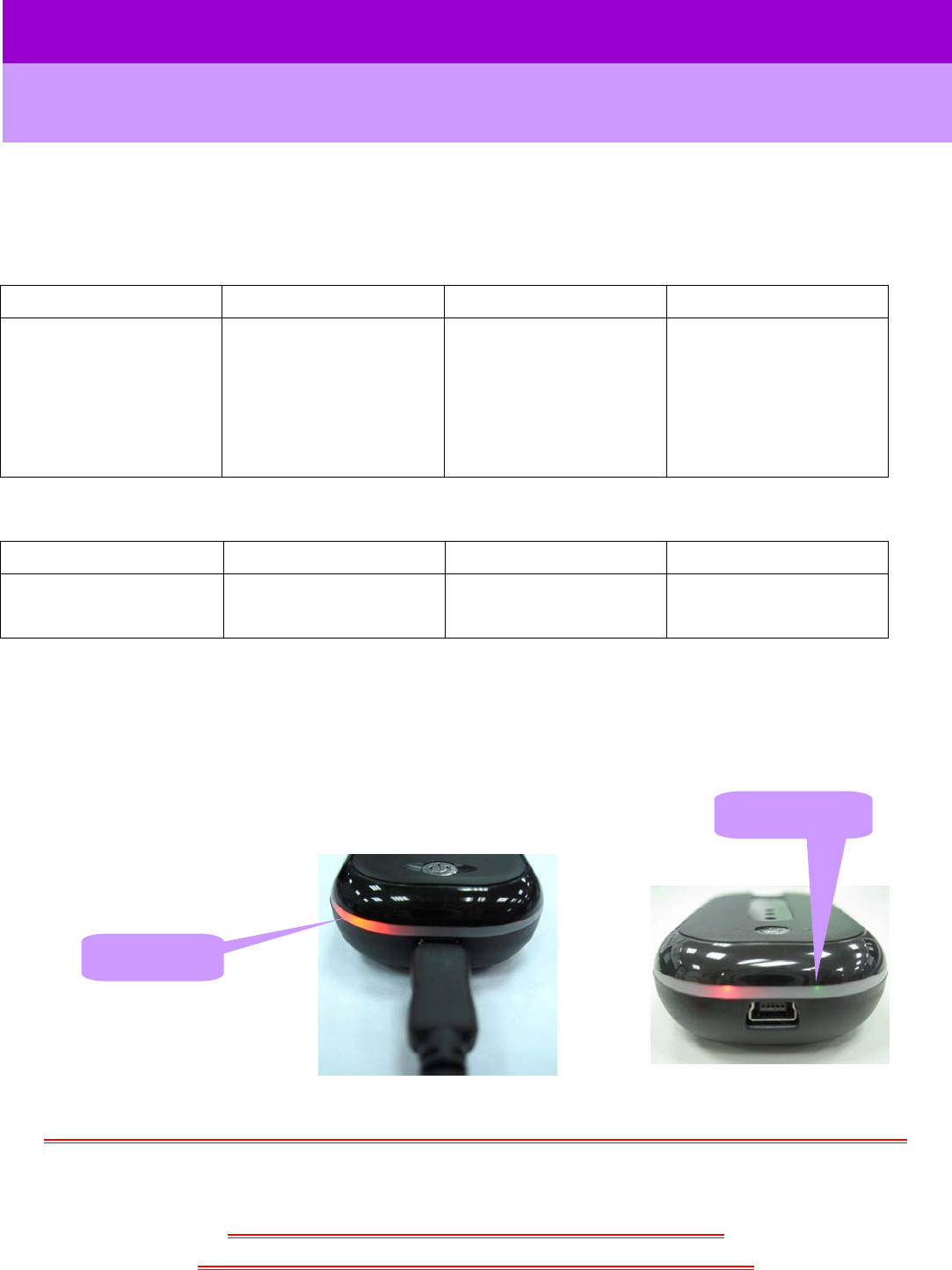

5. LED Indicator
Power on:
LED1: Charging Status LED2: GPS Fix Status LED3: Power Status LED4: Bluetooth Status
N/A Red (Keep ON) N/A Blue
GPS not fixed yet! Blinking quickly for the
first 5 sec., then
blinking slowly (in
paring mode)
GPS get fixed/Bluetooth connected:
LED1: Charging Status LED2: GPS Fix Status LED3: Power Status LED4: Bluetooth Status
N/A Red N/A Blue
Blinking Blinking quickly
- Low battery: LED3 (GREEN) blinking for every 1 second
- Charging: LED1 (ORANGE) ON; the GPS Bluetooth receiver
will automatically turns on
- Battery is fully charged: LED1 (ORANGE) turns off
- GPS Bluetooth receiver will automatically turns off if no Bluetooth Low Battery
connection after 10 minutes
Charging
GPS Bluetooth operates on OS with Bluetooth function that supports SPP
In order to avoid any unexpected problem,
DO NOT attempt to change the default baudrate
8
User’s Guide
Bluetooth GPS Receiver
6. Specification
9
GPS Features Datum
Chipset SiRF Star III WGS-84
Dynamic Conditions
Frequency L1, 1575.42MHz
C/A Code 1.023MHz chip rate Altitude <18,000 m (60,000feet)
Channels Supports 20 channels Velocity <515 m/s (1000 knots)
Antenna (Internal) Built-in low noise antenna Acceleration <4G
3
Motional Jerk max.
20m/sec
Sensitivity Interface
To – 159dBm Tracking, Superior Urban Canyon
Performance
Communication Protocol: Communicate with host
platform via Bluetooth (class 2) serial port profile
Time to First Fix (TTFF) Bluetooth communication distance 10meters (Typical)
Cold Start 42 sec, average GPS Protocol: Default: NMEA-0183 - GGA, GSA, GSV,
RMC, VTG Warm Start 38 sec, average
Data bit: 8, stop bit: 1 (Default) Hot Start 1 sec, average
Device Size and Weight
Reacquisition 0.1 sec
Update rate 1 Hz (max.) 77.05 (L) X 46.10 (W) X 19.50 (H) mm
3.03 (L) X 1.81 (W) X 0.77 (H) inch
Accuracy
Position 5 – 25m CEP without SA 59g (battery included)
Velocity 0.1m/sec, without SA Accessories
Time 1μs synchronized to GPS time Car charger (12V in, 5V output)
AC adaptor (5.3V output, 500mA)
Power
Built-in rechargeable 1100mAh Li-ion battery and 5V
DC input Environmental Characteristics
Operation Current <45mA (Typical) Operating Temperature - 10°C to + 60°C
24hrs, fully charged, in continuous
mode Storage Temperature - 20°C to + 85°C
Operation Time
Charging time 3.0hrs. (Typical)
A
ll specifications are subject to change without notice
