Wonders Technology DS-1162 Bluetooth Speaker User Manual
Wonders Technology Co., Ltd. Bluetooth Speaker
User manual
BLUETOOTH® SPEAKER
BAUHN SPK
2
Contents
General Safety Instructions 3

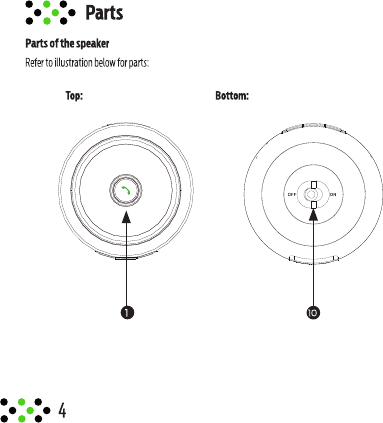

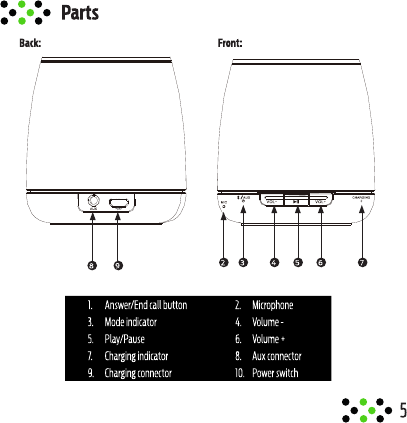

Parts 4
Instructions 6
Specifications 9
Troubleshooting 10
Information
INCLUDED IN CARTON:
•Bluetooth speaker
•Micro USB cable
•Aux cable
•Warranty card
•User guide
The BLE Bluetooth® Speaker adopts a digital signal processing technique and is ideal for the oce, home
and similar environments. You can wirelessly connect your mobile phone, laptop/computer and more via the
Bluetooth function to play high quality music.
3
General Safety Instructions
Read this manual thoroughly before first use and keep it in a safe place for future reference, along with the
completed warranty card, purchase receipt and carton. The safety precautions enclosed herein reduce the risk of
fire, electric shock and injury when correctly adhered to.
In order to maintain good performance, do not use the speaker in cold, hot, dusty or wet environments, especially
under the following conditions:
• Protect from moisture: To protect against electric shock and damage, do not immerse the cord, plug or the
speaker itself in water or any other liquid and do not expose the electrical
connections to water.
• Avoid overheating: Do not place speaker in direct sunlight, near heaters or hot environments.
• Unstable locations: Keep speaker on a flat surface in a secure location.
• Do not dismantle: Any attempt to dismantle the unit will void the warranty.
• Children: Young children should be supervised when using Bluetooth speaker.
• Liability: Only use this product as described in the instructions in this manual. We assume no liability for
damages or injury caused by misuse of the product or non-compliance with these instructions.
6
Instructions
Charging
Use the included USB cable to connect the speaker to your computer or USB power adaptor for charging.
Set up
1. Move Power switch to ‘ON’ to turn on the speaker
2. The mode indicator turns on in blue and starts blinking while the speaker is searching for Bluetooth
devices.
3. Turn on your Bluetooth device, select “BAUHN SPK” to pair and connect for the first time. If your Bluetooth device
prompts you for a passcode, enter “0000” (four zeros). If “BAUHN SPK” is not in the Bluetooth device list, scan
available Bluetooth devices.
4. When connecting is complete, the mode indicator’s blinking interval changes from short to long.
5. The speaker and your Bluetooth device store paired devices in memory. When the speaker is turned on,
the speaker attempts to connect to the last connected Bluetooth device. If the last connected device is not
available, the speaker attempts to connect to devices in memory one by one. The speaker stays in searching
if there is no available paired device.
7
Instructions
Control buttons
Press ‘VOL+‘ button to increase the speaker volume.
Press ‘VOL-‘ button to decrease the speaker volume.
Press ‘Play/Pause’ button on the speaker to play or pause the audio.
Control buttons on your Bluetooth device can be used too.
Hands-free function
Press to answer incoming calls. Streaming audio pauses.
Press to end calls. Streaming audio resumes.
8
Instructions
Using Aux input
1. Connect your audio device and the speaker using a 3.5mm audio cable (Aux cable).
2. The speaker switches to Aux mode automatically. The mode indicator changes to solid red light.
3. Only ‘VOL-‘ and ‘VOL+’ buttons work for controlling the audio in Aux mode.
Mode indicator
INDICATOR STATUS
Solid blue light Powering on
Blinking blue light (short interval) Searching for Bluetooth devices
Blinking blue light (long interval) Connected to a Bluetooth device
Solid red light Connected to an Aux device
9
Specifications
Bluetooth range Up to 10 metres
Rated output 1.5W
Operating frequency range 2.402GHz ~ 2.480GHz unlicensed ISM band
Supported profiles Bluetooth v2.1, A2DP function
Built-in litium battery Built-in rechargeable lithium ion battery
3.7V 500mA
Battery life: upto 3hrs (Volume at 50%)
10
Troubleshooting
Symptom Possible problem and Solution
Bluetooth pairing cannot be
accomplished.
• Make sure your device’s Bluetooth function is turned on and
the device is discoverable.
• If there are too many Bluetooth devices near the speaker, turn
unused devices off to avoid interference.
The sound is too so. • Check the volume setting on both the speaker and your
Bluetooth device and adjust the volume to a suitable level.
Poor sound quality or distorted
sound in Bluetooth mode
• Make sure your Bluetooth device is within the speaker’s
Bluetooth range. Move your Bluetooth device closer to
the speaker.
11
FCC Statement:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
