Wuerth Elektronik eiSos and Co KG AMB2300 Bluetooth module BlueNiceCom IV User Manual
AMBER Wireless GmbH Bluetooth module BlueNiceCom IV
User manual
Annex No.5
Page 1 of 16
Users Manual
Manual AMB2300
Version 1.3
BlueNiceCom 4
Development department
AMBER wireless GmbH
Hawstraße 2a
D-54290 Trier
Tel. +49 (0) 651-99355-0
Fax +49 (0) 651-99355-69
AMB2300 manual V1.3 2/15 6.2.2007
Table of contents
1
General ................................................................................................................................. 3
2
Technical data...................................................................................................................... 3
2.1
D
EFAULT SETTINGS
.......................................................................................................... 4
2.2
P
IN ASSIGNMENT
.............................................................................................................. 4
2.2.1
Pinning.................................................................................................................... 4
2.2.2
Pinning table ........................................................................................................... 5
2.2.3
Serial interface of the BlueNicecom 4...................................................................... 6
2.2.4
Block diagram ......................................................................................................... 7
2.3
D
IMENSION
....................................................................................................................... 8
3
Details for Layout ................................................................................................................ 9
4
Soldering & Reflow.............................................................................................................. 9
4.1
D
ESCRIPTION
................................................................................................................... 9
4.2
R
ECOMMENDATION FOR
F
OOTPRINTS
.............................................................................. 10
5
Replace of BNC3 to BNC4................................................................................................. 11
6
Minimum connection to run the BNC4 ............................................................................. 11
7
Further documents ............................................................................................................ 11
8
External antenna................................................................................................................ 12
9
Declaration of Conformity................................................................................................. 13
10
Important notes.................................................................................................................. 14
10.1
C
OMPLIANCE STATEMENT
............................................................................................. 14
10.2
D
ISCLAIMER
................................................................................................................. 15
10.3
T
RADEMARKS
.............................................................................................................. 15
10.4
L
IMITATION OF
U
SE
...................................................................................................... 15
AMB2300 manual V1.3 3/15 6.2.2007
1 General
BlueNiceCom 4
Bluetooth-Modul with UART-interface and integrated Chip-antenna
•
Bluetooth Class 2 module
•
Bluetooth Specification 2.0 compatible
•
Support of Bluetooth Audio
•
Integrated profiles: SPP, GAP, SDAP
•
Supported profiles: DUN, OBEX, HSP etc.
•
UART interface
•
Integrated chip antenna
AMBER wireless provides with the BlueNiceCom 4 a certified, qualified listed Bluetooth-module,
based on LMX9830 from National Semiconductor. This compact and inexpensive Bluetooth-
module is qualified for a serial data or audio transmission.
The module has an integrated chip-antenna and can be placed into a circuit like a SMD-part.
BlueNiceCom IV comes with an integrated firmware with the complete Bluetooth Stack
(Bluetooth 2.0).
A Point-to-Point connection and a Point-to-Multipoint (Piconet) connection are supported by the
firmware. Up to seven active links (Piconet) and one SCO-link (Audio) is possible.
The module can be integrated easily in a system. According to the application and the settings
the BlueNiceCom 4 can work as a stand-alone-slave-module e.g. as a virtual cable replacement
in combination with another commercial Bluetooth system.
A development environment AMB2300-EV is available.
2 Technical data
Voltage supply 2.9 to 3.3V
Current consumption typ. 65mA
RF output typ. 0dBm (Class 2)
Rx sensitivity typ. –80dBm
Data rate UART 2,4 to 921,6 kbits/s
Operating temperature -20°C to 70°C
Antenna Integrated chip antenna
Connection of an external antenna is possible
Dimension 27,5 x 16 x3,5mm
Miscellaneous All further technical datas according to the LMX9830 module of
National Semiconductor
Order number AMB2300
Part code: BlueNiceCom 4

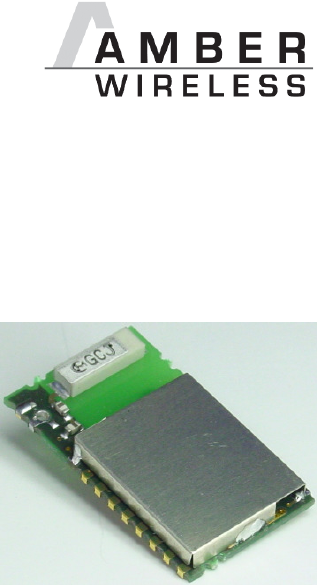

Abb. 1
AMB2300 manual V1.3 4/15 6.2.2007
2.1 Default settings
All parameter are stored at the internal EEPROM.
See datasheet LMX9830
Parameter EEPROM
Address
Default set ups Notice
DeviceName length 0018 18 Device Name + NULL-Terminierung
DeviceName 0019 – 0040 <Variabel> Device Name
Consist of „ BNC4- “ and BD_ADDR
2.2 Pin assignment

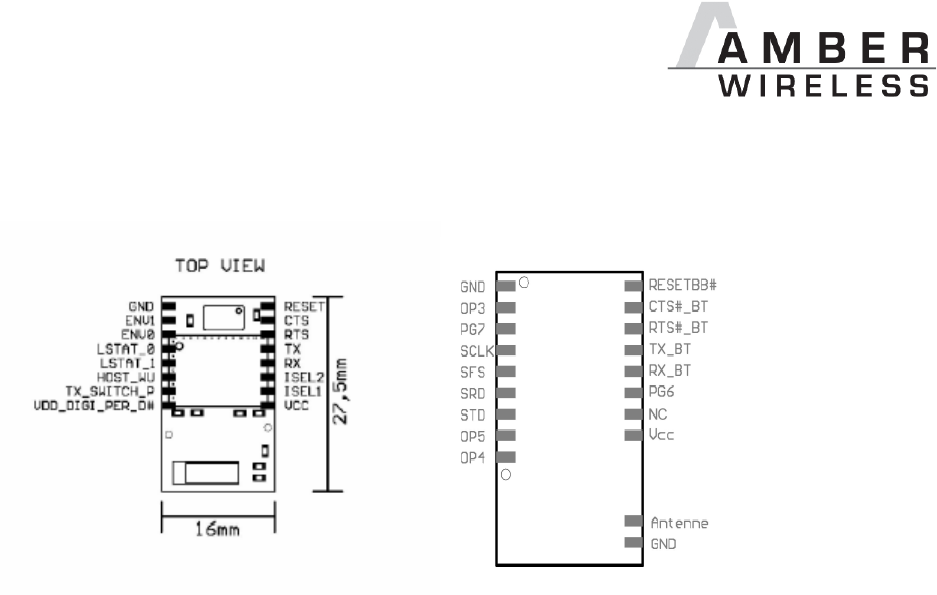

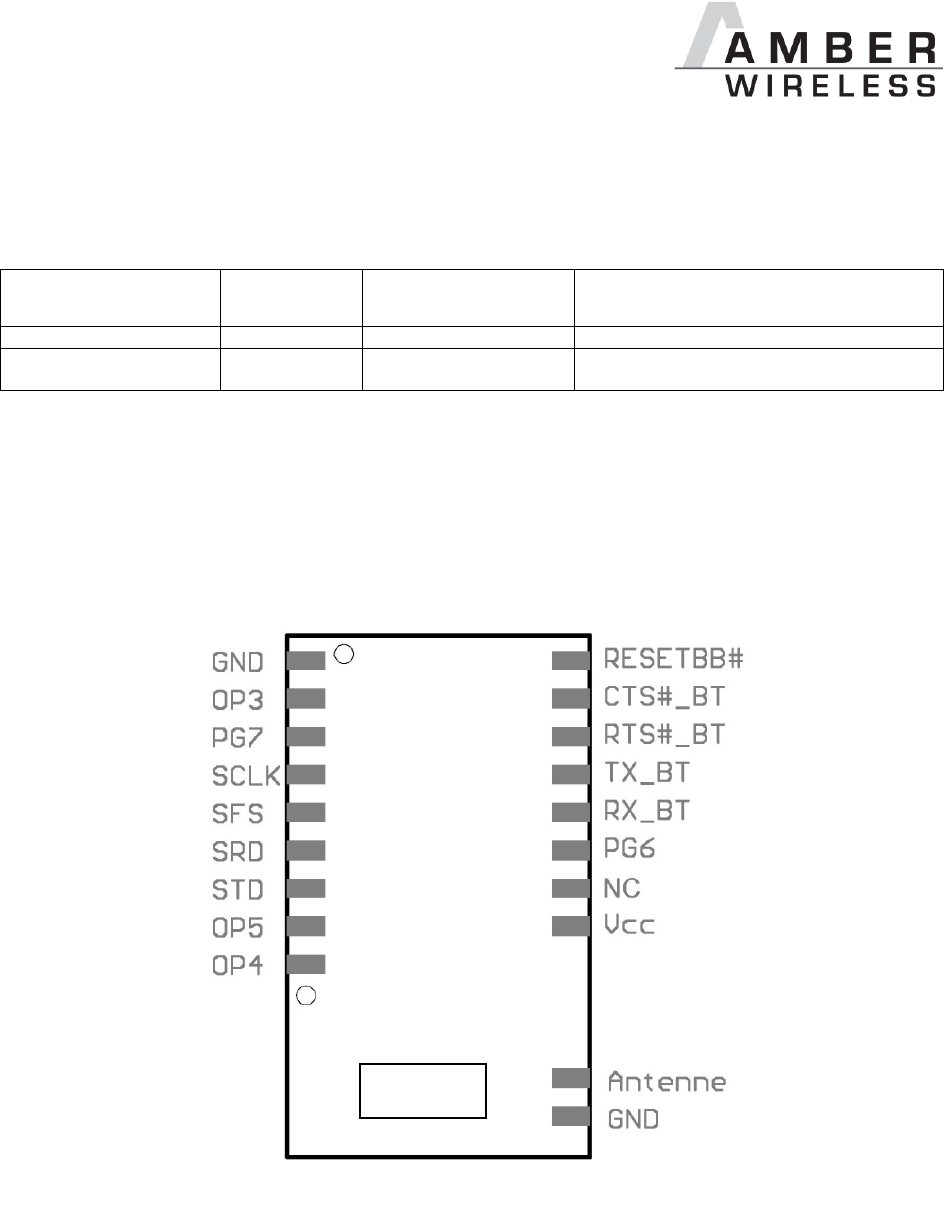

2.2.1 Pinning
Antenna
Figure. 2
AMB2300 manual V1.3 5/15 6.2.2007
2.2.2 Pinning table
Pin name Typ
1
Notice
GND I Ground
OP3 I At start up configuration of the UART-data rate,
otherwise internal use
PG7 I/O GPIO (default setting as output, display a data exchange)
SCLK I/O Audio PCM Interface Clock
SFS I/O Audio PCM Interface Frame Synchronization
SRD I Audio PCM Interface Receive Data Input
STD O Audio PCM Interface Transmit Data Output
OP5 I Configuration UART-data rate at Start up
OP4 I
I/O
Configuration UART-data rate at Start up,
otherwise GPIO
RESETBB# I Reset, internal Pull up, active low
CTS#_BT I Host Serial Port Clear To Send, active low
2
- see footnote 2
RTS#_BT O Host Serial Port Request To Send, active low
3
- see footnote 3
TX_BT O Host Serial Port Transmit Data
RX_BT I Host Serial Port Receive Data
PG6 I/O GPIO (default setting as output, display a link connection)
NC I Not connected, no ground
Vcc I Power consumption, 2,9V to 3,6V
Antenna O
GND O
Connection for external antenna
4
- see footnote 4
The signal level is equivalent to the power consumption (2,9V to 3,6V) of the BlueNiceCom 4
and has to be matched, if the Host system is working with a different signal level.
1
I = Input, O = Output
2
Connect with ground if not used
3
Not connected
if not used
4
In as-delivered condition the antenna connection is internally not connected
AMB2300 manual V1.3 6/15 6.2.2007
OP3, OP4, OP5:
Configuration of the serial interface. Must be connected.
RX_BT, TX_BT, RTS#_BT, CTS#_BT:
2.2.3 Serial interface of the BlueNicecom 4.
The interface serves for communication with the BlueNiceCom4. The hardware handshake is
used (RTS/CTS). If this should not be supported by the host system, RTS#_BT and CTS#_BT
must be short circuit and/or CTS#_BT put on Low levels
This can lead however to overrun! We recommended therefore urgently to use
handshake.
ResetBB#: Internal Pull up, low active. No external circuit is necessary.
SCLK, SFS, SRD, STD: Audio interface. If not used, Pins does not attached
PG6 , PG7: I/O Ports. If not used, Pins does not attached
Vcc, Gnd Power consumption
OP3
OP4
OP5
Function
0 1 0 Automatically baud rate-detection
1 0 0 Baud rate-adjustment is read from the EEPROM
1 0 1 9600 bps
1 1 0 115200 bps
1 1 1 921600 bps
AMB2300 manual V1.3 7/15 6.2.2007

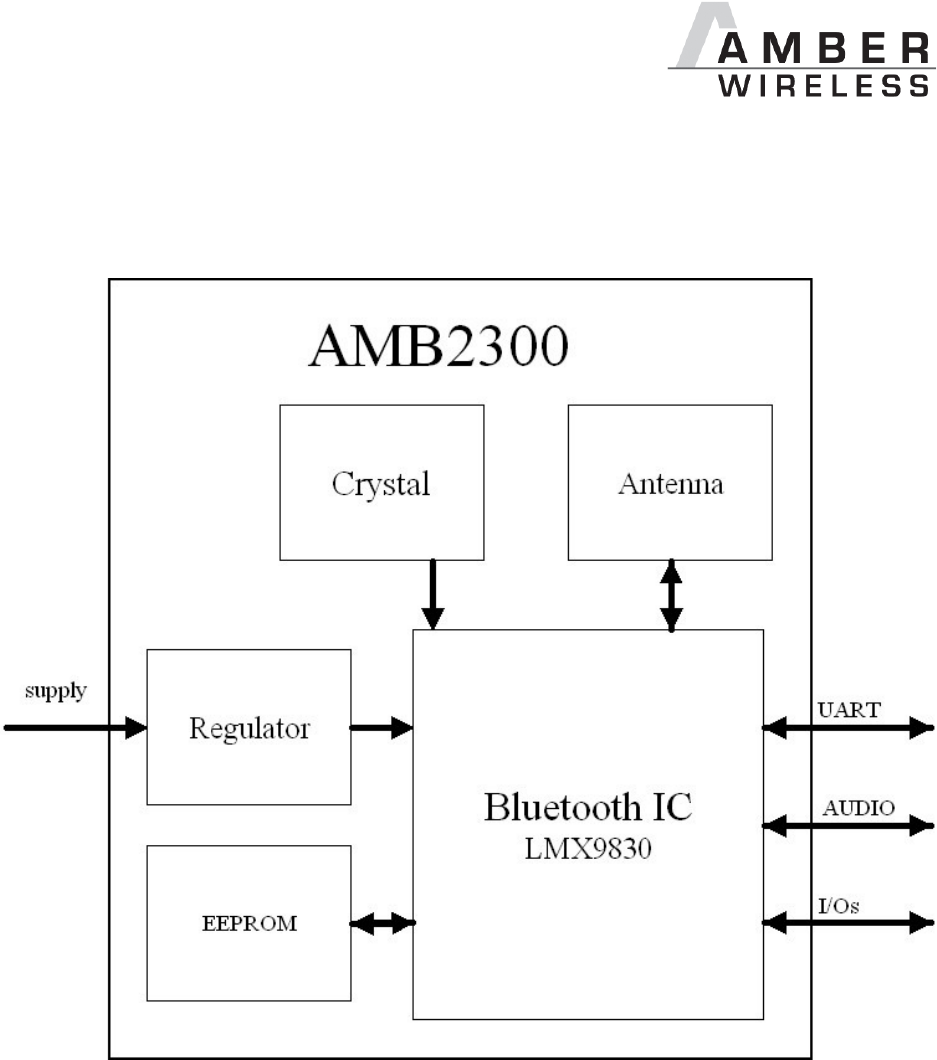

2.2.4 Block diagram
AMB2300 manual V1.3 8/15 6.2.2007
2.3 Dimension
BlueNiceCom IV has 1mm x 2mm soldering pads with a raster of 2mm to be solder direct on a
motherboard
AMB2300 manual V1.3 9/15 6.2.2007
3 Details for Layout
To achieve the maximum of range no metal has to be near or under the antenna. The antenna
should have a distance of 8mm to any ground, strip line or component. Most suitable is to place
the antenna at the margin of the motherboard.

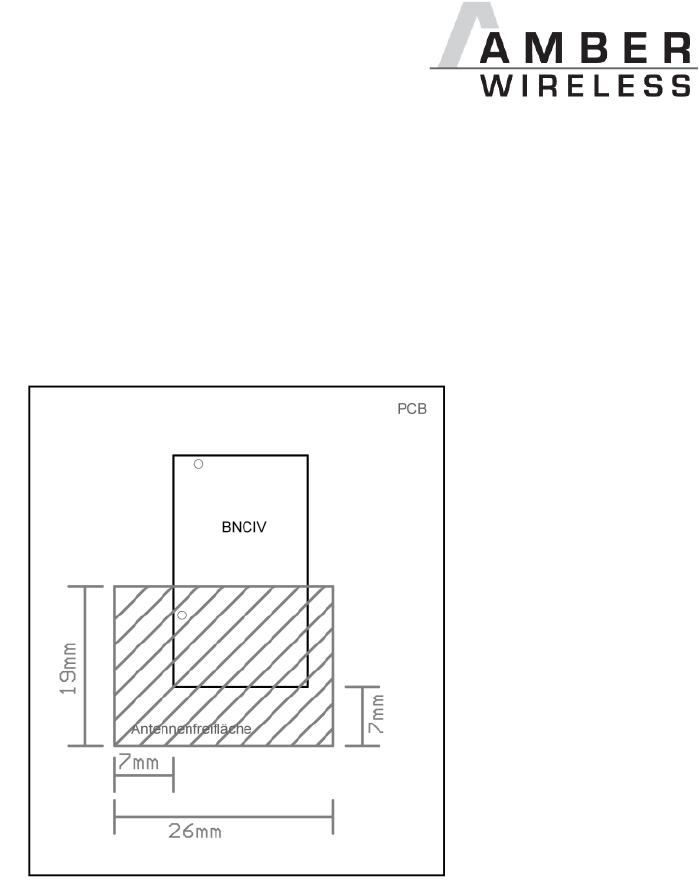

The figure shows the area which should be free of metal (ground, strip line, components, etc..).
The area off 12mm between the soldering pads on the bottom side should (e.g. with adhesive
tape) additional isolated, if any strip line is under the module to avoid any short circuit.
4 Soldering & Reflow
4.1 Description
• Reflow appropriate
• The temperature curve depends on the motherboard it´s character, like the number and
conditioning of parts, etc. Please ask your manufactor.
• Depending on the limit values of the components following limits are not allowed to excess
260°C max. 40s (LMX)
250°C max. 20s (Chip-antenna)
200°C max. 120s (Chip-antenna)
AMB2300 manual V1.3 10/15 6.2.2007

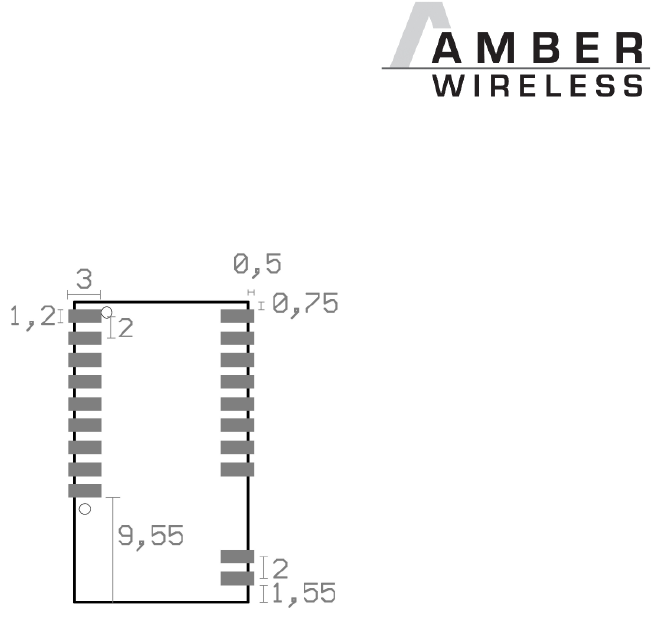

4.2 Recommendation for Footprints
All dimensions in mm
AMB2300 manual V1.3 11/15 6.2.2007
5 Replace of BNC3 to BNC4
CTS, RTS, TX, RX, no change (UART)
Vcc, GND no change
Reset At BNC4 no external connection necessary
ISEL2 PG6 (I/O) no connection necessary
ISEL1 N.C. Pin not connected!
ENV1 OP3 (Input) must be connected because of UART configuration
ENV0 PG7 (I/O) no connection necessary
LSTAT_0, LSTAT1 Audio interface, no connection necessary (PG6 fulfils function of
LSTAT_1)
Host_WU Audio interface, no connection necessary
TX_Switch_p Audio interface, no connection necessary (PG7 fulfis these function
now)
VDD_DIGI_PER_D OP5 (Input) must be connected because of UART configuration
--- OP4 (Input) must be connected because of UART configuration
6 Minimum connection to run the BNC4
Vcc, GND - Power consumption
RX, TX - UART
RTS, CTS - UART short circuit, danger of data overrun
OP3, OP4, OP5 - Configuration UART, connecting without pullup or puldown resistors
All other PIN´s doesn´t need to be connected.
7 Further documents
Data sheet LMX9830
Software User Guide
Simply Blue Commander (Windows Software)
BNC3
BNC4
AMB2300 manual V1.3 12/15 6.2.2007

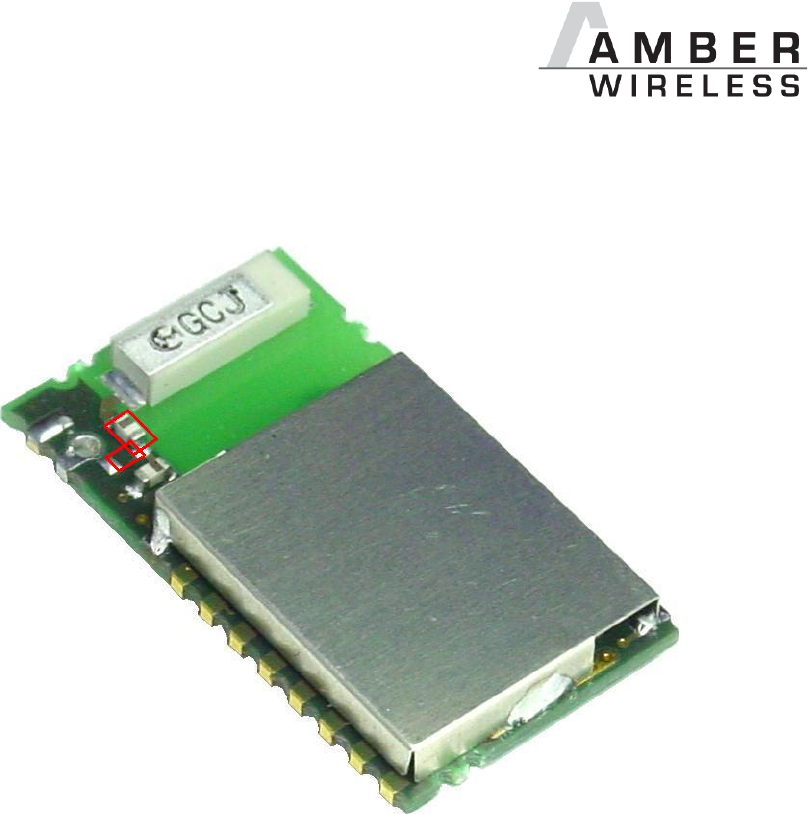

8 External antenna
The AMB2300 can be operated also with an external antenna. In addition the red
marked condenser (100pF 0603) must, as are changed above shown in its position. The
lateral antenna connection is available then for a coaxial cable or a wire antenna.
These steps should accomplish attention, only persons with good HF knowledge,
since this kind of connection can involve high error potential!
By these measures the warranty and the permission expire.
AMB2300 manual V1.3 13/15 6.2.2007
9 Declaration of Conformity
DECLARATION OF CONFORMITY
Directive 1999/5/EG (R&TTE)
The manufacturer: AMBER wireless GmbH
Albin-Köbis-Straße 18
51147 Köln
Tel. ++49-2203-699-1950
declares on our sole responsibility, that the following product:
Type-designation: BlueNiceCom 4 (AMB2300)
Intended purpose: 2,4GHz-Bluetooth™ wireless data modem
Transfer of digital messages
complies with the appropriate essential requirements of article 3 of
the R&TTE 1999/5/EG directive, if used for its intended purpose and
that the following norms, standards or documents has been applied:
EN 300 328-1, -2 (2001-12)
EN 301 489-1, -17 (2002-04)
EN 50371 (2002)
EN 60950 (2001-12)
Köln, 23.2.2006
place and date of issue Manufacturer/Authorized representative
Heinz Brych (General Manager)
AMB2300 manual V1.3 14/15 6.2.2007
10 Important notes
10.1 Compliance statement
USA
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Usually this is followed by the following FCC caution:
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
Canada
Operation is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Usually this is followed by the following RSS caution:
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
AMB2300 manual V1.3 15/15 6.2.2007
10.2 Disclaimer
AMBER wireless GmbH believes the information contained herein is correct and accurate at the
time of this printing. However, AMBER wireless GmbH reserves the right to change the
technical specifications or functions of its products, or to discontinue the manufacture of any of
its products or to discontinue the support of any of its products, without any written
announcement and urges its customers to ensure, that the information at their disposal is valid.
AMBER wireless GmbH does not assume any responsibility for the use of the described
products, neither does it convey any license under its patent rights, or its other intellectual
property rights, or any third party rights. It is the customer's responsibility to ensure that his
system or his device, in which AMBER wireless products are integrated, complies with all
applicable regulations.
10.3 Trademarks
AMBER wireless® is a registered trademark owned by AMBER wireless GmbH. All other
trademarks, registered trademarks and product names are the sole property of their respective
owners.
10.4 Limitation of Use
AMBER wireless products are not authorised for use in life support appliances, devices, or other
systems where malfunction can reasonably be expected to result in significant personal injury to
the user, or as a critical component in any life support device or system whose failure to perform
can be reasonably expected to cause the failure of the life support device or system, or to affect
its safety or effectiveness. AMBER wireless GmbH customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify AMBER wireless
GmbH for any damages resulting from any improper use or sale.
Use of AMBER wireless products commits the user to the terms and conditions set out herein.
© 2005, AMBER wireless GmbH. All rights reserved.
AMBER wireless GmbH
Albin-Köbis-Straße 18
51147 Köln
Tel. 02203-6991950
Fax 02203-459883
eMail info@amber-wireless.de
Internet http://www.amber-wireless.de
