Wuxi iData Technology RM001 RFID Module User Manual
WUXI IDATA TECHNOLOGY COMPANY LTD. RFID Module Users Manual
User Manual
iData Quick Guide
1
Overview
2 3

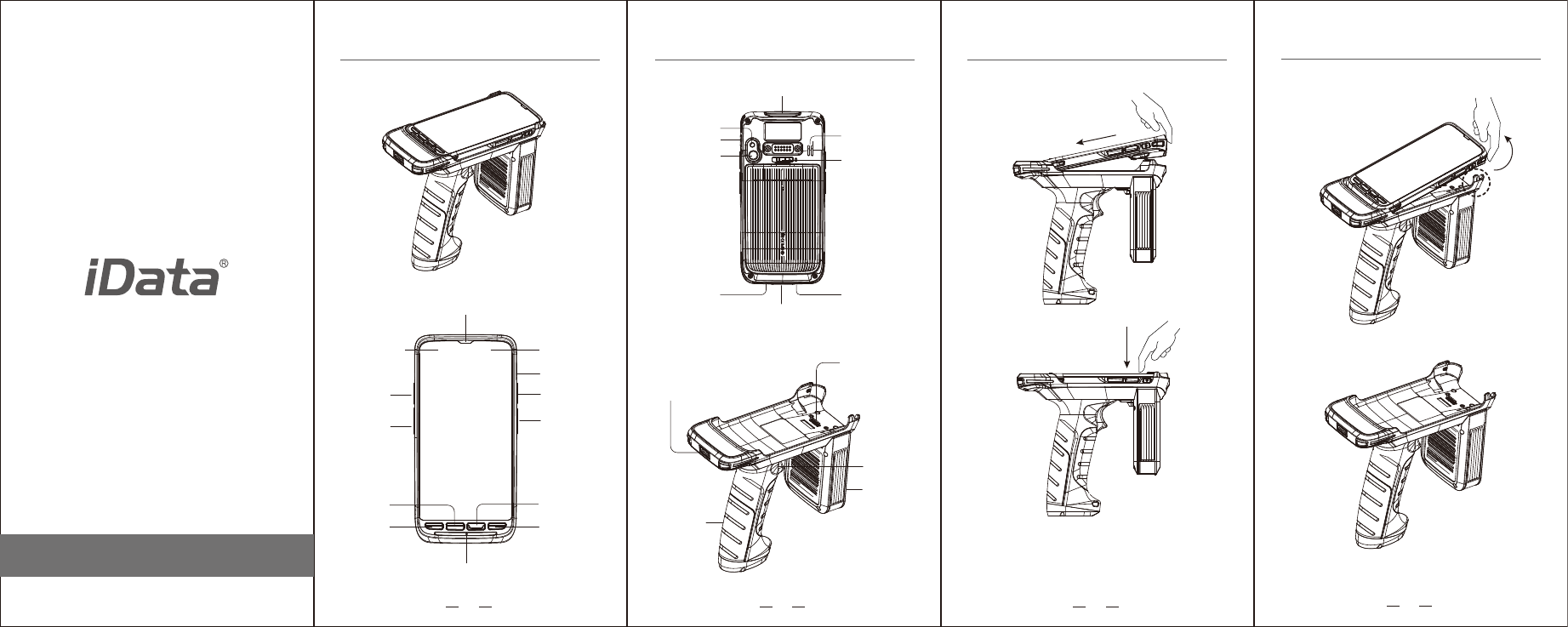

Overview Installation
1.The figure shows the buckle’s part is pulled outward, meanwhile
the device can be taken out.
※ After the installation is complete, press and hold the gun scanning
key for 5 seconds, the machine charging light is on to indicate the
installation is successful. Press and hold for 5 seconds to turn off the
handle charging mode.
4
Uninstall
Charging indicator
Power key
Flashlight
Scan lens
Rear camera
Earphone jack
Charging USB port at the bottom
Standard USB port
Battery cover lock
Speaker
Scanning indicator
Earphone
Power key
User-defined
function key
Scan key
Back key
Primary scan key
Scan key
User-defined
function key
Menu key
Home key
Microphone
Communication port
Device charging port
Scanning key
UHF module
group
Handle
②
①
②
①
1. Push the device down to the bottom of the handle’s power
output port and hold it down.
5 6 7 8
Description of charging indicator:
When the battery is in the charging status, the charging indicator
is in red. When the battery is fully charged, the charging
indicator is in green. When the battery volume is low：
(1) a message indicating that the battery volume is less than
20% is displayed on the screen.
(2) the device gives out a low battery prompt tone.
(3) the charging indicator blinks in red.
Tips
The following operations help obtain a longer standby
duration of the device.
■ Shorten the time to sleep by selecting Settings > Display > Sleep.
■ Set the screen brightness to a small value by selecting Settings
> Display > Brightness.
■ Disable functions that are not frequently used, for example,
GPS, Bluetooth, Wi-Fi and 3G communication.

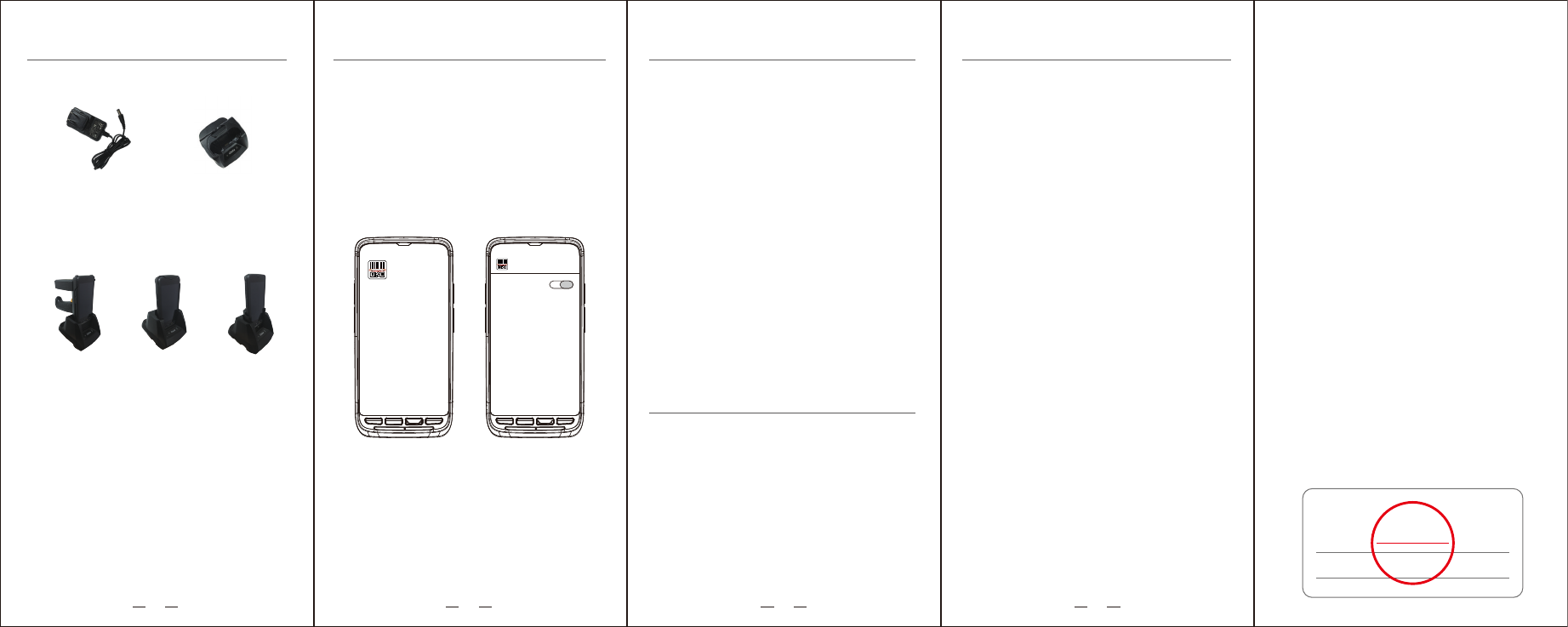

Charging
Power adapter, 3-in-1 charge stand can
be used in 3 ways as following:
1. The gun can be directly put into the 3-in-1 charge slot for
charging, as shown in Figure 1.
2. The device with protective case being put into 3-in-1 charge
slot for charging, as shown in Figure 2.
3. Remove the device separately and put into 3-in-1 charge slot
for charging (along with putting into card slot), as shown in Figure 3.
Note：
iScan is barcode scanning application, it’s a default program,
scanning function is enabled all the time, you can also download
the latest iScan version on: http://t.cn/8k5hWCo.
* For UHF function, please contact after-sales service for more
information.
1. Problem: Start up failure.
Method: Charge battery.
2. Problem: Device doesn’t show charging icon when it’s
charging.
Method: Keep charging for 1 hour, if the charging icon still doesn’t
show up, please contact after-sales service.
3. Problem: Charging is very slow.
Method: Please make sure the charge accessories are original.
4. Problem: Cannot access internet after inserting SIM card.
Method: Please check SIM balance and if it’s installed correctly.
Problems handling methods
Dear customers,
Welcome to choose iData products! From this moment you purchase
iData product, you possess the following services:
【Warranty】
1) After purchase the product, all non-human damage or product
failure, warranty 12 months for whole device and battery, 3 months
for other accessories;
2) After-sales department will send repaired device back within 24
hours since receiving the problematic device, minimize your waiting time;
3) If the device cannot work normally after 3-times consecutively
repair within year, same type device will be replaced for free.
【Paid maintenance】
In the following cases (including but not limited to), you can choose
paid services.
1) No warranty card or missing valid invoice or warranty period;
2) Damage caused by fire, flood, lightning, earthquakes and other
irresistible factors;
iData series product maintenance card
Use barcode scanning function
You need to open iScan application to scan,
follow the instructions below:
1. Find out the iScan icon, click to open application;
2. Click “Enable barcode scan” blue side button to the right side,
enable the scanning function (click again to disable function)
3. Press yellow scanning key to scan barcodes; Scanning indicator
turns from red to blue along with a beep, means scanning successful.
iScan
iScan back
Barcode scanning
Reminder:
Please contact our customer service staff before sending any product to us.
3-in-1 Charge stand Power adapter
Figure 1 Figure 2 Figure 3
Service hotline: 4008838268-2
QQ: 2782597064 (Nickname: iData after-sales)
Mail: service@idatachina.com
Official Website: www.idatachina.com
Address: F11, Building B1, Wuxi (Binhu) National Sensing
Information Center, No.999,Gaolang East Road, Wuxi City,
Jiangsu Province
You can visit the company's official website for more product
information, and download thekit and related features of the
development kit to help you make better use of the device.
2018 © all right reserved by Wuxi iData Technology Company Ltd.
After-sales
Certificate of Quality
QC Passed Approved for shipment
QA
PASS
3) Damage caused by usage, maintenance or store the product that
NOT according to the instructions of the product specification;
4) Damage caused by uninstall of unauthorized service providers;
5) Normal wear and tear consumption during product use;
6) Product failure caused by user’s own network, software problem.
Note:
The parts needed for the product repair service will be available for
no more than 1 year after the product manufacturing ceases.
