Quick Reference Guid

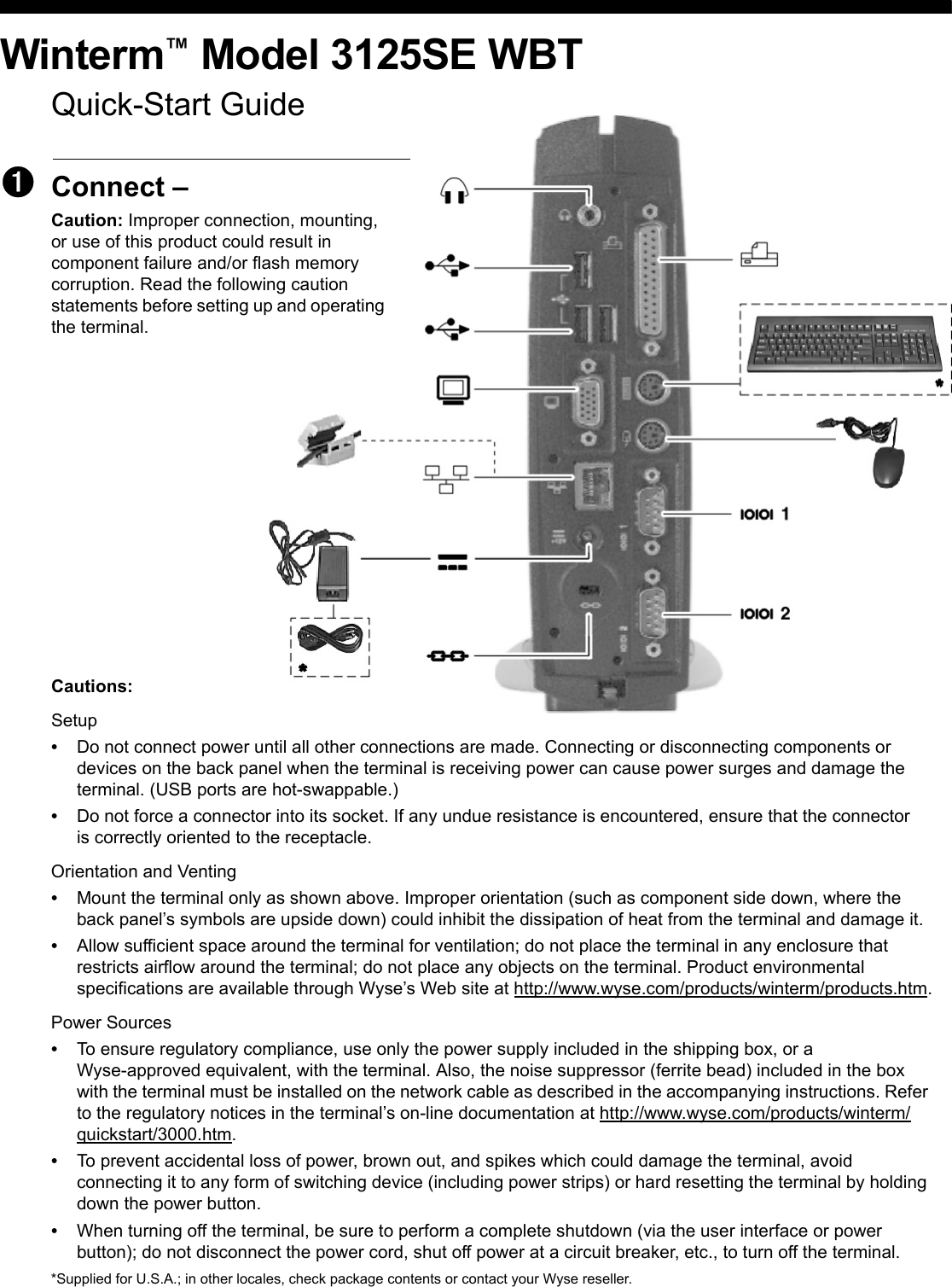

Winterm™ Model 3125SE WBTQuick-Start Guide➊Connect – Caution: Improper connection, mounting, or use of this product could result in component failure and/or flash memory corruption. Read the following caution statements before setting up and operating the terminal.Cautions:Setup•Do not connect power until all other connections are made. Connecting or disconnecting components or devices on the back panel when the terminal is receiving power can cause power surges and damage the terminal. (USB ports are hot-swappable.)•Do not force a connector into its socket. If any undue resistance is encountered, ensure that the connector is correctly oriented to the receptacle.Orientation and Venting•Mount the terminal only as shown above. Improper orientation (such as component side down, where the back panel’s symbols are upside down) could inhibit the dissipation of heat from the terminal and damage it.•Allow sufficient space around the terminal for ventilation; do not place the terminal in any enclosure that restricts airflow around the terminal; do not place any objects on the terminal. Product environmental specifications are available through Wyse’s Web site at http://www.wyse.com/products/winterm/products.htm.Power Sources•To ensure regulatory compliance, use only the power supply included in the shipping box, or a Wyse-approved equivalent, with the terminal. Also, the noise suppressor (ferrite bead) included in the box with the terminal must be installed on the network cable as described in the accompanying instructions. Refer to the regulatory notices in the terminal’s on-line documentation at http://www.wyse.com/products/winterm/quickstart/3000.htm.•To prevent accidental loss of power, brown out, and spikes which could damage the terminal, avoid connecting it to any form of switching device (including power strips) or hard resetting the terminal by holding down the power button.•When turning off the terminal, be sure to perform a complete shutdown (via the user interface or power button); do not disconnect the power cord, shut off power at a circuit breaker, etc., to turn off the terminal.*Supplied for U.S.A.; in other locales, check package contents or contact your Wyse reseller.
