Wyse Technology WT3350 Window Based Terminal User Manual

Wyse Technology Window Based Terminal

User manual

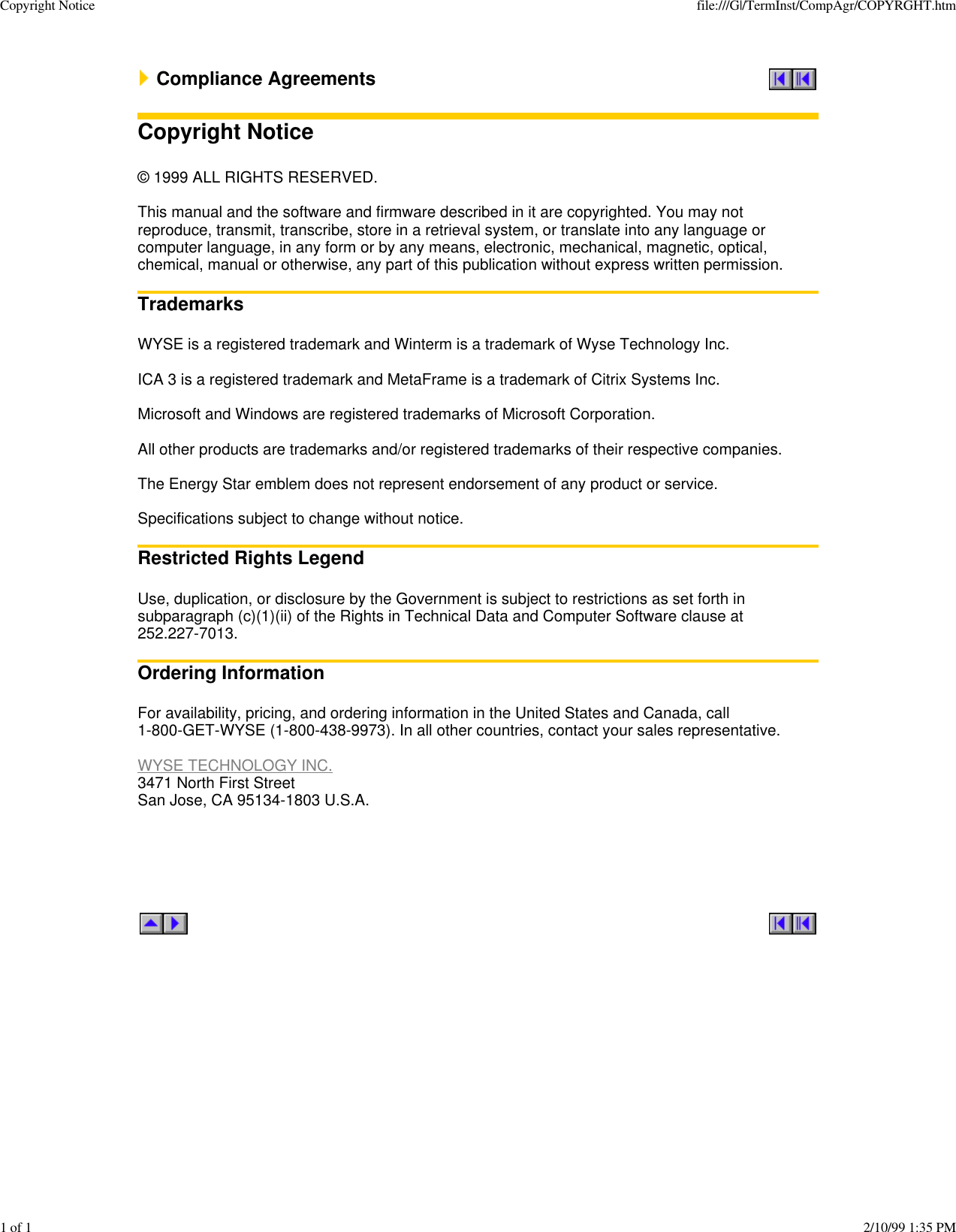

Compliance AgreementsCopyright Notice© 1999 ALL RIGHTS RESERVED.This manual and the software and firmware described in it are copyrighted. You may notreproduce, transmit, transcribe, store in a retrieval system, or translate into any language orcomputer language, in any form or by any means, electronic, mechanical, magnetic, optical,chemical, manual or otherwise, any part of this publication without express written permission.TrademarksWYSE is a registered trademark and Winterm is a trademark of Wyse Technology Inc.ICA 3 is a registered trademark and MetaFrame is a trademark of Citrix Systems Inc.Microsoft and Windows are registered trademarks of Microsoft Corporation.All other products are trademarks and/or registered trademarks of their respective companies.The Energy Star emblem does not represent endorsement of any product or service.Specifications subject to change without notice.Restricted Rights LegendUse, duplication, or disclosure by the Government is subject to restrictions as set forth insubparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at252.227-7013.Ordering InformationFor availability, pricing, and ordering information in the United States and Canada, call1-800-GET-WYSE (1-800-438-9973). In all other countries, contact your sales representative.WYSE TECHNOLOGY INC.3471 North First StreetSan Jose, CA 95134-1803 U.S.A. 1 of 1 2/10/99 1:35 PMCopyright Notice file:///G|/TermInst/CompAgr/COPYRGHT.htm

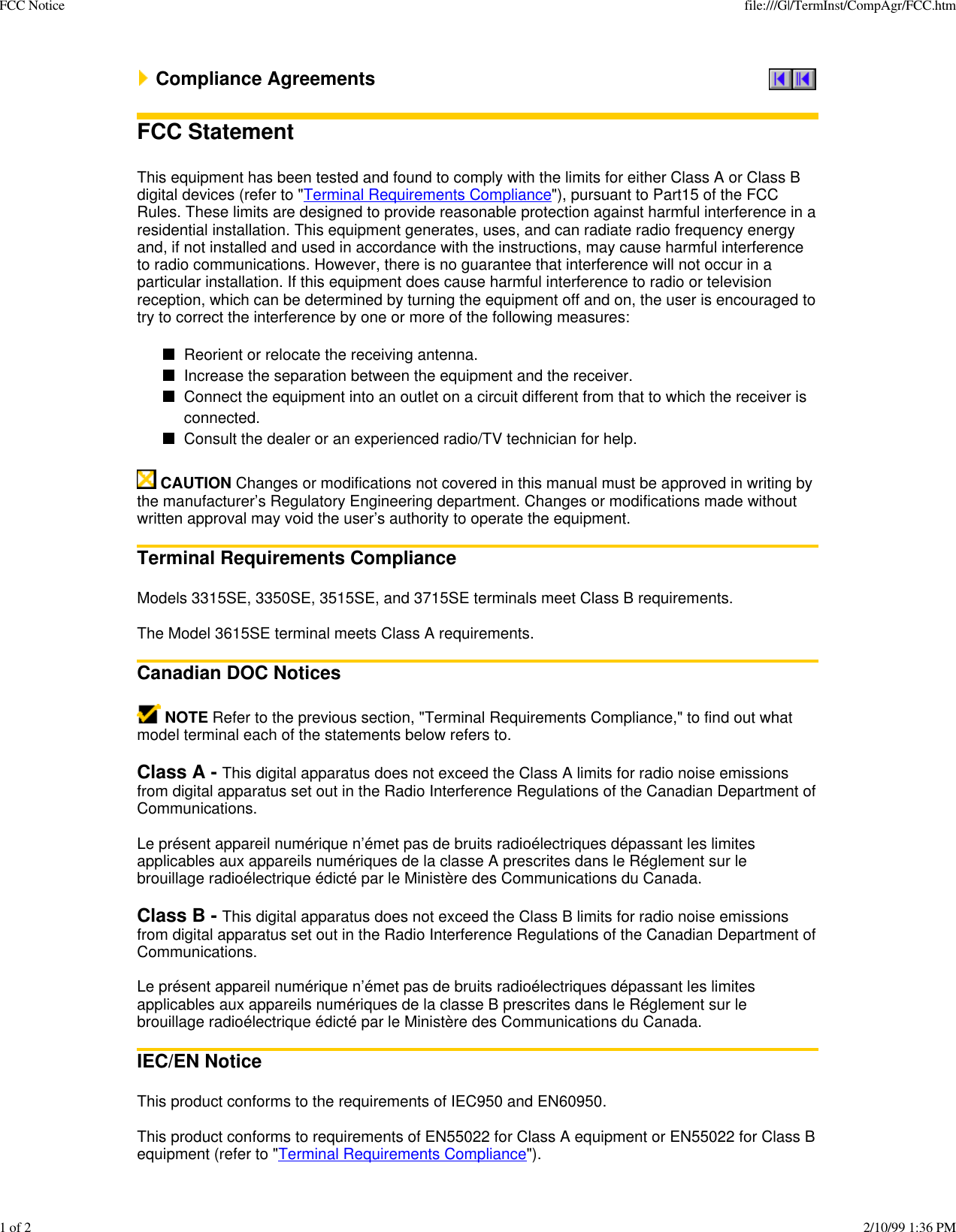

Compliance Agreements FCC StatementThis equipment has been tested and found to comply with the limits for either Class A or Class Bdigital devices (refer to "Terminal Requirements Compliance"), pursuant to Part15 of the FCCRules. These limits are designed to provide reasonable protection against harmful interference in aresidential installation. This equipment generates, uses, and can radiate radio frequency energyand, if not installed and used in accordance with the instructions, may cause harmful interferenceto radio communications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio or televisionreception, which can be determined by turning the equipment off and on, the user is encouraged totry to correct the interference by one or more of the following measures:Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected. Consult the dealer or an experienced radio/TV technician for help. CAUTION Changes or modifications not covered in this manual must be approved in writing bythe manufacturer’s Regulatory Engineering department. Changes or modifications made withoutwritten approval may void the user’s authority to operate the equipment.Terminal Requirements ComplianceModels 3315SE, 3350SE, 3515SE, and 3715SE terminals meet Class B requirements.The Model 3615SE terminal meets Class A requirements.Canadian DOC Notices NOTE Refer to the previous section, "Terminal Requirements Compliance," to find out whatmodel terminal each of the statements below refers to.Class A - This digital apparatus does not exceed the Class A limits for radio noise emissionsfrom digital apparatus set out in the Radio Interference Regulations of the Canadian Department ofCommunications.Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limitesapplicables aux appareils numériques de la classe A prescrites dans le Réglement sur lebrouillage radioélectrique édicté par le Ministère des Communications du Canada.Class B - This digital apparatus does not exceed the Class B limits for radio noise emissionsfrom digital apparatus set out in the Radio Interference Regulations of the Canadian Department ofCommunications.Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limitesapplicables aux appareils numériques de la classe B prescrites dans le Réglement sur lebrouillage radioélectrique édicté par le Ministère des Communications du Canada.IEC/EN NoticeThis product conforms to the requirements of IEC950 and EN60950.This product conforms to requirements of EN55022 for Class A equipment or EN55022 for Class Bequipment (refer to "Terminal Requirements Compliance").1 of 2 2/10/99 1:36 PMFCC Notice file:///G|/TermInst/CompAgr/FCC.htm

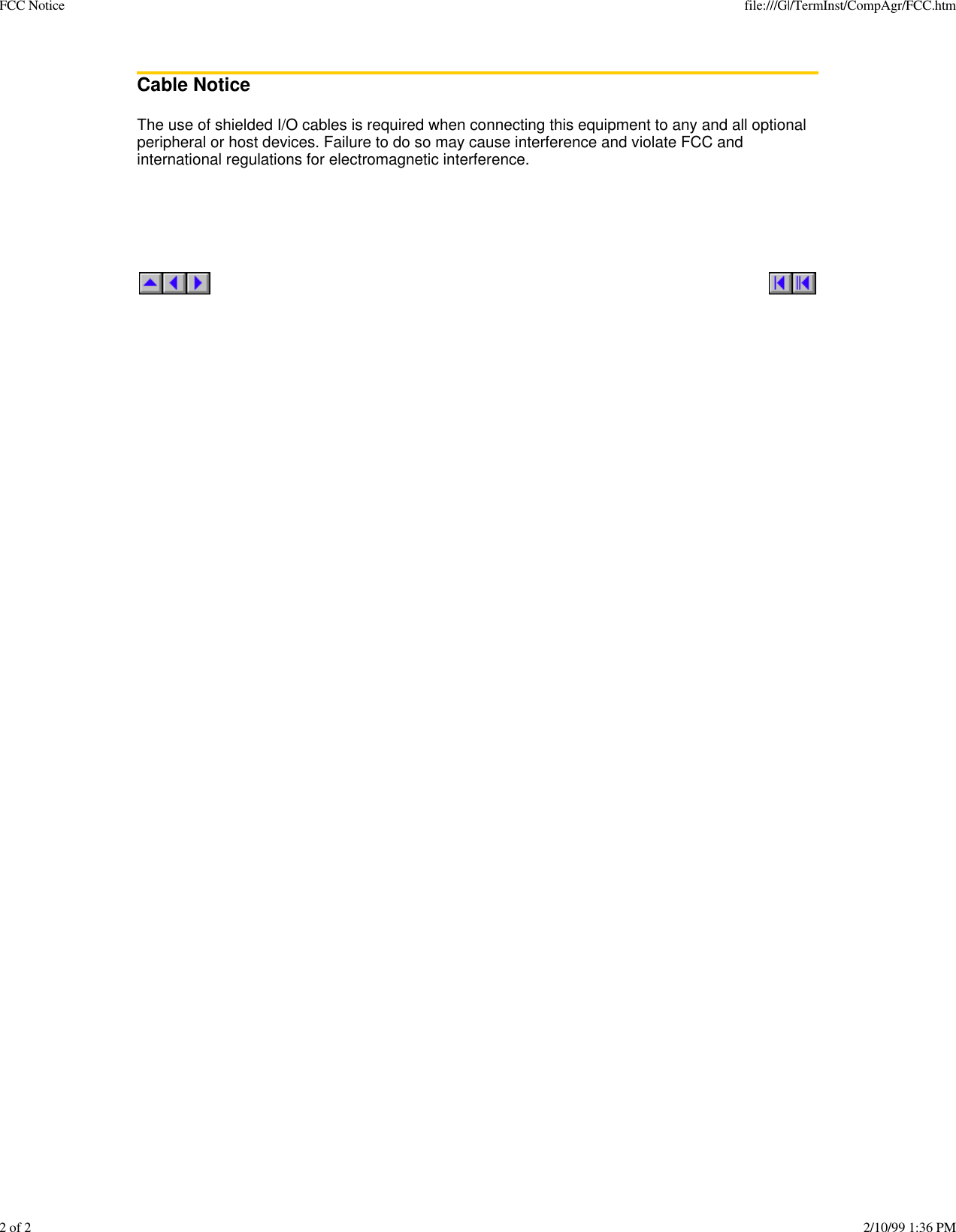

Cable NoticeThe use of shielded I/O cables is required when connecting this equipment to any and all optionalperipheral or host devices. Failure to do so may cause interference and violate FCC andinternational regulations for electromagnetic interference. 2 of 2 2/10/99 1:36 PMFCC Notice file:///G|/TermInst/CompAgr/FCC.htm

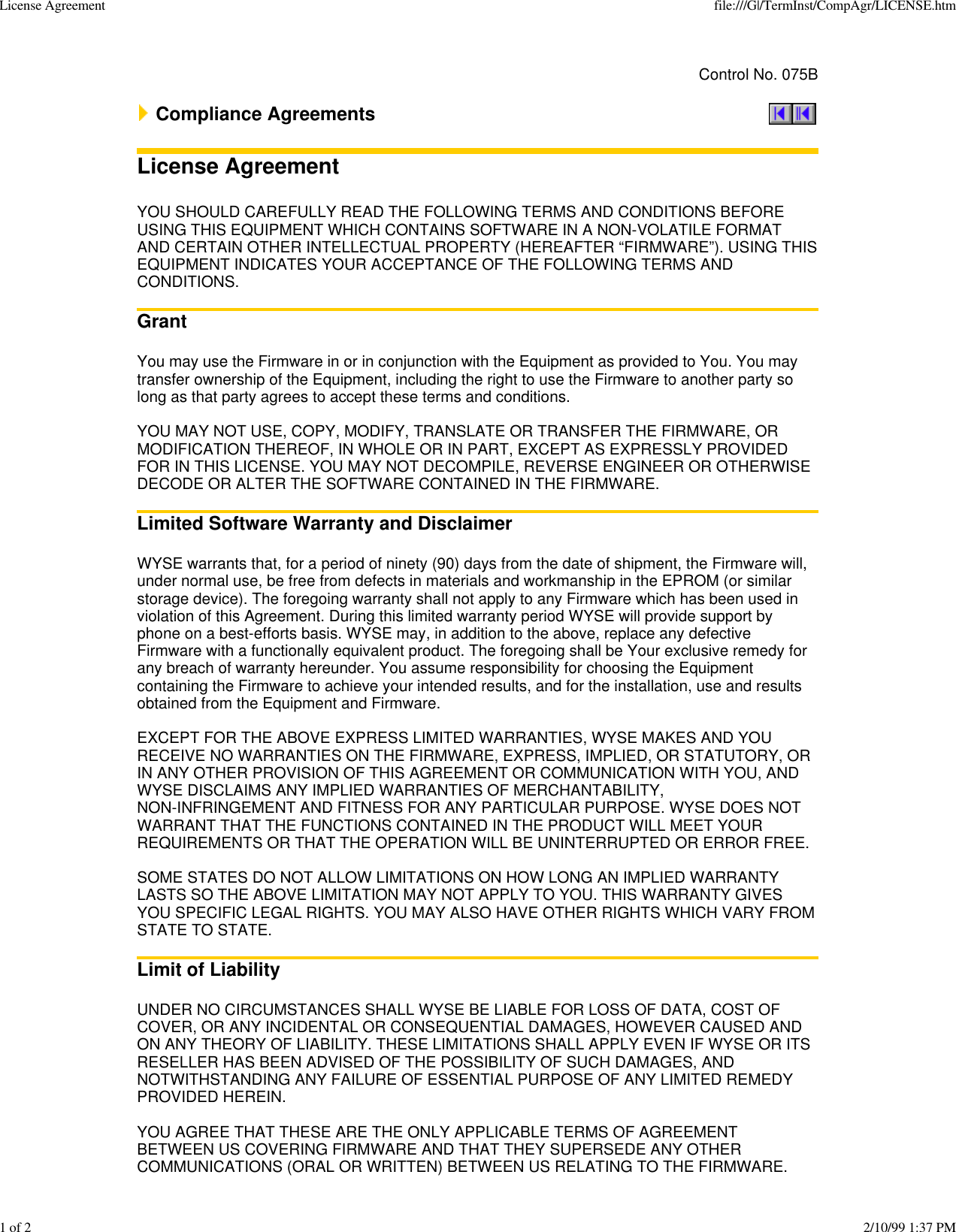

Control No. 075B Compliance AgreementsLicense AgreementYOU SHOULD CAREFULLY READ THE FOLLOWING TERMS AND CONDITIONS BEFOREUSING THIS EQUIPMENT WHICH CONTAINS SOFTWARE IN A NON-VOLATILE FORMATAND CERTAIN OTHER INTELLECTUAL PROPERTY (HEREAFTER “FIRMWARE”). USING THISEQUIPMENT INDICATES YOUR ACCEPTANCE OF THE FOLLOWING TERMS ANDCONDITIONS.GrantYou may use the Firmware in or in conjunction with the Equipment as provided to You. You maytransfer ownership of the Equipment, including the right to use the Firmware to another party solong as that party agrees to accept these terms and conditions.YOU MAY NOT USE, COPY, MODIFY, TRANSLATE OR TRANSFER THE FIRMWARE, ORMODIFICATION THEREOF, IN WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDEDFOR IN THIS LICENSE. YOU MAY NOT DECOMPILE, REVERSE ENGINEER OR OTHERWISEDECODE OR ALTER THE SOFTWARE CONTAINED IN THE FIRMWARE.Limited Software Warranty and DisclaimerWYSE warrants that, for a period of ninety (90) days from the date of shipment, the Firmware will,under normal use, be free from defects in materials and workmanship in the EPROM (or similarstorage device). The foregoing warranty shall not apply to any Firmware which has been used inviolation of this Agreement. During this limited warranty period WYSE will provide support byphone on a best-efforts basis. WYSE may, in addition to the above, replace any defectiveFirmware with a functionally equivalent product. The foregoing shall be Your exclusive remedy forany breach of warranty hereunder. You assume responsibility for choosing the Equipmentcontaining the Firmware to achieve your intended results, and for the installation, use and resultsobtained from the Equipment and Firmware.EXCEPT FOR THE ABOVE EXPRESS LIMITED WARRANTIES, WYSE MAKES AND YOURECEIVE NO WARRANTIES ON THE FIRMWARE, EXPRESS, IMPLIED, OR STATUTORY, ORIN ANY OTHER PROVISION OF THIS AGREEMENT OR COMMUNICATION WITH YOU, ANDWYSE DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY,NON-INFRINGEMENT AND FITNESS FOR ANY PARTICULAR PURPOSE. WYSE DOES NOTWARRANT THAT THE FUNCTIONS CONTAINED IN THE PRODUCT WILL MEET YOURREQUIREMENTS OR THAT THE OPERATION WILL BE UNINTERRUPTED OR ERROR FREE.SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTYLASTS SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVESYOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROMSTATE TO STATE.Limit of LiabilityUNDER NO CIRCUMSTANCES SHALL WYSE BE LIABLE FOR LOSS OF DATA, COST OFCOVER, OR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, HOWEVER CAUSED ANDON ANY THEORY OF LIABILITY. THESE LIMITATIONS SHALL APPLY EVEN IF WYSE OR ITSRESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, ANDNOTWITHSTANDING ANY FAILURE OF ESSENTIAL PURPOSE OF ANY LIMITED REMEDYPROVIDED HEREIN.YOU AGREE THAT THESE ARE THE ONLY APPLICABLE TERMS OF AGREEMENTBETWEEN US COVERING FIRMWARE AND THAT THEY SUPERSEDE ANY OTHERCOMMUNICATIONS (ORAL OR WRITTEN) BETWEEN US RELATING TO THE FIRMWARE.1 of 2 2/10/99 1:37 PMLicense Agreement file:///G|/TermInst/CompAgr/LICENSE.htm

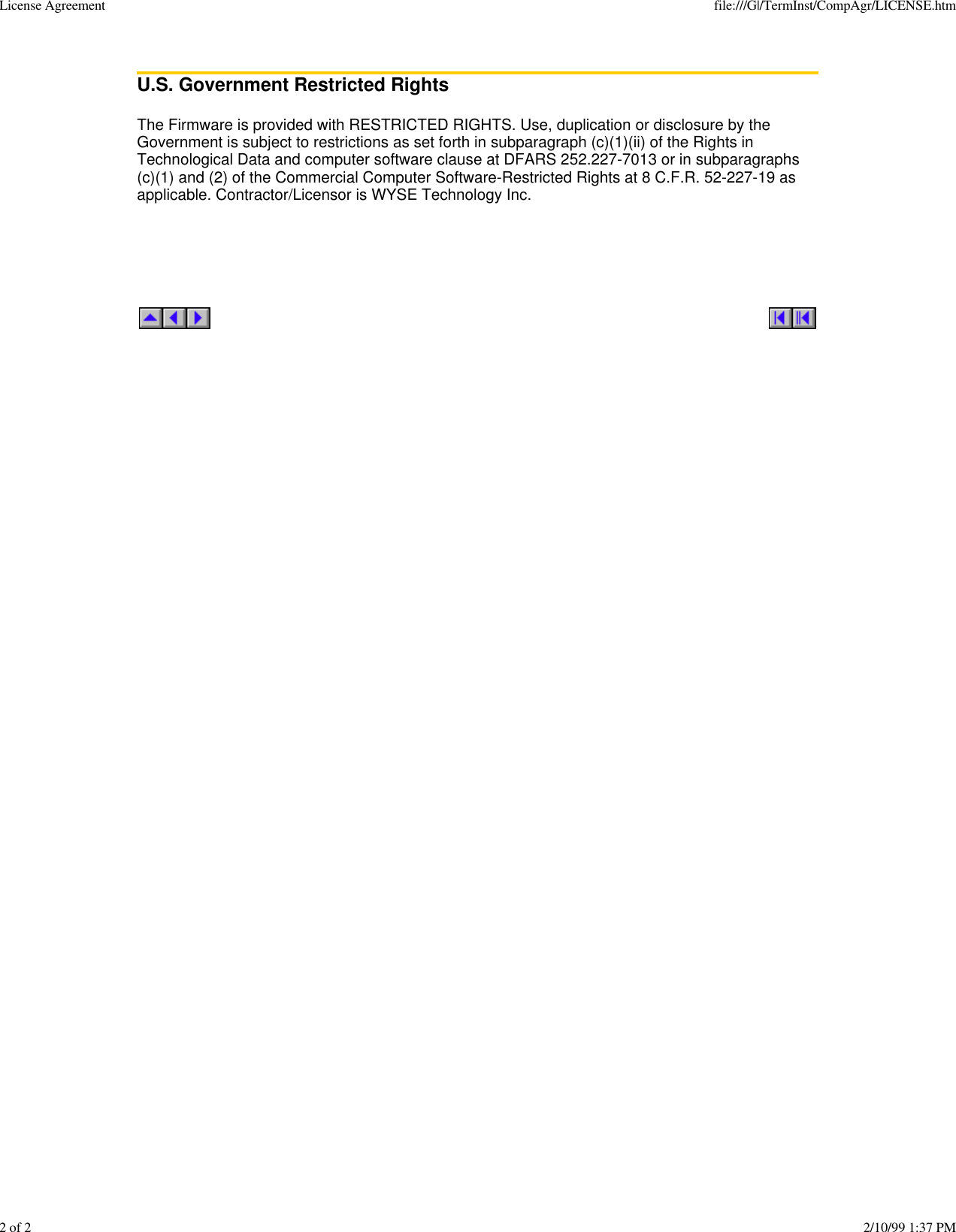

U.S. Government Restricted RightsThe Firmware is provided with RESTRICTED RIGHTS. Use, duplication or disclosure by theGovernment is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights inTechnological Data and computer software clause at DFARS 252.227-7013 or in subparagraphs(c)(1) and (2) of the Commercial Computer Software-Restricted Rights at 8 C.F.R. 52-227-19 asapplicable. Contractor/Licensor is WYSE Technology Inc. 2 of 2 2/10/99 1:37 PMLicense Agreement file:///G|/TermInst/CompAgr/LICENSE.htm

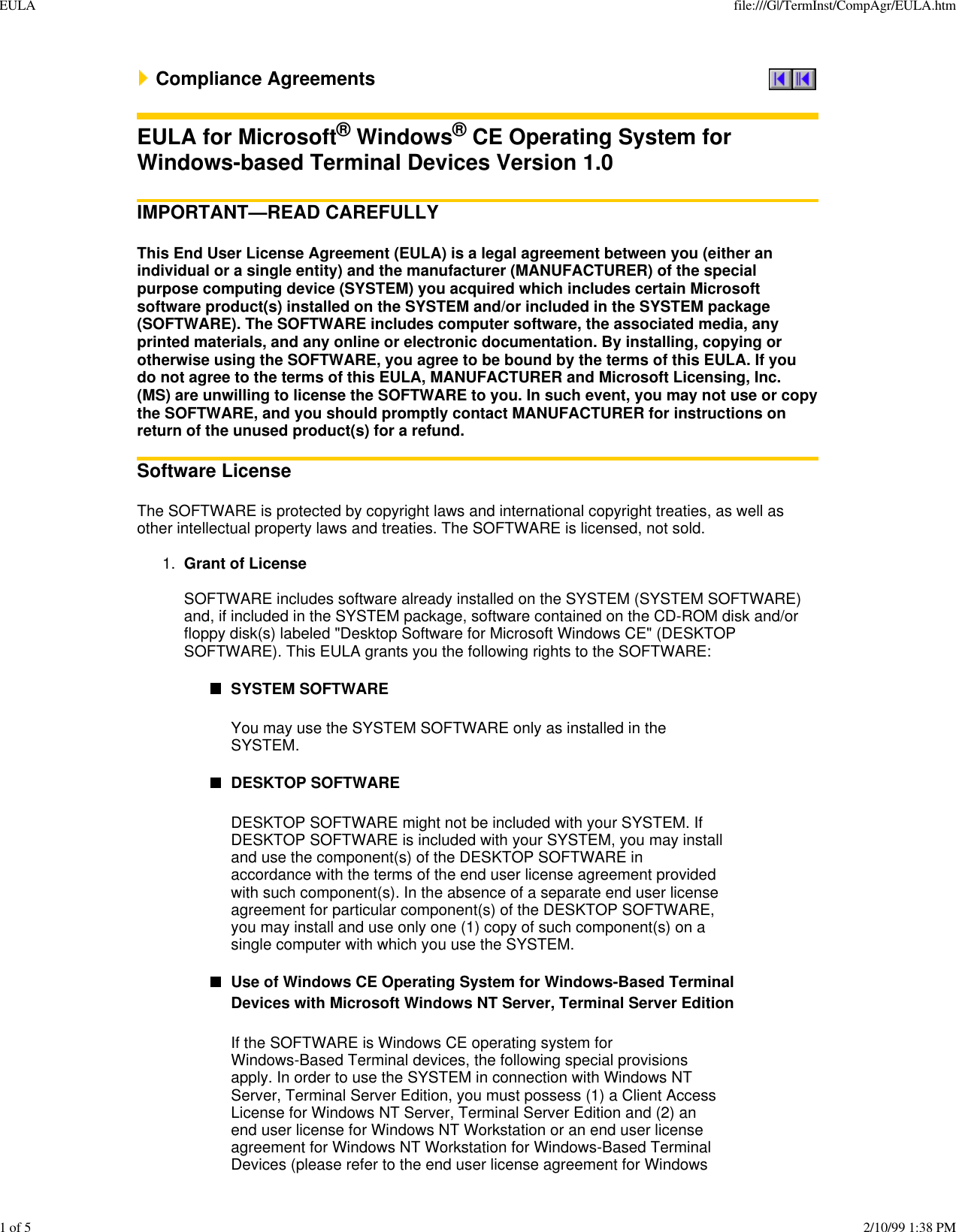

Compliance AgreementsEULA for Microsoft® Windows® CE Operating System forWindows-based Terminal Devices Version 1.0IMPORTANT—READ CAREFULLYThis End User License Agreement (EULA) is a legal agreement between you (either anindividual or a single entity) and the manufacturer (MANUFACTURER) of the specialpurpose computing device (SYSTEM) you acquired which includes certain Microsoftsoftware product(s) installed on the SYSTEM and/or included in the SYSTEM package(SOFTWARE). The SOFTWARE includes computer software, the associated media, anyprinted materials, and any online or electronic documentation. By installing, copying orotherwise using the SOFTWARE, you agree to be bound by the terms of this EULA. If youdo not agree to the terms of this EULA, MANUFACTURER and Microsoft Licensing, Inc.(MS) are unwilling to license the SOFTWARE to you. In such event, you may not use or copythe SOFTWARE, and you should promptly contact MANUFACTURER for instructions onreturn of the unused product(s) for a refund.Software LicenseThe SOFTWARE is protected by copyright laws and international copyright treaties, as well asother intellectual property laws and treaties. The SOFTWARE is licensed, not sold.1. Grant of LicenseSOFTWARE includes software already installed on the SYSTEM (SYSTEM SOFTWARE)and, if included in the SYSTEM package, software contained on the CD-ROM disk and/orfloppy disk(s) labeled "Desktop Software for Microsoft Windows CE" (DESKTOPSOFTWARE). This EULA grants you the following rights to the SOFTWARE:SYSTEM SOFTWARE You may use the SYSTEM SOFTWARE only as installed in theSYSTEM.DESKTOP SOFTWARE DESKTOP SOFTWARE might not be included with your SYSTEM. IfDESKTOP SOFTWARE is included with your SYSTEM, you may installand use the component(s) of the DESKTOP SOFTWARE inaccordance with the terms of the end user license agreement providedwith such component(s). In the absence of a separate end user licenseagreement for particular component(s) of the DESKTOP SOFTWARE,you may install and use only one (1) copy of such component(s) on asingle computer with which you use the SYSTEM.Use of Windows CE Operating System for Windows-Based TerminalDevices with Microsoft Windows NT Server, Terminal Server Edition If the SOFTWARE is Windows CE operating system forWindows-Based Terminal devices, the following special provisionsapply. In order to use the SYSTEM in connection with Windows NTServer, Terminal Server Edition, you must possess (1) a Client AccessLicense for Windows NT Server, Terminal Server Edition and (2) anend user license for Windows NT Workstation or an end user licenseagreement for Windows NT Workstation for Windows-Based TerminalDevices (please refer to the end user license agreement for Windows1 of 5 2/10/99 1:38 PMEULA file:///G|/TermInst/CompAgr/EULA.htm

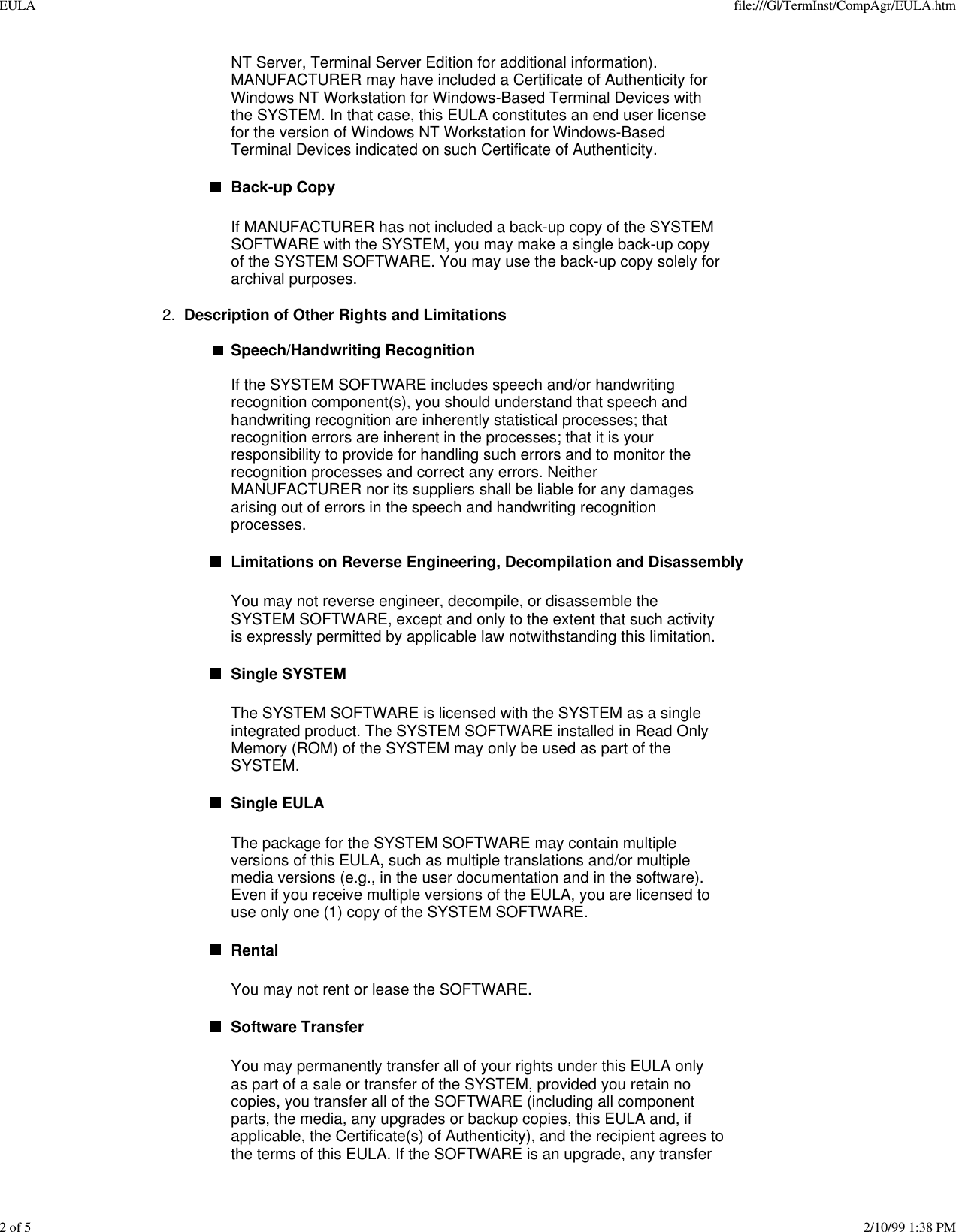

NT Server, Terminal Server Edition for additional information).MANUFACTURER may have included a Certificate of Authenticity forWindows NT Workstation for Windows-Based Terminal Devices withthe SYSTEM. In that case, this EULA constitutes an end user licensefor the version of Windows NT Workstation for Windows-BasedTerminal Devices indicated on such Certificate of Authenticity.Back-up Copy If MANUFACTURER has not included a back-up copy of the SYSTEMSOFTWARE with the SYSTEM, you may make a single back-up copyof the SYSTEM SOFTWARE. You may use the back-up copy solely forarchival purposes.2. Description of Other Rights and Limitations Speech/Handwriting Recognition If the SYSTEM SOFTWARE includes speech and/or handwritingrecognition component(s), you should understand that speech andhandwriting recognition are inherently statistical processes; thatrecognition errors are inherent in the processes; that it is yourresponsibility to provide for handling such errors and to monitor therecognition processes and correct any errors. NeitherMANUFACTURER nor its suppliers shall be liable for any damagesarising out of errors in the speech and handwriting recognitionprocesses.Limitations on Reverse Engineering, Decompilation and Disassembly You may not reverse engineer, decompile, or disassemble theSYSTEM SOFTWARE, except and only to the extent that such activityis expressly permitted by applicable law notwithstanding this limitation.Single SYSTEM The SYSTEM SOFTWARE is licensed with the SYSTEM as a singleintegrated product. The SYSTEM SOFTWARE installed in Read OnlyMemory (ROM) of the SYSTEM may only be used as part of theSYSTEM.Single EULA The package for the SYSTEM SOFTWARE may contain multipleversions of this EULA, such as multiple translations and/or multiplemedia versions (e.g., in the user documentation and in the software).Even if you receive multiple versions of the EULA, you are licensed touse only one (1) copy of the SYSTEM SOFTWARE.Rental You may not rent or lease the SOFTWARE.Software Transfer You may permanently transfer all of your rights under this EULA onlyas part of a sale or transfer of the SYSTEM, provided you retain nocopies, you transfer all of the SOFTWARE (including all componentparts, the media, any upgrades or backup copies, this EULA and, ifapplicable, the Certificate(s) of Authenticity), and the recipient agrees tothe terms of this EULA. If the SOFTWARE is an upgrade, any transfer2 of 5 2/10/99 1:38 PMEULA file:///G|/TermInst/CompAgr/EULA.htm

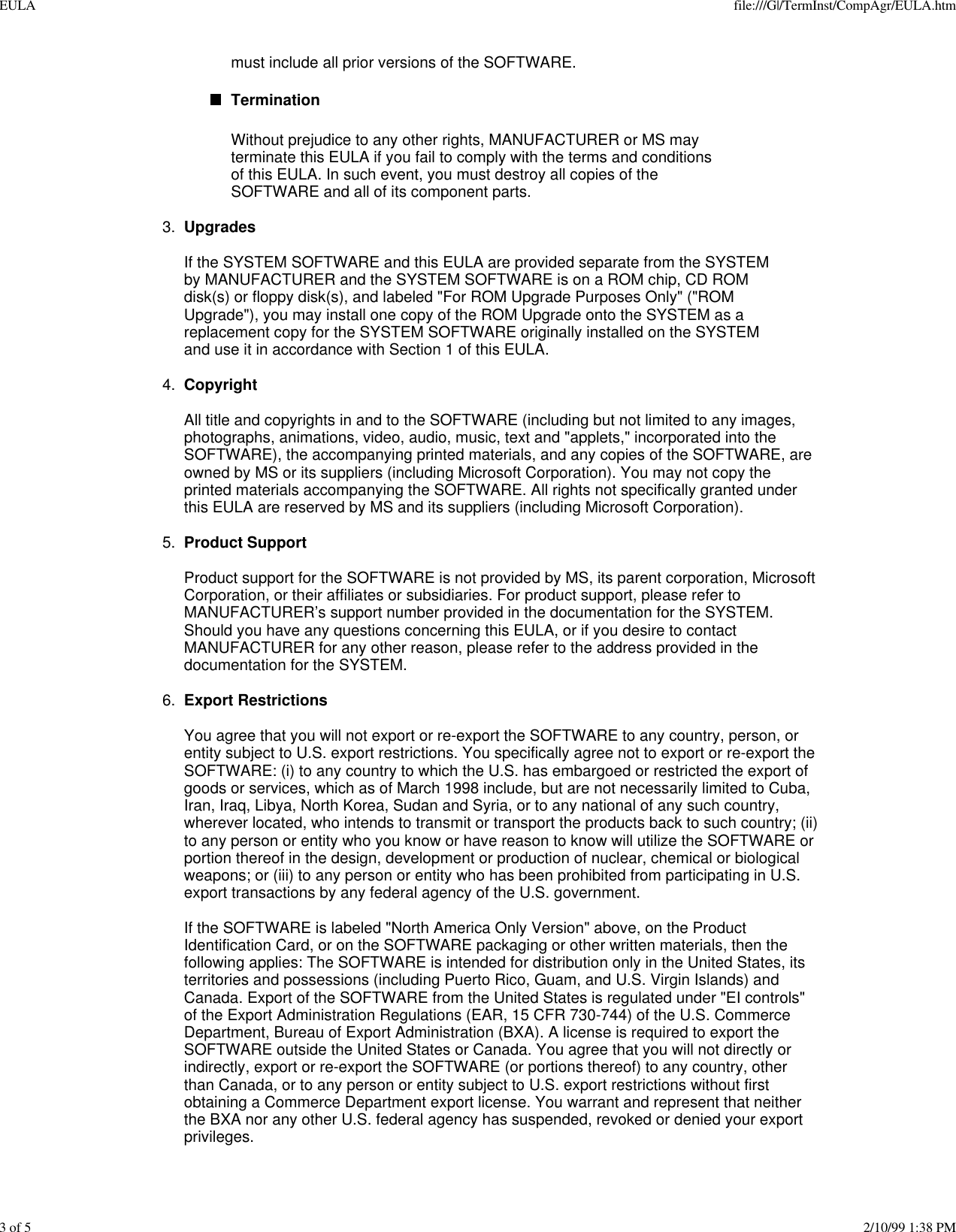

must include all prior versions of the SOFTWARE.Termination Without prejudice to any other rights, MANUFACTURER or MS mayterminate this EULA if you fail to comply with the terms and conditionsof this EULA. In such event, you must destroy all copies of theSOFTWARE and all of its component parts.3. Upgrades If the SYSTEM SOFTWARE and this EULA are provided separate from the SYSTEMby MANUFACTURER and the SYSTEM SOFTWARE is on a ROM chip, CD ROMdisk(s) or floppy disk(s), and labeled "For ROM Upgrade Purposes Only" ("ROMUpgrade"), you may install one copy of the ROM Upgrade onto the SYSTEM as areplacement copy for the SYSTEM SOFTWARE originally installed on the SYSTEMand use it in accordance with Section 1 of this EULA.4. CopyrightAll title and copyrights in and to the SOFTWARE (including but not limited to any images,photographs, animations, video, audio, music, text and "applets," incorporated into theSOFTWARE), the accompanying printed materials, and any copies of the SOFTWARE, areowned by MS or its suppliers (including Microsoft Corporation). You may not copy theprinted materials accompanying the SOFTWARE. All rights not specifically granted underthis EULA are reserved by MS and its suppliers (including Microsoft Corporation).5. Product SupportProduct support for the SOFTWARE is not provided by MS, its parent corporation, MicrosoftCorporation, or their affiliates or subsidiaries. For product support, please refer toMANUFACTURER’s support number provided in the documentation for the SYSTEM.Should you have any questions concerning this EULA, or if you desire to contactMANUFACTURER for any other reason, please refer to the address provided in thedocumentation for the SYSTEM.6. Export RestrictionsYou agree that you will not export or re-export the SOFTWARE to any country, person, orentity subject to U.S. export restrictions. You specifically agree not to export or re-export theSOFTWARE: (i) to any country to which the U.S. has embargoed or restricted the export ofgoods or services, which as of March 1998 include, but are not necessarily limited to Cuba,Iran, Iraq, Libya, North Korea, Sudan and Syria, or to any national of any such country,wherever located, who intends to transmit or transport the products back to such country; (ii)to any person or entity who you know or have reason to know will utilize the SOFTWARE orportion thereof in the design, development or production of nuclear, chemical or biologicalweapons; or (iii) to any person or entity who has been prohibited from participating in U.S.export transactions by any federal agency of the U.S. government. If the SOFTWARE is labeled "North America Only Version" above, on the ProductIdentification Card, or on the SOFTWARE packaging or other written materials, then thefollowing applies: The SOFTWARE is intended for distribution only in the United States, itsterritories and possessions (including Puerto Rico, Guam, and U.S. Virgin Islands) andCanada. Export of the SOFTWARE from the United States is regulated under "EI controls"of the Export Administration Regulations (EAR, 15 CFR 730-744) of the U.S. CommerceDepartment, Bureau of Export Administration (BXA). A license is required to export theSOFTWARE outside the United States or Canada. You agree that you will not directly orindirectly, export or re-export the SOFTWARE (or portions thereof) to any country, otherthan Canada, or to any person or entity subject to U.S. export restrictions without firstobtaining a Commerce Department export license. You warrant and represent that neitherthe BXA nor any other U.S. federal agency has suspended, revoked or denied your exportprivileges.3 of 5 2/10/99 1:38 PMEULA file:///G|/TermInst/CompAgr/EULA.htm

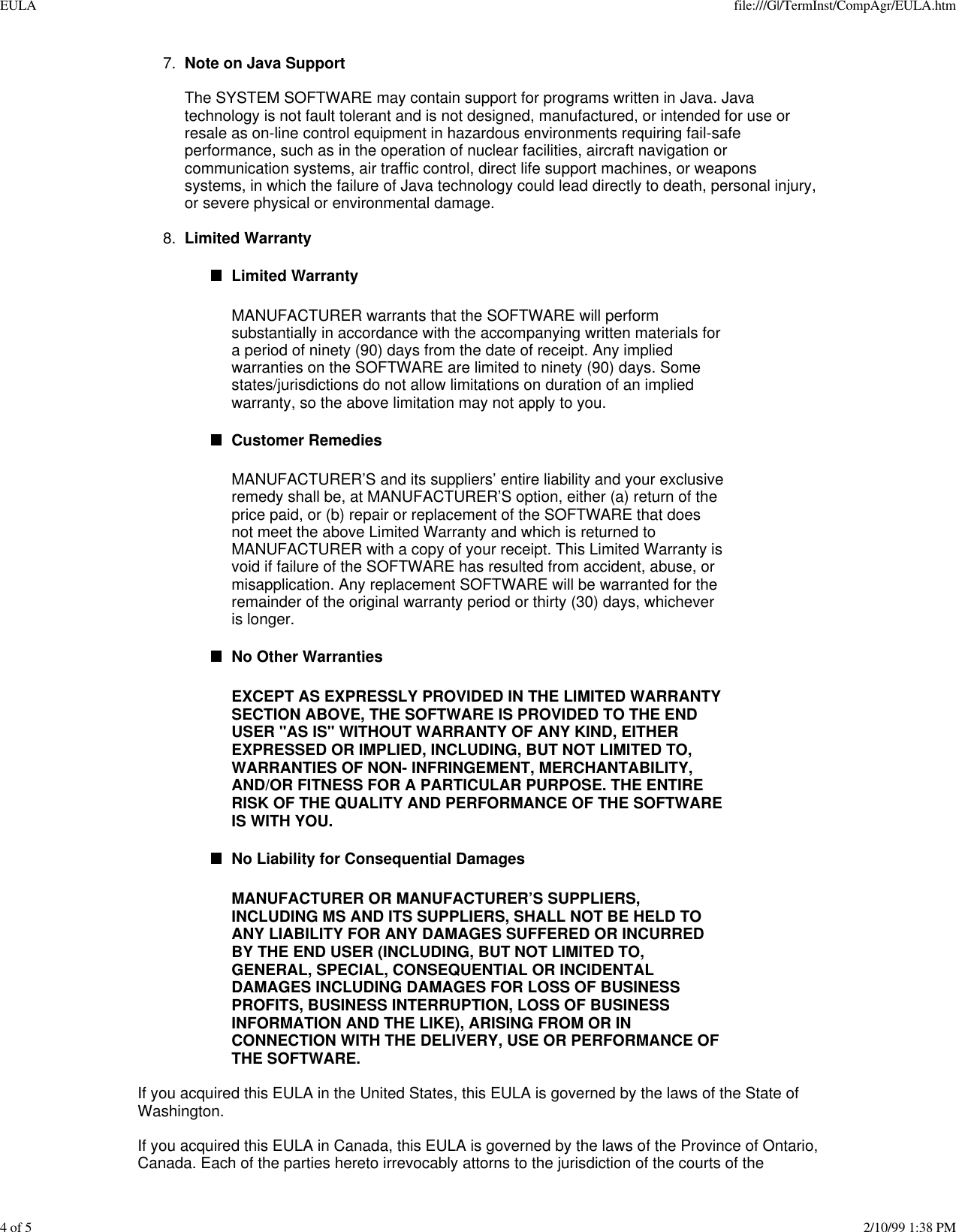

7. Note on Java SupportThe SYSTEM SOFTWARE may contain support for programs written in Java. Javatechnology is not fault tolerant and is not designed, manufactured, or intended for use orresale as on-line control equipment in hazardous environments requiring fail-safeperformance, such as in the operation of nuclear facilities, aircraft navigation orcommunication systems, air traffic control, direct life support machines, or weaponssystems, in which the failure of Java technology could lead directly to death, personal injury,or severe physical or environmental damage.8. Limited Warranty Limited Warranty MANUFACTURER warrants that the SOFTWARE will performsubstantially in accordance with the accompanying written materials fora period of ninety (90) days from the date of receipt. Any impliedwarranties on the SOFTWARE are limited to ninety (90) days. Somestates/jurisdictions do not allow limitations on duration of an impliedwarranty, so the above limitation may not apply to you.Customer Remedies MANUFACTURER’S and its suppliers’ entire liability and your exclusiveremedy shall be, at MANUFACTURER’S option, either (a) return of theprice paid, or (b) repair or replacement of the SOFTWARE that doesnot meet the above Limited Warranty and which is returned toMANUFACTURER with a copy of your receipt. This Limited Warranty isvoid if failure of the SOFTWARE has resulted from accident, abuse, ormisapplication. Any replacement SOFTWARE will be warranted for theremainder of the original warranty period or thirty (30) days, whicheveris longer.No Other Warranties EXCEPT AS EXPRESSLY PROVIDED IN THE LIMITED WARRANTYSECTION ABOVE, THE SOFTWARE IS PROVIDED TO THE ENDUSER "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHEREXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,WARRANTIES OF NON- INFRINGEMENT, MERCHANTABILITY,AND/OR FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRERISK OF THE QUALITY AND PERFORMANCE OF THE SOFTWAREIS WITH YOU.No Liability for Consequential Damages MANUFACTURER OR MANUFACTURER’S SUPPLIERS,INCLUDING MS AND ITS SUPPLIERS, SHALL NOT BE HELD TOANY LIABILITY FOR ANY DAMAGES SUFFERED OR INCURREDBY THE END USER (INCLUDING, BUT NOT LIMITED TO,GENERAL, SPECIAL, CONSEQUENTIAL OR INCIDENTALDAMAGES INCLUDING DAMAGES FOR LOSS OF BUSINESSPROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESSINFORMATION AND THE LIKE), ARISING FROM OR INCONNECTION WITH THE DELIVERY, USE OR PERFORMANCE OFTHE SOFTWARE.If you acquired this EULA in the United States, this EULA is governed by the laws of the State ofWashington.If you acquired this EULA in Canada, this EULA is governed by the laws of the Province of Ontario,Canada. Each of the parties hereto irrevocably attorns to the jurisdiction of the courts of the4 of 5 2/10/99 1:38 PMEULA file:///G|/TermInst/CompAgr/EULA.htm

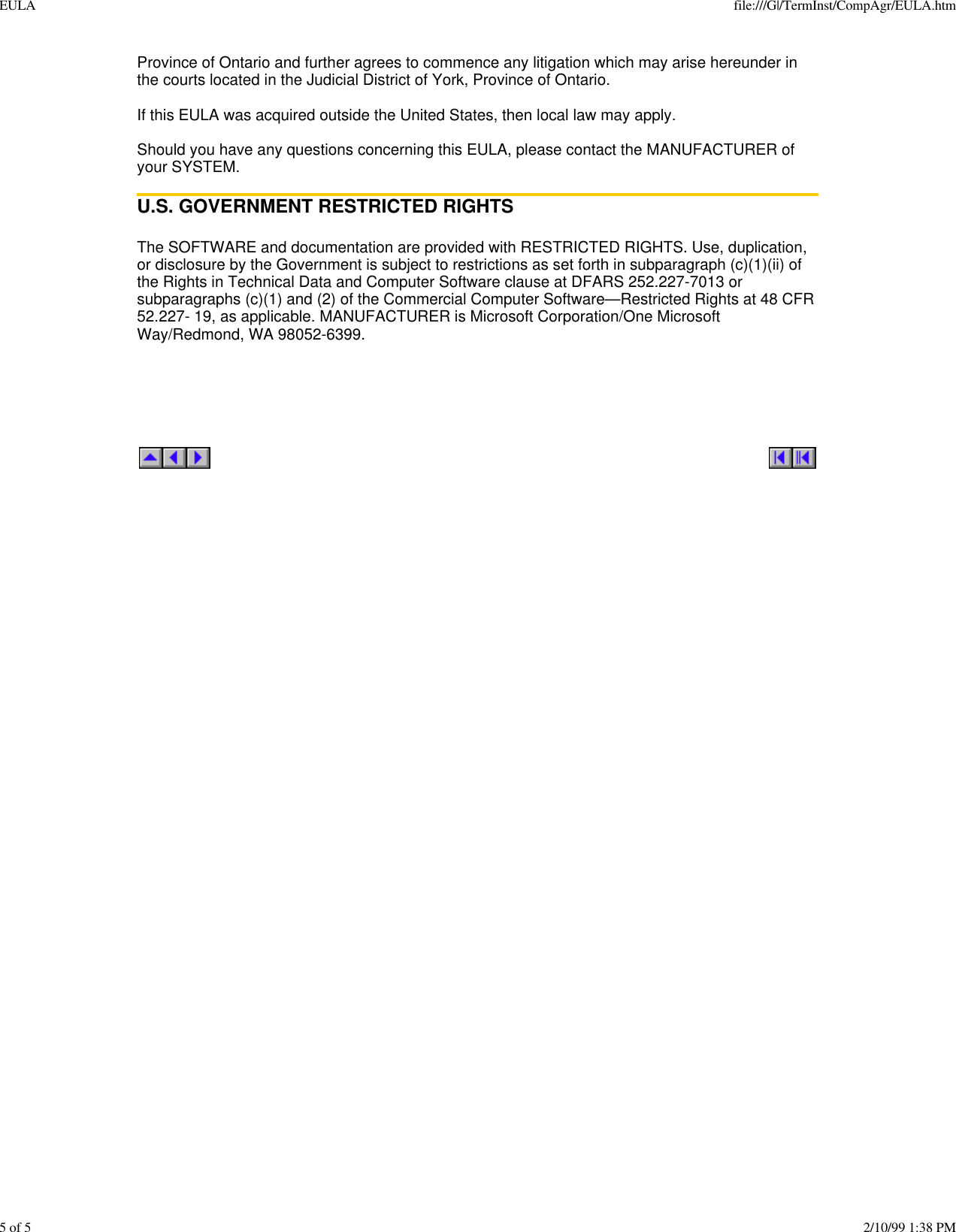

Province of Ontario and further agrees to commence any litigation which may arise hereunder inthe courts located in the Judicial District of York, Province of Ontario.If this EULA was acquired outside the United States, then local law may apply.Should you have any questions concerning this EULA, please contact the MANUFACTURER ofyour SYSTEM.U.S. GOVERNMENT RESTRICTED RIGHTSThe SOFTWARE and documentation are provided with RESTRICTED RIGHTS. Use, duplication,or disclosure by the Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) ofthe Rights in Technical Data and Computer Software clause at DFARS 252.227-7013 orsubparagraphs (c)(1) and (2) of the Commercial Computer Software—Restricted Rights at 48 CFR52.227- 19, as applicable. MANUFACTURER is Microsoft Corporation/One MicrosoftWay/Redmond, WA 98052-6399. 5 of 5 2/10/99 1:38 PMEULA file:///G|/TermInst/CompAgr/EULA.htm

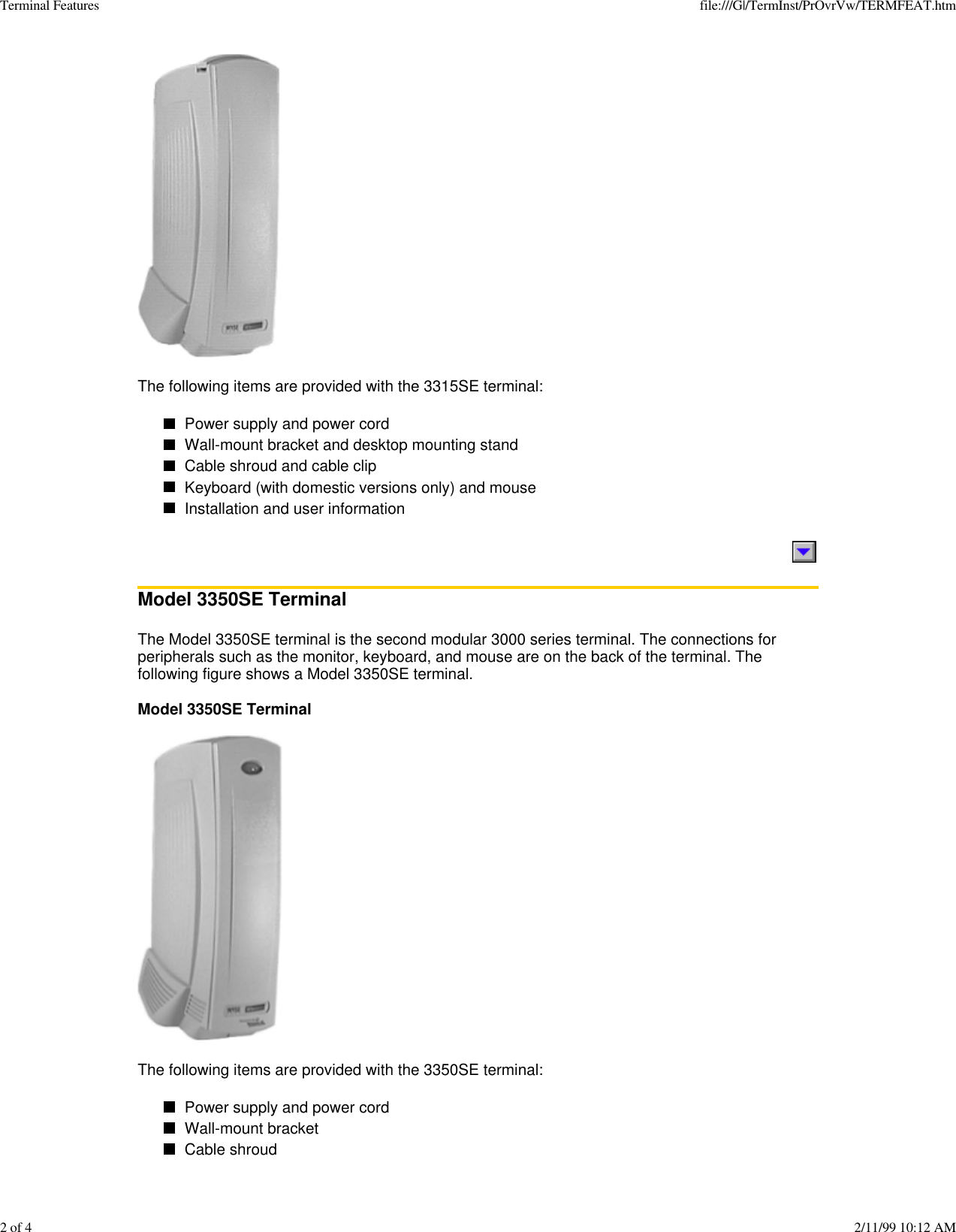

The following items are provided with the 3315SE terminal:Power supply and power cord Wall-mount bracket and desktop mounting stand Cable shroud and cable clip Keyboard (with domestic versions only) and mouse Installation and user information Model 3350SE TerminalThe Model 3350SE terminal is the second modular 3000 series terminal. The connections forperipherals such as the monitor, keyboard, and mouse are on the back of the terminal. Thefollowing figure shows a Model 3350SE terminal.Model 3350SE TerminalThe following items are provided with the 3350SE terminal:Power supply and power cord Wall-mount bracket Cable shroud 2 of 4 2/11/99 10:12 AMTerminal Features file:///G|/TermInst/PrOvrVw/TERMFEAT.htm

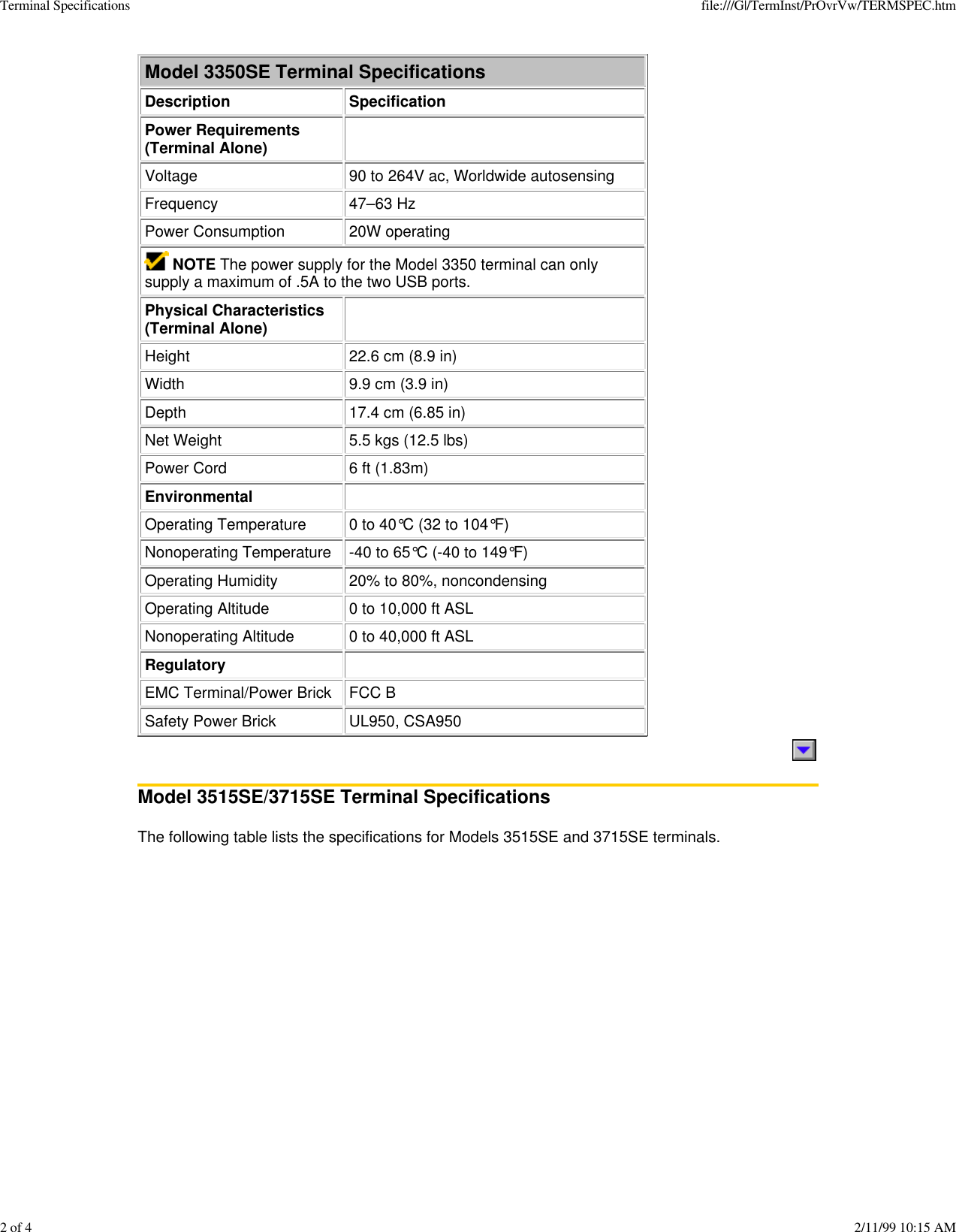

Model 3350SE Terminal SpecificationsDescription Specification Power Requirements(Terminal Alone)Voltage 90 to 264V ac, Worldwide autosensingFrequency 47–63 HzPower Consumption 20W operating NOTE The power supply for the Model 3350 terminal can onlysupply a maximum of .5A to the two USB ports.Physical Characteristics(Terminal Alone)Height 22.6 cm (8.9 in)Width 9.9 cm (3.9 in)Depth 17.4 cm (6.85 in)Net Weight 5.5 kgs (12.5 lbs)Power Cord 6 ft (1.83m) EnvironmentalOperating Temperature 0 to 40°C (32 to 104°F)Nonoperating Temperature -40 to 65°C (-40 to 149°F)Operating Humidity 20% to 80%, noncondensingOperating Altitude 0 to 10,000 ft ASLNonoperating Altitude 0 to 40,000 ft ASLRegulatoryxEMC Terminal/Power Brick FCC BSafety Power Brick UL950, CSA950Model 3515SE/3715SE Terminal SpecificationsThe following table lists the specifications for Models 3515SE and 3715SE terminals.2 of 4 2/11/99 10:15 AMTerminal Specifications file:///G|/TermInst/PrOvrVw/TERMSPEC.htm

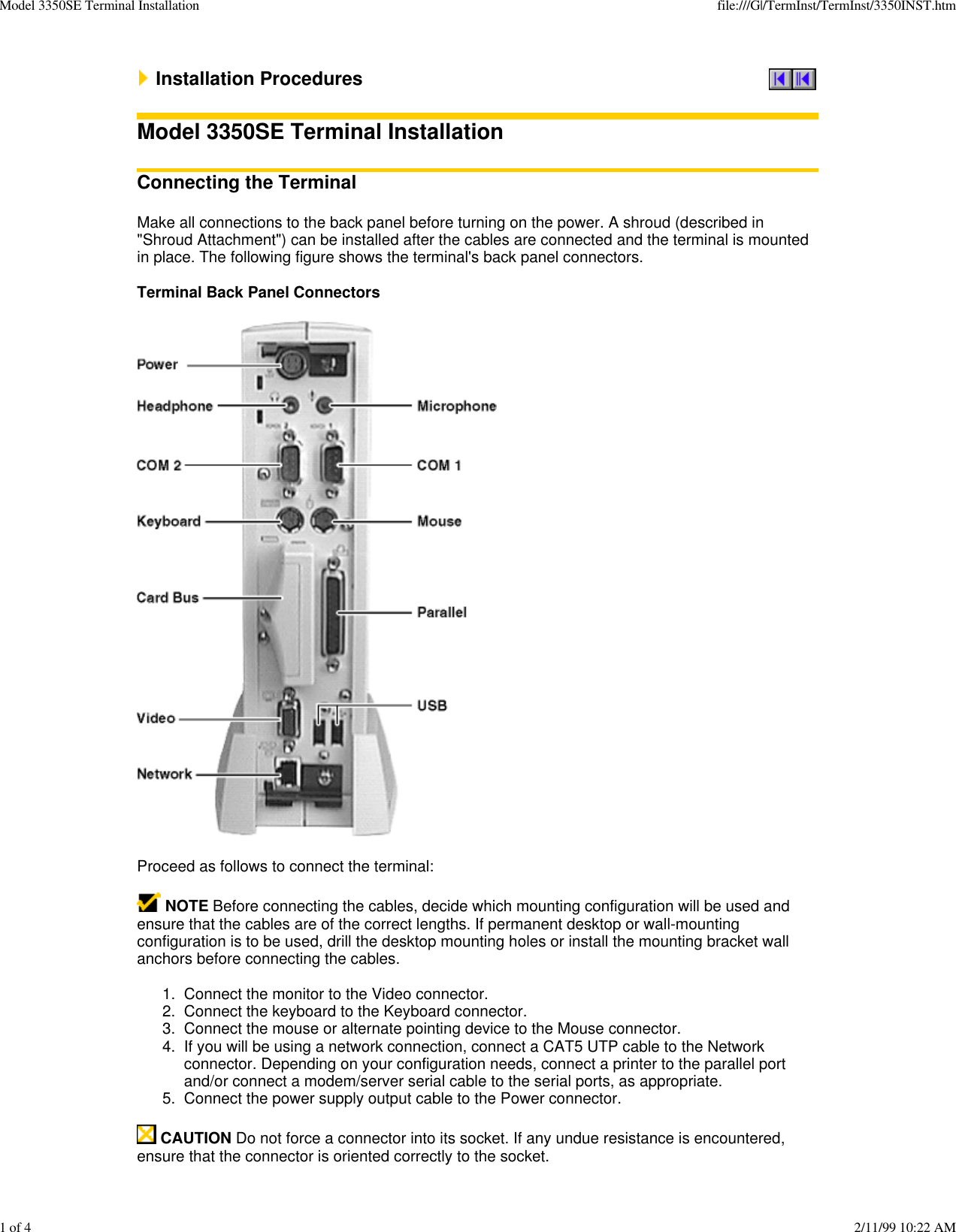

Installation ProceduresModel 3350SE Terminal InstallationConnecting the TerminalMake all connections to the back panel before turning on the power. A shroud (described in"Shroud Attachment") can be installed after the cables are connected and the terminal is mountedin place. The following figure shows the terminal's back panel connectors.Terminal Back Panel ConnectorsProceed as follows to connect the terminal: NOTE Before connecting the cables, decide which mounting configuration will be used andensure that the cables are of the correct lengths. If permanent desktop or wall-mountingconfiguration is to be used, drill the desktop mounting holes or install the mounting bracket wallanchors before connecting the cables.1. Connect the monitor to the Video connector. 2. Connect the keyboard to the Keyboard connector. 3. Connect the mouse or alternate pointing device to the Mouse connector. 4. If you will be using a network connection, connect a CAT5 UTP cable to the Networkconnector. Depending on your configuration needs, connect a printer to the parallel portand/or connect a modem/server serial cable to the serial ports, as appropriate. 5. Connect the power supply output cable to the Power connector. CAUTION Do not force a connector into its socket. If any undue resistance is encountered,ensure that the connector is oriented correctly to the socket.1 of 4 2/11/99 10:22 AMModel 3350SE Terminal Installation file:///G|/TermInst/TermInst/3350INST.htm

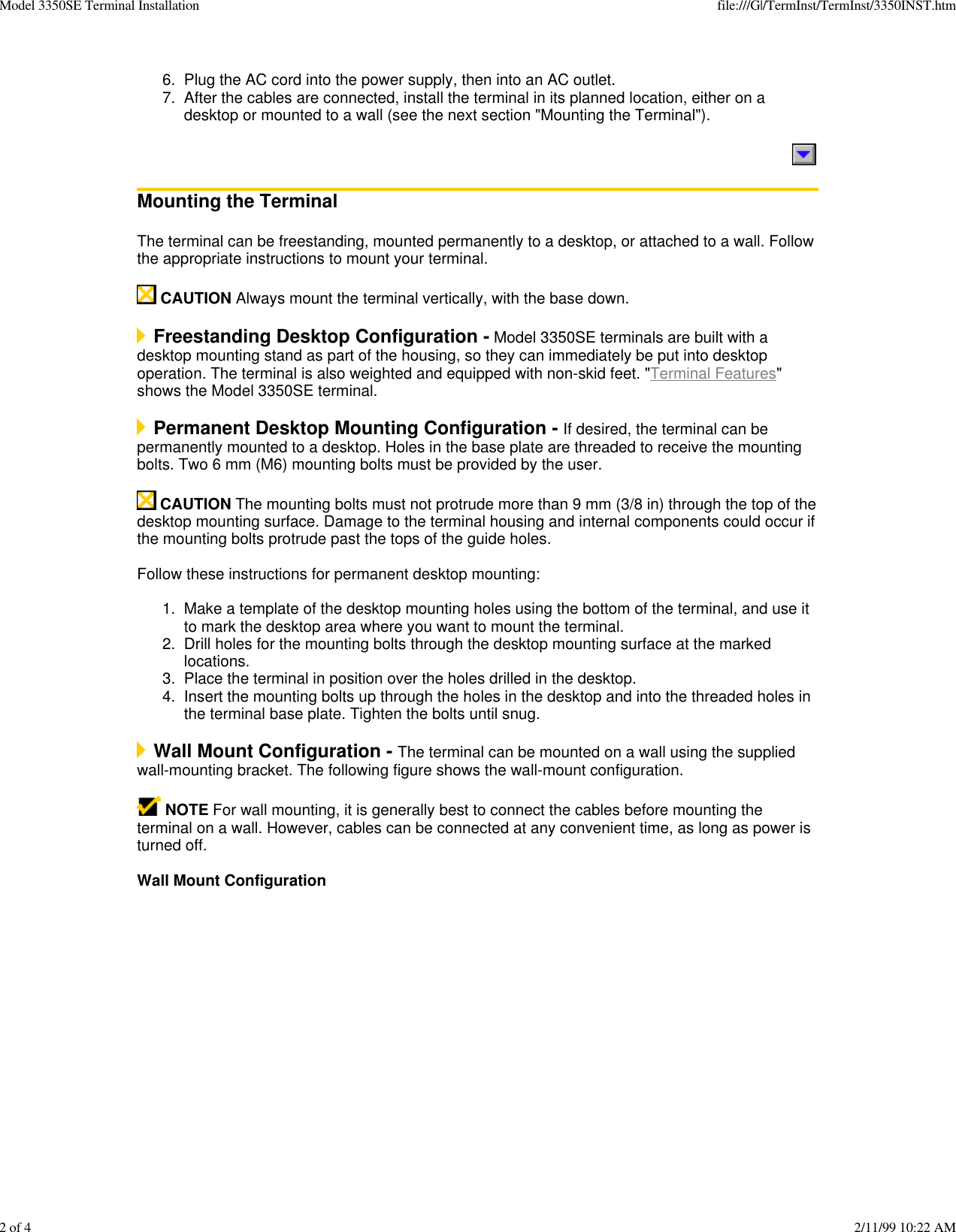

6. Plug the AC cord into the power supply, then into an AC outlet. 7. After the cables are connected, install the terminal in its planned location, either on adesktop or mounted to a wall (see the next section "Mounting the Terminal"). Mounting the TerminalThe terminal can be freestanding, mounted permanently to a desktop, or attached to a wall. Followthe appropriate instructions to mount your terminal. CAUTION Always mount the terminal vertically, with the base down. Freestanding Desktop Configuration - Model 3350SE terminals are built with adesktop mounting stand as part of the housing, so they can immediately be put into desktopoperation. The terminal is also weighted and equipped with non-skid feet. "Terminal Features"shows the Model 3350SE terminal. Permanent Desktop Mounting Configuration - If desired, the terminal can bepermanently mounted to a desktop. Holes in the base plate are threaded to receive the mountingbolts. Two 6 mm (M6) mounting bolts must be provided by the user. CAUTION The mounting bolts must not protrude more than 9 mm (3/8 in) through the top of thedesktop mounting surface. Damage to the terminal housing and internal components could occur ifthe mounting bolts protrude past the tops of the guide holes.Follow these instructions for permanent desktop mounting:1. Make a template of the desktop mounting holes using the bottom of the terminal, and use itto mark the desktop area where you want to mount the terminal. 2. Drill holes for the mounting bolts through the desktop mounting surface at the markedlocations. 3. Place the terminal in position over the holes drilled in the desktop. 4. Insert the mounting bolts up through the holes in the desktop and into the threaded holes inthe terminal base plate. Tighten the bolts until snug. Wall Mount Configuration - The terminal can be mounted on a wall using the suppliedwall-mounting bracket. The following figure shows the wall-mount configuration. NOTE For wall mounting, it is generally best to connect the cables before mounting theterminal on a wall. However, cables can be connected at any convenient time, as long as power isturned off.Wall Mount Configuration2 of 4 2/11/99 10:22 AMModel 3350SE Terminal Installation file:///G|/TermInst/TermInst/3350INST.htm

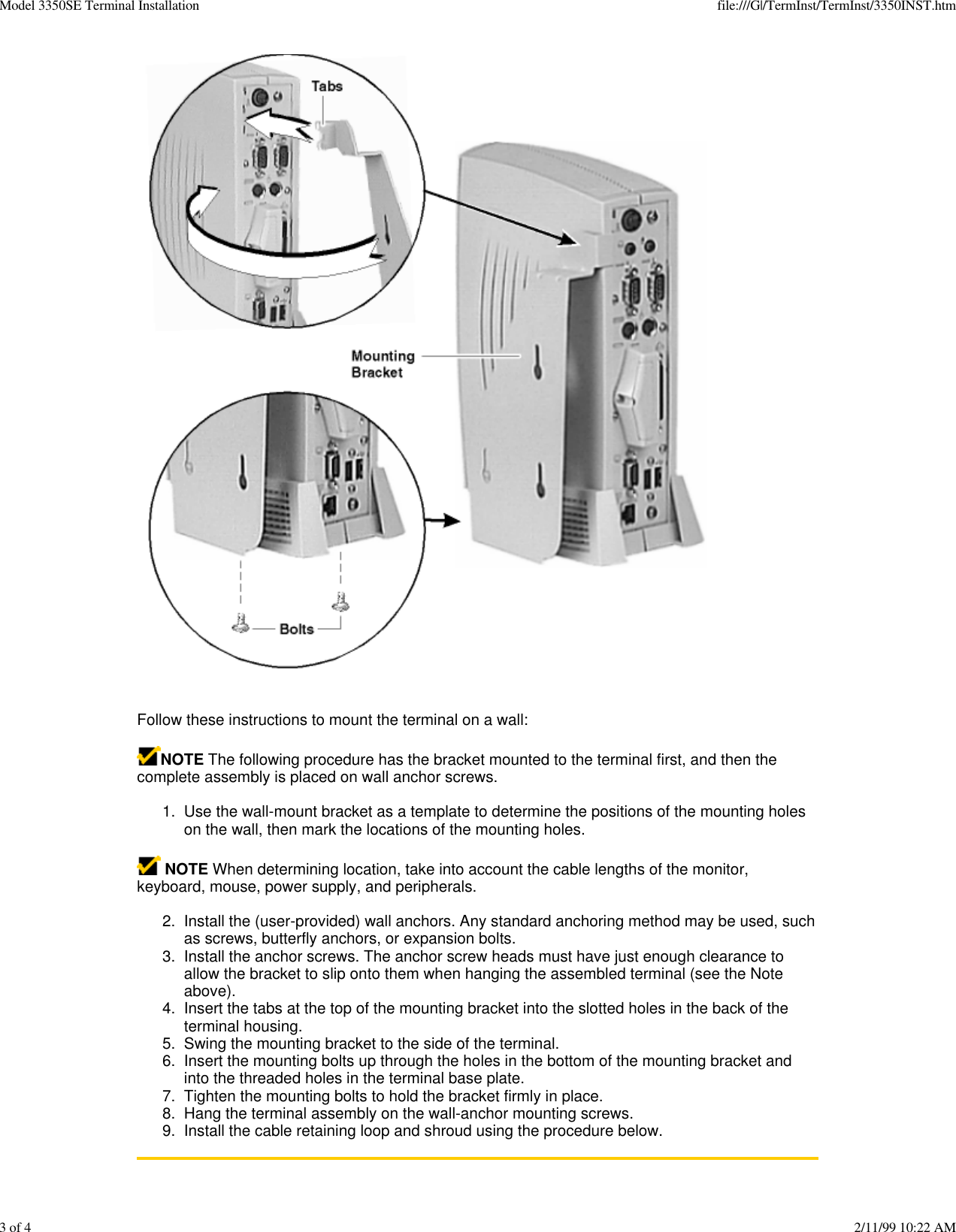

Follow these instructions to mount the terminal on a wall:NOTE The following procedure has the bracket mounted to the terminal first, and then thecomplete assembly is placed on wall anchor screws.1. Use the wall-mount bracket as a template to determine the positions of the mounting holeson the wall, then mark the locations of the mounting holes. NOTE When determining location, take into account the cable lengths of the monitor,keyboard, mouse, power supply, and peripherals.2. Install the (user-provided) wall anchors. Any standard anchoring method may be used, suchas screws, butterfly anchors, or expansion bolts. 3. Install the anchor screws. The anchor screw heads must have just enough clearance toallow the bracket to slip onto them when hanging the assembled terminal (see the Noteabove). 4. Insert the tabs at the top of the mounting bracket into the slotted holes in the back of theterminal housing. 5. Swing the mounting bracket to the side of the terminal. 6. Insert the mounting bolts up through the holes in the bottom of the mounting bracket andinto the threaded holes in the terminal base plate. 7. Tighten the mounting bolts to hold the bracket firmly in place. 8. Hang the terminal assembly on the wall-anchor mounting screws. 9. Install the cable retaining loop and shroud using the procedure below. 3 of 4 2/11/99 10:22 AMModel 3350SE Terminal Installation file:///G|/TermInst/TermInst/3350INST.htm

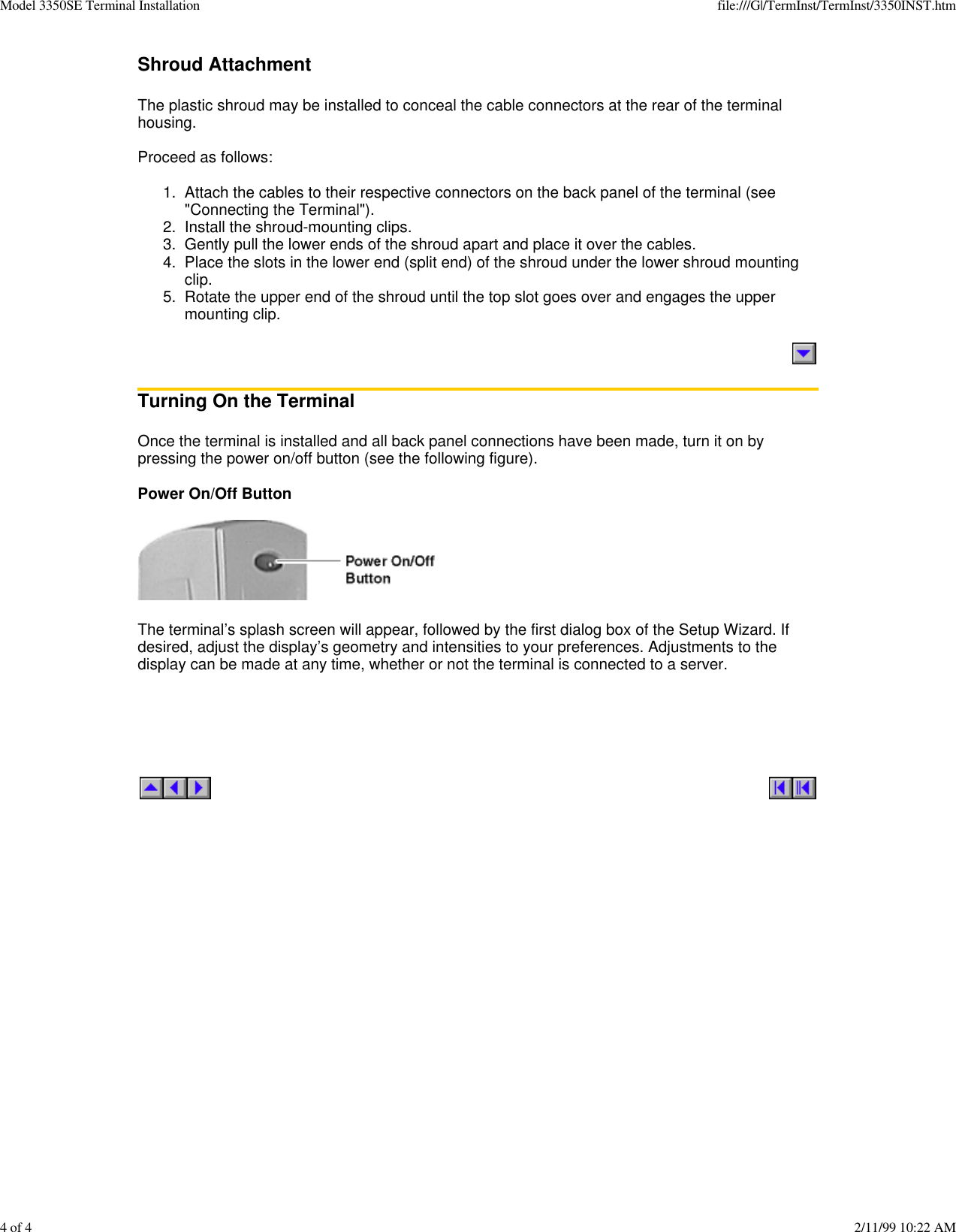

Shroud AttachmentThe plastic shroud may be installed to conceal the cable connectors at the rear of the terminalhousing.Proceed as follows:1. Attach the cables to their respective connectors on the back panel of the terminal (see"Connecting the Terminal"). 2. Install the shroud-mounting clips. 3. Gently pull the lower ends of the shroud apart and place it over the cables. 4. Place the slots in the lower end (split end) of the shroud under the lower shroud mountingclip. 5. Rotate the upper end of the shroud until the top slot goes over and engages the uppermounting clip. Turning On the TerminalOnce the terminal is installed and all back panel connections have been made, turn it on bypressing the power on/off button (see the following figure).Power On/Off ButtonThe terminal’s splash screen will appear, followed by the first dialog box of the Setup Wizard. Ifdesired, adjust the display’s geometry and intensities to your preferences. Adjustments to thedisplay can be made at any time, whether or not the terminal is connected to a server. 4 of 4 2/11/99 10:22 AMModel 3350SE Terminal Installation file:///G|/TermInst/TermInst/3350INST.htm
