XAC Automation E200CP Terminal User Manual
XAC Automation Corporation Terminal
User Manual
d
INSTALLATION GUIDE
CLOUD POS PAYMENT DEVICE
X
CL_E200
CP
SERIES
1.
D
EVICE
O
VERVIEW

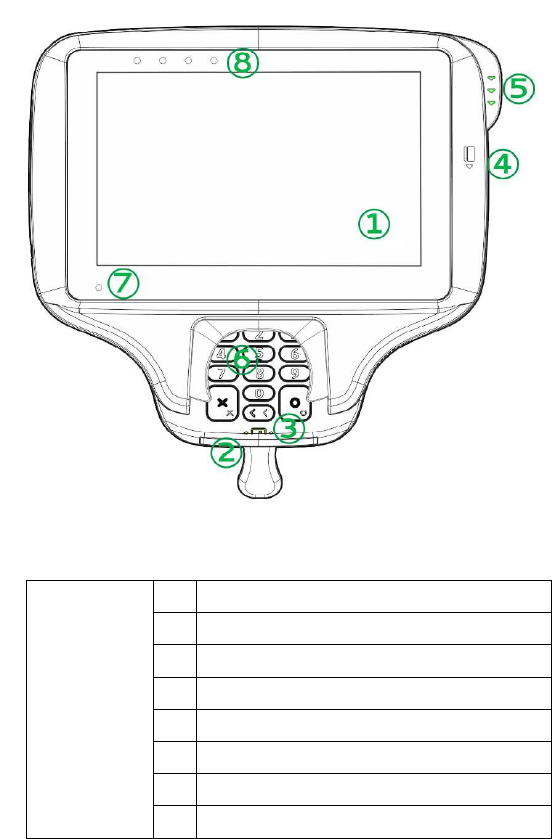

Key Buttons & Interface Ports (Figure 1):
Figure 1
1 Touch Panel
2 Smart Card Reader (SCR) slot
3 Smart Card Reader LED indicator
4 Magnetic Strip Reader (MSR) slot
5 Magnetic Strip Reader (MSR) LED indicator
6 13 keys Rubber PINPAD
7 Camera
FRONT SIDE
8 Contactless LED indicator

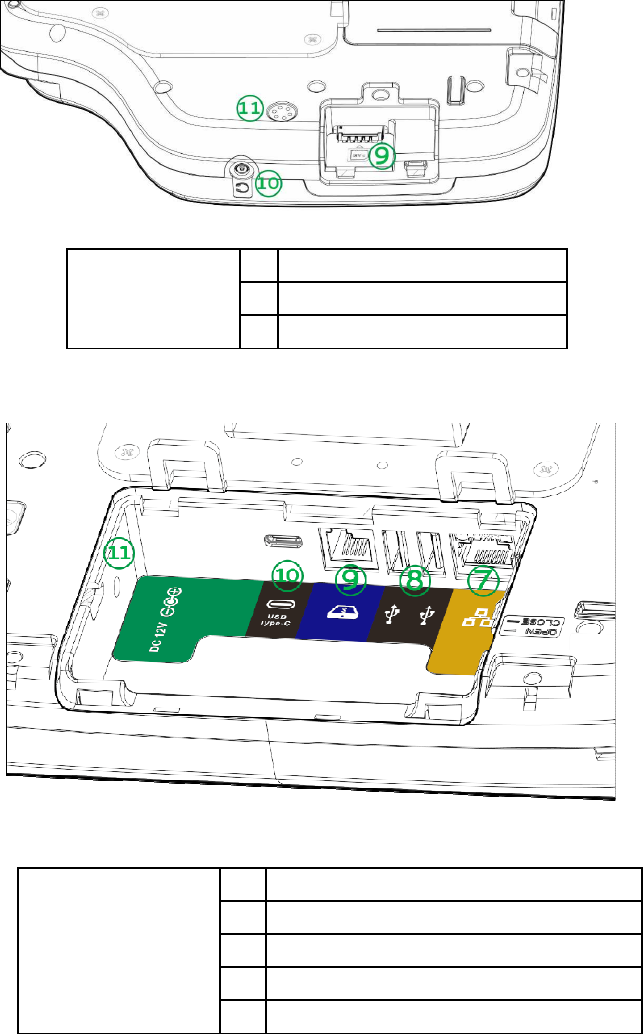

Figure 2
9
SAM Card Slot
LEFT SIDE
10
Audio Jack
11
Buzzer
F
Figure 3
7 Ethernet Port
8 USB Host Port
9 Cash Draw Port
10
USB Type C Device Port
REAR SIDE
11
12V DC Power Jack

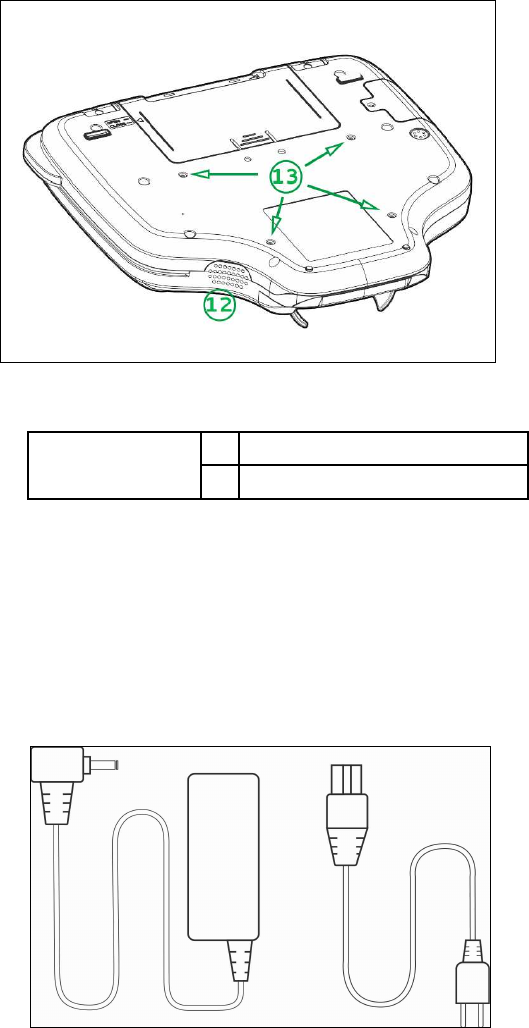

Figure 4
12
Speaker
REAR SIDE
13
Stand Mounting Holes
■
Power Adapter spec:
Input: 100 ~240 AC
Output: 12V DC
(Use only the AC adapter approved and provided by XAC Automation Corporation for
use with this device. Use of any other AC adapter may cause a risk of fire or explosion)
Operating Temperature: 0
o
C to 40
o
C
2.
U
SING THE
M
AGNETIC
C
ARD
R
EADER

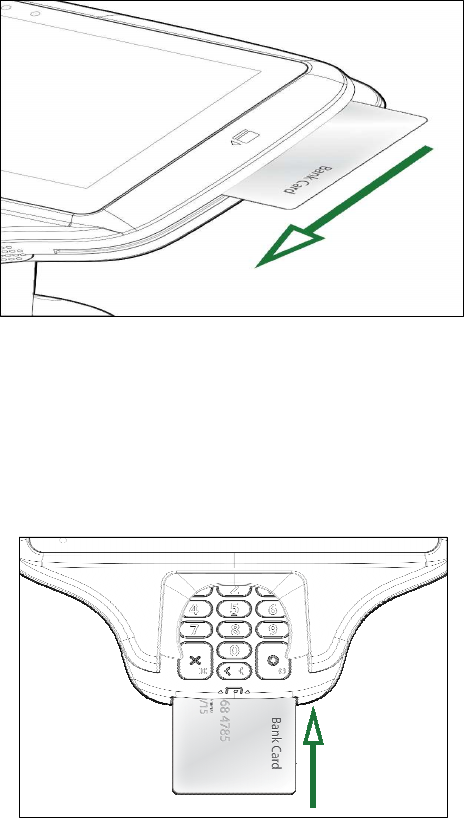

Swipe the card through the slot with magnetic stripe side facing the same direction as the
display.
Figure 5
3.
U
SING THE
IC
C
ARD
R
EADER
Insert an IC card into the slot (Figure 6) with the chip side facing the same direction as the
touch panel
Figure 6
4.
U
SING THE
C
ONTACTLESS
C
ARD
R
EADER

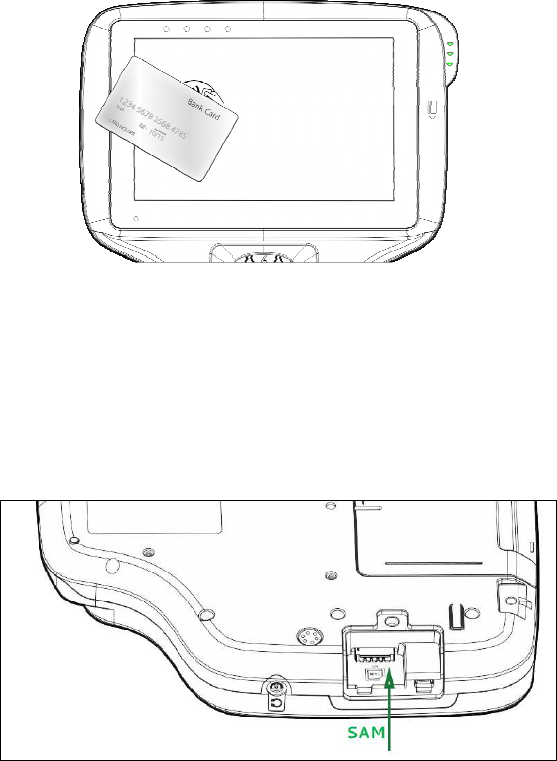

Tap the contactless card on top of the contactless logo
Figure 7
5.
H
OW TO INSERT
SAM
Insert an SAM card into the slot (Figure 8) with the chip side facing
Figure 8
6.
H
OW TO OPEN
SAM
COVER

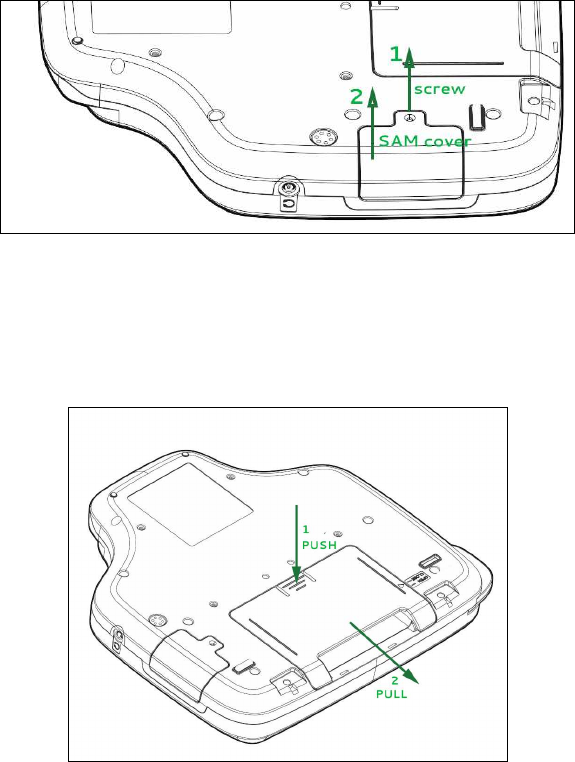

Take the screw out (1) and then pull out the SAM cover (2)
Figure 9
7.
H
OW TO OPEN
IO
COVER
Push the IO TOP cover (1) and then pull out the IO cover (2)
Figure 10
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS.
The IO & SAM covers provide for SAM card and I/O port installation Removal Warning:
When removing the screw of SAM cover and the IO,SAM covers for the purposes of SAM card and I/O port
installation, remember to put back the cover and the screw before power on the POS.
FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the user will be required to correct
the interference at his owns expense.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
The above information is the exclusive intellectual property of XAC Automation Corporation and shall not be
disclosed, distributed or reproduced without permission of XAC Automation Corporation.
XAC Automation Corporation
886
-
3
-
577
-
2738
