XAC Automation E25C PINPAD User Manual
XAC Automation Corporation PINPAD
User Manual.pdf
d
CHIP AND PIN MOBILE PAYMENT DEVICE XCE-25-C
INSTALLATION GUIDE
1.
B
EFORE
S
TARTING

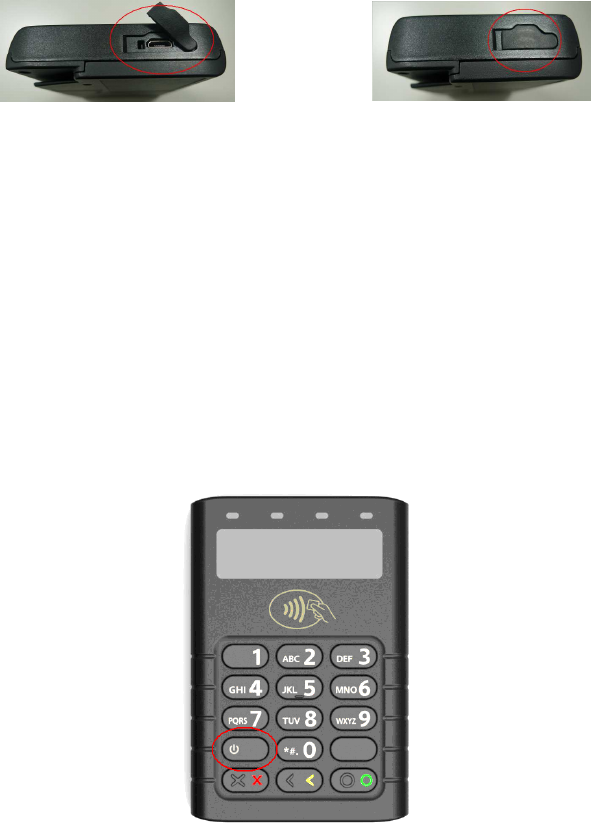

There is a micro USB port (Figure 1) covered under the protection cover (Figure 2); this port is
used for battery charging, debugging, firmware update and key injection.
NOTE: The battery of xCE-25-C is built-in and rechargeable.
Figure 1 Figure 2
Operating Temperature: 0
o
C to 40
o
C
Battery Pack: 3.7V, 1050mAh
Input: 5V, 500mA
2.
P
OWER
O
N
/O
FF THE
D
EVICE
To power on the device, press and hold the Power key for five seconds until the green LED
light flashes and the screen shows words. Once it is powered on, the LED will blink every five
seconds to indicate it is active.
To power off the device, press and hold the Power key for five seconds until the screen
become blank.
Figure 3
NOTE: xCE-25-C will power off itself automatically if unused for 5 minutes.
3.
C
ONNECTING TO
S
MART
D
EVICES
Once xCE-25-C is powered on Bluetooth will be searchable. From the smart device’s Bluetooth
settings, pair and connect to xCE-25-C.
4.
U
SING THE
M
AGNETIC
C
ARD
R
EADER

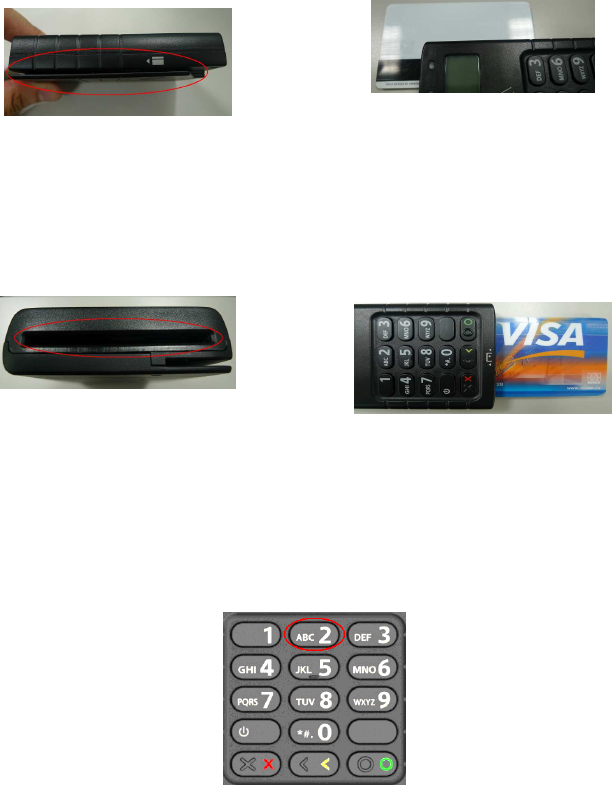

Find the magnetic card reader slot on the right side of the device (Figure 4). Swipe the card
through the slot with magnetic stripe side facing the same direction as the keypad (Figure 5).
Figure 4 Figure 5
5.
U
SING THE
IC
C
ARD
R
EADER
Find the IC card reader slot on the bottom of the device (Figure 6). Insert an IC card into the
slot with the chip side facing the same direction as the keypad (Figure 7).
Figure 6 Figure 7
6.
U
SING THE
K
EY
P
AD
Press Cancel(X) key to terminate any current function and press the Enter(O) key to confirm a
value or an option. Press the numeric key to enter the desirable numbers. Press the letter B
should press 2 number key twice, then the screen displays “B” (Figure 8).
Figure 8
7.
U
SING THE
C
ONTACTLESS
C
ARD
R
EADER

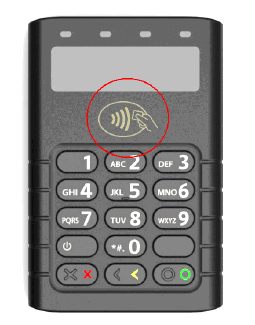

Contactless reader antenna is around the display and PIN pad. It will light up with LED signal
when terminal is powered on and that means reader is working normally. Put contactless card
to approach the antenna of card reader (Figure 9) for reading the card data during transaction.
Figure 9
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
Radiation Exposure Statement:
The product comply with the FCC portable RF exposure limit set forth for
an uncontrolled environment and are safe for intended operation as
described in this manual. The further RF exposure reduction can be
achieved if the product can be kept as far as possible from the user body
or set the device to lower output power if such function is available.
