XAC Automation XC50 Cradle User Manual rev 3

XAC Automation Corporation Cradle Users Manual rev 3

UserManual.wiki >

XAC Automation >

XC50 User Manual HTML Version

Users Manual rev 3.pdf

d



TERM

ALLATI

NAL PAY

UID

ENT CRA



1. PACKAGE CONTENT

2. DEVICE OVERVIEW



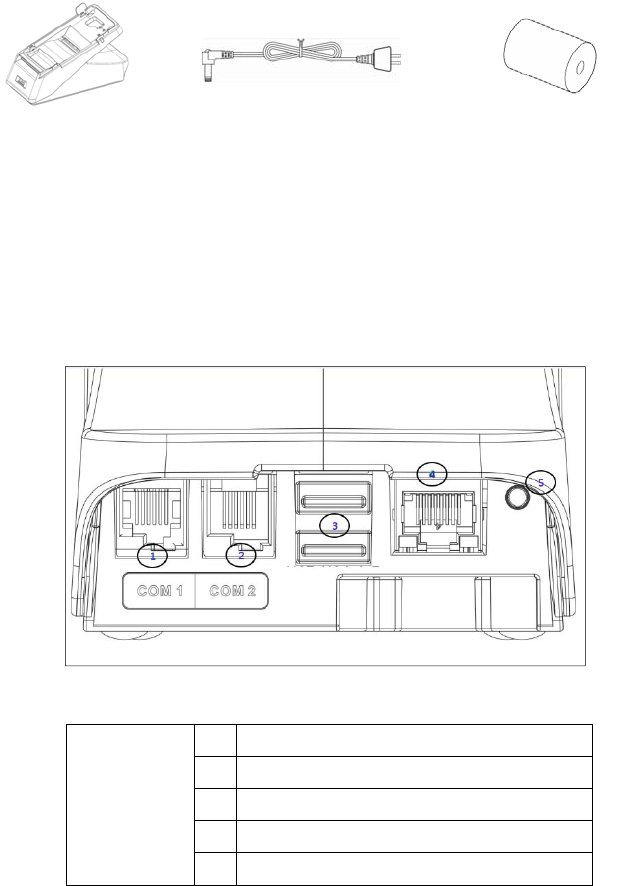

XC50KeyButtons&InterfacePorts(Figure1):

Figure1



BACKAREA1 COM1

2 COM2

3 USB

4 RJ45

5 Reset Button



REAR

 XC50  Power adaptor  Paper Roll



Figure2



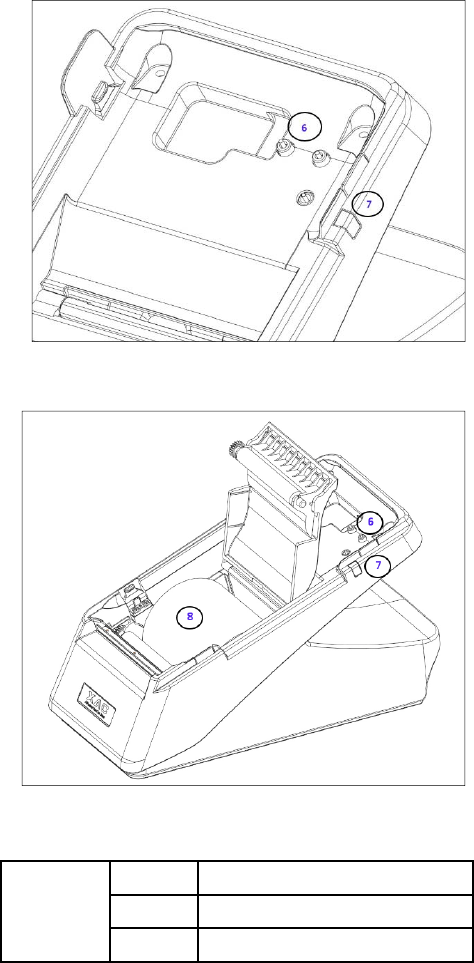

Figure3



FRONTAREA 6 Charging Contact

7 LED

8 Paper Roll



FRONT



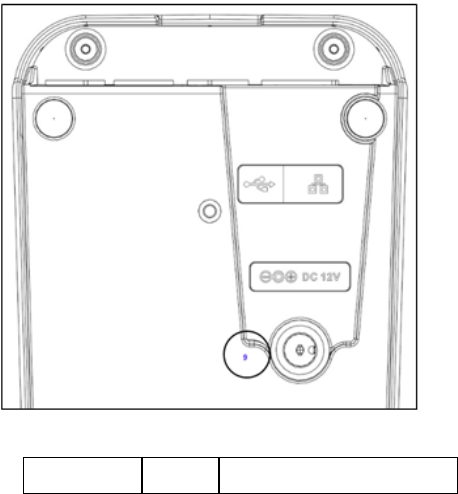

Figure4

BOTTOMAREA 9 DC JACK



BOTTOM

■ XC50 Power spec:

Input:12VDC,3A

■ Power Adapter spec:

Input:100~240ac

Output:12VDC,3A

ThissymbolisintendedtoalerttheuserbeforestartingusingthePOS.

Caution:Thisproductshallbeonlyusedwithacertifiedpowersupplyunitwhichwas

investigatedaccordingtothestandardofIEC60950‐1,UL60950‐1andCAN/CSAC22.2No.

60950‐1‐07,CSAC22.2No.60950‐1,andmarked“I.T.E.LPS”,andwithoperatingtemperature:

minimum40°C,outputrated:12VDC,minimum3A.



 OperatingTemperature:0oCto40oC



3. POWER ON/OFF THE DEVICE



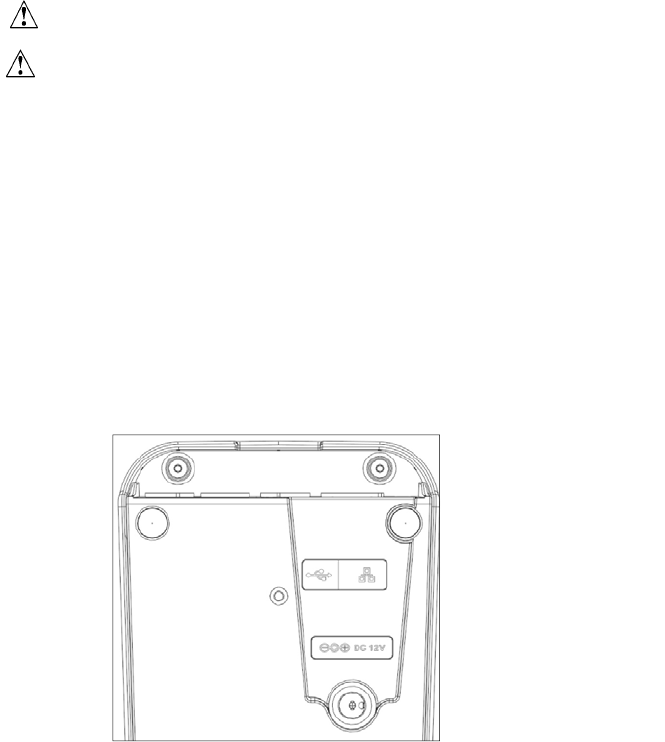

Topoweronthedevice:PlugintheDCJACK

Topoweroffthedevice:PlugofftheDCJACK



Figure5

4. LED BEHAVIORS



InsertPoweradapteranddevicewillpowerup,thereisaLEDstatus:

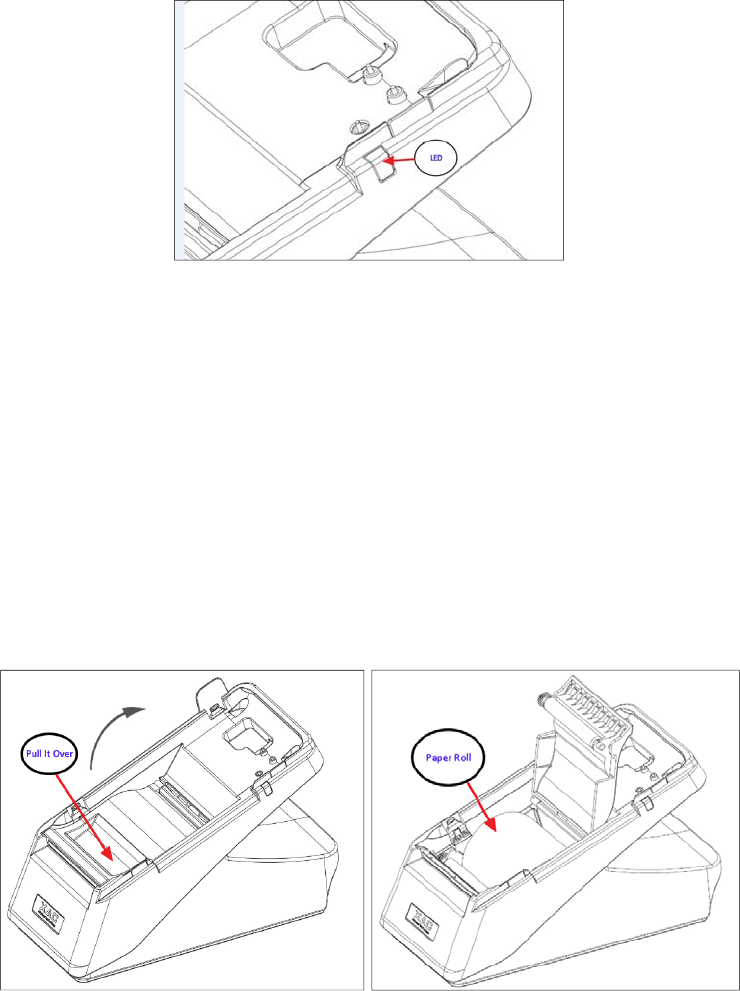

 Location:

z Toprightcorner(Figure6)



Figure6

 SolidRed–XC50ispoweredupandunderbootingprocess

 SolidGreen–XC50bootingprocessissuccessfullycompleted

 BlinkingRed–Firmwareupdateprocess

 RedLightOn–Errorstatus(systemerrorsandfirmwareupgradefailed)

 SolidOrange–Forprinterstatus

5. LOADING THE PAPER

Gentlypoptheprintercover’slatch;thenpullthecover(Figure7).Loadarollofthermalpaper

intotheprinter.Loaditsothattheprint‐sideofthepaperwillfeedoutfacingtheoperator.

Closethecoverbypressingonthecenteroftheprintercover.Usetheserratedbartotearoff

anyexcesspaper.





Figure7

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna

or transmitter.

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance

20cm between the radiator & your body.

Note: The country code selection is for non-US model only and is not available to all US

model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation

channels only.



The above information is the exclusive intellectual property of XAC Automation Corporation and shall not be

disclosed, distributed or reproduced without permission of XAC Automation Corporation.

XAC Automation Corporation

886-3-577-2738
