CONTACTLESS READER MODULE XCE_C150D
I
NSTALLATION
G
UIDE
MODEL:
xCE_C150D
1. IN THE BOX

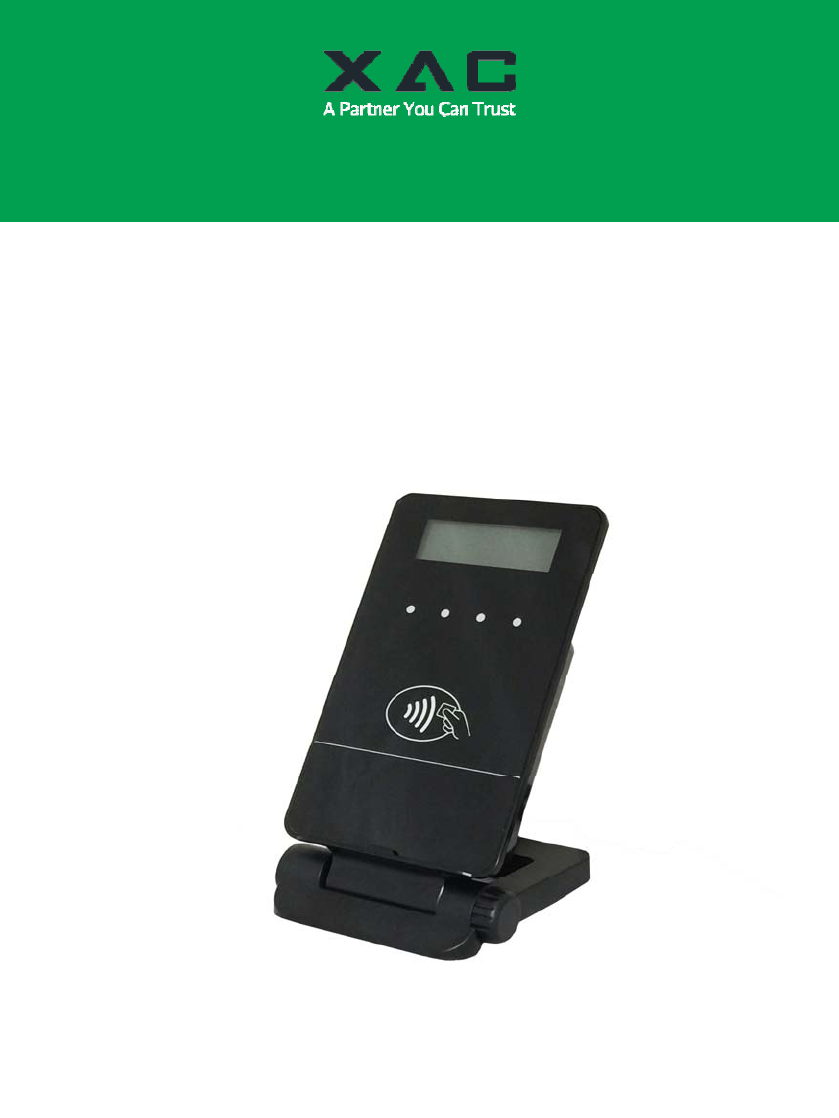

xCE_C150D (Figure 1) with 2 types of cables:
a) RS232 interface (Figure 2) –xCE_C150D is powered by power
adapter.
b) USB interface (Figure 3) –xCE_C150D is powered by host through
USB.
(Figure 1) ( Figure 2) (Figure 3)
2. ANGLE ADJUSTMEN
Locked: Clockwise Release: Counterclockwise (Figure 4)
(Figure 4)
Locked
Release
3. SETTING CONNECTION
z USB interface:
Plug the USB connector into any of the USB port of the host.
z RS232 interface:
Connect the RS232 connector with the COM port of the host.

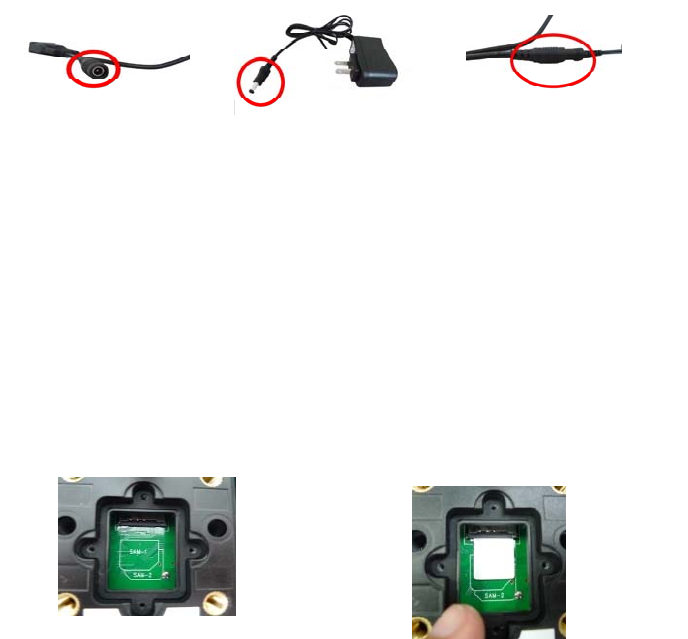

(Figure 5) (Figure 6) (Figure 7)
Connect plugs in Figure 5 and 6 as in Figure 7 until a click sound is
heard.
4. INSTALLING THE SAM CARD
Loosen the screw and open the SAM gate (Figure 8)at the back side of C150D,
insert the SAM card in the slot (Figure 9).
(Figure 8) (Figure 9)
5. USING
CONTACTLESS
CARD
READER
Contactless reader antenna is around the display. It will light up and blinking
the 1st LED when xCE_C150D is powered on and that means reader is ready
for operation.

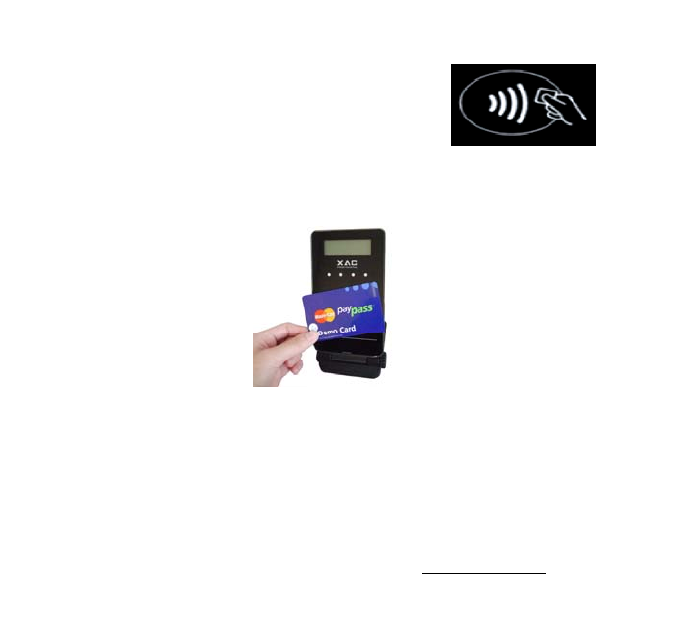

Place contactless card close to contactless logo
(Figure 10).
xCE_C150D would detect the card and read the card data.
(Figure 10)
Caution :
If the power supply is missing from your XAC AUTOMATION CORP. product package, please
contact XAC AUTOMATION CORP. Technical Support at www.xac.com.tw for a replacement.
This product should only be used with a UL listed power supply marked “I.T.E. LPS” with an
output rated 5V DC, minimum 1.0 A, Tma: minimum 40 degree C.
Federal Communications Commission
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
pro-vide reasonable protection against harmful interference when the equipment
is operate din a commercial environment. This equipment generates, uses, and
can radiate radiofrequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
"CAUTION: Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of
Used Batteries According to the Instructions."
