XAVi Technologies XW201M Wireless Mini PCI User Manual
XAVi Technologies Corp. Wireless Mini PCI Users Manual
Users Manual
Hardware Specification
for XW201M RF Module

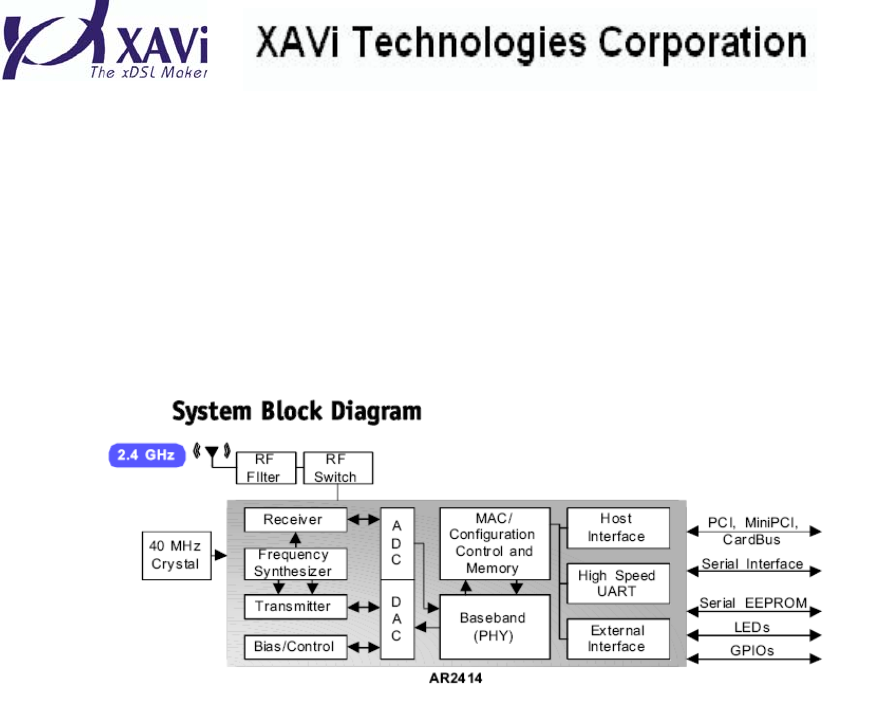

Block Diagram:
Processor : Atheros AR2414 single chip integrated with the MAC/baseband/radio
Memory :
I/O Interface :
Feature :
Wi-fi Wireless Access Point
IEEE802.11b/g
2.4G Dipole Antenna
Rx Sensitivity
Antenna Interface :1x2.4G Dipole Antenna.
minpci
Serial EEPROM:32K
Transmit Power
Test Name Data Rate DUT
Measured
11g RX Sensitivity 6Mbps -88
RX Sensitivity 36Mbps -73
RX Sensitivity 48Mbps -70
RX Sensitivity 54Mbps -68
11b RX Sensitivity 1Mbps -90
RX Sensitivity 2Mbps -87
RX Sensitivity 5.5Mbps -86
RX Sensitivity 11Mbps -85
Test Name Data Rate DUT Measured
11g Transmit power 6Mbps 17 (+1.5/-1.5) dBm
Transmit power 36Mbps 16 (+1.5/-1.5) dBm
Transmit power 48Mbps 15 (+1.5/-1.5) dBm
Transmit power 54Mbps 14 (+1.5/-1.5) dBm
11b Transmit power 1Mbps 17 (+1.5/-1.5) dBm
Transmit power 2Mbps 17 (+1.5/-1.5) dBm
Transmit power 5.5Mbps 17 (+1.5/-1.5) dBm
Transmit power 11Mbps 17 (+1.5/-1.5) dBm

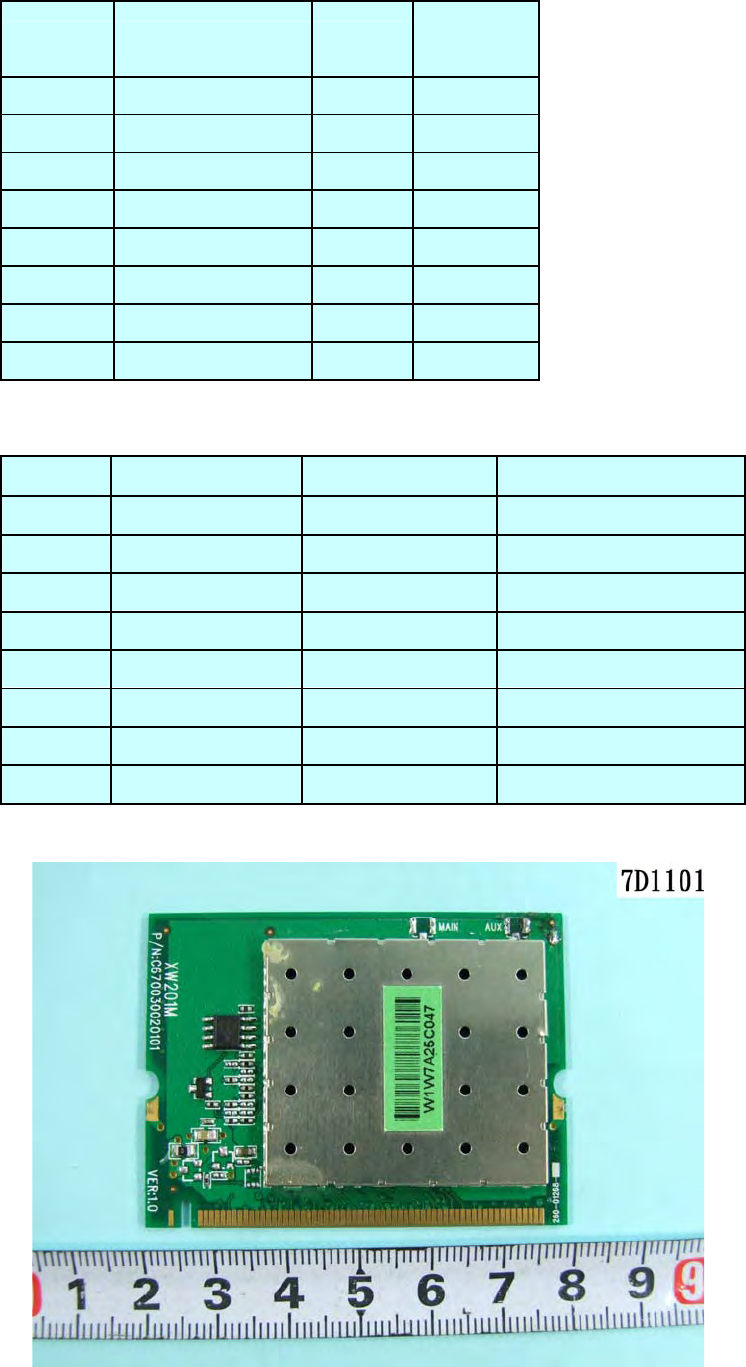

Antenna solder here
