XIAMEN LEELEN TECHNOLOGY EH-MD-B06 Access Control Reader User Manual 1

XIAMEN LEELEN TECHNOLOGY CO., LTD Access Control Reader 1

Users Manual

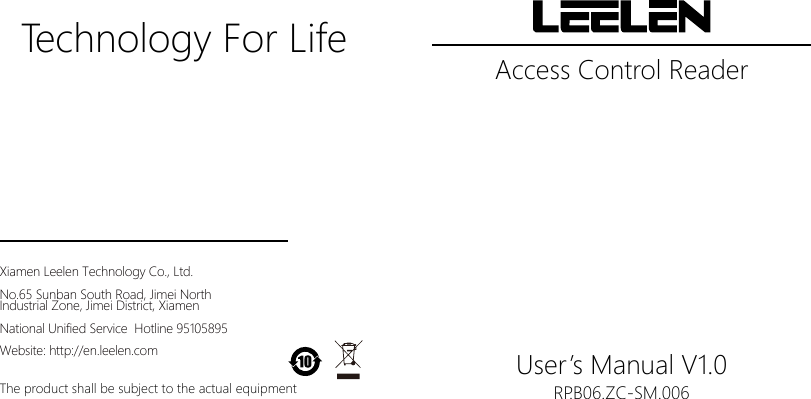

Access Control ReaderUser’s Manual V1.0Technology For LifeRP.B06.ZC-SM.006The product shall be subject to the actual equipmentXiamen Leelen Technology Co., Ltd.No.65 Sunban South Road, Jimei North Industrial Zone, Jimei District, XiamenNational Unified Service  Hotline 95105895Website: http://en.leelen.com

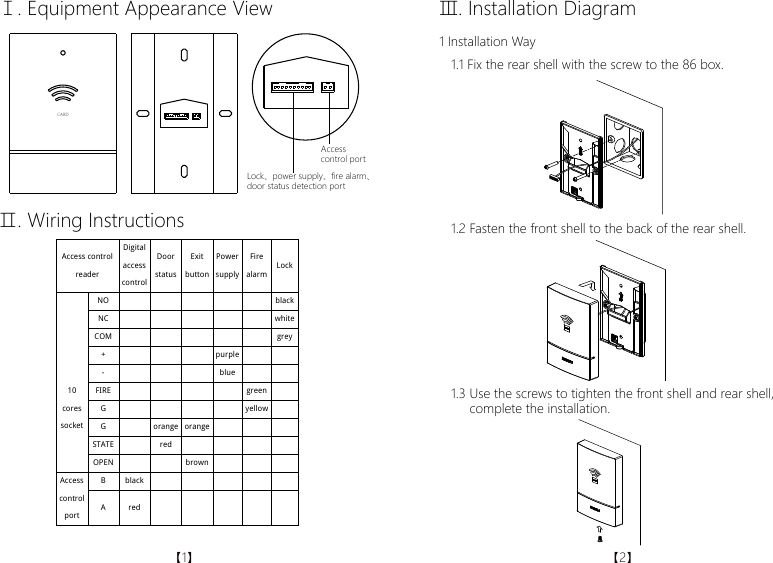

Ⅰ. Equipment Appearance View Ⅲ. Installation DiagramCARDAccess control portLock、power supply、fire alarm、door status detection portⅡ. Wiring InstructionsAccess control reader Digital access control Door status Exit button Power supply Fire alarm Lock     10 cores socket  NO            black NC            white COM            grey +        purple     -        blue     FIRE          green   G          yellow  G    orange orange      STATE    red         OPEN      brown       Access control port B  black           A  red           1 Installation Way1.1 Fix the rear shell with the screw to the 86 box.1.2 Fasten the front shell to the back of the rear shell.1.3 Use the screws to tighten the front shell and rear shell,      complete the installation.【1】 【2】

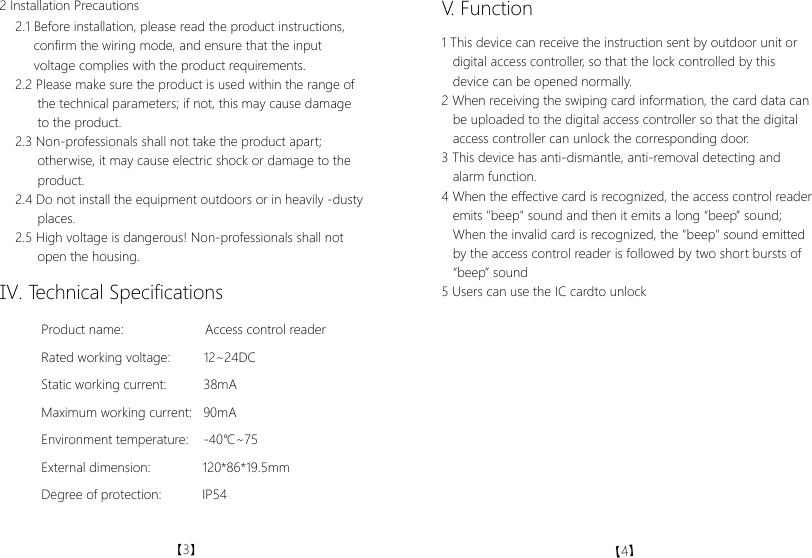

2 Installation Precautions2.1 Before installation, please read the product instructions,     confirm the wiring mode, and ensure that the input      voltage complies with the product requirements.2.2 Please make sure the product is used within the range of      the technical parameters; if not, this may cause damage      to the product.2.3 Non-professionals shall not take the product apart;       otherwise, it may cause electric shock or damage to the       product. 2.4 Do not install the equipment outdoors or in heavily -dusty      places.2.5 High voltage is dangerous! Non-professionals shall not       open the housing.V. Function1 This device can receive the instruction sent by outdoor unit or   digital access controller, so that the lock controlled by this   device can be opened normally.2 When receiving the swiping card information, the card data can   be uploaded to the digital access controller so that the digital   access controller can unlock the corresponding door.3 This device has anti-dismantle, anti-removal detecting and    alarm function.4 When the effective card is recognized, the access control reader   emits "beep" sound and then it emits a long “beep” sound;   When the invalid card is recognized, the "beep" sound emitted   by the access control reader is followed by two short bursts of   “beep” sound 5 Users can use the IC cardto unlockⅣ. Technical SpecificationsProduct name:                      Access control readerRated working voltage:         12~24DCStatic working current:          38mAMaximum working current:   90mAEnvironment temperature:    -40℃~75External dimension:              120*86*19.5mmDegree of protection:           IP54【3】【4】

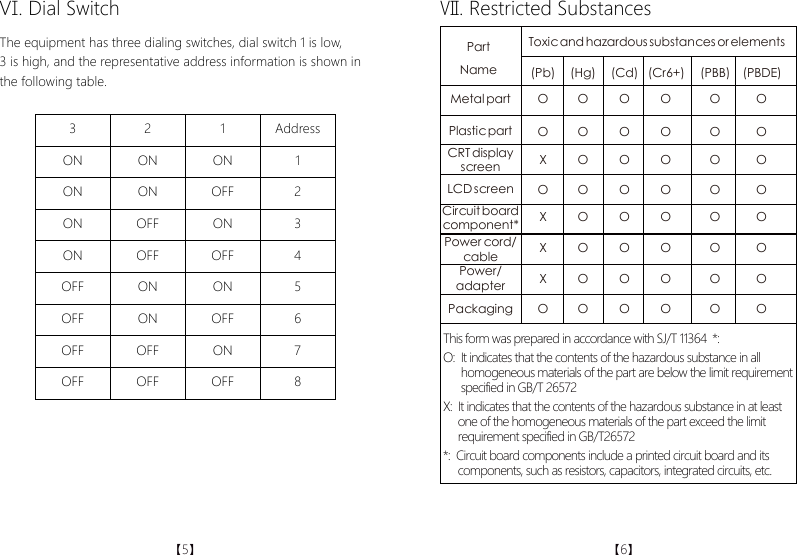

Ⅵ. Dial Switch Ⅶ. Restricted SubstancesThe equipment has three dialing switches, dial switch 1 is low, 3 is high, and the representative address information is shown inthe following table.3 2 1 AddressON ON ONON ONON ONONON ONONONOFFOFFOFF OFFOFFOFFOFFOFFOFFOFF OFFOFF12345678Toxic and hazardous substances or elementsPartNameMetal partPlastic partCRT displayscreenLCD screenCircuit boardcomponent*Power cord/cablePower/adapterPackaging(Pb) (Hg) (Cd) (Cr6+) (PBB) (PBDE)This form was prepared in accordance with SJ/T 11364  *:O:  It indicates that the contents of the hazardous substance in all      homogeneous materials of the part are below the limit requirement      specified in GB/T 26572X:  It indicates that the contents of the hazardous substance in at least      one of the homogeneous materials of the part exceed the limit      requirement specified in GB/T26572*:  Circuit board components include a printed circuit board and its      components, such as resistors, capacitors, integrated circuits, etc.O O O O O OO O O O O OX O O O O OO O O O O OX O O O O OX O O O O OX O O O O OO O O O O O【5】 【6】

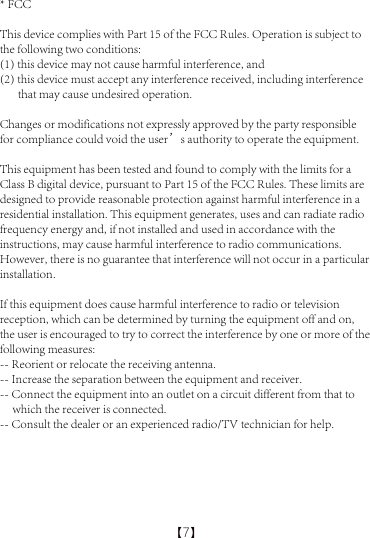

【7】* FCCThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference        that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to      which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help.
