XIAMEN LEELEN TECHNOLOGY EH-MD-B06 Access Control Reader User Manual 1
XIAMEN LEELEN TECHNOLOGY CO., LTD Access Control Reader 1
Users Manual
Access Control Reader
User’s Manual V1.0
Technology For Life
RP.B06.ZC-SM.006
The product shall be subject to the actual equipment
Xiamen Leelen Technology Co., Ltd.
No.65 Sunban South Road, Jimei North
Industrial Zone, Jimei District, Xiamen
National Unified Service Hotline 95105895
Website: http://en.leelen.com

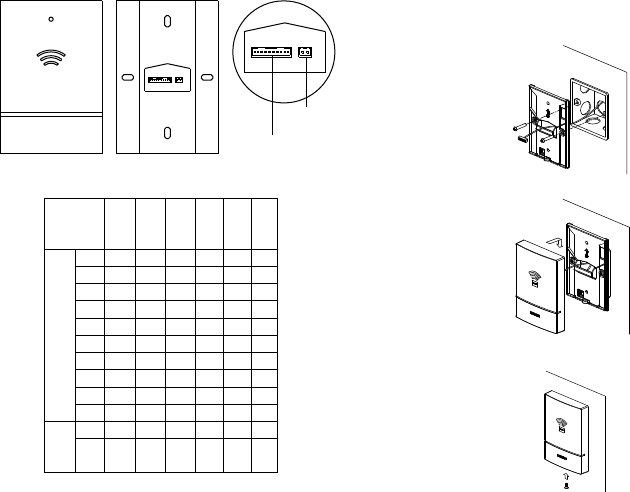

Ⅰ. Equipment Appearance View Ⅲ. Installation Diagram
CARD
Access
control port
Lock、power supply、fire alarm、
door status detection port
Ⅱ. Wiring Instructions
Access control
reader
Digital
access
control
Door
status
Exit
button
Power
supply
Fire
alarm
Lock
10
cores
socket
NO black
NC white
COM grey
+ purple
- blue
FIRE green
G yellow
G orange
orange
STATE red
OPEN brown
Access
control
port
B black
A red
1 Installation Way
1.1 Fix the rear shell with the screw to the 86 box.
1.2 Fasten the front shell to the back of the rear shell.
1.3 Use the screws to tighten the front shell and rear shell,
complete the installation.
【1】 【2】
2 Installation Precautions
2.1 Before installation, please read the product instructions,
confirm the wiring mode, and ensure that the input
voltage complies with the product requirements.
2.2 Please make sure the product is used within the range of
the technical parameters; if not, this may cause damage
to the product.
2.3 Non-professionals shall not take the product apart;
otherwise, it may cause electric shock or damage to the
product.
2.4 Do not install the equipment outdoors or in heavily -dusty
places.
2.5 High voltage is dangerous! Non-professionals shall not
open the housing.
V. Function
1 This device can receive the instruction sent by outdoor unit or
digital access controller, so that the lock controlled by this
device can be opened normally.
2 When receiving the swiping card information, the card data can
be uploaded to the digital access controller so that the digital
access controller can unlock the corresponding door.
3 This device has anti-dismantle, anti-removal detecting and
alarm function.
4 When the effective card is recognized, the access control reader
emits "beep" sound and then it emits a long “beep” sound;
When the invalid card is recognized, the "beep" sound emitted
by the access control reader is followed by two short bursts of
“beep” sound
5 Users can use the IC cardto unlock
Ⅳ. Technical Specifications
Product name: Access control reader
Rated working voltage: 12~24DC
Static working current: 38mA
Maximum working current: 90mA
Environment temperature: -40℃~75
External dimension: 120*86*19.5mm
Degree of protection: IP54
【3】
【4】
Ⅵ. Dial Switch Ⅶ. Restricted Substances
The equipment has three dialing switches, dial switch 1 is low,
3 is high, and the representative address information is shown in
the following table.
3 2 1 Address
ON ON ON
ON ON
ON ON
ON
ON ON
ON
ON
OFF
OFF
OFF OFF
OFF
OFF
OFF
OFF
OFF
OFF OFF
OFF
1
2
3
4
5
6
7
8
Toxic and hazardous substances or elements
Part
Name
Metal part
Plastic part
CRT display
screen
LCD screen
Circuit board
component*
Power cord/
cable
Power/
adapter
Packaging
(Pb) (Hg) (Cd) (Cr6+) (PBB) (PBDE)
This form was prepared in accordance with SJ/T 11364 *:
O:
It indicates that the contents of the hazardous substance in all
homogeneous materials of the part are below the limit requirement
specified in GB/T 26572
X: It indicates that the contents of the hazardous substance in at least
one of the homogeneous materials of the part exceed the limit
requirement specified in GB/T26572
*: Circuit board components include a printed circuit board and its
components, such as resistors, capacitors, integrated circuits, etc.
O O O O O O
O O O O O O
X O O O O O
O O O O O O
X O O O O O
X O O O O O
X O O O O O
O O O O O O
【5】 【6】
【7】
* FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
