XIAMEN LEELEN TECHNOLOGY L8500208 Door Station User Manual Manual
XIAMEN LEELEN TECHNOLOGY CO., LTD Door Station Manual
Manual
1. Door stations
1
Assistant door panel 1x8
Base + card reader
L8 User’s manual
(Door station Model No.8)
2. Technical specification
Camera:
Viewing angle:
Lens:
Resolution:
Min. Illumination:
Video Output:
Audio SNR:
Audio Distortion：
Assistant door panel:
System Capacity:
Card and capacity:
Standby Current:
Working Current:
Power supply:
Environment Temperature:
1/3" CCD
92°
F=3.6
420TV Lines
0.01 Lux
1V/75Ω
P-P
≥25dB
≤7%
Max.16pcs
Max. 132 apartments/building
≤50,000pcs; ID card(Format:EM, 125Kh); IC card (Format:
mifare 1 S50/S70, mifare Ultra Light, mifare Light, 13.56MHz)
≤116mA(direct-call)
≤450mA(direct-call)
DC12V(
-40℃~+45℃
for audio); DC32V(for video)
3. Structure
1
2
3
4
5
Screw
Microphone
Camera
LED
Light sensor
6
7
8
9
10
Speaker
Name tag
Call button
Card reader
Panel
11
11
Guard button
1
2
34
5
6
9
10
78
10
Door station Assistant panel 1x8

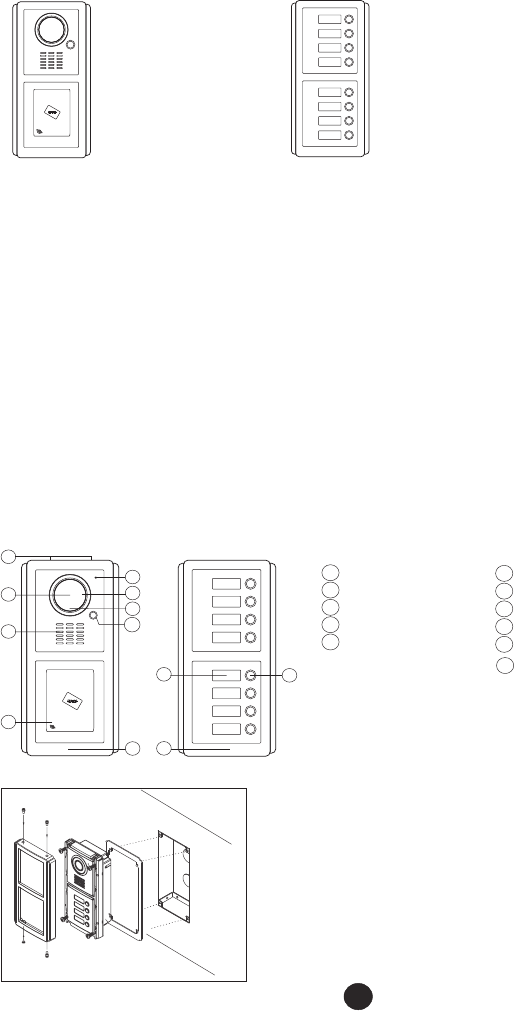

a. Produce a recangle groove as the installation size
(104x214x50mm) on a suitable position and then
fix the box in it with cements or screws(①).
b. Take off the screws and then the frame(②).
c. Put the rubber seal on the back of door panel(③).
d. Put the door panel into the box and fix it with the
screws(③) after connection.
e. Put the frame on the door panel and fix it with the
screws(②).
4. Installation
①
②
③
Frame
Panel Seal
Box
Screws
5. Operation
5.1 Call indoor phones

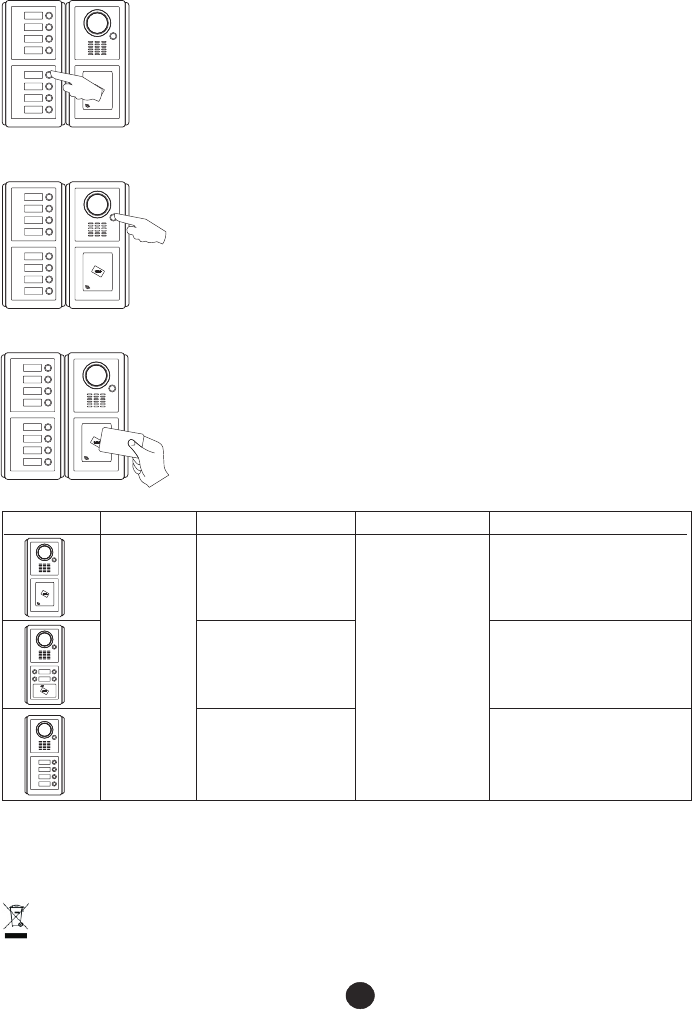

Push a call button on the door station.
5.2 Call the guard unit (if there is)
Push the guard button as the following figure.
5.3 Release door with registered card
Move the registered card over the card reader as the following figure.
2
Product p odel numbers Sizes: L x W x D (mm) Exclusive featureshotos Model names Series m
Model No.8
6. Door station list
240X120X58
JB-5 000 L8-5 002MGLC-I P(8)- 8
JB-5000 L8-5002 MLC-I P(8)-8
JB-5000 L8-5002MGC(8)-8 With card reader or without.
With card reader and 4 call buttons
With 2~4 call buttons
XIMAN LEELEN TECHNOLOGY CO.,LTD.
65, SUNBAN SOUTH ROAD, JIMEI, XIAMEN, 361021 CHINA
