XIAMEN LEELEN TECHNOLOGY L8500215 2nd-confirm door station User Manual
XIAMEN LEELEN TECHNOLOGY CO., LTD 2nd-confirm door station
User manual
2. Technical specification
6.4.3 Structure
Camera:
Viewing angle:
Lens:
Resolution:
Min. illumination:
Video output:
Audio SNR:
Audio distortion:
Standby current:
Working current:
Working voltage:
Environment temperature:
1/3" CCD or CMOS
92°
F=3.6
420TV Line
0.01 LUX
1Vp-p/75Ω
≥25dB
≤7%
≤60mA
≤230mA
DC12V (for audio); DC32V (for video)
-40℃～+45℃

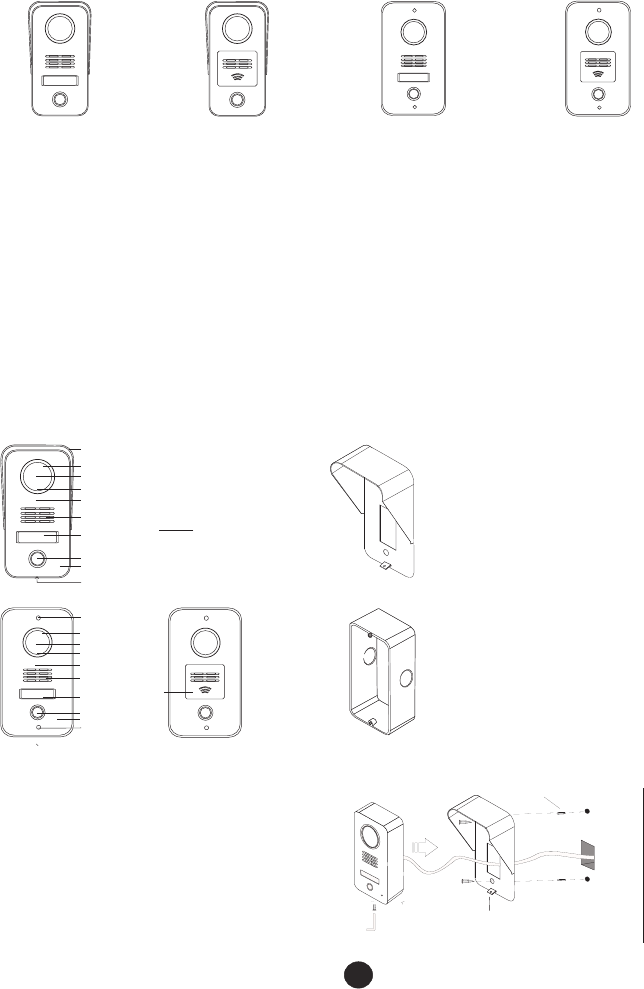

B) Model No.15 (Flush mount):
LEDs
Camera
Light sensor
Cast aluminium panel
Speaker
Name tag
Call button
Microphone
Screw
Screw
Card reader
inside
Flush mount box
A) Model No.15 (Surface mount):
Rain shield(Surface
mount bracket)
LEDs
Camera
Light sensor
Cast aluminium panel
Speaker
Name tag
Call button
Microphone
Screw
Card reader
inside
Surface mount bracket
1
L8 User’s Manual
(2nd-confirm door stations)
1. Door stations
Model No.15A surface mount
79X148X45(mm)
Model No.15C flush mount
93X168X52(mm)
Model No.15B surface mount,
card reader. 79X148X45(mm)
Model No.15D flush mount,
card reader. 93X168X52(mm)
4. Installation
A) Surface mount
a. Take off the door panel from the bracket
with the enclosed screw driver( ).
b. Fix the bracket on the wall with two screws
and expansion plugs( ).
c. Put the door panel on the bracket and fix it
after connect the cable( ).
①
②
③①
②
Bracket(rain shield)
Door panel
expansion plugs
③
Model No.15

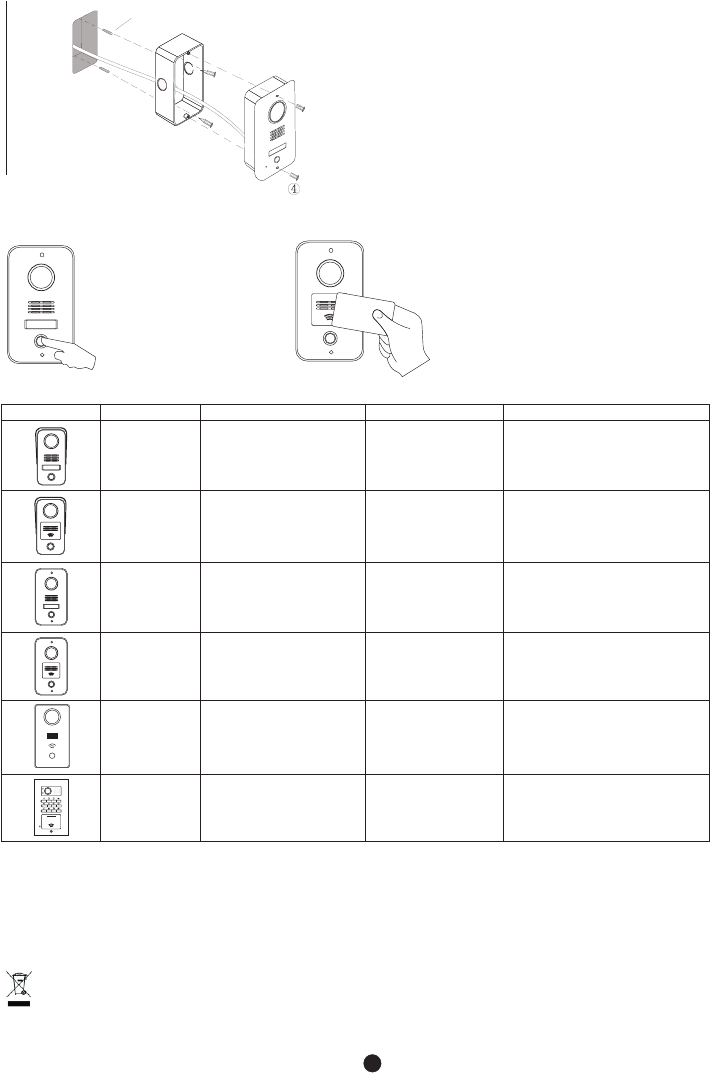

B) Flush mount
a. Produce a groove (75x150x50mm)
on a proper position of the wall( ).
b. Take off the door panel from the box
with the enclosed screw driver( ).
c. Fix the box in the groove with screws
and expansion plugs( ).
d. Fix the door panel in the box with the
screws( ).
①
②③
①
④
Door panel
Box
expansion plugs
②
①
③
2
B. Use cards to release doors
5. Operation on door stations
A. Call residents
6. 2nd-confirm door station list
Product p odel numbers Sizes: L x W x D (mm) Exclusive featureshotos Model names Series m
102X175X39
CA L L
MIC
Model No.15A
Model No.15B
Model No.15C
Model No.15D
Model No.15E
Model No.18
JB-5000 L8-5002MBGCW(8)-S15
JB-5000 L8-5002MBGCQ(8)-S15
JB-5000 L8-5002MBCNW(8)-S15
JB-5000 L8-5002MBCNQ(8)-S15
With name tag and surface mount
With card reader and surface mount
With card reader and flush mount
With card reader and flush mount
With name tag and flush mount
93X168X52
93X168X52
79X148X45
79X148X45
With keypad
With keypad and card reader
JB-5000 L8-5002M BCQ(8) -S18A
JB-5000 L8-5002M BGCQ (8) -S18A
93×1 68×3 2
JB-5 000 L8-5002MBCQ(8 )-S 15E
XIMAN LEELEN TECHNOLOGY CO.,LTD.
65, SUNBAN SOUTH ROAD, JIMEI, XIAMEN, 361021 CHINA
This appliance shall not be disposed together
with the normal waste. It must be recycled.
Atitude during operation below 2km.
