XIAMEN LEELEN TECHNOLOGY L8500216 Door Station User Manual Manual

XIAMEN LEELEN TECHNOLOGY CO., LTD Door Station Manual

Manual

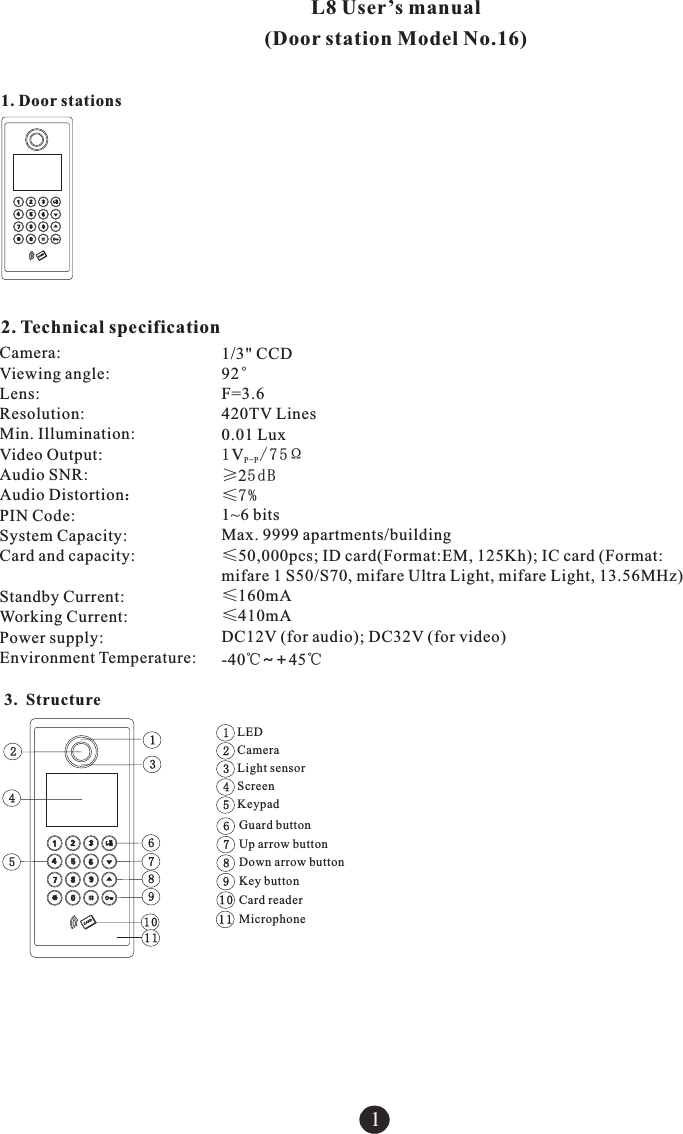

1. Door stations1L8 User’s manual (Door station Model No.16)2. Technical specificationCamera: Viewing angle:Lens:Resolution: Min. Illumination:Video Output: Audio SNR: Audio Distortion：PIN Code: System Capacity: Card and capacity: Standby Current: Working Current:Power supply: Environment Temperature:1/3" CCD92°F=3.6420TV Lines0.01 Lux1V/75ΩP-P≥25dB≤7%1~6 bitsMax. 9999 apartments/building≤50,000pcs; ID card(Format:EM, 125Kh); IC card (Format:mifare 1 S50/S70, mifare Ultra Light, mifare Light, 13.56MHz)≤160mA≤410mA-40℃~+45℃DC12V (for audio); DC32V (for video)3. Structure2131 06789511412345LEDCameraLight sensorScreenKeypad678910Guard buttonCard readerMicrophoneUp arrow buttonDown arrow buttonKey button11

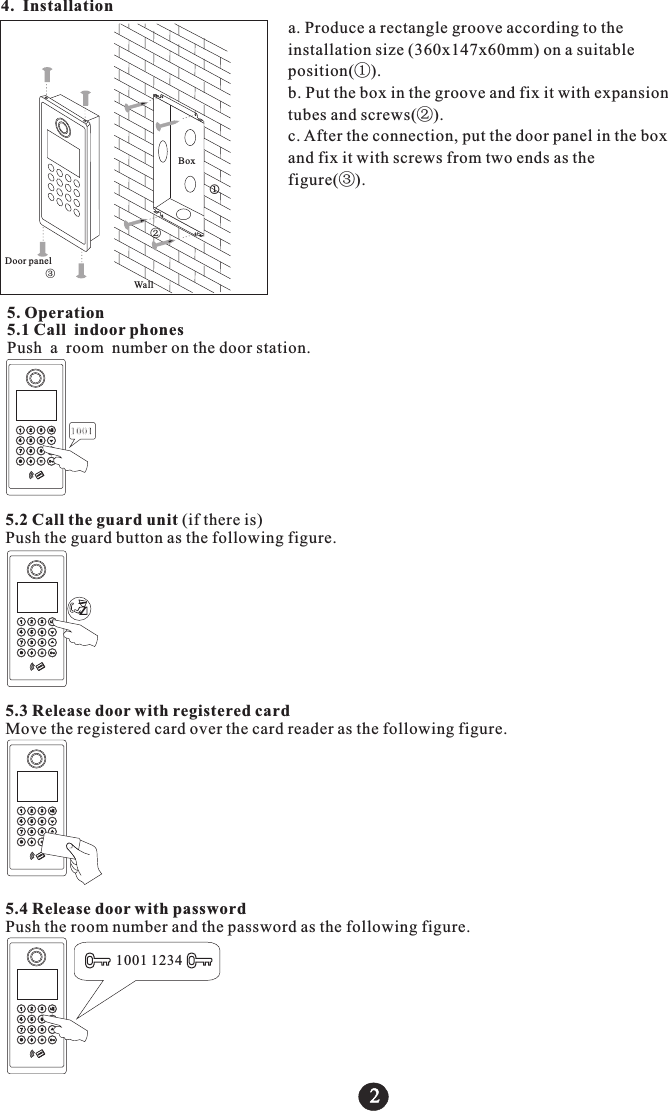

4. Installation 2②j③BoxDoor panelWalla. Produce a rectangle groove according to the installation size (360x147x60mm) on a suitable position(①).b. Put the box in the groove and fix it with expansion tubes and screws(②).c. After the connection, put the door panel in the box and fix it with screws from two ends as the figure(③).5. Operation5.1 Call indoor phonesPush a room number on the door station.10015.2 Call the guard unit (if there is)Push the guard button as the following figure.5.3 Release door with registered cardMove the registered card over the card reader as the following figure.5.4 Release door with passwordPush the room number and the password as the following figure.1001 1234

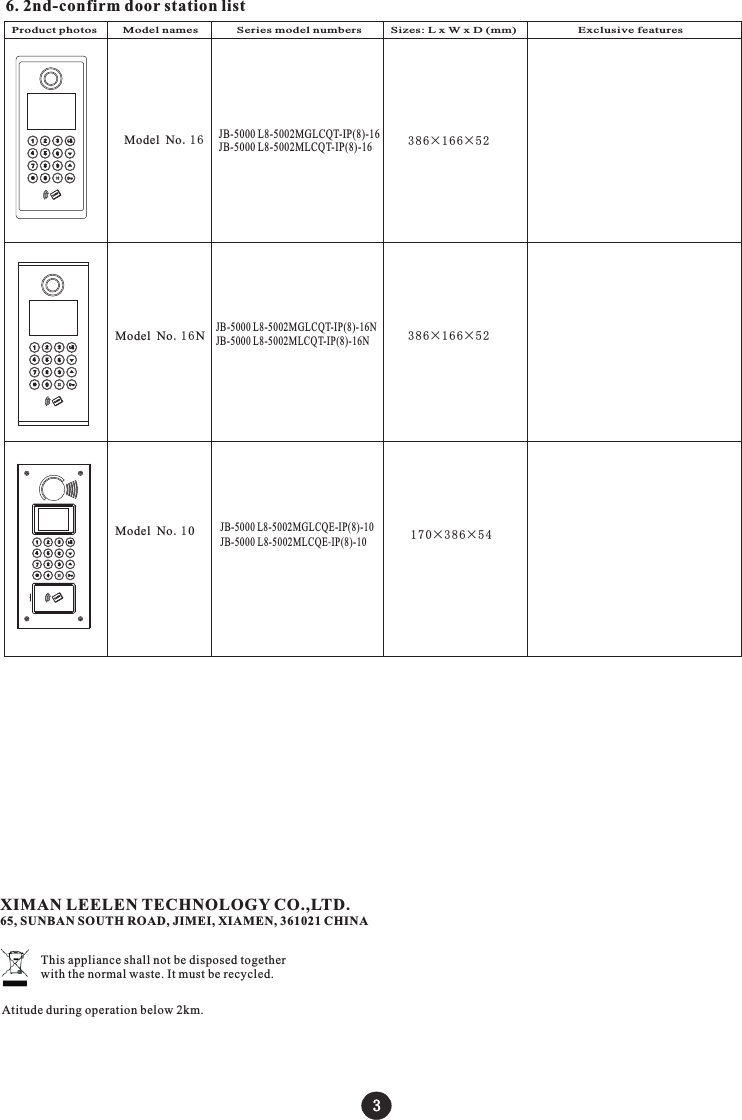

36. 2nd-confirm door station listProduct p odel numbers Sizes: L x W x D (mm) Exclusive featureshotos Model names Series mModel No.16Model No.16NModel No.10JB-5000 L8-5002MGLCQT-IP(8)-16JB-5000 L8-5002MLCQT-IP(8)-16JB-5000 L8-5002MGLCQT-IP(8)-16N JB-5000 L8-5002MLCQT-IP(8)-16NJB-5000 L8-5002MGLCQE-IP(8)-10JB-5000 L8-5002MLCQE-IP(8)-1038 6×1 66×5 238 6×1 66×5 217 0×3 86×5 4XIMAN LEELEN TECHNOLOGY CO.,LTD.65, SUNBAN SOUTH ROAD, JIMEI, XIAMEN, 361021 CHINAThis appliance shall not be disposed together with the normal waste. It must be recycled.Atitude during operation below 2km.

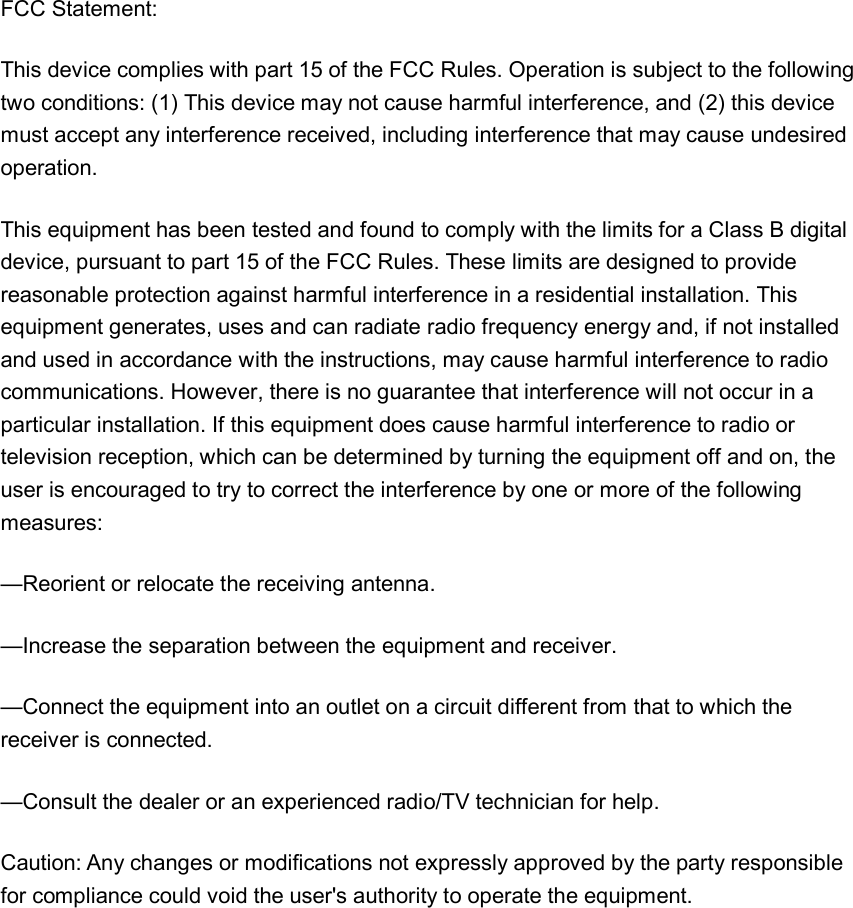

FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
