XIAMEN LEELEN TECHNOLOGY L8500216 Door Station User Manual Manual
XIAMEN LEELEN TECHNOLOGY CO., LTD Door Station Manual
Manual
1. Door stations
1
L8 User’s manual
(Door station Model No.16)
2. Technical specification
Camera:
Viewing angle:
Lens:
Resolution:
Min. Illumination:
Video Output:
Audio SNR:
Audio Distortion：
PIN Code:
System Capacity:
Card and capacity:
Standby Current:
Working Current:
Power supply:
Environment Temperature:
1/3" CCD
92°
F=3.6
420TV Lines
0.01 Lux
1V/75Ω
P-P
≥25dB
≤7%
1~6 bits
Max. 9999 apartments/building
≤50,000pcs; ID card(Format:EM, 125Kh); IC card (Format:
mifare 1 S50/S70, mifare Ultra Light, mifare Light, 13.56MHz)
≤160mA
≤410mA
-40℃~+45℃
DC12V (for audio); DC32V (for video)

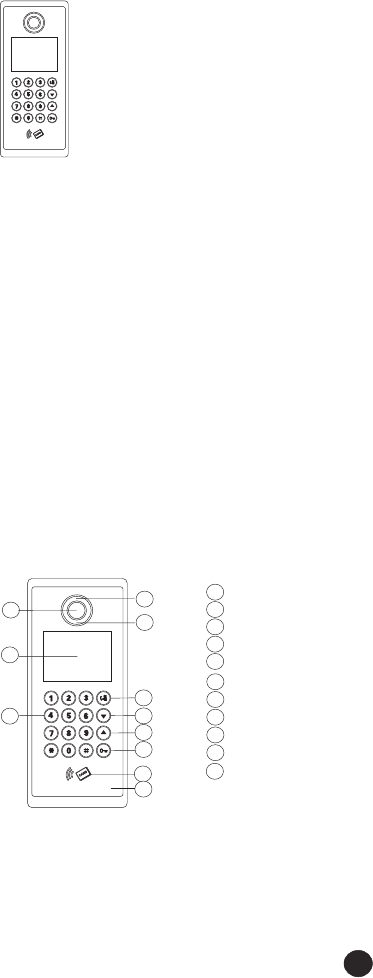

3. Structure
2
1
3
1 0
6
7
8
9
5
11
4
1
2
3
4
5
LED
Camera
Light sensor
Screen
Keypad
6
7
8
9
10
Guard button
Card reader
Microphone
Up arrow button
Down arrow button
Key button
11

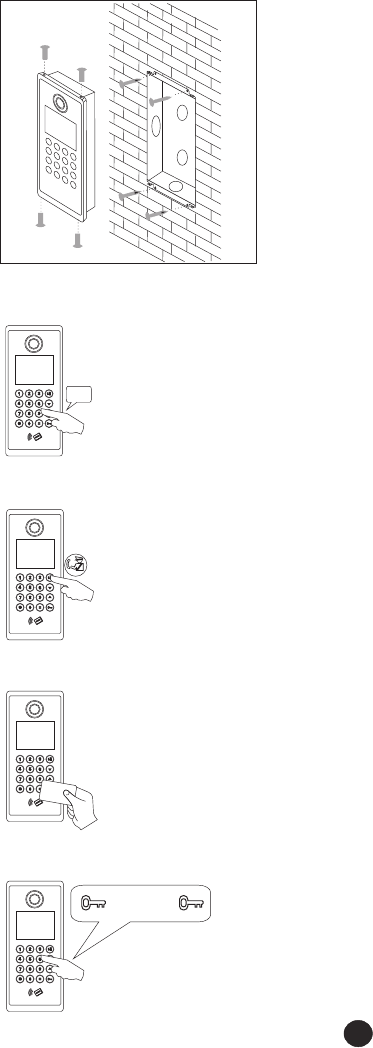

4. Installation
2
②
j
③
Box
Door panel
Wall
a. Produce a rectangle groove according to the
installation size (360x147x60mm) on a suitable
position(①).
b. Put the box in the groove and fix it with expansion
tubes and screws(②).
c. After the connection, put the door panel in the box
and fix it with screws from two ends as the
figure(③).
5. Operation
5.1 Call indoor phones
Push a room number on the door station.
1001
5.2 Call the guard unit (if there is)
Push the guard button as the following figure.
5.3 Release door with registered card
Move the registered card over the card reader as the following figure.
5.4 Release door with password
Push the room number and the password as the following figure.
1001 1234
3

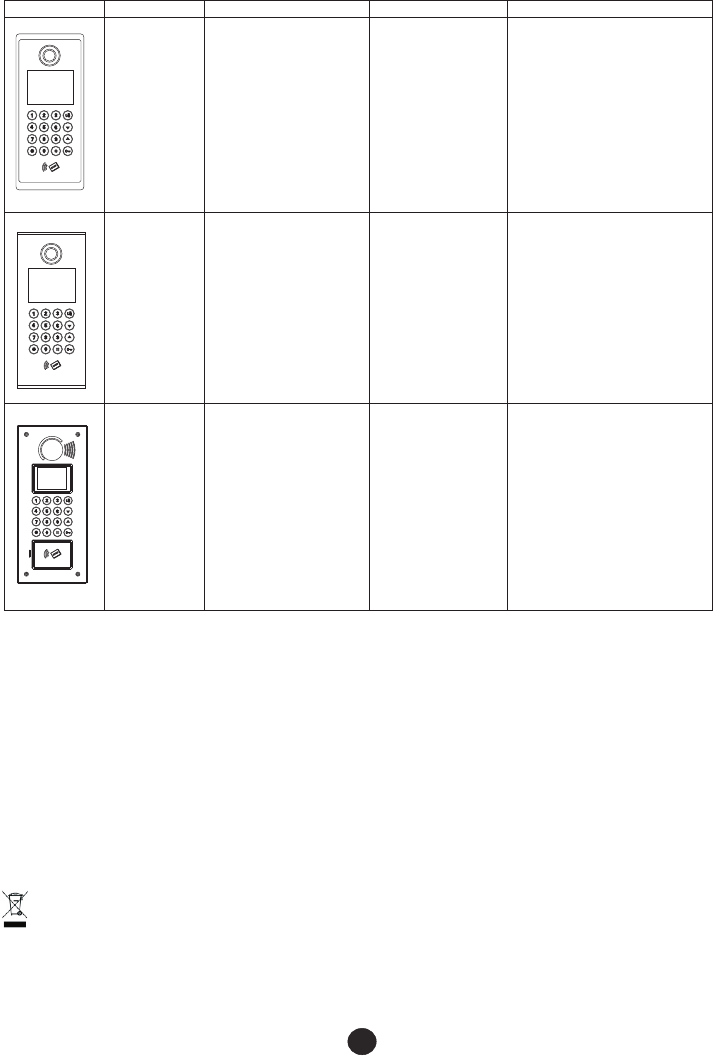

6. 2nd-confirm door station list
Product p odel numbers Sizes: L x W x D (mm) Exclusive featureshotos Model names Series m
Model No.16
Model No.16N
Model No.10
JB-5000 L8-5002MGLCQT-IP(8)-16
JB-5000 L8-5002MLCQT-IP(8)-16
JB-5000 L8-5002MGLCQT-IP(8)-16N
JB-5000 L8-5002MLCQT-IP(8)-16N
JB-5000 L8-5002MGLCQE-IP(8)-10
JB-5000 L8-5002MLCQE-IP(8)-10
38 6×1 66×5 2
38 6×1 66×5 2
17 0×3 86×5 4
XIMAN LEELEN TECHNOLOGY CO.,LTD.
65, SUNBAN SOUTH ROAD, JIMEI, XIAMEN, 361021 CHINA
This appliance shall not be disposed together
with the normal waste. It must be recycled.
Atitude during operation below 2km.
