Users Manual



Stamps.comP2Printer



InstallationGuide



InstallingtheprinterdriverviaUSB

1. Unzipthefile“InstallP2v4.zip”toatemporaryfolder(forexamplec:\InstallP2v4\drivers)

2. Attachthepowercabletothepoweradapter

3. PlugthepoweradapterintotheDCpowerconnectoronthebackoftheprinter.Plug

theotherendofthepowercableintoapoweroutlet

4. Connectthescaletothecomputerbyattachingthe“A”endoftheUSBcabletoyour

computerandthe“B”endoftheUSBcabletotheprinter.

5. TurntheprinteronusingtheOn/Offbuttononthefrontoftheprinter.Youwill

seeaseriesofmessagesonyourcomputerscreenthatindicatetheprinterhasbeen

detectedbyyourcomputer.The“FoundNewHardware”wizardwilllaunch

automaticallytoinstalltheprinterdriver

6. Pointthewizardtothetemporaryfolderwherethefileswereextracted

(c:\InstallP2v4\drivers).Click

7. Click“ContinueAnyway”.Thedriverfileswillbecopiedautomatically.



LoadingPaper

1. SwitchPrinterOFF

2. Opentheprinterlid

3. Putpaperinspoolmakingsurethepaperholeisontheleftside

4. Putspoolbackintotheprinter.Pullthepaperandmakeitpassunderpaperguides.



5. Closethelid

6. SwitchthePrinterON

7. PresstheAdvancebuttontopositionthepaper

PrintingviaUSB

1. OpentheMSWordfileP2Test.doc

2. FromMSWord,clickFilePrint.Select“Stamps.comP2Printer”



3. ClickOK

ConfiguringLAN

TheprinterdoesnotsupportautomaticIPaddressingorDHCP,itmustbeconfiguredwitha

staticIPaddress.The2FCCsamplesareshippedwiththefollowingconfiguration



IP address: 192.168.0.130

TCP port: 1024

Netmask: 255.255.255.0

Gateway: 192.168.0.1

TochangetheLANsettings,installtheLANSettingConfigurationWindowssoftware

Unzipthefile“lansettings.zip”toafolderand“Run”the“setup.exe”andclick“Next”when

prompted.

Theprintermustbeputinto“ISPMode”(In‐SystemProgramming)inordertochangetheLAN

settings.Followtheinstructionbelowtodoso.

1. Unplugtheprinteradaptorfromthemains.

2. ConnecttheprintertothecomputerusingaUSBcable.

3. Plugtheadaptorbackintothemains.DonotpresstheON/OFFbutton.

4. Puttheprinterinto“ISPMode”byholdingtheAdvancebuttondown(donotreleaseyet)and

thenpressON/OFFbutton.ReleasetheAdvancebutton.TheBlueLEDontheAdvancebutton

willblinktodenotethattheprinterisin“ISPMode”.

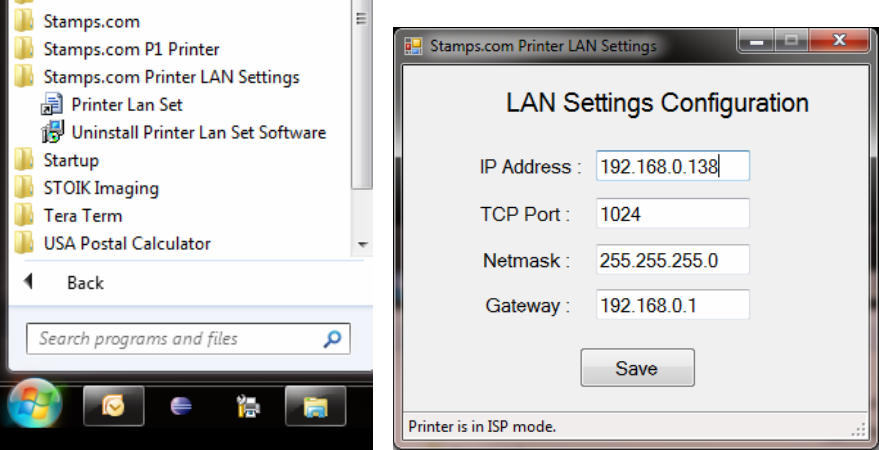

Clickonthe“PrinterLanSet”linktoopenthesoftwareandchangetheLANsettings.

 

NOTE:PleasedonotchangetheTCPPortdefaultvalue=1024



Click“Save”buttontoconfirmchange.



InstallingtheLANPrinter

InstallingtheLANprinterinWindowsXP:

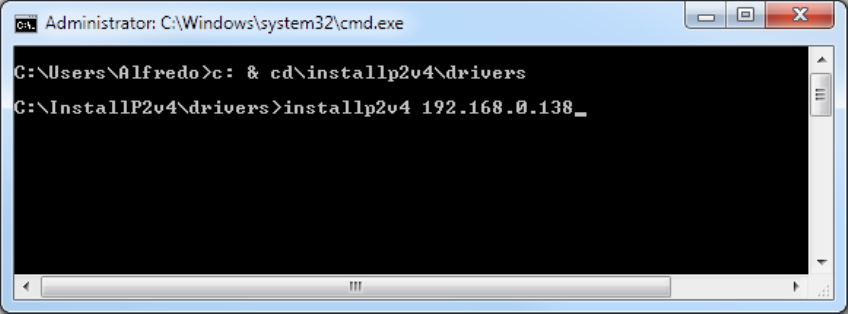

1. OpenaDOSpromptandgotothedriversdirectory



2. Type“installp2v4 ipaddress”whereipaddressistheIPaddressthatyou

haveused(forexampleinstallp2v4 192.168.0.138)

3. PressEnterkey

4. TheprinterwillbeinstalledasStamps.comP2Printer(LAN)



PrintingviaLAN

1. OpentheMSWordfileP2Test.doc

2. FromMSWord,clickFilePrint.Select“Stamps.comP2Printer(LAN)”



3. ClickOK



PrinterWebserver

Openabrowserandentertheaddresshttp://192.168.0.138toviewthe

printer’ssimplewebserver.



FCCStatement

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,

pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable

protectionagainstharmfulinterferencewhentheequipmentisoperatedinacommercial

environment.Thisequipmentgenerates,uses,andcanradiateradiofrequencyenergyand,if

notinstalledandusedinaccordancewiththeinstructionmanual,maycauseharmful

interferencetoradiocommunications.Operationofthisequipmentinaresidentialareaislikely

tocauseharmfulinterferenceinwhichcasetheuserwillberequiredtocorrecttheinterference

athisownexpense.



FCCCaution

Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliance

couldvoidtheuser’sauthoritytooperatethisequipment.



FCCWarning

ThisequipmenthasbeentestedandfoundtocomplywiththeregulationsforaClassBdigital

device,pursuanttoPart15oftheFCCRules.

Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference.

(2)Thisdevicemustacceptanyinterferencereceivedincludinginterferencethatmaycause

undesiredoperation.


