The Xerox DocuPrint 4512/

4512N Network Laser Printer

Setting Up Guide

Xerox Corporation Xerox Canada, Limited

701 South Aviation Blvd. 5650 Yonge Street

El Segundo, CA North York, Ontario

90245 Canada

USA M2M 4G7

Americas Operations Support Rank Xerox, Limited

800 Long Ridge Road Parkway

Stamford, CT Marlow

06904-1600 Buckinghamshire

USA SL7 1YL

United Kingdom

information now allowed by statutory or judicial law or hereinafter granted, including

without limitation, material generated from the software programs which are displayed on

the screen such as styles, templates, icons, screen displays, looks, etc.

XEROX®, The Document Company®, the stylized X, DocuPrint, and 4512 are

trademarks of Xerox Corporation or its subsidiaries.

Adobe® and PostScript® are trademarks of Adobe Systems Incorporated.

MultiGray is a trademark of Xionics Document Technologies, Inc. TrueRes is a

trademark of DP-Tek. PCL, HP, and LaserJet are trademarks of Hewlett-Packard

Company. IBM is a trademark of International Business Machines Corporation.

Microsoft, Microsoft Windows, Microsoft Word, MS, and MS-DOS are trademarks of

Microsoft Corporation. Intellifont is a registered trademark of Miles, Inc. MicroType is a

trademark of Bayer Corporation, Agfa Division. Times, Univers, Helvetica, and Palatino

are trademarks of LINOTYPE-HELL AG and/or its subsidiaries. ITC Avant Garde, ITC

Bookman, ITC Zapf Chancery, and ITC Zapf Dingbats are registered trademarks of

International Typeface Corporation. Arial and Times New Roman are registered

trademarks of the Monotype Corporation PLC. WordPerfect is a trademark of

WordPerfect Corporation. Centronics is a trademark of Centronics Corporation.

Macintosh and TrueType are trademarks of Apple Computer, Incorporated. OnPage is a

trademark of Computer:applications, Inc. All other product names are trademarks/

tradenames of their respective owners.

PCL and PCL 5e are trademarks of Hewlett-Packard Company. This printer contains an

emulation of the Hewlett-Packard PCL 5e command language, recognizes HP PCL 5e

commands, and processes these commands in a manner comparable with

Hewlett-Packard LaserJet printer products.

Notice Specifications described in this publication are subject to change without notice. Use of

some features may be limited by your hardware or software configuration. Contact your

dealer, Xerox, or Rank Xerox for details.

Setting Up Guide ❖ 1

Table of Contentsi

Overview ............................................................................................... 2

Selecting a Printer Location ................................................................ 3

Unpacking the Printer .........................................................................

Getting to Know the Printer ................................................................

Assembling the Printer ........................................................................

Testing the Printer .............................................................................

Installing Printer Options .................................................................. 13

Connecting to the Host ......................................................................

Xerox Font Manager .........................................................................

Installing a Printer Driver ................................................................. 17

What to Do Next ................................................................................. 19

Setting Up the DocuPrint 4512/4512N

2 ❖ Setting Up Guide

Overview Setting up your Xerox DocuPrint 4512/4512N Network Laser Printer is

quite easy. It will likely take 10 to 30 minutes, depending on which

printer options you install. Follow all instructions in this guide to

complete printer setup.

1. “Selecting a Printer Location” (page 3)

2. “Unpacking the Printer” (page 4)

3. “Getting to Know the Printer” (page 5)

4. “Assembling the Printer” (page 6)

5. “Testing the Printer” (page 12)

6. “Installing Printer Options” (page 13)

7. “Connecting to the Host” (page 14)

8. “Xerox Font Manager” (page 16)

9. “Installing a Printer Driver” (page 17)

Setting Up the DocuPrint 4512/4512N

Setting Up Guide ❖ 3

Selecting a

Printer

Location

Select a printer location that meets the minimum space requirements

shown in Figure 1. Set the printer on a flat, stable surface away from

direct sunlight and electrical interference.

In selecting a location for the printer, you should also consider the

following:

• Is the Control Panel accessible for viewing and use?

• Is there enough clearance above and around the printer to replace

consumables?

• Is there enough clearance above the printer to add the optional High

Capacity Feeder? It adds 155 mm (6.5 in.) to the height of the

printer.

• Is there enough clearance around the printer to install options on the

controller board (accessed from the rear)?

• Is there enough clearance around the printer should it ever require

servicing? (If not, you may need to relocate the printer for

servicing.)

Figure 1 Minimum space

requirements around

the printer

Top View

18 in. (203 mm)

24 in. (102 mm)

320 in. (508 mm)

Setting Up the DocuPrint 4512/4512N

4 ❖ Setting Up Guide

Unpacking the

Printer

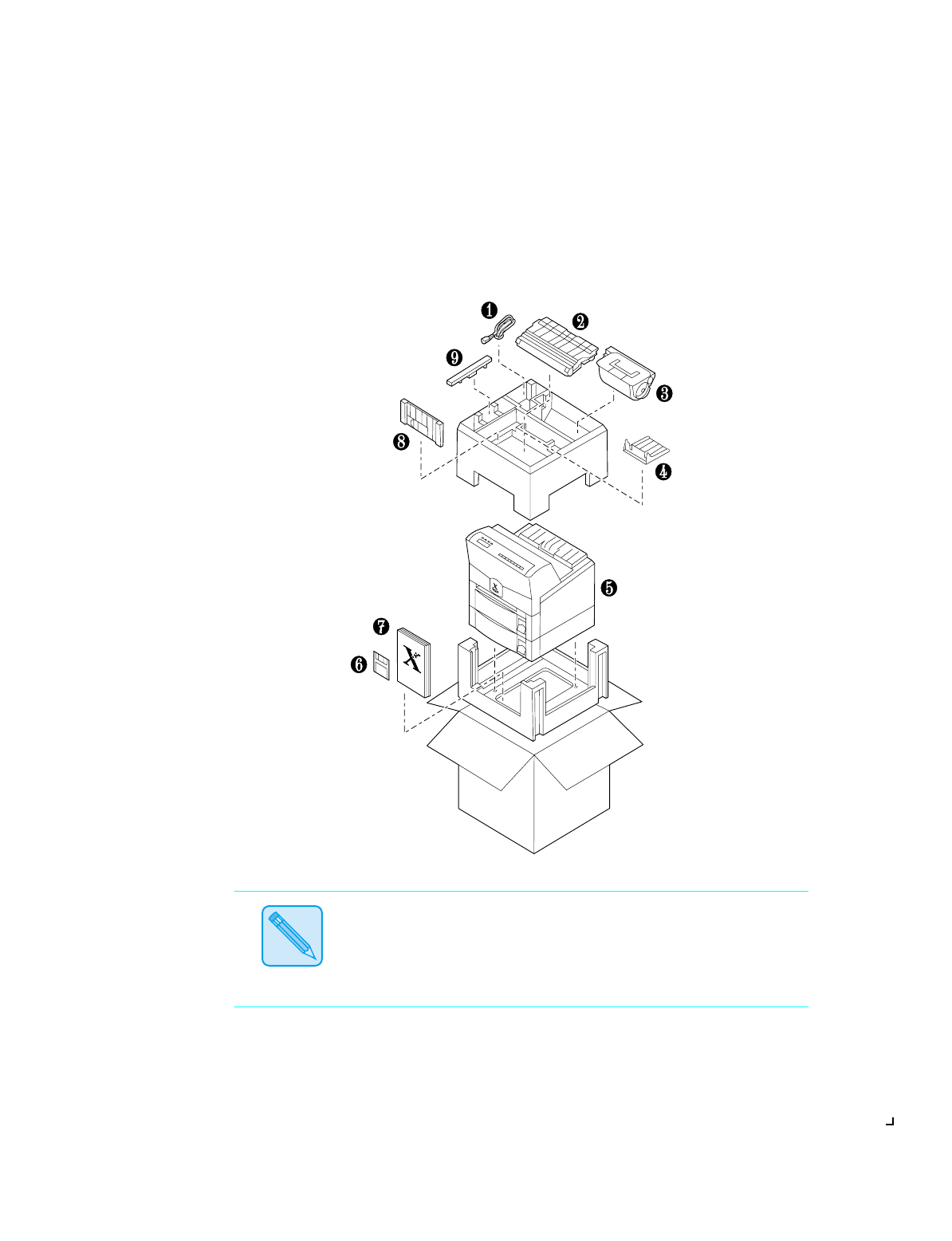

Unpack the printer from its box. Make sure that all of the parts, as

shown in Figure 2, are present. If they are not, contact your dealer or

Xerox/Rank Xerox.

Figure 2 Printer parts

1Power Cord

2Photoconductor / Drum

3Toner Cartridge

4Tray Extension

5Printer

6Diskettes

7User Documentation

8Manual Feed Guide

9Cleaning Felt

Note

Keep all packing material should you ever need to repack and transport

the printer.

Setting Up the DocuPrint 4512/4512N

Setting Up Guide ❖ 5

Getting to

Know the

Printer

First, familiarize yourself with the major components identified in

Figure 3. Then continue with “Assembling the Printer” (page 6).

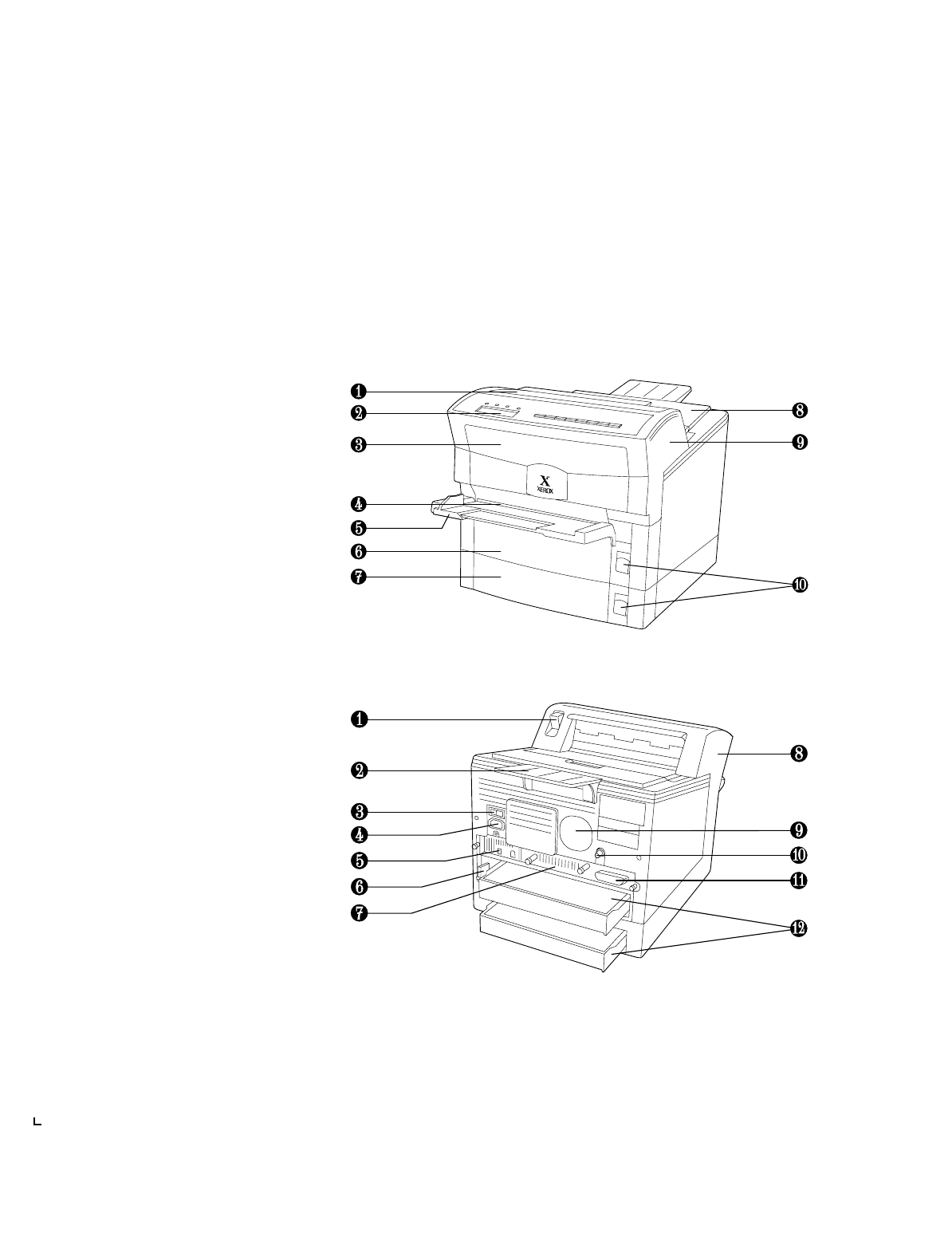

Figure 3 Major printer components

Front View

1Fuser Cover

2Control Panel Display

3Front Cover

4Manual Feed Slot

5Manual Feed Guide

6Upper Paper Tray

7Lower Paper Tray

8Paper Output Tray

9Top Cover

10 Tray Release Buttons

Rear View

1Top Cover Release Lever

2Tray Extension

3Power Switch

4Power Cord Connector

5High Capacity Feeder

Connector

6Corotron Cleaner

7Controller Board

8Top Cover

9Cooling Fan Outlet

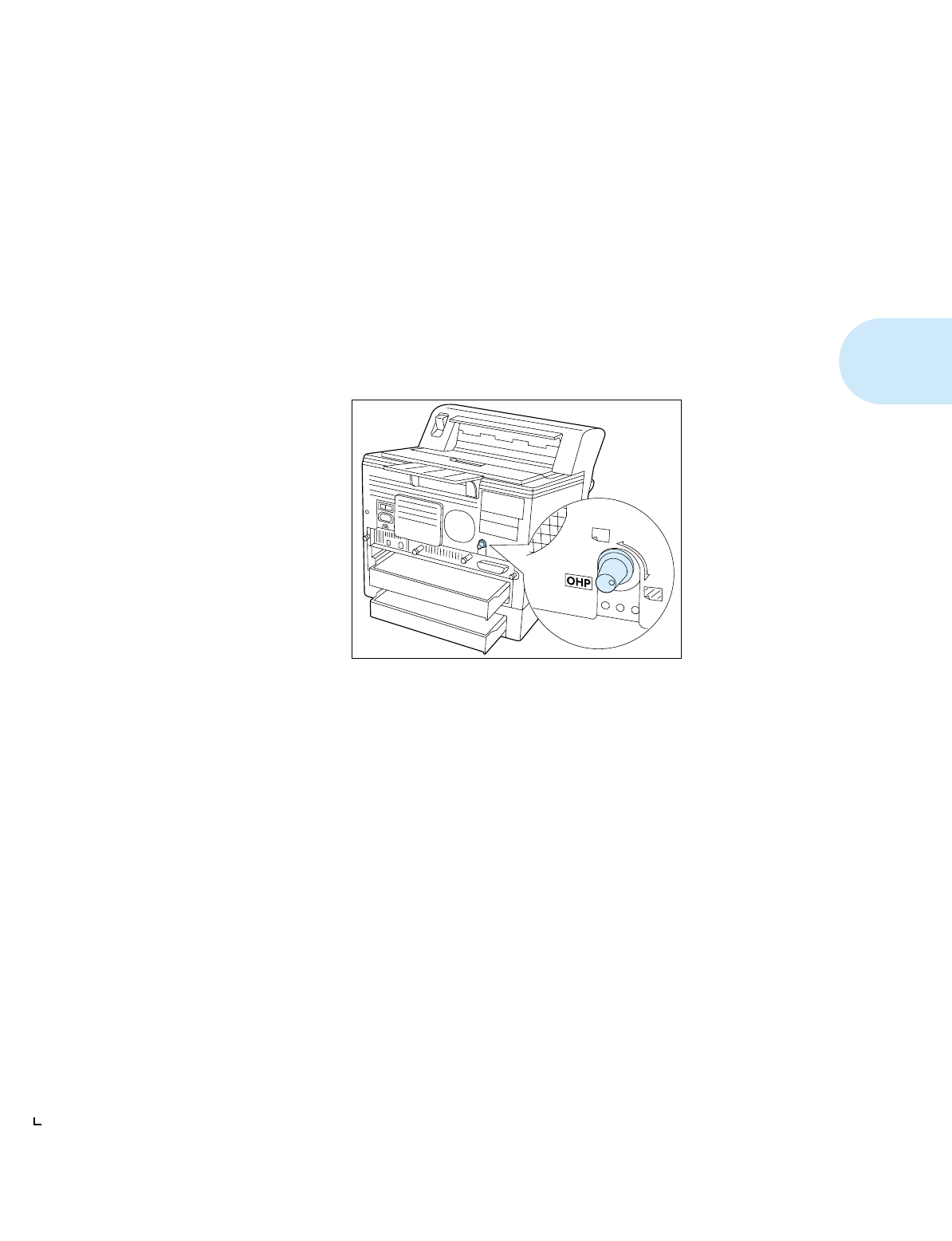

10 Print Density Adjuster

11 Parallel Interface

12 Paper Trays

Setting Up the DocuPrint 4512/4512N

6 ❖ Setting Up Guide

Assembling the

Printer

Assembling the printer is easily accomplished in just a few steps:

•Install the Toner Cartridge.

•Install the Photoconductor / Drum.

•Install the Cleaning Felt.

•Load the paper tray(s) with paper.

•Attach the Manual Feed Guide and the Tray Extension.

•Connect the power cord.

Follow the instructions below to assemble the printer.

Caution

Do not expose the Photoconductor / Drum to direct sunlight or

artificial light for more than 15 minutes. Overexposure will

permanently damage the photosensitive imaging drum.

Complete the Toner Cartridge and Photoconductor / Drum

installation within 15 minutes of removing them from their

packaging.

1Open the top cover by pulling up on the top

cover release lever and pivoting the cover

toward the front of the printer.

2Remove the Toner Cartridge from its wrapper

and shake it several times to evenly distribute

the toner.

Assembling the Printer

Setting Up Guide ❖ 7

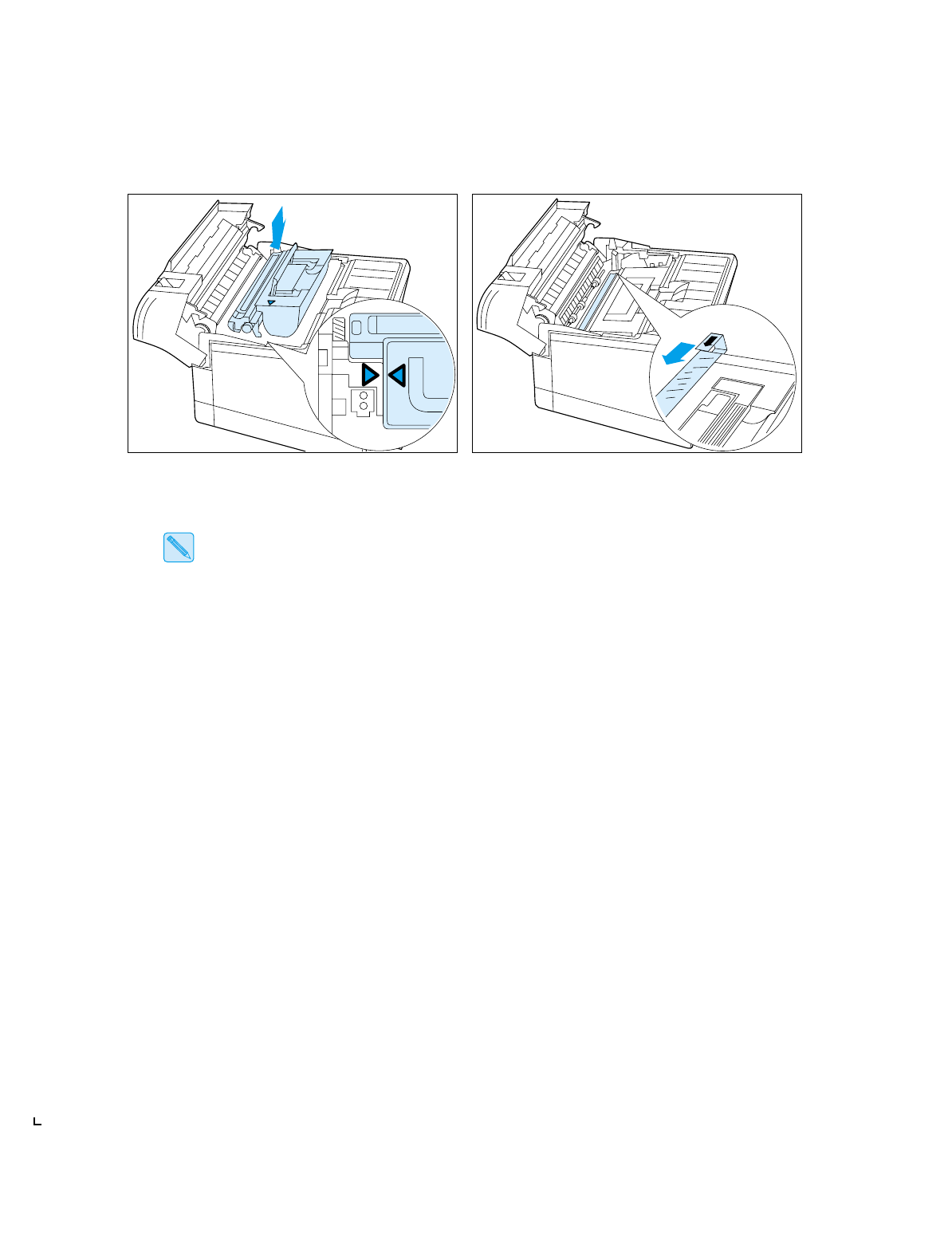

3Hold the Toner Cartridge by its handle and

gently lower it into the printer.

The cartridge does not click into place.

The arrows on the cartridge and printer

should line up.

4Hold the Toner Cartridge in place and pull the

tab to remove the tape strip.

Assembling the Printer

8 ❖ Setting Up Guide

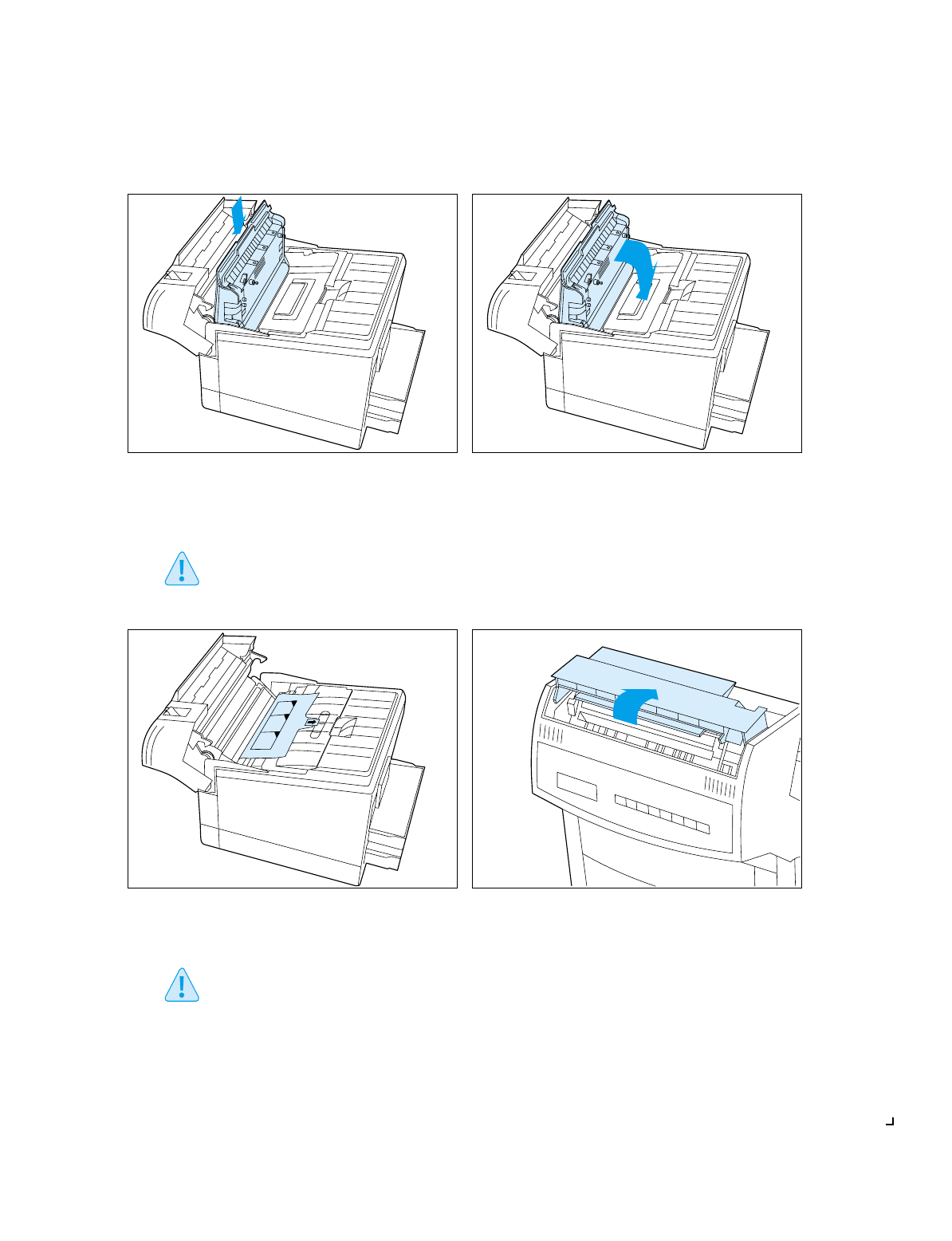

5Remove the Photoconductor / Drum from its

wrapper and insert it vertically into the slots

on the sides of the printer’s interior.

The photosensitive drum is easily

damaged. Do not touch it or expose it to

direct light.

6Pivot the Photoconductor / Drum down toward

the back of the printer until it falls into place

horizontally.

7Carefully remove the sheet of black protective

paper from the Photoconductor / Drum.

Be sure not to leave any torn pieces of

paper in the printer.

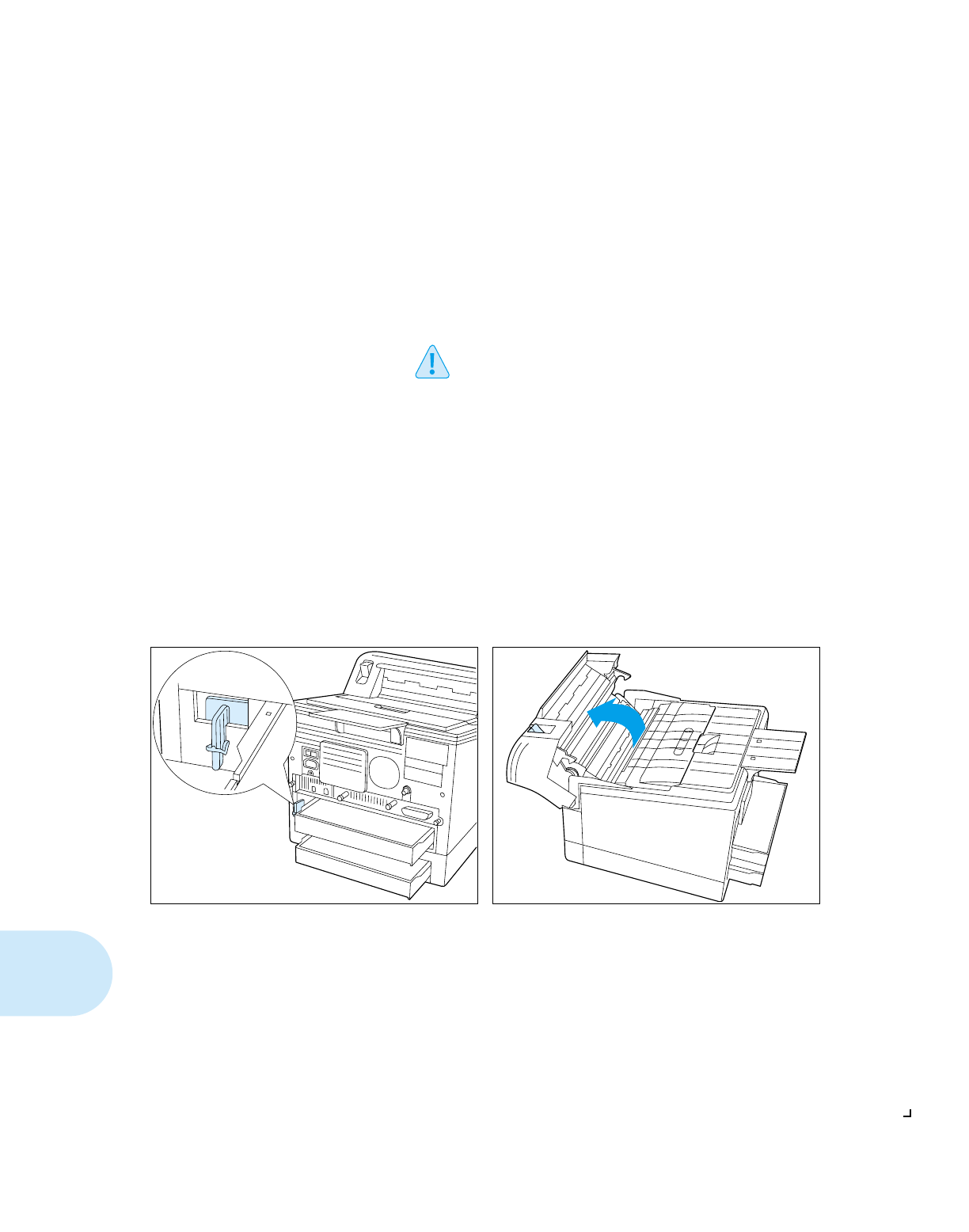

8Rotate the fuser cover to the rear.

Assembling the Printer

Setting Up Guide ❖ 9

9Remove the Cleaning Felt from its wrapper

and, holding it by the protruding grip, insert it

into the slot.

Close the front cover and the top cover.

10 Press the tray release button on the right side

of the upper paper tray, then remove the tray

from the printer.

11 Remove the stopper that protects the tray’s

spring mechanism by twisting it out.

Keep the stopper in case you need it when

transporting the printer.

12 Push down the metal pressure plate until it

locks into place.

Assembling the Printer

10 ❖ Setting Up Guide

13 Insert a stack of paper into the tray so that the

stack fits under the two metal tabs at the inside

front corners of the tray. Do not overload the

tray.

The side of paper facing up gets printed.

14 If the paper does not fit within the preset

paper guides, adjust the guides so that they

rest against the stack of paper. Then insert the

tray into the printer.

Repeat steps 10-14 for the lower tray.

The lower tray will not feed paper unless

the upper tray is in place.

Setting Up the DocuPrint 4512/4512N

Setting Up Guide ❖ 11

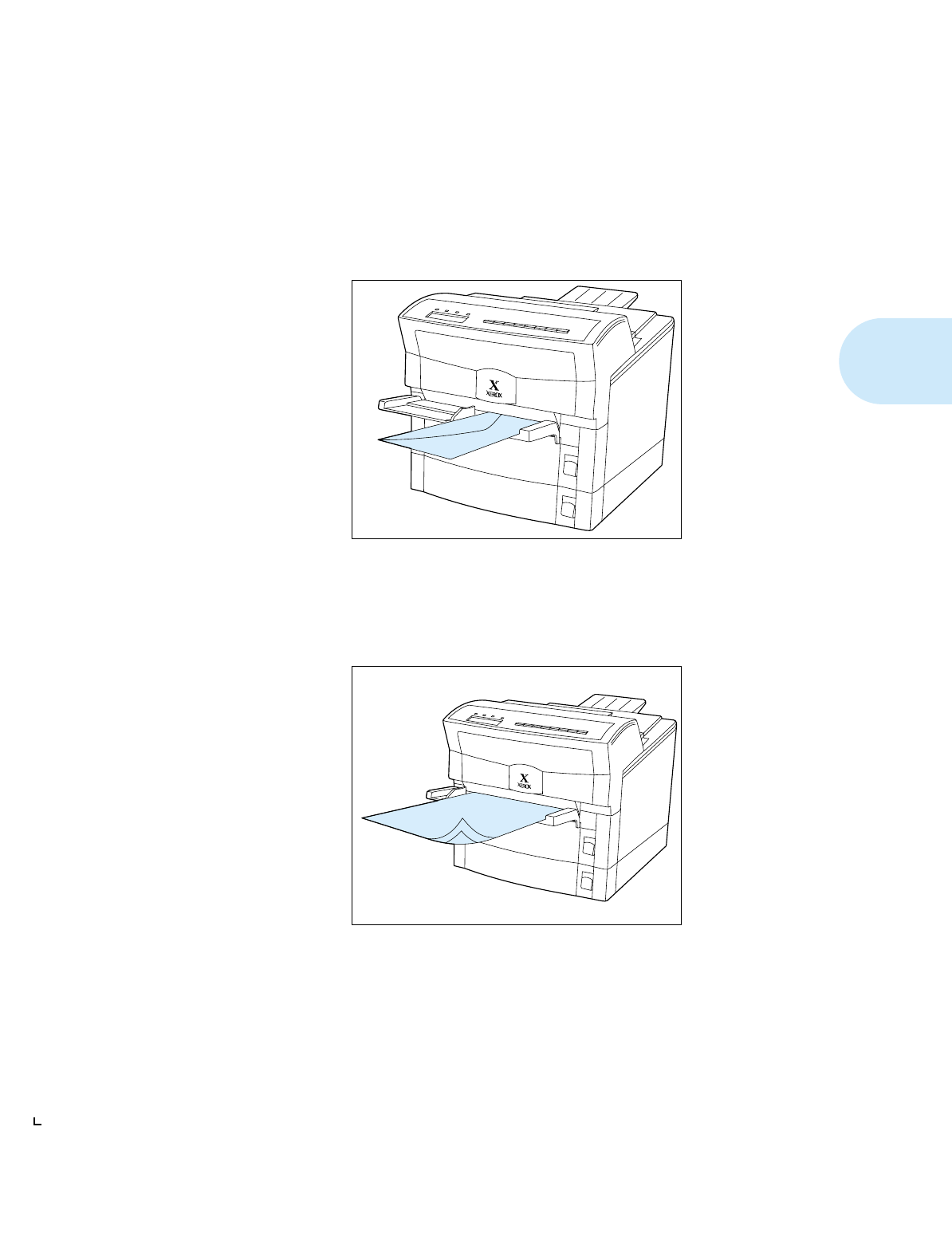

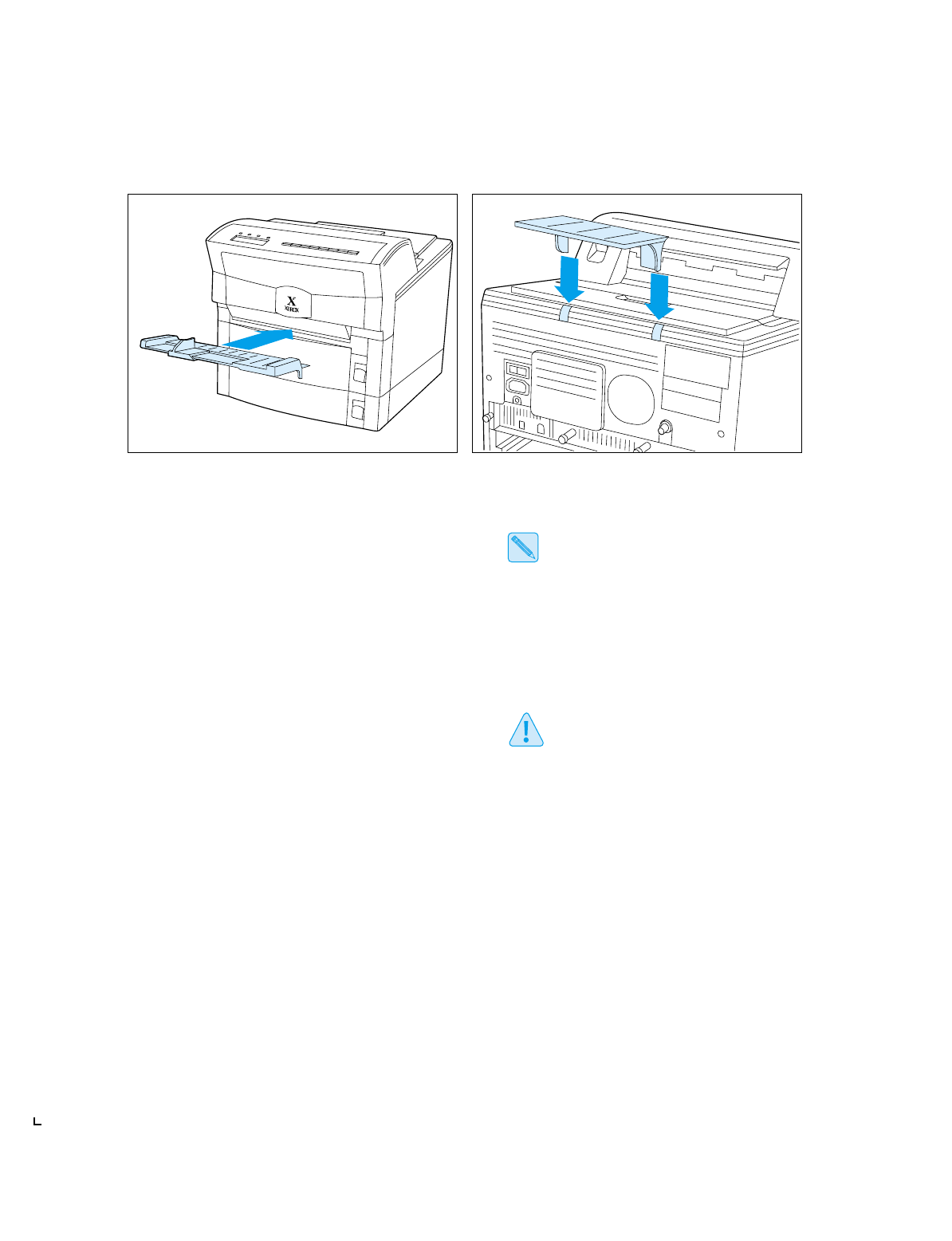

15 Insert the Manual Feed Guide into the manual

feed slot on the front of the printer.

It should rest on its support brackets in an almost

horizontal position.

16 Insert the Tray Extension into the back of the

paper output tray.

The Tray Extension supports printed

sheets of paper as they come out of the

printer. You may find it convenient to leave

it permanently in place.

17 Check that the power switch is in the OFF (O)

position, then insert the power cord into the

power cord connector and plug it into a

properly grounded and rated wall outlet.

The printer has two configurations:

110-115 V or 220-240 V

Read the data plate on the back of the

printer to verify which configuration

you have before connecting the printer

to the wall outlet.

Setting Up the DocuPrint 4512/4512N

12 ❖ Setting Up Guide

Testing the

Printer

To test the printer, power it ON, then print a configuration sheet using

the Control Panel.

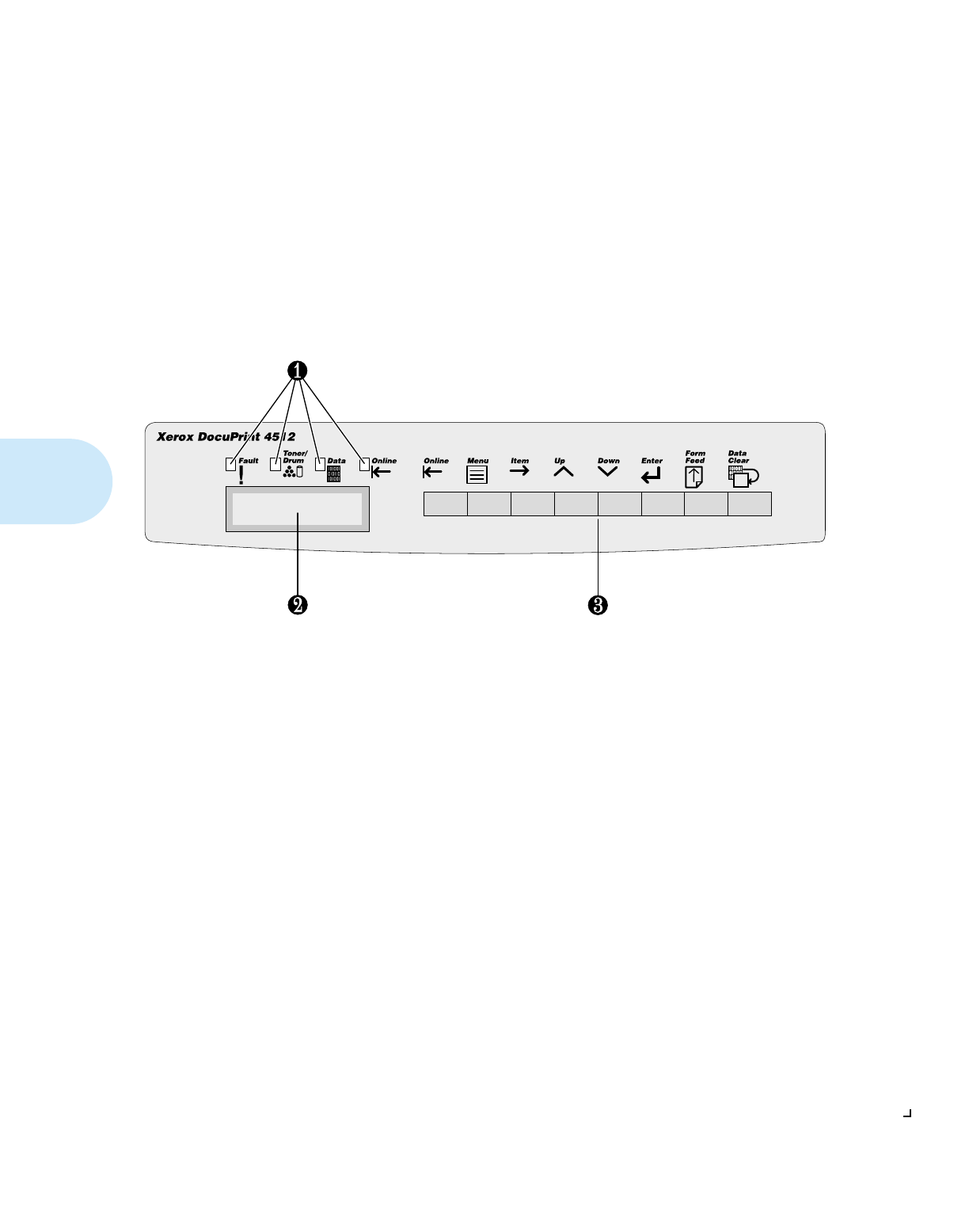

1Power ON the printer and observe the following sequence on the

Control Panel:

The display reads Self Test.

The On Line light goes on.

The display reads Emulation Size/Size.

where Emulation is the emulation (PCL, PS2, Auto, HEX), and

Size/Size is the size of paper in the upper tray/lower tray.

2Press On Line .

The On Line light goes off.

The display reads Printing Menu.

3Press Menu until:

The display reads Test Menu.

4Press Item until:

The display reads Config. Sheet.

5Press Enter .

The Data light goes on and the Configuration Sheet prints.

If the Configuration Sheet does not print, refer to Chapter 6:

Troubleshooting in the DocuPrint 4512/4512N User Guide.

When the page finishes printing, the DATA light goes off.

6Press On Line .

The On Line light goes on.

The display reads Emulation Size/Size.

7If you have purchased printer options, power off the printer, unplug

the power cord, and continue to “Installing Printer Options”

(page 13). Otherwise, skip to “Connecting to the Host” (page 14).

Setting Up the DocuPrint 4512/4512N

Setting Up Guide ❖ 13

Installing

Printer Options

A number of options are available to increase the capabilities of your

DocuPrint 4512/4512N. Contact your dealer or Xerox/Rank Xerox for

ordering information.

Printer options include:

•Memory SIMMS

•PostScript

•AppleTalk/Serial Interface Board

•Ethernet Interface Board (pre-installed on the 4512N)

•Token Ring Interface Board

Paper handling options include:

•High Capacity Feeder

•Envelope Tray

If you have purchased any of these options, install them now. Refer to

Appendix B: Installing Options in the DocuPrint 4512/4512N User

Guide for complete instructions.

Note

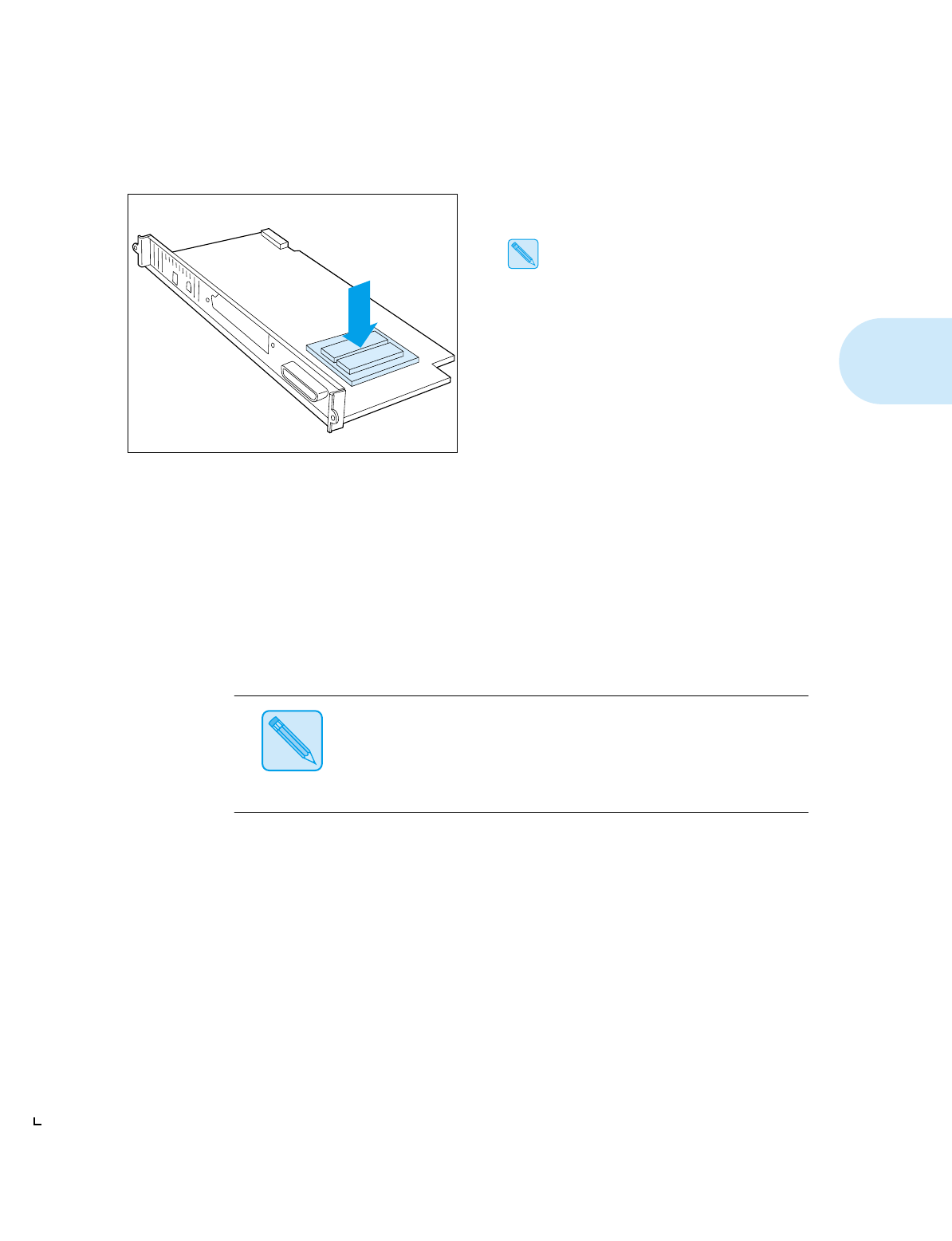

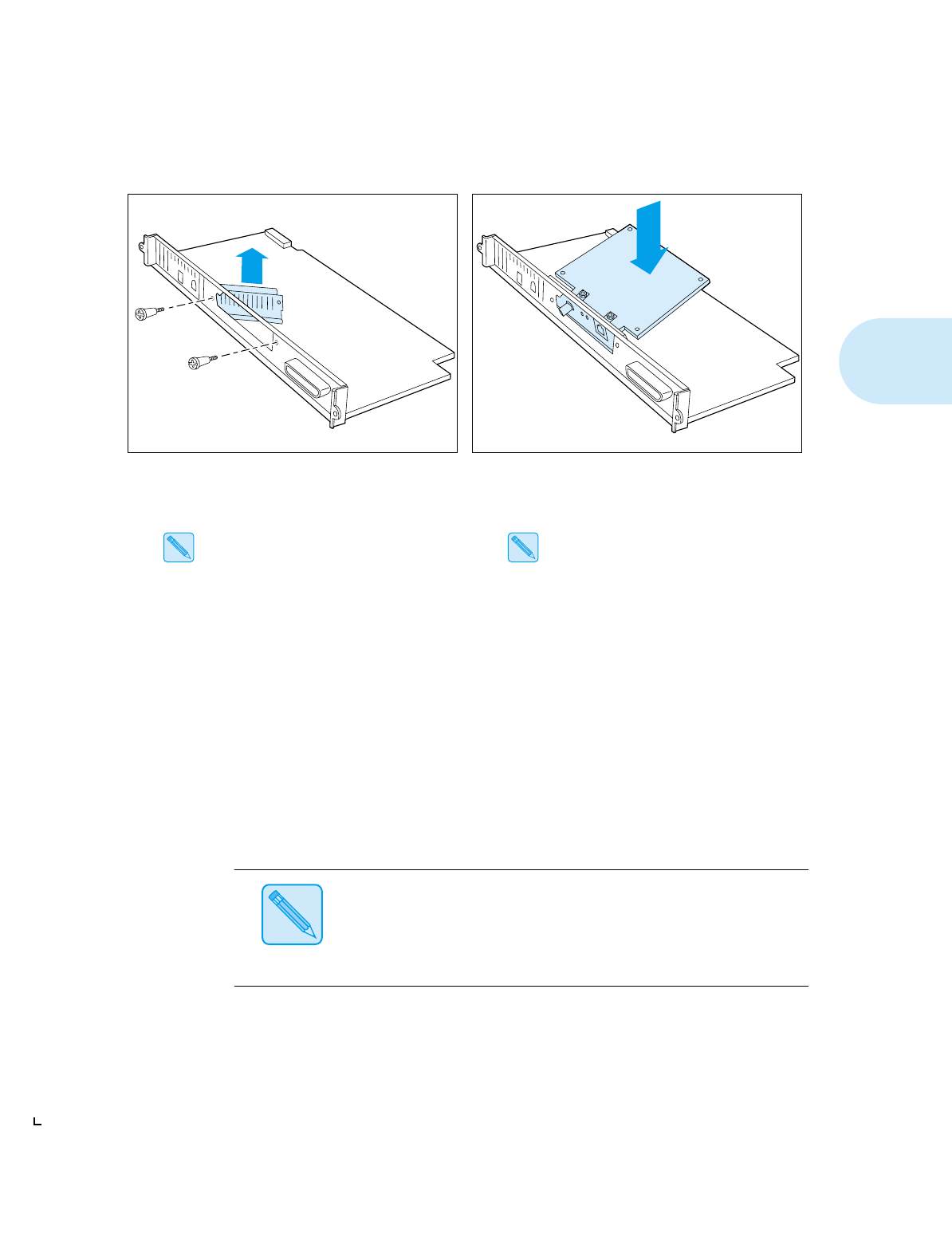

Installation of memory SIMMS, PostScript and/or an interface card

requires removal of the controller board. If you have more than one of

these options, you can install all of them while the controller board is

removed (before reinserting the controller board into the printer).

Connecting to the Host

14 ❖ Setting Up Guide

Connecting to

the Host

The DocuPrint 4512 can have up to two communication ports

(Figure 4). These ports allow you to connect to two distinct host systems

concurrently.

You must supply the appropriate interface cable(s) to connect the printer

to the host(s). Refer to Table 1 on page 15 for specifications.

If the printer has the Ethernet NIC option preinstalled, refer to the NIC

card installation manual to initialize, configure and set up the NIC card

on the printer.

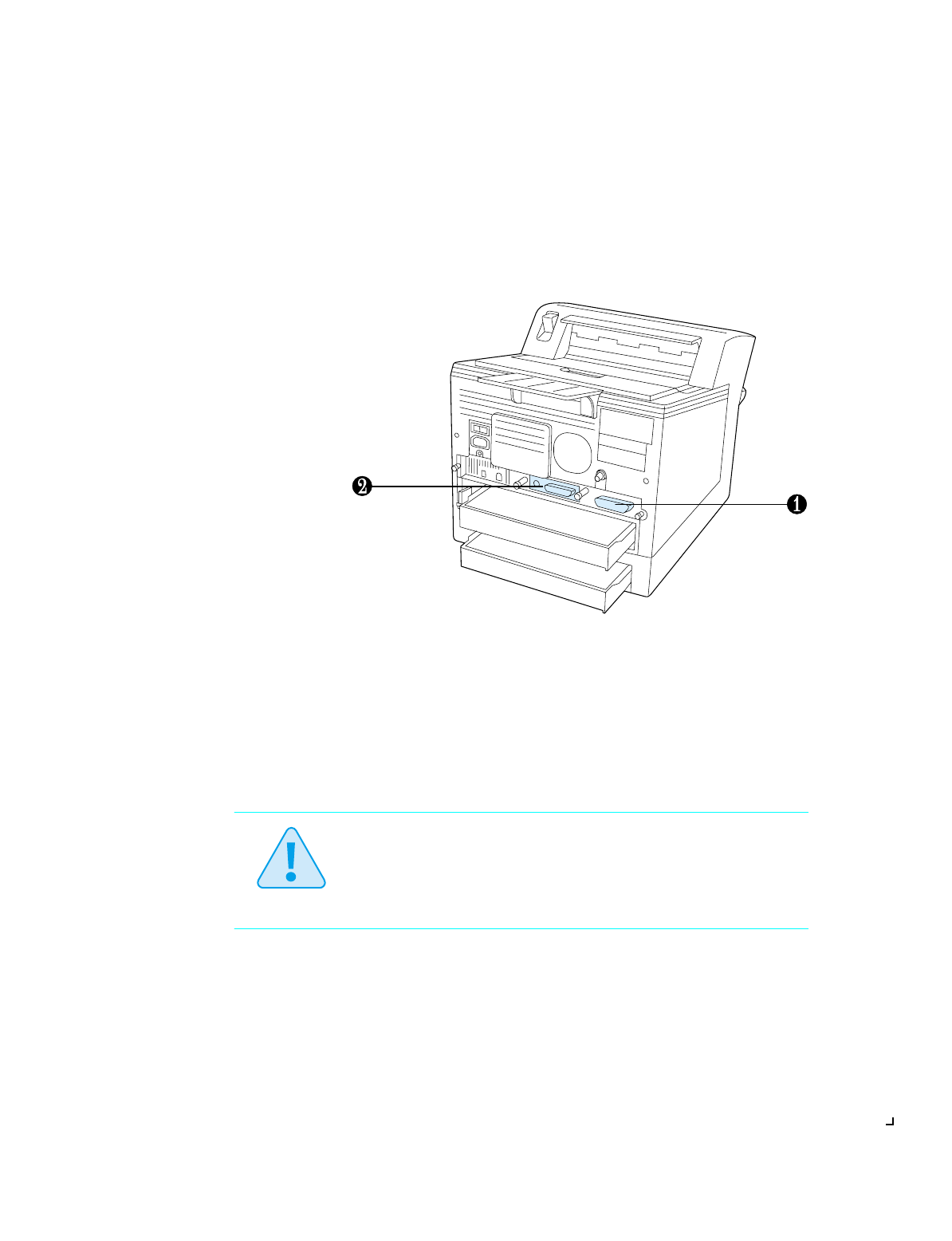

Figure 4 DocuPrint 4512 input/output ports

Rear View

1Parallel Interface

2Network port (option)

Caution

Always power off the DocuPrint 4512 and the host before attaching

the printer interface cable.

Setting Up the DocuPrint 4512/4512N

Setting Up Guide ❖ 15

Install the appropriate DocuPrint 4512 printer driver(s) (described on

page 17) on your host as per the instructions provided with each driver.

To verify communications, send a job to the printer.

Refer to Appendix B: Installing Options in the DocuPrint 4512/4512N

User Guide for complete instructions.

Table 1 DocuPrint 4512 cable specifications

Port Type Cable Type(s) Connection Type Maximum Length

Parallel P1284 IEEE P1284-B Compliant

Parallel Cable

Standard Centronics

36-pin male

6 feet (2 meters)

Serial (option) 9 to 25-pin M/F RS-232 DB-25 9 feet (3 meters)

Ethernet (option) ThinNet (10base2)

(RG-58 coaxial cable)

BNC 607 feet (185 meters) and

30 devices per segment

10baseT

(24 gauge, unshielded

twisted pair cable)

RJ-45 330 feet (100 meters)

per cable

Token Ring (option) STP (shielded twisted pair) DB-9 330 feet (100 meters)

per cable

UTP

(unshielded twisted pair)

RJ-45 330 feet (100 meters)

per cable

LocalTalk (option) LocalTalk

PhoneNet

DIN-8 990 feet (300 meters) with

a maximum of 32 devices

Setting Up the DocuPrint 4512/4512N

16 ❖ Setting Up Guide

Xerox Font

Manager

The Xerox Font Manager ships with 110 fonts. Most importantly, the

Xerox Font Manager uses Agfa’s new MicroType font compression

technology, designed for high throughput of all type styles with

uncompromised type rendering.

The Xerox Font Manager also includes a number of productivity

enhancements, such as double clicking for font previews, on-demand

drive search, font grouping, and available font listings. In addition, the

Xerox Font Manager installs and de-installs all the major Windows

fonts, including TrueType, PostScript, screen bitmaps, and MicroType.

Installing a Printer Driver

Setting Up Guide ❖ 17

Installing a

Printer Driver

The DocuPrint 4512 supports the PCL 5e emulation printer drivers

listed in Table 2. To take full advantage of all the printer’s features when

printing PCL jobs, install the appropriate DocuPrint 4512 PCL 5e

emulation printer driver(s). (Consult your operating system user manual

for instructions on installing a new printer driver.)

If you purchased the PostScript option, your printer will also support the

PostScript drivers listed in Table 3 on page 18. To take full advantage of

all the printer’s features when printing PostScript jobs, install the

appropriate DocuPrint 4512 PostScript printer driver(s). (Consult your

operating system user manual for instructions on installing a new printer

driver.)

Contact your dealer or Xerox/Rank Xerox for any drivers you need

beyond those supplied with the printer.

Table 2 DocuPrint 4512 PCL 5e emulation printer drivers

Environment Printer Driver Diskette

DOS†Microsoft Word Ver. 6.0 Xerox DocuPrint 4512 Printer Driver

for MS Word 6.0 for DOS

WordPerfect Ver. 6.0 Xerox DocuPrint 4512 Printer Driver

for WordPerfect 6.0 for DOS

Windows Windows 3.1 /

Windows 95

Xerox DocuPrint 4512 PCL 5e Emulation Printer Driver

for Microsoft Windows 3.1/ Windows 95

Windows NT 3.5 OnPAGE PCL 5e Emulation Printer Driver

for Microsoft Windows NT 3.5

IBM OS/2 OS/2 Ver. 2.1 Xerox DocuPrint 4512 PCL 5e Emulation Printer Driver

for IBM OS/2 Ver. 2.1

OS/2 WARP Xerox DocuPrint 4512 PCL 5e Emulation Printer Driver

for IBM OS/2 WARP

† If you are using a DOS application other than Microsoft Word or WordPerfect, use the HP LaserJet 4si printer driver supplied with

your application software.

Setting Up the DocuPrint 4512/4512N

18 ❖ Setting Up Guide

Table 3 DocuPrint 4512 PostScript printer drivers

Environment Printer Driver Diskette

Windows Windows 3.1 /

Windows 95

Xerox DocuPrint 4512 PS2 Printer Driver

for Microsoft Windows 3.1/ Windows 95

Windows NT 3.5 OnPAGE PS2 Printer Driver

for Microsoft Windows NT 3.5

IBM OS/2 OS/2 Ver. 2.1 Xerox DocuPrint 4512 PS2 Printer Driver

for IBM OS/2 Ver. 2.1

OS/2 WARP Xerox DocuPrint 4512 PS2 Printer Driver

for IBM OS/2 WARP

Macintosh System 6.x OnPAGE

System 7.x OnPAGE

UNIX

(SUN 4.1x,

SCO UNIX,

IBM AIX 3.1,

HP.UX on

HP 9000)

Document Manager Xerox DocuPrint 4512 PS2 Printer Driver for SUN OS 4.1.3

Note

Printer software and drivers may be available through on-line services

and the Internet.

What to Do Next

Setting Up Guide ❖ 19

What to

Do Next

Congratulations! You have completed your setup of the

Xerox DocuPrint 4512/4512N Network Laser Printer.

If you have any questions or need to set optional parameters for printing,

the DocuPrint 4512/4512N User Guide is a complete reference guide to

all the printer’s features and functions.

Note

For a listing of the printer’s factory default settings, refer to Chapter 3:

The Control Panel in the DocuPrint 4512/4512N User Guide.

What to Do Next

20 ❖ Setting Up Guide

Chapter 1

Chapter 1: Introduction ❖ 1-1

Introduction Chapter1

Overview of the User Guide .............................................................. 1-2

Printer Components .......................................................................... 1-3

Special Features ................................................................................ 1-4

Duplex Printing .............................................................................. 1-4

Multiple Paper Trays and Increased Paper Handling ................... 1-4

Automatic Emulation/Input Switching ........................................... 1-4

State Saving .................................................................................... 1-4

Printer Generated Reports ............................................................. 1-5

Memory Expansion ........................................................................ 1-5

MultiGray Enhancement ................................................................ 1-6

Power Saving ................................................................................. 1-6

Memory Considerations .................................................................... 1-7

Introduction

1-2 ❖ DocuPrint 4512/4512N User Guide

Overview of the

User Guide

This book is for use with both the Xerox DocuPrint 4512 and DocuPrint

4512N Network Laser Printers. The DocuPrint 4512N contains all the

components of the DocuPrint 4512, plus the Ethernet Network Interface

Card pre-installed.

As this guide serves both printers, the DocuPrint 4512N will hereafter

be referred to as the DocuPrint 4512.

The DocuPrint 4512 is ready to go after you set it up following the

instructions in the Setting Up Guide. As you use the printer, however,

you may occasionally need to refer to this User Guide as a reference for

the following:

• Learning about special printer features [“Special Features”

(page 1-4)]

• Paper specifications, loading paper, and duplex printing

(Chapter 2: Paper Handling)

• Instructions on using the Control Panel (Chapter 3: The Control

Panel)

• Downloading fonts (Chapter 4: Fonts)

• Installing printer drivers (Chapter 5: Printer Drivers)

• Troubleshooting printing problems if they occur

(Chapter 6: Troubleshooting)

• Tips on taking care of the printer (Chapter 7: Printer Maintenance

and Consumables)

• Replacing consumables (Chapter 7: Printer Maintenance and

Consumables)

• Ordering printer options (Appendix A: Ordering Information)

• Installing printer options (Appendix B: Installing Options)

• Printer specifications (Appendix C: Printer Specifications)

Introduction

Chapter 1: Introduction ❖ 1-3

Printer

Components

The major printer components are indicated below.

Figure 1.1 Major printer components

Front View

1Fuser Cover

2Control Panel Display

3Front Cover

4Manual Feed Slot

5Manual Feed Guide

6Upper Paper Tray

7Lower Paper Tray

8Paper Output Tray

9Top Cover

10 Tray Release Buttons

Rear View

1Top Cover Release Lever

2Tray Extension

3Power Switch

4Power Cord Connector

5High Capacity Feeder

Connector

6Corotron Cleaner

7Controller Board

8Top Cover

9Cooling Fan Outlet

10 Print Density Adjuster

11 Parallel Interface

12 Paper Trays

Introduction

1-4 ❖ DocuPrint 4512/4512N User Guide

Special Features Several features have been designed into the DocuPrint 4512 to enhance

your printing environment. Using the Control Panel menu system, you

can tailor printer settings to match your printing requirements.

See Chapter 3: The Control Panel for more information about the

Control Panel and its menu system.

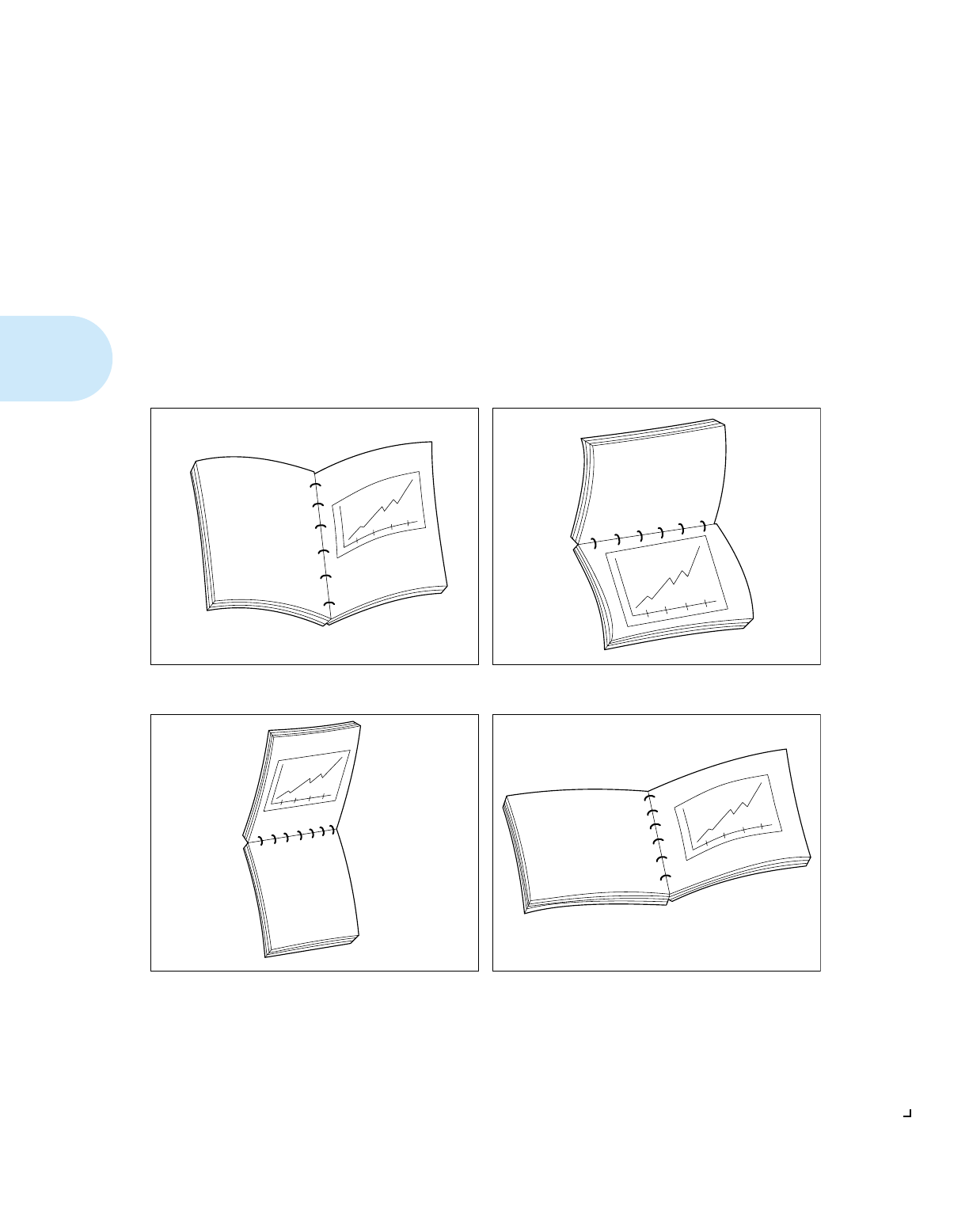

Duplex Printing The DocuPrint 4512 can print two-sided documents. Duplex printing is

as easy as printing a one-sided job.

Multiple

Paper Trays and

Increased Paper

Handling

The DocuPrint 4512 offers two paper trays, each of which can hold up

to 250 sheets of paper. When the paper source is set to AUTO SELECT

(the factory default), the printer automatically senses the paper size and

feeds paper from the appropriate tray according to print instructions

from the application software. If both trays contain the same size of

paper, the printer gives priority to the lower tray and feeds from there

first, effectively giving you a 500-sheet capacity.

You can also install the optional 1000-sheet High Capacity Feeder to

further extend your printing capacity.

For more information on using the paper trays, see the section “Paper

Tray Loading” (page 2-5) in Chapter 2: Paper Handling.

Automatic

Emulation/Input

Switching

When you have installed the PostScript option, the printer can process

both PCL and PostScript jobs. When Emulation is set to Auto, the

DocuPrint 4512 samples the incoming data stream to determine which

language the print job requires. The DocuPrint 4512 then switches to the

proper language for that job.

The DocuPrint 4512 can have up to two active ports when you install an

optional interface card (AppleTalk/Serial Interface, Ethernet or Token

Ring). The printer automatically switches between input sources,

samples the print job, and switches to the appropriate processing

language.

State Saving When you have installed the PostScript option and are printing both

PostScript and PCL jobs, the printer clears any data in memory when it

switches between PostScript and PCL 5e emulations. However, you can

Special Features

Chapter 1: Introduction ❖ 1-5

set the State Saving item to On, and the printer will save the data in

memory when it switches emulations. This saves you from having to

download fonts and headers every time the printer switches between

PostScript and PCL 5e emulation.

Printer Generated

Reports

Using the Control Panel, you can print the following reports:

•The Configuration Sheet lists the options you have installed and

the current settings for each option in the Control Panel’s menu

system.

•The PCL 5e Demo Page provides a sample of the printer’s

capabilities and lists the printer’s key features.

•The PCL 5e Font List shows which PCL fonts are currently

available. The list includes resident fonts and downloaded fonts.

•When PostScript is installed on the DocuPrint 4512, the PostScript

(PS2) Font List shows which PostScript fonts are currently

available (both resident and downloaded fonts), and the PostScript

Demo Page provides a sample of the printer’s PostScript

capabilities.

See Chapter 3: The Control Panel for more information about these

reports.

Memory Expansion The DocuPrint 4512 printer has 2 MB resident memory and can be

increased with additional memory SIMMs up to 50 MB. See “Memory

Considerations” (page 1-7). Also see Appendix A: Ordering

Information to order more printer memory.

Special Features

1-6 ❖ DocuPrint 4512/4512N User Guide

MultiGray

Enhancement

When the PostScript option is installed, MultiGray enhancement

multiplies the number of gray scales available for printing scanned

photographs or computer graphic images with graded fills.

Power Saving After 30 minutes of inactivity, the printer automatically turns off internal

components to reduce the amount of electricity used. The printer

automatically turns those parts back on when it receives a print job.

Using the Control Panel, you can send the printer into Power Saver

mode after your choice of 15, 30, or 45 minutes of inactivity.

Introduction

Chapter 1: Introduction ❖ 1-7

Memory

Considerations

In today’s printing environments, technologies have advanced greatly.

Corresponding memory requirements have increased too.

•DocuPrint 4512 printing features such as duplex printing, page

protection and state saving, when on, use available printer

memory—memory that is otherwise used for processing jobs.

•Downloading fonts also uses available printer memory.

If you plan to print highly complex jobs or need features like state

saving and page protection, you may need to add printer memory.

Table 1.1 lists memory requirements when printing simplex (one-sided)

and duplex (two-sided) jobs at 300 and 600 dpi.

Table 1.1 Memory requirements

Page Protection Setting Simplex Duplex

Paper Size 300 dpi 600 dpi 300 dpi 600 dpi

Page Protection Auto

2 MB 2 MB 2 MB 2 MB

Page Protection On

Letter 3 MB 8 MB 4 MB 14 MB

A4 3 MB 8 MB 4 MB 14 MB

A5 3 MB 8 MB 4 MB 14 MB

Executive 3 MB 8 MB 4 MB 14 MB

Legal 4 MB 10 MB 8 MB 18 MB

Folio 4 MB 10 MB 8 MB 18 MB

1-8 ❖ DocuPrint 4512/4512N User Guide

Chapter 2

Chapter 2: Paper Handling ❖ 2-1

Paper Handling Chapter2

Selecting Paper .................................................................................

2-3

Storing Paper ................................................................................. 2-4

Paper Tray Loading .......................................................................... 2-5

Paper Trays .................................................................................... 2-5

Adjusting Trays for Paper Size ...................................................... 2-5

Loading Paper for Simplex (One-Sided) Printing ......................... 2-6

Loading Paper for Duplex (Two-Sided) Printing .......................... 2-7

Loading Envelopes in the Envelope Tray ...................................... 2-7

Manual Feed Guide Loading ...........................................................

2-9

Fitting and Adjusting the Manual Feed Guide .............................. 2-9

Feeding Paper for One-Sided Printing ........................................ 2-10

Feeding Paper for Two-Sided Printing ........................................ 2-10

Printing Envelopes ....................................................................... 2-11

Printing Labels and Transparencies ............................................ 2-11

Adjusting Print Density ..................................................................

2-13

Paper Handling

2-2 ❖ DocuPrint 4512/4512N User Guide

Paper Output ................................................................................... 2-14

Using the Tray Extension ............................................................. 2-14

Automatic Tray Switching .............................................................. 2-15

Bind Options for Duplex Printing .................................................. 2-16

Paper Handling

Chapter 2: Paper Handling ❖ 2-3

Selecting Paper Table 2.1 lists the size paper, envelopes, and other print media you can

use with all DocuPrint 4512 input and output trays. Using sizes other

than those listed below, or paper not recommended for laser printers,

may result in paper jams.

Table 2.1 Media specifications for all DocuPrint 4512 trays

Paper Size Upper Tray

Lower Tray

High

Capacity

Feeder†Envelope

Tray†Manual

Feed

(210x297mm)

16-24lb

60-90 g/m216-24lb

60-90 g/m216-36lb

60-136 g/m2

Letter

(8.5x11” / 216x279mm)

16-24lb

60-90 g/m216-24lb

60-90 g/m216-36lb

60-136 g/m2

Folio (Legal 13”)

(8.5x13” / 216x330mm)

16-24lb

60-90 g/m216-24lb

60-90 g/m216-36lb

60-136 g/m2

Legal (Legal 14”)

(8.5x14” / 216x356mm)

16-24lb

60-90 g/m216-24lb

60-90 g/m216-36lb

60-136 g/m2

Executive

(7.25x10.5” / 184x267mm)

16-24lb

60-90 g/m216-24lb

60-90 g/m216-36lb

60-136 g/m2

(148.5x210mm)

16-24lb

60-90 g/m216-24lb

60-90 g/m216-36lb

60-136 g/m2

Envelopes

COM-10 (4.12x9.5” / 105x241mm)

Monarch (3.87x7.5” / 98x191mm)

DL (4.33x8.66” / 110x220mm)

C5 (6.38x9.01” / 162x229mm)

16-24lb

60-90 g/m2

Transparency

A4 (210x297 mm)

Letter (8.5x11” / 216x279mm)

Clear, paper-

backed or

permanent

stripe

Label

A4 (210x297 mm)

Letter (8.5x11” / 216x279mm) Paper

† Optional paper handler. See Appendix A for ordering information.

Selecting Paper

2-4 ❖ DocuPrint 4512/4512N User Guide

Storing Paper The DocuPrint 4512’s print quality is optimized when paper and other

print media are properly stored. Proper storage ensures optimum print

quality and trouble-free printer options.

•Store the paper on a flat surface, in a relatively low humidity

environment.

•Do not unwrap paper until you are ready to use it, and rewrap any

paper you are not using.

•Do not expose paper to direct sunlight or high humidity.

Paper Handling

Chapter 2: Paper Handling ❖ 2-5

Paper Tray

Paper and other print media are loaded into the upper and lower trays

identically. Refer to Table 2.1 on page 2-3 for acceptable paper sizes.

Paper Trays The DocuPrint 4512 provides the following paper trays:

•The upper and lower trays each hold 250 sheets of 20 lb (75 g/m2)

paper.

•The optional High Capacity Feeder holds 1,000 sheets of 20 lb (75

g/m2)paper.

•An optional Envelope Tray holds up to 20 envelopes and replaces

the upper paper tray for automatic envelope loading.

Adjusting Trays for

Paper Size

Figure 2.1 shows how to adjust the upper and lower paper trays for

different paper sizes.

Proper orientation of media in the paper and envelope trays is discussed

in the following sections.

Figure 2.1 Upper/Lower tray paper

adjustment guides

1Side guide

2End guide

The width guide (1) slides to fit the width of the paper.

The end guide (2) slides to fit the length of the paper.

Paper Tray Loading

2-6 ❖ DocuPrint 4512/4512N User Guide

Loading Paper

for Simplex

(One-Sided) Printing

Figure 2.2 shows the proper orientation when loading paper for simplex

(one-sided) printing.

Figure 2.2 Proper orientation in tray for

simplex printing

Paper Tray Loading

Chapter 2: Paper Handling ❖ 2-7

Loading Paper

for Duplex

(Two-Sided) Printing

Figure 2.3 shows the proper orientation when loading paper for duplex

(two-sided) printing.

Loading Envelopes

in the Envelope Tray

Figure 2.4 shows how to adjust the Envelope Tray for different envelope

sizes.

Figure 2.3 Proper orientation in tray for

duplex printing

Figure 2.4 Envelope Tray adjustment

Paper Handling

2-8 ❖ DocuPrint 4512/4512N User Guide

Figure 2.5 shows how envelopes are loaded flap down for printing. Use

the software application for proper orientation.

Figure 2.5 Proper envelope orientation in

Envelope Tray

Manual Feed Guide Loading

Chapter 2: Paper Handling ❖ 2-9

Manual Feed

Guide Loading

To print sizes of paper that the paper trays cannot accommodate, or to

print other media such as envelopes, adhesive labels or transparencies,

you will need to feed the media into the printer manually.

Fitting and

Adjusting the

Manual Feed Guide

If the manual feed guide is not attached to the manual feed slot on the

front of the printer, start with Step 1, below. Otherwise, skip to Step 2.

Proper orientation of media in the manual feed guide is discussed in the

following sections.

1Insert the manual feed guide into the manual feed

slot on the front of the printer.

It should rest on its support brackets in an almost

horizontal position.

2Place the item you want to print on the manual

feed guide, lined up along the right edge. Then

move the adjustable edge guide gently against the

left edge of the item to be printed.

Manual Feed Guide Loading

2-10 ❖ DocuPrint 4512/4512N User Guide

Feeding Paper for

One-Sided Printing

Figure 2.6 shows the proper orientation for feeding paper for simplex

(one-sided) printing.

Feeding Paper for

Two-Sided Printing

Figure 2.7 shows the proper orientation for feeding paper for duplex

(two-sided) printing.

Figure 2.6 Proper orientation in Manual

Feed Guide for simplex printing

Figure 2.7 Proper orientation in Manual

Feed Guide for duplex printing

Manual Feed Guide Loading

Chapter 2: Paper Handling ❖ 2-11

Printing Envelopes Figure 2.8 shows how envelopes are fed flap up. Use the software

application for proper orientation.

Printing Labels and

Transparencies

Figure 2.9 shows the correct orientation for feeding labels.

Figure 2.8 Manual feed envelope orientation

Figure 2.9 Manual feed label orientation

Paper Handling

2-12 ❖ DocuPrint 4512/4512N User Guide

Figure 2.10 shows the correct orientation for feeding transparencies.

Figure 2.10 Manual feed transparency orientation

Note

If you get poor results when you change from normal printing on paper

to printing on transparency film of the type used for overhead

projectors, you should adjust the printer using the print density adjuster,

discussed in the section “Adjusting Print Density” (page 2-13).

Paper Handling

Chapter 2: Paper Handling ❖ 2-13

Adjusting Print

Density

When printing graphics or when printing on media which you do not

normally use, you may want to change the density of the toner. Greater

toner density gives darker printing, but it also uses more toner, so you

will have to replace your Toner Cartridge sooner. You can conserve

toner by reducing density when doing draft printing.

There is a dial for adjusting the density of toner at the rear of the printer,

between the fan outlet and the parallel port, as shown in Figure 2.11.

The symbols on the dial offer approximate indicators of density settings.

You may need to experiment before achieving optimum results. Turning

the dial fully clockwise gives the greatest density. The toner density

setting decreases as you turn the dial counterclockwise.

Figure 2.11 Print density adjuster

Paper Handling

2-14 ❖ DocuPrint 4512/4512N User Guide

Paper Output Printed items are delivered face down to the output tray. The output tray

supports up to 250 sheets of 80 g/m2 paper. A Tray Extension supports

larger sheet sizes and helps to neatly stack large volumes of output.

Using the Tray

Extension

The Tray Extension is inserted into the slots on the back of the printer as

shown in Figure 2.12. (It may have already been installed as part of the

procedure described in the Setting Up Guide.)

You will probably find it convenient to leave the Tray Extension

permanently in place. However should you want to remove it, grasp the

bottom of the bracket and gently pull it out.

Figure 2.12 The Tray Extension

Paper Handling

Chapter 2: Paper Handling ❖ 2-15

Automatic Tray

Switching

Automatic tray switching is available for both PCL and PostScript jobs.

Tray switching is useful for:

•Increasing paper capacity.

When the current paper tray runs out of paper, the printer

automatically switches to the next tray in the sequence, provided

the paper in the next tray is the same size as that in the current tray.

•Searching for the correct paper size.

If the paper size specified in your software application does not

match the size paper loaded in the current paper tray, the printer

automatically searches the next tray in the sequence for a paper size

that matches. The default tray is the lowest tray installed.

2-16 ❖ DocuPrint 4512/4512N User Guide

Bind Options

for Duplex

Printing

To ensure that duplex jobs print in the proper orientation, set the Bind

item (in the Control Panel’s Printing menu) to the appropriate settings

(see Figure 2.13).

Figure 2.13 Duplex binding orientation and Control Panel menu settings

Portrait Printing Landscape Printing

Set Bind to Long Edge Set Bind to Long Edge

Set Bind to Short Edge Set Bind to Short Edge

Bind Options for Duplex Printing

Chapter 2: Paper Handling ❖ 2-17

Bind Options for Duplex Printing

2-18 ❖ DocuPrint 4512/4512N User Guide

Bind Options for Duplex Printing

Chapter 2: Paper Handling ❖ 2-19

Bind Options for Duplex Printing

2-20 ❖ DocuPrint 4512/4512N User Guide

Chapter 3

Chapter 3: The Control Panel ❖ 3-1

The Control Panel Chapter3

Control Panel Features ....................................................................

3-2

Indicator Lights .............................................................................. 3-3

Display Panel Messages ................................................................ 3-3

Control Keys .................................................................................. 3-4

The Menu System .............................................................................

3-6

Using the Control Panel ...................................................................

3-7

Setting the Printer .......................................................................... 3-7

Printing Test Sheets ..................................................................... 3-17

Setting Power Saver Mode ........................................................... 3-20

Printing Simplex and Duplex Demo Pages .................................. 3-20

Printer Parameters and Default Settings ....................................... 3-22

The Control Panel

3-2 ❖ DocuPrint 4512/4512N User Guide

Control Panel

Features

The DocuPrint 4512 Control Panel (Figure 3.1) serves two purposes:

• It displays information about the status of the printer (or the job in

process) and

• It provides the means for changing printer settings to control how

the DocuPrint 4512 operates.

Figure 3.1 DocuPrint 4512 Control Panel

1Indicator lights

2Display panel

3Control keys (8)

Control Panel Features

Chapter 3: The Control Panel ❖ 3-3

Indicator Lights The Control Panel contains four indicator lights. Table 3.1 describes the

function of each light.

Display Panel

Messages

The Control Panel’s display shows the following:

•Status messages

These inform you of the printer’s operating condition, such as

Self Test or PCL 5e A4/A4.

•Menu settings

These are manually set using the Control Panel keys. See the

section “The Menu System” (page 3-6) for an overview of the

menus.

•Error conditions

These indicate the likely cause of printer problems, such as paper

jams and running out of supplies.

•Service messages

These provide technical information about equipment failure.

Table 3.1 Control Panel

indicator lights and

their functions

Light Description

Fault

(Yellow)

Glows to show that an error has occurred. It flashes when

the selected paper tray has run out of paper.

Toner/Drum

(Yellow)

Begins to glow when the toner is low or when the

Photoconductor / Drum is near the end of its life.

Data

(Green)

Glows when the printer is processing data normally. It

goes off when the final page of a print job has finished

printing. It flashes if data for a page is in the printer

memory and the end of page cannot be determined.

On Line

(Green)

Glows when the printer is ready to receive print data from

the computer. It flashes when the printer is receiving

and/or processing data.

Control Panel Features

3-4 ❖ DocuPrint 4512/4512N User Guide

Control Keys The Control Panel keypad consists of eight control keys. Table 3.2

describes the function of each key.

Table 3.2 Control Panel keys

and their functions

Key Description

On Line Sets the printer on-line and off-line.

When on-line, the printer is ready to receive, or has

already accepted, data for printing.

You must take the printer off-line to set menus, perform

off-line print tests, and do other manual tasks. The

other keys do not function when the printer is on-line.

Menu Cycles the display through the menus.

Item Cycles the display through the items in each menu.

Up Cycles the display backward through the values for

each menu item.

The current setting is indicated by an asterisk (*) at the

right edge of the display.

Down Cycles the display forward through the values for each

menu item.

The current setting is indicated by an asterisk (*) at the

right edge of the display.

Enter Sets the displayed value of the currently displayed

menu item, or executes the currently displayed off-line

print test.

Form Feed Prints the data which is left in printer memory when the

printer is taken off-line.

This key has no effect when the printer is on-line.

Data Clear Clears printer memory of print job data.

Control Panel Features

Chapter 3: The Control Panel ❖ 3-5

In general, the control keys are used in the following sequence:

1. Press On Line to set the printer off-line.

2. Press Menu to display the menu you want to access.

3. Press Item to display the menu item you want to set.

4. Press Up or Down to change the item’s value.

5. Press Enter to set the item to the value displayed.

6. Press On Line to set the printer on-line.

See “The Menu System” (page 3-6) for an overview of the Control

Panel’s menu structure, and “Using the Control Panel” (page 3-7) for

specific procedures.

The Control Panel

3-6 ❖ DocuPrint 4512/4512N User Guide

The Menu

System

Table 3.3 shows the Control Panel menu structure. The name of the

menu appears at the top of the column, and the menu’s items are

displayed beneath it.

Table 3.3 Control Panel menus and items

Printing

Menu Job Menu Config Menu Serial Menu†Test Menu Misc Menu

Copies Resolution Warn Msg Baud Rate Config Sheet Prt Screen

Font Number Page P Manual Set Data Bit PCL 5e Font List Message

Duplex St Saving High Speed Parity PS2 Font List‡

Bind†† Emulation Adv Fnctns Robust XON PCL 5e Demo

Page

DTR Polarity PS2 Demo Page‡

† Appears when the serial interface option is installed.

‡ Appears when the PostScript option is installed.

†† Appears when the Printing Menu’s Duplex item is set to On.

The Control Panel

Chapter 3: The Control Panel ❖ 3-7

Using the

Control Panel

The Control Panel is used to set various printer operations and to print

test sheets.

Setting the Printer Table 3.4, starting on the next page, lists the most common printer

setting tasks, organized by menu and menu item. The examples show a

printer set for PCL 5e emulation with A4 paper in both upper and lower

tray (PCL 5e A4/A4). Your settings may be different.

For an alphabetical listing of menu items (and more detailed

descriptions), see Table 3.6 on page 3-23.

For each task listed in Table 3.4, you will find:

•All possible choices for the item to be set. The choice shown in

bold is the factory default setting.

•The key press sequence to complete the task.

•For each key press, the action/response, along with the message

displayed. ‘=X’ indicates the current setting, ‘=N’ indicates a new

setting, and the asterisk (*) indicates that the new setting has been

entered.

Note

You can normally control the printer’s operation through your

applications, such as specifying how many copies of the print job you

want.

Using the Control Panel

3-8 ❖ DocuPrint 4512/4512N User Guide

Table 3.4 Using the Control Panel to set printer operation

Task Key Press

Sequence†Action/Response Display Shows

Change the copies

setting.

Sets how many copies

to print.

Choices:

1-999

On Line Takes the printer off-line. Printing Menu

Item Displays the Copies item. Copies=X *

Up or

Down

Changes the number of copies. Copies=N

Enter Sets the new value. Copies=N *

On Line Returns the printer on-line. PCL 5e A4/A4

Change the font

number setting.

Sets the printer’s base

font.

Choices:

0-45

On Line Takes the printer off-line. Printing Menu

Item Displays the Copies item. Copies=X *

Item Displays the Font Number item. Font Number=X *

Up or

Down

Changes the font number. Font Number=N

Enter Saves the new value. Font Number=N *

On Line Returns the printer on-line. PCL 5e A4/A4

Change the duplex

setting.

Controls duplex

(two-sided) printing.

Choices:

Off, On

On Line Takes the printer off-line. Printing Menu

Item Displays the Copies item. Copies=X *

Item Displays the Font Number item. Font Number=X *

Item Displays the Duplex item. Duplex=X *

Up or

Down

Toggles the duplex setting. Duplex=N

Enter Saves the new value. Duplex=N *

On Line Returns the printer on-line. PCL 5e A4/A4

Table 3.4 Page 1 of 9

Using the Control Panel

Chapter 3: The Control Panel ❖ 3-9

Change the bind

setting†.

Controls print

orientation for duplex

(two-sided) printing.

Choices:

Long Edge,

Short Edge

† When the Duplex item

is set to On.

On Line Takes the printer off-line. Printing Menu

Item Displays the Copies item. Copies=X *

Item Displays the Font Number item. Font Number=X *

Item Displays the Duplex item. Duplex=On *

Item Displays the Bind item. Bind=X *

Up or

Down

Toggles the binding setting. Bind=N

Enter Saves the new value. Bind=N *

On Line Returns the printer on-line. PCL 5e A4/A4

Change the

resolution setting.

Sets the print

resolution in dpi.

Choices:

600, 300

On Line Takes the printer off-line. Printing Menu

Menu Displays the Job Menu. Job Menu

Item Displays the Resolution item. Resolution=X *

Up or

Down

Toggles the resolution setting. Resolution=N

Enter Saves the new value. Resolution=N *

On Line Returns the printer on-line. PCL 5e A4/A4

Change the page

protection setting.

Controls how the

printer completes a

job that is causing a

data loss error.

Choices:

AUTO, On

On Line Takes the printer off-line. Printing Menu

Menu Displays the Job Menu. Job Menu

Item Displays the Resolution item. Resolution=X *

Item Displays the Page P item. Page P=X *

Up or

Down

Toggles the page protection setting. Page P=N

Enter Saves the new value. Page P=N *

On Line Returns the printer on-line. PCL 5e A4/A4

Table 3.4 Using the Control Panel to set printer operation (continued)

Task Key Press

Sequence†Action/Response Display Shows

Table 3.4 Page 2 of 9

Using the Control Panel

3-10 ❖ DocuPrint 4512/4512N User Guide

Change the state

saving setting.

Controls whether or

not the printer saves

data in memory when

switching between

PCL 5e and Postscript

emulation.

Choices:

Off, On

On Line Takes the printer off-line. Printing Menu

Menu Displays the Job Menu. Job Menu

Item Displays the Resolution item. Resolution=X *

Item Displays the Page P item. Page P=X *

Item Displays the St Saving item. St Saving=X *

Up or

Down

Toggles the state saving setting. St Saving=N

Enter Saves the new value. St Saving=N *

On Line Returns the printer on-line. PCL 5e A4/A4

Change the

emulation setting.

Sets the base printer

emulation.

Choices:

PCL 5e, PS2, AUTO,

HEX

On Line Takes the printer off-line. Printing Menu

Menu Displays the Job Menu. Job Menu

Item Displays the Resolution item. Resolution=X *

Item Displays the Page P item. Page P=X *

Item Displays the St Saving item. St Saving=X *

Item Displays the Emulation item. Emulation=X *

Up or

Down

Changes the emulation setting. Emulation=N

Enter Saves the new value. Emulation=N *

On Line Returns the printer on-line. PCL 5e A4/A4

Table 3.4 Using the Control Panel to set printer operation (continued)

Task Key Press

Sequence†Action/Response Display Shows

Table 3.4 Page 3 of 9

Using the Control Panel

Chapter 3: The Control Panel ❖ 3-11

Change the

warning message

setting.

Controls the display

of memory-related

warning messages.

Choices:

On, Off

On Line Takes the printer off-line. Printing Menu

Menu Displays the Job Menu. Job Menu

Menu Displays the Config Menu. Config Menu

Item Displays the Warn Msg item. Warn Msg=X *

Up or

Down

Toggles the warning messages setting. Warn Msg=N

Enter Saves the new value. Warn Msg=N *

On Line Returns the printer on-line. PCL 5e A4/A4

Change the

manual feed

setting.

Controls the override

of manual paper feed

requests from

computer

applications.

Choices:

On, Off

On Line Takes the printer off-line. Printing Menu

Menu Displays the Job Menu. Job Menu

Menu Displays the Config Menu. Config Menu

Item Displays the Warn Msg item. Warn Msg=X *

Item Displays the Manual Set item. Manual Set=X *

Up or

Down

Toggles the manual feed setting. Manual Set=N

Enter Saves the new value. Manual Set=N *

On Line Returns the printer on-line. PCL 5e A4/A4

Table 3.4 Using the Control Panel to set printer operation (continued)

Task Key Press

Sequence†Action/Response Display Shows

Table 3.4 Page 4 of 9

Using the Control Panel

3-12 ❖ DocuPrint 4512/4512N User Guide

Change the high

speed setting.

Controls data transfer

speed to slower or

older computers.

Choices:

On, Off

On Line Takes the printer off-line. Printing Menu

Menu Displays the Job Menu. Job Menu

Menu Displays the Config Menu. Config Menu

Item Displays the Warn Msg item. Warn Msg=X *

Item Displays the Manual Set item. Manual Set=X *

Item Displays the High Speed item. High Speed=X *

Up or

Down

Toggles the high speed setting. High Speed=N

Enter Saves the new value. High Speed=N *

On Line Returns the printer on-line. PCL 5e A4/A4

Change the

advanced

functions setting.

Controls whether or

not the printer will

send status messages

to the computer.

Choices:

On, Off

On Line Takes the printer off-line. Printing Menu

Menu Displays the Job Menu. Job Menu

Menu Displays the Config Menu. Config Menu

Item Displays the Warn Msg item. Warn Msg=X *

Item Displays the Manual Set item. Manual Set=X *

Item Displays the High Speed item. High Speed=X *

Item Displays the Adv Fnctns item. Adv Fnctns=X *

Up or

Down

Toggles the advanced functions setting. Adv Fnctns=N

Enter Saves the new value. Adv Fnctns=N *

On Line Returns the printer on-line. PCL 5e A4/A4

Table 3.4 Using the Control Panel to set printer operation (continued)

Task Key Press

Sequence†Action/Response Display Shows

Table 3.4 Page 5 of 9

Using the Control Panel

Chapter 3: The Control Panel ❖ 3-13

Change the baud

rate setting.

Controls the rate at

which data is

transferred between

the computer and the

printer through the

optional serial

interface.

Choices:

300, 600, 1200, 2400,

4800, 9600, 19200,

38400, 57600

On Line Takes the printer off-line. Printing Menu

Menu Displays the Job Menu. Job Menu

Menu Displays the Config Menu. Config Menu

Menu Displays the Serial Menu (if present). Serial Menu

Item Displays the Baud Rate item. Baud Rate=X *

Up or

Down

Changes the baud rate setting. Baud Rate=N

Enter Saves the new value. Baud Rate=N *

On Line Returns the printer on-line. PCL 5e A4/A4

Change the data

bit setting.

Controls a

communications

parameter for the

optional serial

interface.

Choices:

8, 7

On Line Takes the printer off-line. Printing Menu

Menu Displays the Job Menu. Job Menu

Menu Displays the Config Menu. Config Menu

Menu Displays the Serial Menu (if present). Serial Menu

Item Displays the Baud Rate item. Baud Rate=X *

Item Displays the Data Bit item. Data Bit=X *

Up or

Down

Changes the data bit setting. Data Bit=N

Enter Saves the new value. Data Bit=N *

On Line Returns the printer on-line. PCL 5e A4/A4

Table 3.4 Using the Control Panel to set printer operation (continued)

Task Key Press

Sequence†Action/Response Display Shows

Table 3.4 Page 6 of 9

Using the Control Panel

3-14 ❖ DocuPrint 4512/4512N User Guide

Change the parity

setting.

Controls a

communications

parameter for the

optional serial

interface.

Choices:

None, Even, Odd

On Line Takes the printer off-line. Printing Menu

Menu Displays the Job Menu. Job Menu

Menu Displays the Config Menu. Config Menu

Menu Displays the Serial Menu (if present). Serial Menu

Item Displays the Baud Rate item. Baud Rate=X *

Item Displays the Data Bit item. Data Bit=X *

Item Displays the Parity item. Parity=X *

Up or

Down

Changes the parity setting. Parity=N

Enter Saves the new value. Parity=N *

On Line Returns the printer on-line. PCL 5e A4/A4

Change the

Robust XON

setting.

Controls a datastream

handshaking protocol

for the optional serial

interface.

Choices:

On, Off

On Line Takes the printer off-line. Printing Menu

Menu Displays the Job Menu. Job Menu

Menu Displays the Config Menu. Config Menu

Menu Displays the Serial Menu (if present). Serial Menu

Item Displays the Baud Rate item. Baud Rate=X *

Item Displays the Data Bit item. Data Bit=X *

Item Displays the Parity item. Parity=X *

Item Displays the Robust XON item. Robust XON=X *

Up or

Down

Changes the Robust XON setting. Robust XON=N

Enter Saves the new value. Robust XON=N *

On Line Returns the printer on-line. PCL 5e A4/A4

Table 3.4 Using the Control Panel to set printer operation (continued)

Task Key Press

Sequence†Action/Response Display Shows

Table 3.4 Page 7 of 9

Using the Control Panel

Chapter 3: The Control Panel ❖ 3-15

Change the DTR

Polarity setting.

Controls the

configuration of Data

Terminal Ready

polarity for the

optional serial

interface.

Choices:

High, Low

On Line Takes the printer off-line. Printing Menu

Menu Displays the Job Menu. Job Menu

Menu Displays the Config Menu. Config Menu

Menu Displays the Serial Menu (if present). Serial Menu

Item Displays the Baud Rate item. Baud Rate=X *

Item Displays the Data Bit item. Data Bit=X *

Item Displays the Parity item. Parity=X *

Item Displays the Robust XON item. Robust XON=X *

Item Displays the DTR Polarity item. DTR Polarity=X *

Up or

Down

Changes the polarity setting. DTR Polarity=N

Enter Saves the new value. DTR Polarity=N *

On Line Returns the printer on-line. PCL 5e A4/A4

Change the print

screen setting.

Controls the default

symbol set to allow

80 characters per line

on A4 paper.

Choices:

OFF, 850, 852

On Line Takes printer off-line. Printing Menu

Menu Displays Job Menu. Job Menu

Menu Displays Config Menu. Config Menu

Menu Displays Serial Menu (if present). Serial Menu

Menu Displays Test Menu. Test Menu

Menu Displays Misc Menu. Misc Menu

Item Displays Prt Screen item. Prt Screen=X *

Up or

Down

Changes the screen dump setting. Prt Screen=N

Enter Saves the new value. Prt Screen=N *

On Line Returns printer on-line. PCL 5e A4/A4

Table 3.4 Using the Control Panel to set printer operation (continued)

Task Key Press

Sequence†Action/Response Display Shows

Table 3.4 Page 8 of 9

Using the Control Panel

3-16 ❖ DocuPrint 4512/4512N User Guide

Change the

Message setting.

Sets the language of

display panel

messages.

Choices:

English, FRENCH,

GERMAN,

ITALIAN, PORTUG,

RUSSIAN, SPANISH

On Line Takes printer off-line. Printing Menu

Menu Displays Job Menu. Job Menu

Menu Displays Config Menu. Config Menu

Menu Displays Serial Menu (if present). Serial Menu

Menu Displays Test Menu. Test Menu

Menu Displays Misc Menu. Misc Menu

Item Displays Prt Screen item. Prt Screen=X *

Item Displays Message item. Message=X *

Up or

Down

Changes the message language setting. Message=N

Enter Saves the new value. Message=N *

On Line Returns printer on-line. PCL 5e A4/A4

† The number of menus and menu items will vary, depending on whether or not you have option boards installed in the printer.

Therefore, the number of times you have to press the Menu or Item key may vary from that shown in this table.

Table 3.4 Using the Control Panel to set printer operation (continued)

Task Key Press

Sequence†Action/Response Display Shows

Table 3.4 Page 9 of 9

Using the Control Panel

Chapter 3: The Control Panel ❖ 3-17

Printing Test Sheets Table 3.5 lists the procedures for printing the various test prints.

Table 3.5 Using the Control Panel to print test sheets

Task Key Press

Sequence†Action/Response Display Shows

Print the

Configuration

Sheet.

Lists the options you

have installed and the

current settings for

each option in the

Control Panel’s menu

system.

On Line Takes the printer off-line. Printing Menu

Menu Displays the Job Menu. Job Menu

Menu Displays the Config Menu. Config Menu

Menu Displays the Serial Menu (if present). Serial Menu

Menu Displays the Test Menu. Test Menu

Item Displays the Config Sheet item. Config Sheet

Enter Prints the Configuration Sheet. Config Sheet

On Line Returns the printer on-line. PCL 5e A4/A4

Print the PCL 5e

Font List.

Shows which PCL

fonts are currently

available. The list

includes resident

fonts and downloaded

fonts.

On Line Takes the printer off-line. Printing Menu

Menu Displays the Job Menu. Job Menu

Menu Displays the Config Menu. Config Menu

Menu Displays the Serial Menu (if present). Serial Menu

Menu Displays the Test Menu. Test Menu

Item Displays the Config Sheet item. Config Sheet

Item Displays the PCL 5e Font List item. PCL 5e Font List

Enter Prints the PCL 5e Font List. PCL 5e Font List

On Line Returns the printer on-line. PCL 5e A4/A4

Table 3.5 Page 1 of 3

Using the Control Panel

3-18 ❖ DocuPrint 4512/4512N User Guide

Print the PS2 Font

List.

Shows which

PostScript fonts are

currently available (if

the PostScript option

has been installed).

The list includes

resident fonts and

downloaded fonts.

On Line Takes the printer off-line. Printing Menu

Menu Displays the Job Menu. Job Menu

Menu Displays the Config Menu. Config Menu

Menu Displays the Serial Menu (if present). Serial Menu

Menu Displays the Test Menu. Test Menu

Item Displays the Config Sheet item. Config Sheet

Item Displays the PCL 5e Font List item. PCL 5e Font List

Item Displays the PS2 Font List item. PS2 Font List

Enter Prints the PS2 Font List. PS2 Font List

On Line Returns the printer on-line. PCL 5e A4/A4

Print the PCL 5e

Demo Page.

Provides a sample of

the printer’s

capabilities and lists

the printer’s key

features.

On Line Takes the printer off-line. Printing Menu

Menu Displays the Job Menu. Job Menu

Menu Displays the Config Menu. Config Menu

Menu Displays the Serial Menu (if present). Serial Menu

Menu Displays the Test Menu. Test Menu

Item Displays the Config Sheet item. Config Sheet

Item Displays the PCL 5e Font List item. PCL 5e Font List

Item Displays the PS2 Font List item. PS2 Font List

Item Displays the PCL 5e Demo Page item. PCL 5e Demo Page

Enter Prints the PCL 5e Demo Page. PCL 5e Demo Page

On Line Returns the printer on-line. PCL 5e A4/A4

Table 3.5 Using the Control Panel to print test sheets (continued)

Task Key Press

Sequence†Action/Response Display Shows

Table 3.5 Page 2 of 3

Using the Control Panel

Chapter 3: The Control Panel ❖ 3-19

Print the PS2

Demo Page.

Provides a sample

of the printer’s

PostScript capabilities

(if the PostScript

option has been

installed).

On Line Takes the printer off-line. Printing Menu

Menu Displays the Job Menu. Job Menu

Menu Displays the Config Menu. Config Menu

Menu Displays the Serial Menu (if present). Serial Menu

Menu Displays the Test Menu. Test Menu

Item Displays the Config Sheet item. Config Sheet

Item Displays the PCL 5e Font List item. PCL 5e Font List

Item Displays the PS2 Font List item. PS2 Font List

Item Displays the PCL 5e Demo Page item. PCL 5e Demo Page

Item Displays the PS2 Demo Page item. PS2 Demo Page

Enter Prints the PS2 Demo Page. PS2 Demo Page

On Line Returns the printer on-line. PCL 5e A4/A4

† The number of menus and menu items will vary, depending on whether or not you have option boards installed in the printer.

Therefore, the number of times you have to press the Menu or Item key may vary from that shown in this table.

Table 3.5 Using the Control Panel to print test sheets (continued)

Task Key Press

Sequence†Action/Response Display Shows

Table 3.5 Page 3 of 3

Using the Control Panel

3-20 ❖ DocuPrint 4512/4512N User Guide

Setting Power Saver

Mode

The DocuPrint 4512 conforms to the U.S. EPA Energy Star power saver

mode specifications. By default, the printer’s power consumption drops

to less than 30 watts when no data is received for a period of 30 minutes.

Other power saving modes are available that reduce power consumption

to less than 10% of peak consumption after 15, 30, or 45 minutes.

To set the power saver mode:

Printing Simplex

and Duplex

Demo Pages

The DocuPrint 4512 has a Demo Page Mode in which demo pages can

be printed by a single key press. To enter Demo Page Mode:

1Power off the printer.

2Press Data Clear and hold the key down while powering the

printer back on.

The display will read:

POWER SAVE 30

3Press Form Feed or Data Clear to cycle through the power

saver choices.

POWER SAVE 15

POWER SAVE 30

POWER SAVE 45

4When the value you want is displayed, turn the printer off.

5Wait 10 to 15 seconds, then turn the printer back on.

The new value will then be set.

1Power off the printer.

2Press Form Feed and Data Clear and hold the keys down

while powering the printer back on.

The display will read:

DEMO PAGE

Using the Control Panel

Chapter 3: The Control Panel ❖ 3-21

3To print a simplex demo page, press Enter .

To print a duplex demo page, press Up .

If the PostScript option is installed, the PS2 demo pages will be printed.

Otherwise, the PCL 5e demo pages will be printed.

4To cancel Demo Page Mode, either power off the printer or

simultaneously press Menu , Up , and Down .

The Control Panel

3-22 ❖ DocuPrint 4512/4512N User Guide

Printer

Parameters and

Default Settings

Table 3.6, starting on the next page, contains an alphabetical listing of

all Control Panel menu items. For each item listed, you will find:

•The menu item.

•The menu under which the item is located.

•All possible settings for the item.

•The factory default setting for the item. A boldfaced setting means

it is a factory default setting.

•A description of the item.

Note

You can normally override many of the printer’s default settings through

your applications, such as the font(s) to be used for a print job.

Printer Parameters and Default Settings

Chapter 3: The Control Panel ❖ 3-23

Table 3.6 Control Panel menu items, settings, and descriptions

Menu Item,

Location,

Setting(s) Description

Adv Fnctns

Config Menu

On, Off

When set to On, allows status messages to be sent to the computer through the printer’s

bi-directional parallel port.

Baud Rate†

Serial Menu

300, 600, 1200, 2400, 4800,

9600, 19200, 38400, 57600

† Appears only when the

serial interface option is

installed.

Determines the rate at which data is transferred between the computer and the printer.

Older computers require slower settings. Refer to your computer manual.

Bind

Printing Menu

Long Edge, Short Edge

Sets the binding of the print job for duplex printing.

Copies

Printing Menu

1 ~ 999

Sets how many copies to print.

Data Bit†

Serial Menu

8, 7

† Appears only when the

serial interface option is

installed.

Sets 7 or 8 bit communications.

Printer and host values must match.

DTR Polarity†

Serial Menu

High, Low

† Appears only when the

serial interface option is

installed.

Sets the configuration of Data Terminal Ready polarity, which determines whether the

signal at pin 20 of the serial interface connector is high or low when the printer is ready.

Table 3.6 Page 1 of 3

Printer Parameters and Default Settings

3-24 ❖ DocuPrint 4512/4512N User Guide

Duplex

Printing Menu

Off, On

When set to On, enables duplex (two-sided printing).

Emulation†

Job Menu

PCL 5e, PS2, AUTO, HEX

† Appears only when a

PostScript option is

installed.

Sets the base printer emulation.

Font Number

Printing Menu

0-45

Sets the font number of the printer’s base font.

The number varies according to how many fonts are installed on the printer.

High Speed

Config Menu

On, Off

Controls data transfer speed.

This item should be set to Off for slower or older computers. Setting it to On

improves data transfer speed.

Manual Set

Config Menu

On, Off

Controls processing of manual feed request from computer application. When set to

Off, causes paper to feed automatically from the paper tray even if the application

requests manual feed.

Message

Misc Menu

ENGLISH, FRENCH,

GERMAN, ITALIAN,

PORTUG, RUSSIAN,

SPANISH

Sets the language for the messages that display on the Control Panel.

Page P

Job Menu

AUTO, On

Controls how data is processed when DATA LOSS ERROR occurs.

If printing speed is a consideration, more memory may be required to make

effective use of this item.

Table 3.6 Control Panel menu items, settings, and descriptions (continued)

Menu Item,

Location,

Setting(s) Description

Table 3.6 Page 2 of 3

Printer Parameters and Default Settings

Chapter 3: The Control Panel ❖ 3-25

Parity†

Serial Menu

None, Even, Odd

† Appears only when the

serial interface option is

installed.

Sets the parity communications parameter.

Printer and host values must match.

Prt Screen

Misc Menu

OFF, 850, 852

Controls the default symbol set to allow 80 characters per line on A4 paper.

A4 paper is usually 77 characters wide. When set to 850 or 852, A4 width will

be able to accommodate 80 characters per line, and the default symbol set value

will correspond to PC-850 or PC-852. This item is useful when printing the 80

characters per line width of computer displays.

Resolution

Job Menu

600, 300

Sets the print resolution in dpi (dots per inch).

Robust XON†

Serial Menu

On, Off

† Appears only when the

serial interface option is

installed.

Controls the XON datastream handshaking protocol. When set to On, the printer sends

signals at one-second intervals to tell the host it is ready to receive data.

St Saving†

Job Menu

Off, On

† Used only when the

PostScript option is

installed.

Controls whether or not the printer saves data in memory when switching between PCL

5e and Postscript emulation. When set to Off, the user area is cleared at emulation

change.

Setting this item to On may require more memory.

Warn Msg

Config Menu

On, Off

Controls the display of memory-related warning messages. When set to On, Data Loss

Error and Data Memory Full messages will not be displayed.

Table 3.6 Control Panel menu items, settings, and descriptions (continued)

Menu Item,

Location,

Setting(s) Description

Table 3.6 Page 3 of 3

3-26 ❖ DocuPrint 4512/4512N User Guide

Chapter 4

Chapter 4: Fonts ❖ 4-1

Fonts Chapter4

Fonts in Your Printer .......................................................................

4-2

Xerox Font Manager ...................................................................... 4-2

Intellifont ........................................................................................ 4-3

TrueType ........................................................................................ 4-3

Bitmap ............................................................................................ 4-4

PostScript ....................................................................................... 4-4

Printing Font Lists ............................................................................ 4-5

Selecting Fonts .................................................................................. 4-6

Changing the Font Number Setting ............................................... 4-6

Downloading Fonts ..........................................................................

4-7

Fonts

4-2 ❖ DocuPrint 4512/4512N User Guide

Fonts in

Your Printer

The DocuPrint 4512 base printer is equipped with 46 resident fonts that

can be used for PCL jobs:

• 10 TrueType™ scalable typefaces

• 35 Intellifont™ scalable typefaces

• 1 PCL Bitmap font

The PostScript option provides an additional 35 PostScript-compatible

fonts for PostScript jobs.

Xerox Font Manager The Xerox Font Manager ships with 110 fonts. Most important, the

Xerox Font Manager uses Agfa’s new MicroType font compression

technology, designed for high throughput of all type styles with

uncompromised type rendering.

The Xerox Font Manager also includes a number of productivity

enhancements, such as double clicking for font previews, on-demand

drive search, font grouping, and available font listings. In addition, the

Xerox Font Manager installs and de-installs all the major Windows

fonts, including TrueType, PostScript, screen bitmaps, and MicroType.

Note

To review the fonts in your printer, you can print font lists, as described

in the section “Printing Font Lists” (page 4-5).

Fonts in Your Printer

Chapter 4: Fonts ❖ 4-3

Intellifont Table 4.1 lists the 35 Intellifont scalable typefaces that are available in

the DocuPrint 4512.

TrueType Table 4.2 lists the ten TrueType typefaces that are available in the

DocuPrint 4512.

Table 4.1 DocuPrint 4512 base

printer Intellifont

fonts

Antique Olive™

Antique Olive Bold

Antique Olive Italic

Albertus™ Medium

Albertus Extra Bold

CG Omega®

CG Omega Bold

CG Omega Bold Italic

CG Omega Italic

CG Times®

CG Times Bold

CG Times Bold Italic

CG Times Italic

Clarendon Condensed

Coronet™

Courier

Courier Bold

Courier Bold Italic

Courier Italic

Garamond Antiqua

Garamond Halbfett

Garamond Kursiv

Garamond Kursiv Halbfett

Letter Gothic

Letter Gothic Bold

Letter Gothic Italic

Marigold

Univers® Medium

Univers Medium Italic

Univers Bold

Univers Bold Italic

Univers Medium Condensed

Univers Medium Condensed Italic

Univers Bold Condensed

Univers Bold Condensed Italic

Table 4.2 DocuPrint 4512 base

printer TrueType

fonts

Arial™

Arial Bold

Arial Bold Italic

Arial Italic

Symbol

Times New Roman®

Times New Roman Bold

Times New Roman Bold Italic

Times New Roman Italic

Wingdings

Fonts in Your Printer

4-4 ❖ DocuPrint 4512/4512N User Guide

Bitmap There is one bitmap font available in the DocuPrint 4512:

PostScript When the PostScript option is installed, there are 35 resident

PostScript-compatible fonts available for printing PostScript jobs (as

shown in Table 4.3).

Line Printer

Table 4.3 DocuPrint 4512 optional PostScript fonts

ITC Avant Garde Gothic® Book

ITC Avant Garde Gothic Book Oblique

ITC Avant Garde Gothic Demi

ITC Avant Garde Gothic Demi Oblique

ITC Bookman® Demi

ITC Bookman Demi Italic

ITC Bookman Light

ITC Bookman Light Italic

Courier®

Courier Bold

Courier Bold Oblique

Courier Oblique

Helvetica®

Helvetica Bold

Helvetica Bold Oblique

Helvetica Oblique

Helvetica® Narrow

Helvetica Narrow Bold

Helvetica Narrow Bold Oblique

Helvetica Narrow Oblique

New Century Schoolbook® Roman

New Century Schoolbook Bold

New Century Schoolbook Bold Italic

New Century Schoolbook Italic

Palatino®

Palatino Bold

Palatino Bold Italic

Palatino Italic

Symbol

Times® Roman

Times Bold

Times Bold Italic

Times Italic

ITC Zapf Chancery® Medium Italic

ITC Zapf Dingbats®

Fonts

Chapter 4: Fonts ❖ 4-5

Printing

Font Lists

The DocuPrint 4512 can print font lists that show which fonts are

currently available for use. The lists include resident fonts and

downloaded fonts.

Table 4.4 lists the procedures for printing font lists.

Table 4.4 Using the Control Panel to print font lists

Task Key Press

Sequence†Action/Response Display Shows

Print the PCL 5e

Font List.

On Line Takes the printer off-line. Printing Menu

Menu Displays the Job Menu. Job Menu

Menu Displays the Config Menu. Config Menu

Menu Displays the Serial Menu (if present). Serial Menu

Menu Displays the Test Menu. Test Menu

Item Displays the Config Sheet item. Config Sheet

Item Displays the PCL 5e Font List item. PCL 5e Font List

Enter Prints the PCL 5e Font List. PCL 5e Font List

On Line Returns the printer on-line. PCL 5e A4/A4

Print the PS2 Font

List.

On Line Takes the printer off-line. Printing Menu

Menu Displays the Job Menu. Job Menu

Menu Displays the Config Menu. Config Menu

Menu Displays the Serial Menu (if present). Serial Menu

Menu Displays the Test Menu. Test Menu

Item Displays the Config Sheet item. Config Sheet

Item Displays the PCL 5e Font List item. PCL 5e Font List

Item Displays the PS2 Font List item. PS2 Font List

Enter Prints the PS2 Font List. PS2 Font List

On Line Returns the printer on-line. PCL 5e A4/A4

† The number of menus and menu items will vary, depending on whether or not you have option boards installed in the printer.

Therefore, the number of times you have to press the Menu or Item key may vary from that shown in this table.

Fonts

4-6 ❖ DocuPrint 4512/4512N User Guide

Selecting Fonts Selecting fonts is rarely done manually, due to the use of WYSIWYG

(What You See Is What You Get) application software, which enables

you to control the look of your output from the computer monitor.

There may be times, however, when you want to print older text files

without going through application software. At such times, you can

print files straight to the printer, using the printer’s default font. Any of

the printer’s resident fonts can be set as the default, as described in the

following section.

Changing the Font

Number Setting

You can set the printer’s default font at the Control Panel. Table 4.5 lists

the procedure. The factory default is 0 (zero). The ‘=X’ indicates the

current setting, the ‘=N’ indicates a new setting, and the asterisk (*)

indicates that the new setting has been entered.

Table 4.5 Using the Control Panel to change the font number setting

Task Key Press

Sequence†Action/Response Display Shows

Change the Font

Number setting.

Choices:

0-45

On Line Takes the printer off-line. Printing Menu

Item Displays the Copies item. Copies=X

Item Displays the Font Number item. Font Number=X

Up or Down Changes the font number. Font Number=N

Enter Saves the new value. Font Number=N*

On Line Returns the printer on-line. PCL 5e A4/A4

† The number of menus and menu items will vary, depending on whether or not you have option boards installed in the printer.

Therefore, the number of times you have to press the Menu or Item key may vary from that shown in this table.

Note

The PCL 5e Font List contains the names and corresponding numbers of

the fonts that can be set with the Font Number item. Downloaded fonts

cannot be selected through the Control Panel.

Fonts

Chapter 4: Fonts ❖ 4-7

Downloading

Fonts

Xerox DocuPrint 4512 printer drivers provide you with the ability to

download fonts to the printer.

•To download fonts you must first install the appropriate DocuPrint

4512 Windows 3.1/’95, Macintosh, Windows NT, or UNIX drivers.

See Chapter 5: Printer Drivers.

•“Temporary” fonts downloaded to printer memory on a job basis

are cleared from the printer’s memory after each job.

•“Permanent” fonts downloaded to printer memory are cleared from

the printer’s memory whenever the printer is powered OFF, and

whenever the printer switches PDLs and the State Saving

option is set to Off.

(When State Saving is set to On, “permanent” fonts are only

cleared from printer memory when you power OFF the printer.)

Note

The DocuPrint 4512 printer driver software contains Font Manager, a

utility that enables you to easily download fonts.

4-8 ❖ DocuPrint 4512/4512N User Guide

Chapter 5

Chapter 5: Printer Drivers ❖ 5-1

Printer Drivers Chapter5

DocuPrint 4512 PCL 5e Emulation Printer Drivers ....................... 5-2

DocuPrint 4512 PostScript Printer Drivers ..................................... 5-3

Printer Drivers

5-2 ❖ DocuPrint 4512/4512N User Guide

DocuPrint 4512

PCL 5e

Emulation

Printer Drivers

The base DocuPrint 4512 supports the PCL printer drivers listed in

Table 5.1. To take full advantage of all the printer’s features when

printing PCL jobs, install the appropriate DocuPrint 4512 PCL 5e

emulation printer driver(s). (Consult your software application user

manual for instructions on installing a new printer driver.)

If the driver you need did not come with the printer, see

Appendix A: Ordering Information. (Printer software and drivers may

also be available through on-line services and the Internet.)

Table 5.1 DocuPrint 4512 PCL 5e emulation printer drivers

Environment Printer Driver Diskette

DOS†Microsoft Word Ver. 6.0 Xerox DocuPrint 4512 Printer Driver

for MS Word 6.0 for DOS

WordPerfect Ver. 6.0 Xerox DocuPrint 4512 Printer Driver

for WordPerfect 6.0 for DOS

Windows Windows 3.1 /

Windows 95

Xerox DocuPrint 4512 PCL 5e Emulation Printer Driver

for Microsoft Windows 3.1/ Windows 95

Windows NT 3.5 OnPAGE PCL 5e Emulation Printer Driver

for Microsoft Windows NT 3.5

IBM OS/2 OS/2 Ver. 2.1 Xerox DocuPrint 4512 PCL 5e Emulation Printer Driver

for IBM OS/2 Ver. 2.1

OS/2 WARP Xerox DocuPrint 4512 PCL 5e Emulation Printer Driver

for IBM OS/2 WARP

† If you are using a DOS application other than Microsoft Word or WordPerfect, use the HP LaserJet 4si printer driver supplied with

your application software.

Printer Drivers

Chapter 5: Printer Drivers ❖ 5-3

DocuPrint 4512

PostScript

Printer Drivers

The PostScript option supports the PostScript drivers listed in Table 5.2.

To take full advantage of all the printer’s features when printing

PostScript jobs, install the appropriate DocuPrint 4512 PostScript

printer driver(s). (Consult your software application user manual for

instructions on installing a new printer driver.)

If the driver you need did not come with the printer, see

Appendix A: Ordering Information. (Printer software and drivers may

also be available through on-line services and the Internet.)

Table 5.2 DocuPrint 4512 PostScript printer drivers

Environment Printer Driver Diskette

Windows Windows 3.1 /

Windows 95

Xerox DocuPrint 4512 PS2 Printer Driver

for Microsoft Windows 3.1/ Windows 95

Windows NT 3.5 OnPAGE PS2 Printer Driver

for Microsoft Windows NT 3.5

IBM OS/2 OS/2 Ver. 2.1 Xerox DocuPrint 4512 PS2 Printer Driver

for IBM OS/2 Ver. 2.1

OS/2 WARP Xerox DocuPrint 4512 PS2 Printer Driver

for IBM OS/2 WARP

Macintosh System 6.x OnPAGE

System 7.x OnPAGE

UNIX

(SUN 4.1x,

SCO UNIX,

IBM AIX 3.1,

HP.UX on

HP 9000)

Document Manager Xerox DocuPrint 4512 PS2 Printer Driver for SUN OS 4.1.3

5-4 ❖ DocuPrint 4512/4512N User Guide

Chapter 5

Chapter 5: Printer Drivers ❖ 5-1

Printer Drivers Chapter5

DocuPrint 4512 PCL 5e Emulation Printer Drivers ....................... 5-2

DocuPrint 4512 PostScript Printer Drivers ..................................... 5-3

Printer Drivers

5-2 ❖ DocuPrint 4512/4512N User Guide

DocuPrint 4512

PCL 5e

Emulation

Printer Drivers

The base DocuPrint 4512 supports the PCL printer drivers listed in

Table 5.1. To take full advantage of all the printer’s features when

printing PCL jobs, install the appropriate DocuPrint 4512 PCL 5e

emulation printer driver(s). (Consult your software application user

manual for instructions on installing a new printer driver.)

If the driver you need did not come with the printer, see

Appendix A: Ordering Information. (Printer software and drivers may

also be available through on-line services and the Internet.)

Table 5.1 DocuPrint 4512 PCL 5e emulation printer drivers

Environment Printer Driver Diskette

DOS†Microsoft Word Ver. 6.0 Xerox DocuPrint 4512 Printer Driver

for MS Word 6.0 for DOS

WordPerfect Ver. 6.0 Xerox DocuPrint 4512 Printer Driver

for WordPerfect 6.0 for DOS

Windows Windows 3.1 /

Windows 95

Xerox DocuPrint 4512 PCL 5e Emulation Printer Driver

for Microsoft Windows 3.1/ Windows 95

Windows NT 3.5 OnPAGE PCL 5e Emulation Printer Driver

for Microsoft Windows NT 3.5

IBM OS/2 OS/2 Ver. 2.1 Xerox DocuPrint 4512 PCL 5e Emulation Printer Driver

for IBM OS/2 Ver. 2.1

OS/2 WARP Xerox DocuPrint 4512 PCL 5e Emulation Printer Driver

for IBM OS/2 WARP

† If you are using a DOS application other than Microsoft Word or WordPerfect, use the HP LaserJet 4si printer driver supplied with

your application software.

Printer Drivers

Chapter 5: Printer Drivers ❖ 5-3

DocuPrint 4512

PostScript

Printer Drivers

The PostScript option supports the PostScript drivers listed in Table 5.2.

To take full advantage of all the printer’s features when printing

PostScript jobs, install the appropriate DocuPrint 4512 PostScript

printer driver(s). (Consult your software application user manual for

instructions on installing a new printer driver.)

If the driver you need did not come with the printer, see

Appendix A: Ordering Information. (Printer software and drivers may

also be available through on-line services and the Internet.)

Table 5.2 DocuPrint 4512 PostScript printer drivers

Environment Printer Driver Diskette

Windows Windows 3.1 /

Windows 95

Xerox DocuPrint 4512 PS2 Printer Driver

for Microsoft Windows 3.1/ Windows 95

Windows NT 3.5 OnPAGE PS2 Printer Driver

for Microsoft Windows NT 3.5

IBM OS/2 OS/2 Ver. 2.1 Xerox DocuPrint 4512 PS2 Printer Driver

for IBM OS/2 Ver. 2.1

OS/2 WARP Xerox DocuPrint 4512 PS2 Printer Driver

for IBM OS/2 WARP

Macintosh System 6.x OnPAGE

System 7.x OnPAGE

UNIX

(SUN 4.1x,

SCO UNIX,

IBM AIX 3.1,

HP.UX on

HP 9000)

Document Manager Xerox DocuPrint 4512 PS2 Printer Driver for SUN OS 4.1.3

5-4 ❖ DocuPrint 4512/4512N User Guide

Chapter 6

Chapter 6: Troubleshooting ❖ 6-1

Troubleshooting Chapter6

Contacting Technical Support .........................................................

6-2

Before Calling for Service .............................................................. 6-2

Printer Operation Problems .............................................................

6-3

Print Quality Problems ..................................................................... 6-8

Control Panel Messages .................................................................

6-15

Error Messages at Power On ....................................................... 6-18

Paper Jams ...................................................................................... 6-19

What Causes a Paper Jam? ......................................................... 6-19

Locating the Jam .......................................................................... 6-19

Clearing the Jam .......................................................................... 6-20

Troubleshooting

6-2 ❖ DocuPrint 4512/4512N User Guide

Contacting

Technical

Support

If you are unable to resolve a printing problem related to the printer by

using the instructions in this chapter, contact the dealer from which you

bought your printer or contact Xerox/Rank Xerox. However:

• If the problem is operating system related, consider contacting the

original manufacturer.

• If the problem is related to a specific application package, consider

contacting the original manufacturer.

• If the problem is driver related, consider accessing the Xerox

CompuServe or Internet site.

Before Calling

for Service

Before contacting your dealer or Xerox/Rank Xerox, please have the

following information available:

• Printer Serial No. (located on the inside of the printer, under the

Photoconductor / Drum)

• A Configuration Sheet

• Any error code or message displayed on the Control Panel

• A description of the problem

• Type of network (if problem is possibly network related)

Troubleshooting

Chapter 6: Troubleshooting ❖ 6-3

Printer

Operation

Problems

Consult Table 6.1 for corrective actions when the printer will not print

or when the printed output is not what you expect.

Table 6.1 Printer operation problems

Problem Probable Cause Remedy

Power

Printer does not switch on. Printer is not connected to

power source.

Check all connections and power switches,

including at wall socket and on printer.

Power source defective. Check voltage rating of circuit.

Check circuit breakers and fuses.

Print data not received

Printer turns on, but will not

print data from the computer.

Printer is not on-line. Check if On Line indicator is glowing. If it is

not, press the On Line key. A printer error may

have occurred. Check the printer display panel.

Interface cable not secured. Reseat the interface cable at both the printer

and computer ends.

Computer and printer settings

mismatch.

Confirm that the emulation selected on the

printer matches the printer driver on the

computer. Print out the Configuration Sheet

and compare with computer settings.

Computer connection problem. Check the printer cable connections. Test your

cable by using it with another printer that you

know works. Test your printer after connecting

it with another cable that you know works.

Computer not properly set up. Check the MS-DOS manual for mode settings

and the computer manual for I/O port settings.

Table 6.1 Page 1 of 5

Printer Operation Problems

6-4 ❖ DocuPrint 4512/4512N User Guide

Print data not received

Write Error Fault message

displayed.

Bad cable. Check the interface cable connections. Test

your cable by using it with another printer that

you know works. Test your printer after

connecting it with another cable that you know

works.

Printer not on-line. Check if the printer is on-line. A printer error

other than PAPER OUT may have set the

printer off-line. Check the printer display

panel.

Time Out Error message

displayed.

Time out error. Increase the time for I/O time-out in the

computer software.

If the problem occurs when printing from

DOS, try adding a Mode command to your

computer’s AUTOEXEC.BAT file. It can be

put on its own on a single line after the PATH

statement:

If you are using a parallel interface, add:

MODE LPT1:,,P

If you are using a serial interface, add (for

example):

MODE COM1: 9600,N,8,1,P

MODE LPT1:COM1

Table 6.1 Printer operation problems (continued)

Problem Probable Cause Remedy

Table 6.1 Page 2 of 5

Printer Operation Problems

Chapter 6: Troubleshooting ❖ 6-5

Printing Errors

Print job stalled. End of page code not received. If a long time elapses before a page prints and

the DATA indicator continues flashing, the

printer has probably stalled. Press the On Line

key and then the Form Feed key.

Full pages do not print. Job prematurely terminated. Check that all the data was received from the

computer. If an application was exited before

the data was sent, the computer may not have

sent the complete file data. The data file may

also have been corrupted before transmission.

If you cancel a print job from the computer,

partially printed pages may be produced.

Pages too complex (data loss

error).

Try simplifying the file by using fewer

characters per line. Turn on page protection

and try to print the file again.

Install more memory if you want to print

complex files.

Too many fonts transferred to

printer (data memory full error).

Clearing soft fonts will free up memory. When

printing without additional memory, avoid

using too many soft fonts and macros.

Lowering the resolution to 300 dpi will also

reduce the memory requirements of a print job.

If you are getting a lot of memory error

messages, install more memory.

Interface cable faulty. Reseat the connectors at both the printer and

the computer ends. Check the cable by using it

with another printer.

Software application sending

wrong data.

To check if the application is causing the

problem, print plain text from DOS with the

Copy command or redirection, e.g.:

C:\copy filename.txt LPT1:

C:\dir >prn

Table 6.1 Printer operation problems (continued)

Problem Probable Cause Remedy

Table 6.1 Page 3 of 5

Printer Operation Problems

6-6 ❖ DocuPrint 4512/4512N User Guide

Printing Errors

Printer ejects blank page. Print data. Check the print data sent from the computer. If

there are natural page breaks and forced breaks

close to each other in a word processor file, the

application may send a blank page to the

printer.

Check the printing parameters in the

application to see if they are set to send extra

page eject commands.

Some network software inserts blank pages to

separate jobs.

Tape strip on Toner Cartridge. Remove the tape strip from a newly installed

Toner Cartridge.

Toner Cartridge empty. Replace the Toner Cartridge.

If you are printing a long run of pages

with more than 30% toner coverage,

the printer may not give the usual toner

status messages. Normally the printer

will give advice messages on the

display panel when toner runs out or is

low.

Paper size mismatch. Check that the page size setting in your

application matches the paper size(s) available

in the printer.

Multiple sheets fed. Remove the paper from the paper tray, fan the

edges, straighten it up, and then put it back into

the tray.

PostScript Printing Errors

A page listing PostScript

commands is output instead of

your print job.

PCL 5e selected. Set the emulation parameter to PS2 or Auto

and try printing the job again.

A PostScript job fails to print. Insufficient memory. Either simplify the print job or install more

memory.

Table 6.1 Printer operation problems (continued)

Problem Probable Cause Remedy

Table 6.1 Page 4 of 5

Printer Operation Problems

Chapter 6: Troubleshooting ❖ 6-7

Print Speed Problems

Printing takes a long time. Toner supply low. Replace the Toner Cartridge.

Long time needed to print first

page.

Printer standby. Change the Power Saver mode (although the

printer will consume more power).

Paper Problems

Frequent paper jams. Overloaded tray. Remove some paper from the tray.

Unsuitable media. Check the paper specifications. See Table 2.1

on page 2-3.

Bad media. Check the paper batch for creases, tears, nicks,

ragged edges, dirt, dampness, etc.

Paper size mismatch. Check that the page size setting in your

application matches the paper size(s) available

in the printer.

Print Character Problems

Wrong characters print. Characters not present in

printer.

Check that the typefaces and fonts that you are

trying to print are in the printer, installed in

your software, or on your computer.

Computer and printer settings

mismatch.

Check your emulation setting options, and

parity and data bit communication settings.

Table 6.1 Printer operation problems (continued)

Problem Probable Cause Remedy

Table 6.1 Page 5 of 5

Troubleshooting

6-8 ❖ DocuPrint 4512/4512N User Guide

Print Quality

Problems

Table 6.2 lists common print quality problems, possible causes, and

recommended actions.

Table 6.2 Print quality problems

Problem Possible Cause(s) Corrective Action(s)

Spot deletions. Paper quality problem. Replace paper stock.

Photoconductor / Drum damaged. Replace the Photoconductor / Drum, as

described in the section “Replacing the

Photoconductor / Drum” (page 7-6).

Irregular faded patches of

print.

Paper quality problem. Replace paper stock.

Corotron parts dirty. Clean the transfer corotron and the main

corotron, as described in the section “Cleaning

the Corotron Wires” (page 7-10).

Toner low or unevenly distributed. Carefully remove the Toner Cartridge and

gently agitate it to distribute toner evenly.

Photoconductor / Drum unevenly

worn.

Replace the Photoconductor / Drum, as

described in the section “Replacing the

Photoconductor / Drum” (page 7-6).

Table 6.2 Page 1 of 7

Print Quality Problems

Chapter 6: Troubleshooting ❖ 6-9

Staining. Paper quality problem. Replace paper stock.

Paper feed surfaces or guide dirty. Inspect and clean the paper path, as described

in the section “Cleaning the Paper Path”

(page 7-9).

Fusing unit dirty. Replace the Cleaning Felt, as described in the

section “Replacing the Toner Cartridge and

Cleaning Felt” (page 7-2).

Photoconductor / Drum damaged. If marks repeat at regular 95mm intervals, the

Photoconductor / Drum is damaged. Replace

the Photoconductor / Drum, as described in the

section “Replacing the Photoconductor /

Drum” (page 7-6).

Used Toner Cartridge from a

different printer installed.

Install a new Toner Cartridge, as described in

the section “Replacing the Toner Cartridge

and Cleaning Felt” (page 7-2).

Vertical lines. Main corotron dirty. Clean the main corotron, as described in the

section “Cleaning the Corotron Wires”

(page 7-10).

Paper feed surfaces or guide dirty. Inspect and clean the paper path, as described

in the section “Cleaning the Paper Path”

(page 7-9).

Fusing unit dirty. Replace the Cleaning Felt, as described in the

section “Replacing the Toner Cartridge and

Cleaning Felt” (page 7-2).

Photoconductor / Drum damaged. Replace the Photoconductor / Drum, as

described in the section “Replacing the

Photoconductor / Drum” (page 7-6).

Table 6.2 Print quality problems (continued)

Problem Possible Cause(s) Corrective Action(s)

Table 6.2 Page 2 of 7

Print Quality Problems

6-10 ❖ DocuPrint 4512/4512N User Guide

Vertical white stripes. Corotron parts dirty. Clean the main corotron and tranfer corotron,

as described in the section “Cleaning the

Corotron Wires” (page 7-10).

Toner Cartridge defective. Replace the Toner Cartridge, as described in

the section “Replacing the Toner Cartridge

and Cleaning Felt” (page 7-2).

Fusing unit dirty. Replace the Cleaning Felt, as described in the

section “Replacing the Toner Cartridge and

Cleaning Felt” (page 7-2).

Photoconductor / Drum unevenly

worn.

Replace the Photoconductor / Drum, as

described in the section “Replacing the

Photoconductor / Drum” (page 7-6).

Repetitive defects

including ghost images.

Print density set too high. Turn the print density adjuster dial

counterclockwise to decrease the toner density.

Refer to “Printer Components” (page 1-3) to

locate the print density adjuster.

Fusing unit dirty. Replace the Cleaning Felt, as described in the

section “Replacing the Toner Cartridge and

Cleaning Felt” (page 7-2).

Toner low or unevenly distributed. Carefully remove the Toner Cartridge and

gently agitate it to distribute toner evenly.

Photoconductor / Drum damaged. Replace the Photoconductor / Drum, as

described in the section “Replacing the

Photoconductor / Drum” (page 7-6).

Table 6.2 Print quality problems (continued)

Problem Possible Cause(s) Corrective Action(s)

Table 6.2 Page 3 of 7

Print Quality Problems

Chapter 6: Troubleshooting ❖ 6-11

Black pages. Toner Cartridge defective. Replace the Toner Cartridge, as described in

the section “Replacing the Toner Cartridge

and Cleaning Felt” (page 7-2).

Photoconductor / Drum defective. Replace the Photoconductor / Drum, as

described in the section “Replacing the

Photoconductor / Drum” (page 7-6).

Character voids. Paper quality problem. Replace paper stock.

Toner Cartridge defective. Replace the Toner Cartridge, as described in

the section “Replacing the Toner Cartridge

and Cleaning Felt” (page 7-2).

Photoconductor / Drum damaged. Replace the Photoconductor / Drum, as

described in the section “Replacing the

Photoconductor / Drum” (page 7-6).

Table 6.2 Print quality problems (continued)

Problem Possible Cause(s) Corrective Action(s)

Table 6.2 Page 4 of 7

Print Quality Problems

6-12 ❖ DocuPrint 4512/4512N User Guide

Background areas of

printed sheets gray or

evenly spotted.

Print density set too high. Turn the print density adjuster dial

counter-clockwise to decrease the toner

density.

Corotron parts dirty. Clean the main corotron and tranfer corotron,

as described in the section “Cleaning the

Corotron Wires” (page 7-10).

Paper quality problem. Replace paper stock.

Printing over uneven surfaces

(envelope seams).

Change page layout in software application.

Toner Cartridge defective. Replace the Toner Cartridge, as described in

the section “Replacing the Toner Cartridge

and Cleaning Felt” (page 7-2).

Photoconductor / Drum defective. Replace the Photoconductor / Drum, as

described in the section “Replacing the

Photoconductor / Drum” (page 7-6).

Light print. The print density is set too low. Turn the Print Density aduster dial clockwise to

increase the toner density.

Paper quality problem. Replace paper stock.

Toner cartridge empty or defective. Replace the Toner Cartridge, as described in

the section “Replacing the Toner Cartridge

and Cleaning Felt” (page 7-2).

Photoconductor / Drum defective. Replace the Photoconductor / Drum, as

described in the section “Replacing the

Photoconductor / Drum” (page 7-6).

Table 6.2 Print quality problems (continued)

Problem Possible Cause(s) Corrective Action(s)

Table 6.2 Page 5 of 7

Print Quality Problems

Chapter 6: Troubleshooting ❖ 6-13

Repetitive horizontal dark

streaks.

Paper feed surfaces or guide dirty. Inspect and clean the paper path, as described

in the section “Cleaning the Paper Path”

(page 7-9).

Photoconductor / Drum defective. Replace the Photoconductor / Drum, as

described in the section “Replacing the

Photoconductor / Drum” (page 7-6).

Dark spots or marks. Fusing unit dirty. Replace the Cleaning Felt, as described in the

section “Replacing the Toner Cartridge and

Cleaning Felt” (page 7-2).

Photoconductor / Drum defective. Replace the Photoconductor / Drum, as

described in the section “Replacing the

Photoconductor / Drum” (page 7-6).

Table 6.2 Print quality problems (continued)

Problem Possible Cause(s) Corrective Action(s)

Table 6.2 Page 6 of 7

Print Quality Problems

6-14 ❖ DocuPrint 4512/4512N User Guide

Unfused or partially fused

image.

Damp paper stock. Replace paper stock.

Unsuitable media. Check the paper specifications. See Table 2.1

on page 2-3.

Wrinkled print. Poor paper condition. Inspect/replace paper stock.

Unsuitable media. Check the paper specifications. See Table 2.1

on page 2-3.

Paper not properly loaded in paper

tray.

Reload the paper. See Chapter 2: Paper

Handling for paper handling.

Back of printout dirty. Paper feed surfaces or guide dirty. Inspect and clean the paper path, as described

in the section “Cleaning the Paper Path”

(page 7-9).

Table 6.2 Print quality problems (continued)

Problem Possible Cause(s) Corrective Action(s)

Table 6.2 Page 7 of 7

Troubleshooting

Chapter 6: Troubleshooting ❖ 6-15

Control Panel

Messages

Table 6.3 lists Control Panel messages related to printer operation. For

each message, the table provides the cause of the message, the indicator

light status and advice on what to do. The messages are listed in

alphabetical order.

Table 6.3 Control Panel messages

Message Description/Corrective Action

A4 A paper tray is loaded with A4 paper.

Media status is indicated in the display as UPPER/LOWER, indicating status of

upper tray and lower tray. For example: A4/PO indicates that the upper tray is

loaded with A4 paper and the lower tray is out of paper.

The On Line light remains on.

ACTION: None.

Auto The printer is set to automatic emulation switching between PCL 5e and PS2. The On

Line light remains on.

ACTION: None.

Cover Open A cover or the Photoconductor / Drum is not correctly fitted. The Error light remains

on.

ACTION: Close all the covers.

Data Clear Data in the printer is being cleared. The On Line light remains on.

ACTION: None.

Data Loss Error The data is too complex to be processed at operating speed. Page ejects without

printing. The Error light remains on.

ACTION: Press the ENTER key. Normal printing begins with the next page.

Data Memory Full Printer memory cannot handle the amount of data for the present page. The Error light

remains on.

ACTION: Press the ENTER key. Cancel the print job from the computer side. The

remaining pages of this print job may not print properly. The next job will

print normally.

Drum Near End The Photoconductor / Drum is nearing the end of its rated life. The Supply light

remains on.

ACTION: Order a new Photoconductor / Drum.

Table 6.3 Page 1 of 3

Control Panel Messages

6-16 ❖ DocuPrint 4512/4512N User Guide

EV The Envelope Tray is loaded with envelopes.

Media status is indicated in the display as UPPER/LOWER, indicating status of

upper tray and lower tray. For example: EV/PO indicates that the upper tray is

loaded with envelopes and the lower tray is out of paper.

The On Line light remains on.

ACTION: None.

Interface Error Improper signals have been received through the serial interface, most likely when the

computer is powering up or down. The Error light remains on.

ACTION: Press the On Line key. If trouble recurs, check cable connections, computer

and printer settings. Also, try reseating the interface board into the

controller board.

LE A paper tray is loaded with letter-sized paper.

Media status is indicated in the display as UPPER/LOWER, indicating status of

upper tray and lower tray. For example: LE/PO indicates that the upper tray is

loaded with letter-sized paper and the lower tray is out of paper.

The On Line light remains on.

ACTION: None.

LL A paper tray is loaded with legal-sized paper.

Media status is indicated in the display as UPPER/LOWER, indicating status of

upper tray and lower tray. For example: LL/PO indicates that the upper tray is

loaded with legal-sized paper and the lower tray is out of paper.

The On Line light remains on.

ACTION: None.

Paper Out

Paper Out Upper

Paper Out Lower

Paper has run out or paper tray is removed. The Error light flashes.

ACTION: Re-install the tray(s). If the tray in use is empty, refill it. Do not overfill.

Paper Jam Paper is stuck in the print path. The Error light remains on.

ACTION: Clear the misfeed according to the section “Paper Jams” (page 6-19).

Table 6.3 Control Panel messages (continued)

Message Description/Corrective Action

Table 6.3 Page 2 of 3

Control Panel Messages

Chapter 6: Troubleshooting ❖ 6-17

Pause The printing process has been suspended by setting the printer off-line. The On Line

light goes off.

ACTION: None.

PCL 5e The printer is set to PCL 5e emulation. The On Line light remains on.

ACTION: None.

PO A paper tray is out of paper.

Media status is indicated in the display as UPPER/LOWER, indicating status of

upper tray and lower tray. For example: PO/A4 indicates that the upper tray is

out of paper and the lower tray is loaded with A4 paper.

The On Line light remains on.

ACTION: Re-load the applicable paper tray.

PS2 The printer is set to PostScript Level 2 emulation. The On Line light remains on.

ACTION: None.

Repl Drum The Photoconductor / Drum has worn out. The Supply and Error lights remain on.

ACTION: Replace the Photoconductor / Drum.

Repl Toner Toner has run out. The Supply and Error lights remain on.

ACTION: Replace the Toner Cartridge.

Repl Drum&Toner The Photoconductor / Drum has reached its rated life and toner has run out. The Supply

and Error lights remain on.

ACTION: Replace the Photoconductor / Drum and Toner Cartridge.

Self Test The printer is testing itself at power on. The On Line light goes on at the completion of

testing.

ACTION: None.

Toner Low Toner in reservoir is getting low. The Supply light remains on.

ACTION: Order a new Toner Cartridge.

Table 6.3 Control Panel messages (continued)

Message Description/Corrective Action

Table 6.3 Page 3 of 3

Control Panel Messages

6-18 ❖ DocuPrint 4512/4512N User Guide

Error Messages

at Power On

Table 6.4 lists Control Panel messages related to errors that may occur

when the printer is powered on. If the printer discovers a problem while

running its self test, you may see one of these messages. You may be

able to clear the error by powering the printer off and on again, or by

reseating any options installed on the controller board. If any of these

messages persists, contact your dealer or Xerox/Rank Xerox.

Table 6.4 Error messages

when the printer is

turned on

Message Description

ROM Error Error with read only memory (ROM).

RAM Error Error with random access memory (RAM).

I/F Board Error Error with interface board.

ROM&RAM Error Error with ROM and RAM.

ROM&IFB Error Error with ROM and interface board.

RAM&IFB Error Error with RAM and interface board.

ROM&RAM&IFB Err Error with RAM, ROM, and interface board.

Troubleshooting

Chapter 6: Troubleshooting ❖ 6-19

Paper Jams Your printer has been designed to provide reliable, trouble- free

operation. Nonetheless, you may experience an occasional paper jam.

When the printer detects a misfeed or a paper jam, the printing process

is halted, and a Control Panel message is displayed. See “Control Panel

Messages” (page 6-15).

After the paper jam has been cleared, the printer will resume operation

to complete the print job, reprinting the page that jammed.

What Causes a

Paper Jam?

Paper jams occur most often when:

•The throughput paper stock does not meet specification. See

Chapter 2: Paper Handling.

•The paper stock is in poor condition.

•The paper stock has been improperly loaded into the paper trays.

•The printer needs cleaning.

•Printer parts are worn and need to be replaced.

Locating the Jam Paper jams may occur in any of the following three locations, listed

below in order of the most likely area for a jam:

•Exiting the paper tray.

•Moving through the rollers to the fusing unit under the top cover.

•Moving through the output section under the front cover.

Paper Jams

6-20 ❖ DocuPrint 4512/4512N User Guide

Clearing the Jam Search for the jammed paper, starting with the paper trays, then under

the top cover, then under the front cover.

From the Paper Tray(s)

Caution

Be careful not to touch any of the components inside the printer

when removing jammed paper. They may be very hot.

Also, jammed paper may have loose toner on it and should therefore

be handled carefully.

1If you know which tray was feeding paper,

open that tray first. If not, begin with the lower

tray. Open the tray part way and look inside.

2If you see a misfed sheet of paper (out of

alignment or loose in the tray), remove it as

carefully as you can.

If you tear the paper, be sure to remove

all of the pieces.

3If the paper has been partially fed from the

lower tray to the upper tray, open the upper

tray and try to remove the paper from there.

If a length of paper has already been

fed up into the printer, do not try to

remove it because the paper will have

loose toner on it. Instead, close the

paper tray(s) and go to “From Under

the Top Cover” (page 6-21) for

directions.

4When you have completely cleared the jam,

push the tray(s) back in.

The printer will then resume the print job

Paper Jams

Chapter 6: Troubleshooting ❖ 6-21

From Under the Top Cover

From Under the Front Cover

1Open the top cover.

2If you see a misfed sheet of paper, remove it as

carefully as you can, pulling it straight up and

out.

If you tear the paper, be sure to remove

all of the pieces.

If you cannot get the paper completely

out, do not try to remove it because it

may have loose toner on it. Instead,

close the cover and try the procedure

“From Under the Front Cover,” below.

3When you have completely cleared the jam,

close the cover.

The printer will then resume the print job.

1Open the front cover.

2If you see a misfed sheet of paper, remove it as

carefully as you can, pulling it straight up and

out.

If you tear the paper, be sure to remove

all of the pieces. Also, the paper may

have loose toner on it.

If you cannot get the paper completely

out, do not try to remove it because it

may have loose toner on it. Instead,

close the cover and try the procedure

“From Under the Top Cover,” above.

3When you have completely cleared the jam,

close the cover.

The printer will then resume the print job.

6-22 ❖ DocuPrint 4512/4512N User Guide

Chapter 7

Chapter 7: Printer Maintenance and Consumables ❖ 7-1

Printer Maintenance and

Consumables Chapter7

Replacing the Toner Cartridge and Cleaning Felt .......................... 7-2

Recycling the Toner Cartridge ....................................................... 7-5

Replacing the Photoconductor / Drum ............................................

7-6

Recycling the Photoconductor / Drum ........................................... 7-8

Cleaning the Printer .........................................................................

7-9

Cleaning the Cabinet ..................................................................... 7-9

Cleaning the Paper Path ................................................................ 7-9

Cleaning the Corotron Wires ....................................................... 7-10

Preparing the Printer for Transport ..............................................

7-13

Printer Maintenance and Consumables

7-2 ❖ DocuPrint 4512/4512N User Guide

Replacing the

Toner Cartridge

and Cleaning

Felt

A Toner Cartridge will print approximately 12,000 pages of A4 or 8.5 x

11 paper under average operating conditions (5% image area coverage).

The number of prints per cartridge will decrease if you routinely:

• Print dense text and graphics.

• Adjust the Print Density to a dark setting.

• Exceed five percent area coverage.

Replace the Toner Cartridge as soon as you see the following message at

the Control Panel display:

Toner Low

The Supply indicator light will also glow.

When you replace the Toner Cartridge, you should also replace the

Cleaning Felt with the spare provided in the new Toner Cartridge kit.

Instructions begin on the next page.

Note

See Appendix A: Ordering Information for ordering a new Toner

Cartridge.

Caution

Do not expose the Photoconductor / Drum to direct sunlight or

artificial light for more than 15 minutes. Overexposure will

permanently damage the photosensitive imaging drum.

Replacing the Toner Cartridge and Cleaning Felt

Chapter 7: Printer Maintenance and Consumables ❖ 7-3

1Power OFF the printer and open the top cover

by pulling up on the top cover release lever and

pivoting the cover toward the front of the

printer.

2Pivot the Photoconductor / Drum up toward

the front of the printer and lift it straight up

and out. Set it on a smooth, flat surface.

The Photoconductor / Drum is easily

damaged. Do not touch the drum or

expose it to direct light.

3Lift the old Toner Cartridge by its handle

straight up and out of the printer. 4Remove the new Toner Cartridge from its

wrapper and shake it several times to evenly

distribute the toner.

Replacing the Toner Cartridge and Cleaning Felt

7-4 ❖ DocuPrint 4512/4512N User Guide

5Hold the Toner Cartridge by its handle and

gently lower it into the printer.

The cartridge does not click into place.

The arrows on the cartridge and printer

should line up.

6Hold the cartridge in place and pull the tab to

remove the tape strip.

7Re-insert the Photoconductor / Drum

vertically into the slots on the sides of the

interior.

8Pivot the Photoconductor / Drum down toward

the back of the printer until it falls into place

horizontally.

Replacing the Toner Cartridge and Cleaning Felt

Chapter 7: Printer Maintenance and Consumables ❖ 7-5

Recycling the Toner

Cartridge

The DocuPrint 4512 Toner Cartridge can be recycled free of charge to

you. Follow the instructions packaged with your new Toner Cartridge to

recycle the old one.

9Rotate the fuser cover to the rear. 10 Remove the old Cleaning Felt by grabbing

hold of its protruding grip.

11 Remove the new Cleaning Felt from its

wrapper and, holding it by the protruding

grip, insert it into the slot.

Close the fuser cover and the top cover and

power ON the printer.

Printer Maintenance and Consumables

7-6 ❖ DocuPrint 4512/4512N User Guide

Replacing the

Photo-

conductor /

Drum

The DocuPrint 4512’s Photoconductor / Drum will print approximately

30,000 pages of A4 or 8.5 x 11 paper under average operating

conditions (5% image area coverage). The number of prints per

Photoconductor / Drum will decrease if you routinely:

•Print dense text and graphics.

•Adjust the Print Density to a dark setting.

•Exceed five percent area coverage.

Replace the Photoconductor / Drum as soon as you see the following

message at the Control Panel display:

Drum Near End

The Supply indicator light will also glow.

Instructions begin on the next page.

Note

See Appendix A: Ordering Information for ordering a new

Photoconductor / Drum.

Caution

Do not expose the Photoconductor / Drum to direct sunlight or

artificial light for more than 15 minutes. Overexposure will

permanently damage the photosensitive imaging drum.

Replacing the Photoconductor / Drum

Chapter 7: Printer Maintenance and Consumables ❖ 7-7

1Power OFF the printer and open the top cover

by pulling up on the top cover release lever and

pivoting the cover toward the front of the

printer.

2Pivot the old Photoconductor / Drum up

toward the front of the printer and lift it

straight up and out.

3Remove the new Photoconductor / Drum from

its wrapper and insert it vertically into the

slots on the sides of the interior.

The Photoconductor / Drum is easily

damaged. Do not touch the drum or

expose it to direct light.

4Pivot the Photoconductor / Drum down toward

the back of the printer until it falls into place

horizontally.

Replacing the Photoconductor / Drum

7-8 ❖ DocuPrint 4512/4512N User Guide

Recycling the

Photoconductor /

Drum

The DocuPrint 4512 Photoconductor / Drum can be recycled free of

charge to you. Follow the instructions packaged with your new

Photoconductor / Drum to recycle the old one.

5Carefully remove the sheet of black protective

paper from the Photoconductor / Drum.

Be sure not to leave any torn pieces of

paper in the printer.

Close the top cover and power ON the printer.

Printer Maintenance and Consumables

Chapter 7: Printer Maintenance and Consumables ❖ 7-9

Cleaning the

Printer

Maintaining the printer in good operating condition is essential to

having a reliable, well-running machine. The cabinet, paper path, and

corotron wires should be cleaned regularly.

Cleaning the

Cabinet

For best results, clean the outside of the printer with a soft, clean,

lint-free cloth. If necessary, dampen the cloth slightly with water. Do not

use detergents.

Cleaning the Paper

Path

Over time, toner may get into the printer, such as from a jammed sheet

of paper to which it has not been fused, from a spill during removal of

the Toner Cartridge, or from moving the printer. Also, dust from paper

may accumulate inside the printer, further impairing performance.

There are several places along the paper path that should be cleaned,

using a lint-free cloth (slightly dampened with cleaning alcohol if

necessary).

Cleaning the Manual Feed Slot

Note

For optimum performance, do not place the printer near vents or

dust-producing equipment. Particles in the air may enter the printer and

cause failures in internal mechanisms.

1Remove the Manual Feed Guide from the Manual Feed slot.

2Wipe the slot clean.

There is a delicate media sensor lever about 1 in. (20 cm.)

inside the right hand area of the Manual Feed Slot. Lateral

pressure may damage this lever.

3Re-insert the Manual Feed Guide.

Cleaning the Printer

7-10 ❖ DocuPrint 4512/4512N User Guide

Cleaning the Autofeed Pickup Area

Cleaning the

Corotron Wires

If the corotron wires become dirty, printouts may show streaks and

blotches. There are wires in the main corotron, located under the

Photoconductor / Drum, and in the transfer corotron, located inside the

top cover.

Cleaning the Main Corotron

1Power OFF the printer, disconnect the power cord, and remove the

Photoconductor / Drum and Toner Cartridge, following Steps 1

through 3 on page 7-3.

2Wipe the interior surfaces of the printer.

The gears inside the printer are coated with grease and will

soil hands and cleaning cloths. Try to avoid touching these

gears.

3Reassemble the printer and power it ON.

1Power OFF the printer, disconnect the power

cord, and remove the corotron cleaner from its

slot.

2Open the top cover by pulling up on the top

cover release lever and pivoting the cover

toward the front of the printer.

Cleaning the Printer

Chapter 7: Printer Maintenance and Consumables ❖ 7-11

3Pivot the Photoconductor / Drum up toward

the front of the printer. 4Locate the main corotron’s wire inside the slot

at the base of the raised Photoconductor /

Drum, and insert the cleaner’s red brush into

one extreme end of the slot.

The tabs above the brush on the cleaner fit

into the groove above and parallel to the

slot in the Photoconductor / Drum.

5Draw the cleaner all the way along the main

corotron to the other end of the slot, either to

the left or the right.

Go the complete width, from one side of

the Photoconductor / Drum to the

other. Do not take the cleaner out

halfway.

6Return the corotron cleaner to its slot at the

rear of the printer.

7Pivot the Photoconductor / Drum gently back

into place.

8Close the top cover, reconnect the power cord,

and power ON the printer.

Cleaning the Printer

7-12 ❖ DocuPrint 4512/4512N User Guide

Cleaning the Transfer Corotron

1Power OFF the printer, disconnect the power

cord, and remove the corotron cleaner from its

slot.

2Open the top cover by pulling up on the top

cover release lever and pivoting the cover

toward the front of the printer.

3Locate the transfer corotron’s wire on the open

side of the top cover, and, looking at the open

printer from the back, insert the cleaner’s

black indented edge over the left end of the

wire (1).

The cleaner’s other angled surfaces fit

against other parts of the printer.

4Draw the cleaner from left to right along the

wire.

Going from right to left may damage

the corotron wire. Make one complete

sweep from the left end of the wire to

the right end. Do not stop halfway.

5Return the corotron cleaner to its slot at the

rear of the printer.

6Close the top cover, reconnect the power cord,

and power ON the printer.

Printer Maintenance and Consumables

Chapter 7: Printer Maintenance and Consumables ❖ 7-13

Preparing the

Printer for

Transport

When transporting the printer more than a short distance, use the

original shipping box and packaging materials. If the original shipping

box or materials are not available, use a sturdy packing box and a

generous amount of cushioning or packing materials.

To prepare your printer for transportation, follow the instructions below.

If you need to return the printer for service, follow the instructions of

your service provider for packing and shipping.

1Power OFF the printer and disconnect the power cord and all

interface cables.

2Remove any paper handing options and repack each in its original

packaging.

3Remove the Photoconductor / Drum and pack it in its original

packaging.

4Remove the Toner Cartridge and pack it in its original packaging.

5Pack the printer with the sealed Photoconductor / Drum, Toner

Cartridge and power cord in the original printer box.

7-14 ❖ DocuPrint 4512/4512N User Guide

Appendix A

Appendix A: Ordering Information ❖ A-1

Ordering Information AppendixA

Ordering Information

A-2 ❖ DocuPrint 4512/4512N User Guide

Contact your dealer or Xerox / Rank Xerox to order any of the printer

options and accessories listed in Table A.1.

Table A.1 Printer options and accessories

Options and Accessories Part Number Comments

Consumables

Toner Cartridge 106R00088

Photoconductor / Drum 101R00090

Paper Handling Options

High Capacity Feeder 97S01502 1,000 sheet capacity

Envelope Tray 97S01493 Replaces upper paper tray

Universal Tray 97S01494

Memory Options

4 MB SIMM 97K15280 No parity, 70-ns, 32 bits, one sided

16 MB SIMM 97K15300 No parity, 70-ns, 32 bits, one sided

PostScript Option

PostScript Option Kit 97S01491 English

PostScript Option Kit 97S01495 Spanish

PostScript Option Kit 97S01497 Portuguese

PostScript Option Kit 97K28490 French

PostScript Option Kit 97K28510 German

PostScript Option Kit 97K28500 Italian

PostScript Option Kit 97K28530 Russian

PostScript Option Kit 97K28520 RX Spanish

PostScript Option Kit 97K28480 English (Rank Xerox)

Table A.1 Page 1 of 3

Ordering Information

Appendix A: Ordering Information ❖ A-3

PostScript Option (cont’d)

Kit Contents

OnPage Manual for MAC

PostScript - MN

720P53970 English (only)

MAC PS (S/W) 301E7340 US English

301E7390 French Canadian

301E7440 AO Spanish

301E7490 AO Portuguese

301E7760 RX English

301E7770 RX French

301E7780 RX Italian

301E7790 RX German

301E7800 RX Spanish

Network Interface Cards

AppleTalk/Serial Option 97S01492 English

Ethernet Option Kit 97S01498 English

Ethernet Option Kit 97S01499 Spanish

Ethernet Option Kit 97S01501 Portuguese

Ethernet Option Kit 97K28550 French

Ethernet Option Kit 97K28570 German

Ethernet Option Kit 97K28560 Italian

Ethernet Option Kit 97K28590 Russian

Ethernet Option Kit 97K28580 RX Spanish

Ethernet Option Kit 97K28540 English (Rank Xerox)

Table A.1 Printer options and accessories (continued)

Options and Accessories Part Number Comments

Table A.1 Page 2 of 3

Ordering Information

A-4 ❖ DocuPrint 4512/4512N User Guide

Network Interface Cards

Token Ring Option Kit 97S01537 English

Token Ring Option Kit 97S01538 Spanish

Token Ring Option Kit 97S01540 Portuguese

Token Ring Option Kit 97K28670 French

Token Ring Option Kit 97K28690 German

Token Ring Option Kit 97K28680 Italian

Token Ring Option Kit 97K28710 Russian

Token Ring Option Kit 97K28700 RX Spanish

Token Ring Option Kit 97K28660 English (Rank Xerox)

Base Documentation

Base Documentation Kit 673K29920 US English

Base Documentation Kit 673K29930 French Canadian

Base Documentation Kit 673K29940 AO Spanish

Base Documentation Kit 673K29950 AO Portuguese

Base Documentation Kit 673K30000 RX English

Base Documentation Kit 673K30010 RX French

Base Documentation Kit 673K30020 RX Italian

Base Documentation Kit 673K30030 RX German

Base Documentation Kit 673K30040 RX Spanish

Base Documentation Kit 673K30050 RX Russian

Table A.1 Printer options and accessories (continued)

Options and Accessories Part Number Comments

Table A.1 Page 3 of 3

Appendix B

Appendix B: Installing Options ❖ B-1

Installing Options AppendixB

Precautions ......................................................................................

B-2

Memory SIMMs ............................................................................... B-3

PostScript Board ..............................................................................

B-6

AppleTalk/Serial Interface Board ................................................... B-8

Ethernet/Token Ring Interface Board .......................................... B-10

Envelope Tray ................................................................................

B-12

Installing Options

B-2 ❖ DocuPrint 4512/4512N User Guide

Precautions The DocuPrint 4512 printer options are easy to install. Installing and

testing any one option is likely to take 5 to 15 minutes.

Before installing or removing any printer option, take the precautionary

steps outlined below.

Caution

POWER OFF THE PRINTER: The printer determines which

options are installed through a self-test. The self-test is run when

you power ON the printer. Therefore, for proper operation, you

must power OFF the printer before installing/removing an option,

then power it back ON after installing/removing an option.

Caution

DISCONNECT THE POWER CORD: Never remove the printer

controller board while the printer is plugged in.

To avoid the possibility of electrical shock, always disconnect the

power cord when installing or removing ANY internal or external

printer option.

Caution

DISCHARGE STATIC ELECTRICITY: The controller board and

internal printer options (SIMMs, PostScript board, and interface

boards) are sensitive to static electricity. Before installing or

removing an internal option, discharge static electricity from your

body by touching something metal, such as the metal back plate on

any device plugged into a grounded power source. If you walk

around before finishing the installation, again discharge any static

electricity.

Installing Options

Appendix B: Installing Options ❖ B-3

Memory

SIMMs

Follow these instructions for installing additional memory into the

printer.

Note

The DocuPrint 4512 has three SIMM slots that accept 72-pin, 70-ns, no

parity SIMMs in the following sizes:

•1 MB

•4 MB

•8 MB

•16 MB

(4 MB SIMMs and 16 MB SIMMs are available from Xerox/Rank Xerox.

See Appendix A: Ordering Information for ordering additional

memory.)

Caution

SIMMs and controller boards are sensitive to static electricity.

Before installing a SIMM, discharge static electricity from your

body by touching something metal, such as the metal back plate on

any device plugged into a grounded power source. If you walk

around before finishing the installation, again discharge any static

electricity.

Never remove the printer controller board while the printer is

plugged in.

Memory SIMMs

B-4 ❖ DocuPrint 4512/4512N User Guide

1Power OFF the printer and disconnect all cables from the back of the printer.

2Unscrew the outside pair of retaining screws

holding the controller board in place. Keep the

screws in a safe place.

3Carefully slide out the controller board.

Set the controller board down on a safe, level

surface.

Memory SIMMs

Appendix B: Installing Options ❖ B-5

4Select a slot for the SIMM and, holding the

SIMM at an angle, line it up with the slot. 5Push the SIMM gently but firmly down into

the slot, then rotate it into position.

The SIMM should pop into place with two

retaining lugs fitting into holes on either

side of the SIMM and the spring clips

gripping it in position.

6To remove a SIMM, release the spring clips

holding the SIMM in place.

7Reinstall the controller board by sliding it

carefully along the guide rails in the printer

and gently pushing it back into place. When it

is properly seated, replace the retaining

screws.

8Reconnect all cables to the printer and power

it ON.

9Print out a Configuration Sheet (see page 3-17)

to check that the printer recognizes the

additional memory.

Installing Options

B-6 ❖ DocuPrint 4512/4512N User Guide

PostScript

Board

Follow these instructions for installing the PostScript board into the

printer.

Caution

The controller and PostScript boards are sensitive to static

electricity. Before installing the PostScript board, discharge static

electricity from your body by touching something metal, such as the

metal back plate on any device plugged into a grounded power

source. If you walk around before finishing the installation, again

discharge any static electricity.

Never remove the printer controller board while the printer is

plugged in.

1Power OFF the printer and disconnect all cables from the back of the printer.

2Unscrew the outside pair of retaining screws

holding the controller board in place. Keep the

screws in a safe place.

3Carefully slide out the controller board.

Set the controller board down on a safe, level

surface.

PostScript Board

Appendix B: Installing Options ❖ B-7

4Locate the socket on the right side of the

controller board.

There is a plug on the bottom of the

PostScript board that fits into the socket.

There is also a plastic post fitted on the

bottom of the PostScript board near the

edge opposite the connector. The plastic

post fits into a hole at the side of the

controller board.

Line up the PostScript board plug with the

controller board socket and the plastic post

with its locating hole. Then push the board

into place.

5Reinstall the controller board by sliding it carefully along the guide rails in the printer and gently

pushing it back into place. When it is properly seated, replace the retaining screws.

6Reconnect all cables to the printer and power it ON.

7Print out a Configuration Sheet (see page 3-17) to check that the printer recognizes the PostScript

board.

Note

Keep the original packaging material in case you ever need to remove

the option.

Installing Options

B-8 ❖ DocuPrint 4512/4512N User Guide

AppleTalk/

Serial Interface

Board

Follow these instructions for installing the AppleTalk/Serial Interface

board into the printer.

Caution

Controller and interface boards are sensitive to static electricity.

Before installing the interface board, discharge static electricity

from your body by touching something metal, such as the metal

back plate on any device plugged into a grounded power source. If

you walk around before finishing the installation, again discharge

any static electricity.

Never remove the printer controller board while the printer is

plugged in.

1Power OFF the printer and disconnect all cables from the back of the printer.

2Unscrew the outside pair of retaining screws

holding the controller board in place. Keep the

screws in a safe place.

3Carefully slide out the controller board.

Set the controller board down on a safe, level

surface.

AppleTalk/Serial Interface Board

Appendix B: Installing Options ❖ B-9

4Unscrew the slot cover on the back plate of the

controller board and remove it.

Keep the slot cover, in case the interface

board is removed for any reason.

5Locate the socket on the controller board to

the right of the slot opening.

There is a plug on the bottom of the

interface board that fits into the socket.

Line up the interface board plug with the

controller board socket while angling the

interface board’s connection port into the slot.

Then push the board into place.

6Secure the interface board with the screws removed from the slot cover in Step 4.

7Reinstall the controller board by sliding it carefully along the guide rails in the printer and gently

pushing it back into place. When it is properly seated, replace the retaining screws.

8Reconnect all cables to the printer and power it ON.

9Print out a Configuration Sheet (see page 3-17) to check that the printer recognizes the interface board.

10 Configure the serial port using the Control Panel menus (see Chapter 3: The Control Panel).

Note

Keep the original packaging material in case you ever need to remove

the option.

Installing Options

B-10 ❖ DocuPrint 4512/4512N User Guide

Ethernet/Token

Ring Interface

Board

Follow these instructions for installing the Ethernet or Token Ring

Interface board into the printer.

Caution

Controller and interface boards are sensitive to static electricity.

Before installing the interface board, discharge static electricity

from your body by touching something metal, such as the metal

back plate on any device plugged into a grounded power source. If

you walk around before finishing the installation, again discharge

any static electricity.

Never remove the printer controller board while the printer is

plugged in.

1Power OFF the printer and disconnect all cables from the back of the printer.

2Unscrew the outside pair of retaining screws

holding the controller board in place. Keep the

screws in a safe place.

3Carefully slide out the controller board.

Set the controller board down on a safe, level

surface.

Ethernet/Token Ring Interface Board

Appendix B: Installing Options ❖ B-11

4Unscrew the slot cover on the back plate of the

controller board and remove it.

Keep the slot cover, in case the interface

board is removed for any reason.

5Locate the socket on the controller board to

the right of the slot opening.

There is a plug on the bottom of the

interface board that fits into the socket.

Line up the interface board plug with the

controller board socket while angling the

interface board’s connection port into the slot.

Then push the board into place.

6Secure the interface board with the screws removed from the slot cover in Step 4.

7Reinstall the controller board by sliding it carefully along the guide rails in the printer and gently

pushing it back into place. When it is properly seated, replace the retaining screws.

8Reconnect all cables to the printer and power it ON.

9Print out a Configuration Sheet (see page 3-17) to check that the printer recognizes the interface board.

Note

Keep the original packaging material in case you ever need to remove

the option.

Installing Options

B-12 ❖ DocuPrint 4512/4512N User Guide

Envelope Tray The Envelope Tray replaces the upper paper tray. To install it, remove

the upper tray and slide the Envelope Tray into place. The Envelope

Tray will not fit into the lower tray slot.

Figure B.1 shows how to adjust the Envelope Tray for different envelope

sizes.

Figure B.1 Envelope Tray adjustment

Note

Keep the original packaging material in case you ever need to remove

the option.

Appendix C

Appendix C: Printer Specifications ❖ C-1

Printer Specifications AppendixC

DocuPrint 4512 Specifications ........................................................ C-2

Interface Hardware .........................................................................

C-4

Printer Specifications

C-2 ❖ DocuPrint 4512/4512N User Guide

Table C.1 DocuPrint 4512 Specifications

Imaging Method Electro-photography

Exposure System Semiconductor laser beam (laser diode) scanning

Image Resolution 300 x 300 dpi

600 x 600 dpi

Warm Up Time Less than 60 seconds

Continuous Print Speed Up to 12 impressions per minute, simplex

Up to 8 impressions per minute, duplex

Printable Area 4900 dots x 8200 lines (600 dpi)

Processor AMD 29240 20 MHz

Maximum Monthly Duty Cycle Up to 35,000 prints

Nominal Voltage There are two configurations:

110 - 115 V

220 - 240 V

Nominal Frequency 50 Hz

60 Hz

Power Consumption 500 W peak consumption; In Energy Star sleep mode, power consumption

reduces to about 5% of peak. Other Power Saver modes operational after

specified period of not printing (15 minutes, 30 minutes, 45 minutes)

Noise Level Less than 52 dBA (printing); 44 dBA (idle)

Temperature 50º F to 86º F during operation

10º C to 30º C during operation

Relative Humidity 20% to 85% during operation

Dimensions 13 x 13 x 18.4 inches (H x W x D)

330 x 330 x 468 mm (H x W x D)

Weight 34.2 lbs

15.5 kg

Memory Capacity 50 MB maximum

Table C.1 Page 1 of 2

Printer Specifications

Appendix C: Printer Specifications ❖ C-3

Factory-Provided Features Two 250-sheet paper trays

Manual Feed Guide

Toner cartridge

Photoconductor / Drum

Power cord

Printer driver diskettes

User documentation

2 MB RAM (printer memory)

Available Options

(See Appendix A: Ordering

Information for more details.)

4 MB SIMM (72-pin, 70-ns)

16 MB SIMM (72-pin, 70-ns)

1,000-sheet High Capacity Feeder

Envelope Tray

PostScript Board

AppleTalk/Serial Interface Board

Ethernet Interface Board

Token Ring Interface Board

Table C.1 DocuPrint 4512 Specifications (continued)

Table C.1 Page 2 of 2

Printer Specifications

C-4 ❖ DocuPrint 4512/4512N User Guide

Table C.2 Interface Hardware

Parallel Conforms to IEEE STD 1284, February 2, 1993

Connector: Female 36-pin DDK 57LE-40360-730B (D29) or equivalent

AppleTalk Connector: Female 8-pin TCS7189-01-201 or equivalent

Serial Connector: Female 25-pin DDK 17LE-13250-28 (D4CK) or equivalent

Pin Signal Name Source

1 Frame (Ground) ....

2 Transmitted Data Printer

3 Received Data Host

4 Request to Send Printer

6 Data Set Ready Host

7 Ground (Signal) ....

20 Data Terminal Ready Printer

Serial Cable Pin Outs

25 Pin M 25 Pin F 25 Pin M 9 Pin F

Printer Host Printer Host

20 5

Appendix D

Appendix D: DocuPrint 4512 Unique Printer Commands ❖ D-1

DocuPrint 4512 Unique Printer

Commands AppendixD

DocuPrint 4512 Unique Printer Commands

D-2 ❖ DocuPrint 4512/4512N User Guide

In addition to the standard PCL printer commands, Xerox has added

some unique settings for the DocuPrint 4512 in the area of paper size.

Table D.1 shows the paper sizes and corresponding paper trays

supported by the DocuPrint 4512. An “X” indicates support for a paper

size in a specific tray. The escape sequence number refers to the “#”

parameter in the PCL Page Size command (Esc & | # A).

Table D.1 Paper size support

Paper Size

Escape

Sequence

Number

Paper Trays

Upper Tray

Lower Tray

High

Capacity

Feeder Envelope

Tray Manual

Feed

Executive 1 X X X

Letter 2 X X X

Legal (8.5 x 14”) 3 X X X

Folio (8.5 x 13”) 110 X X X

A4 26 X X X

A5 25 X X X

Envelopes

Monarch

Com10

Appendix E

Appendix E: Symbol Set Table ❖ E-1

Symbol Set Table AppendixE

Symbol Set Table

E-2 ❖ DocuPrint 4512/4512N User Guide

8U Roman-8 (R8)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

CAN

SUB

ESC

(

)

;

[

]

‘

{

}

NBS

–

•

–

■

0123456789ABCDEF

Symbol Set Table

Appendix E: Symbol Set Table ❖ E-3

7J DeskTop (DT)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

CAN

SUB

ESC

(

)

;

[

]

‘

{

}

NBS

†

‡

™

–

––

…

ﬁ

ﬂ

“

”

‰

•

●

–

‹

›

’

„

•

0123456789ABCDEF

Symbol Set Table

E-4 ❖ DocuPrint 4512/4512N User Guide

19U Windows 3.1 Latin 1 (W1)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

CAN

SUB

ESC

(

)

;

[

]

{

}

„

…

†

‡

‰

‹

‘

’

“

”

•

–

---

™

›

NBS

–

•

´´

0123456789ABCDEF

F¨

Symbol Set Table

Appendix E: Symbol Set Table ❖ E-5

ON ISO 8859/1 Latin 1 (E1)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

CAN

SUB

ESC

’

(

)

;

[

]

‘

{

}

NBS

–

•

´´

0123456789ABCDEF

Symbol Set Table

E-6 ❖ DocuPrint 4512/4512N User Guide

10U PC-8 Code Page 437 (PC)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

(

)

;

[

]

{

}

Ω

∞

≡

≥

≤

⌡

≈

•

⌡

0123456789ABCDEF

Symbol Set Table

Appendix E: Symbol Set Table ❖ E-7

12U PC-850 Multilingual (PM)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

(

)

;

[

]

{

}

–

•

0123456789ABCDEF

FNBS

Symbol Set Table

E-8 ❖ DocuPrint 4512/4512N User Guide

10J PS Text (TS)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

CAN

SUB

ESC

(

)

;

[

]

‘

{

}

NBS

“

‹

›

ﬁ

–

†

‡

•

„

”

…

‰

–

0123456789ABCDEF

Symbol Set Table

Appendix E: Symbol Set Table ❖ E-9

12J MC TEXT (MC)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

CAN

SUB

ESC

(

)

;

[

]

{

}

†

•

™

≠

∞

≤

≥

∂

∫

Ω

√

≈

…

NBS

‡

•

„

‰

–

“

”

‘

’

‹

›

ﬁ

ﬂ

0123456789ABCDEF

∇

Symbol Set Table

E-10 ❖ DocuPrint 4512/4512N User Guide

13J Ventura International (VI)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

CAN

SUB

ESC

(

)

;

[

]

‘

{

}

„

™

‹

›

‰

“

”

†

‡

––

–

•

…

0123456789ABCDEF

Symbol Set Table

Appendix E: Symbol Set Table ❖ E-11

11U PC-8 Danish/Norwegian (PD)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

(

)

;

[

]

{

}

’n

Ω

∞

≡

≥

≤

⌡

≈

•

√

⌡

NBS

0123456789ABCDEF

Symbol Set Table

E-12 ❖ DocuPrint 4512/4512N User Guide

14J Ventura US (VU)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

CAN

SUB

ESC

(

)

;

[

]

‘

{

}

„

™

‰

“

”

†

‡

––

–

•

…

0123456789ABCDEF

Symbol Set Table

Appendix E: Symbol Set Table ❖ E-13

1U Legal (LG)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

CAN

SUB

ESC

(

)

;

[

]

†

™

0123456789ABCDEF

Symbol Set Table

E-14 ❖ DocuPrint 4512/4512N User Guide

9U Windows 3.0 Latin 1 (WO)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

CAN

SUB

ESC

(

)

;

[

]

{

}

NBS

–

•

0123456789ABCDEF

Symbol Set Table

Appendix E: Symbol Set Table ❖ E-15

6J Microsoft Publishing (PB)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

CAN

SUB

ESC

”

’

†

–

…

0123456789ABCDEF

‘˚Ω

‡––

–

™

Thin

Space

“

ﬁ

ﬂ

fﬁ

fﬂ

‹

›

‰

ˇˇ

’n

„,

Symbol Set Table

E-16 ❖ DocuPrint 4512/4512N User Guide

17U PC-852 Latin 2 (PE)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

(

)

;

[

]

{

}

t’

–

d’

•

0123456789ABCDEF

´ˇ

˛´

’˛ˇ

’ˇ

´´

NBS

´´

Symbol Set Table

Appendix E: Symbol Set Table ❖ E-17

9T PC-Turkish (PT)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

(

)

;

[

]

{

}

Ω

∞

≡

≥

≤

⌡

≈

•

⌡

NBS

0123456789ABCDEF

Symbol Set Table

E-18 ❖ DocuPrint 4512/4512N User Guide

2N ISO 8859/2 Latin 2 (E2)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

CAN

SUB

ESC

(

)

;

[

]

{

}

0123456789ABCDEF

NBS

L’

l’

d’

t’

´´

Symbol Set Table

Appendix E: Symbol Set Table ❖ E-19

9E Windows 3.1 Latin 2 (WE)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

CAN

SUB

ESC

(

)

;

[

]

{

}

NBS

–

•

d’

0123456789ABCDEF

„

…

†

‡

‰

‹

‘

’

“

”

•

–

––

™

›

t’

L’

´´

l’

´´

Symbol Set Table

E-20 ❖ DocuPrint 4512/4512N User Guide

5N ISO 8859/9 Latin 5 (E5)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

CAN

SUB

ESC

(

)

;

[

]

{

}

NBS

•

0123456789ABCDEF

Symbol Set Table

Appendix E: Symbol Set Table ❖ E-21

5T Windows 3.1 Latin 5 (WT)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

CAN

SUB

ESC

(

)

;

[

]

{

}

NBS

•

0123456789ABCDEF

...

†

‡

‰

‹

‘

’

“

”

–

—

™

›

ˇˇ

Symbol Set Table

E-22 ❖ DocuPrint 4512/4512N User Guide

6M Ventura Math (VM)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

CAN

SUB

ESC

(

)

–

;

0123456789ABCDEF

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

)

∴

⊥

{

}

∼

≅◊

√











⇑

⇒

⇓

⌡





⊃



⊃

⊇



♣

⊕

⊗

∪



…



↵

≈

⊇

≤

♦

≥

∂

ℵ

′

ℜ

℘

∞

♠

∝

•

⁄

♥

↓

←



″



→

↑

≠

≡

↔



∫

⋅

∠





〉

∇











⇐

⇔

∨





∅

∩

∈



∉



〈

∇

Symbol Set Table

Appendix E: Symbol Set Table ❖ E-23

8M Math-8 (M8)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

CAN

SUB

ESC

0123456789ABCDEF

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

√

″

∞

∝

′

(

)

−

≈

∴

∆

Ω

∇

∂

≤

≠

≥

∼

≡

−

↑

→

↓

←

⇑

⇒

⇓

⇐

↔

⇔

↔⇔



∀

∃

⊥

∪

∩

∈

∉

⊃

⊇

⊥

∈

⊃

⊇

†

‡

∋

∫

∠

∅

ℵ

ℜ









⌡



∗

≅





〉

〈

Symbol Set Table

E-24 ❖ DocuPrint 4512/4512N User Guide

15U Pi Font (PI)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

CAN

SUB

ESC

0123456789ABCDEF

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

„

“

”

‘

’

〉

〈







↑

℘

Symbol Set Table

Appendix E: Symbol Set Table ❖ E-25

5M PS Math (MS)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

CAN

SUB

ESC

(

)

–

;

0123456789ABCDEF

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

≅

∆

Ω

[

∴

]

⊥

{

}

∼

′

≤

⁄

∞

♣

♦

♥

♠

↔

←

↑

→

↓

″

≥

∝

∂

•

≠

≡

≈

…



↵

ℵ

ℜ

℘

⊕

⊗

∅

∩

∪

⊃

⊇

⊃

⊇

∈

∉

∠

∇







∏

√

⋅

⇔

⇐

⇑

⇒

⇓

◊

〈





















〉

∫



⌡















Symbol Set Table

E-26 ❖ DocuPrint 4512/4512N User Guide

19M Symbol Font (AS)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

CAN

SUB

ESC

(

)

–

;

0123456789ABCDEF

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

≅

∆

Ω

[

∴

]

⊥

{

}

∼

′

≤

⁄

∞

♣

♦

♥

♠

↔

←

↑

→

↓

″

≥

∝

∂

•

≠

≡

≈

…



↵

ℵ

ℜ

℘

⊕

⊗

∅

∩

∪

⊃

⊇

⊃

⊇

∈

∉

∠

∇







∏

√

⋅

⇔

⇐

⇑

⇒

⇓

◊

〈





















〉

∫



⌡















Symbol Set Table

Appendix E: Symbol Set Table ❖ E-27

579L Wingdings Font (L$)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

NUL

SOH

STX

ETX

EOT

ENQ

ACK

BEL

DLE

DC1

DC2

DC3

DC4

NAK

SYN

ETB

CAN

SUB

ESC

0123456789ABCDEF

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

✍

✆

✍

✎

✌

✂

✁

☞

Symbol Set Table

E-28 ❖ DocuPrint 4512/4512N User Guide

ISO Substitution Table

ISO

Name

ASCII

United Kingdom

French

German

Italian

Swedish for Names

Spanish

Norwegian version 1

Decimal Character Equivalents

[

]

123

{

124

125

}

126

–

Appendix F

Appendix F: Environmental Specifications ❖ F-1

Environmental Specifications AppendixF

Environmental Specifications

F-2 ❖ DocuPrint 4512/4512N User Guide

The Xerox

Commitment to

Environmental

Quality

Xerox Corporation is committed to an international program to

safeguard our environment by diverting certain products and materials

from the solid waste stream. We do this by reusing serviceable

components and remanufacturing selected products.

To support this effort, we have made it easy for you to return selected

printer equipment and empty print cartridges to Xerox. We recondition

the print cartridges and refill them with Xerox toner and developer. All

products we manufacture meet our stringent performance standards.

The worldwide effort to remanufacture printer equipment and recall EP

(print) cartridges benefits the environment and conserves our natural

resources by reducing waste going into our landfills. Besides, it makes

good business sense for Xerox and Xerox customers. Please join us in

this effort.

Acoustic Noise

Figures

On Standby (ROS Pause): 44 dB(A)

Under Operation:

Continuous Sound: 52 dB(A)

Environmental Specifications

Appendix F: Environmental Specifications ❖ F-3

FCC Compliance

Statement for United

States Users

Class B:

This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

• Consult the dealer or an experienced radio/television technician for

help.

Shielded cables must be used with this equipment to maintain

compliance with FCC regulations.

Caution: Changes or modifications not expressly approved by Xerox

Corporation could void the user’s authority to operate the equipment.

Environmental Specifications

F-4 ❖ DocuPrint 4512/4512N User Guide

Compliance

Statement for

International Users

Canadian EME Regulations:

This digital apparatus does not exceed the Class B limits for radio noise

emissions from digital apparatus set out in the radio interference

regulations of the Canadian Department of Communications.

Cet appareil numérique est conforme aux limites d’émission de bruits

radioélectriques pour les appareils de Classe B stipulées dans le

Réglement sur le brouillage radioélectrique du Ministère des

Communications du Canada.

European EME Regulations:

“The CE marking applied to this product symbolizes Rank Xerox

Declaration of Conformity with the following applicable Directives of

the European Union as of the dates indicated:

January 1, 1995: - Council Directive 73/23/EEC amended by Council

Directive 93/68/EEC, approximation of the laws of the member states

related to low voltage equipment.

January 1, 1996: - Council Directive 89/336/EEC, approximation of the

laws of the member states related to electromagnetic compatibility.

A full declaration, defining the relevant Directives and referenced

standards can be obtained from your Rank Xerox representative.”

Environmental Specifications

Appendix F: Environmental Specifications ❖ F-5

Operational Safety Your Xerox equipment and supplies were designed and tested to meet

strict safety requirements. These include safety agency examination,

approval, and compliance with established environmental standards.

Attention to the following notes ensures the continued safe operation of

your equipment.

Always connect the equipment to a properly grounded power source

receptacle. If in doubt, have the receptacle checked by a qualified

electrician.

WARNING: Improper connection of the equipment grounding

conductor can result in electrical shock.

Always follow all warnings and instructions marked on, or supplied

with, the equipment.

Always locate the equipment on a solid support surface with adequate

strength for the weight of the machine.

Always exercise care in moving or relocating the equipment.

Always place the equipment in an area which provides adequate room

area for ventilation and servicing.

Always use the materials and supplies specifically designed for your

Xerox equipment. Use of unsuitable materials may result in poor

performance and, possibly, a hazardous situation.

Never use a ground adaptor plug to connect the equipment to a power

source receptacle that lacks a ground connection terminal.

Never attempt any maintenance function that is not specifically

described in this documentation.

Never obstruct ventilation openings. These are provided to prevent

overheating.

Never install the equipment near a radiator or any other heat source.

Never override or “cheat” electrical or mechanical interlock devices.

Never push objects of any kind into the ventilation openings.

Never operate the equipment if you notice unusual noises or odors.

Disconnect the power cord from the power source receptacle and

contact your dealer or Xerox / Rank Xerox to correct the problem.

Environmental Specifications

F-6 ❖ DocuPrint 4512/4512N User Guide

If you need any additional safety information concerning the equipment

or materials, contact your dealer or Xerox / Rank Xerox.

WARNING: Use of controls, adjustments, or performance of

procedures other than those specified herein may result in a hazardous

radiation exposure.

This product will produce less than 0.1 ppm ozone during normal

operation. The ozone produced is dependent on copy volume and is

heavier than air. Providing the proper environmental parameters as

specified by Xerox will ensure that concentration levels meet safe limits.

If additional information concerning ozone is needed, request the Xerox

publication (600P83222), “Ozone,” by calling in the USA

1-800-828-6571.

Environmental Specifications

Appendix F: Environmental Specifications ❖ F-7

Laser Safety WARNING: Use of controls or adjustments or performance of

procedures other than those specified herein may result in hazardous

light exposure.

This equipment complies with appropriate safety standards.

With specific regard to lasers, the equipment complies with laser

product performance standards set by governmental, national, and

international agencies as a Class 1 laser product. It does not emit

hazardous light as the beam is totally enclosed during all phases of

customer operation and maintenance.

When you perform various operator functions, laser danger labels may

be visible. These labels are for your dealer or service technician and are

placed on or near panels, or shields, which require a tool for removal.

THESE PANELS ARE NOT TO BE REMOVED BY USERS OF

THE PRINTER. THERE ARE NO USER SERVICEABLE AREAS

INSIDE THESE COVERS.

Laser Safety

Warning for Finland

and Sweden

Luokitus on tehty standardin EN 60825 mukaisesti

Klassningen är gjord i enlighet met standarden EN 60 825

LUOKAN 1 LASERLAITE

KLASS 1 LASER APPARAT

VA RO I T U S !

Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla

tavalla saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle

näkymättömälle lasersäteilylle.

VARNING!

Om apparaten används på annat sätt än i denna bruksansvisning

specficerats, kan användaren utsättas för osynlig laserstrålning, som

överskrider gränsen för laserklass 1.

F-8 ❖ DocuPrint 4512/4512N User Guide

Index ❖ IX-1

IndexIX

A4 message

On Control Panel display 6-15

Adv Fnctns item

Changing 3-12

Described 3-23

Advanced functions, see Adv Fnctns item

AppleTalk 1-4

AppleTalk/Serial Interface board

Installing B-8 to B-9

Auto message

On Control Panel display 6-15

Autofeed pickup area

Cleaning 7-10

Baud Rate item

Changing 3-13

Described 3-23

Bind item

Changing 3-9

Described 3-23

Examples 2-15

IX-2 ❖ DocuPrint 4512/4512N User Guide

Binding, see Bind option

Bitmap

Fonts 4-3

Cleaning Felt

Replacing 7-2, 7-5

Cleaning the printer 7-9 to 7-12

Config Menu 3-6, 3-11, 3-12, 3-13, 3-14, 3-15, 3-16, 3-17, 3-18, 3-19, 3-23, 3-24, 3-25

Config. Sheet item

Selecting 3-17

Configuration Sheet 1-5

Printing 3-17

Control Panel

Changing language displayed 3-16

Display 3-3

Indicator lights 3-3

Keys 3-4 to 3-5

Location of 1-3

Menu system 3-6

Purpose of 3-2

Control Panel messages 6-15 to 6-18

Controller board

Location of 1-3

Cooling fan outlet

Location of 1-3

Copies item

Changing 3-8

Described 3-23

Corotron cleaner

Location of 1-3

Using 7-10 to 7-12

Corotron wires

Cleaning 7-10 to 7-12

Main corotron 7-10 to 7-11

Transfer corotron 7-12

Cover Open message

On Control Panel display 6-15

Data Bit item

Changing 3-13

Described 3-23

: ❖ IX-3

Data Clear message

On Control Panel display 6-15

Data Loss Error message

On Control Panel display 6-15

Data Memory Full message

On Control Panel display 6-15

Demo Page Mode

Entering 3-21

DocuPrint 4512

Specifications C-2 to ??

Drum Near End message

On Control Panel display 6-15

DTR Polarity item

Changing 3-15

Described 3-23

Duplex item

Changing 3-8

Described 3-24

Duplex printing 1-4

Binding options 2-15

Manual paper feed 2-9

Paper tray loading 2-6

Emulation

Switching 1-4

Emulation item

Changing 3-10

Described 3-24

Envelope Tray

Adjusting 2-7

Installing B-12

Loading 2-7

Envelopes

Loading 2-7

Manual feeding 2-10

Specifications 2-3

Ethernet 1-4

Ethernet Interface board

Installing B-10 to B-11

EV message

On Control Panel display 6-16

IX-4 ❖ DocuPrint 4512/4512N User Guide

Font Number item

Changing 3-8, 4-6

Described 3-24

Fonts

Bitmap 4-3

Downloading 4-7

Intellifont 4-3

PostScript 4-4

TrueType 4-3

Front cover

Location of 1-3

Fuser cover

Location of 1-3

High Capacity Feeder connector

Location of 1-3

High Speed item

Changing 3-12

Described 3-24

I/F Board Error message

On Control Panel display 6-18

Intellifont

Fonts 4-3

Interface Error message

On Control Panel display 6-16

Job Menu 3-6, 3-9, 3-10, 3-11, 3-12, 3-13, 3-14, 3-15, 3-16, 3-17, 3-18, 3-19, 3-24, 3-25

Labels

Manual feeding 2-10

Specifications 2-3

LE message

On Control Panel display 6-16

LL message

On Control Panel display 6-16

Lower paper tray

Location of 1-3

: ❖ IX-5

Main corotron

Cleaning 7-10 to 7-11

Manual feed guide

Adjusting 2-8

Envelope feeding 2-10

Fitting 2-8

Label feeding 2-10

Location of 1-3

Paper feeding

Duplex 2-9

Simplex 2-9

Transparency feeding 2-11

Manual feed slot

Location of 1-3

Manual Set item

Changing 3-11

Described 3-24

Media

Specifications 2-3

Memory

Expanding 1-5

Installing B-3 to B-5

Requirements 1-7

Menu system 3-6

Message item

Changing 3-16

Described 3-24

Misc Menu 3-6, 3-15, 3-16, 3-24, 3-25

MultiGray enhancement 1-6

Output tray 2-13

Page P item

Changing 3-9

Described 3-24

Page protection, see Page P item

Paper

Specifications 2-3

Storage of 2-4

Paper Jam message

On Control Panel display 6-16

IX-6 ❖ DocuPrint 4512/4512N User Guide

Paper jams 6-19 to 6-21

Causes 6-19

Clearing 6-20 to 6-21

Locating 6-19

Paper Out Lower message

On Control Panel display 6-16

Paper Out message

On Control Panel display 6-16

Paper Out Upper message

On Control Panel display 6-16

Paper output tray

Location of 1-3

Paper trays

Adjusting 2-5

Duplex 2-6

Simplex 2-6

Location of 1-3

Overview 1-4

Tray switching 2-14

Parallel interface

Location of 1-3

Parity item

Changing 3-14

Described 3-25

Pause message

On Control Panel display 6-17

PCL 5e Demo Page 1-5

Printing 3-18, 3-21

PCL 5e Demo Page item

Selecting 3-18

PCL 5e emulation

Printer drivers 5-2

PCL 5e Font List 1-5

Printing 3-17, 4-5

PCL 5e Font List item

Selecting 3-17

PCL 5e message

On Control Panel display 6-17

PCL printer commands D-2

Photoconductor / Drum

Life of drum 7-6

Recycling 7-8

Replacing 7-6 to 7-8

: ❖ IX-7

PO message

On Control Panel display 6-17

PostScript

Fonts 4-4

Printer drivers 5-3

PostScript board

Installing B-6 to B-7

PostScript Demo Page, see PS2 Demo Page

PostScript Font List, see PS2 Font List

PostScript option, see PostScript board

Power cord connector

Location of 1-3

Power Saver Mode

Setting 3-20

Power Saver mode 1-6

Power saving 1-6

Power switch

Location of 1-3

Print density

Adjusting 2-12

Print density adjuster

Location of 1-3

Using 2-12

Printer drivers

PCL 5e emulation 5-2

PostScript 5-3

Printing Menu 3-6, 3-8, 3-9, 3-10, 3-11, 3-12, 3-13, 3-14, 3-15, 3-16, 3-17, 3-18, 3-19, 3-23, 3-24

Prt Screen item

Changing 3-15

Described 3-25

PS2 Demo Page

Printing 3-19, 3-21

PS2 Demo Page item

Selecting 3-19

PS2 Font List 1-5

Printing 3-18, 4-5

PS2 Font List item

Selecting 3-18

PS2 message

On Control Panel display 6-17

IX-8 ❖ DocuPrint 4512/4512N User Guide

RAM Error message

On Control Panel display 6-18

RAM&IFB Error message

On Control Panel display 6-18

Repl Drum message

On Control Panel display 6-17

Repl Drum&Toner message

On Control Panel display 6-17

Repl Toner message

On Control Panel display 6-17

Resolution item

Changing 3-9

Described 3-25

Robust XON item

Changing 3-14

Described 3-25

ROM Error message

On Control Panel display 6-18

ROM&IFB Error message

On Control Panel display 6-18

ROM&RAM Error message

On Control Panel display 6-18

ROM&RAM&IFB Err message

On Control Panel display 6-18

Self Test message

On Control Panel display 6-17

Serial Interface 1-4

Serial Menu 3-6, 3-13, 3-14, 3-15, 3-16, 3-17, 3-18, 3-19, 3-23, 3-25

Serial number

Location of 6-2

SIMMs, see Memory

St Saving item 1-5

Changing 3-10

Described 3-25

: ❖ IX-9

State saving, see St Saving item

Technical support 6-2

Test Menu 3-6, 3-15, 3-16, 3-17, 3-18, 3-19

Token Ring 1-4

Token Ring Interface board

Installing B-10 to B-11

Toner Cartridge

Life of cartridge 7-2

Recycling 7-5

Replacing 7-2 to 7-5

Toner density 2-12

Toner Low message

On Control Panel display 6-17

Top cover

Location of 1-3

Top cover release lever

Location of 1-3

Transfer corotron

Cleaning 7-12

Transparencies

Manual feeding 2-11

Specifications 2-3

Transporting the printer 7-13

Tray Extension

Inserting 2-13

Location of 1-3

Tray release buttons

Location of 1-3

Tray switching 2-14

Troubleshooting

Paper problems 6-7

PostScript printing errors 6-6

Power problems 6-3

Print character problems 6-7

Print data not received 6-3 to 6-4

Print quality problems 6-8 to 6-14

Print speed problems 6-7

Printing errors 6-5 to 6-6

TrueType

Fonts 4-3

IX-10 ❖ DocuPrint 4512/4512N User Guide

Upper paper tray

Location of 1-3

Warn Msg item

Changing 3-11

Described 3-25

Warning message, see Warn Msg item

Xerox Font Manager 4-2

Xerox Docuprint 4512 Users Manual 4512N Network Laser Printer Set Up Guide

4512 to the manual 4860caf9-1b6c-4ae6-9474-ee67b39babe0

Navigation menu

Versions of this User Manual:

Views

Navigation
