Xiamen Haiwell Technology C7-W Human Machine Interface User Manual
Xiamen Haiwell Technology Co., Ltd. Human Machine Interface
User Manual
Haiwell

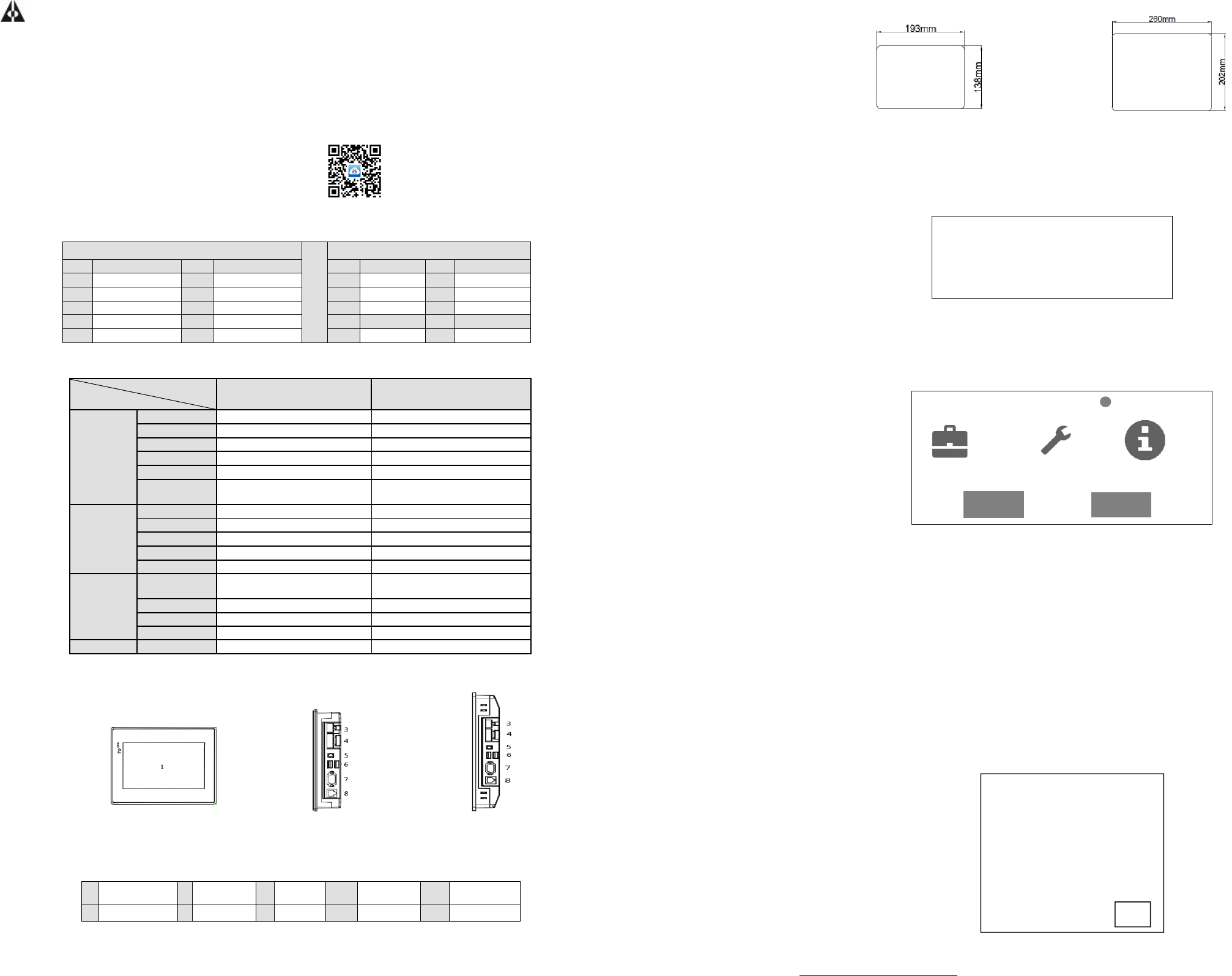

Haiwell C7-w/C10-w HMI Operation Manual
1、The notes and installation steps for Haiwell HMI
Notes:
·Installation direction must be in accordance with the requirement of this manual, the wiring should be in strict accordance with the guide of the terminal mark, otherwise it will cause product damage or burn up.
·There should be sufficient space and distance between the products and other devices to avoid damage to the equipment caused by poor heat dissipation.
Installation steps：
·Fit the HMI into the cutout panel and lock the four buckles on the sides with the mount panel.
2、Haiwell HMI software
·Haiwell HMI uses the Haiwell scada software.You can download from haiwell official web：en.haiwell.com.
·Haiwell Cloud Service can be got by visiting haiwell cloud web （http://cloud.haiwell.com）We recommend you to use haiwell cloud APP.
·Haiwell Cloud APP download ways:
（1）login in haiwell cloud web
（2）Scan the two-dimension code in the right
（3）Search "Haiwell cloud" in the IOS Iphone APP store
3、The interface definition of Haiwell HMI
C7/C10 HMI interface definition
4、Product specifications
5、The parts and panel cutout of Haiwell HMI
C7/C10 HMI parts description
6、HMI calibration
HMI is calibrated at the factory. If you need to recalibrate, enter the parameter setting interface, select "Hardware Setup> Display&Voice> Touch Calibration", the following interface will appear:
Click the upper left corner, the upper right corner, the lower right corner, the lower left corner, the center point of the '+' in turn, you can restart.
七、参数设置
7、Parameter setting
Hold down the upper right corner of the screen for about 5-10 seconds, the following screen appears:
Select the hardware settings, enter the parameters settings screen of touch-screen, you can set the network parameters, display and sound parameters, time parameters, etc., after the
modification, click“Save”to take effect immediately.
8、Warnings in the instructions
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
9、FCC electronic label operating instructions
First step: Press the upper right corner of the screen about 10s,the device will enter the system setting interface;
Second step: Click 'Ssystem Imformation' to enter the system information display interface;
Third step:Click 'FCC' and popup the FCC electronic tag;
Thank you for choosing Haiwell HMI. Please let us know if you have any questions or shortcomings about our products or services.
Haiwell company website：http://www.haiwell.com or http://www.haiwell.cn Copyright © 2017 Xiamen Haiwell Technology Co.,Ltd V1.0
COM1 interface definition
COM2 interface definition
Pin
Definition
Pin
Definition
Pin
Definition
Pin
Definition
1
RS422 TX+/RS485 A+
2
RS232 RXD
1
RS232 RXD
2
RS232 TXD
3
RS232 TXD
4
CANL
3
GND
4
RS485 B-
5
GND
6
RS422 TX-/RS485 B-
5
RS485 A+
7
CANH
8
RS422 RX-
9
RS422 RX+
Model
Contents
C7-w HMI C10-w HMI
Power
Input power
24VDC±20%
24VDC ±20%
Power consumption
5W
9W
Power isolation
Built-in
Built-in
resistance
Isolation
resistance
Exceed 500MΩ@500VDC
Exceed 500MΩ@500VDC
Vibration
endurance
10～25HZ (X、Y、Z direction 2G/30
minutes)
10～25HZ (X、Y、Z direction 2G/30
minutes)
Environment
Cooling type
Ventilation cooling
Ventilation cooling
Protection
structure
IP65
IP65
Storage
temperature
-20～70℃
-20～70℃
Operating
temperature
-10～60℃
-10～60℃
Relative humidity
10～90%RH（non-condensing）
10～90%RH（non-condensing）
Specification
Enclosure
Engineering Plastic ABS
（Flame-retardant level）
Engineering Plastic ABS
（Flame-retardant level）
Dimensions
200×146×37mm
270×212×35mm
Panel cutout
193×138mm
260×202mm
Weight
0.74kg
1.2kg
Certification
CE certification
Comply with CE certification standard
Comply with CE certification standard
1
Liquid crystal and
touch screen
2
Indicator light
3
Power slot
4
COM2
5
Wifi
6
Double-deck USB
7
COM1
8
LAN
Haiwell HMI
Touch crosshair to calibrate
Simplified Chinese
Project Setting Hardware Setting System Information
C7-w/C10-w HMI
C10-w HMI
C7-w HMI
C10-w panel cutout
C7-w panel cutout
Back
Cloud
Local Project, Network Project
Network settings, Display&Voice, Time Settings,
Machine, Application
FCC ID:2AOJ6-C7-W
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:(1) this device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
close
