Xiamen Intretech LS0001 Honeybee User Manual Honeybee instuction

Xiamen Intretech Inc. Honeybee Honeybee instuction

Users Manual

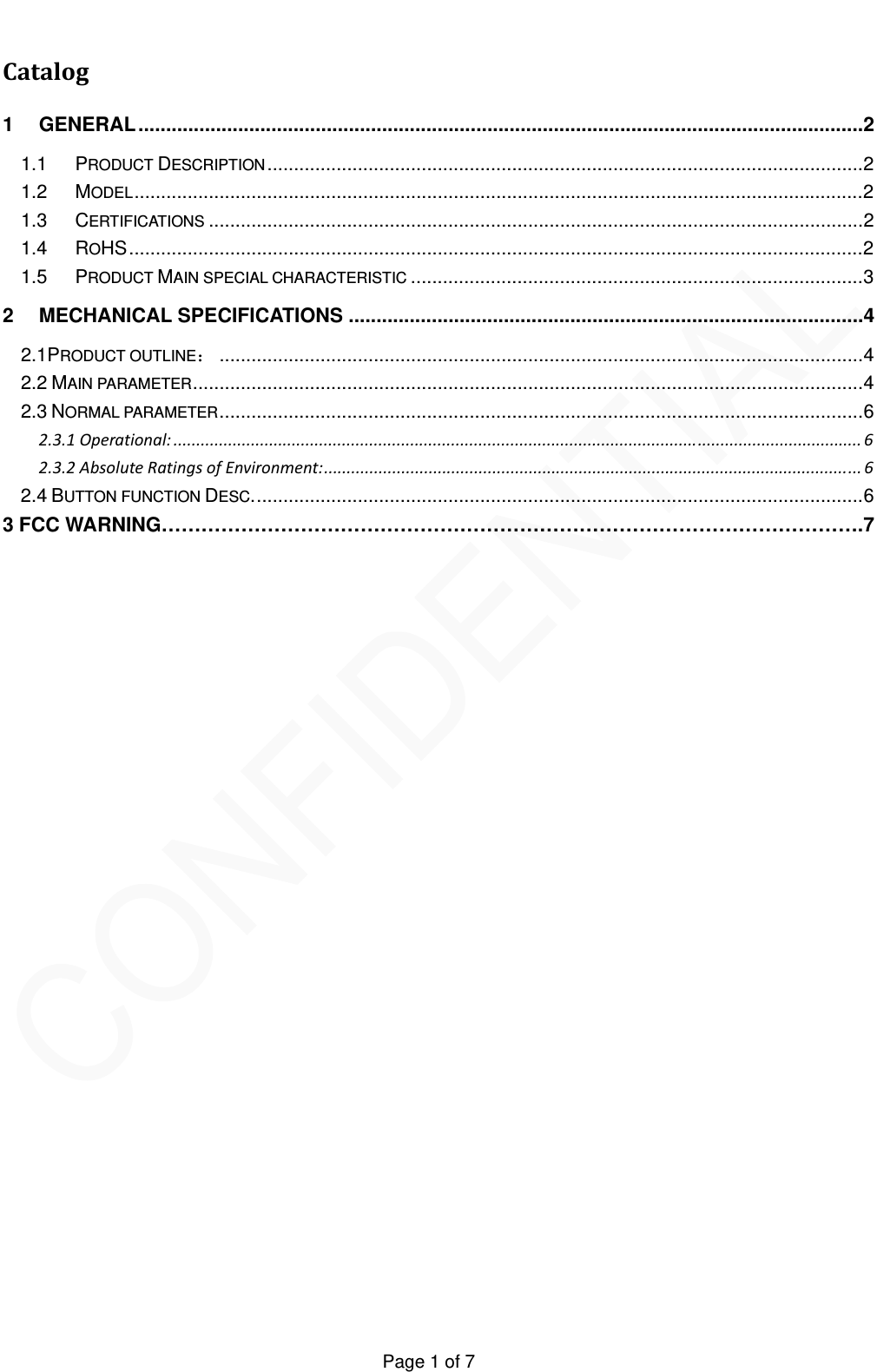

Page 1 of 7 Catalog1GENERAL...................................................................................................................................21.1PRODUCT DESCRIPTION ................................................................................................................21.2MODEL.........................................................................................................................................21.3CERTIFICATIONS ...........................................................................................................................21.4ROHS..........................................................................................................................................21.5PRODUCT MAIN SPECIAL CHARACTERISTIC .....................................................................................32MECHANICAL SPECIFICATIONS .............................................................................................42.1PRODUCT OUTLINE：.........................................................................................................................42.2 MAIN PARAMETER..............................................................................................................................42.3 NORMAL PARAMETER.........................................................................................................................62.3.1Operational: ....................................................................................................................................................... 62.3.2AbsoluteRatingsofEnvironment:...................................................................................................................... 62.4 BUTTON FUNCTION DESC...................................................................................................................63 FCC WARNING…………………………………………………………………………………………….7

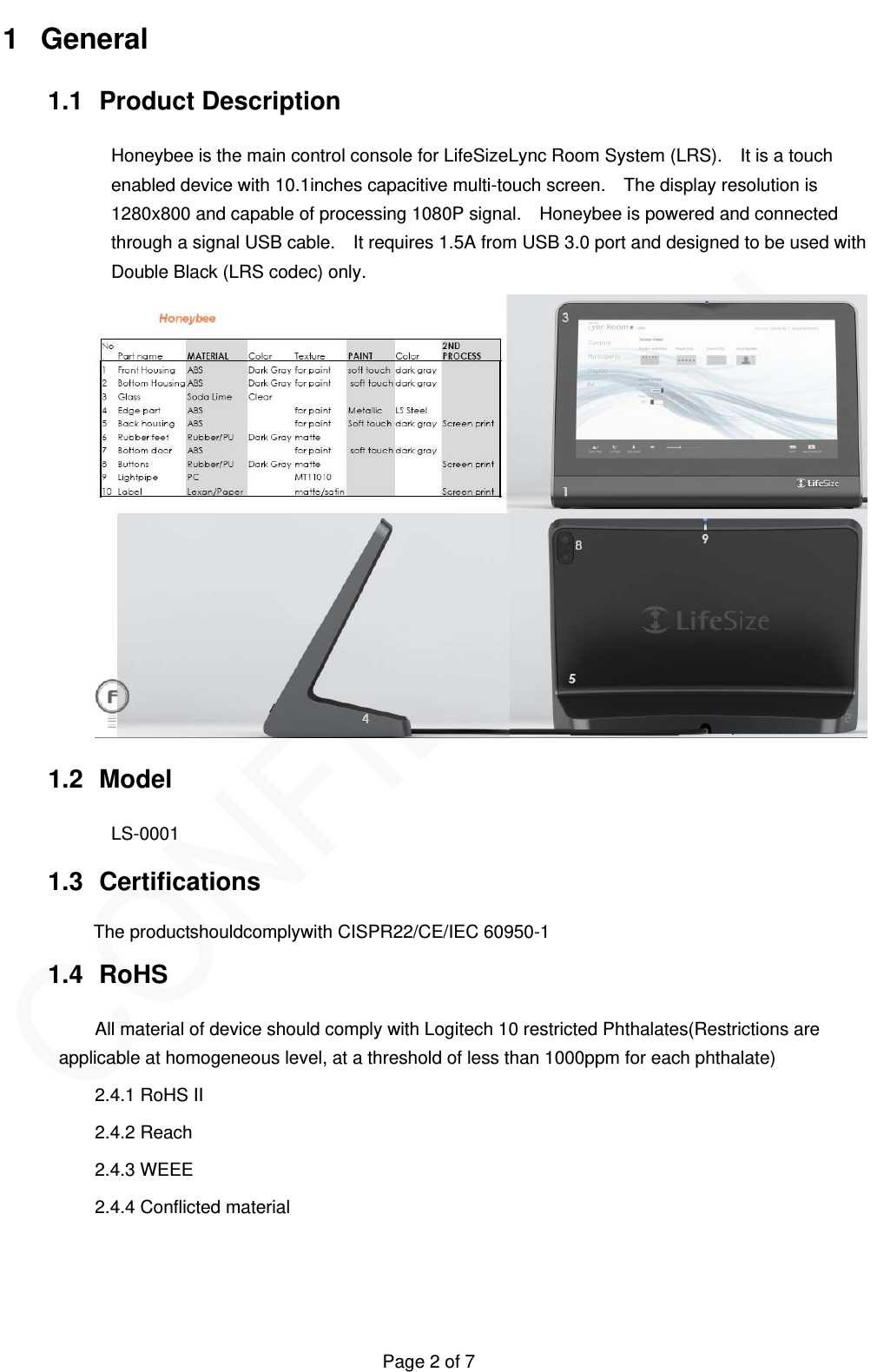

Page 2 of 7 1 General 1.1 Product Description Honeybee is the main control console for LifeSizeLync Room System (LRS). It is a touch enabled device with 10.1inches capacitive multi-touch screen. The display resolution is 1280x800 and capable of processing 1080P signal. Honeybee is powered and connected through a signal USB cable. It requires 1.5A from USB 3.0 port and designed to be used with Double Black (LRS codec) only. 1.2 Model LS-0001 1.3 Certifications The productshouldcomplywith CISPR22/CE/IEC 60950-1 1.4 RoHS All material of device should comply with Logitech 10 restricted Phthalates(Restrictions are applicable at homogeneous level, at a threshold of less than 1000ppm for each phthalate) 2.4.1 RoHS II 2.4.2 Reach 2.4.3 WEEE 2.4.4 Conflicted material

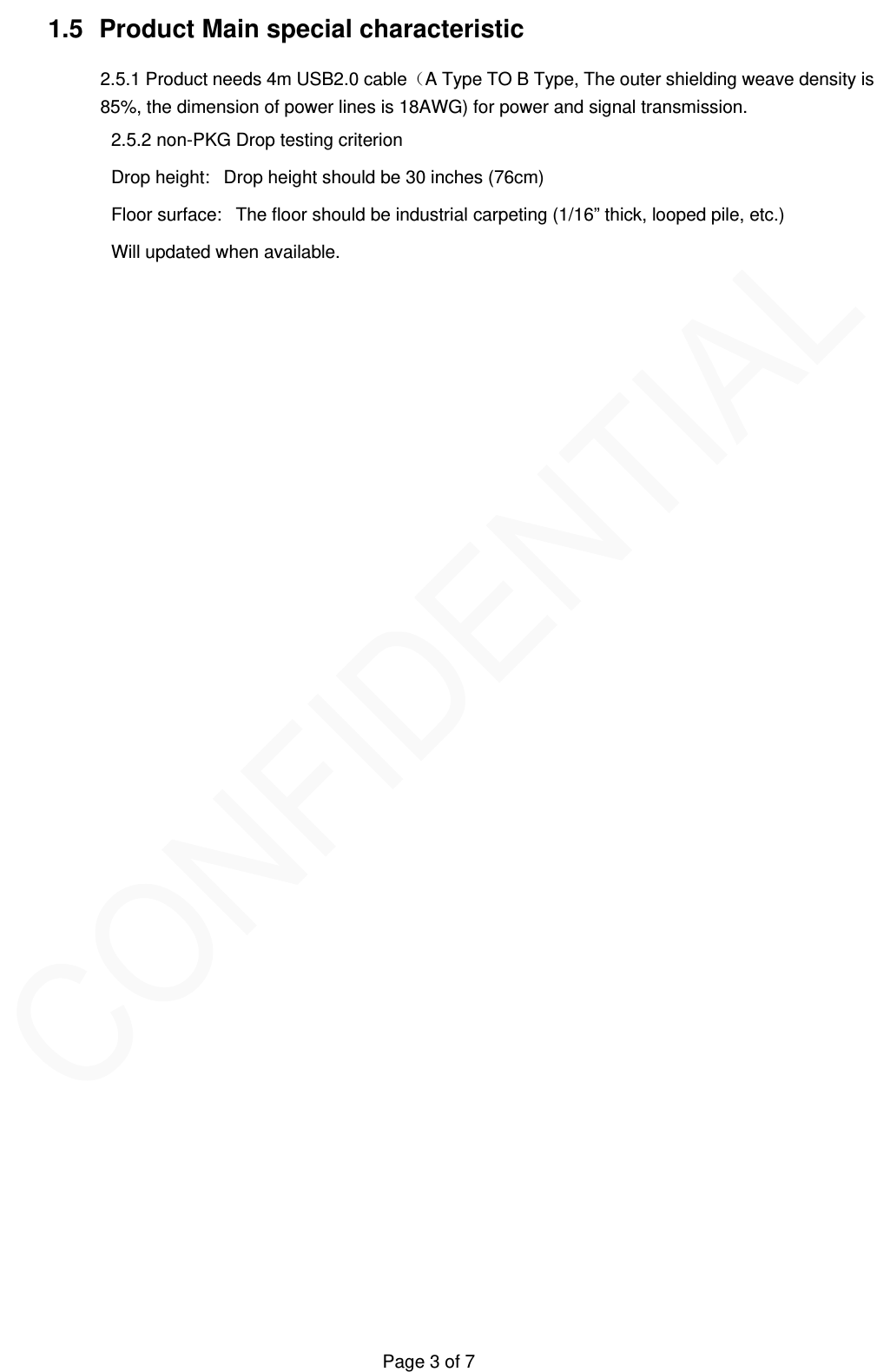

Page 3 of 7 1.5 Product Main special characteristic 2.5.1 Product needs 4m USB2.0 cableA Type TO B Type, The outer shielding weave density is 85%, the dimension of power lines is 18AWG) for power and signal transmission. 2.5.2 non-PKG Drop testing criterion Drop height: Drop height should be 30 inches (76cm) Floor surface: The floor should be industrial carpeting (1/16” thick, looped pile, etc.) Will updated when available.

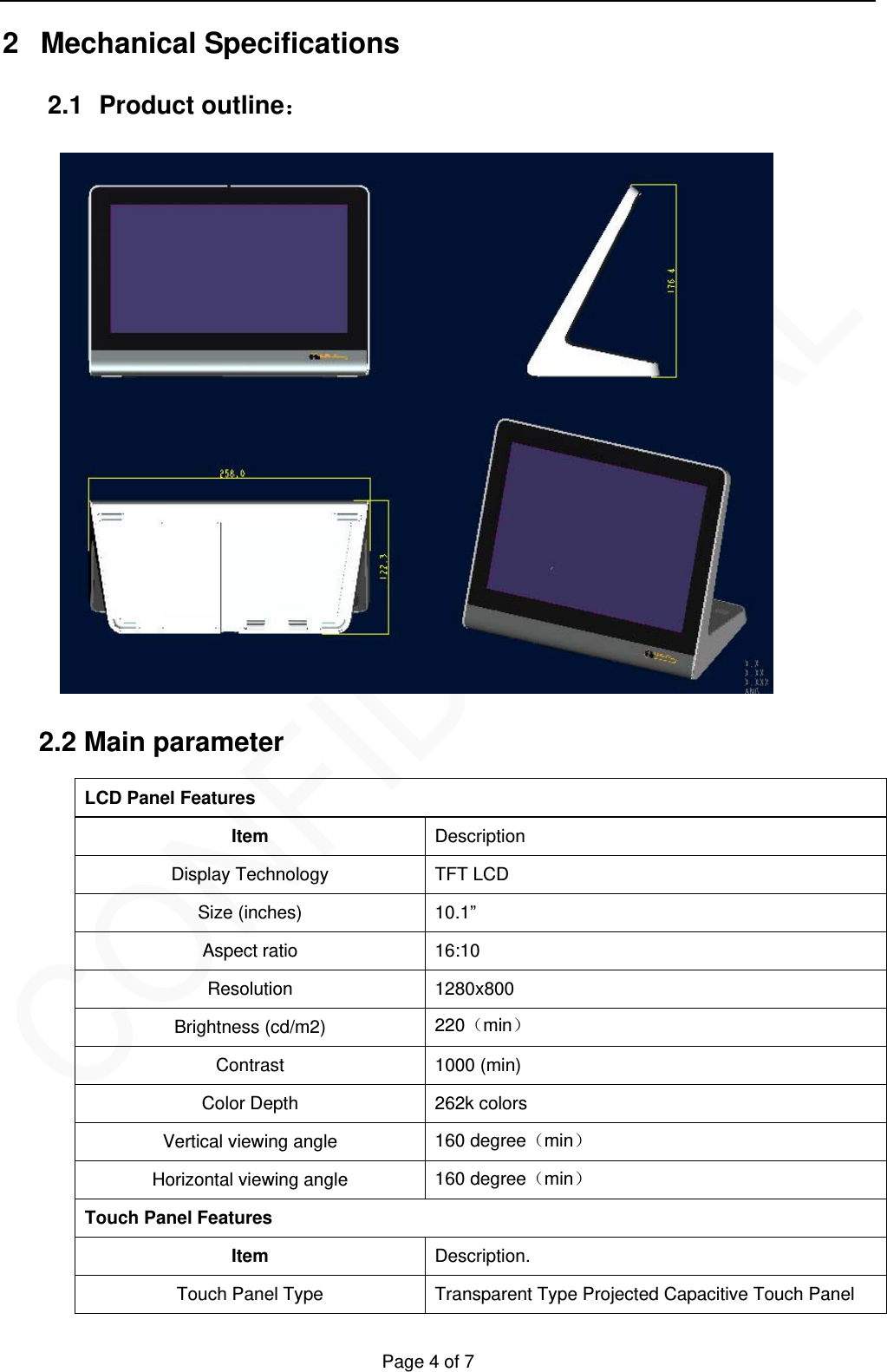

Page 4 of 7 2 Mechanical Specifications 2.1 Product outline： 2.2 Main parameter LCD Panel Features Item Description Display Technology TFT LCD Size (inches) 10.1” Aspect ratio 16:10 Resolution 1280x800 Brightness (cd/m2) 220min Contrast 1000 (min) Color Depth 262k colors Vertical viewing angle 160 degreemin Horizontal viewing angle 160 degreemin Touch Panel Features Item Description. Touch Panel Type Transparent Type Projected Capacitive Touch Panel

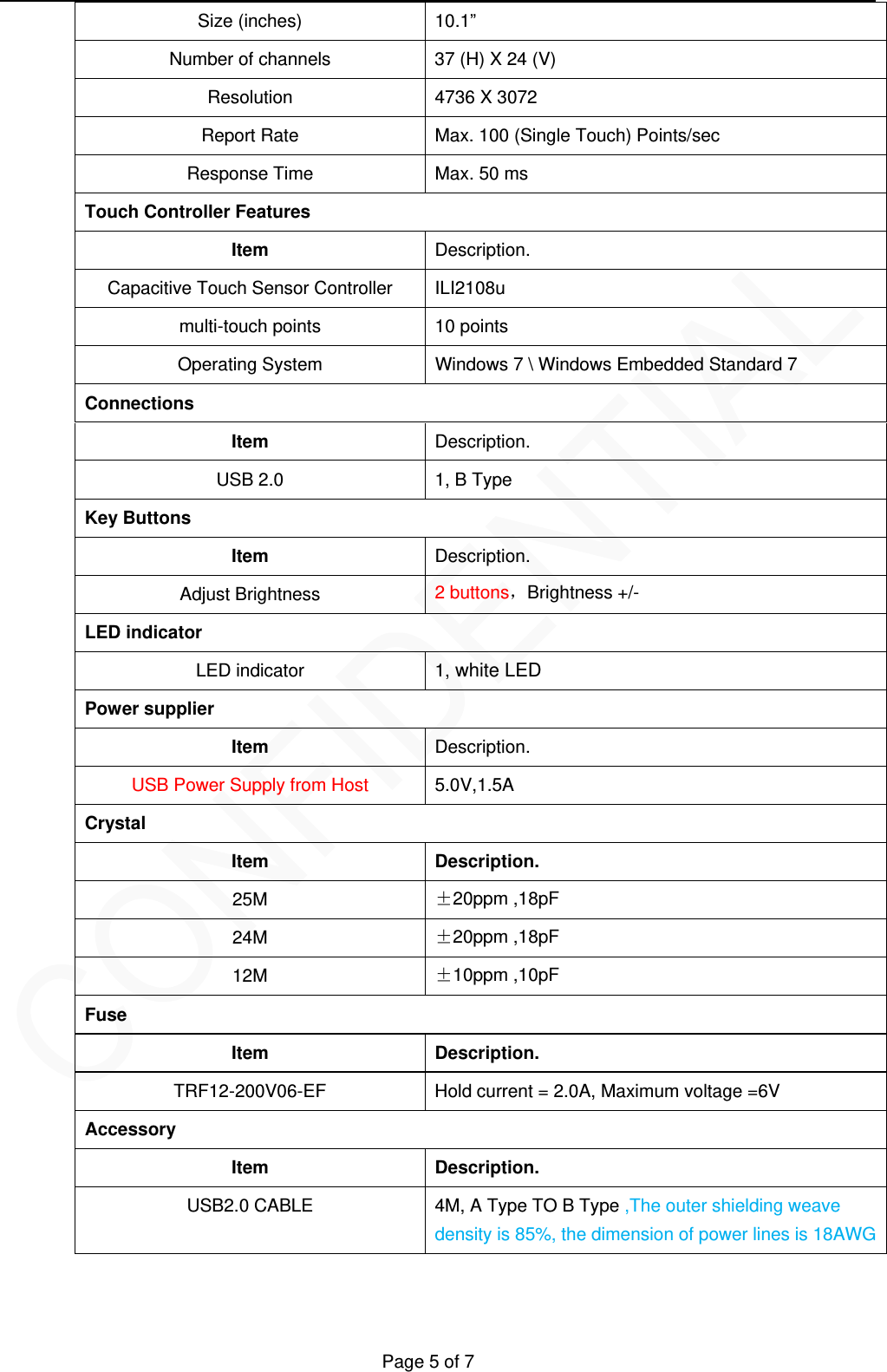

Page 5 of 7 Size (inches) 10.1” Number of channels 37 (H) X 24 (V) Resolution 4736 X 3072 Report Rate Max. 100 (Single Touch) Points/sec Response Time Max. 50 ms Touch Controller Features Item Description. Capacitive Touch Sensor Controller ILI2108u multi-touch points 10 points Operating System Windows 7 \ Windows Embedded Standard 7 Connections Item Description. USB 2.0 1, B Type Key Buttons Item Description. Adjust Brightness 2 buttons，Brightness +/- LED indicator LED indicator 1, white LED Power supplier Item Description. USB Power Supply from Host 5.0V,1.5A Crystal Item Description. 25M ±20ppm ,18pF 24M ±20ppm ,18pF 12M ±10ppm ,10pF Fuse Item Description. TRF12-200V06-EF Hold current = 2.0A, Maximum voltage =6V Accessory Item Description. USB2.0 CABLE 4M, A Type TO B Type ,The outer shielding weave density is 85%, the dimension of power lines is 18AWG

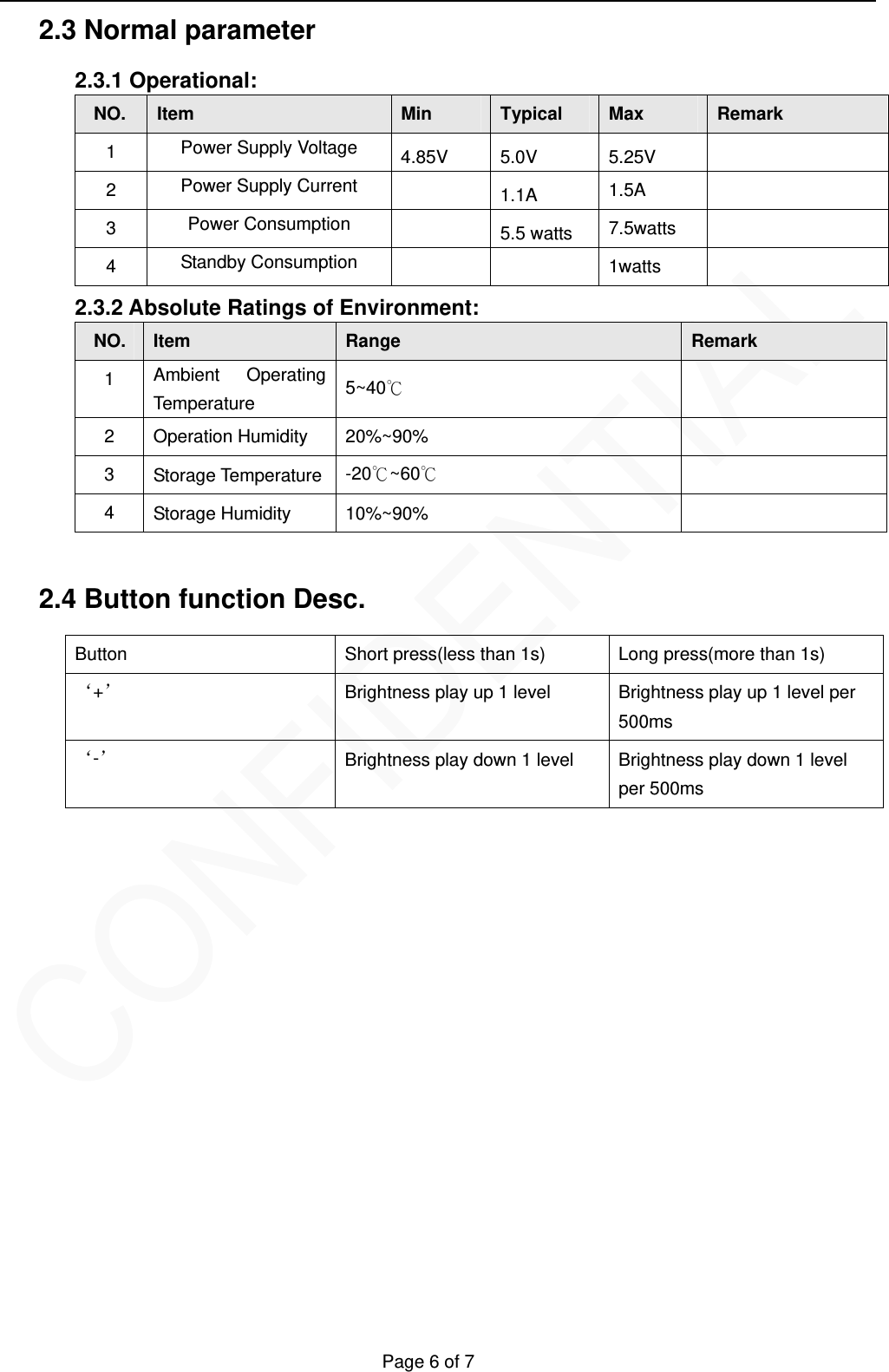

Page 6 of 7 2.3 Normal parameter 2.3.1 Operational: NO. Item Min Typical Max Remark 1 Power Supply Voltage 4.85V 5.0V 5.25V 2 Power Supply Current 1.1A 1.5A 3 Power Consumption 5.5 watts 7.5watts 4 Standby Consumption 1watts 2.3.2 Absolute Ratings of Environment: NO. Item Range Remark 1 Ambient Operating Temperature 5~40℃ 2 Operation Humidity 20%~90% 3 Storage Temperature -20℃~60℃ 4 Storage Humidity 10%~90% 2.4 Button function Desc. Button Short press(less than 1s) Long press(more than 1s) ‘+’ Brightness play up 1 level Brightness play up 1 level per 500ms ‘-’ Brightness play down 1 level Brightness play down 1 level per 500ms

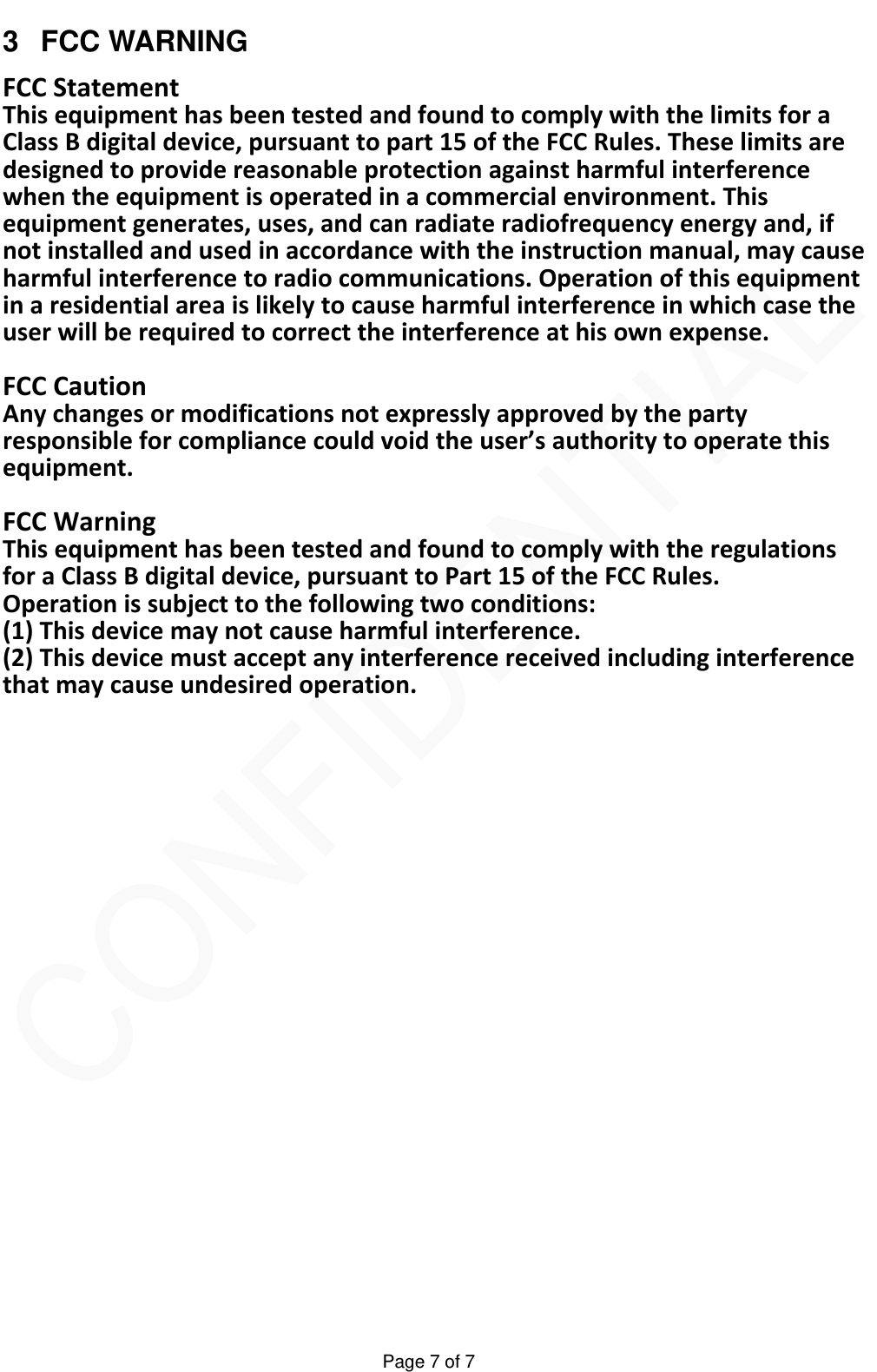

Page 7 of 7 3 FCC WARNING FCCStatementThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferencewhentheequipmentisoperatedinacommercialenvironment.Thisequipmentgenerates,uses,andcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructionmanual,maycauseharmfulinterferencetoradiocommunications.Operationofthisequipmentinaresidentialareaislikelytocauseharmfulinterferenceinwhichcasetheuserwillberequiredtocorrecttheinterferenceathisownexpense.FCCCautionAnychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatethisequipment.FCCWarningThisequipmenthasbeentestedandfoundtocomplywiththeregulationsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference.(2)Thisdevicemustacceptanyinterferencereceivedincludinginterferencethatmaycauseundesiredoperation.
