1 General

1.1 Product Description

Honeybee is the main control console for LifeSizeLync Room System (LRS). It is a touch

enabled device with 10.1inches capacitive multi-touch screen. The display resolution is

1280x800 and capable of processing 1080P signal. Honeybee is powered and connected

through a signal USB cable. It requires 1.5A from USB 3.0 port and designed to be used with

Double Black (LRS codec) only.

1.2 Model

LS-0001

1.3 Certifications

The productshouldcomplywith CISPR22/CE/IEC 60950-1

1.4 RoHS

All material of device should comply with Logitech 10 restricted Phthalates(Restrictions are

applicable at homogeneous level, at a threshold of less than 1000ppm for each phthalate)

2.4.1 RoHS II

2.4.2 Reach

2.4.3 WEEE

2.4.4 Conflicted material

Page 3 of 7

1.5 Product Main special characteristic

2.5.1 Product needs 4m USB2.0 cableA Type TO B Type, The outer shielding weave density is

85%, the dimension of power lines is 18AWG) for power and signal transmission.

2.5.2 non-PKG Drop testing criterion

Drop height: Drop height should be 30 inches (76cm)

Floor surface: The floor should be industrial carpeting (1/16” thick, looped pile, etc.)

Will updated when available.

Page 4 of 7

2 Mechanical Specifications

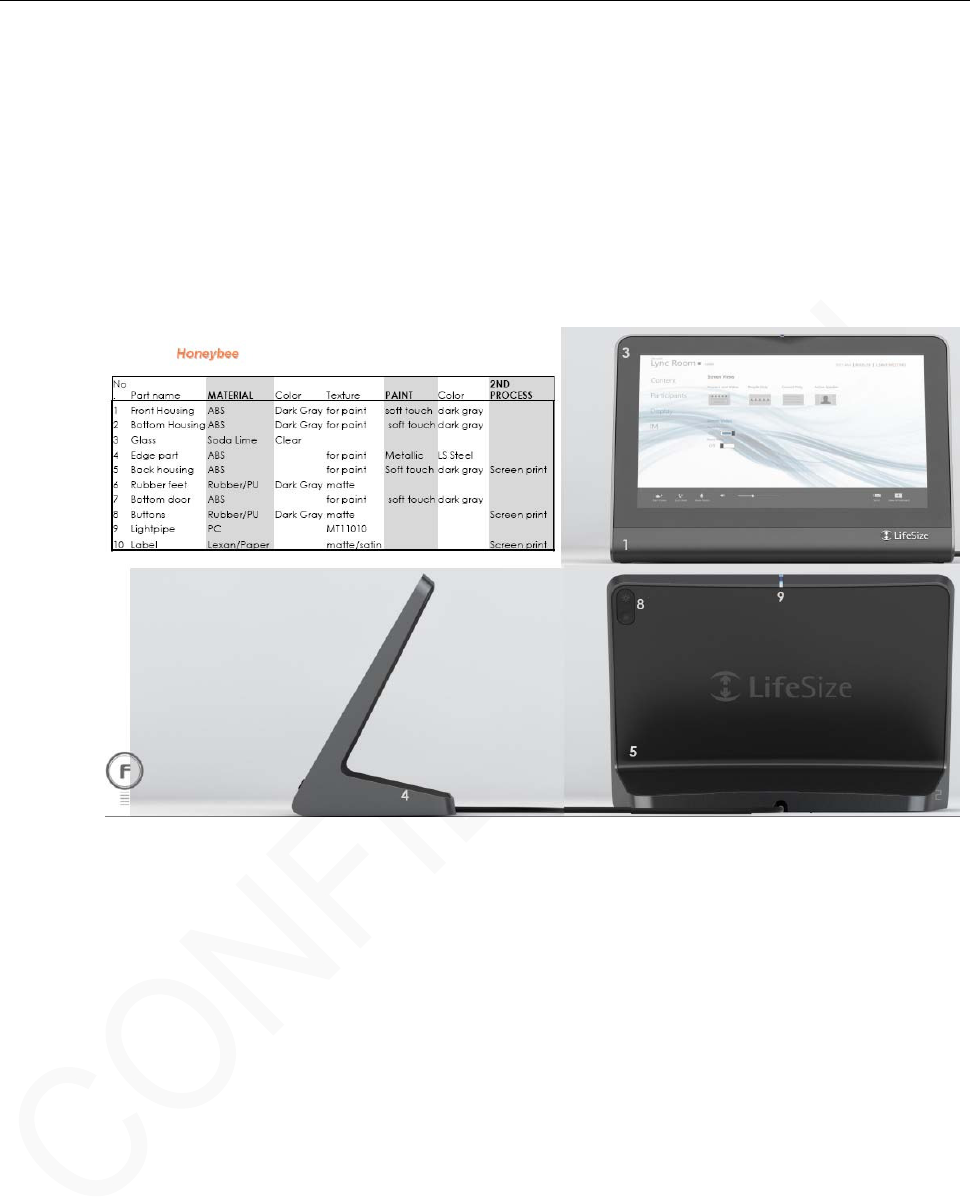

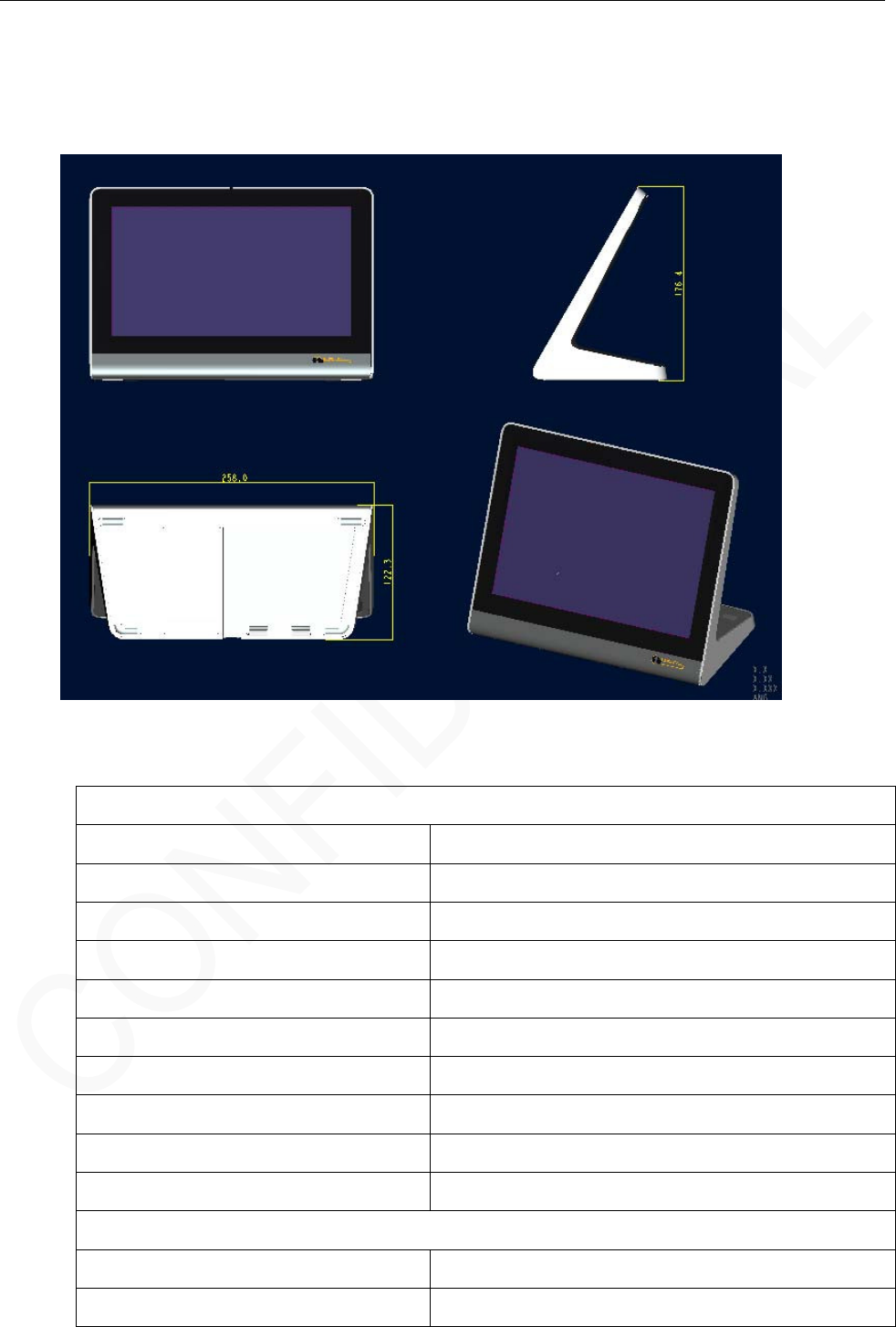

2.1 Product outline：

2.2 Main parameter

LCD Panel Features

Item Description

Display Technology TFT LCD

Size (inches) 10.1”

Aspect ratio 16:10

Resolution 1280x800

Brightness (cd/m2) 220min

Contrast 1000 (min)

Color Depth 262k colors

Vertical viewing angle 160 degreemin

Horizontal viewing angle 160 degreemin

Touch Panel Features

Item Description.

Touch Panel Type Transparent Type Projected Capacitive Touch Panel

Page 5 of 7

Size (inches) 10.1”

Number of channels 37 (H) X 24 (V)

Resolution 4736 X 3072

Report Rate Max. 100 (Single Touch) Points/sec

Response Time Max. 50 ms

Touch Controller Features

Item Description.

Capacitive Touch Sensor Controller ILI2108u

multi-touch points 10 points

Operating System Windows 7 \ Windows Embedded Standard 7

Connections

Item Description.

USB 2.0 1, B Type

Key Buttons

Item Description.

Adjust Brightness 2 buttons，Brightness +/-

LED indicator

LED indicator 1, white LED

Power supplier

Item Description.

USB Power Supply from Host 5.0V,1.5A

Crystal

Item Description.

25M ±20ppm ,18pF

24M ±20ppm ,18pF

12M ±10ppm ,10pF

Fuse

Item Description.

TRF12-200V06-EF Hold current = 2.0A, Maximum voltage =6V

Accessory

Item Description.

USB2.0 CABLE 4M, A Type TO B Type ,The outer shielding weave

density is 85%, the dimension of power lines is 18AWG

Page 6 of 7

2.3 Normal parameter

2.3.1 Operational:

NO. Item Min Typical Max Remark

1 Power Supply Voltage 4.85V 5.0V 5.25V

2 Power Supply Current 1.1A 1.5A

3 Power Consumption 5.5 watts 7.5watts

4 Standby Consumption 1watts

2.3.2 Absolute Ratings of Environment:

NO. Item Range Remark

1 Ambient Operating

Temperature 5~40℃

2 Operation Humidity 20%~90%

3 Storage Temperature -20℃~60℃

4 Storage Humidity 10%~90%

2.4 Button function Desc.

Button Short press(less than 1s) Long press(more than 1s)

‘+’ Brightness play up 1 level Brightness play up 1 level per

500ms

‘-’ Brightness play down 1 level Brightness play down 1 level

per 500ms

Page 7 of 7

3 FCC WARNING

FCCStatement

Thisequipmenthasbeentestedandfoundtocomplywiththelimitsfora

ClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsare

designedtoprovidereasonableprotectionagainstharmfulinterference

whentheequipmentisoperatedinacommercialenvironment.This

equipmentgenerates,uses,andcanradiateradiofrequencyenergyand,if

notinstalledandusedinaccordancewiththeinstructionmanual,maycause

harmfulinterferencetoradiocommunications.Operationofthisequipment

inaresidentialareaislikelytocauseharmfulinterferenceinwhichcasethe

userwillberequiredtocorrecttheinterferenceathisownexpense.



FCCCaution

Anychangesormodificationsnotexpresslyapprovedbytheparty

responsibleforcompliancecouldvoidtheuser’sauthoritytooperatethis

equipment.



FCCWarning

Thisequipmenthasbeentestedandfoundtocomplywiththeregulations

foraClassBdigitaldevice,pursuanttoPart15oftheFCCRules.

Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference.

(2)Thisdevicemustacceptanyinterferencereceivedincludinginterference

thatmaycauseundesiredoperation.
