Xiamen PRT Technology SCBM4A Bluetooth Module User Manual
Xiamen PRT Technology Co., Ltd Bluetooth Module
User manual
Page1 of 11
The User Manual Of
Bluetooth Module SCBM4A
Rev. 3.1(April 2014)
Page2 of 11
Contents
1. Device Features ........................................................................................................... 3
2. Applications ................................................................................................................3
3. General Description.................................................................................................... 3
4ˊ Key Features ................................................................................................................. 4
5. Block Diagram ............................................................................................................4
6. Electrical Characteristic ..............................................................................................5
Absolute Maximum ratings ............................................................................................ 5
Recommend operation conditions .................................................................................. 5
Power Consumption ....................................................................................................... 5
7. Mechanical Dimensions ............................................................................................... 6
8. Pin Definition Descriptions ......................................................................................... 7
9. Reference Application Schematic ...............................................................................9
10. RF Test Report............................................................................................................ 10
11. Reference SMT Reflow Profile ................................................................................. 14
Reliability solder temperature chart ..............................................................................14
Reflow temperature chart .............................................................................................. 14
Page3 of 11
1. Device Features
Bluetooth spec V2.1+EDR compliant
Enhanced data rate (EDR) compliant with V2.0.E.2 of specification for both 2Mbps and
3Mbps modulation modes
Class 2 type output power
Full Speed bluetooth operation with full piconet support
Scatternet support
Low power 3.3V operation
Minimum external components
USB, UART, SPI, PCM interface
Support for 8Mbit external flash onboard
Support for 802.11co-existence
RoHS compliant
2. Applications
Bluetooth carkit
PCs
Personal digital assistants(PDAs)
Computer accessories(compact Flash Cards, PCMCIA Cards, SD Cards and USB Dongles)
Acess points
Digital cameras
3. General Description
SCBM4A is a class 2 bluetooth module using BlueCore4 chipset from leading Bluetooth chipset
supplier cambridge silicon radio.
SCBM4A interfaces up to 8Mbit of 16-bit external flash memory.When used with the CSR bluetooth
software stack, it provides a bluetooth specification V2.1+EDR fully compliant system for data and
voice communications.
Page4 of 11
4. Key Features
Operating frequency band 2.402GHz -2.480GHz ISM band
Bluetooth specification V2.1+EDR
Theoretical range in open field Bluetooth class II
Main chip CSR BC417143
Transmitter power +4dBm (Typical)
Receive sensitivity -82dB at 0.1% BER (Typical)
Antenna Interior
Antenna impedance 50Ω
Power supply 3.3V
Flash memory size 8Mbit
Audio interface PCM and analog interface
Dimension 26.9mm(L) * 13.0mm(W) * 2.2 mm(H)
Page5 of 11
5. Electrical Characteristic
Absolute Maximum ratings
Rating Minimum Maximum
Store temperature -40℃ +100℃
Operation temperature -30℃ +85℃
Power Supply, 3.3V(PIN12) -0.4V +3.7V
Recommend operation conditions
Rating Minimum Type Maximum
Store temperature -30℃ +20℃ +85℃
Operation temperature -20℃ +20℃ +70℃
Power Supply, 3.3V(PIN12) 3.0V 3.3V 3.6V
GPIO logic level low 0V
0.825V
GPIO logic level high 2.07V
3.3V
Power Consumption
Typical Average Current Consumption
mode Average Current unit
SCO Connection HV3( Master)
20.3
mA
SCO Connection HV3(slave)
24.8
mA
SCO Connection HV1(Master or slave) 39.2 mA
ACL Data Transfer 115.2Kbps UART no traffic(Master)
4.6 mA
ACL Data Transfer 115.2Kbps UART no traffic(Slave) 17.0 mA
ACLWith file transfer (Master) 10.3 mA
ACLWith file transfer (Slave) 24.7 mA
Page scan 0.42 mA
Standby mode 40 uA
Page6 of 11
NO
PIN NAME NO
PIN NAME
1 UART-TX 18
SPI-MISO
2 UART-RX 19
SPI-CLK
3 UART-CTS 20
USB D+
4 UART-RTS 21
GND
5 PCM-CLK 22
GND
6 PCM-OUT 23
PIO(0)
7 PCM-IN 24
PIO(1)
8 PCM-SYNC 25
PIO (2)
9 AIO(0) 26
PIO(3)
10
AIO(1) 27
PIO(4)
11
RESET 28
PIO(5)
12
3.3V 29
PIO(6)
13
GND 30
PIO(7)
14
GND 31
PIO(8)
15
USB D- 32
PIO(9)
16
SPI-CSB 33
PIO(10)
17
SPI-MOSI 34
PIO(11)
26 . 9 m m

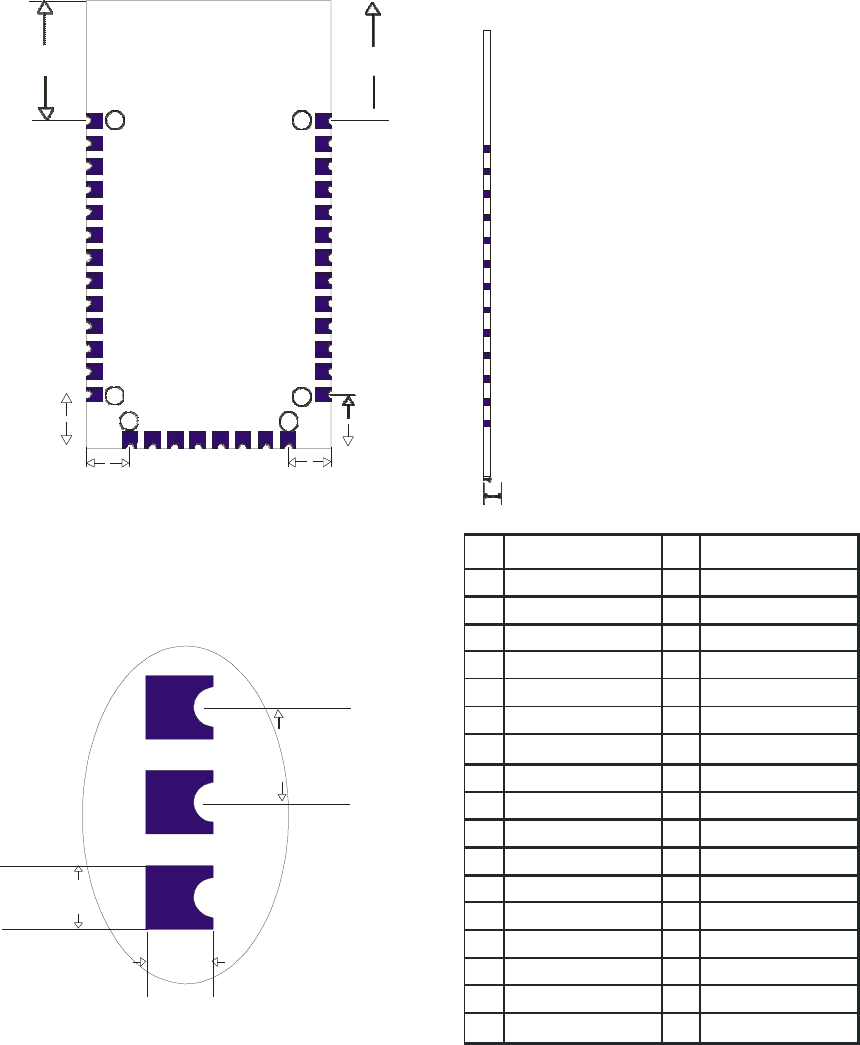

6. Mechanical Dimensions
13mm
7.
1mm
7. 1mm
1
34
TOP VIEW
13
22
1.
8mm 14 21
1.
8mm
1.
25mm
1.
25mm
0. 8mm
2. 2mm
1. 5mm
1mm
0. 9mm
BOT VIEW
Page7 of 11
7. Pin Definition Descriptions
Pin
NO.
Pin Name
Pin Descriptions
1
UART _TX
UART data output active high
2
UART _RX
UART data input active high
3
UART _CTS
UART clear to send active low
4
UART _RTS
UART request to send active low
5
PCM_CLK
Synchronous data clock, with weak internal pull-down
6
PCM_OUT
Synchronous data output, with weak internal pull-down
7
PCM_IN
Synchronous data input, with weak internal pull-down
8
PCM_SYNC
Synchronous data sync, with weak internal pull-down
9
AIO0
Programmable input/output line
10
AIO1
Programmable input/output line
11
RESETB Reset if low. Input debounced so must be low for >5ms to cause a
reset.
12
3.3V
Power supply voltage 3.3V
13
GND
Power ground
14
GND
Power ground
15
USB_N
Blue USB data minus
16
SPI_CSB
Chip select for serial peripheral interface, active low
17
SPI_MOSI
Serial peripheral interface data input
Page8 of 11
18
SPI_MISO
Serial peripheral interface data output
19
SPI_CLK
Serial peripheral interface clock
20
USB_P
Blue USB data plus with selectable internal 1.5KΩ pull-up resistor
21
GND
Power ground
22
GND
Power ground
23
PIO0
Programmable input/output line
24
PIO1
Programmable input/output line
25
PIO2
Programmable input/output line
26
PIO3
Programmable input/output line
27
PIO4
Programmable input/output line
28
PIO5
Programmable input/output line
29
PIO6
Programmable input/output line
30
PIO7
Programmable input/output line
31
PIO8
Programmable input/output line
32
PIO9
Programmable input/output line
33
PIO10
Programmable input/output line
34
PIO11
Programmable input/output line
Page9 of 11
D
N
G
2
G N D
U SB_ D -
SP I _
CS
B
SP I _ MO SI
SP I _ MISO
SP I _ C L K
U SB_ D +
G N D

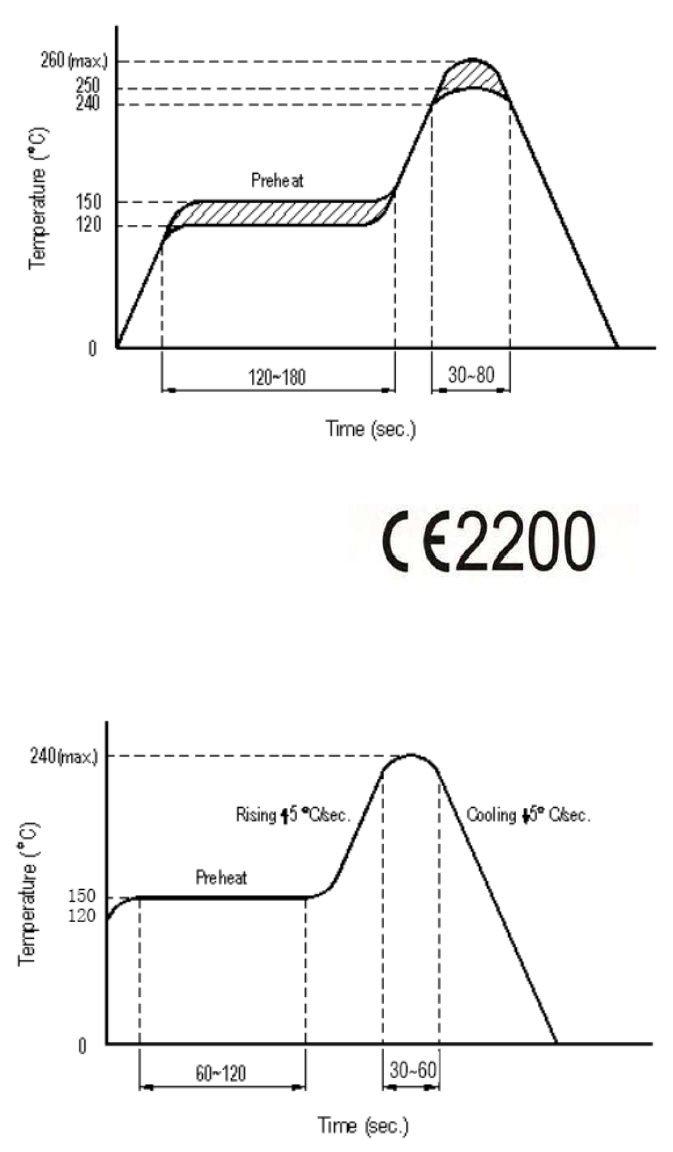

8. Reference SMT Reflow Profile
Reliability solder temperature chart:
Reflow temperature chart
Page10 of 11
Page11 of 11
Warnings:
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must
accept any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Modular Radiation Exposure Statement：
The antenna(s) used for this transmitter must be installed to provide a separation distance of
at least 20 cm from all persons and must not be co-located or operating in conjunction with
any other antenna or transmitter, except in accordance with FCC multi-transmitter product
procedures. OEM and installers must be provided with antenna installation instructions and
transmitter operating conditions for satisfying RF exposure compliance.
Page12 of 11
Single limited modular statement:
1.This LMA does not have RF shielding and is tested and approved as standalone
configuration, additional evaluation may be required for any system integrated
this radio module.
2.The modular transmitter doesn’t have its own power supply regulation,
it’s provided by host.
9.This module need to be soldered mounting in Printer main PCB according to module circuit
diagram。
10. If the label of the module is not visible on the final device, the final device should contain the
following text: "Contains FCC ID: Z5GSCBM4A”
