Welcome to use Bluetooth hands-free car kit
C926 car kit is specially designed for using in a car which offers safe
and convenient way while making or answering a call. C926 is a wireless
device that can be also used at home or in the office. the surrounding noise
can be reduced while communicating because of high-powered circuit
design and free-echo, it makes the voice more clear, loud and vivid. The
characteristic appearance and constitution design would not need installing,
it lets your hands free and easy to communicate, moreover, it is more safe
while you are driving and communicating.
Please read this manual carefully before using, also read the
manual of your mobile phone which offers important safe and
maintenance information.
30

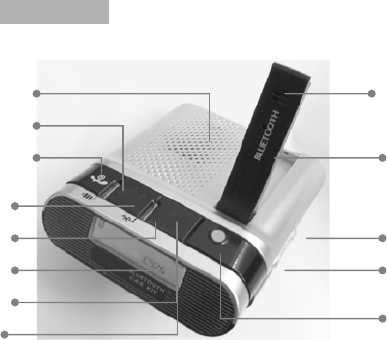

Illustration
Mi
c
r
op
h
o
n
e
speaker
Multi-function key/ hang up
charging indicator
Screen
Inversion show
/DOWN key
power indicate sign
Microphone rocker
indicator
switch/ UP key
S
tat
e
in
d
i
c
at
o
r volume down
volume up
answer key / volume
control /re-dial
31
Introduction
First time to use
1.For the first time you use the car kit with the mobile phone together, you
should make sure:
The car kit has been charged for 4 hours.
The car kit has been turned on.
The function of Bluetooth has been turned on.
The car kit has been paired with the mobile phone, (please see the 37th
page for reference)
Pairing with the car kit
Once the device has been turned on and in the available range for the
mobile phone, it can be connected to the mobile phone automatically after
pairing.
32
Charging
z When to charge
1.Before using the Bluetooth car kit for the first time, please
charge more than 4 hours.
2.While communicating, if you hear the fast warming tone
sounds 5 times and repeats every 20 seconds, it means your
device need charging.
Note: When the battery is fully charged, it offers:
* Talking time: about 8 hours
* Standby time: about 200 hours
33
z How to charge
1.Turn off the power
2.When you are in the car, you can use the original USB car charger to
charge the device.
*.Charge it until the red indicator of the car kit goes out.
*.Fully charged will cost about 3-4 hours.
Tip: Without using the device in a car, you can charge the device with
these two ways below:
1. Use the suitable wall charger to charge the device (Standard
DC5V/500mA charger which sells in the market)
2. Use the original USB cable to charge it by computer.
Note：①.Do not dispose of the battery into fire in case of explosion.
②.Please charge the device at proper time when you haven’t
used it for a long time, in case that the discharge would
shorten the using time of the battery.
34
How to turn on/off the Bluetooth hands-free
car kit
Turn on the car kit
Hold the Multi-function key for about 5 seconds, the blue indicator
will flash rapidly for three times , when you hear “Di” from the speaker,
the screen will be bright and shows “C926”,it means the power has been
turned on, it will come into the pairing mode and search the paired device.
Turn off the car kit
Hold the Multi-function key until the screen shows “GOOD BYE”,
then release it, the background light will go out, it shows that the power
has been turned off.
35
Pair with the mobile phone
Note：You should pair the Bluetooth hands-free car kit with the mobile
phone before using.
(“Pairing” creates a link between Bluetooth devices, and allows the
mobile phone to store the car kit’s unique ID. When your car kit
and Mobile phone are paired, the car kit automatically connects to
your phone.)
36
Pairing:
Steps
B:The blue indicator flashes rapidly for 6 times
A: Hold this key more than 5 seconds
pairing distance should
not over 1M
37
Pair with one mobile phone：
1、Place the car kit and the mobile phone together, when the car kit from
off state, hold the Multi-function key until the blue indicator keep showing
and after hear a “di” sound from the speaker , the car kit will come into the
pair mode.
2、Startup the searching function of your mobile phone, about this function,
please see the user manual of Mobile phone for reference, after searching,
the mobile phone shows all the devices that have been searched.
3、Select the logo C926 from the devices list and confirm following the on
screen prompts.
4,When prompted by the phone, enter the password 0000 and confirm to
pair the car kit with the mobile phone. The device ID will be stored in the
phone’s memory. While the car kit shows “Pair OK” means they have been
paired successfully.
38
Pair with two mobile phones：
This device can be paired with two mobile phones, the one which incomes
the call first, it will use the car kit first. The second mobile phone can be
paired with the same way as the first one, just repeat the steps like the
pairing way of the first one is available.
Import note：1. After pairing successfully, the indicator flashes every 3 seconds.
If it fails, please pair again.
39
Pair with additional Bluetooth wireless
device
1. The car kit can store pairing information for up to eight devices through
Bluetooth technology. Devices are stored in a “Paired Device List” in order.
When an attempt to pair with more than eight devices, the initial paired
device will be removed from the list.
2. Any of the eight paired devices can initiate a connection to the car kit.
3. The car kit will only automatically initiate a connection with the last two
paired devices. If you want to connect the car kit with other device in the
paired device list. You must initiate the connection from that device.
Whichever of the eight devices initiates a connection to the car kit lately,
that device then becomes the “last connected” device.
40
Using the Bluetooth car kit
Note：If you haven’t paired your car kit with the mobile phone within 10
minutes, your car kit will be turned off automatically to save power.
Making a call
You can use the mobile phone or the voice to dial the number，then use the
Bluetooth hands-free car kit to re-dial easily.
Tip：After pairing with two mobile phones, when one mobile phone is
working, the other one attempt to join the operation(such as incoming call,
press keys, answer a call ),The car kit will disconnect with the second one,
and the screen shows “Lost Connect”, while the previous mobile phone
hangs up，The disconnected mobile phone will be connected automatically.
41
Use the mobile phone to make a call
You can dial a number by the keyboard or the address list of the mobile
phone.
Voice dialing
Note：Please startup voice dialing function and record voice order before
activating it, you can view the using guide of the mobile phone for
reference.
1.Press the volume control key, the screen will show “Voice Dial”.
2.After hearing the sound, activate voice dialing by normal way.
42
Re-dial
1. Press keys of the mobile phone or activate voice dialing, then you can
use the car kit to re-dial easily.
2.Hold the re-dial key for 2 seconds until the screen shows “Redial Last”,
then you can re-dial the number.
Answer or reject a call
1.Press the answer key to pick up a call after it rings.
2.Press the Multi-function key to reject a call after it rings.
43
Turn on/off the microphone
When you are on a call, lay down the microphone rocker, then the screen
shows “MIC MUTE” means the microphone has been turned off. At this
moment, the other person can not hear your voice. If you want to come
back to the communication state, open up the microphone rocker, then the
screen shows “MIC RELEASE” means you can go on to communicate,
and the other person can hear you.
Over the conversation
Just press the End key to over the conversation.
Adjust the volume
Press the Volume control key to increase or decrease volume during
communication.
44
Check the power
At the top right corner, there is a prompt sign shows battery power, when
it shows no power, please charge in time, or the device will be turned off
automatically.
Drive at night
You’d better turn off the state indicator in case the flashing light affect
your attention while driving at night.
Press the indicator switch key to change the display state and turn on/off
the indicator. When the screen shows ”LED DISABLE” means the
indicator is turned off, When the screen shows ”LED ENABLE” means
the indicator is turned on.
Inversion display function
The display direction is different as different placement, according to your
requirement, you can press the inversion display key to change the visual
angle, 180 degree will be overturned.
45
Check the telephone number
Note：This function is up to the relative function of your mobile phone,
some mobile phones do not support this function, it means they are not
compatible with the car kit, but not that the device doesn’t work.
1：Check the answered call
After connecting the mobile phone with the car kit ，Press the
Multi-function key and then press the UP or DOWN key ,until the screen
shows “Received Num”, press the Multi-function key again, the screen
shows the last answered number, you can search all the answered call by
pressing UP or Down key.
2：Check the dialed number
After connecting the mobile phone with the car kit ，Press the
Multi-function key and then press the UP or DOWN key ,until the screen
shows“Dialed Num”, press the Multi-function key again, the screen
shows the last dialed number, you can search all the dialed call by pressing
UP or Down key.
46
3：Check the missed number
After connecting the mobile phone with the car kit ，Press the
Multi-function key and then press the UP or DOWN key , until the screen
shows“Missed Num”, press the Multi-function key again, the screen
shows the last missed number.
4：Re-dial the checked telephone number
You can press the answer key to re-dial the number which has been
checked by these three ways above.
5：Exit number checking state
After connecting the mobile phone with the car kit ，Press the
Multi-function key 3 times then the screen shows “Quit” , it exit number
checking state after several seconds.
47

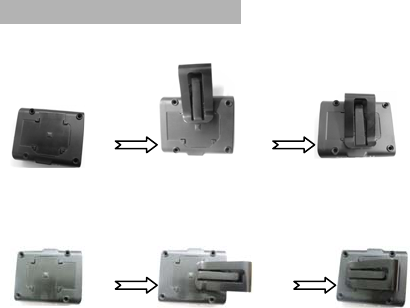

Assemble the backside clip
Way 1:
Way 2:
Fit the Bluetooth hands-free car kit to the sun visor
48
You can fit the car kit to the front or side of the sun visor, but you
should make sure the microphone towards to your face. Firstly, you can
clip the car kit to sun visor firmly, then unfold the microphone rocker until
the screen shows “MIC RELEASE”. Pay attention to the position of the
screen and the sight for the driver, it is important for checking the
incoming call.
Note：Make sure the car kit has been fitted to the sun visor correctly to
avoid affect the driver’s sight. For the suggestion of emplace the car kit,
please contact with the car manufacturer.
Steps
1. Slip the clip to the slot of the bottom housing as the way mentioned
above if you need.
2. Clip the car kit to the sun visor over your head.
3. Make the microphone of the car kit towards to the direction of your
mouth.
49
Note：If the disconnection always happens (for example: out of service),
the car kit will try to connect again, please do the pair operation if
necessary.
Using guide for earphone-line
Sometimes you want to keep your conversation secret, you can use the
original afforded outer earphone, when the earphone is plugged in, the
hands-free speaker mutes automatically.
50
Bluetooth hands-free car kit indicator
With charger plug in：
Red light on Charging in progress
Red light off Charging completes
Without charger plug in:
No light on Power off
Blue light flashes rapidly for 3 times Paired successfully
Blue light flashes every 3 seconds（Rapidly
flash for 0.1 seconds 6 times then off ）
Standby
(without pairing)
Blue light flashes every 3 seconds（on for
0.5 seconds，off for 2.5seconds）
Standby
(after pairing)
Blue light flashes every 3 seconds（on for 1
second, off for 2 seconds connecting（on a call）
51
Troubleshooting
● While charging, if the red indicator off, please check whether the
charger connects well, or the battery power is full or not.
If the Bluetooth hands-free car kit can not be connected with the
mobile phone. Please do as following:
1. Make sure the car kit has been turned on and paired with the
mobile phone.
2. Make sure the Bluetooth function has been startup.
3. Check that whether the distance between the car kit and the mobile
phone over 10M, or there are some stumbling block like wall or other
electronic equipments.
4. The paired Bluetooth list may be full of messages. One Bluetooth
hands-free car kit can be linked up (or "paired") with up to 8 devices.
Please pair the car kit again when the paired list is full.
5. If the car kit can not be connected with the selected mobile phone
or lately used Bluetooth device automatically. Please use the charger to
plug in again or turn off the power and pair it again.
52
Echo:
1. Adjust the angle of the Microphone rocker.
2. Try your best to make the car kit close to your mouth.
3. Reduce the surrounding noise, such as close the car window or turn
down the volume of the car kit sound.
4. If you place the car kit on the instrument, please make it steady. A
rubbery pad can be placed between the car kit and the instrument
panel to make better effect.
5. The worse signal and communication environment will also cause
echo.
53
Care and Maintenance
Your Bluetooth hands-free car kit is a product of superior design and
craftsmanship that should be treated with care. The suggestions below
will be helpful for your warranty coverage.
● Keep all accessories out of the place that can be reached by little
children.
● Keep the device dry. Rain water、humidity and all types of liquid or
moisture may contain minerals that will corrode electronic circuits, if your
car kit does get wet, please use it after completely air it.
●Do not use or store the device in dusty、dirty areas. Its moving parts
and electronic components will be damaged.
●Do not store the device in the area which is too hot, high
temperature will shorten the using time of electronic devices, damage
batteries, and warp or melt certain plastics.
54
●Do not store the device in the area which is too cold, when the
device returns to its normal temperature, moisture will be formed inside
the device and damage the electronic circuit board.
●Do not attempt to drop 、knock or shake the device, Rough handling
will damage the inside circuit board and the precise structure.
●Do not use the harsh chemicals、cleaning solvents or strong
detergents to clean the device.
●Do not paint the device, painting may clog the moving parts and
prevent proper operation.
All the above suggestions are also suit for your Bluetooth hands-free
car kit battery、charger, or any spare part. If any device doesn’t work
properly, take it to the nearest authorized service institution for service.
55
Warning:
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Changes or modifications to this unit not expressly approved by the
party responsible for compliance will void the user’s authority to
operate the equipment. Any change to the equipment will void FCC grant.
This equipment has been tested and found to comply with the limits
for a Class B digital device,pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed
used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
The equipment compliance with FCC radiation exposure limit set forth for
uncontrolled Environment
